Model Image
Manufacturer

Whirlpool

Model Number

KEYE665BWH2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP691581 WP691581 ACTUATOR, SWITCH
350956 350956 ALMOND
WP72107 WP72107 ALMOND
978883 978883 ALMOND (UNCUT)
WP692490 WP692490 BAFFLE, DRUM (WIDE)
WP3403636 WP3403636 BAFFLE-DRM
WP348780 WP348780 BASE, MOTOR
341241 341241 BELT, DRIVE
279320 279320 BLOCK-TERM
3400500 3400500 BOLT, 5/16-18 X 3/4
WP8541818 WP8541818 BOX, HEATER
W11684613 W11684613 BRACKET
8054298 8054298 BRACKET, CONTROL
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
W11035878 W11035878 BRNG&SEAL
279799 279799 BULKHEAD
WP17258 WP17258 BUMPER
238614 238614 BUMPER AND ISOLATION
WP694419 WP694419 BUZZER
3406813 3406813 CABINET
3406812 3406812 CABINET
3360568 3360568 CAP, END (R.H.)
W11117429 W11117429 CHUTE
WP660658 WP660658 CLAMP, MOTOR
WP342267 WP342267 CLIP
279771 279771 CLIP
WP98997 WP98997 CLIP
279220 279220 CLIP
WP3394427 WP3394427 CLIP
WP297092 WP297092 CLIP
WP98234 WP98234 CLIP (2)
W11252547 W11252547 CLIP, HINGE
689180 689180 CLIP, RETAINER
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
3347243 3347243 CONNECTOR 6-CIRCUIT
3395683 3395683 CONNECTOR, (MOTOR)
3391885 3391885 CONNECTOR, EDGE
3397269 3397269 CONNECTOR, TIMER
WPW10476828 WPW10476828 CONTROL, ELECTRONIC
69120-1 69120-1 COVER, LINT SCREEN (ALMOND)
691200 691200 COVER, LINT SCREEN (WHITE)
W11736322 W11736322 COVER, TERMINAL BLOCK
WP8066057 WP8066057 DOOR HINGE
WP8066056 WP8066056 DOOR HINGE
279570 279570 DOOR LATCH
WP3393549 WP3393549 DOOR, FRONT
3393550 3393550 DOOR, FRONT (ALMOND)
WP695737 WP695737 DOOR, REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279827 279827 DRIVE MOTOR
W10899578 W10899578 DRUM ASSEMBLY
279366 279366 ELECTRODE
WP348859 WP348859 ELECTRODE, INSIDE
WP348860 WP348860 ELECTRODE, OUTSIDE
279838 279838 ELEMENT
3360571 3360571 END CAP (L.H.)
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
LIT3387320 LIT3387320 GUIDE, DRYER
WP348721 WP348721 HANDLE
WP3977746 WP3977746 HANDLE, DOOR (ALMOND)
3401635 3401635 HARNESS, ELECTRIC
WPW10044480 WPW10044480 HINGE
WPW10044470 WPW10044470 HINGE
WP8066217 WP8066217 HINGE, TOP (2))
WP8577230 WP8577230 HOUSING
WP691366 WP691366 IDLER PULLEY ASSEMBLY
LIT3389704 LIT3389704 INSTRUCTIONS, INSTALLATION
279816 279816 KIT, THERMAL CUT OFF (INCLUDES THERMOSTAT)
3390054 3390054 KNOB, PUSH TO START
3363041 3363041 KNOB, TEMPERATURE CONTROL
3396269 3396269 KNOB, TIMER
LIT3388652 LIT3388652 LABEL, OPERATING INSTRUCTIONS
LIT3401724 LIT3401724 LABEL, WIRING DIAGRAM
98669 98669 LOCATOR, TOP
WP18776 WP18776 LOCK, FRONT TOP (2)
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP688805 WP688805 NUT, KNURLED
WP357213 WP357213 NUT, PUSH-IN (4)
18849 18849 PAD, TOP HINGE
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
279740 279740 PANEL
69563-1 69563-1 PANEL FRONT (ALMOND)
3362006 3362006 PANEL, CONTROL
3397545 3397545 PANEL, REAR CONSOLE
280043 280043 PANEL-REAR
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY-MTR
WP3398094 WP3398094 RELAY, PUSH-TO-START
279441 279441 RING, BEARING
WP349639 WP349639 SCREEN, LINT
WPW10109200 WPW10109200 SCREW
WP489463 WP489463 SCREW
WP681414 WP681414 SCREW
WP694091 WP694091 SCREW
WP489069 WP489069 SCREW
WP98129 WP98129 SCREW
WP308685 WP308685 SCREW
W10850756 W10850756 SCREW
WP388326 WP388326 SCREW
W11693756 W11693756 SCREW
WPW10139210 WPW10139210 SCREW
WP693995 WP693995 SCREW
486146 486146 SCREW, 10-24 X 1/2
WP90767 WP90767 SCREW, 8 A X 3/8
279408 279408 SEAL
WP3394196 WP3394196 SEAL
WP339956 WP339956 SEAL FOAM
W10906683 W10906683 SEAL, DOOR
W11415783 W11415783 SEAL, LINT CHUTE
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
W11233063 W11233063 SHIELD
350930 350930 SPRAY (13 OZ.) (WHITE)
WPW10041960 WPW10041960 SPRING, DOOR (2) PANEL (2)
WPW10314173 WPW10314173 SUPPORT
WP3399639 WP3399639 SWITCH
W10820036 W10820036 SWITCH-LID
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
WP3392519 WP3392519 THERMAL FUSE
WP3390291 WP3390291 THERMOSTAT (250 F) (121C)
WP3387134 WP3387134 THERMOSTAT, INTERNAL BIAS

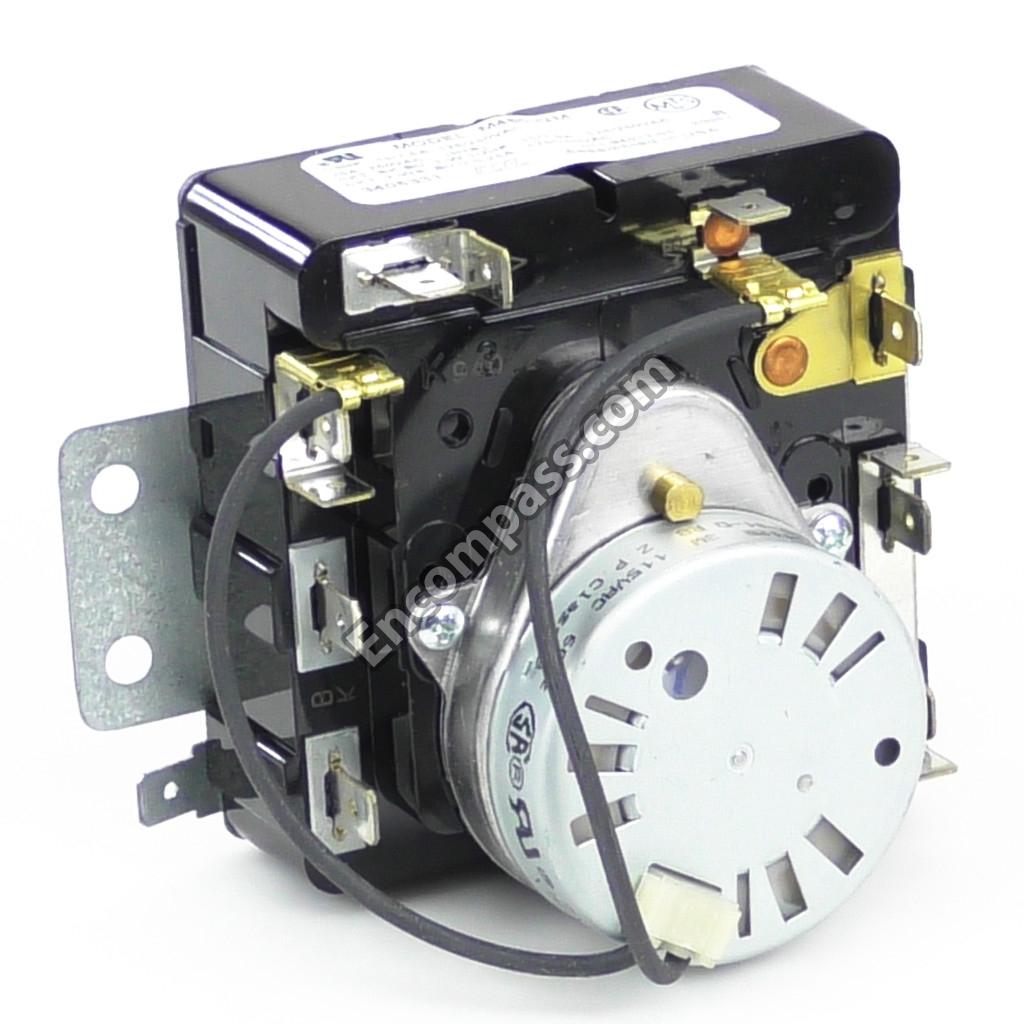

WP3405331 WP3405331 TIMER
279841 279841 TOE PANEL
279835 279835 TOEPNL
3977221 3977221 TOP (ALMOND)
3977220 3977220 TOP (WHITE)
WPW10512946 WPW10512946 TRI-RING (4)
LIT3392987 LIT3392987 USE & CARE GUIDE
WP298877 WP298877 WASHER
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
487596 487596 WASHER
WP694089 WP694089 WHEEL, BLOWER (INCLUDES ILLUS. NO. 19)
69085-3 69085-3 WIRE, GROUND
3393818 3393818 WIRE, JUMPER
8539893 8539893 WIRE, JUMPER (TEMPERATURE)
