Manufacturer

Whirlpool

Model Number

KEYE700TWH0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP691581 WP691581 ACTUATOR
690981 690981 ALERT, LINT
350956 350956 ALMOND
WP72107 WP72107 ALMOND
978883 978883 ALMOND (UNCUT)
WP692490 WP692490 BAFFLE, DRUM (WIDE)
WP3403636 WP3403636 BAFFLE-DRM
WP348780 WP348780 BASE, MOTOR
341241 341241 BELT, DRIVE
279320 279320 BLOCK-TERM
3400500 3400500 BOLT, 5/16-18 X 3/4
695547 695547 BOX, HEATER
W11684613 W11684613 BRACKET
3396009 3396009 BRACKET, CONTROL
3349048 3349048 BRACKET, END CAP
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
W11035878 W11035878 BRNG&SEAL
279797 279797 BULKHEAD
WP17258 WP17258 BUMPER
238614 238614 BUMPER AND ISOLATION
WP694419 WP694419 BUZZER
3406812 3406812 CABINET
3406813 3406813 CABINET
3399590 3399590 CABINET
694877 694877 CABINET (PLATINUM)
694876 694876 CABINET (TOAST)
341165 341165 CAMERA LENS, DRUM LIGHT
3353666 3353666 CAP, END (L.H.)
3353672 3353672 CAP, END (R.H.)
WP660658 WP660658 CLAMP, MOTOR
WP342267 WP342267 CLIP
279771 279771 CLIP
WP98997 WP98997 CLIP
279220 279220 CLIP
W10854425 W10854425 CLIP
353253 353253 CLIP
WP297092 WP297092 CLIP
279638 279638 CLIP
WP98234 WP98234 CLIP (2)
689180 689180 CLIP, HARNESS RETAINER (DOOR SWITCH WIRES)
W11252547 W11252547 CLIP, HINGE
341776 341776 CLIP, LOCK
357144 357144 CLIP, WIRE (TECH SHEET/TOP)
341141 341141 CONNECTOR
661513 661513 CONTROL, ELECTRONIC
W11736322 W11736322 COVER
3387152 3387152 COVER, LIGHT (INCLUDES NO.24)
691205 691205 COVER, LINT SCREEN
280000 280000 DOOR
280001 280001 DOOR
WP3393549 WP3393549 DOOR
WP8066056 WP8066056 DOOR HINGE
WP8066057 WP8066057 DOOR HINGE
279570 279570 DOOR LATCH
692319 692319 DOOR, FRONT (ALMOND)
695131 695131 DOOR, FRONT (PLATINUM)
WP695737 WP695737 DOOR, REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10899578 W10899578 DRUM ASSEMBLY

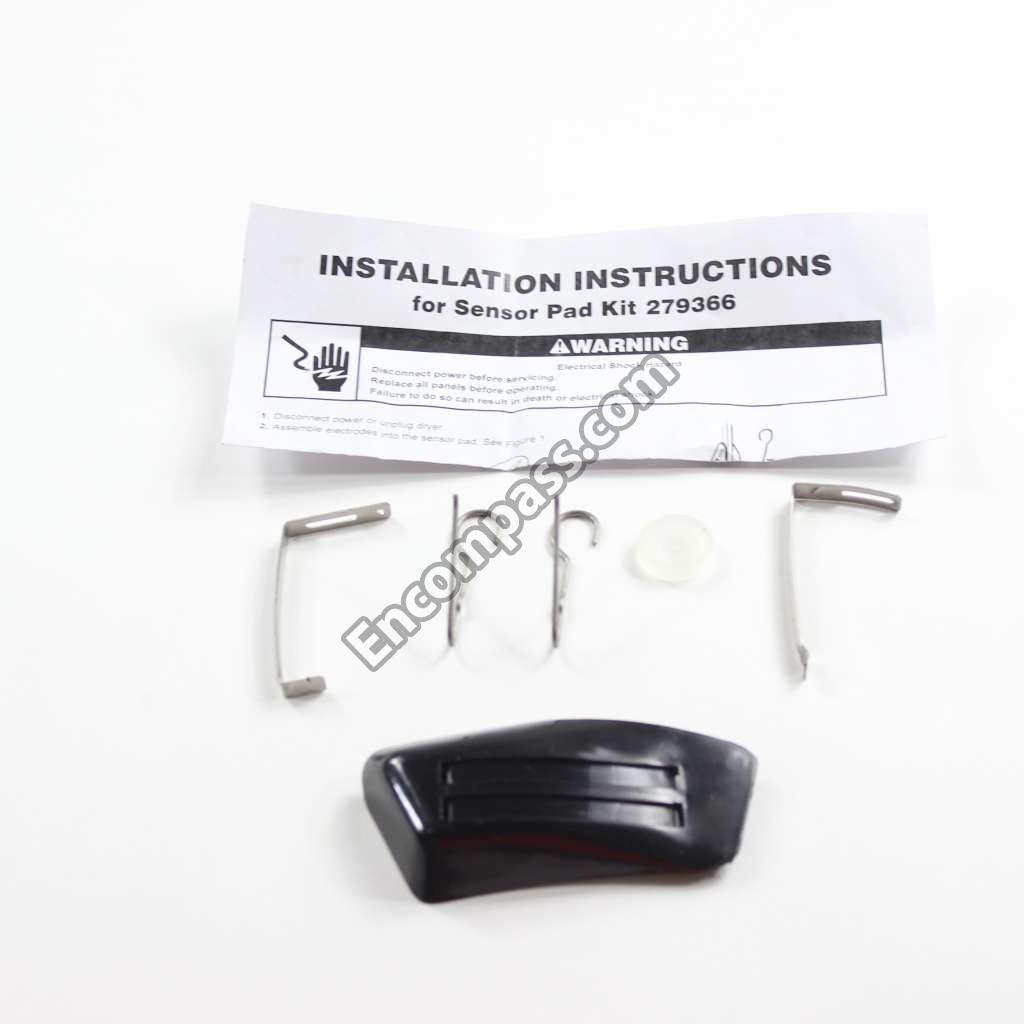

279366 279366 ELECTRODE
WP348859 WP348859 ELECTRODE, INSIDE
WP348860 WP348860 ELECTRODE, OUTSIDE
285367 285367 ENAMAL, TOAST (1 QT. UNCUT)
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
LIT3387320 LIT3387320 GUIDE, DRYER
3387213 3387213 HANDLE, DOOR (ALMOND)
3387214 3387214 HANDLE, DOOR (HARVEST WHEAT)
3387216 3387216 HANDLE, DOOR (PLATINUM)
3387215 3387215 HANDLE, DOOR (TOAST)
3387212 3387212 HANDLE, DOOR (WHITE)
3390030 3390030 HARNESS, ELECTRIC
261890 261890 HARVEST WHEAT
261891 261891 HARVEST WHEAT (UNCUT)
WP697663 WP697663 HEATER ELEMENT
WP61894 WP61894 HEATER, THERMOSTAT (NOTE: USED WITH 660039 THERMOSTAT ONLY)
WPW10044470 WPW10044470 HINGE
WPW10044480 WPW10044480 HINGE
3347112 3347112 HINGE, LAMP COVER
WP8066217 WP8066217 HINGE, TOP (2))
686577 686577 HOSE, DIFFERENTIAL
WP8577230 WP8577230 HOUSING
389043 389043 INSERT, HANDLE
3388189 3388189 INSERT, LAMP COVER
LIT3389704 LIT3389704 INSTRUCTIONS, INSTALLATION
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
3354669 3354669 KNOB, TEMPERATURE CONTROL
3390054 3390054 KNOB, TEMPERATURE CONTROL
3396269 3396269 KNOB, TIMER
LIT3388652 LIT3388652 LABEL, OPERATING INSTRUCTIONS
350941 350941 LEVELER (THINNER)
8009 8009 LIGHT BULB
3398144 3398144 LINT CHUTE ASSEMBLY
LIT3387291 LIT3387291 LIST, SERVICE PARTS
98669 98669 LOCATOR, TOP
WP18776 WP18776 LOCK, FRONT TOP (2)
WP358160 WP358160 NUT
WP488130 WP488130 NUT
WP689559 WP689559 NUT
WP358473 WP358473 NUT
WP688805 WP688805 NUT, KNURLED
388744 388744 NUT, NO.10 THREAD
98460 98460 NUT, PUSH-IN (2)
358472 358472 NUT, PUSH-IN (2)
18849 18849 PAD, TOP HINGE
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
279740 279740 PANEL
279600 279600 PANEL
279601 279601 PANEL
279604 279604 PANEL
69563-1 69563-1 PANEL FRONT (ALMOND)
3389630 3389630 PANEL, CONTROL
348365 348365 PANEL, REAR
8066156 8066156 PANEL, REAR CONSOLE
285368 285368 PLATINUM (UNCUT)
387887 387887 PLUG, DOOR LATCH (3)
350938 350938 PRIMER, GRAY
WP691366 WP691366 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
279080 279080 RANGE THERMOSTAT
WP694674 WP694674 RANGE THERMOSTAT
279441 279441 RING, BEARING
WP349639 WP349639 SCREEN
WP488729 WP488729 SCREW
WP965173 WP965173 SCREW
WP694091 WP694091 SCREW
WP98129 WP98129 SCREW
WP308685 WP308685 SCREW
WP489069 WP489069 SCREW
WP388326 WP388326 SCREW
W11693756 W11693756 SCREW
WP3390631 WP3390631 SCREW
WP681414 WP681414 SCREW
WP693995 WP693995 SCREW
486146 486146 SCREW, 10-24 X 1/2
690372 690372 SCREW, 11-16 X 7/8
WP90767 WP90767 SCREW, 8 A X 3/8
WP595135 WP595135 SCREW, 8-32 X 3/8
279408 279408 SEAL
WP3394196 WP3394196 SEAL
WP339956 WP339956 SEAL FOAM
W10906683 W10906683 SEAL-DOOR
WPW10359270 WPW10359270 SHAFT
WPW10359269 WPW10359269 SHAFT, DRUM ROLLER (R.H.)
W11233063 W11233063 SHIELD
691034 691034 SOCKET ASSEMBLY
3349338 3349338 SPACER, CONSOLE
350930 350930 SPRAY (13 OZ.) (WHITE)
WPW10041960 WPW10041960 SPRING, DOOR (2) PANEL (2)
WPW10314173 WPW10314173 SUPPORT
686770 686770 SUPPORT PROTECTOR
279827 279827 SWITCH, MOTOR START (USE W/3391886 MOTOR)
348314 348314 SWITCH, PUSH TO START
696910 696910 SWITCH, TEMPERATURE SELECTOR
W10820036 W10820036 SWITCH-LID
LIT3387421 LIT3387421 TECH SHEET (SERVICE INFORMATION)
60279 60279 TERMINAL
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
WPW10339879 WPW10339879 TIE-WIRE
WP3389865 WP3389865 TIMER, 60HZ.
285365 285365 TOAST
279841 279841 TOE PANEL
697099 697099 TOE PANEL (PLATINUM)
697098 697098 TOE PANEL (TOAST)
279835 279835 TOEPNL
279913 279913 TOEPNL
3393389 3393389 TOP
3393375 3393375 TOP (ALMOND)
697682 697682 TOP (HARVEST WHEAT)
697683 697683 TOP (TOAST)
3393379 3393379 TOP (WHITE)
WPW10512946 WPW10512946 TRI-RING (4)
3347053 3347053 TRIM, CONSOLE
388745 388745 TRIM, END CAP (L.H.)
388746 388746 TRIM, END CAP (R.H.)
LIT3387325 LIT3387325 USE & CARE GUIDE
WP298877 WP298877 WASHER
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL
690236 690236 WIRE, GROUND
69085-3 69085-3 WIRE, GROUND
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
LIT3390029 LIT3390029 WIRING DIAGRAM
