Model Image
Manufacturer

Whirlpool

Model Number

KFED500EBS05

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10846207 W10846207 ACCESSORIES, MEDALLION, HANDLE (RED)
W10355049 W10355049 ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN AND ROASTING
W10322408 W10322408 ADAPTER, VENT TUBE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11305107 W11305107 ASSEMBLY, HANDLE (BLACK)
W11527486 W11527486 ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK)
W10668730 W10668730 BACK, MAIN
W10860133 W10860133 BAFFL-CONV
W11368920 W11368920 BEZEL-KNOB
WPW10245259 WPW10245259 BLOCK-TERM
WP3801F656-51 WP3801F656-51 BRACKET
W11448964 W11448964 BRACKET, DOOR TRIM
W10575689 W10575689 BRACKET, HANDLE
W10190166 W10190166 BRACKET, POWER SUPPLY
W10253470 W10253470 BRACKET, RETAINING
W11625729 W11625729 BRACKET, RUBBER BARRIER
W10357697 W10357697 BRACKET, SIDE PANEL
W10261388 W10261388 BRACKET, TERMINAL
W10319087 W10319087 BRACKET, U CHANNEL
W10105790 W10105790 BUMPER & SCREW
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10260545 W10260545 CLIP, RETAINING
8019P013-60 8019P013-60 CLIP, WIRE LOCK
WPW10281322 WPW10281322 CONNECTOR
W11594139 W11594139 CONTROL BOARD
W11084228 W11084228 CONTROL PANEL
W10789672 W10789672 COOKTOP
W10312612 W10312612 COVER, ACCESS (TERMINAL BLOCK)
W10776098 W10776098 COVER, BACKGUARD
8285593 8285593 COVER, CONNECTOR
W10410463 W10410463 COVER, HINGE (LEFT)
W10410461 W10410461 COVER, HINGE (RIGHT)
W10268559 W10268559 COVER, LOWER WIRE
W10268560 W10268560 COVER, WIRE LOWER
WPW10261386 WPW10261386 COVR-WIRE
W11166856 W11166856 DOOR DOOR LATCH
WPW10335433 WPW10335433 DOOR HINGE
WPW10335434 WPW10335434 DOOR HINGE
WPW10485732 WPW10485732 DOOR HINGE
WPW10485733 WPW10485733 DOOR HINGE
W10317476 W10317476 ELEMENT, BROIL (UPPER)
W10271639 W10271639 ELEMENT, CONVECTION (240VAC)
W11662148 W11662148 ELMNT-BAKE
W11101534 W11101534 ELMNT-BROL
W10819914 W10819914 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11665456 W11665456 FOOT-LEVEL
WPW10272594 WPW10272594 FRAME-WNDW
WPW10272708 WPW10272708 FRAME-WNDW
W11515372 W11515372 FRONT, MAIN (LOWER)
W11515375 W11515375 FRONT, MAIN (UPPER)
W11594140 W11594140 GASKT-DOOR
W11594029 W11594029 GASKT-DOOR
WP9757706 WP9757706 GLASS DOOR
W11599839 W11599839 GLASS DOOR
W11156495 W11156495 GLASS DOOR
W11132120 W11132120 GLASS DOOR
W11171874 W11171874 HARNESS, COOKTOP
W11172428 W11172428 HARNESS, EOL (DOFSR)
W11172425 W11172425 HARNESS, INFINITE SWITCH (LEFT)
W11172427 W11172427 HARNESS, INFINITE SWITCH (RIGHT)
W11171888 W11171888 HARNESS, MAIN
W11172531 W11172531 HARNESS, SENSOR & LOCKS
WPW10272328 WPW10272328 HINGE-RECV
WPW10272329 WPW10272329 HINGE-RECV
W10647259 W10647259 HINGE-RECV
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
WPW10312185 WPW10312185 INFINITE CONTROL SWITCH
WPW10295048 WPW10295048 INFINITE CONTROL SWITCH
WPW10296657 WPW10296657 INFINITE CONTROL SWITCH
WPW10321285 WPW10321285 INSULATION
WPW10321271 WPW10321271 INSULATION
W11688548 W11688548 INSULATION
W11685361 W11685361 INSULATION
WPW10204079 WPW10204079 INSULATION
WPW10322111 WPW10322111 INSULATION
W11594030 W11594030 INSULATION
WPW10271637 WPW10271637 INSULATION
W10274268 W10274268 INSULATION, CONVECTION MOTOR
7003P104-60 7003P104-60 INSULATOR, HEAT SHIELD

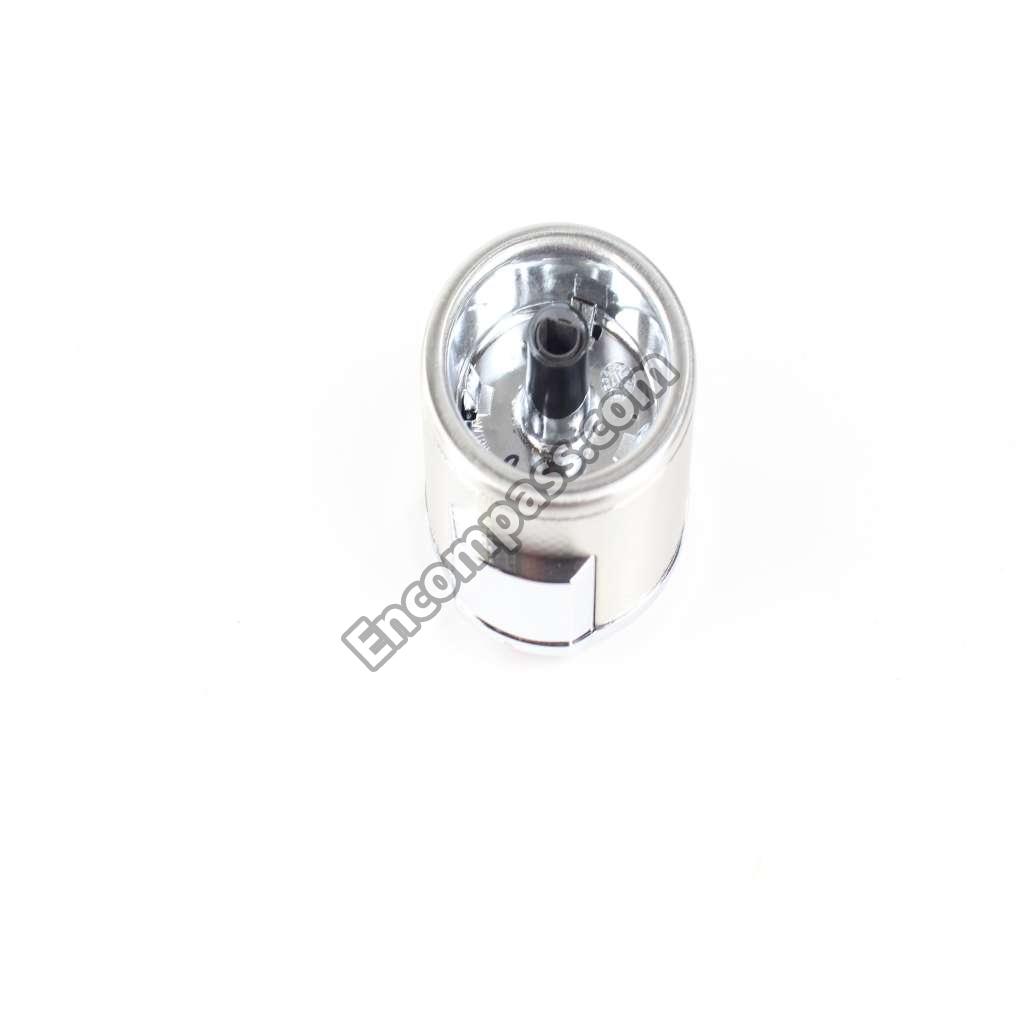

W11156487 W11156487 KNOB
8009 8009 LIGHT BULB
WP74004153 WP74004153 LIGHT- IND
WPW10272698 WPW10272698 LINER-DOOR
W11051040 W11051040 LINING, DOOR
W11235883 W11235883 MOTOR-FAN
W10839793 W10839793 NAMEPLATE
W10794042 W10794042 NUT
WP3400029 WP3400029 NUT
W11427490 W11427490 OWNER'S MANUAL
350956 350956 PAINT, PRESSURIZED SPRAY (12 OZ. ALMOND)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10548601 W10548601 PAN, ELEMENT
WPW10260946 WPW10260946 PANEL
W11594130 W11594130 PANEL-SIDE
W10339476 W10339476 PLATE, INSULATION
W11430269 W11430269 QUICK START GUIDE
W11550107 W11550107 RACK-OVEN
WPW10570870 WPW10570870 RACK-OVEN
W10340464 W10340464 RETAINER, INSULATION
W10485723 W10485723 RETAINER, INSULATION
WP4449040 WP4449040 SCREW
WPW10317886 WPW10317886 SCREW
W11690596 W11690596 SCREW
W10920281 W10920281 SCREW
W10777162 W10777162 SCREW
W10831019 W10831019 SCREW
WPW10292297 WPW10292297 SCREW
W11233072 W11233072 SCREW
WP488488 WP488488 SCREW
W10850807 W10850807 SCREW
WP4449743 WP4449743 SCREW
WP90767 WP90767 SCREW
W11594274 W11594274 SCREW
W10674068 W10674068 SCREW
W11245710 W11245710 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP98008545 WP98008545 SCREW
WP4159193 WP4159193 SCREW
WPW10299338 WPW10299338 SHIELD
W10319762 W10319762 SHIELD, BROIL
W10332449 W10332449 SHIELD, CORD
W10311987 W10311987 SHIELD, CORD (RIGHT)
W10332459 W10332459 SHIELD, HEAT
8036P012-60 8036P012-60 SHIELD, POWER CORD
W10538516 W10538516 SHIELD, SIDE INSULATION
W10278697 W10278697 SHIELD, VENT
W11594027 W11594027 SOCKT-LITE
W10575917 W10575917 SPACER, VENT TRIM
W11594028 W11594028 SPACER-PNL
WPW10225448 WPW10225448 SPRING
W10319109 W10319109 SUPPORT, BACKGUARD (BLACK (LEFT))
W10319111 W10319111 SUPPORT, BACKGUARD (BLACK (RIGHT))
W10863342 W10863342 SUPPORT, LOWER OVEN
W11171119 W11171119 SURFACE ELEMENT
WPW10251108 WPW10251108 SURFACE ELEMENT
W11041453 W11041453 SURFACE ELEMENT
WPW10270604 WPW10270604 SURFACE ELEMENT
W11101459 W11101459 SURFACE ELEMENT
WP7403P899-60 WP7403P899-60 SWTCH-SFTY
W11325874 W11325874 TECH SHEET
WP7430P044-60 WP7430P044-60 TOP-OVEN
72032 72032 TOUCH-UP PAINT (BLACK)
W10337391 W10337391 TUBE, VENT (UPPER)
WPW10323793 WPW10323793 TUBE-VENT
7109P084-60 7109P084-60 WASHER, FIBER
511873 511873 WHITE PORCELAIN (2 OZ.)
