Model Image
Manufacturer

Whirlpool

Model Number

KFGG500EBS4

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W10750011 W10750011 ACCESSORIES, KIT, OVEN CLEANING
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W10355051 W10355051 ACCESSORY PARTS, CLEANER, COOKTOP
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN AND ROASTING
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
W10314347 W10314347 ASSEMBLY, FLUE
W11676564 W11676564 BAFFL-CONV
3601P356-45 3601P356-45 BAFFLE, BAKE BURNER
3601P336-45 3601P336-45 BAFFLE, BROIL BURNER
W10814133 W10814133 BEZEL-KNOB
WPW10211368 WPW10211368 BOTTM-OVEN
W10435470 W10435470 BRACE, MAIN BACK
W10901176 W10901176 BRACKET
W10224921 W10224921 BRACKET, AEGIS
W10516123 W10516123 BRACKET, CONSOLE MOUNTING
W10541911 W10541911 BRACKET, GLASS UPPER HANDLE
W10762981 W10762981 BRACKET, MOUNTING
W10273002 W10273002 BRACKET, OVEN SUPPORT
W10949105 W10949105 BRACKET, SADDLE VALVE
WPW10318026 WPW10318026 BRKT-MNTG
W11369523 W11369523 BURNER CAP KIT (BLACK (SET OF 5))
W11676566 W11676566 BURNR-BRLR
W11435657 W11435657 BURNR-HEAD
W11435659 W11435659 BURNR-HEAD
W11435630 W11435630 BURNR-HEAD
W10764654 W10764654 BURNR-OVEN
W11684564 W11684564 CLIP
WPW10551614 WPW10551614 CLIP
W10501599 W10501599 CLIP, FRONT FRAME COVER
W10334923 W10334923 CLIP, GAS WIRING
16515 16515 CLIP, HARNESS
W10137382 W10137382 CLIP, PANEL
3196896 3196896 CLIP, WIRE
W11560165 W11560165 CNVRSN-KIT

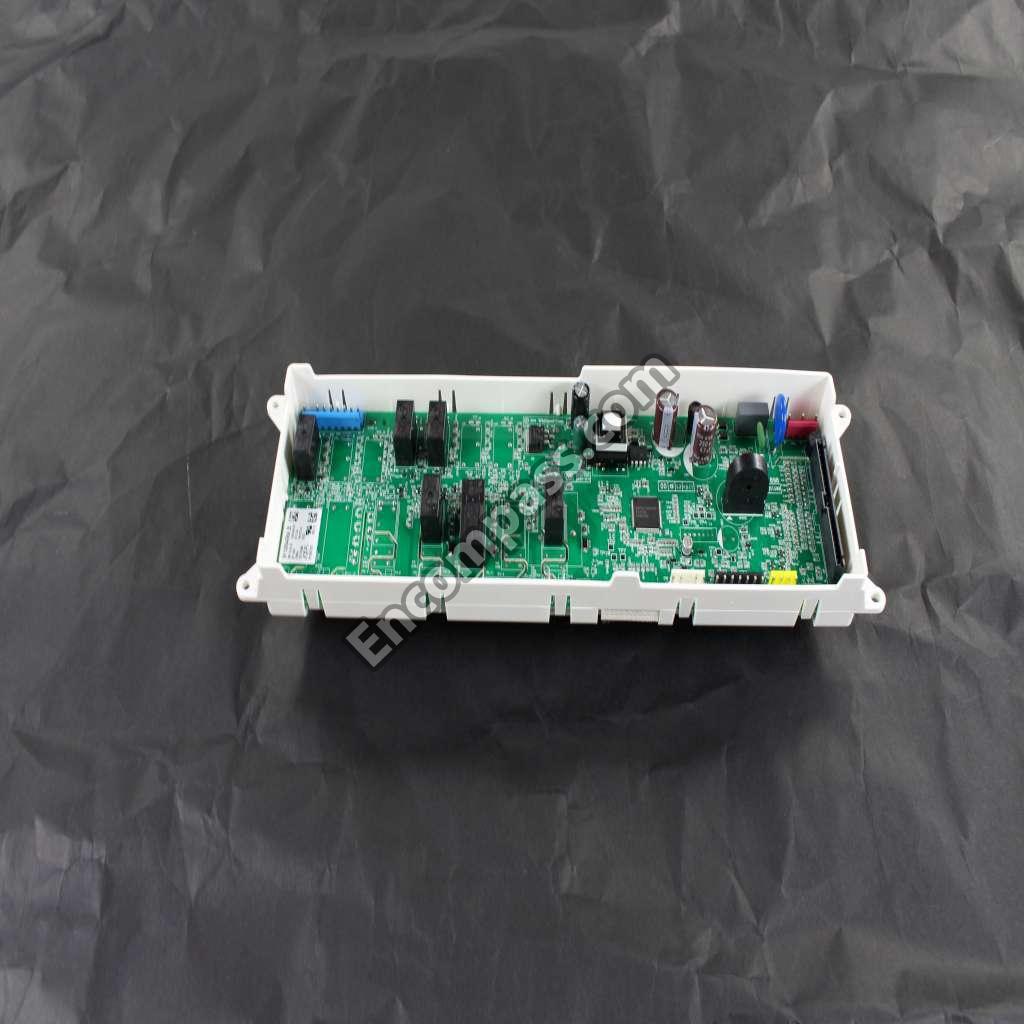

W11088878 W11088878 CONTROL BOARD
W11084228 W11084228 CONTROL PANEL
W11454367 W11454367 COOKTOP
W10184251 W10184251 COVER, BACK
W10158780 W10158780 COVER, REAR FAN
W10198745 W10198745 COVER, UPPER
W10323077 W10323077 DIFFUSER, FLAME
W11104399 W11104399 DOOR HANDLE
W11162113 W11162113 DOOR HINGE
W10813962 W10813962 DRAWR-UTIL
W11219665 W11219665 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11043837 W11043837 FAN-CONVCT
W10776437 W10776437 FITTING, BROIL
W11243157 W11243157 FLUE-OVEN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
W11175143 W11175143 GASKET
W11562931 W11562931 GASKT-DOOR
W11339500 W11339500 GLASS DOOR
W11084232 W11084232 GLASS DOOR
W11381340 W11381340 GRATE-KIT
W10432544 W10432544 GRIDDLE
W11451585 W11451585 HARNESS, MAIN
W10811693 W10811693 HARNESS, SWITCH SPARK
W10647259 W10647259 HINGE-RECV
W11557818 W11557818 HOLDER-ORF
W11557817 W11557817 HOLDER-ORF
W11557816 W11557816 HOLDER-ORF
W11557815 W11557815 HOLDER-ORF
W11557814 W11557814 HOLDER-ORF
WPW10333842 WPW10333842 IGNTR-OVEN
WPW10324262 WPW10324262 IGNTR-OVEN
W11453920 W11453920 IGNTR-SURF
W11453940 W11453940 IGNTR-SURF
WPW10208653 WPW10208653 INSULATION
W11025151 W11025151 INSULATION
W11688362 W11688362 INSULATION
W11688566 W11688566 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W11030413 W11030413 KNOB
WPW10571723 WPW10571723 LIGHT BULB
W10902192 W10902192 LINER-DOOR
W11347746 W11347746 MANIFOLD ASSEMBLY
W11379946 W11379946 MANIFOLD PANEL BRACKET
W11675300 W11675300 MEMBRANE SWITCH
W10839793 W10839793 NAMEPLATE
W11712434 W11712434 ORIFICE
W11700316 W11700316 ORIFICE
W11485988 W11485988 ORIFICE (18K) (LEFT FRONT)
W11485874 W11485874 ORIFICE (8K) (CENTER)
W11485873 W11485873 ORIFICE (9.5K) (LEFT REAR)
W11426598 W11426598 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350956 350956 PAINT, PRESSURIZED SPRAY (12 OZ. ALMOND)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11379356 W11379356 PAN, BAKE
W11084311 W11084311 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
W11084230 W11084230 PANL-MNFLD
W11582239 W11582239 POWER CORD
W11427469 W11427469 QUICK START GUIDE
WPW10205524 WPW10205524 RACK-OVEN
WPW10289145 WPW10289145 RACK-OVEN
WPW10531060 WPW10531060 RACK-OVEN
W10813140 W10813140 RAIL, HORIZONTAL SUPPORT
WPW10306546 WPW10306546 RAIL-BASE
WPW10475149 WPW10475149 RANGE SPARK MODULE
W11162730 W11162730 RANGE SPARK MODULE
W11379358 W11379358 REAR GAS COOKTOP BRACKET
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10919226 W10919226 REGULATOR
W11370463 W11370463 ROD, DOOR SWITCH
W10675397 W10675397 SCOOP, DOOR
W11245710 W11245710 SCREW
WP8533988 WP8533988 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
W10777162 W10777162 SCREW
W11169708 W11169708 SCREW
WP3196557 WP3196557 SCREW
W11233072 W11233072 SCREW
WPW10067840 WPW10067840 SCREW
3400964 3400964 SCREW, GROUND
W10295997 W10295997 SCREW, VALVE
W10833885 W10833885 SENSOR
W10192841 W10192841 SHIELD, HEAT
WPW10273195 WPW10273195 SHIELD-HT
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594170 W11594170 SOCKT-LITE
W10877054 W10877054 SPACER
W11673273 W11673273 SPACR-GLAS
W11087486 W11087486 SPUD-ORFCE
W11744483 W11744483 SUPPORT
W10035900 W10035900 SUPPORT, OVEN BOTTOM
WP9757262 WP9757262 SWTCH-LITE
W11382313 W11382313 TECH SHEET
WPW10182767 WPW10182767 TIE-WIRE
72032 72032 TOUCH-UP PAINT (BLACK)
W10306050 W10306050 TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE)
W10510125 W10510125 TUBING, MAIN SUPPLY
W11331153 W11331153 VALVE, GAS (RIGHT REAR)
W11233561 W11233561 VALVE-BRNR
W11241561 W11241561 VALVE-BRNR
W11676355 W11676355 WASHER
511873 511873 WHITE PORCELAIN (2 OZ.)
W11161843 W11161843 WIRE HARNESS
