Model Image
Manufacturer

Whirlpool

Model Number

KFGU706VSS04

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10132197 W10132197 BOX-BURNER
8287056 8287056 BRACKET, DUAL VALVE
8287055 8287055 BRACKET, SINGLE VALVE

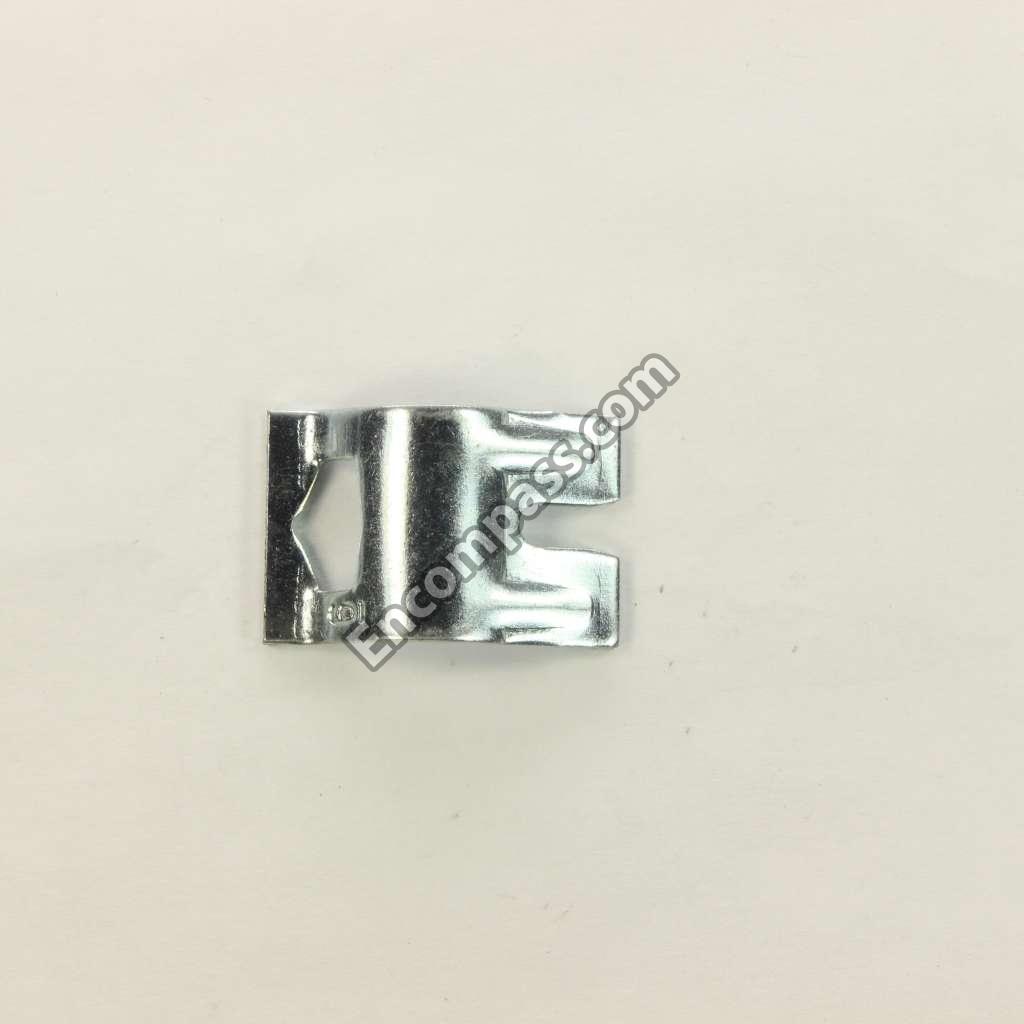

W10400357 W10400357 BRKT-MNTG

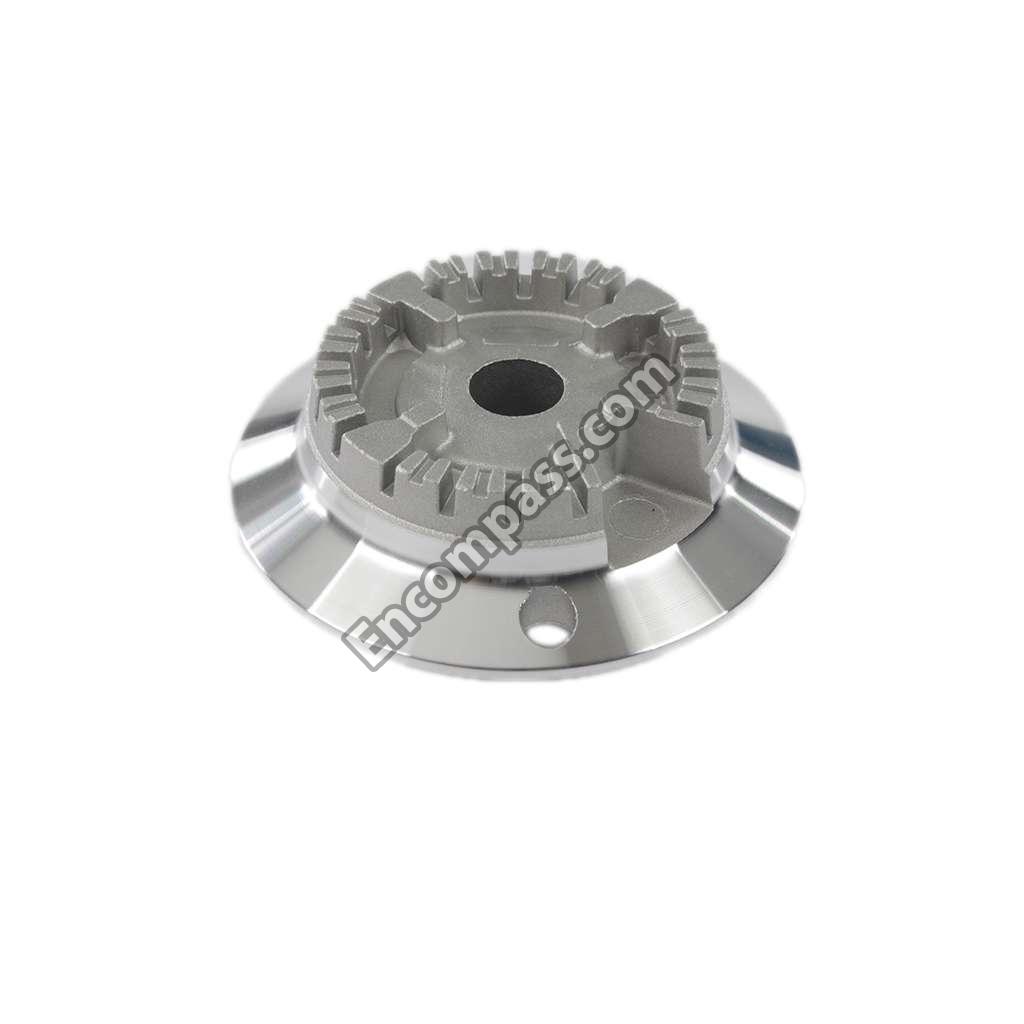

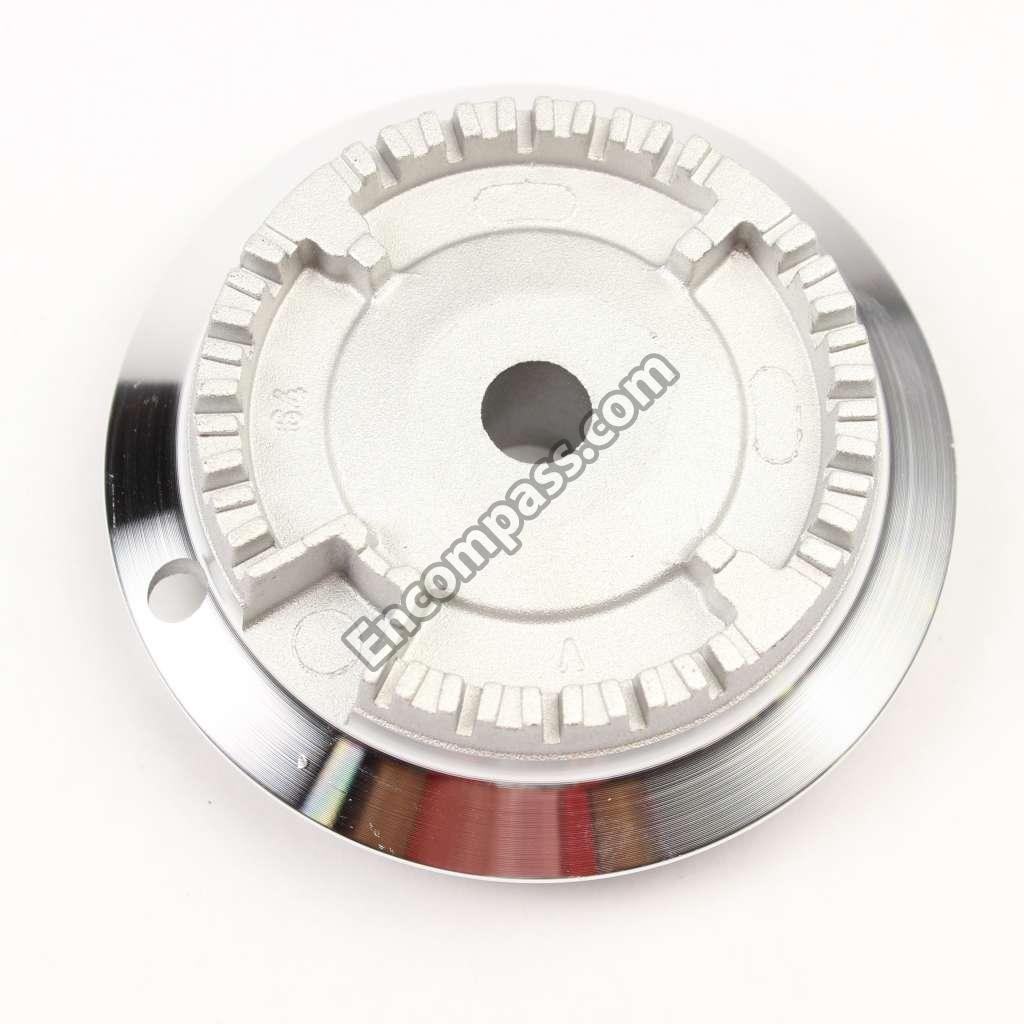

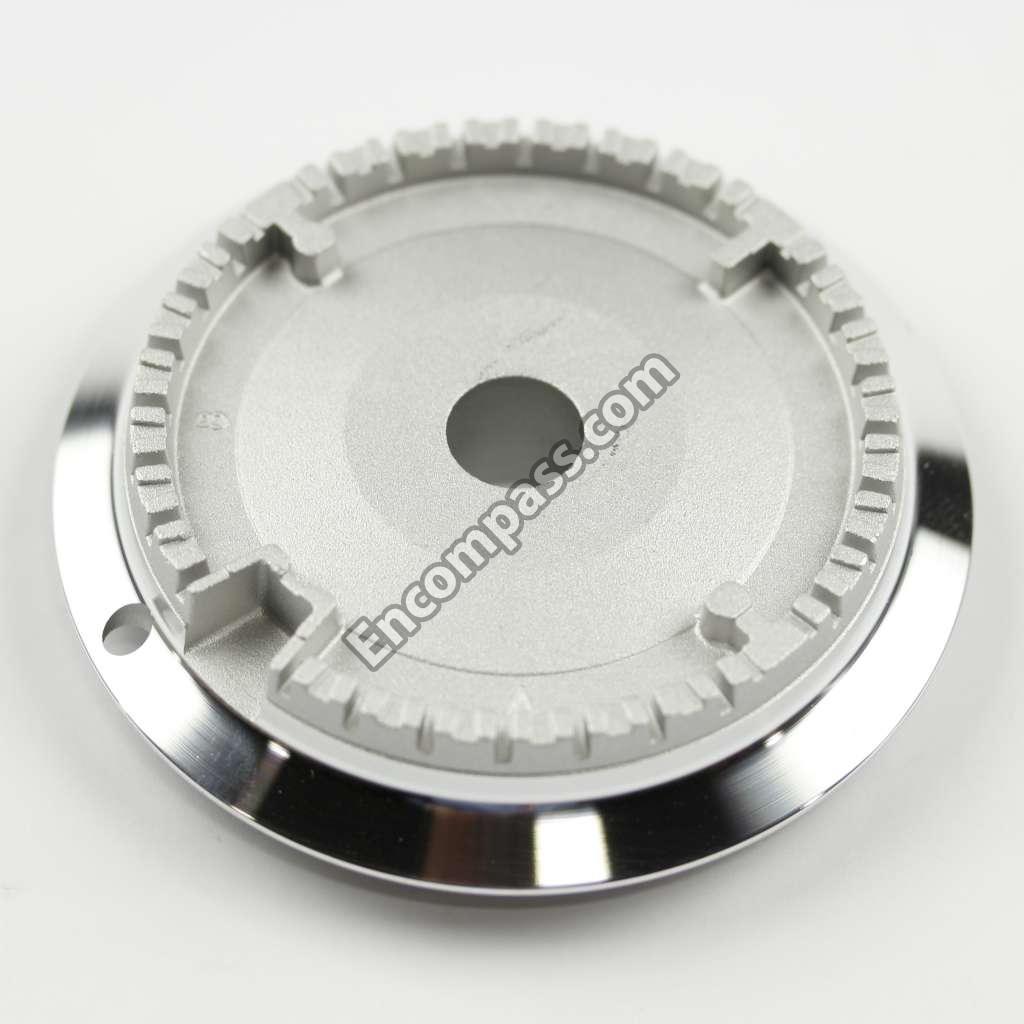

WP8286814 WP8286814 BURNR-HEAD
WP8286815 WP8286815 BURNR-HEAD
WP8286813 WP8286813 BURNR-HEAD
W10836409 W10836409 BURNR-HEAD

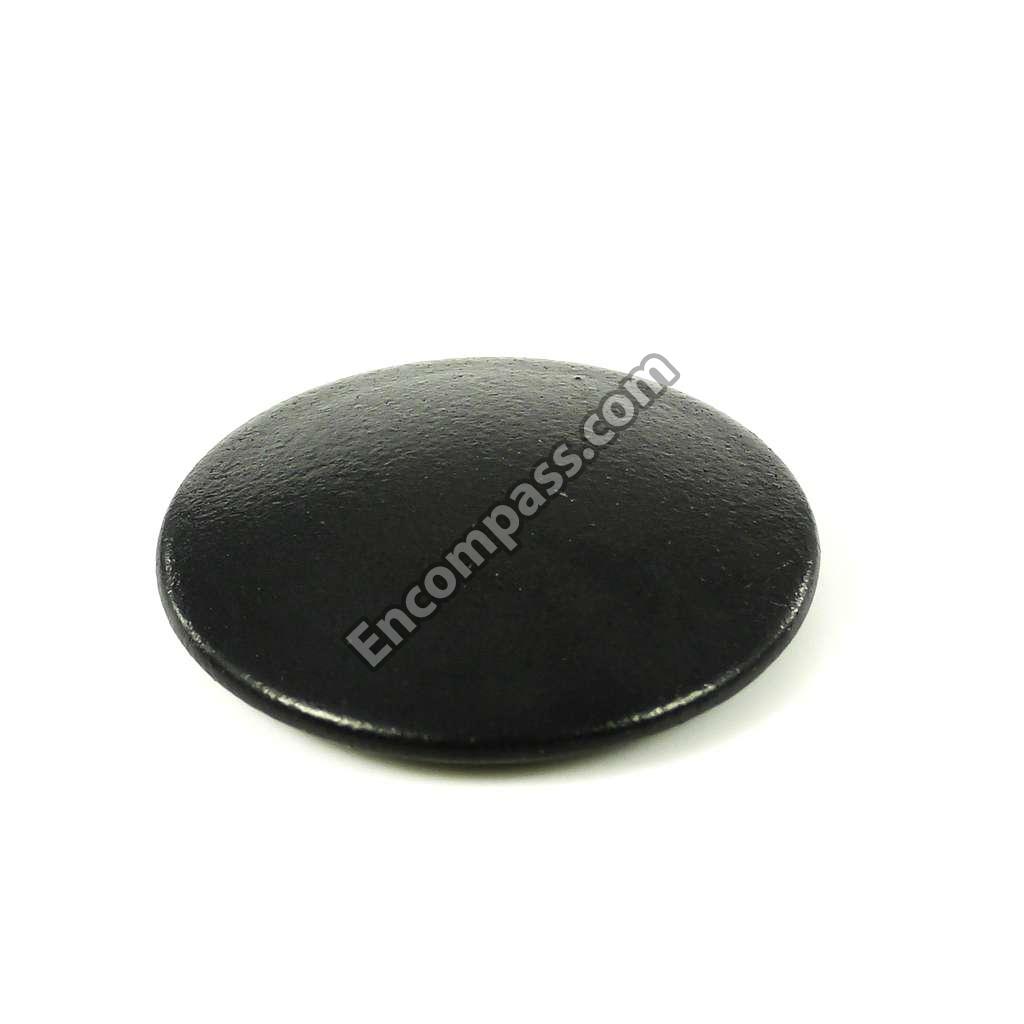

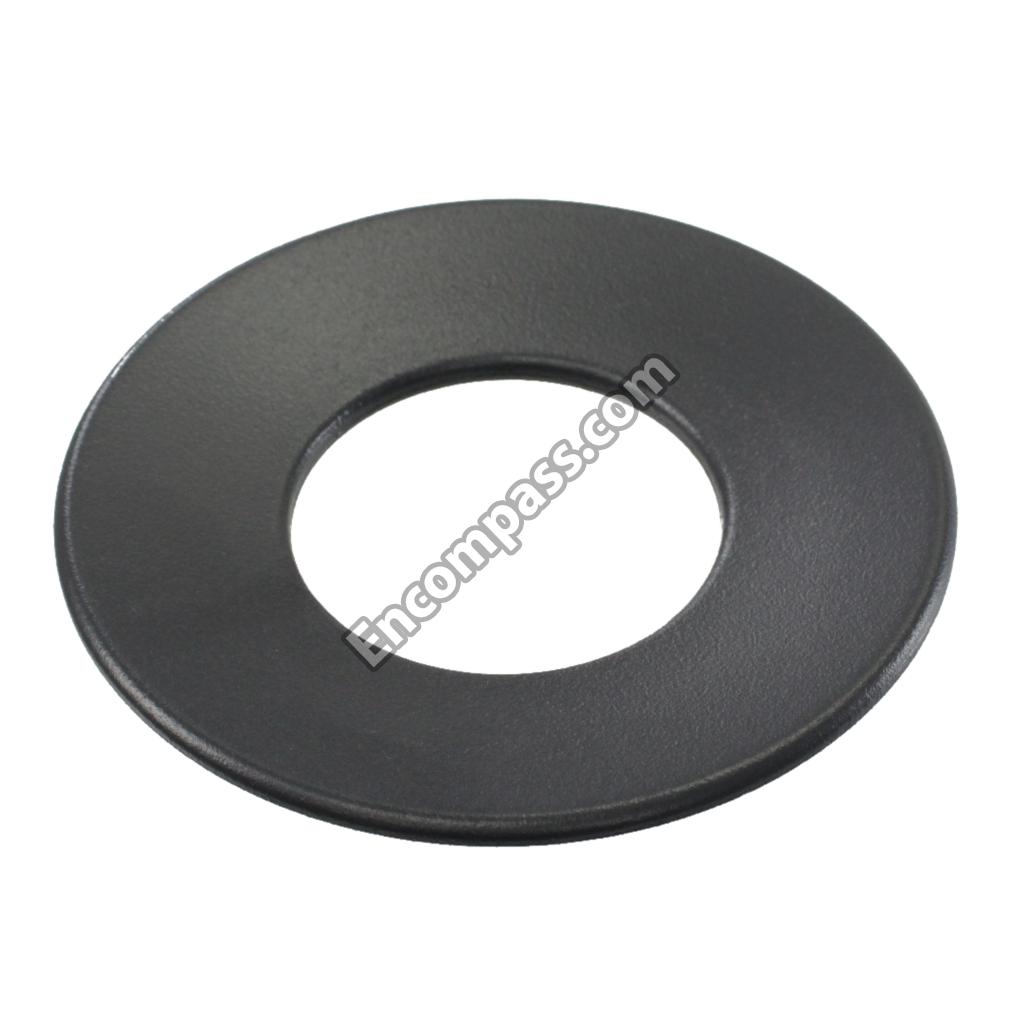

WPW10398575 WPW10398575 CAP-BURNER
W10846732 W10846732 CAP-BURNER
WP8286818 WP8286818 CAP-BURNER
WP8286816 WP8286816 CAP-BURNER
WP8286817 WP8286817 CAP-BURNER
8287106 8287106 CLIP, WIRE
W10418077 W10418077 CNVRSN-KIT
W11028388 W11028388 COOKTOP
W10392003 W10392003 CORD-POWER
8286740 8286740 COVER, PLATE
W10132198 W10132198 COVR-MODLE
W10140568 W10140568 COVRWIRE

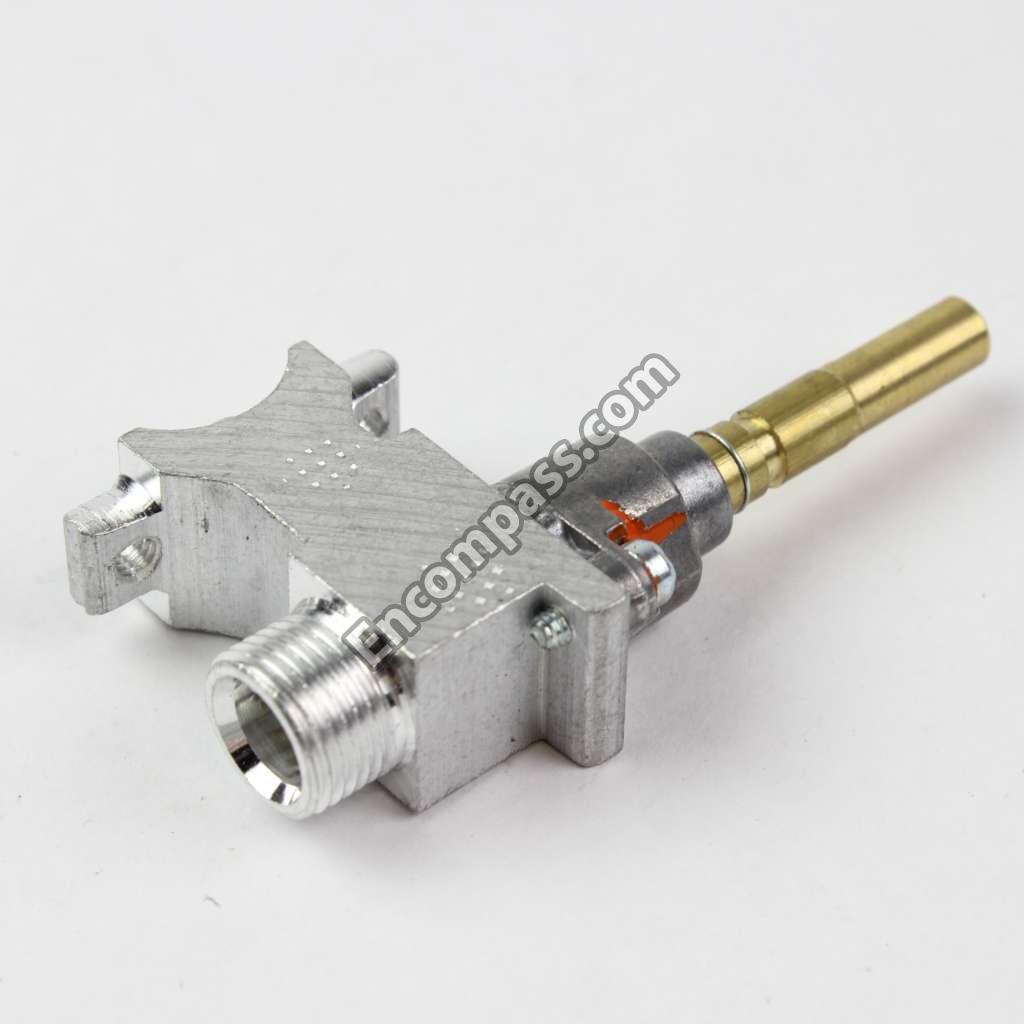

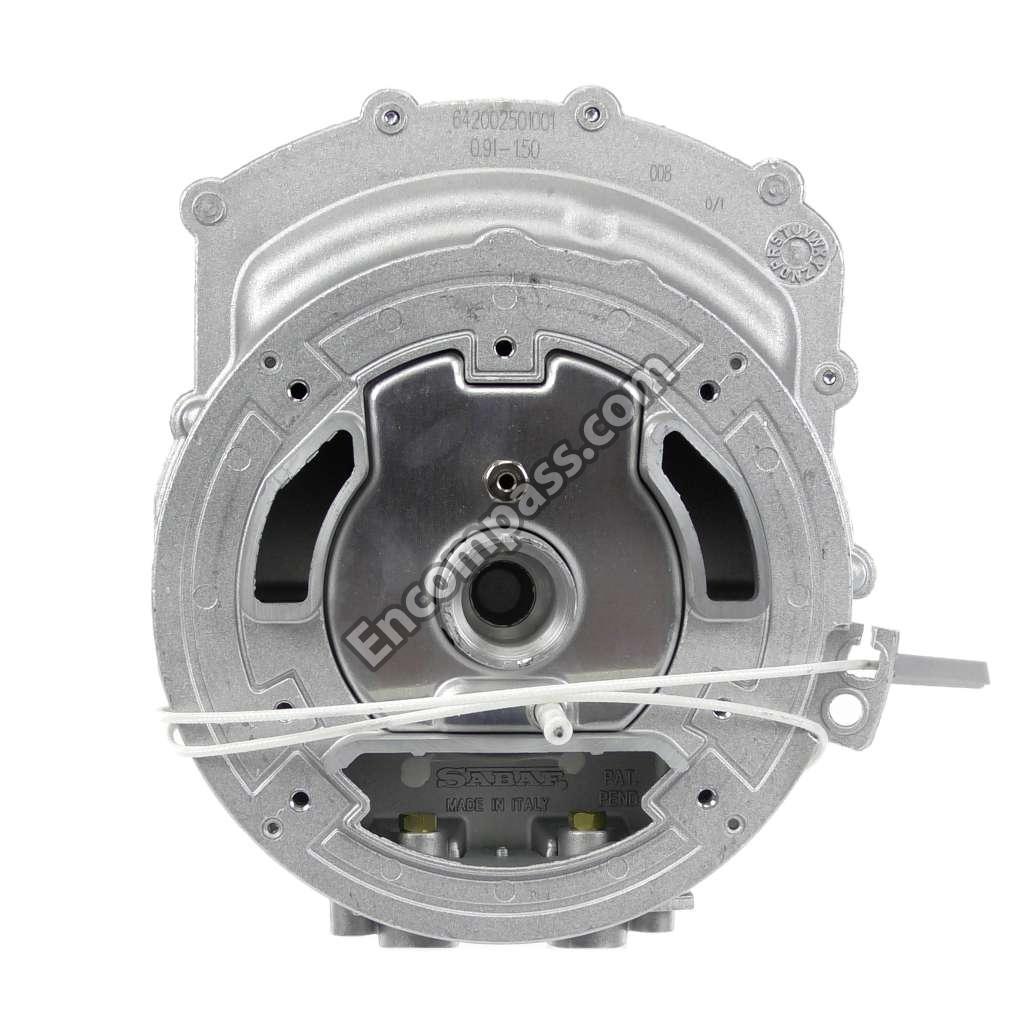

WP8287058 WP8287058 GAS VALVE
8286931 8286931 GASKET, ORIFICE (LEFT FRONT & RIGHT REAR)
8286930 8286930 GASKET, ORIFICE (LEFT REAR)
8286932 8286932 GASKET, ORIFICE (RIGHT FRONT)
W10143940 W10143940 GASKT-CKTP
W10176669 W10176669 GASKT-CKTP
W10132168 W10132168 GASKT-CKTP
WP8287048 WP8287048 GRATE, CENTER
WP8286659 WP8286659 GRATE-BRNR
WP8286661 WP8286661 GRATE-BRNR
8286854 8286854 GROMMET, KNOB
8186533 8186533 HARDWARE
W10515666 W10515666 HARNS-WIRE
8286822 8286822 HOLDER, ORIFICE (12K) (RIGHT FRONT)
8286820 8286820 HOLDER, ORIFICE (6K) (LEFT REAR)
8286821 8286821 HOLDER, ORIFICE (9.1K) (LEFT FRONT)
WPW10617292 WPW10617292 HOLDER-ORF
W10140569 W10140569 HOLDER-ORF
WPW10560001 WPW10560001 IGNTR-SURF
W10854967 W10854967 IGNTR-SURF
WP8286724 WP8286724 IGNTR-SURF
W10526085 W10526085 INSTALLATION INSTRUCTIONS
8304571 8304571 INSTRUCTIONS, UNDERCOUNTER
W10132195 W10132195 INSULATION
W10398407 W10398407 INSULATION
8287103 8287103 INSULATION, REIGNITION MODULE

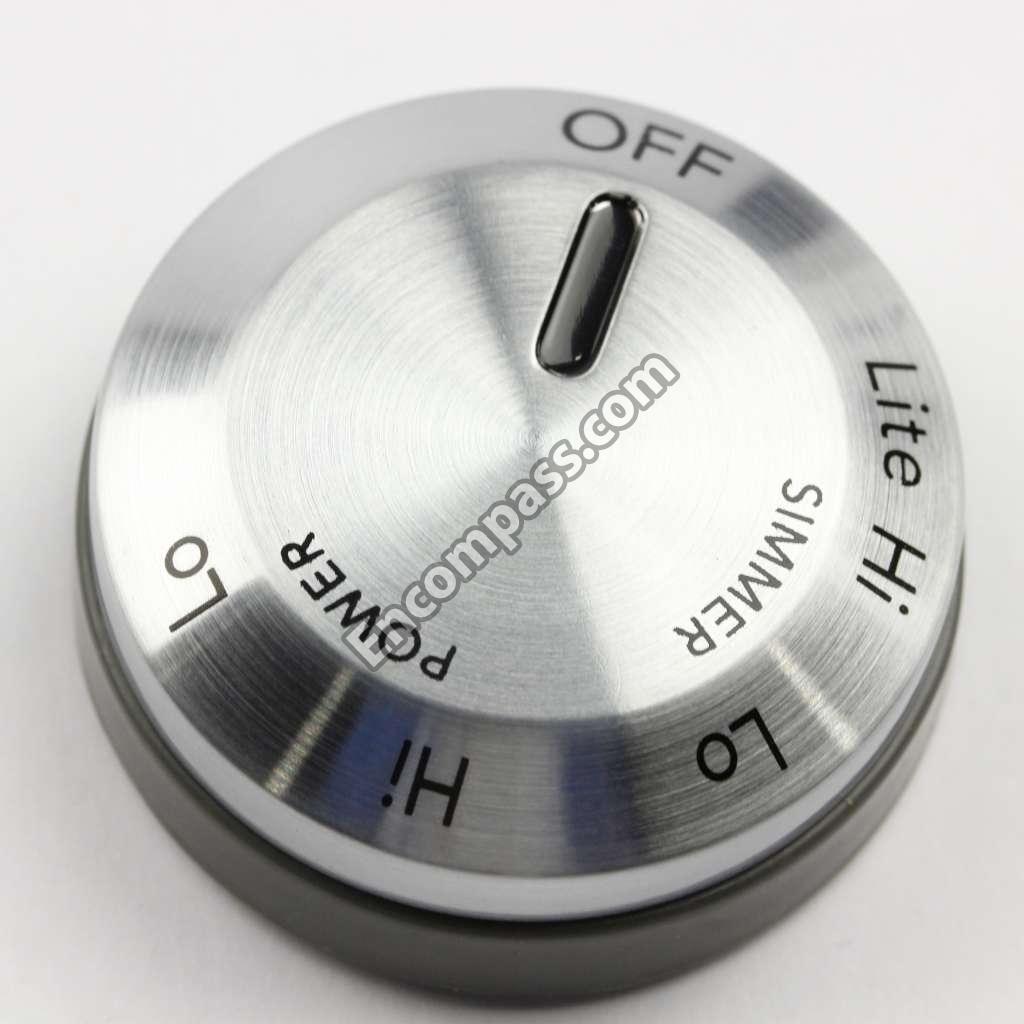

WPW10132192 WPW10132192 KNOB
WPW10132191 WPW10132191 KNOB, SPECIAL (STAINLESS)
W10370673 W10370673 MANIFOLD
WPW10243391 WPW10243391 NAMEPLATE
978883 978883 PAINT, BULK (1 QT. ALMOND)
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
8286753 8286753 RAIL, BURNER (LEFT)
8286728 8286728 RAIL, BURNER RIGHT
W10411142 W10411142 RAIL-MTG

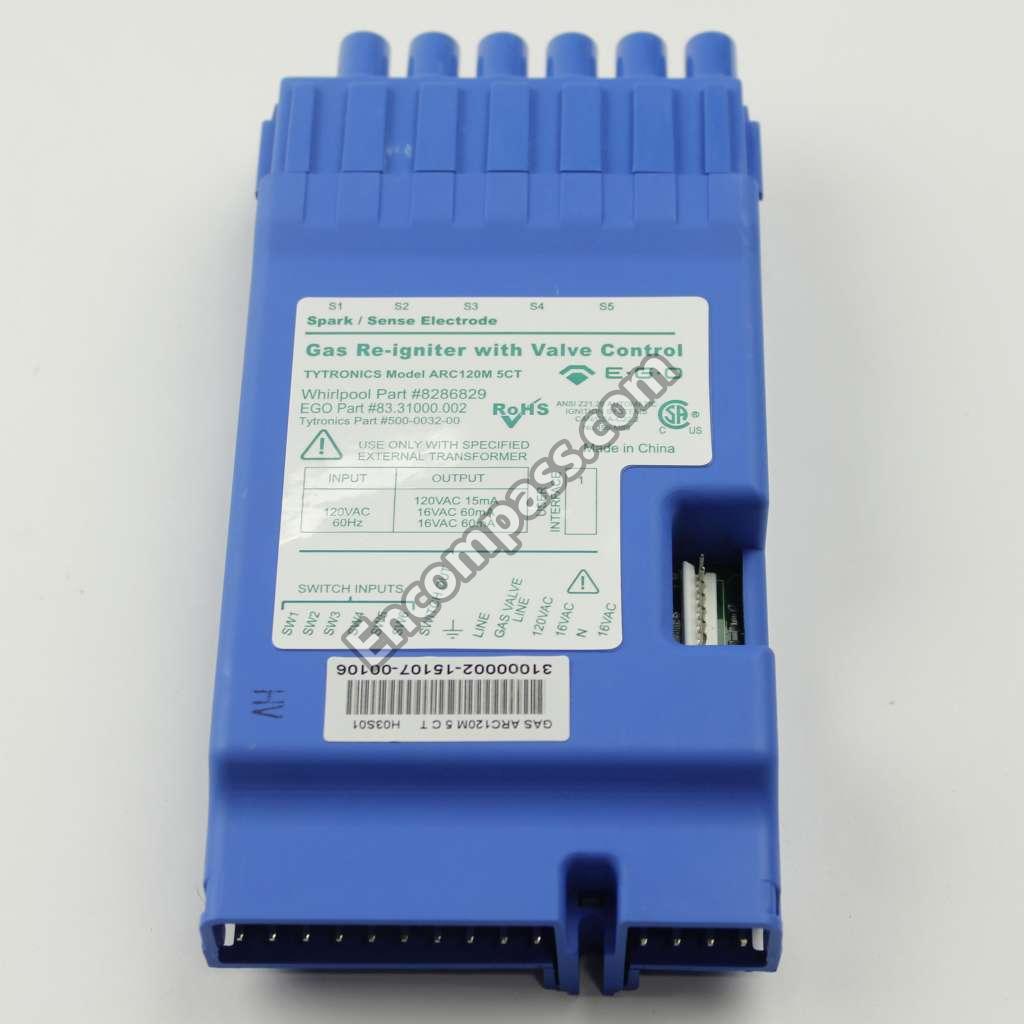

WP8286829 WP8286829 RANGE SPARK MODULE
W11087445 W11087445 REGULATOR
W10132200 W10132200 RELIEF-STR
WP3177991 WP3177991 SCREW
W11676349 W11676349 SCREW
W10491985 W10491985 SCREW
WP3196557 WP3196557 SCREW
WP8287059 WP8287059 SCREW
8287057 8287057 SCREW, VALVE BRACKET
WP74001380 WP74001380 SEAL
W10140577 W10140577 SEAL-SWTCH
W10140571 W10140571 SEAL-SWTCH
8286771 8286771 SHIELD, HEAT
8286863 8286863 SPRING, ELECTRODE
W10791076 W10791076 SPUD-ORFCE
W10151350 W10151350 SPUD-ORFCE
W10791614 W10791614 SPUD-ORFCE
W10791081 W10791081 SPUD-ORFCE
8286697 8286697 TECH SHEET
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
WP8286690 WP8286690 TRANSFORMR
W10526591 W10526591 TUBING-GAS
W10526477 W10526477 TUBING-GAS
W10526596 W10526596 TUBING-GAS
W10526590 W10526590 TUBING-GAS
W10526602 W10526602 TUBING-GAS
W10526603 W10526603 TUBING-GAS
W10411933 W10411933 USE & CARE GUIDE

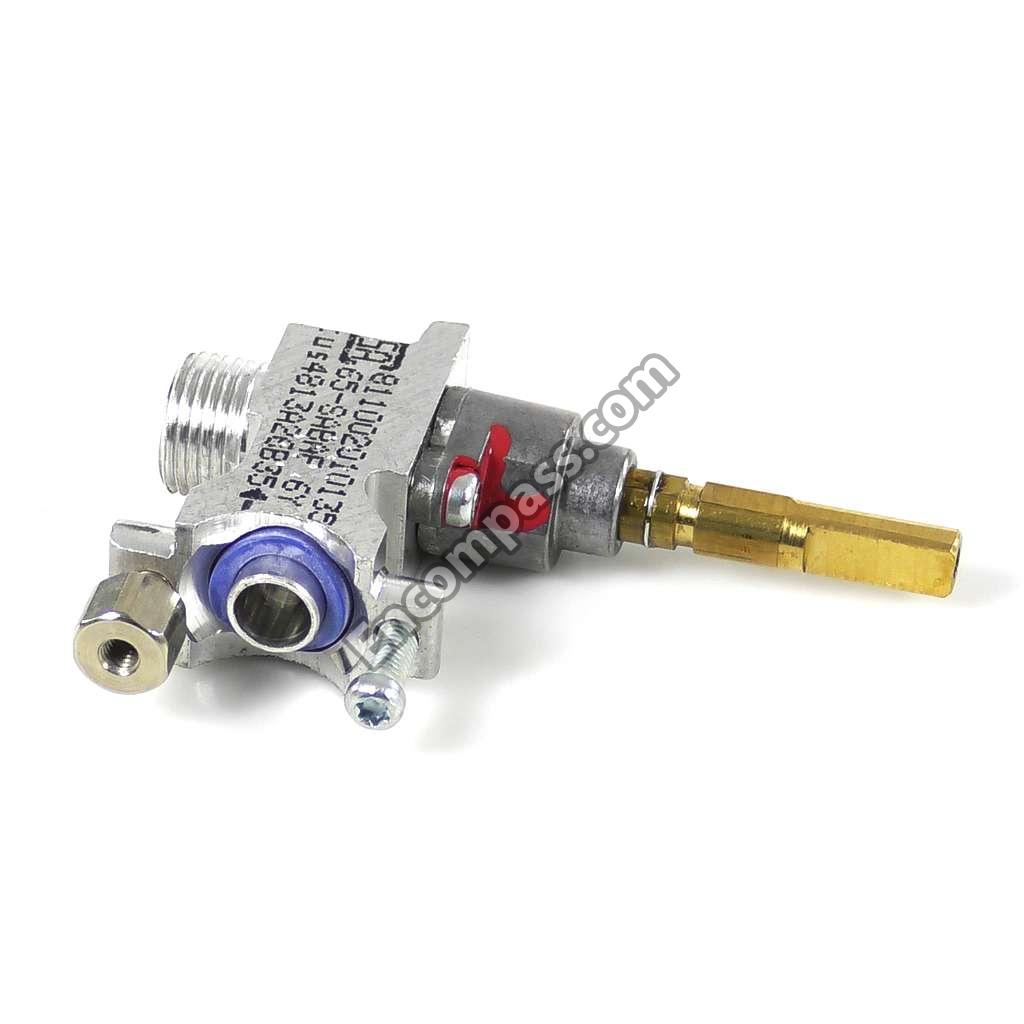

8286919 8286919 VALVE, SINGLE (LEFT FRONT & RIGHT REAR)
8286916 8286916 VALVE, SINGLE (LEFT REAR)
8286920 8286920 VALVE, SINGLE (RIGHT FRONT)
W10368615 W10368615 VALVE-SOLN

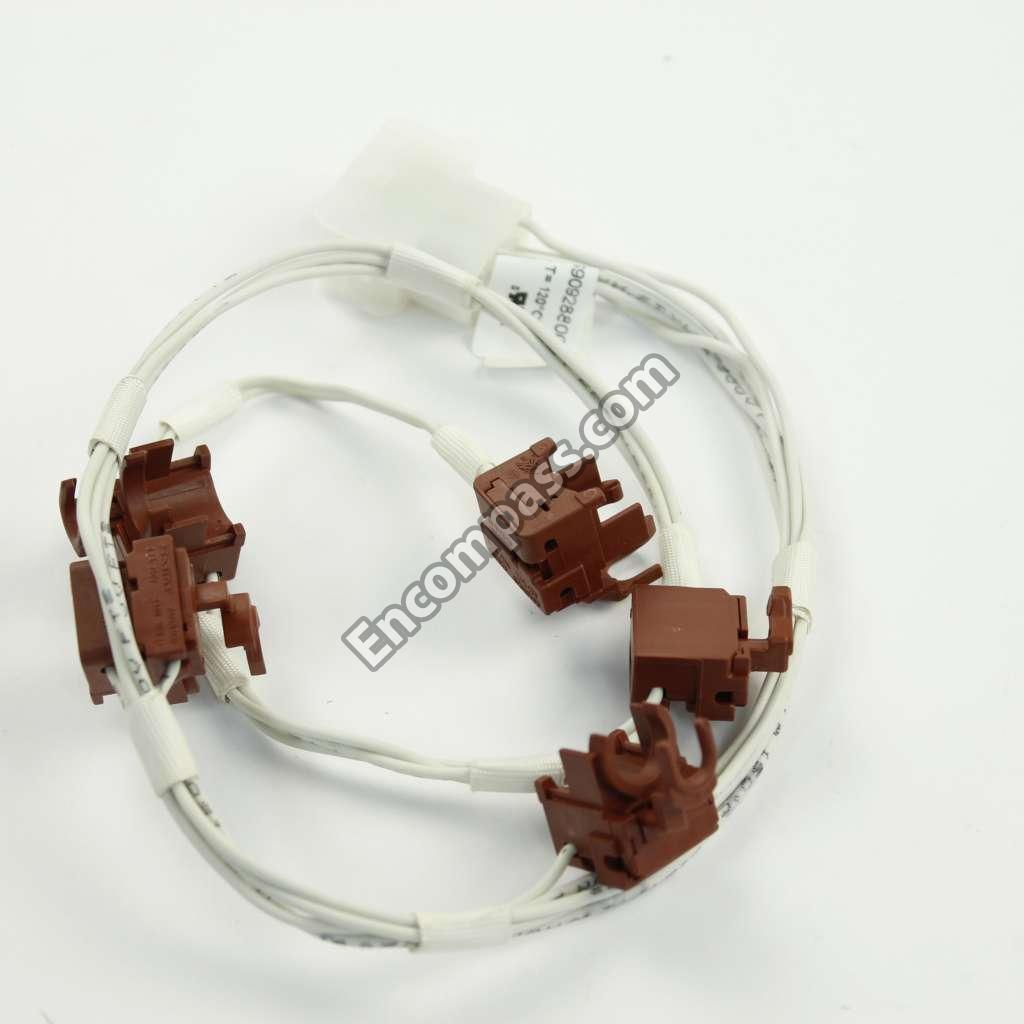

WP8286687 WP8286687 WIRE HARNESS
8286987 8286987 WIRING HARNESS PARTS, HARNESS, UI

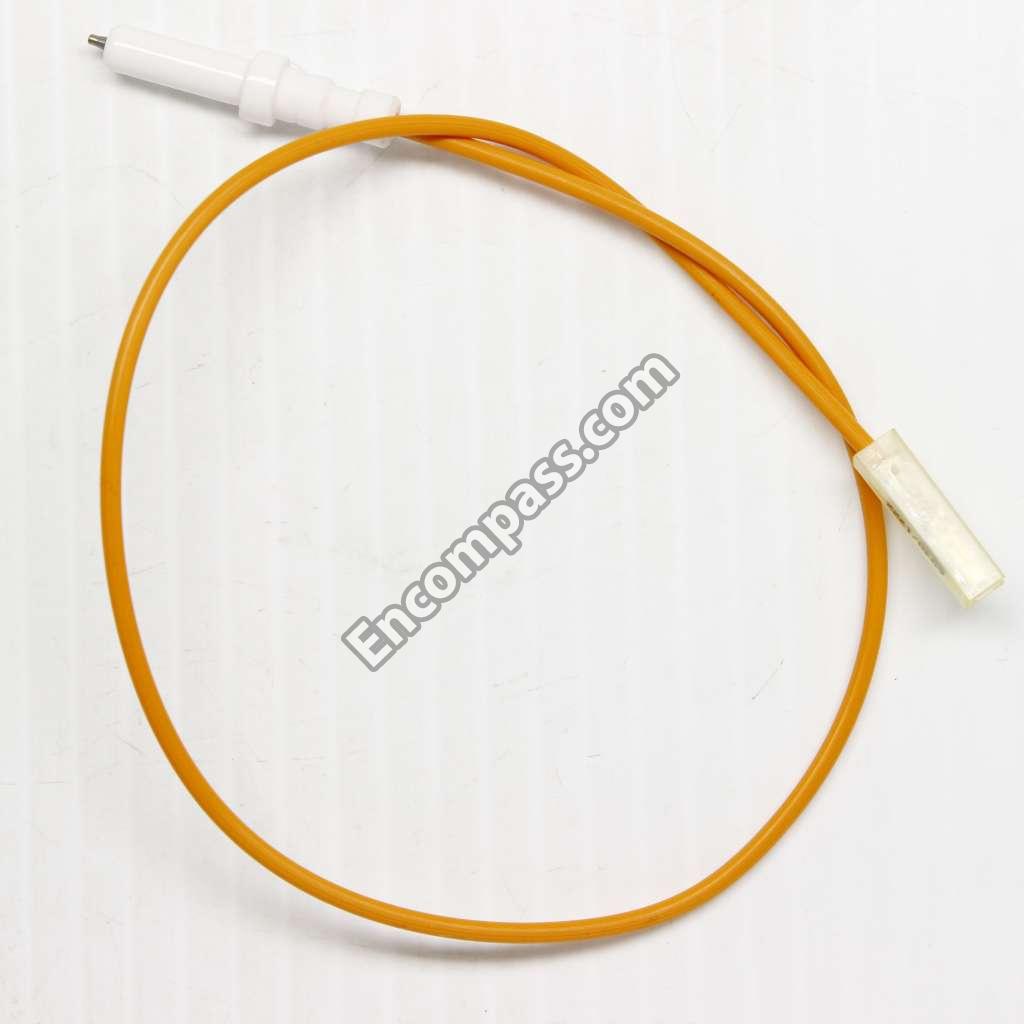

8286723 8286723 WIRING, ELECTRODE (LEFT REAR)
