Manufacturer

Whirlpool

Model Number

KFID500ESS05

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

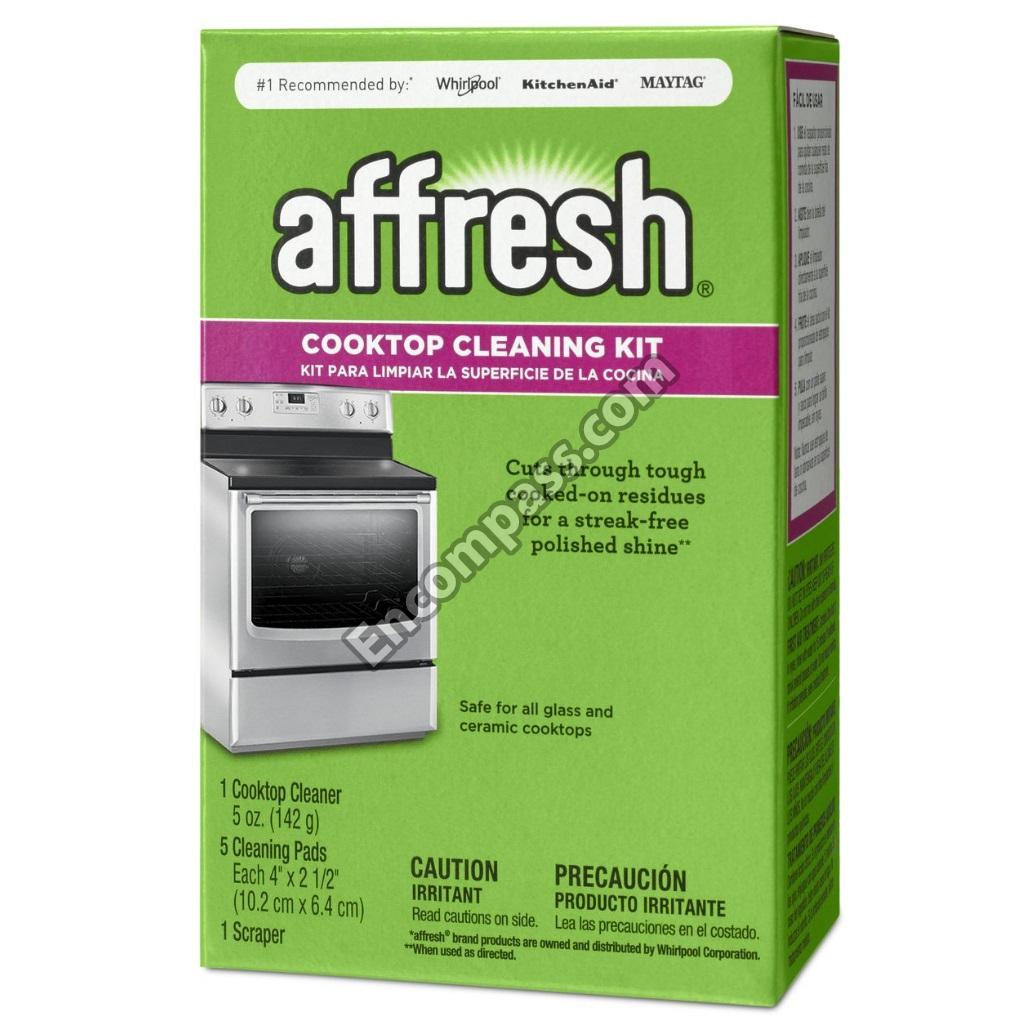

W11042470 W11042470 ACCESSORIES, COOKTOP CLEANING KIT
W10846206 W10846206 ACCESSORIES, MEDALLION, HANDLE (BLACK)
W10846205 W10846205 ACCESSORIES, MEDALLION, HANDLE (CHROME)
W10846207 W10846207 ACCESSORIES, MEDALLION, HANDLE (RED)
W10355051 W10355051 ACCESSORY PARTS, CLEANER, COOKTOP
W11042467 W11042467 ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
W10322408 W10322408 ADAPTER, VENT TUBE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11305108 W11305108 ASSEMBLY, HANDLE (STAINLESS)

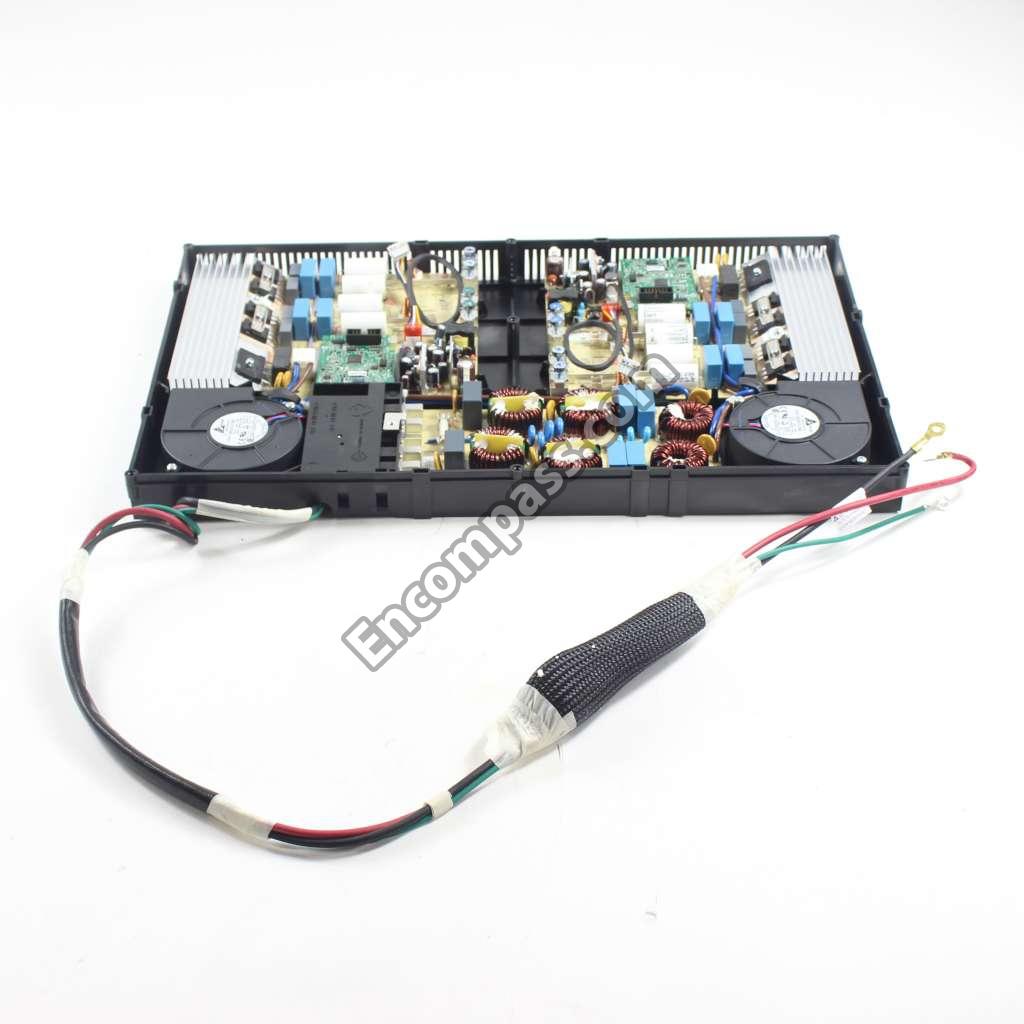

W10564364 W10564364 ASSEMBLY, INDUCTION PAN

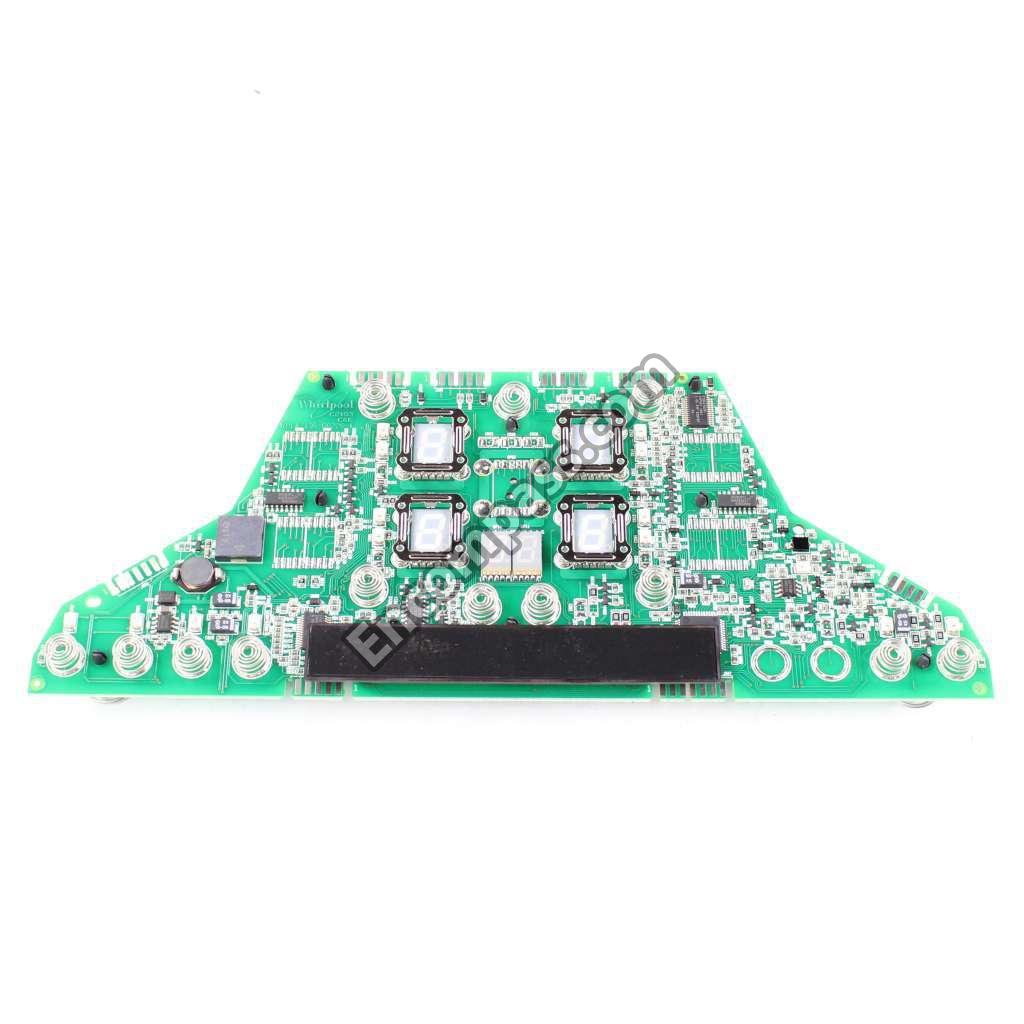

W10692425 W10692425 ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK)
W10668730 W10668730 BACK, MAIN
W11628980 W11628980 BLOCK-TERM
W11243763 W11243763 BOARD, TRANSIENT SUPPRESSOR
WP3801F656-51 WP3801F656-51 BRACKET
W10645182 W10645182 BRACKET, DOOR HANDLE
W10190166 W10190166 BRACKET, POWER SUPPLY
W10253470 W10253470 BRACKET, RETAINING
W10357697 W10357697 BRACKET, SIDE PANEL
W10261388 W10261388 BRACKET, TERMINAL
W10319087 W10319087 BRACKET, U CHANNEL
W10105790 W10105790 BUMPER & SCREW
W10260545 W10260545 CLIP, RETAINING
8019P013-60 8019P013-60 CLIP, WIRE LOCK
WPW10281322 WPW10281322 CONNECTOR

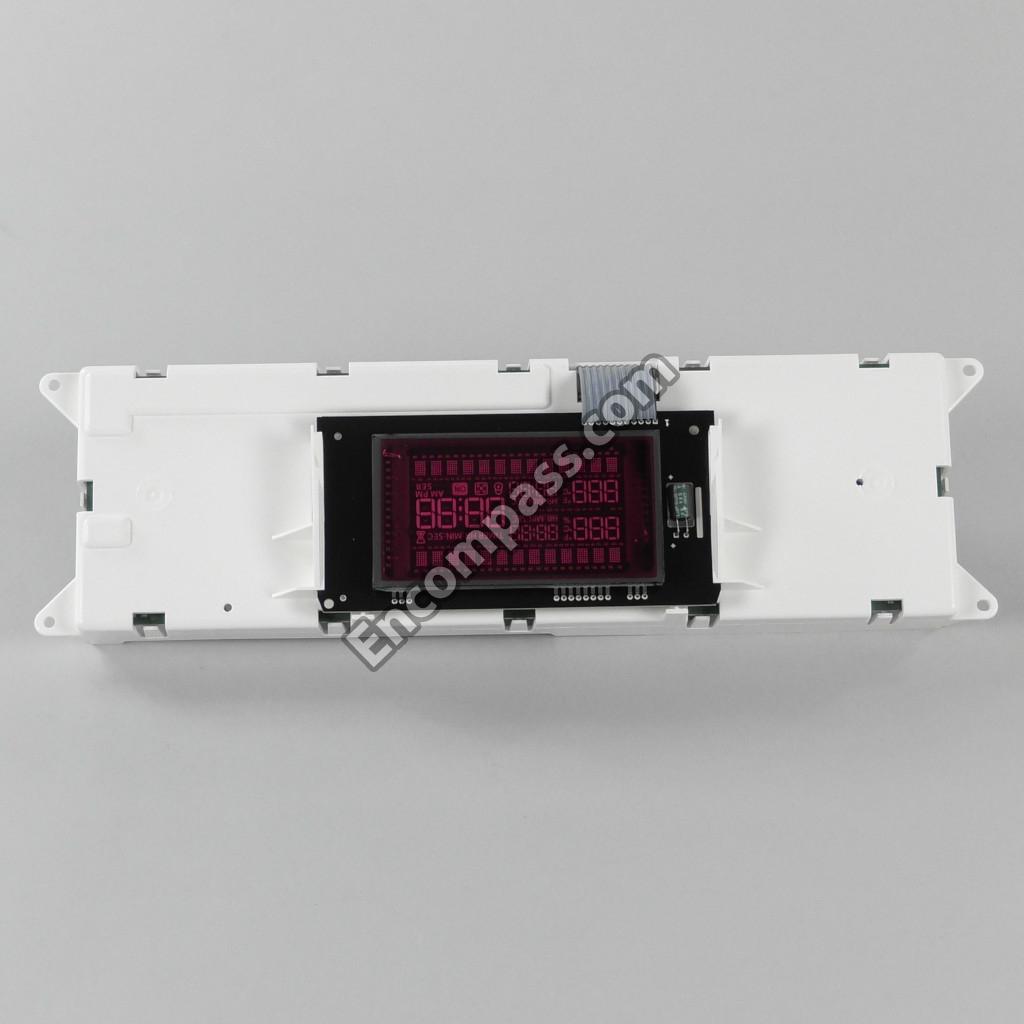

WPW10648866 WPW10648866 CONTROL BOARD
W11164063 W11164063 CONTROL PANEL
W10777613 W10777613 COOKTOP
W10312612 W10312612 COVER, ACCESS (TERMINAL BLOCK)
W10776098 W10776098 COVER, BACKGUARD
8285593 8285593 COVER, CONNECTOR
8303962BU 8303962BU COVER, FAN
W10410463 W10410463 COVER, HINGE (LEFT)
W10410461 W10410461 COVER, HINGE (RIGHT)
W10268559 W10268559 COVER, LOWER WIRE
W10268560 W10268560 COVER, WIRE LOWER
WPW10261386 WPW10261386 COVR-WIRE
W10818273 W10818273 DISPLAY
W11166856 W11166856 DOOR DOOR LATCH
WPW10335433 WPW10335433 DOOR HINGE
WPW10335434 WPW10335434 DOOR HINGE
WPW10485732 WPW10485732 DOOR HINGE
WPW10485733 WPW10485733 DOOR HINGE
W10466974 W10466974 DUCT, SIDE INDUCTION (BACK)
W10614824 W10614824 DUCT, SIDE INDUCTION (FRONT)
W10317476 W10317476 ELEMENT, BROIL (UPPER)
W10271639 W10271639 ELEMENT, CONVECTION (240VAC)
W11662148 W11662148 ELMNT-BAKE
W11101534 W11101534 ELMNT-BROL
W10328381 W10328381 FAN, COOLING (LEFT)
W10328378 W10328378 FAN, COOLING (RIGHT)
W10819914 W10819914 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11665456 W11665456 FOOT-LEVEL
W11595912 W11595912 FRAME-FRNT
WPW10272594 WPW10272594 FRAME-WNDW
WPW10272708 WPW10272708 FRAME-WNDW
W11515376 W11515376 FRONT, MAIN (UPPER)

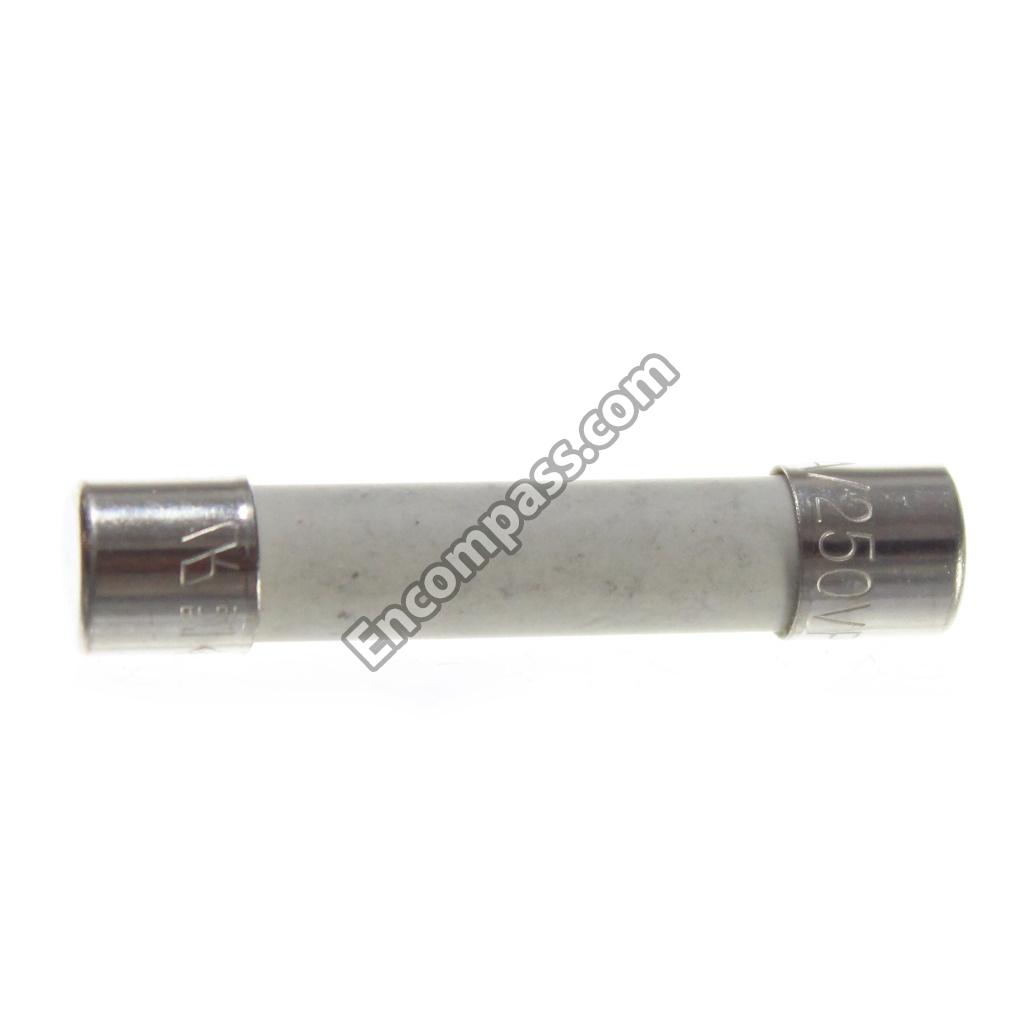

WPW10328492 WPW10328492 FUSE-THRML
W11594140 W11594140 GASKT-DOOR
W11594029 W11594029 GASKT-DOOR
WP9757706 WP9757706 GLASS DOOR
W11600196 W11600196 GLASS DOOR
W11600202 W11600202 GLASS DOOR
W11132120 W11132120 GLASS DOOR

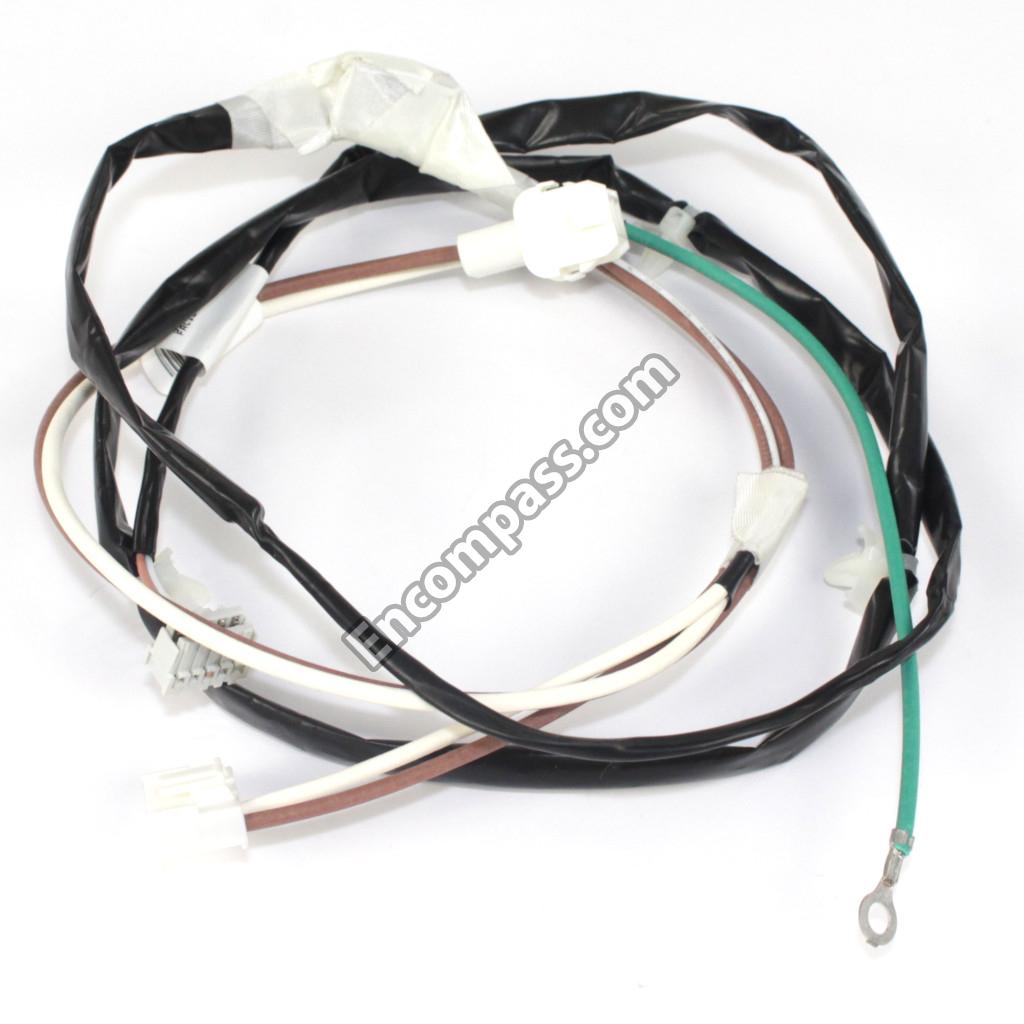

W11171882 W11171882 HARNESS, MAIN
W11172531 W11172531 HARNESS, SENSOR & LOCKS
W11172529 W11172529 HARNESS, SIGNAL
WPW10272328 WPW10272328 HINGE-RECV
WPW10272329 WPW10272329 HINGE-RECV
W10647259 W10647259 HINGE-RECV
WPW10536262 WPW10536262 HOTPLATE
WPW10460400 WPW10460400 HOTPLATE
WPW10410580 WPW10410580 HOTPLATE
WPW10321285 WPW10321285 INSULATION
WPW10321271 WPW10321271 INSULATION
W11688548 W11688548 INSULATION
W11685361 W11685361 INSULATION
WPW10204079 WPW10204079 INSULATION
WPW10322111 WPW10322111 INSULATION
W11594030 W11594030 INSULATION
WPW10271637 WPW10271637 INSULATION
W10274268 W10274268 INSULATION, CONVECTION MOTOR
7003P104-60 7003P104-60 INSULATOR, HEAT SHIELD
8009 8009 LIGHT BULB
WPW10292008 WPW10292008 LINER-DOOR
W11103615 W11103615 LINER-DOOR
W10886865 W10886865 MODULE
W11235883 W11235883 MOTOR-FAN
W10839793 W10839793 NAMEPLATE
W10794042 W10794042 NUT
WP3400029 WP3400029 NUT
WP7103P027-60 WP7103P027-60 NUT
W11427490 W11427490 OWNER'S MANUAL
W10548601 W10548601 PAN, ELEMENT
W11594130 W11594130 PANEL-SIDE
W10454938 W10454938 PLATE, INDUCTION
W10339476 W10339476 PLATE, INSULATION
W11430270 W11430270 QUICK START GUIDE
W10685968 W10685968 RACK, STEAM
WPW10570870 WPW10570870 RACK-OVEN
W11550107 W11550107 RACK-OVEN
W11403917 W11403917 RESERVOIR
W10340464 W10340464 RETAINER, INSULATION
W10485723 W10485723 RETAINER, INSULATION
WP4449040 WP4449040 SCREW
W11712404 W11712404 SCREW
W11690596 W11690596 SCREW
W10920281 W10920281 SCREW
W10777162 W10777162 SCREW
W10831019 W10831019 SCREW
WPW10292297 WPW10292297 SCREW
WP74003976 WP74003976 SCREW
W10491985 W10491985 SCREW
WP98008545 WP98008545 SCREW
WP488488 WP488488 SCREW
WP4449743 WP4449743 SCREW
W10850807 W10850807 SCREW
WP90767 WP90767 SCREW
WP7101P434-60 WP7101P434-60 SCREW
W11347848 W11347848 SCREW
W11594274 W11594274 SCREW
W11245710 W11245710 SCREW
W11233072 W11233072 SCREW
WP4159193 WP4159193 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
4450800 4450800 SCREW, GROUNDING
WPW10299338 WPW10299338 SHIELD
W10319762 W10319762 SHIELD, BROIL
W10332449 W10332449 SHIELD, CORD
W10311987 W10311987 SHIELD, CORD (RIGHT)
W10332459 W10332459 SHIELD, HEAT
8036P012-60 8036P012-60 SHIELD, POWER CORD
W10538516 W10538516 SHIELD, SIDE INSULATION
W10278697 W10278697 SHIELD, VENT
W11594027 W11594027 SOCKT-LITE
W11594028 W11594028 SPACER-PNL
W10319109 W10319109 SUPPORT, BACKGUARD (BLACK (LEFT))
W10319111 W10319111 SUPPORT, BACKGUARD (BLACK (RIGHT))
W10863342 W10863342 SUPPORT, LOWER OVEN
WP7403P899-60 WP7403P899-60 SWTCH-SFTY
W11325873 W11325873 TECH SHEET
WP7430P044-60 WP7430P044-60 TOP-OVEN
W10337391 W10337391 TUBE, VENT (UPPER)
WPW10323793 WPW10323793 TUBE-VENT
7109P084-60 7109P084-60 WASHER, FIBER
