Model Image
Manufacturer

Whirlpool

Model Number

KFIL27CXMS3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

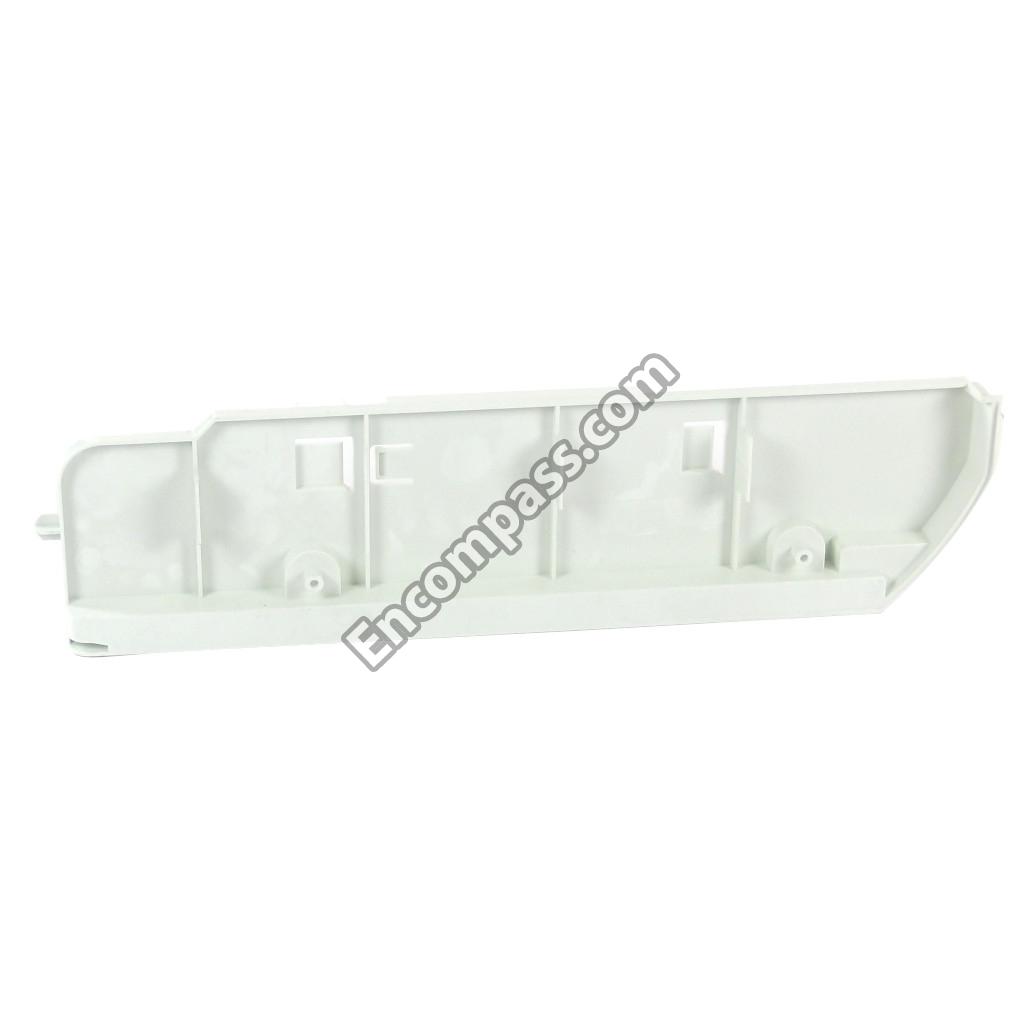

12925404SP 12925404SP ADAPTER, BIN (INNER)
W10166742 W10166742 ADAPTER, BIN (OUTER)
W10194598 W10194598 AIR-BAFFLE
W10318644 W10318644 ARM-EJECTR
W10267602 W10267602 ARM-STRIPR
W10521477 W10521477 AUGER, CRUSHER
67006434 67006434 AXLE, ROLLER (2)
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP627985 WP627985 BIMETL-DEF
W10280560 W10280560 BIN-CNTLVR
WP12924903 WP12924903 BIN-FREEZR
WP67006366 WP67006366 BIN-FREEZR
W10278732 W10278732 BLADE
W10278733 W10278733 BLADE
W10278731 W10278731 BLADE
2257020 2257020 BLADE, FIXED
WP67006337 WP67006337 BLADE- FAN
WP12825803 WP12825803 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
W10178238 W10178238 BLOCK-BLAD
W10898445 W10898445 BOARD, RECEIVER
W10159461 W10159461 BOX
WPW10284683 WPW10284683 BRACKET
WPW10284682 WPW10284682 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
W10174827 W10174827 BRACKET
W10245601 W10245601 BRACKET
WPW10214813 WPW10214813 BRACKET, WATER SYSTEM

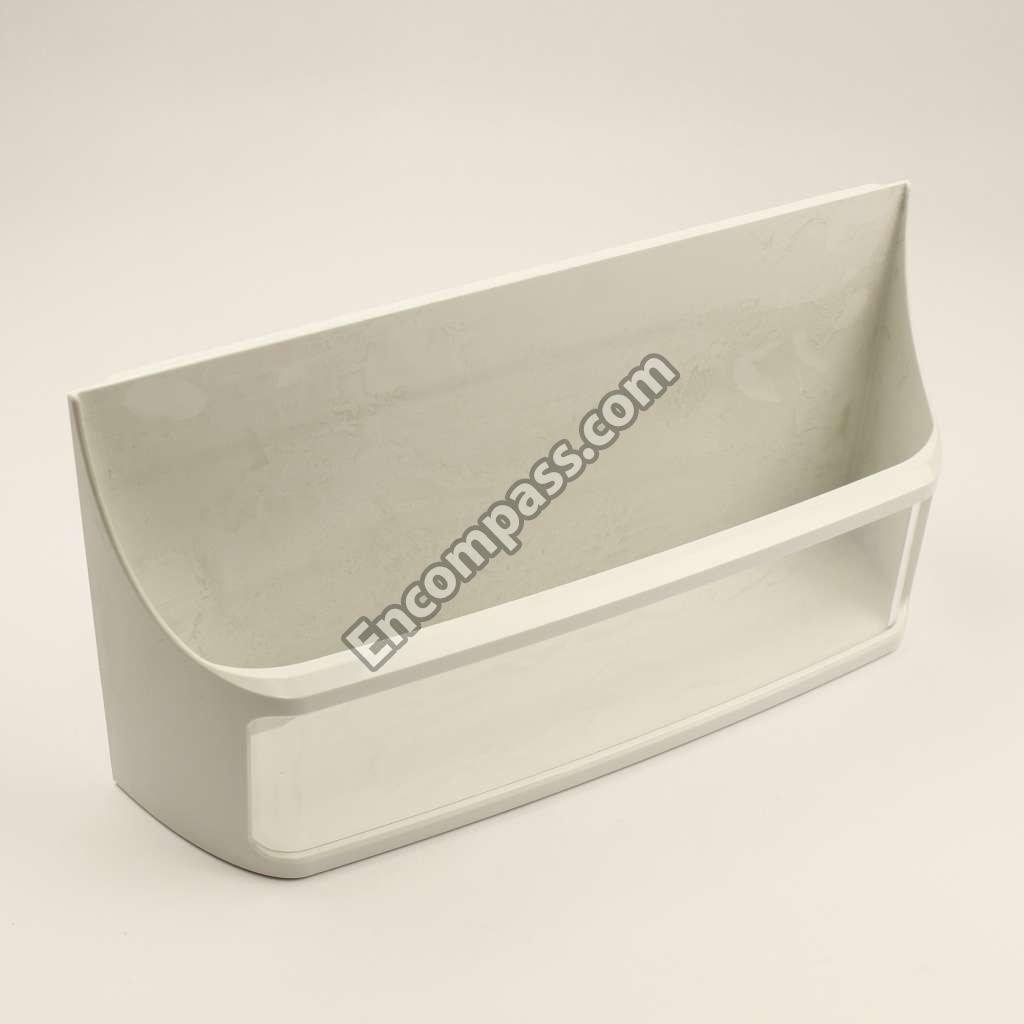

WPW10255487 WPW10255487 BUCKET, DOOR GALLON
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10213592 W10213592 CHUTE
W10281329 W10281329 CLAMP
31462A 31462A CLEANER, STNLS STEEL MAGIC
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
W11673433 W11673433 CLIP
W11712696 W11712696 CLIP
W10174818 W10174818 CLIP
W10562834 W10562834 CLIP
W10218551 W10218551 CLIP
10623002 10623002 CLIP, EVAPORATOR
WP12028505AP WP12028505AP CLOSER
W10276644 W10276644 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10334458 WPW10334458 CONNECTOR
WP10423131 WP10423131 CONTAINER
WPW10267558 WPW10267558 CONTAINER, ICE
WPW10353202 WPW10353202 CONTAINER, ICE (COMPLETE)
WPW10247377 WPW10247377 CONTROL
W10870822 W10870822 CONTROL BOARD
WPW10305123 WPW10305123 CONTROL BOARD
W11125428 W11125428 CONTROL BOARD
WPW10267646 WPW10267646 CONTROL BOARD
WPW10226427 WPW10226427 CONTROL BOARD
W11033771 W11033771 COUPLING
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
WPW10278935 WPW10278935 COVER
W11226688 W11226688 COVER
W10292299 W10292299 COVER
W10178232 W10178232 COVER
W10276436 W10276436 COVER
W10213615 W10213615 COVER
W10218689 W10218689 COVER
W10276693 W10276693 COVER
W10199834 W10199834 COVER
W10211511 W10211511 COVER
W10251672 W10251672 COVER
W10272998 W10272998 COVER
W10272486 W10272486 COVER
12961602 12961602 COVER, CONTROL BOX
WP67003924 WP67003924 COVER- FZ
WPW10270394 WPW10270394 COVER-BACK
W10308421 W10308421 COVER-EVAP
WPW10215169 WPW10215169 COVER-FILT
W10213297 W10213297 COVER-FILT
W10884856 W10884856 COVER-FRNT
W10253811 W10253811 COVER-TUBE
W10236761 W10236761 COVER-VALV
W10160726 W10160726 CUP-FILL
12963002SP 12963002SP DAM (LEFT SIDE)
12963102SP 12963102SP DAM (RIGHT SIDE)
12977847SQ 12977847SQ DOOR ASSEMBLY SS
13102612SQ 13102612SQ DOOR ASSEMBLY SS
W10917988 W10917988 DOOR HINGE
W11592374 W11592374 DOOR HINGE
WP2223877 WP2223877 DOOR LATCH
13102614SQ 13102614SQ DOOR, LEFT (STAINLESS)
W10346235 W10346235 DOOR-CHUTE
WP12722815AP WP12722815AP DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
W10194596 W10194596 DUCT-AIR
W10194595 W10194595 DUCT-AIR
W10276661 W10276661 ENDCAP
W10276687 W10276687 ENDCAP
WPW10388658 WPW10388658 ESCUTCHEON
W11536253 W11536253 EVAPORATOR
W11334745 W11334745 EVAPORATOR MOTOR
W10367416 W10367416 EXTENSION
W10206339 W10206339 FASTENER
WP12587703AP WP12587703AP FILLER
W10276725 W10276725 FRAME
W10276729 W10276729 FRONT-PAN
W10815413 W10815413 FUNNEL
W11159728 W11159728 GASKET
W10856123 W10856123 GASKET
W11250029 W11250029 GASKET
W10323021 W10323021 GASKET
W10247398 W10247398 GASKET
W10166865 W10166865 GASKET
W10178224 W10178224 GASKET
W10247763 W10247763 GASKET
W10247668 W10247668 GASKET
WPW10714545 WPW10714545 GASKET ASSEMBLY
W10830055 W10830055 GASKET, DOOR, RIGHT HAND (GREY)
67006429 67006429 GASKET, HV CONTROL
WPB8381501 WPB8381501 GASKET- DR
W10279104 W10279104 GASKET-PAN
W10279036 W10279036 GASKET-PAN
12002497 12002497 GEAR (INCLUDES BOTH)
WPW10279105 WPW10279105 GLASS, CRISPER
WPW10235357 WPW10235357 GLIDE
WPW10235367 WPW10235367 GLIDE
WPW10132653 WPW10132653 GLIDE
W10286442 W10286442 GLIDE
W10286440 W10286440 GLIDE
WPW10215957 WPW10215957 GRATE, TRAY
WP542638 WP542638 GREASE
W11176847 W11176847 GRILLE
WPW10534155 WPW10534155 GRILLE
W10216534 W10216534 GRILLE
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
2323357 2323357 GROMMET, DRIVE SHAFT
WP67002780 WP67002780 GROMMET- F
W11676465 W11676465 GROMMET- F
W10499850 W10499850 GUIDE-ICE
WPW10314522K WPW10314522K HANDLE
WPW10314517K WPW10314517K HANDLE
W10292582 W10292582 HARNS-WIRE
W10291014 W10291014 HARNS-WIRE
W10271463 W10271463 HARNS-WIRE
W10187177 W10187177 HARNS-WIRE
WP12729123 WP12729123 HEATER
W10248280 W10248280 HINGE-DOOR
W10213415 W10213415 HINGE-DOOR
W10331710 W10331710 HOLDER-BEV
W11434460 W11434460 HOUSING
WP2195914 WP2195914 HOUSING-IM

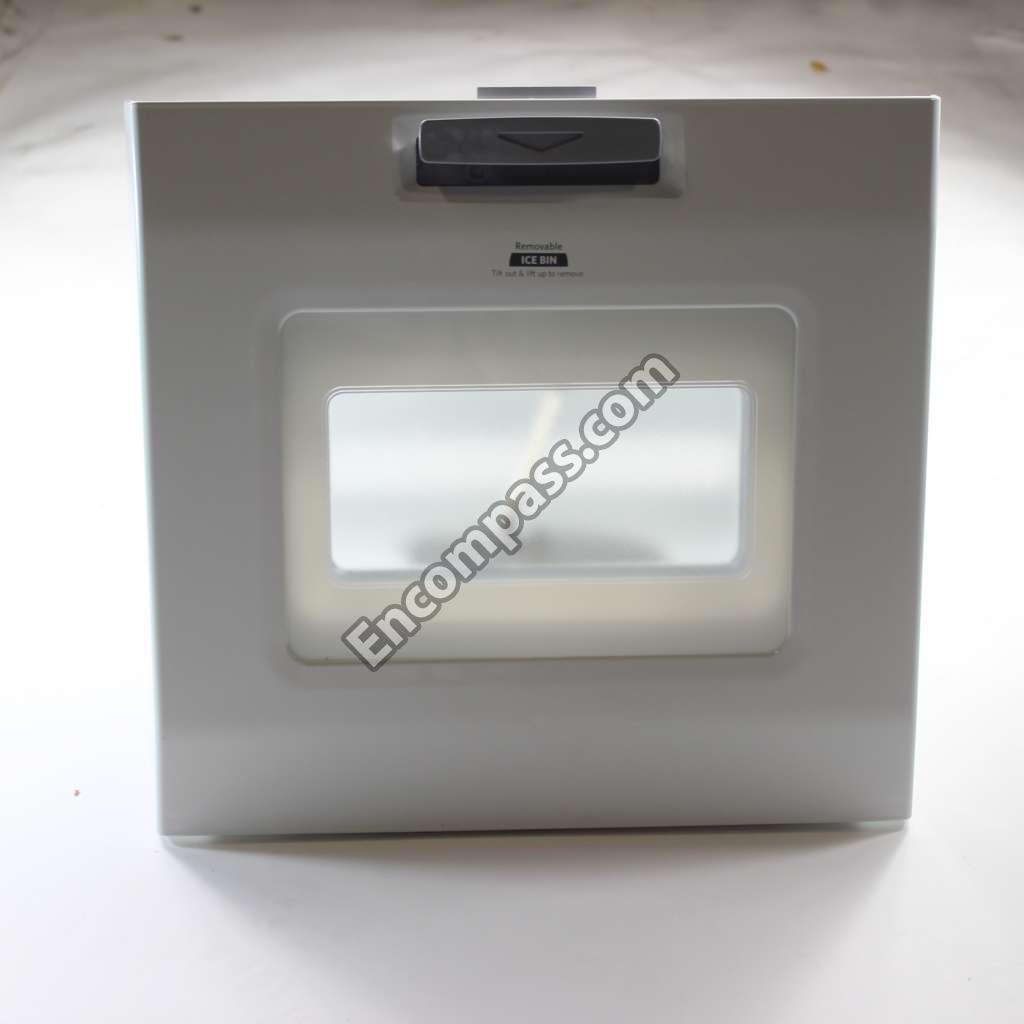

W10355154 W10355154 ICEBOX ASSEMBLY, COMPLETE
WPW10122559 WPW10122559 ICEMAKER
W11706807 W11706807 INSULATION
W10893917 W10893917 INVRTR-BOX
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
833938 833938 KIT, TERMINAL CONNECTOR
W10119222 W10119222 KNOB-CNTRL
W10276721 W10276721 KNOB-CNTRL
W10268264 W10268264 LADDER
W10215692 W10215692 LATCH-BIN
W10212141 W10212141 LATCH-BIN
W10312047 W10312047 LENS-LIGHT
W10225288 W10225288 LENS-LIGHT
W10237349 W10237349 LENS-LIGHT
WPW10141622 WPW10141622 LEVELER
10436404 10436404 LID, UTILITY
W11290115 W11290115 LIGHT
W11679940 W11679940 LIGHT BULB
W10283151 W10283151 MAT
W10283145 W10283145 MAT
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
W10679370 W10679370 MODULE
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
W10161596 W10161596 MOLD-ICE
WPW10205979 WPW10205979 MOTOR
WP2323603 WP2323603 MOTOR
W11613295 W11613295 MOTOR-COND
WPW10243391 WPW10243391 NAMEPLATE
W10278586 W10278586 OWNERS MANUAL
W10334810 W10334810 PAD
WPW10368730 WPW10368730 PAD
W10276727 W10276727 PAN-CRISPR
WPW10655368 WPW10655368 PAN-DRIP
W10276689 W10276689 PAN-UTILTY
W10166878 W10166878 PIN-ROLL
W11727651 W11727651 PLATE
WP67006113 WP67006113 PLATE
W10194600 W10194600 PLATE
WPA3076901 WPA3076901 PLUG, BUTTON
WPW10216070 WPW10216070 RESERVOIR
W10826788 W10826788 RETAINER, GLIDE (LEFT HAND)
WP67006368 WP67006368 RETAINER-
WP67005149 WP67005149 ROLLER
67004169 67004169 ROLLER, CRISPER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
WP8281163 WP8281163 SCREW
WP8281164 WP8281164 SCREW
WPW10141645 WPW10141645 SCREW
67006692 67006692 SCREW
W10709798 W10709798 SCREW
12992301 12992301 SCREW
WP3400065 WP3400065 SCREW
W11311945 W11311945 SCREW
WP489474 WP489474 SCREW
WP98165 WP98165 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
W10001240 W10001240 SCREW
W10829281 W10829281 SCREW
8533917 8533917 SCREW (2)
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
2006254 2006254 SCREW, 6-19 X .250
WPW10290759 WPW10290759 SCREW-HANDLE
WP2198628 WP2198628 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
WPW10353552 WPW10353552 SEPARATOR
W11028221 W11028221 SHAFT
W10258592 W10258592 SHAFT
W10205737 W10205737 SHELF, STAT (2)
W10305890 W10305890 SHIELD
W11469652 W11469652 SHIELD
12999501 12999501 SHIM, HINGE (LEFT)
12999502 12999502 SHIM, HINGE (RIGHT)
W11556315 W11556315 SHROUD
W11700329 W11700329 SHROUD- EV
W11658402 W11658402 SLIDE
W10276723 W10276723 SLIDE
W10119217 W10119217 SLIDE
WPW10132652 WPW10132652 SLIDE, PANTRY(RH)
W11447232 W11447232 SOCKET
W10189661 W10189661 SPACER
W11032808 W11032808 SPACER, FLAT
W11227371 W11227371 SPIGOT
W10852956 W10852956 SPRING
W10292300 W10292300 SPRING
W11703060 W11703060 STOP-DOOR
WP12227305WD WP12227305WD SUPPORT
W10490807 W10490807 SUPPORT
W11396033 W11396033 SWITCH
W11445850 W11445850 SWITCH
W10884855 W10884855 SWITCH
W10368199 W10368199 TAG, ENERGY
W11238399 W11238399 TAPE
W10349489 W10349489 TECH SHEET
WP1117510 WP1117510 TORX KEY
WPW10267863 WPW10267863 TRAY-DRIP
WPW10305897 WPW10305897 TRAY-DRIP
W11547653 W11547653 TRAY-DRIP
W10242974 W10242974 TUBE
W10619951 W10619951 TUBE-DRAIN
W10245518 W10245518 TUBE-DRAIN
W10314372 W10314372 TUBE-WATER
W10349052 W10349052 TUBE-WATER

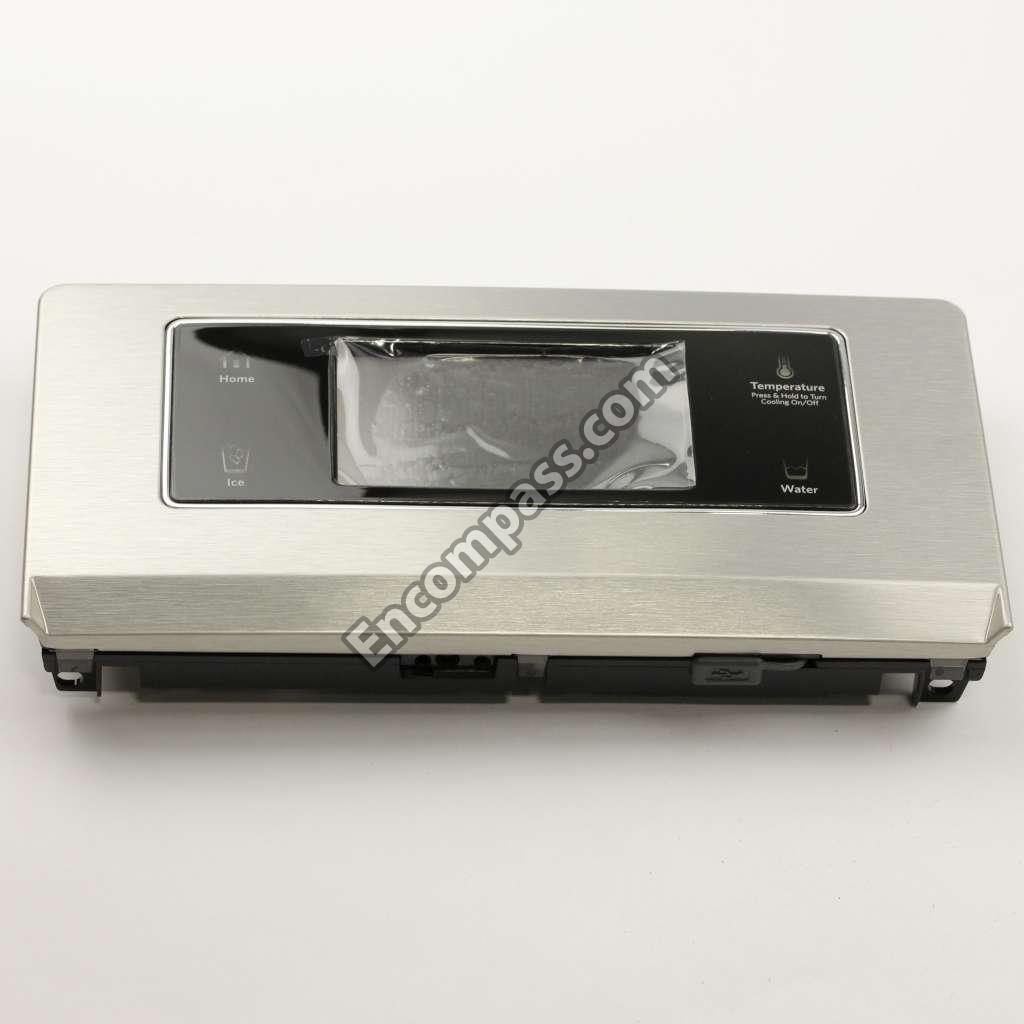

WPW10309089 WPW10309089 UI ASSEMBLY (STAINLESS)
WPW10270395 WPW10270395 VALVE
WP978025 WP978025 VALVE
WP12956105 WP12956105 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
WP2212370 WP2212370 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
EDR4RXD1 EDR4RXD1 WATER FILTER
WPW10226186 WPW10226186 WATER TUBE
WPW10213219 WPW10213219 WATER TUBE
WPW10123444K WPW10123444K WHEEL
WPW10292583 WPW10292583 WIRE HARNESS
W10193350 W10193350 WIRE-JUMPR
