Model Image
Manufacturer

Whirlpool

Model Number

KGCC566RBL07

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4456626 4456626 "HARNESS, IGNITOR 15"""
W10268394 W10268394 "HARNESS, IGNITOR 28"""
W10355051 W10355051 ACCESSORIES, CLEANER, COOKTOP
31617A 31617A ACCESSORIES, CLEANER, GRATE & DRIP PAN
W10355010 W10355010 ACCESSORIES, CLEANER, KITCHEN & APPLIANCE
W11042467 W11042467 ACCESSORIES, CLEANER, STAINLESS STEEL
4396096RB 4396096RB ACCESSORIES, GRIDDLE
31463A 31463A ACCESSORIES, PROTECTANT, COOKTOP
WA906B WA906B ACCESSORIES, SCRAPER, COOKTOP
W10355049 W10355049 ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
9753602BL 9753602BL BEZEL, COOKTOP (BLACK (12K) (CENTER REAR & RIGHT REAR))
8285779BL 8285779BL BEZEL, COOKTOP (BLACK (17K) (LEFT FRONT))
9753601BL 9753601BL BEZEL, COOKTOP (BLACK (6K) (LEFT REAR & RIGHT FRONT))
8285790 8285790 BRACKET, MOUNTING ORIFICE
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406283 WPW10406283 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WP8286155CB WP8286155CB CAP-BURNER
WP8286154CB WP8286154CB CAP-BURNER
WP8286153CB WP8286153CB CAP-BURNER
WP8286156CB WP8286156CB CAP-BURNER
W10336909 W10336909 CLEANER
W10661511 W10661511 COOKTOP
W10392007 W10392007 CORD, POWER
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10185266 W10185266 FOOT, RUBBER
W11242859 W11242859 GRATE-BRNR
W11502175 W11502175 GRATE-BRNR
W10854242 W10854242 GROMMET
W11100534 W11100534 GUIDE, USE & CARE
8186533 8186533 HARDWARE
W11134294 W11134294 HOLDER-ORF
W11134293 W11134293 HOLDER-ORF
W11134292 W11134292 HOLDER-ORF
W11134291 W11134291 HOLDER-ORF
W11134289 W11134289 HOLDER-ORF
W11134296 W11134296 IGNTR-SURF
W11134295 W11134295 IGNTR-SURF
W11100530 W11100530 INSTRUCTIONS, INSTALLATION
W11100532 W11100532 INSTRUCTIONS, LP CONVERSION
8304571 8304571 INSTRUCTIONS, UNDERCOUNTER
12002277 12002277 KIT, VALVE & SCREW (MUELLER)
WPW10484149 WPW10484149 KNOB
WP3192529 WP3192529 ORIFICE
WP3192523 WP3192523 ORIFICE
8286474 8286474 ORIFICE (LEFT FRONT)
W10639157 W10639157 ORIFICE (RIGHT REAR)
8186321 8186321 PAD-GRATE
8285751 8285751 PIPE, MANIFOLD
8286858 8286858 PLATE, MANIFOLD
8285796 8285796 RAIL, BURNER
W10203755 W10203755 RAIL, CENTER
WPW10110486 WPW10110486 RANGE SPARK MODULE
W11170853 W11170853 REGULATOR
W10132200 W10132200 RELIEF, STRAIN
WP3400093 WP3400093 SCREW
WP90767 WP90767 SCREW
WP12990527 WP12990527 SCREW
WP3177991 WP3177991 SCREW
WP8273062 WP8273062 SCREW
WP3368921 WP3368921 SCREW-TORX
WP3188425 WP3188425 SEAL-SWTCH
8285789 8285789 SHIELD, HEAT
3191462 3191462 SHIELD, HEAT
WP8286320 WP8286320 SPUD-ORFCE
WP8286642 WP8286642 TAPE
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)

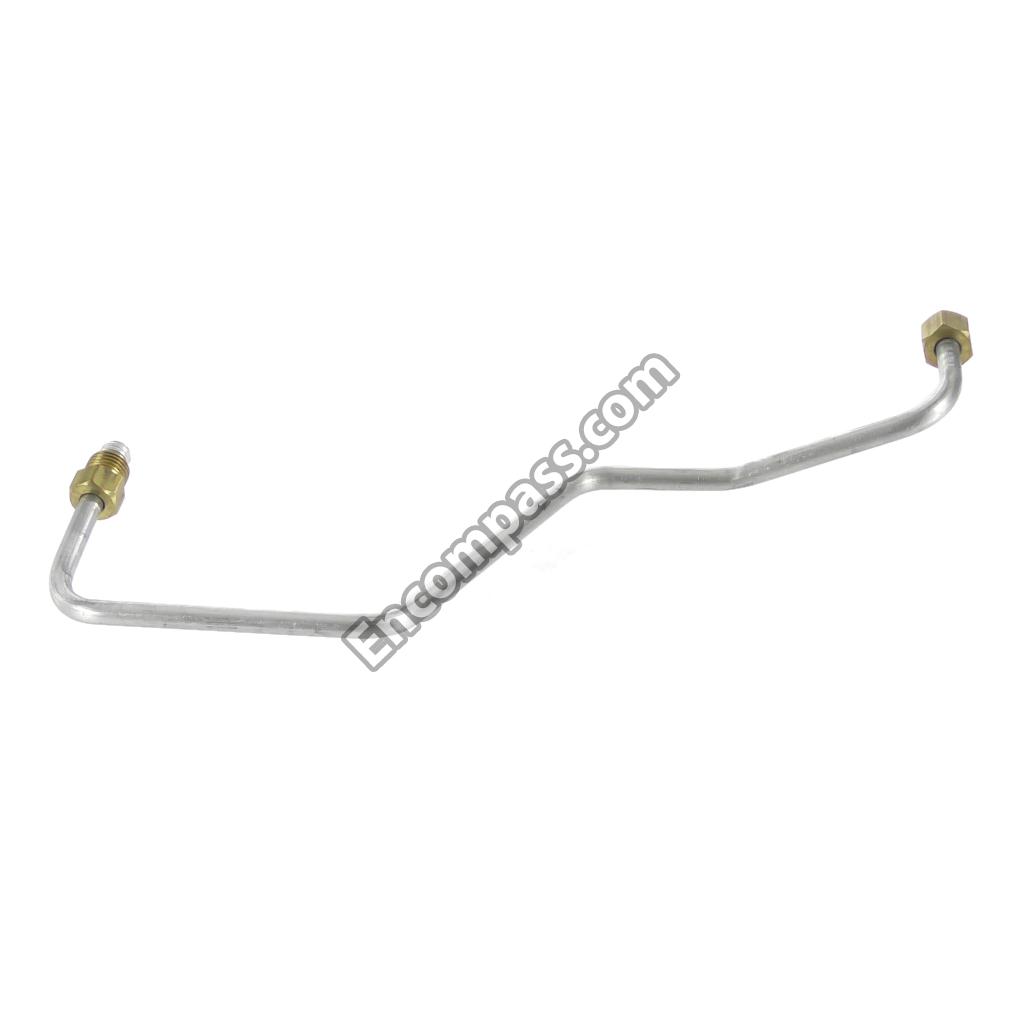

8285770 8285770 TUBE (CENTER)
8285769 8285769 TUBE (LEFT REAR)
8285768 8285768 TUBE (RIGHT FRONT)
8285767 8285767 TUBE (RIGHT REAR)
W11134300 W11134300 TUBING-GAS
8286561 8286561 VALVE, GAS BURNER (LEFT FRONT)
WP8286560 WP8286560 VALVE-BRNR
WP4456817 WP4456817 VALVE-BRNR
WP8286559 WP8286559 VALVE-BRNR
WP4456901 WP4456901 WIRE HARNESS
8285402 8285402 WIRE, GROUND JUMPER
