Model Image
Manufacturer

Whirlpool

Model Number

KGCS166GSS10

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP4457192 WP4457192 BEZEL-KNOB
3192491 3192491 BRACKET, MAINFOLD
8286565 8286565 BURNER BOX
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406283 WPW10406283 BURNR-HEAD
WP8286153CB WP8286153CB CAP-BURNER
WP8286154CB WP8286154CB CAP-BURNER
WP3191737 WP3191737 CAP-BURNER
WP8286155CB WP8286155CB CAP-BURNER
WP3192741 WP3192741 CNVRSN-KIT
W10140184 W10140184 COOKTOP
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
WP9759513 WP9759513 GRATE-BRNR
WP9759505 WP9759505 GRATE-BRNR
8186533 8186533 HARDWARE
4456626 4456626 HARNESS, IGNITOR 15`` (2)
4456627 4456627 HARNESS, IGNITOR 28`` (2)
WP4455849 WP4455849 HEAD, BURNER ((LF))
WPW10128448 WPW10128448 HOLDER-ORF
WPW10128451 WPW10128451 HOLDER-ORF
WPW10155786 WPW10155786 HOLDER-ORF
WPW10128450 WPW10128450 HOLDER-ORF
WP9782116 WP9782116 IGNTR-SURF
4455834 4455834 INSTALLATION INSTRUCTIONS
WP3191922 WP3191922 KNOB
3191514 3191514 NAMEPLATE
WP3192529 WP3192529 ORIFICE
WP3192523 WP3192523 ORIFICE
3192525 3192525 ORIFICE (LF)
8286551 8286551 ORIFICE (RR)
8285751 8285751 PIPE, MANIFOLD
W10392007 W10392007 POWER CORD
8285796 8285796 RAIL, BURNER
W10203755 W10203755 RAIL, CENTER
WPW10110486 WPW10110486 RANGE SPARK MODULE
WP4454571 WP4454571 REGULATOR, PRESSURE
9762761 9762761 SAFE COOKING TIPS (ENGLISH)
W10065852 W10065852 SAFE COOKING TIPS (FRENCH)
WP4449809 WP4449809 SCREW
WP3177991 WP3177991 SCREW
WP3400093 WP3400093 SCREW
W10491985 W10491985 SCREW
WP12990527 WP12990527 SCREW
WP3186217 WP3186217 SCREW
WP8273062 WP8273062 SCREW
WP3368921 WP3368921 SCREW-TORX
9760279 9760279 SEAL, FOAM
WP3188425 WP3188425 SEAL-SWTCH
8285789 8285789 SHIELD, HEAT
3191462 3191462 SHIELD, HEAT (2)
8285770 8285770 TUBING, GAS BURNER (CR)
8285766 8285766 TUBING, GAS BURNER (LF)
8285769 8285769 TUBING, GAS BURNER (LR)
8285768 8285768 TUBING, GAS BURNER (RF)
8285767 8285767 TUBING, GAS BURNER (RR)
8304571 8304571 UNDERCOUNTER, INSTALLATION
W10162169 W10162169 USE & CARE GUIDE
4456818 4456818 VALVE, GAS BURNER (BRONZE)
WP8286559 WP8286559 VALVE-BRNR
WP8286560 WP8286560 VALVE-BRNR
WP4456817 WP4456817 VALVE-BRNR

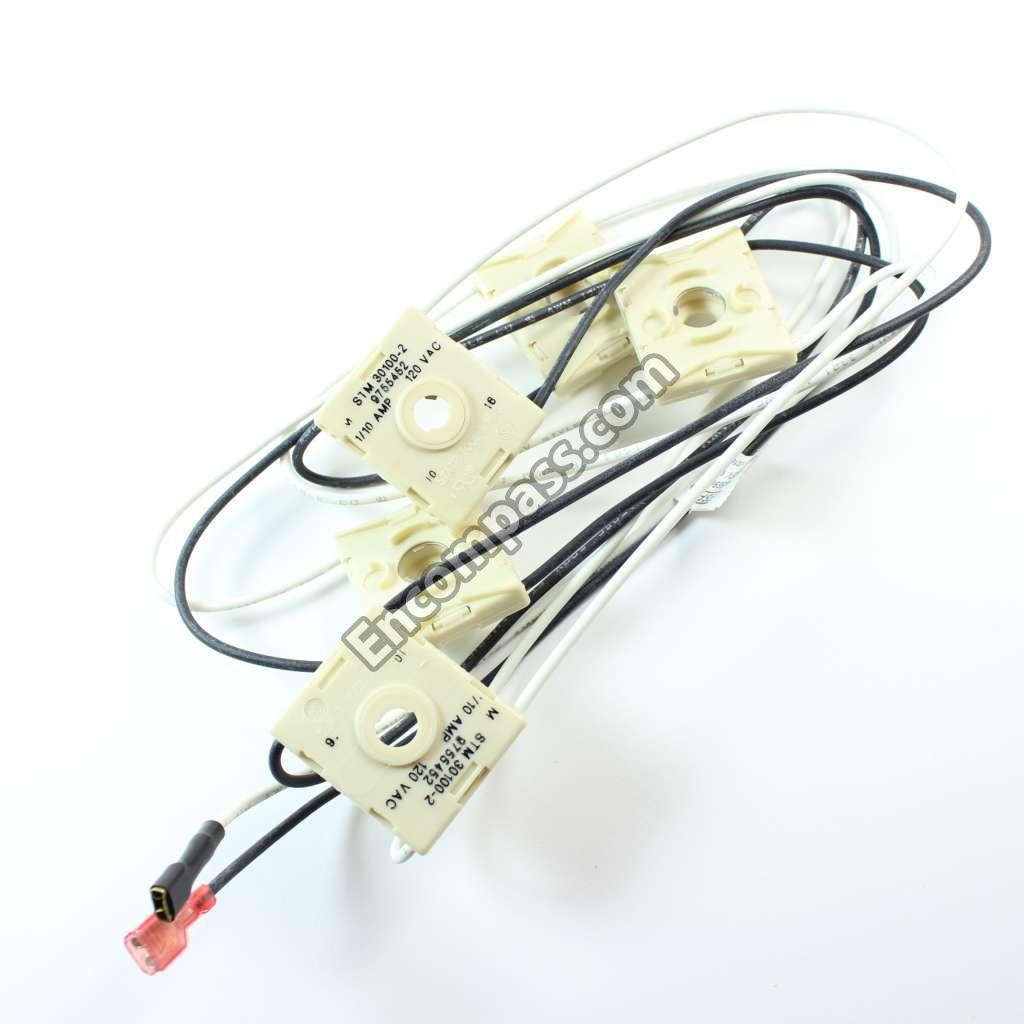

WP4456901 WP4456901 WIRE HARNESS
8285402 8285402 WIRE, GROUND
