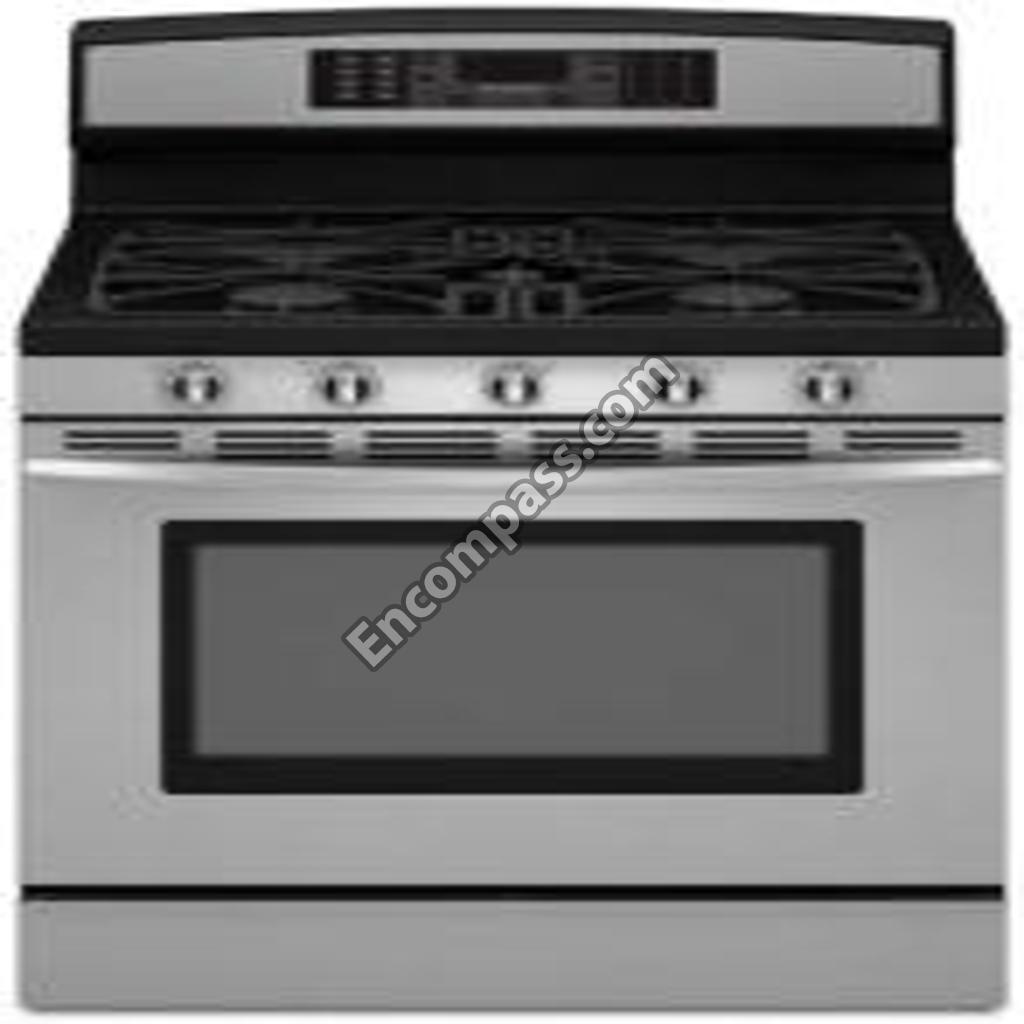

Model Image
Manufacturer

Whirlpool

Model Number

KGRS205TSS4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601P336-45 3601P336-45 BAFFLE, BROIL BURNER
3601P356-45 3601P356-45 BAFFLE, BURNER
WPW10211368 WPW10211368 BOTTM-OVEN
4005P704-51 4005P704-51 BOTTOM, WIRE COVER
WP3801F656-51 WP3801F656-51 BRACKET
3801F945-51 3801F945-51 BRACKET, CONTROL
3801P858-45 3801P858-45 BRACKET, HANDLE (LEFT)
3801P857-45 3801P857-45 BRACKET, HANDLE (RIGHT)
3801P798-51 3801P798-51 BRACKET, OVEN
3801P822-45 3801P822-45 BRACKET, OVEN BOTTOM
3801F886-51 3801F886-51 BRACKET, WINDOW(2)
7505P331-60 7505P331-60 BURNER, BAKE
W10160904 W10160904 BURNR-BRLR
WPW10406283 WPW10406283 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
8007P047-60 8007P047-60 BUSHING, WIRE
7504P294-60 7504P294-60 CAP, BURNER (CTR) (GRAY)
7504P295-60 7504P295-60 CAP, BURNER (LF) (GRAY)
7504P296-60 7504P296-60 CAP, BURNER (RF) (GRAY)
WP7504P300-60 WP7504P300-60 CAP-BURNER
WP7504P299-60 WP7504P299-60 CAP-BURNER
WPW10168355 WPW10168355 CAP-BURNER
WP7504P298-60 WP7504P298-60 CAP-BURNER
W10168351 W10168351 CAP-BURNER
8019P013-60 8019P013-60 CLIP, HARNESS
74008835 74008835 CLIP, RETAINER
W10271869 W10271869 CNVRSN-KIT
WP8507P351-60 WP8507P351-60 CONTROL BOARD
W10289580 W10289580 COOKTOP
W10289564 W10289564 COOKTOP
WP7402P109-60 WP7402P109-60 CORD, POWER
4005F753-45 4005F753-45 COVER, BROIL
4005F421-45 4005F421-45 COVER, IGNITER
4005F804-51 4005F804-51 COVER, UPPER
W10243045 W10243045 COVER-BLCK
W10243047 W10243047 COVER-REAR
W10205618 W10205618 COVER-REAR
W10792991 W10792991 DOOR DOOR LATCH
WP3608F126-71 WP3608F126-71 DOOR TRIM
8038P037-60 8038P037-60 DRAWER, STOP
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
3807F703-70 3807F703-70 ENDCAP, LEFT HAND (BLACK)
3807F703-71 3807F703-71 ENDCAP, LEFT HAND (WHITE)
3807F702-70 3807F702-70 ENDCAP, RIGHT HAND (BLACK)
3807F702-71 3807F702-71 ENDCAP, RIGHT HAND (WHITE)
7427P108-60 7427P108-60 FAN, CONVECT
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
W11665456 W11665456 FOOT-LEVEL
N_P N_P FRAME, FRONT (NOT SERVICED)
W11562931 W11562931 GASKT-DOOR
74003645 74003645 GLASS, INNER
WPW10160908 WPW10160908 GLASS, OUTER DOOR (BLACK)
W10160906 W10160906 GLASS-DOOR
W10160909 W10160909 GLASS-DOOR
W10168265 W10168265 GRATE-BRNR
W10168266 W10168266 GRATE-BRNR
WP7701P547-60 WP7701P547-60 HANDLE, DRAWER
WP74010753 WP74010753 HARNESS- S
W10237924 W10237924 HARNS-WIRE
W10278571 W10278571 HARNS-WIRE
3604F382-09 3604F382-09 HEAT SHIELD,VISOR (BLACK)
WP3604F382-81 WP3604F382-81 HEAT SHIELD,VISOR (WHITE)
74010546 74010546 HINGE, DOOR
W10153013 W10153013 HNDLE-DOOR
W10153015 W10153015 HNDLE-DOOR
W10153016 W10153016 HNDLE-DOOR
W10169901 W10169901 HOLDER-ORF
W10169902 W10169902 HOLDER-ORF
W10169903 W10169903 HOLDER-ORF
W10169906 W10169906 HOLDER-ORF
W10169907 W10169907 HOLDER-ORF
74007498 74007498 IGNITER, OVEN
WP7432P136-60 WP7432P136-60 IGNTR-OVEN
WPW10216419 WPW10216419 IGNTR-SURF
W10188242 W10188242 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
W11161816 W11161816 INSULATION
7002P480-60 7002P480-60 INSULATION
W10243056 W10243056 INSULATION
W10182346 W10182346 INSULATION
7002P484-60 7002P484-60 INSULATION, CORNER
7002P246-60 7002P246-60 INSULATION, DOOR
12002421 12002421 KIT, SUPPLY TUBE AND SCREW
WPW10160375 WPW10160375 KNOB
WPW10160374 WPW10160374 KNOB
WPW10160372 WPW10160372 KNOB
8009 8009 LIGHT BULB
WP2402W297-19 WP2402W297-19 LINER, DOOR
WPW10160634 WPW10160634 MEMBRANE SWITCH
74009098 74009098 MODULE, SPARK
7103P030-60 7103P030-60 NUT
74005230 74005230 NUT, LOCK (8-32)
W10853607 W10853607 ORIFICE
W10178934 W10178934 ORIFICE
W10185364 W10185364 OWNERS MANUAL
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
3401F082-45 3401F082-45 PAN, BAKE
2416F104-70 2416F104-70 PANEL, DRAWER FRNT (BLACK)
7760P228-60 7760P228-60 PANEL, DRAWER FRNT (STAINLESS STEEL)
2416F104-71 2416F104-71 PANEL, DRAWER FRNT (WHITE)
WP3605P337-51 WP3605P337-51 PANEL, INNER
WP2618F172-69 WP2618F172-69 PANEL, SIDE (2) (BLACK)
WP2618F172-58 WP2618F172-58 PANEL, SIDE (2) (WHITE)
W10168240 W10168240 PANL-MNFLD
W10168241 W10168241 PANL-MNFLD
W10168678 W10168678 PANL-MNFLD
7513P499-60 7513P499-60 PIPE, MANIFOLD
3605P146-51 3605P146-51 PLATE, CONDUIT
3605F305-19 3605F305-19 PLATE, CONVECT
WPW10256908 WPW10256908 RACK-OVEN
WP3406P034-51 WP3406P034-51 RAIL, DRAWER
WP74010551 WP74010551 RECEIVER-
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
12002604 12002604 REGULATOR
3601F380-51 3601F380-51 RETAINER, INSULATION
3804F316-51 3804F316-51 RETAINER, INSULATION
WPW10272883 WPW10272883 ROLLER
9762761 9762761 SAFER CKG. TIPS
W11244557 W11244557 SCREW
7101P652-60 7101P652-60 SCREW
W11164114 W11164114 SCREW
WP3196175 WP3196175 SCREW
W11347848 W11347848 SCREW
3196166 3196166 SCREW
W10491985 W10491985 SCREW
WP4159193 WP4159193 SCREW
WP3196557 WP3196557 SCREW
W11233072 W11233072 SCREW
74008798 74008798 SCREW W/SHOULDER (NO.8)
WP3368921 WP3368921 SCREW-TORX
WPW10131827 WPW10131827 SENSOR
WP74005231 WP74005231 SHAFT, STORAGE DRAWER ROLLER
3604P409-51 3604P409-51 SHIELD, HEAT
WP3604F381-19 WP3604F381-19 SHIELD, VENT
W11594027 W11594027 SOCKT-LITE
W11190816 W11190816 SPACER
W10169553 W10169553 SPACER
W10169552 W10169552 SPACER
74008690 74008690 SPACER, SIDE PANEL
74008761 74008761 SPACER, SNAP-IN
WP74005546 WP74005546 SPACER- RU
WPW10170508 WPW10170508 SPUD-ORFCE
WPW10170506 WPW10170506 SPUD-ORFCE
W10251991 W10251991 SPUD-ORFCE
3807P680-45 3807P680-45 SUPPORT, OVEN BOTTOM
W10208307 W10208307 TAPE, DOUBLE SIDED (BLACK)
W10208308 W10208308 TAPE, DOUBLE SIDED (WHITE)
W10208311 W10208311 TAPE, FOIL (3``)
3608F126-70 3608F126-70 TRIM, DOOR SIDE (BLACK)
3608F092-70 3608F092-70 TRIM, LOWER DOOR (BLACK)
3608F139-70 3608F139-70 TRIM, TOP (BLACK)
3608F139-71 3608F139-71 TRIM, TOP (WHITE)
WP3608F092-71 WP3608F092-71 TRIM-BOTTM
74008830 74008830 TUBING, BROIL
W10247148 W10247148 TUBING-GAS
WP7502P500-60 WP7502P500-60 VALVE (LR & RR)
74010751 74010751 VALVE (RF)
WP7502P499-60 WP7502P499-60 VALVE-BRNR
W10269504 W10269504 VALVE-BRNR
8026P080-60 8026P080-60 VENT, OVEN
W10281615 W10281615 WIRING DIAGRAM
