Whirlpool

Model Number

KGRS206XBL2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10544996 W10544996 ANCHOR-TIP
W10346057 W10346057 BAFFL-BRNR
W10346068 W10346068 BAFFL-BRNR
W10347314 W10347314 BAFFLE-HT
WPW10355276 WPW10355276 BLADE-FAN

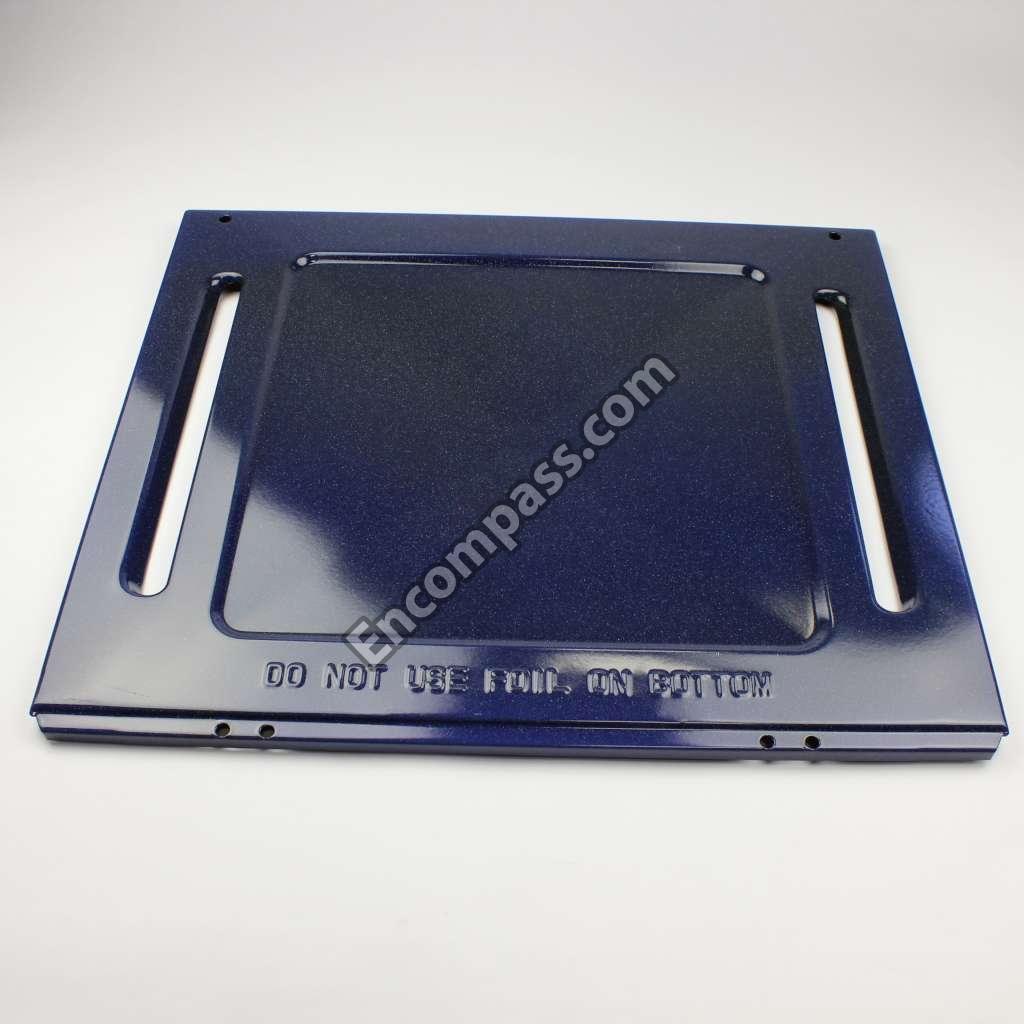

WPW10346266 WPW10346266 BOTTOM, OVEN
W10346234 W10346234 BRACE
WPW10352006 WPW10352006 BRACKET, GLASS (STAINLESS MODEL ONLY)
WPW10347442 WPW10347442 BRACKET, MOTOR MOUNT
W10347323 W10347323 BRKT-CORD
W10350617 W10350617 BRKT-GLASS
W10348015 W10348015 BRKT-GLASS
W10347318 W10347318 BRKT-HINGE
W10369888 W10369888 BRKT-MNTG
W10369890 W10369890 BRKT-MNTG
W10357267 W10357267 BRKT-MNTG
W10345844 W10345844 BRKT-MNTG
W10346033 W10346033 BRKT-MNTG
W10347661 W10347661 BRKT-SUPRT
W10347003 W10347003 BRKT-SUPRT
W10346063 W10346063 BURNR-BRLR

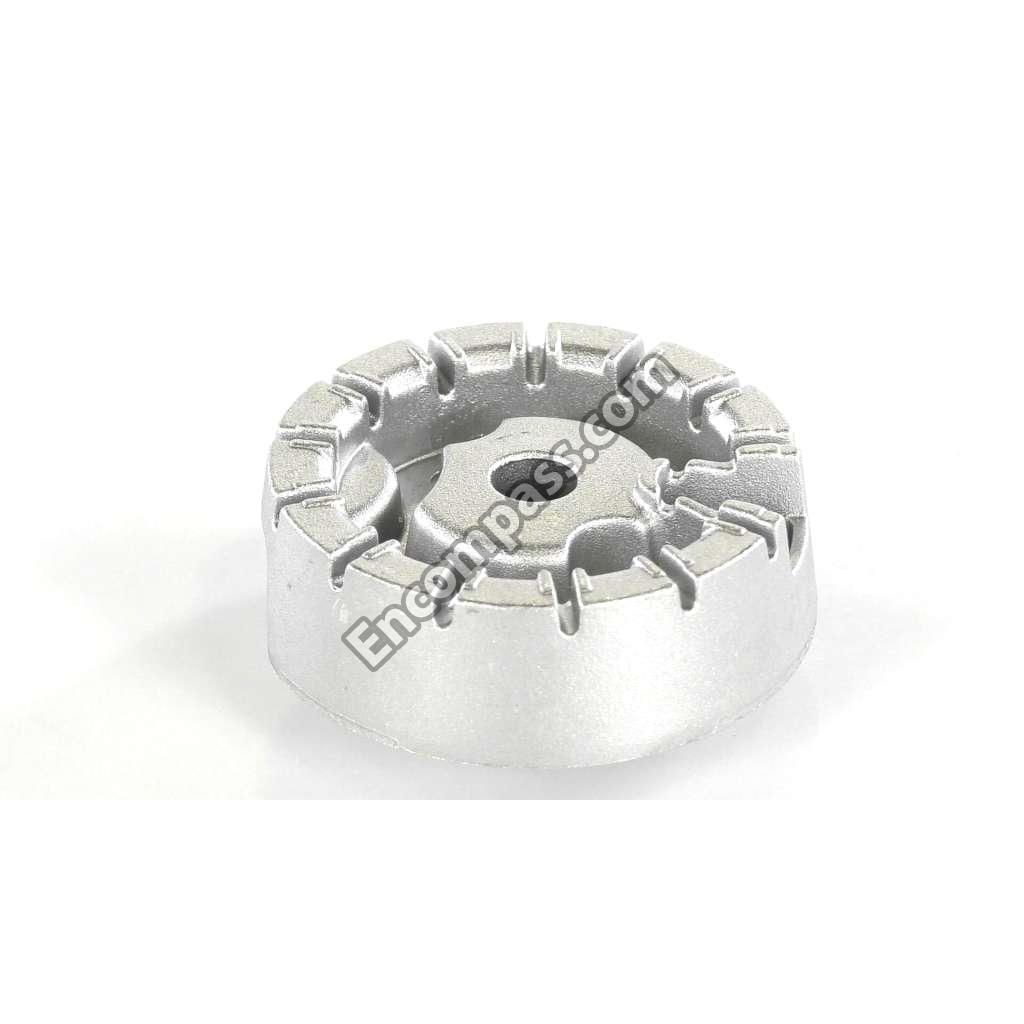

WPW10345847 WPW10345847 BURNR-HEAD

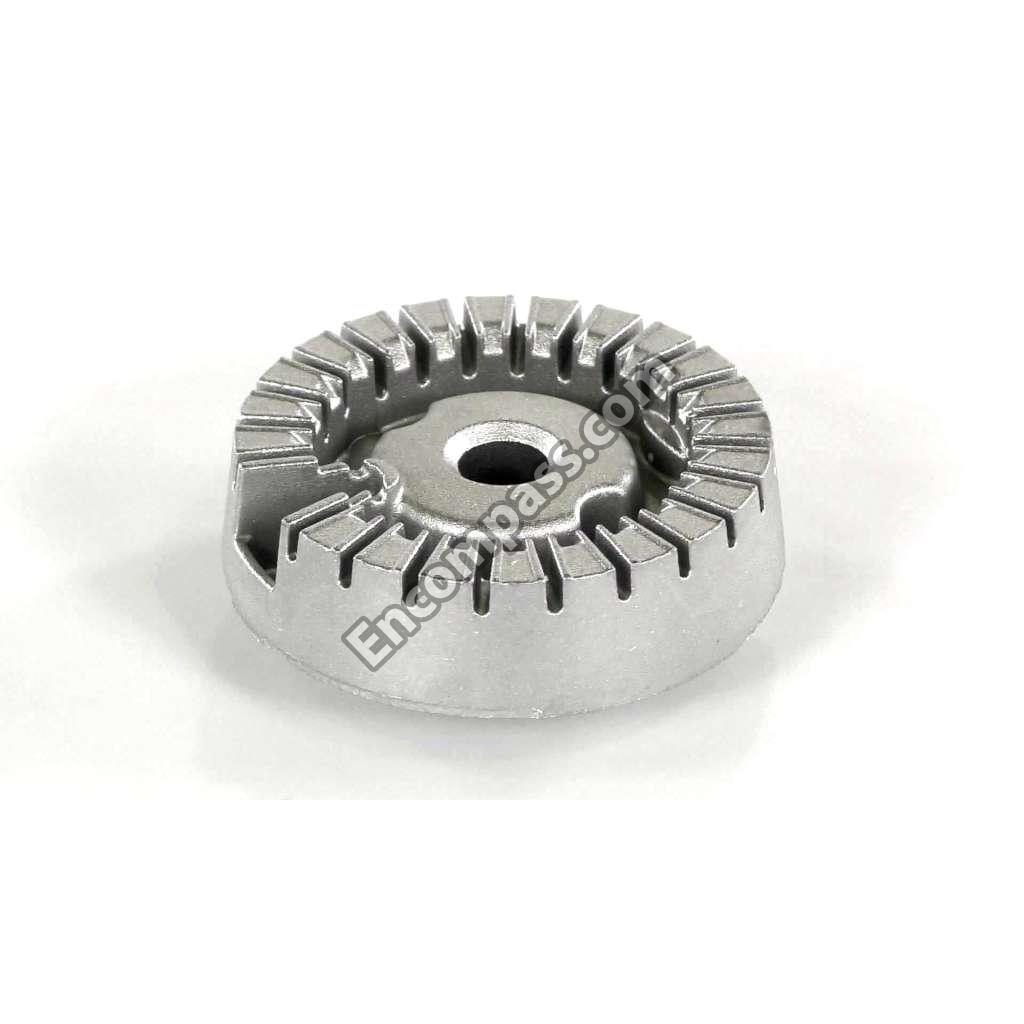

W10345846 W10345846 BURNR-HEAD
W10345848 W10345848 BURNR-HEAD
W10345845 W10345845 BURNR-HEAD
W10346052 W10346052 BURNR-OVEN
WPW10346874 WPW10346874 CAMERA LENS, OVEN LIGHT

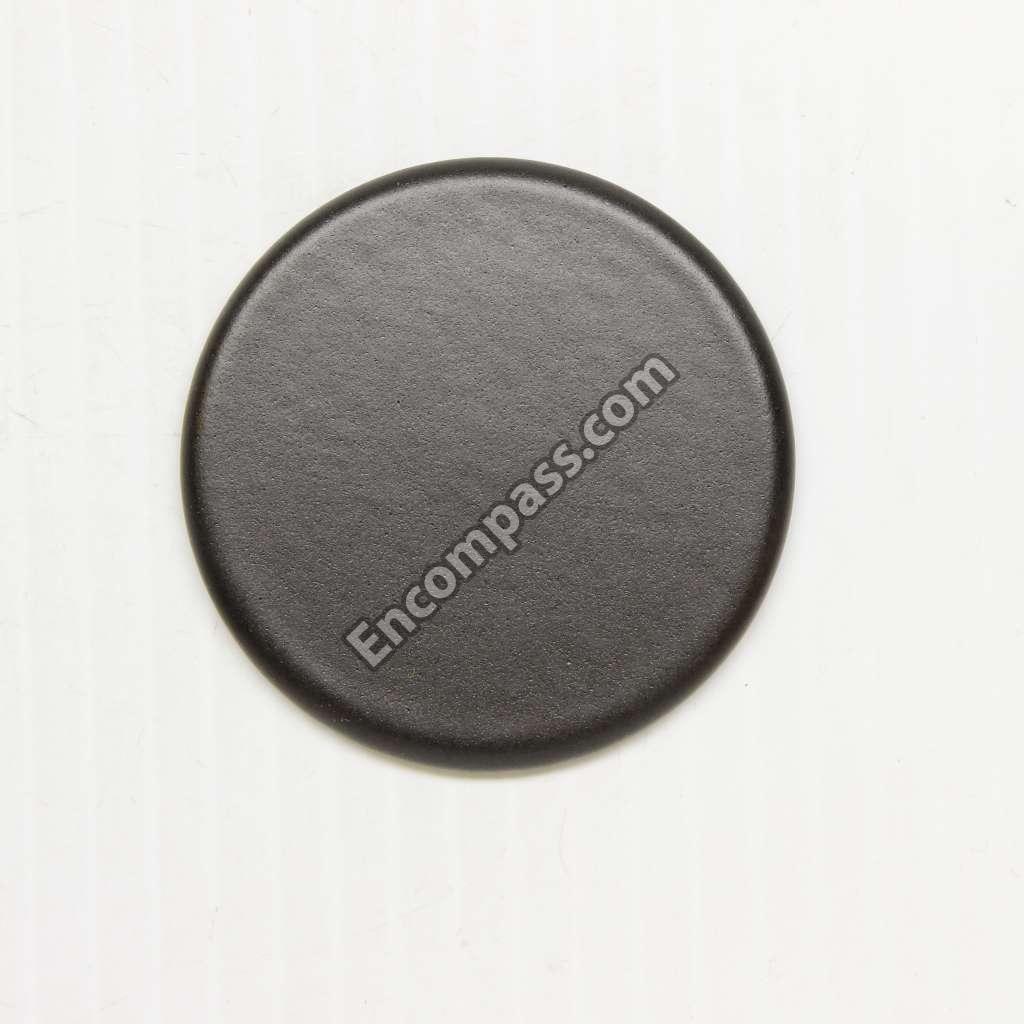

WPW10347754 WPW10347754 CAP-BURNER

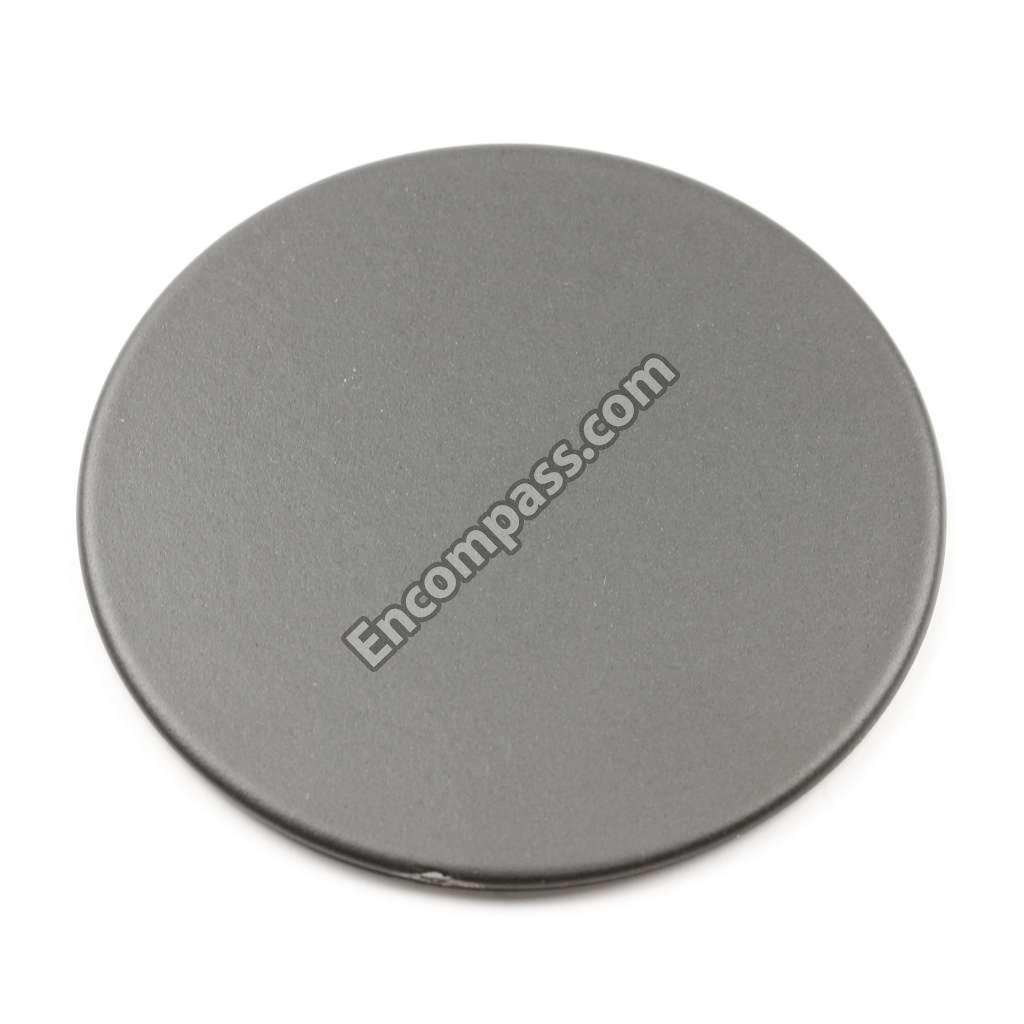

WPW10347750 WPW10347750 CAP-BURNER
WPW10347755 WPW10347755 CAP-BURNER
WPW10347764 WPW10347764 CAP-BURNER
W10346958 W10346958 CLIP
W10346171 W10346171 CNVRSN-KIT

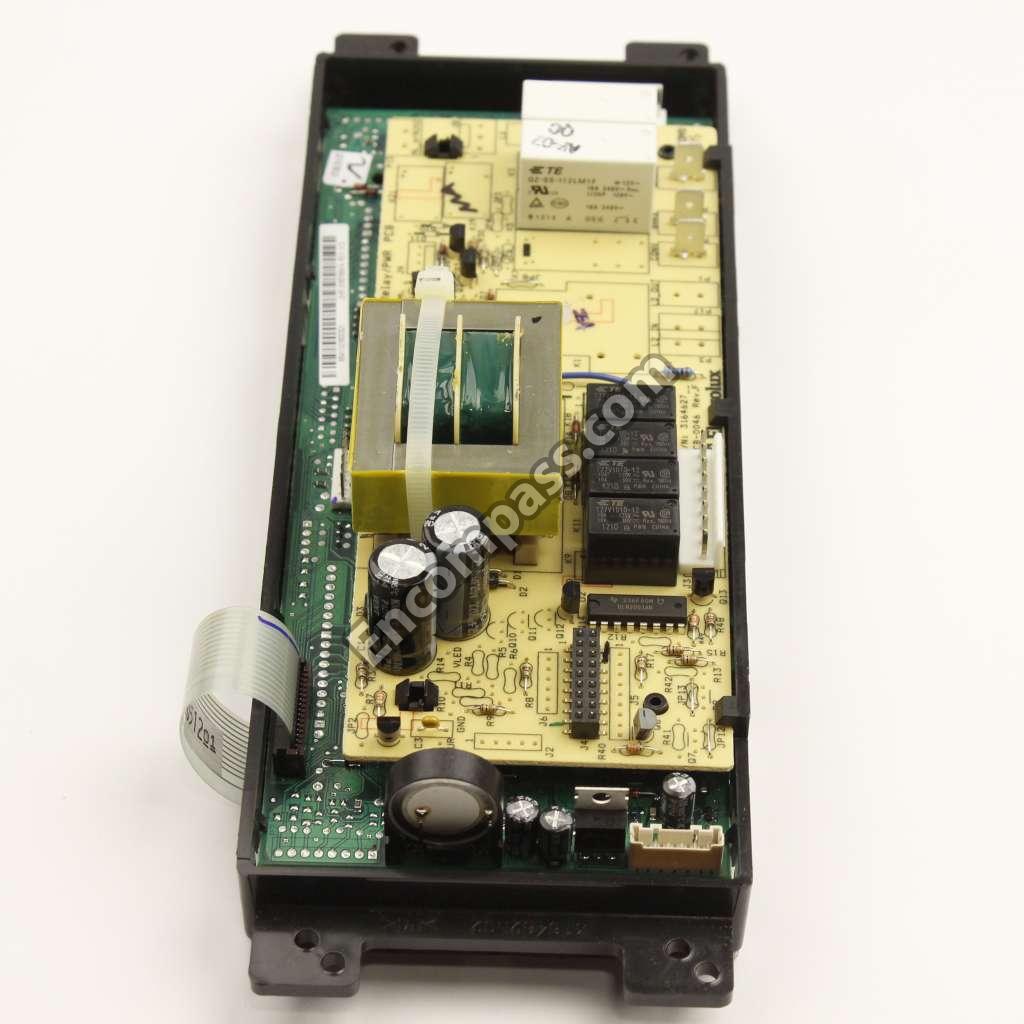

WPW10340766 WPW10340766 CONTROL BOARD
WPW10347690 WPW10347690 COOKTOP
WPW10347693 WPW10347693 COOKTOP (WHITE)
W10413010 W10413010 CORD-POWER
W10346138 W10346138 COVER
WPW10347448 WPW10347448 COVER, FAN
WPW10315160 WPW10315160 COVER, MAIN WIRE
W10340724 W10340724 COVER-REAR
W10346230 W10346230 COVER-REAR
WPW10357317 WPW10357317 DOOR PANEL (STAINLESS MODEL ONLY)
WPW10347679 WPW10347679 DRAWER, UTILITY
WPW10340735 WPW10340735 ENDCAP, RIGHT HAND (BLACK)
W10340740 W10340740 ENDCAP-PNL
W10340744 W10340744 ENDCAP-PNL
W10340736 W10340736 ENDCAP-PNL
W10346064 W10346064 FITTING
W10347158 W10347158 FLUE-OVEN
W10346264 W10346264 FOOT-LEVEL
W10346263 W10346263 FOOT-LEVEL
W10348012 W10348012 FRAME-WNDW

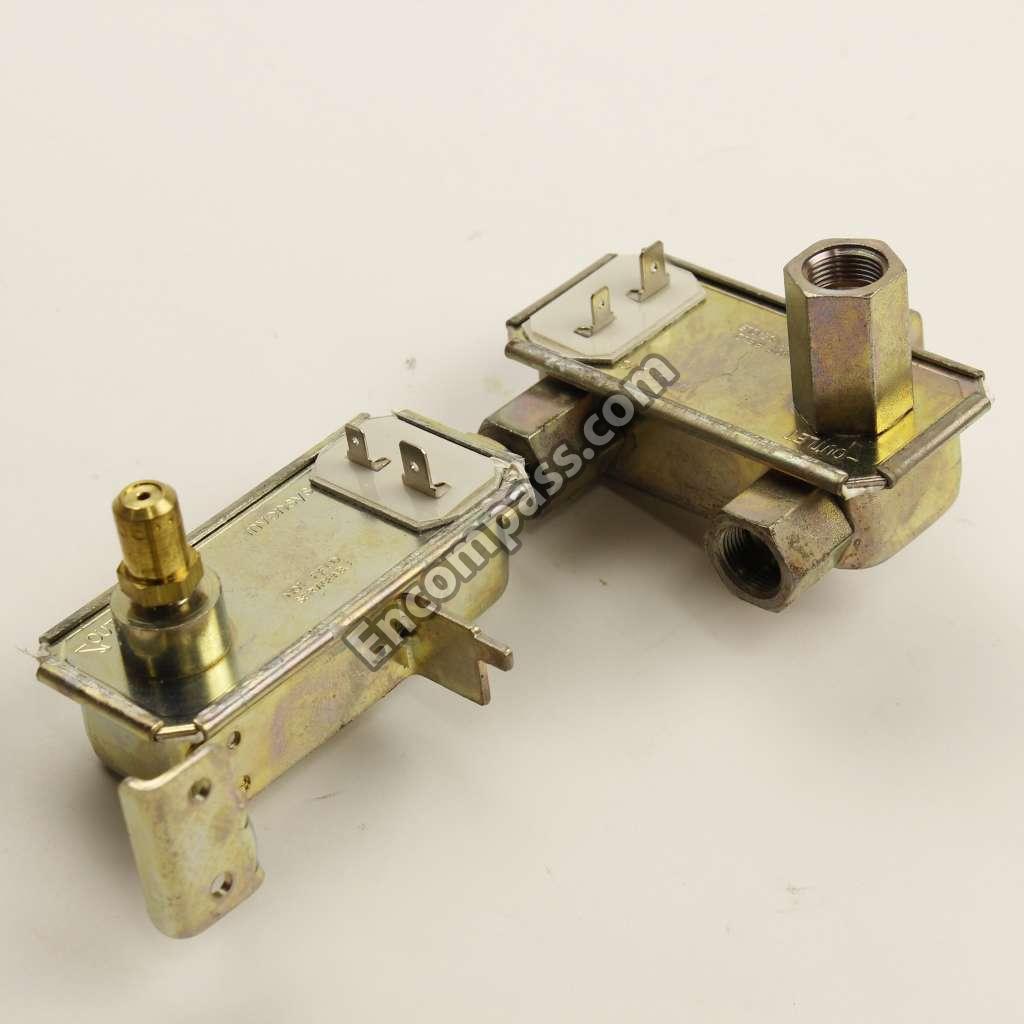

W11033561 W11033561 GAS VALVE
W10347008 W10347008 GASKT-FLUE
WPW10348011 WPW10348011 GLASS, DOOR INNER
WPW10347853 WPW10347853 GLASS, INNER
WPW10347845 WPW10347845 GLASS, OUTER DOOR (BLACK)
WPW10351948 WPW10351948 GLASS, OUTER DOOR (STAINLESS STEEL)
WPW10347842 WPW10347842 GLASS, OUTER DOOR (WHITE)
W10347664 W10347664 GLIDE, DRAWER (LH)
WPW10347665 WPW10347665 GLIDE, DRAWER (RH)
W10355274 W10355274 GLIDE-DRWR
WPW10347695 WPW10347695 GRATE, BURNER BLACK, CENTER
WPW10347694 WPW10347694 GRATE, BURNER BLACK, SIDE
WPW10350605 WPW10350605 HANDLE, DOOR (S.STEEL)

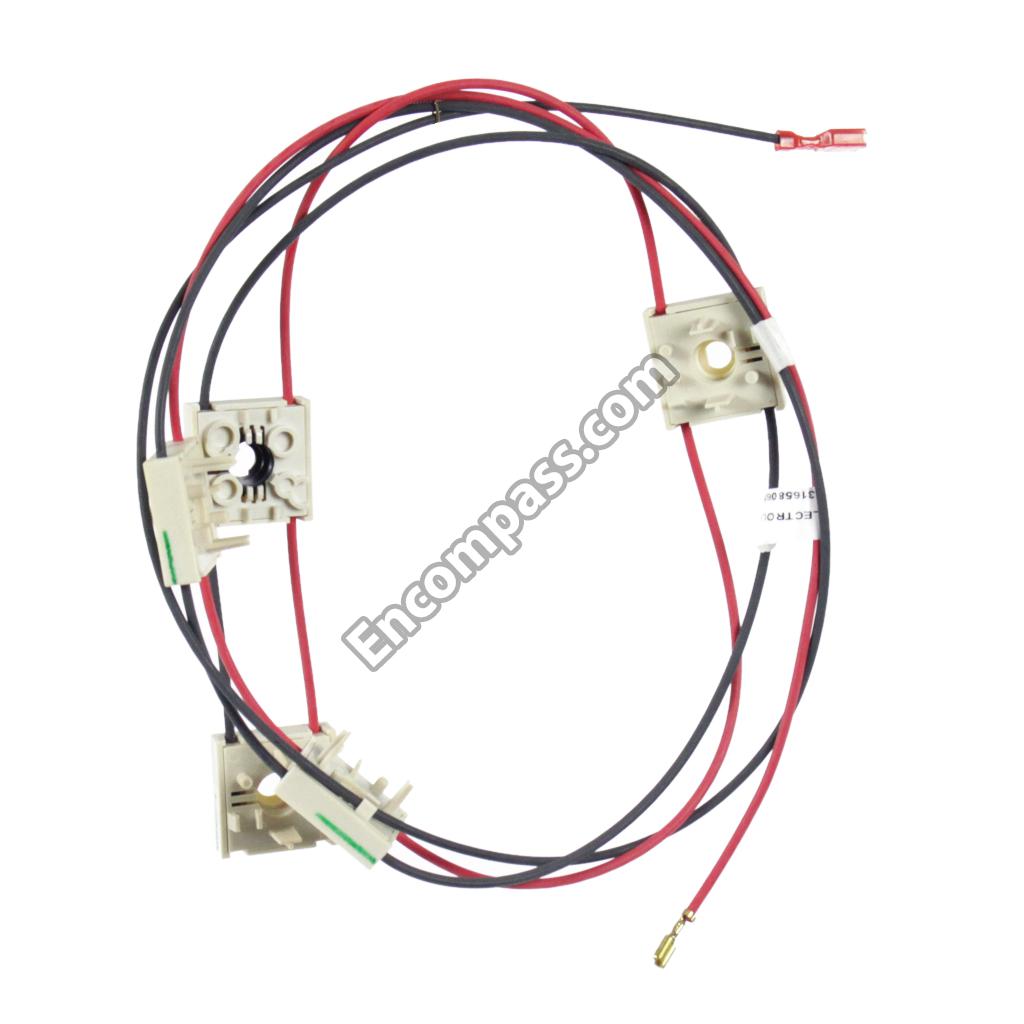

W11209787 W11209787 HARNS-WIRE
W10346229 W10346229 HARNS-WIRE
W10347662 W10347662 HARNS-WIRE
WPW10340844 WPW10340844 HEAT SHIELD
WPW10352004 WPW10352004 HINGE, DOOR (STAINLESS)
W10348013 W10348013 HINGE-DOOR
W10347826 W10347826 HNDLE-DRWR
W10347824 W10347824 HNDLE-DRWR
WPW10345909 WPW10345909 HOLDER-ORF
WPW10345914 WPW10345914 HOLDER-ORF
WPW10345919 WPW10345919 HOLDER-ORF
WPW10345917 WPW10345917 HOLDER-ORF
WPW10345910 WPW10345910 HOLDER-ORF

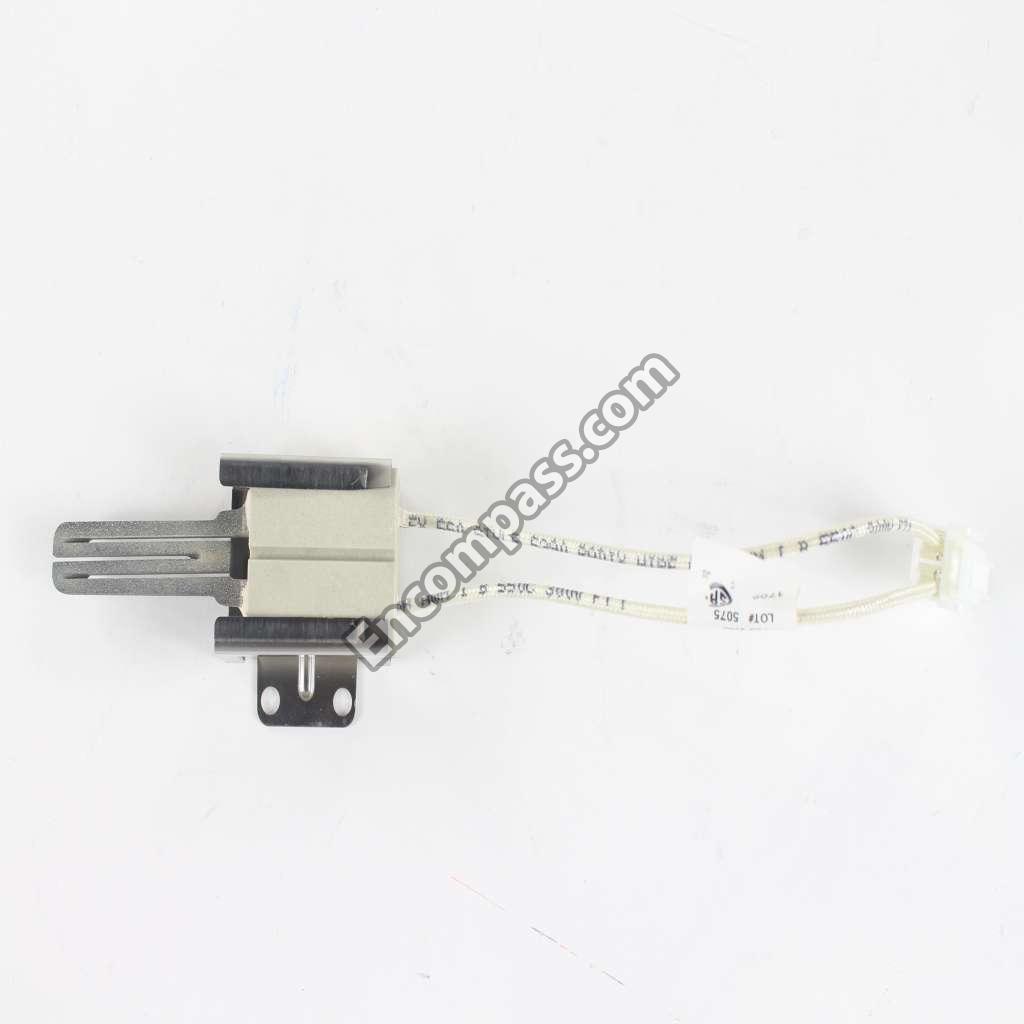

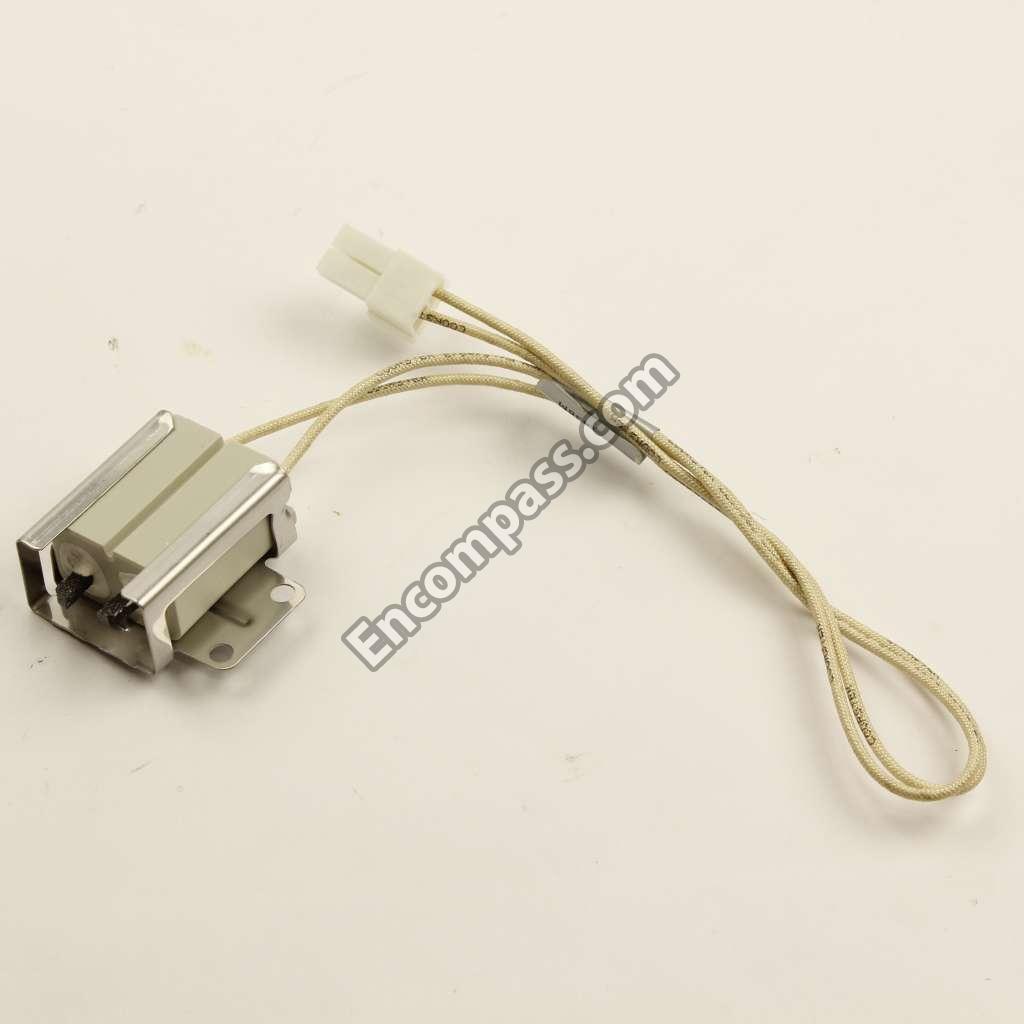

WPW10346130 WPW10346130 IGNTR-OVEN
W11084521 W11084521 IGNTR-OVEN
W10344643 W10344643 INSTALLATION INSTRUCTIONS
W10359189 W10359189 INSULATION
W10347852 W10347852 INSULATION
WPW10347310 WPW10347310 INSULATION, OVEN BACK
WPW10347308 WPW10347308 INSULATION, OVEN WRAPPER
W10340816 W10340816 KNOB
W10340812 W10340812 KNOB
W10340813 W10340813 KNOB
W10340815 W10340815 KNOB
WPW10351695 WPW10351695 KNOB, CONTROL S.STEEL (1)
WPW10351694 WPW10351694 KNOB, CONTROL S.STEEL (4)
W10346955 W10346955 LATCH-DOOR
8009 8009 LIGHT BULB
WPW10347855 WPW10347855 LINER, DOOR
WPW10347683 WPW10347683 LINER, DRAWER FRONT FRAME
WPW10347449 WPW10347449 MOTOR-FAN
WPW10350466 WPW10350466 MOTOR-LTCH
W10852683 W10852683 NAMEPLATE
3191514 3191514 NAMEPLATE (BLACK)
3191516 3191516 NAMEPLATE (WHITE)
W10347453 W10347453 NUT
W10346166 W10346166 ORIFICE
W10346170 W10346170 ORIFICE
W10346164 W10346164 ORIFICE
W10346165 W10346165 ORIFICE

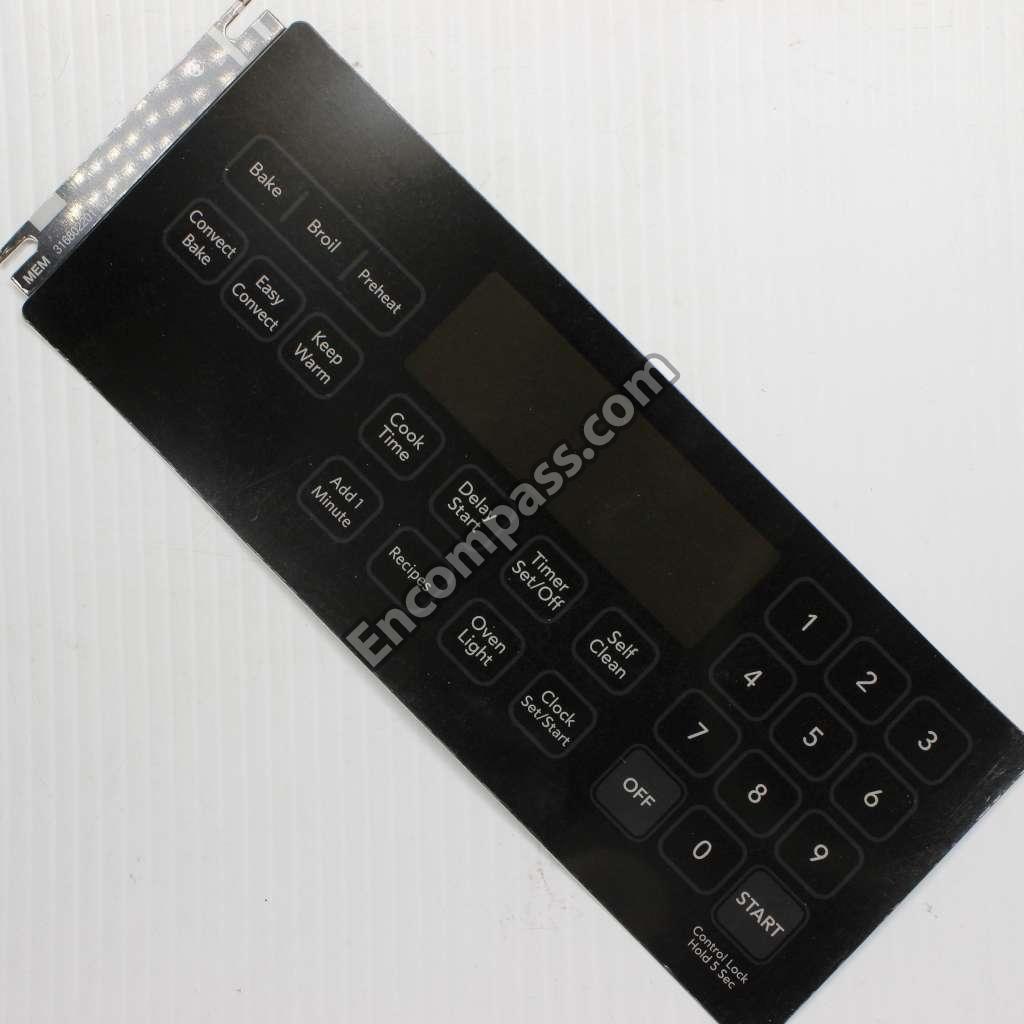

WPW10340771 WPW10340771 OVERLAY
W10328280 W10328280 OWNERS MANUAL
W10123240 W10123240 PAN-BROILR
WPW10340759 WPW10340759 PANEL, BACKGUARD (BLACK)
WPW10351683 WPW10351683 PANEL, BACKGUARD (STAINLESS STEEL)
WPW10340763 WPW10340763 PANEL, BACKGUARD (WHITE)
WPW10351947 WPW10351947 PANEL, DRAWER, OUTER (STAINLESS)
WPW10370357 WPW10370357 PANEL, MANIFOLD (WHITE)
W10347685 W10347685 PANEL-DRWR
WPW10347688 WPW10347688 PANEL-DRWR
WPW10346239 WPW10346239 PANEL-SIDE
WPW10346240 WPW10346240 PANEL-SIDE
W10355920 W10355920 PANL-MNFLD
WPW10370190 WPW10370190 PANL-MNFLD
W10411614 W10411614 PIPE-MNFLD
WPW10346265 WPW10346265 RACK, OVEN

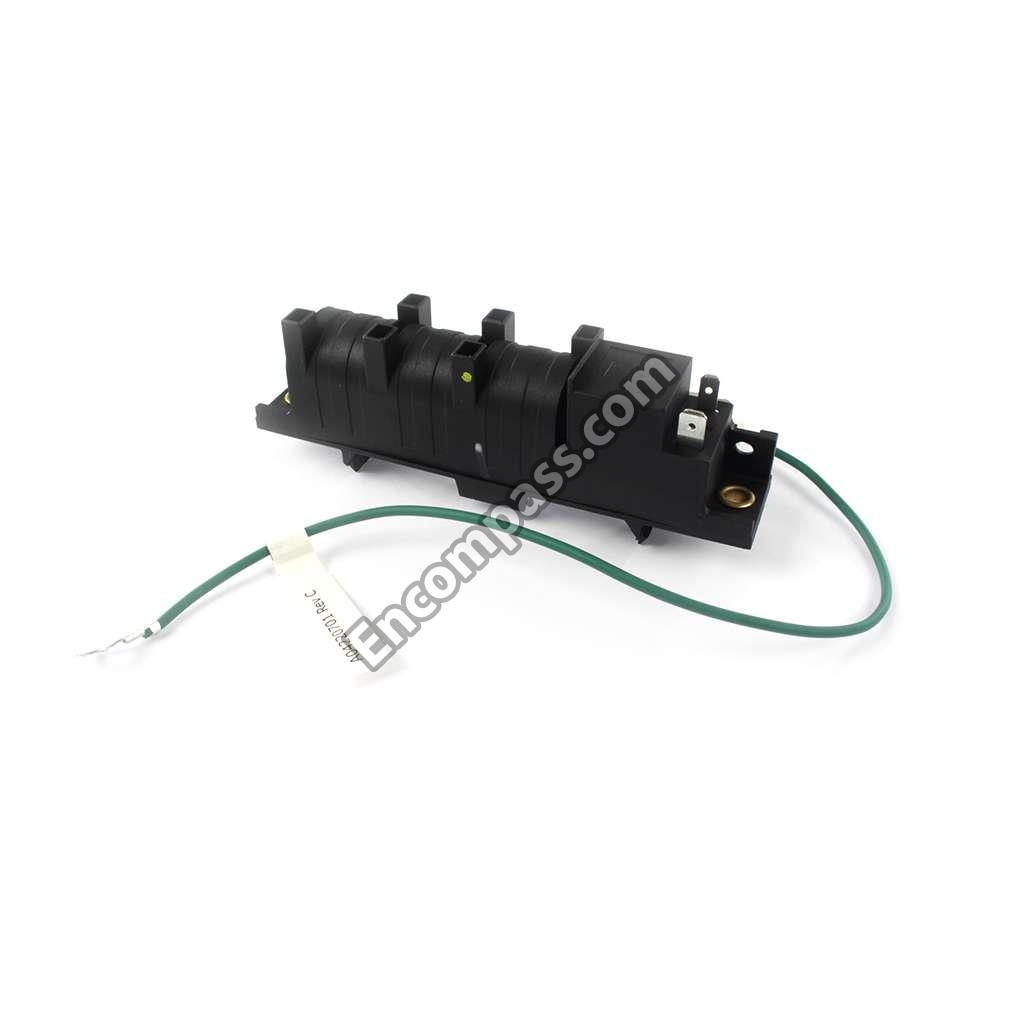

W11084522 W11084522 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10346877 W10346877 RETAINER
WPW10347850 WPW10347850 RETAINER, SHIELD-WOOL
W10347435 W10347435 ROD-LATCH
W10345998 W10345998 SCREW
W10347275 W10347275 SCREW
W10346140 W10346140 SCREW
W10370043 W10370043 SCREW
W10413030 W10413030 SCREW
W10348010 W10348010 SEAL
WPW10347247 WPW10347247 SENSOR
W10347441 W10347441 SHIELD
W10347457 W10347457 SHIELD
W10347440 W10347440 SHIELD
WPW10347007 WPW10347007 SHIELD, REAR WALL
W10351722 W10351722 SHIELD-HT
W10347288 W10347288 SHIELD-HT
W10356076 W10356076 SHIELD-HT
W10356077 W10356077 SHIELD-HT
W10347289 W10347289 SHIELD-HT
W10347271 W10347271 SHIELD-HT
W10346993 W10346993 SHIELD-HT
WPW10346238 WPW10346238 SIDE PANEL (BLACK, LH)
WPW10346237 WPW10346237 SIDE PANEL (BLACK, RH)
W10346268 W10346268 SOCKT-LITE
W10347277 W10347277 SPACER
W10350610 W10350610 SPACER
W10346267 W10346267 SWTCH-LITE
W10346742 W10346742 TECH SHEET
WPW10348025 WPW10348025 TRIM, DOOR (WHITE)
WPW10347832 WPW10347832 TRIM, DOOR SIDE (WHITE)
W10340823 W10340823 TRIM-BKGRD
W10340824 W10340824 TRIM-BKGRD
W10348026 W10348026 TRIM-DOOR
W10347833 W10347833 TRIM-DOOR

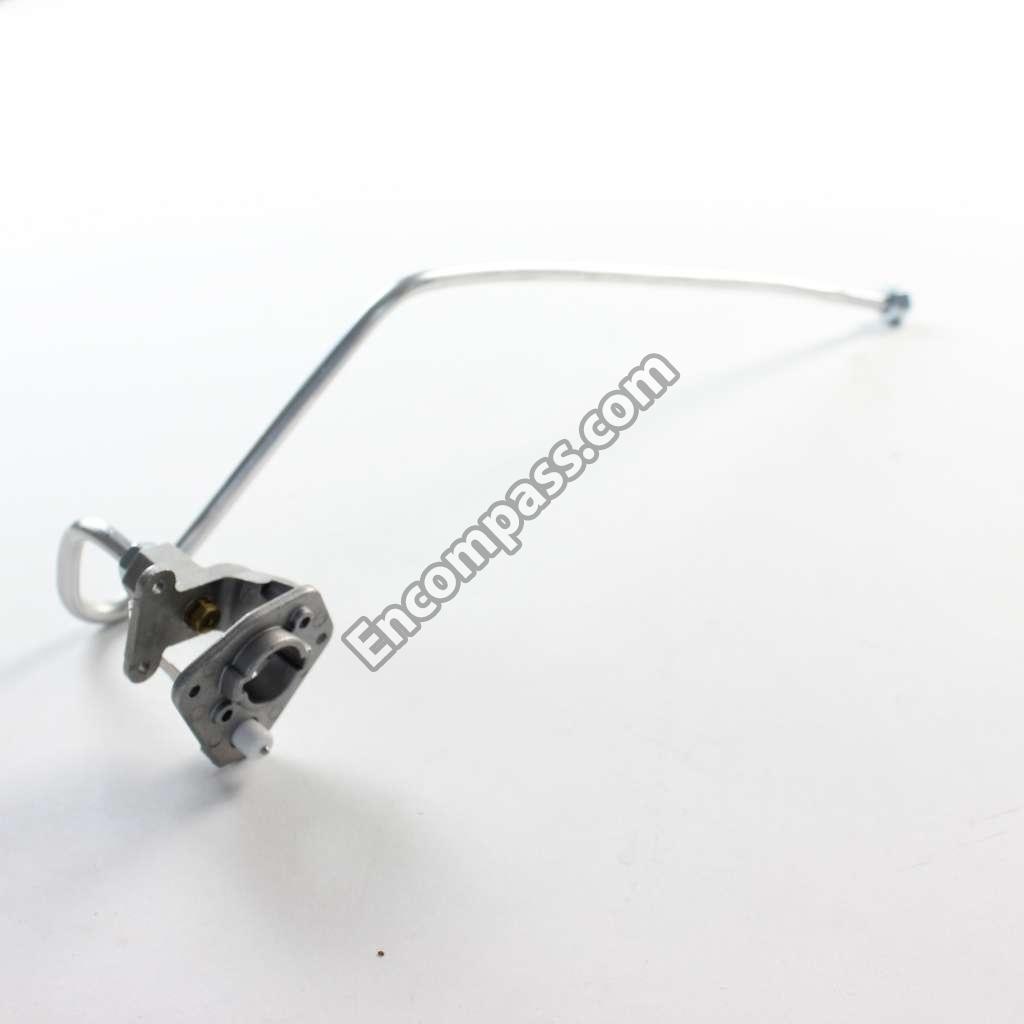

WPW10411591 WPW10411591 TUBING, GAS

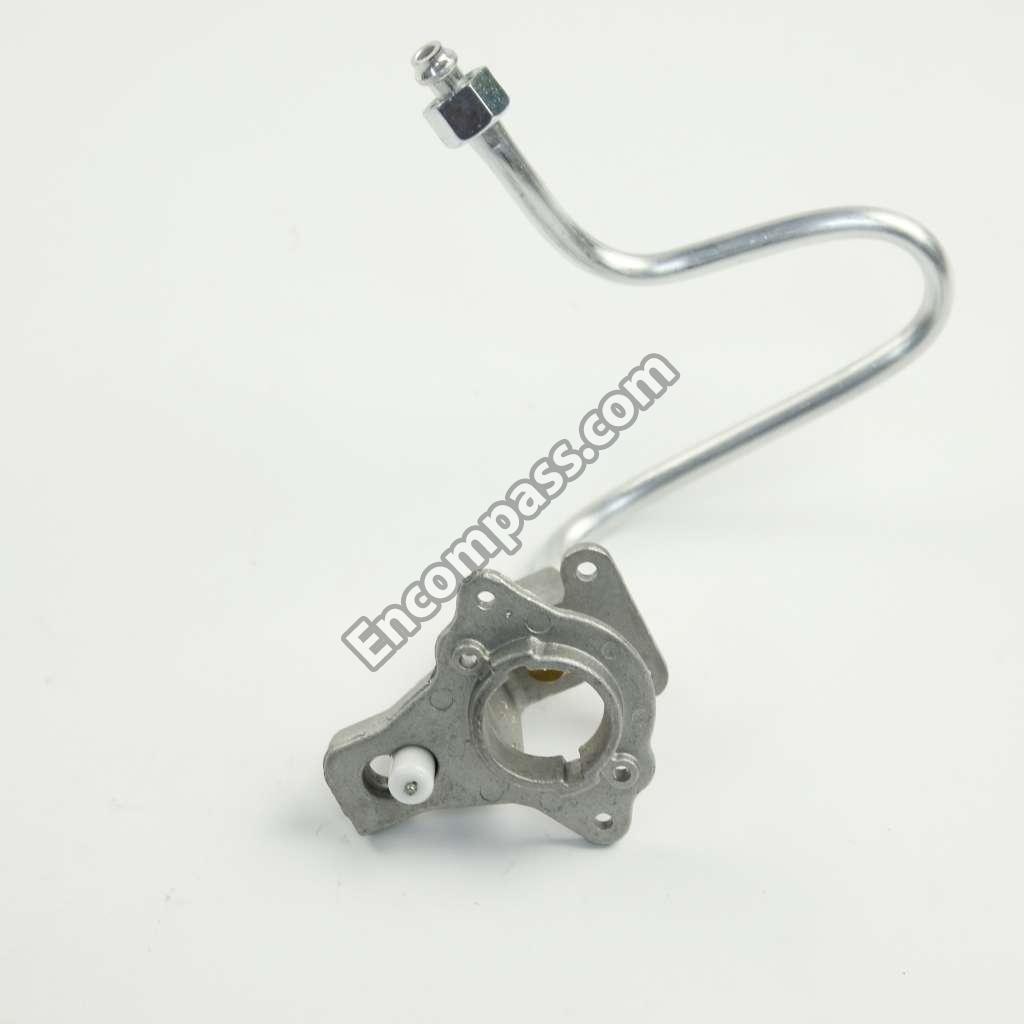

W10346062 W10346062 TUBING-GAS
W10346034 W10346034 TUBING-GAS

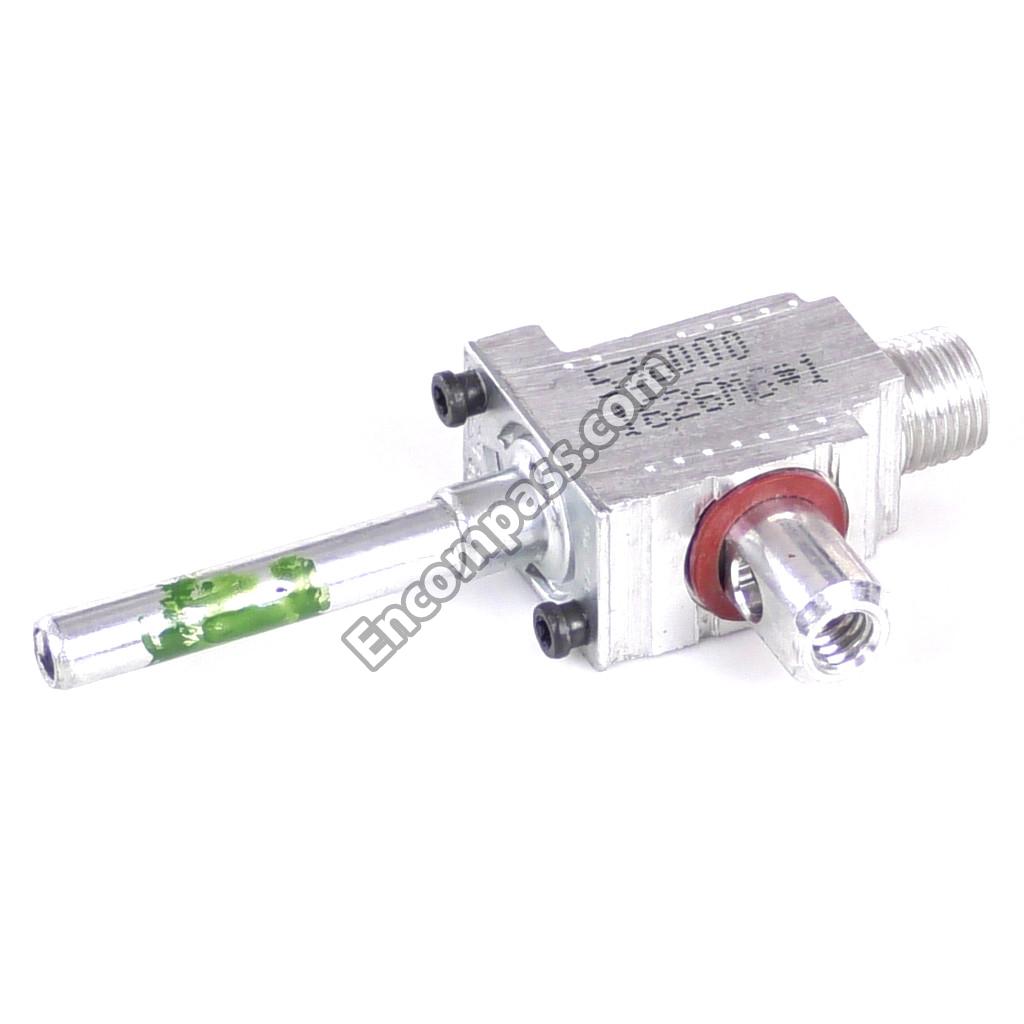

W10315175 W10315175 VALVE-BRNR
W10315171 W10315171 VALVE-BRNR
W10315173 W10315173 VALVE-BRNR
W10315168 W10315168 VALVE-BRNR
WPW10346047 WPW10346047 VALVE-MAIN
W10370042 W10370042 WASHER
