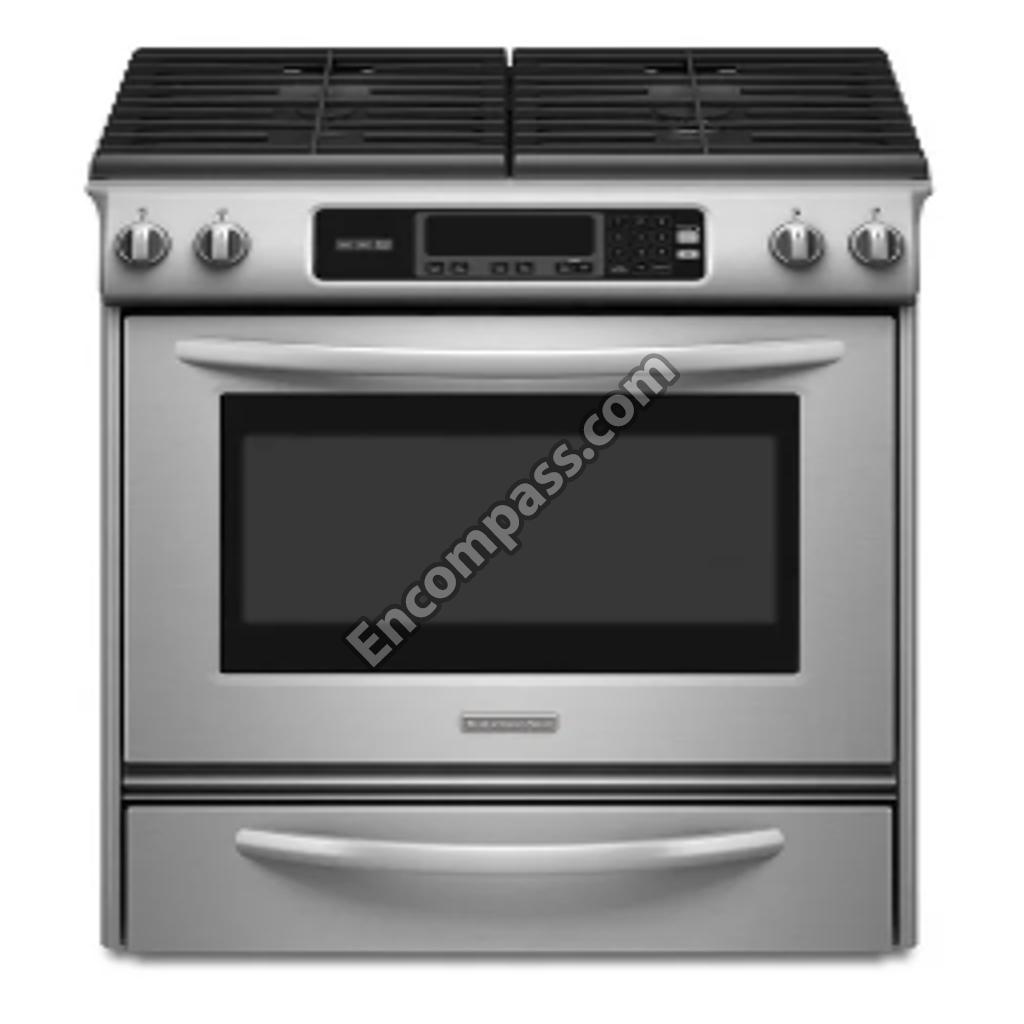

Model Image
Manufacturer

Whirlpool

Model Number

KGSK901SSS03

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
9759762 9759762 BACK, CHASSIS
W10810687 W10810687 BLOWER
W10110534 W10110534 BOTTM-MAIN
W10208808 W10208808 BOX-BURNER
9759943 9759943 BRACE, BASE FRONT
4453721 4453721 BRACE, DRAWER (LEFT)
4453720 4453720 BRACE, DRAWER (RIGHT)
8053971 8053971 BRACE, MAIN BACK
9757811 9757811 BRACE, SIDE PANEL
9763445 9763445 BRACKET, BURNER
9756454 9756454 BRACKET, GOC
4452152 4452152 BRACKET, MOUNTING
9761784 9761784 BRACKET, MOUNTING
9761745 9761745 BRACKET, TOUCHSENSOR
9757461 9757461 BRACKET,SIDE PANEL
9759965 9759965 BRAKET, BASE SIDE
WP4455352 WP4455352 BRKT-MNTG
WP9757829 WP9757829 BRKT-MNTG
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
W10246113 W10246113 BRKT-MNTG
W10246114 W10246114 BRKT-MNTG
W10105790 W10105790 BUMPER
4448520 4448520 BUMPER, DOOR
WPW10111219 WPW10111219 BURNR-BRLR
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
WP9760228 WP9760228 BURNR-OVEN
1129449 1129449 BUSHING
WP9763502CB WP9763502CB CAP-BURNER
9759890 9759890 CLIP, SIDE PANEL
WP9762793 WP9762793 CONTROL BOARD
WP9762774 WP9762774 CONTROL BOARD
WPW10156273 WPW10156273 CONTROL PANEL
WPW10175854 WPW10175854 COOKTOP
W10624584 W10624584 CORD, POWER
9758583 9758583 COVER, BACK
9759627 9759627 COVER, COOKTOP REAR
4454009 4454009 COVER, IGNITOR
WP9763436 WP9763436 COVER-REAR
W10153101 W10153101 DEFLCTR-VT
WPW10195934 WPW10195934 DOOR DOOR LATCH
WP9760574 WP9760574 DOOR HINGE
WP9760579 WP9760579 DOOR HINGE
9757806 9757806 DRAWER
W10068590 W10068590 DUCT-AIR
W10203758 W10203758 DUCT-AIR
W10068600 W10068600 DUCT-AIR
WP9760229 WP9760229 ELCTR-KIT
W10207402 W10207402 ELMNT-BROL
W10113901A W10113901A FILL-KIT
9757779 9757779 FITTING, BROILER
WP3196037 WP3196037 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10115831 WPW10115831 FRAME-FRNT
WP9763716 WP9763716 GAS VALVE
W11675844 W11675844 GASKET-OVN
WP9759225 WP9759225 GLASS DOOR
WP9757706 WP9757706 GLASS DOOR
W10155557 W10155557 GLASS-DOOR
WP4448444 WP4448444 GROMMET
9763467 9763467 GUIDE EASY SET
9756842 9756842 GUIDE, ROLLER INCLUDES ROLLER (LEFT)
9756841 9756841 GUIDE, ROLLER INCLUDES ROLLER (RIGHT)
WP9757685 WP9757685 GUIDE-PANL
WPW10292374 WPW10292374 HANDLE, DRAWER
9762921 9762921 HARNESS, COMMUNICATION
9756892 9756892 HARNESS, DSI COOKTOP
9763481 9763481 HARNESS, GROUND STRAP
9756822 9756822 HARNESS, SWITCHES
W10118723 W10118723 HARNS-WIRE
9762553 9762553 HEAD, BURNER (LF (TURBO)
WP4455605 WP4455605 HINGE-RECV
WP4455606 WP4455606 HINGE-RECV
W10448670 W10448670 HNDLE-DOOR
WPW10128456 WPW10128456 HOLDER-ORF
WPW10128446 WPW10128446 HOLDER-ORF
WPW10128455 WPW10128455 HOLDER-ORF
WP8054129 WP8054129 IGNTR-OVEN
WPW10110378 WPW10110378 IGNTR-SURF
W10440537 W10440537 INSTALLATION INSTRUCTIIONS
WP4451722 WP4451722 INSULATION
W10095410 W10095410 INSULATION
W10095400 W10095400 INSULATION
9756470 9756470 INSULATION, BACK
9759722 9759722 INSULATION, BODY SIDE TRIM
9756817 9756817 INSULATION, WRAP
WPW10338776 WPW10338776 KIT, BURNER GRATE
12002277 12002277 KIT, VALVE & SCREW (MUELLER)
WPW10156265 WPW10156265 KNOB
W10067870 W10067870 LENS-LIGHT
WP4173175 WP4173175 LIGHT BULB
WPW10734065 WPW10734065 LIGHT-OVEN
N_P N_P LINER, OVEN (NOT SERVICEABLE)
W10140551 W10140551 LINER-DOOR
9761648 9761648 MANIFOLD, COOKTOP
WP9761565 WP9761565 MEMBRANE SWITCH
WPW10243391 WPW10243391 NAMEPLATE
W10851603 W10851603 ORIFICE
9762939 9762939 ORIFICE, SPUD (LF (TURBO))
9762937 9762937 ORIFICE, SPUD (LR,RF (AUXI))
9762938 9762938 ORIFICE, SPUD (RR (RAPIDE))
8186387 8186387 OVEN, SIDE PANEL (BLACK)
WP261869 WP261869 PAINT CW
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10272546 WPW10272546 PAN-BROILR
9760592 9760592 PANEL, DRAWER
WPW10203763 WPW10203763 PANEL-DRWR
9757070 9757070 PLATE, RELECTANCE
WPW10179152 WPW10179152 RACK-OVEN
9756838 9756838 RAIL, STORAGE (LEFT)
9756836 9756836 RAIL, STORAGE (RIGHT)
WPW10331686 WPW10331686 RANGE SPARK MODULE
WP9759242 WP9759242 RANGE THERMOSTAT
WP9757807 WP9757807 RANGE THERMOSTAT
WP9759944 WP9759944 RANGE THERMOSTAT
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
9762761 9762761 SAFE COOKING TIPS (ENGLISH)
W10065852 W10065852 SAFE COOKING TIPS (FRENCH)
W10873471 W10873471 SCREW
WP8273062 WP8273062 SCREW
WP4449154 WP4449154 SCREW
W11233072 W11233072 SCREW
WP4449040 WP4449040 SCREW
WPW10132940 WPW10132940 SCREW
WPW10292297 WPW10292297 SCREW
WP3400832 WP3400832 SCREW
W10491985 W10491985 SCREW
WP90767 WP90767 SCREW
WP12990527 WP12990527 SCREW
WP3196557 WP3196557 SCREW
W10162096 W10162096 SCREW
4450800 4450800 SCREW, GROUND
WP3368921 WP3368921 SCREW-TORX
8522415 8522415 SEAL, WINDOW
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4453984 4453984 SHIELD, BAKE FLAME
9752980 9752980 SHIELD, FLAME
9757732 9757732 SHIELD, HEAT
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
WP9752737 WP9752737 SHIELD, OVEN
W10105370 W10105370 SHIELD-VNT
9759954 9759954 SIDE, BASE (LEFT)
9759953 9759953 SIDE, BASE (RIGHT)
W10782197 W10782197 SIDE, CHASSIS
W10083460 W10083460 SLIDE
9760223 9760223 SLIDE, DSI
4452222 4452222 SPACER, HARNESS
9759945 9759945 STANDOFF, REAR
WPW10145744 WPW10145744 SUPPORT
WP9756821 WP9756821 SUPPORT
9763501BL 9763501BL SUPPORT, FRONT & REAR
9757409 9757409 SUPPORT, GAS VALVE
W10109920 W10109920 TAPE
W10221015 W10221015 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
8303099 8303099 TOP CHASSIS
WPW10111628 WPW10111628 TRANSFORMR
W10140548 W10140548 TRIM
WPW10154789 WPW10154789 TRIM, LOWER VENT
WPW10140547 WPW10140547 TRIM, SIDE (LEFT)
9756831 9756831 TUBE, BROIL
9761666 9761666 TUBE, VENT
4453754 4453754 TUBING GDS TO MANIFOLD
9761561 9761561 TUBING, BURNER (LF (TURBO))
9761068 9761068 TUBING, BURNER (LR (AUXI))
9761069 9761069 TUBING, BURNER (RF (AUXI))
9761070 9761070 TUBING, BURNER (RR (RAPIDE))
W10449875 W10449875 USE & CARE GUIDE
4456818 4456818 VALVE, BURNER (LF (TURBO))
WP4456817 WP4456817 VALVE-BRNR
WP4456816 WP4456816 VALVE-BRNR
WPW10160347 WPW10160347 VENT, BOTTOM UPPER
WP9760225BL WP9760225BL VENT-OVEN
9760481 9760481 WASHER, INSULATION
WP9762904 WP9762904 WIRE HARNESS
