Model Image
Manufacturer

Whirlpool

Model Number

KGSK901SWH01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
9756842 9756842 ASSEMBLY, DRAWER GUIDE (LEFT)
9756841 9756841 ASSEMBLY, DRAWER GUIDE (RIGHT)
9759762 9759762 BACK, CHASSIS
8304603BL 8304603BL BADGE (BLACK)
8304603SS 8304603SS BADGE (STAINLESS)
8304603WH 8304603WH BADGE (WHITE)
9759954 9759954 BASE, SIDE (LEFT)
9759953 9759953 BASE, SIDE (RIGHT)
W10810687 W10810687 BLOWER
W10110534 W10110534 BOTTM-MAIN
W10208808 W10208808 BOX-BURNER
9759943 9759943 BRACE, BASE FRONT
4453721 4453721 BRACE, DRAWER (LEFT)
4453720 4453720 BRACE, DRAWER (RIGHT)
8053971 8053971 BRACE, MAIN BACK
9757811 9757811 BRACE, SIDE PANEL
9756454 9756454 BRACKET, APPLIANCE MANAGER
9759965 9759965 BRACKET, BASE
4452152 4452152 BRACKET, BOTTOM VENT
9763445 9763445 BRACKET, BURNER
W10246113 W10246113 BRACKET, HANDLE (LEFT)
W10246114 W10246114 BRACKET, HANDLE (RIGHT)
9761745 9761745 BRACKET, TST
9757461 9757461 BRACKET,SIDE PANEL
WP4455352 WP4455352 BRKT-MNTG
WP9757829 WP9757829 BRKT-MNTG
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
W10105790 W10105790 BUMPER
4448520 4448520 BUMPER, DOOR
9762553 9762553 BURNER HEAD, TURBO (LEFT FRONT)
WPW10111219 WPW10111219 BURNR-BRLR

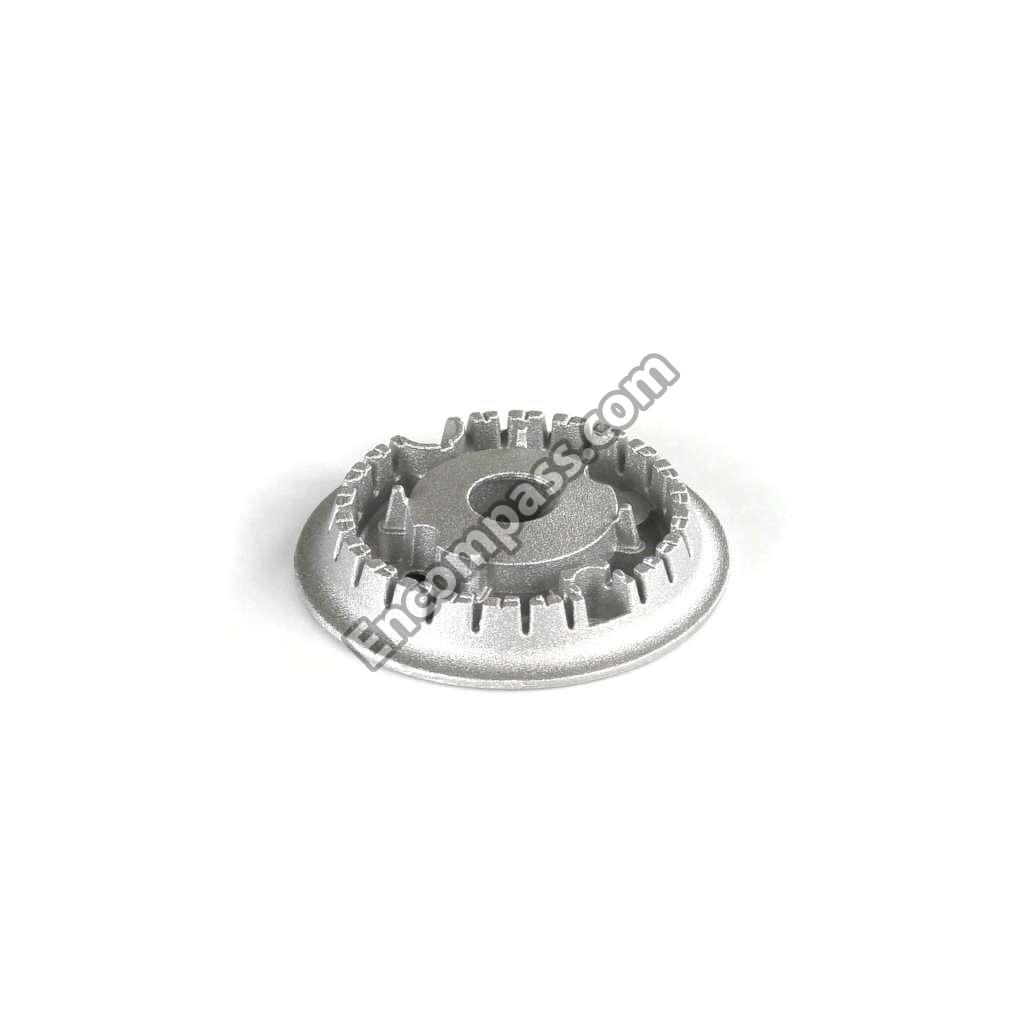

WPW10406243 WPW10406243 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
WP9760228 WP9760228 BURNR-OVEN
WP9761563CB WP9761563CB CAP, BURNER (LEFT REAR & RIGHT FRONT) (COAL BLACK)
WP9761564CB WP9761564CB CAP, BURNER (LEFT REAR & RIGHT FRONT) (COAL BLACK)
9761563SD 9761563SD CAP, BURNER (LEFT REAR & RIGHT FRONT) (SATIN CUMBERLAND (LEFT FRONT))
9761564SD 9761564SD CAP, BURNER (LEFT REAR & RIGHT FRONT) (SATIN CUMBERLAND)

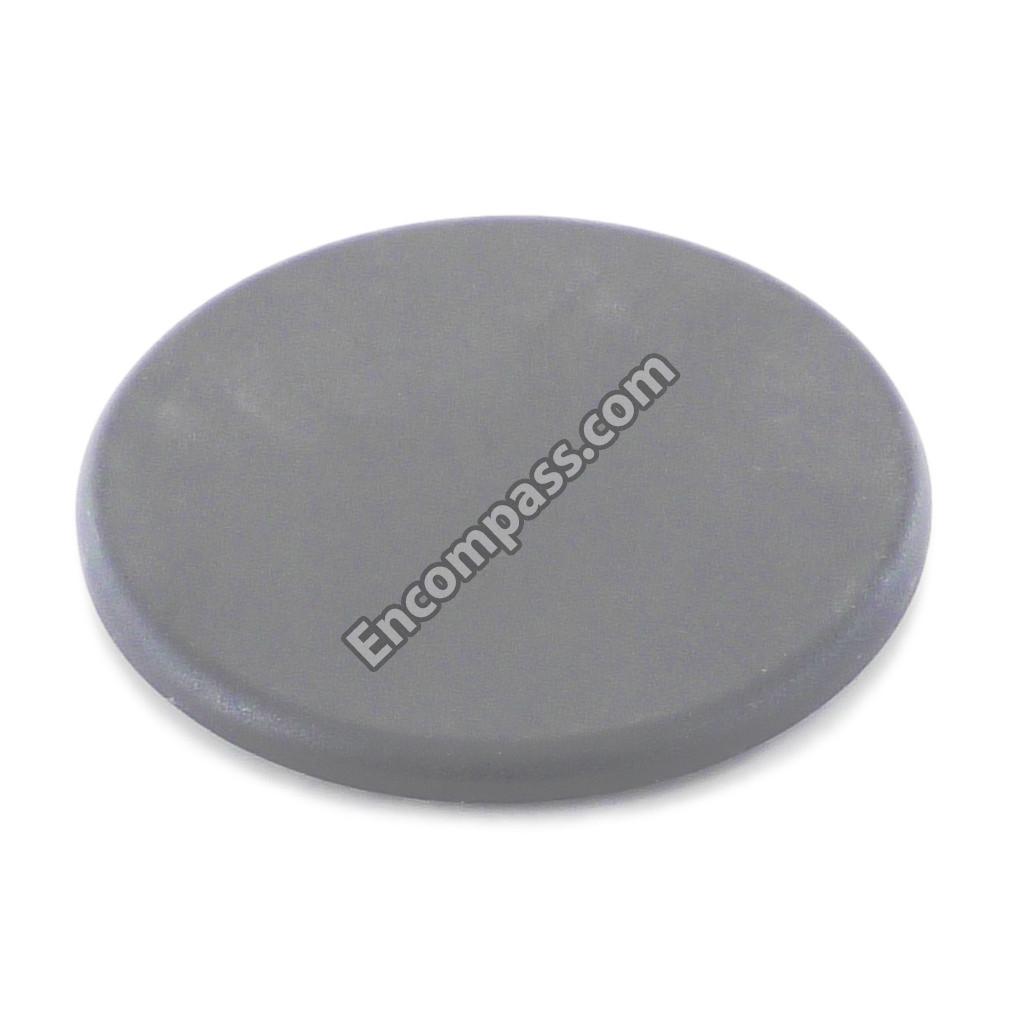

WP8284669 WP8284669 CAP-BURNER
WP9761562SD WP9761562SD CAP-BURNER
8303099 8303099 CHASSIS, TOP
9759890 9759890 CLIP, SIDE PANEL

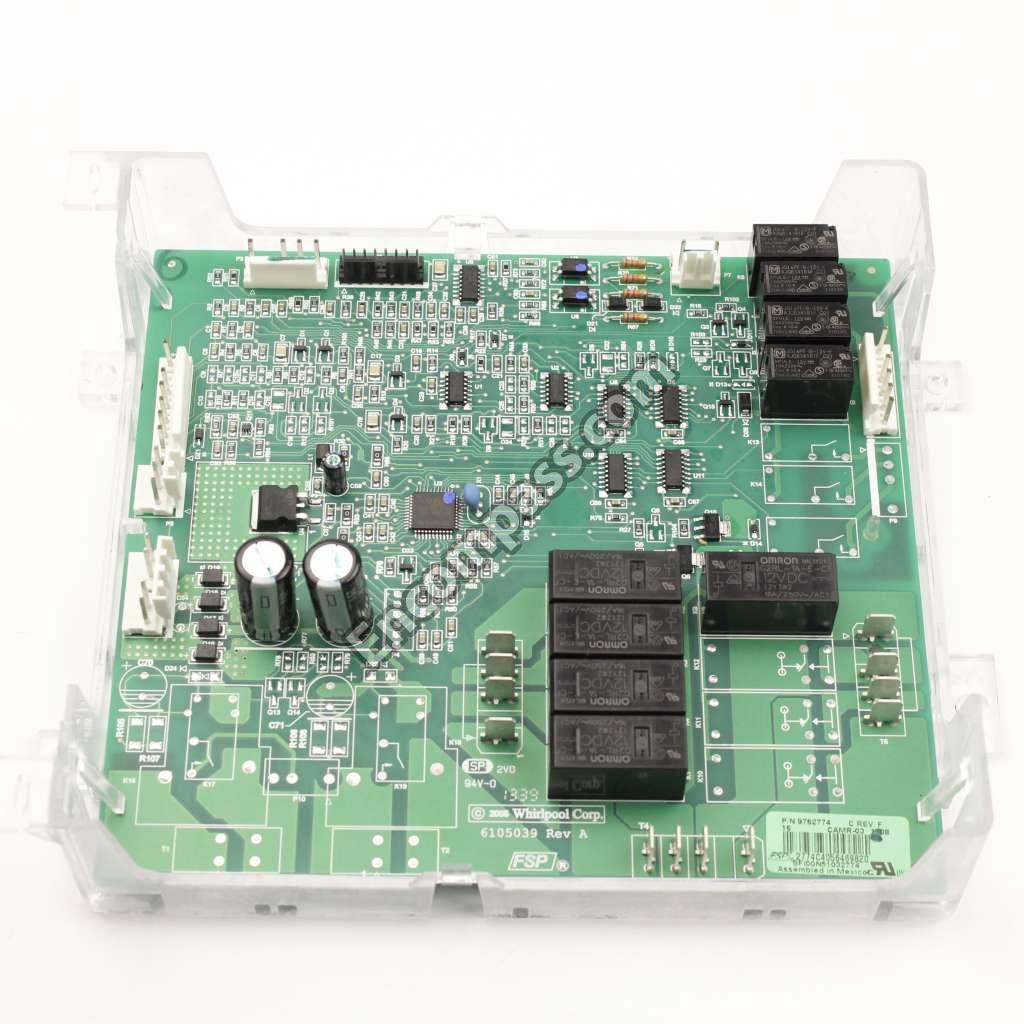

WP9762793 WP9762793 CONTROL BOARD
WP9762774 WP9762774 CONTROL BOARD

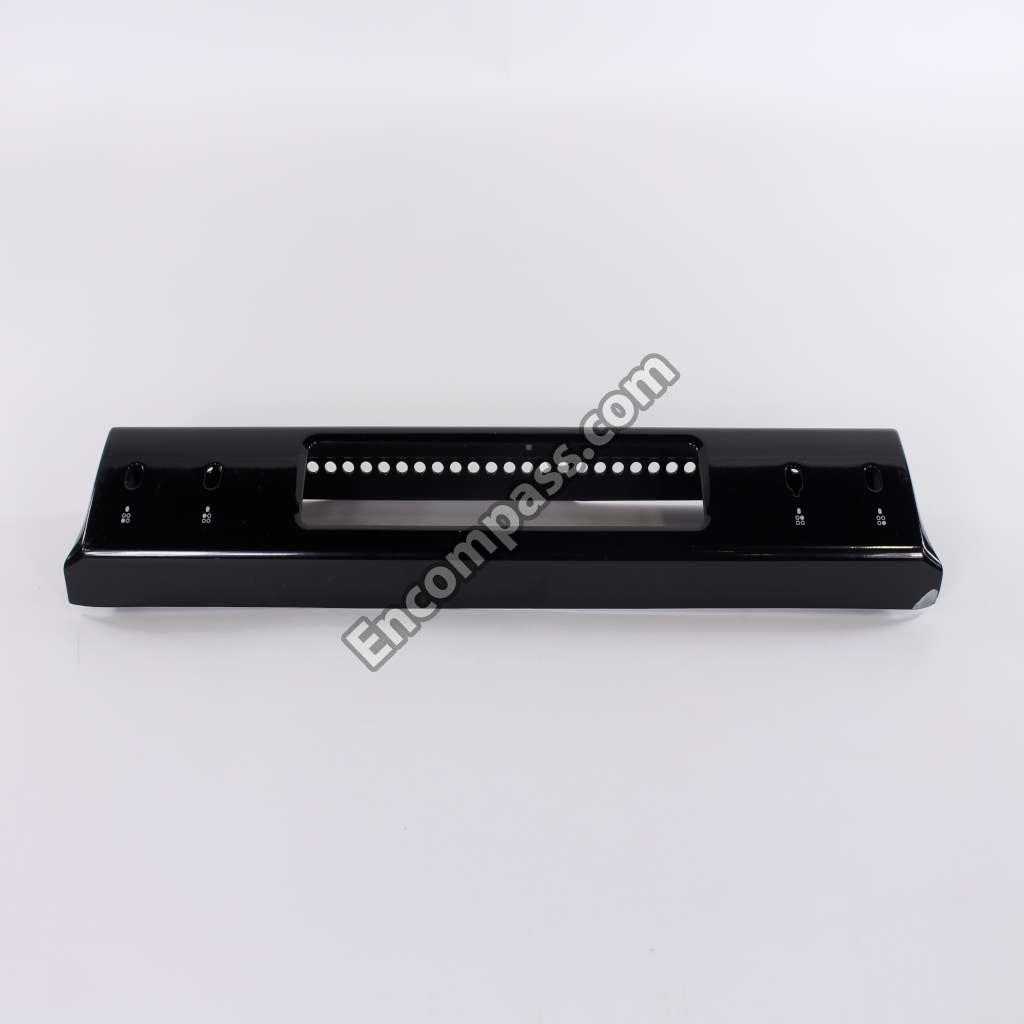

WPW10156273 WPW10156273 CONTROL PANEL
WPW10117036 WPW10117036 CONTROL PANEL (BLACK)
WPW10117038 WPW10117038 CONTROL PANEL (WHITE)
WPW10175854 WPW10175854 COOKTOP
W10175855 W10175855 COOKTOP
W10624584 W10624584 CORD, POWER
9758583 9758583 COVER, BACK
9759627 9759627 COVER, COOKTOP REAR
4454009 4454009 COVER, IGNITOR
WP9763436 WP9763436 COVER-REAR
W10153101 W10153101 DEFLCTR-VT
WPW10195934 WPW10195934 DOOR DOOR LATCH
WP9760579 WP9760579 DOOR HINGE
WP9760574 WP9760574 DOOR HINGE
9757806 9757806 DRAWER
W10068590 W10068590 DUCT-AIR
W10203758 W10203758 DUCT-AIR
W10068600 W10068600 DUCT-AIR
WP9760229 WP9760229 ELCTR-KIT
W10207402 W10207402 ELMNT-BROL
9757779 9757779 FITTING, BROILER
WP3196037 WP3196037 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
9761784 9761784 FRAME, COOKTOP
WPW10115831 WPW10115831 FRAME-FRNT
WPW10203760 WPW10203760 FRONT, DRAWER (BLACK)
WP9763716 WP9763716 GAS VALVE
W11675844 W11675844 GASKET-OVN
WP9759225 WP9759225 GLASS DOOR
WP9757706 WP9757706 GLASS DOOR
W10131888 W10131888 GLASS-DOOR
W10131889 W10131889 GLASS-DOOR
W10155557 W10155557 GLASS-DOOR
9761560CB 9761560CB GRATE, BURNER LEFT (COAL BLACK)
9761560SD 9761560SD GRATE, BURNER LEFT (SATIN CUMBERLAND)

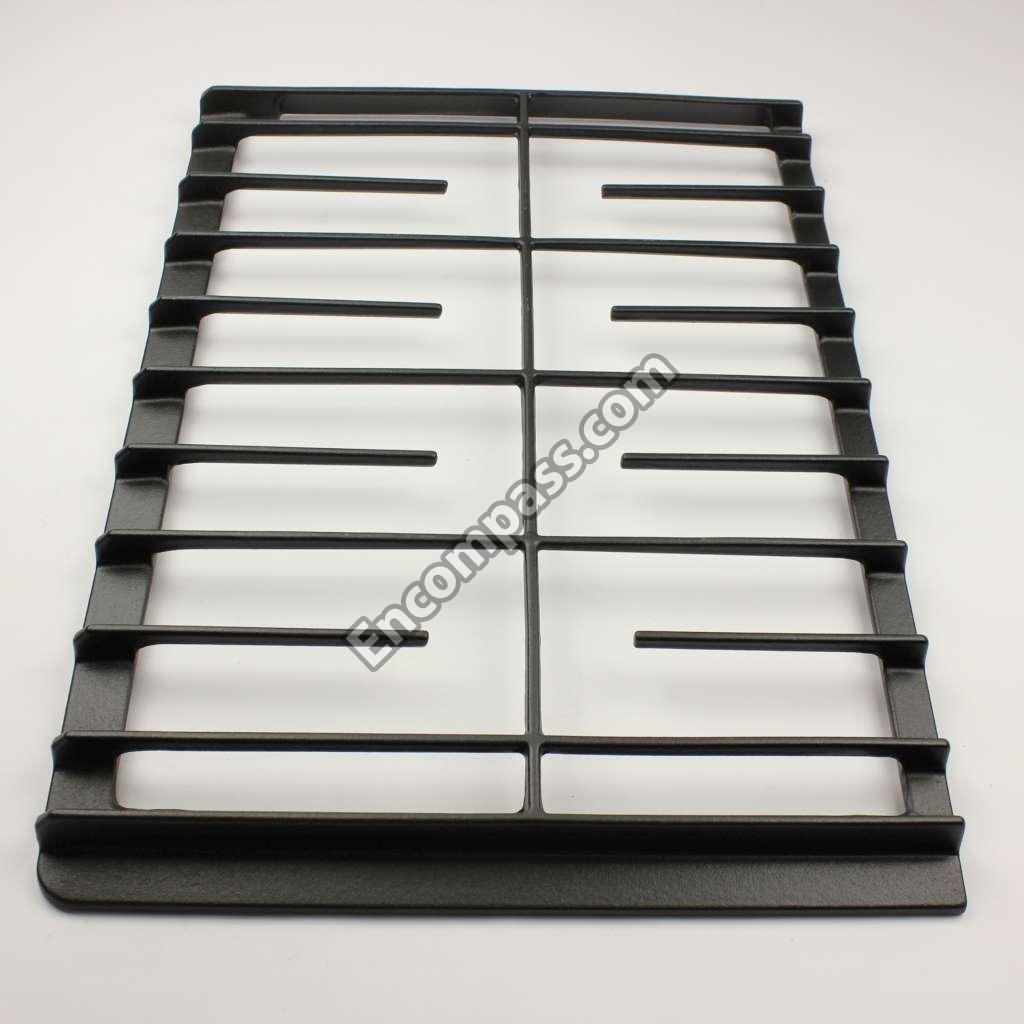

WP9761555CB WP9761555CB GRATE-BRNR
WP9761555SD WP9761555SD GRATE-BRNR
WP4448444 WP4448444 GROMMET
9763467 9763467 GUIDE EASY SET
WP9757685 WP9757685 GUIDE-PANL
WPW10292381 WPW10292381 HANDLE, DOOR (BLACK)
W10899599 W10899599 HANDLE, DOOR (STAINLESS)
WPW10292374 WPW10292374 HANDLE, DRAWER (STAINLESS)

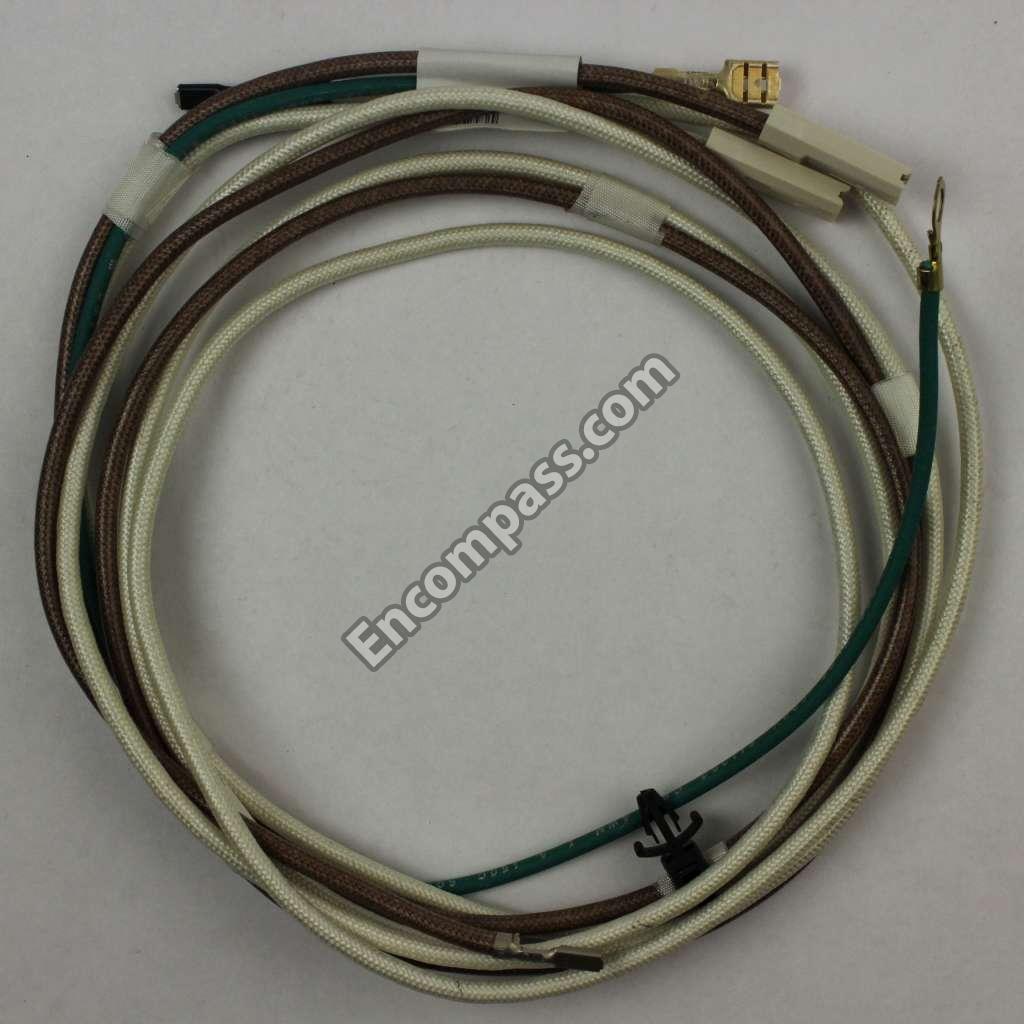

W10118723 W10118723 HARNS-WIRE
WP4455605 WP4455605 HINGE-RECV
WP4455606 WP4455606 HINGE-RECV
W10292382 W10292382 HNDLE-DOOR
W10292375 W10292375 HNDLE-DRWR
W10292379 W10292379 HNDLE-DRWR
WPW10128456 WPW10128456 HOLDER-ORF
WPW10128446 WPW10128446 HOLDER-ORF
WPW10128455 WPW10128455 HOLDER-ORF
WP8054129 WP8054129 IGNTR-OVEN
WPW10110378 WPW10110378 IGNTR-SURF
W10118262 W10118262 INSTALLATION INSTRUCTIIONS
9757680 9757680 INSTRUCTIONS, ANTI-TIP
WP4451722 WP4451722 INSULATION
W10095410 W10095410 INSULATION
W10095400 W10095400 INSULATION
9756470 9756470 INSULATION, BACK
9759722 9759722 INSULATION, BODY SIDE TRIM
9756817 9756817 INSULATION, WRAP
W10851044 W10851044 KNOB
WPW10156265 WPW10156265 KNOB
W10130373 W10130373 KNOB
W10067870 W10067870 LENS-LIGHT
WP4173175 WP4173175 LIGHT BULB
WPW10734065 WPW10734065 LIGHT-OVEN
N_P N_P LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 LINER-DOOR
9761642 9761642 MANIFOLD, COOKTOP
WP9761565 WP9761565 MEMBRANE SWITCH
W10851603 W10851603 ORIFICE
9762937 9762937 ORIFICE, SPUD (LEFT REAR & RIGHT FRONT)
9762939 9762939 ORIFICE, SPUD (RIGHT FRONT)
9762938 9762938 ORIFICE, SPUD (RIGHT REAR)
8186387 8186387 OVEN, SIDE PANEL (BLACK)
8186386 8186386 OVEN, SIDE PANEL (WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350956 350956 PAINT, SPRAY (ALMOND)
4392901 4392901 PAINT, SPRAY (BISCUIT/BISQUE)
285006 285006 PAINT, SPRAY (BLACK)
350938 350938 PAINT, SPRAY (GRAY PRIMER)
350942 350942 PAINT, SPRAY (WHITE PRIMER)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10272546 WPW10272546 PAN-BROILR
W10588269 W10588269 PANEL, DRAWER
WPW10203763 WPW10203763 PANEL-DRWR
W10203762 W10203762 PANEL-DRWR
9757070 9757070 PLATE, RELECTANCE
WPW10179152 WPW10179152 RACK-OVEN
9756838 9756838 RAIL, STORAGE (LEFT)
9756836 9756836 RAIL, STORAGE (RIGHT)
WPW10331686 WPW10331686 RANGE SPARK MODULE
WP9759242 WP9759242 RANGE THERMOSTAT
WP9757807 WP9757807 RANGE THERMOSTAT
WP9759944 WP9759944 RANGE THERMOSTAT
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
W10873471 W10873471 SCREW
WP3186217 WP3186217 SCREW
WP8273062 WP8273062 SCREW
WP4449154 WP4449154 SCREW
W11233072 W11233072 SCREW
WP4449040 WP4449040 SCREW
WP3400805 WP3400805 SCREW
WPW10132940 WPW10132940 SCREW
WP4449743 WP4449743 SCREW
WP3400832 WP3400832 SCREW
W10491985 W10491985 SCREW
WP4449809 WP4449809 SCREW
WP12990527 WP12990527 SCREW
WP3196557 WP3196557 SCREW
8522415 8522415 SEAL, WINDOW
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4453984 4453984 SHIELD, BAKE FLAME
9752980 9752980 SHIELD, BROILER FLAME
9757732 9757732 SHIELD, HEAT
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
WP9752737 WP9752737 SHIELD, OVEN
W10105370 W10105370 SHIELD-VNT
W10782197 W10782197 SIDE, CHASSIS
W10083460 W10083460 SLIDE
9760223 9760223 SLIDE, DSI MODULE
9759945 9759945 STANDOFF, REAR
WPW10145744 WPW10145744 SUPPORT
9763501BL 9763501BL SUPPORT
WP9756821 WP9756821 SUPPORT
9757409 9757409 SUPPORT, GAS VALVE
W10109920 W10109920 TAPE
W10221015 W10221015 TECH SHEET
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
WPW10111628 WPW10111628 TRANSFORMR
W10153486 W10153486 TRIM
W10140548 W10140548 TRIM
WPW10153488 WPW10153488 TRIM
W10109520 W10109520 TRIM
W10109540 W10109540 TRIM
W10109570 W10109570 TRIM
WPW10109490 WPW10109490 TRIM, SIDE (BLACK (LEFT))
WPW10140547 WPW10140547 TRIM, SIDE (STAINLESS (LEFT))
9756831 9756831 TUBE, BROIL
9761666 9761666 TUBE, VENT
4453754 4453754 TUBING GDS TO MANIFOLD
9761561 9761561 TUBING, BURNER (LEFT FRONT)
9761068 9761068 TUBING, BURNER (LEFT REAR)
9761069 9761069 TUBING, BURNER (RIGHT FRONT)
9761070 9761070 TUBING, BURNER (RIGHT REAR)
W10162198 W10162198 USE & CARE GUIDE
4456818 4456818 VALVE, BURNER (LEFT FRONT)
WP4456816 WP4456816 VALVE-BRNR
WP4456817 WP4456817 VALVE-BRNR
WPW10154789 WPW10154789 VENT, BOTTOM UPPER (STAINLESS)
9760225WH 9760225WH VENT, CENTER (WHITE)
WP9760225BL WP9760225BL VENT-OVEN
9760481 9760481 WASHER
WP9762904 WP9762904 WIRE HARNESS
W11209404 W11209404 WIRE HARNESS
1129449 1129449 WIRING HARNESS PARTS, BUSHING
9762921 9762921 WIRING HARNESS PARTS, HARNESS, COMMUNICATION
9756892 9756892 WIRING HARNESS PARTS, HARNESS, DSI COOKTOP
9763481 9763481 WIRING HARNESS PARTS, HARNESS, GROUND STRAP
9756822 9756822 WIRING HARNESS PARTS, HARNESS, SWITCH
4450800 4450800 WIRING HARNESS PARTS, SCREW, GROUNDING
4452222 4452222 WIRING HARNESS PARTS, SPACER, HARNESS
