Model Image
Manufacturer

Whirlpool

Model Number

KGSS907SWH00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
W11447673 W11447673 ANCHOR-TIP
9757680 9757680 ANTI-TIP INSTRUCT.
W10155557 W10155557 ASSEMBLY, DOOR KIT
9759762 9759762 BACK, CHASSIS
8304603SS 8304603SS BADGE
W10104790 W10104790 BAFFL-CONV
9759899 9759899 BAKEWARE, 5 PC
W10810687 W10810687 BLOWER
W10110534 W10110534 BOTTM-MAIN
W10589943 W10589943 BOX-BURNER
8053971 8053971 BRACE, MAIN BACK
9757811 9757811 BRACE, SIDE PANEL
9763445 9763445 BRACKET, BURNER
9756454 9756454 BRACKET, GOC
W10246113 W10246113 BRACKET, HANDLE (L.HAND)
W10246114 W10246114 BRACKET, HANDLE (R.HAND)
4452152 4452152 BRACKET, MOUNTING
9761784 9761784 BRACKET, MOUNTING
9757461 9757461 BRACKET,SIDE PANEL
9761745 9761745 BRKT, TOUCHSENSOR
WP4455352 WP4455352 BRKT-MNTG
WP9757829 WP9757829 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
WP9759230 WP9759230 BRKT-MNTG
W10105790 W10105790 BUMPER, DOOR
WPW10111219 WPW10111219 BURNR-BRLR
WP8285256 WP8285256 BURNR-HEAD
WP8285255 WP8285255 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
WP9760228 WP9760228 BURNR-OVEN

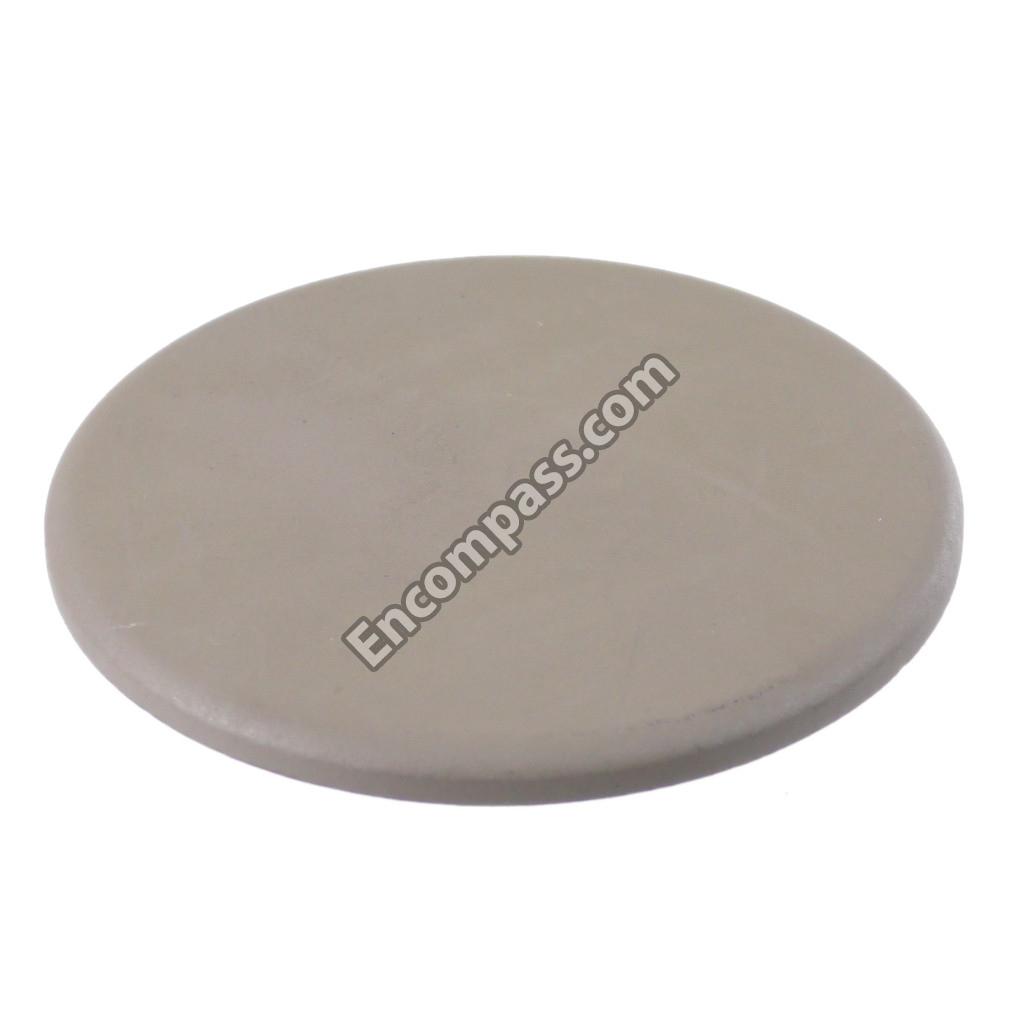

WP9761563CB WP9761563CB CAP, BURNER 12.5K (RR) (COAL BLACK)

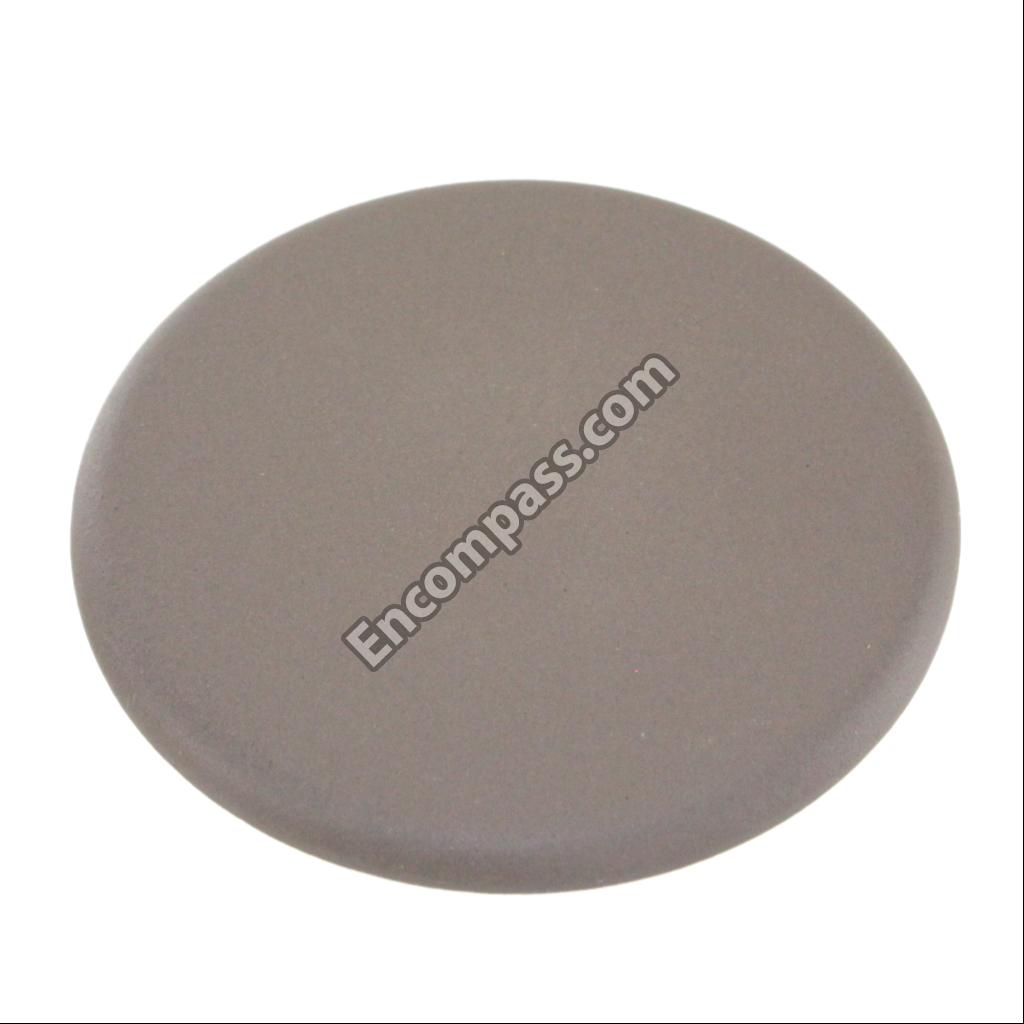

9761563SD 9761563SD CAP, BURNER 12.5K (RR) (SATIN CUMBERLAND)
9761563SN 9761563SN CAP, BURNER 12.5K (RR) (SATIN MOLESKIN)
8285258SN 8285258SN CAP, BURNER EXT. (SATIN MOLESKIN)
9758829SN 9758829SN CAP, BURNER INT. (SATIN MOLESKIN)
WP9758829SD WP9758829SD CAP-BURNER
WP9758829CB WP9758829CB CAP-BURNER
WP8285258SD WP8285258SD CAP-BURNER
WP9761562SD WP9761562SD CAP-BURNER
WP9761562SN WP9761562SN CAP-BURNER
WP8284669 WP8284669 CAP-BURNER
WP8285258 WP8285258 CAP-TOP
4448664 4448664 CLAMP
313660 313660 CLIP, GROUND WIRE
9759890 9759890 CLIP, SIDE PANEL

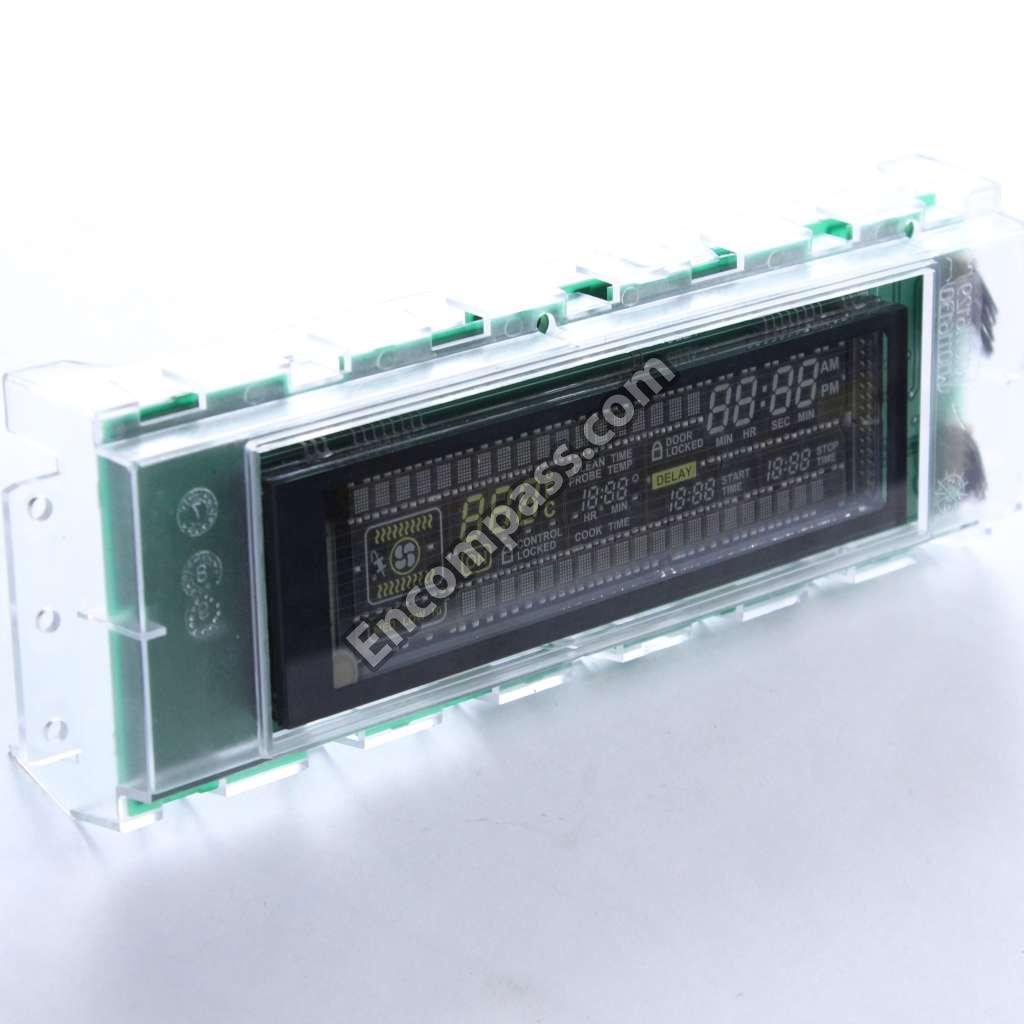

WP9762794 WP9762794 CONTROL BOARD
WP9762774 WP9762774 CONTROL BOARD
WPW10117037 WPW10117037 CONTROL PANEL (BISCUIT)
WPW10117036 WPW10117036 CONTROL PANEL (BLACK)
WPW10117035 WPW10117035 CONTROL PANEL (GREENVILLE NICKEL)
WPW10117038 WPW10117038 CONTROL PANEL (WHITE)
W10106260 W10106260 COOKTOP
WPW10175851 WPW10175851 COOKTOP
WPW10175850 WPW10175850 COOKTOP (BLACK)
W10624584 W10624584 CORD, POWER
9762919 9762919 COVER, ACCESS
9758583 9758583 COVER, BACK
9759627 9759627 COVER, CKTP REAR
4454009 4454009 COVER, IGNITOR
WP9763436 WP9763436 COVER-REAR
W10153101 W10153101 DEFLCTR-VT
WP9760889 WP9760889 DOOR DOOR LATCH
WP9760574 WP9760574 DOOR HINGE
WP9760579 WP9760579 DOOR HINGE
WPW10164163 WPW10164163 DRAWER ASSEMBLY
W10068590 W10068590 DUCT-AIR
W10105780 W10105780 DUCT-AIR
W10068600 W10068600 DUCT-AIR
WP9760229 WP9760229 ELCTR-KIT
9760776 9760776 ELEMENT, BROIL
9760777 9760777 ELEMENT, CONVECT
9760775 9760775 ELEMENT, WARMING
WP4452226 WP4452226 FAN-CONVCT
9757785BT 9757785BT FILLER, COUNTER TOP (BISCUIT)
WP9757785BL WP9757785BL FILLER, COUNTER TOP (BLACK)
WP9757785WH WP9757785WH FILLER, COUNTER TOP (WHITE)
9757779 9757779 FITTING, BROILER
WP3196037 WP3196037 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10115831 WPW10115831 FRAME-FRNT
9761747BT 9761747BT FRONT, DRAWER (BISCUIT)
WPW10203760 WPW10203760 FRONT, DRAWER (BLACK)
W10203762 W10203762 FRONT, DRAWER (WHITE)
WP9763716 WP9763716 GAS VALVE
9756609 9756609 GASKET 19 X 388
W11675844 W11675844 GASKET-OVN
WP9759225 WP9759225 GLASS DOOR
WP9757706 WP9757706 GLASS DOOR
9762766BT 9762766BT GLASS, DOOR FRONT (BISCUIT)
W10131888 W10131888 GLASS, DOOR FRONT (BLACK)
W10131889 W10131889 GLASS, DOOR FRONT (WHITE)
WP9761556CB WP9761556CB GRATE, BRNR (TCB) (COAL BLACK)
9761556SD 9761556SD GRATE, BRNR (TCB) (SATIN CUMBERLAND)
9761556SN 9761556SN GRATE, BRNR (TCB) (SATIN MOLESKIN)
9761555SN 9761555SN GRATE, BURNER (SATIN MOLESKIN)
WP9761557SD WP9761557SD GRATE, INSERT (TCB) (SATIN CUMBERLAND)
9761557SN 9761557SN GRATE, INSERT (TCB) (SATIN MOLESKIN)
WP9761557CB WP9761557CB GRATE-BRNR
WP9761555CB WP9761555CB GRATE-BRNR
WP9761555SD WP9761555SD GRATE-BRNR
WP3195996 WP3195996 GRID-PAN
9763467 9763467 GUIDE EASY SET
WP9757685 WP9757685 GUIDE-PANL
8303774BT 8303774BT HANDLE, DOOR (BISCUIT)
WPW10292381 WPW10292381 HANDLE, DOOR (BLACK)
W10899599 W10899599 HANDLE, DOOR (S.STEEL)
W10292382 W10292382 HANDLE, DOOR (WHITE)
9761573BT 9761573BT HANDLE, DRAWER (BISCUIT)
W10292375 W10292375 HANDLE, DRAWER (BLACK)
WPW10292374 WPW10292374 HANDLE, DRAWER (S.STEEL)
9761573WH 9761573WH HANDLE, DRAWER (WHITE)
9762921 9762921 HARNESS, COMM.
9763481 9763481 HARNESS, GROUND STRAP
W10157936 W10157936 HARNESS, MAIN
9756921 9756921 HARNESS, TCB
W10110533 W10110533 HARNS-WIRE
814381 814381 HINGE PIN KIT
WP4455605 WP4455605 HINGE-RECV
WP4455606 WP4455606 HINGE-RECV
WP9761639 WP9761639 HOLDER-ORF
WPW10128455 WPW10128455 HOLDER-ORF
WPW10128446 WPW10128446 HOLDER-ORF
WP8054129 WP8054129 IGNTR-OVEN
W10075750 W10075750 INSTALLATION INSTRUCTIONS
WP4451722 WP4451722 INSULATION
9756470 9756470 INSULATION, BACK
9756817 9756817 INSULATION, WRAP
8186589 8186589 JACK-PROBE

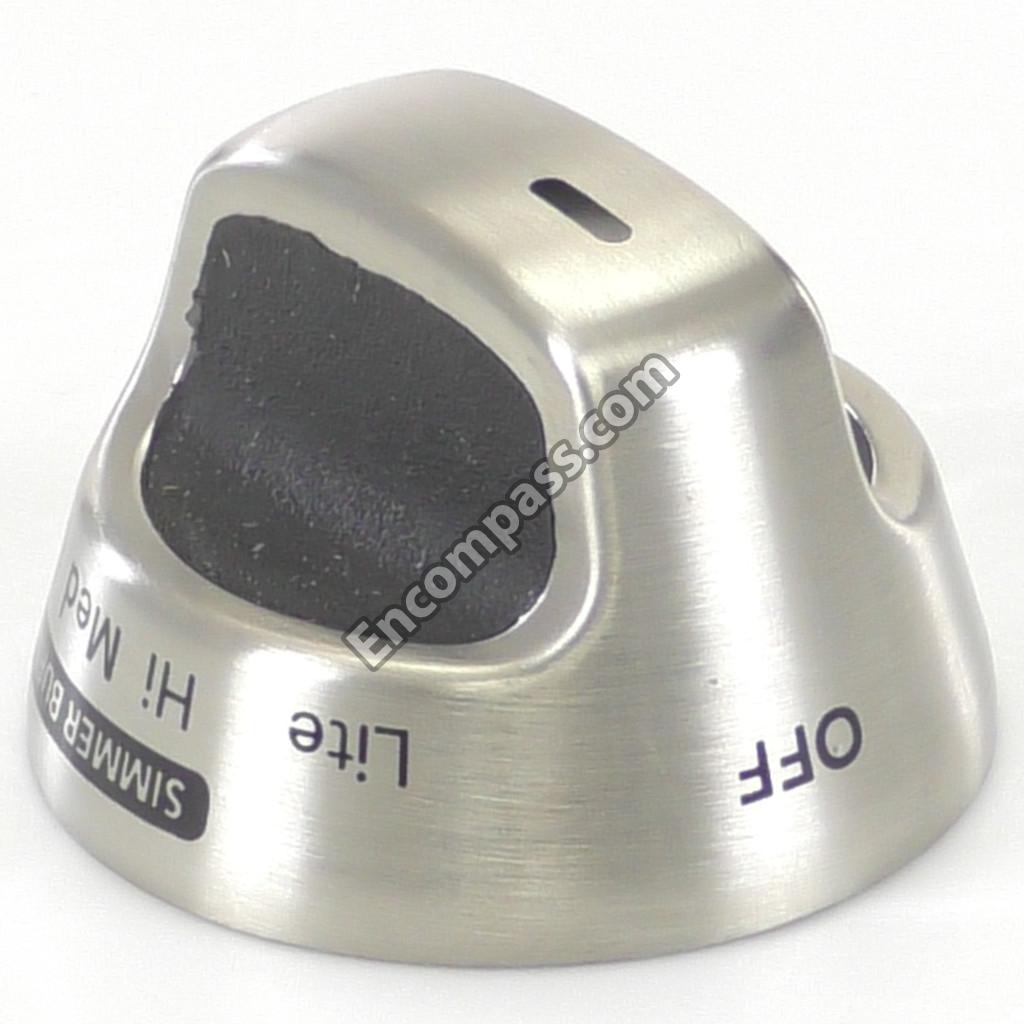

W10130386 W10130386 KNOB
W10851044 W10851044 KNOB
W10114692 W10114692 KNOB (LR, RF, RR)
W10130375 W10130375 KNOB, BURNER (RIGHT FRONT, RIGHT REAR, LEFT REAR) (BISCUIT)
W10130373 W10130373 KNOB, BURNER (RIGHT FRONT, RIGHT REAR, LEFT REAR) (BLACK)
W10130385 W10130385 KNOB, TCB (1) (BISCUIT)
W10854528 W10854528 KNOB, TCB LF (BLACK)
W10193261 W10193261 KNOB, TCB LF (WHITE)
W10067870 W10067870 LENS-LIGHT
WP4173175 WP4173175 LIGHT BULB
WPW10734065 WPW10734065 LIGHT-OVEN
100000 100000 LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 LINER-DOOR
WP9755546 WP9755546 LOCKNUT
WP9755547 WP9755547 LOCKWASHER
9761641 9761641 MANIFOLD (TCB)
9761642 9761642 MANIFOLD, COOKTOP
WP9761566 WP9761566 MEMBRANE SWITCH
WP4451583 WP4451583 MOTOR-FAN
9763444BT 9763444BT NAMEPLATE (BISCUIT)
8304603BL 8304603BL NAMEPLATE (BLACK)
8304603WH 8304603WH NAMEPLATE (WHITE)
WP112432 WP112432 NUT
WP4452227 WP4452227 NUT
9757426 9757426 ORIFIC KIT
W10851603 W10851603 ORIFICE
9760723PC 9760723PC OVEN, SIDE PANEL (BISCUIT)
8186387 8186387 OVEN, SIDE PANEL (BLACK)
8186386 8186386 OVEN, SIDE PANEL (WHITE)
WP261869 WP261869 PAINT CW
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10123240 W10123240 PAN, BROILER
WPW10272546 WPW10272546 PAN-BROILR
W10737569 W10737569 PAN-BROILR
W10588269 W10588269 PANEL, DRAWER
WPW10203763 WPW10203763 PANEL-DRWR
8285250 8285250 PLATE, CLOSURE
WP9755542 WP9755542 PROBE-MEAT
WPW10179152 WPW10179152 RACK-OVEN
WPW10331686 WPW10331686 RANGE SPARK MODULE
WP9759242 WP9759242 RANGE THERMOSTAT
WP9757807 WP9757807 RANGE THERMOSTAT
WP9759944 WP9759944 RANGE THERMOSTAT
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
3191638 3191638 SAFE COOKING TIPS
9759133 9759133 SAFECOOKING TIPS
WP3400015 WP3400015 SCREW
WP4448950 WP4448950 SCREW
W10873471 W10873471 SCREW
WP3400702 WP3400702 SCREW
WP3186217 WP3186217 SCREW
WP4449154 WP4449154 SCREW
W11233072 W11233072 SCREW
WP4449040 WP4449040 SCREW
WP8533988 WP8533988 SCREW
WP4449743 WP4449743 SCREW
WP3400832 WP3400832 SCREW
W10491985 W10491985 SCREW
WP4449809 WP4449809 SCREW
WP12990527 WP12990527 SCREW
WP3196557 WP3196557 SCREW
4450800 4450800 SCREW, GROUND
W10491987 W10491987 SEAL-FOAM
WP8274149 WP8274149 SENSOR
WPW10131825 WPW10131825 SENSOR
4453984 4453984 SHIELD, BAKE FLAME
W10153094 W10153094 SHIELD, ELEMENT (L.HAND)
W10153093 W10153093 SHIELD, ELEMENT (R.HAND)
9752980 9752980 SHIELD, FLAME
9757732 9757732 SHIELD, HEAT
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
WP9752737 WP9752737 SHIELD, OVEN
W10105370 W10105370 SHIELD-VNT
9759954 9759954 SIDE, BASE (L.SIDE)
9759953 9759953 SIDE, BASE (R.SIDE)
W10782197 W10782197 SIDE, CHASSIS
W10083460 W10083460 SLIDE
9760223 9760223 SLIDE, GOC
WPW10155632 WPW10155632 SLIDE-DRWR
WPW10155633 WPW10155633 SLIDE-DRWR
4452222 4452222 SPACER, HARNESS
9759945 9759945 STANDOFF, REAR
WPW10145744 WPW10145744 SUPPORT
WP9756821 WP9756821 SUPPORT
9758676 9758676 SUPPORT, ELEMENT
9757409 9757409 SUPPORT, GAS VALVE
W10109920 W10109920 TAPE
9762784 9762784 TECH SHEET (ENGLISH)
W10065210 W10065210 TECH SHEET (FRENCH)
8303099 8303099 TOP CHASSIS
WPW10111628 WPW10111628 TRANSFORMR
W10109510 W10109510 TRIM
W10109540 W10109540 TRIM
W10109550 W10109550 TRIM
W10109570 W10109570 TRIM
W10109560 W10109560 TRIM
W10153486 W10153486 TRIM
W10104900 W10104900 TRIM
WPW10153488 WPW10153488 TRIM
W10109500 W10109500 TRIM
W10109520 W10109520 TRIM
WPW10154789 WPW10154789 TRIM, BTM VENT (S.STEEL)
WPW10109490 WPW10109490 TRIM, SIDE (LEFT) (BLACK)
9756831 9756831 TUBE, BROIL
9761648 9761648 TUBE, MANIFOLD
9761071 9761071 TUBE, T.C.B. GAS (INNER)
9761072 9761072 TUBE, T.C.B. GAS (OUTER)
9761666 9761666 TUBE, VENT
4453754 4453754 TUBING GDS TO MANIFOLD
9761068 9761068 TUBING, BURNER(LR)
9761069 9761069 TUBING, BURNER(RF)
9761070 9761070 TUBING, BURNER(RR)
9763457 9763457 USE & CARE GUIDE
WP9760519 WP9760519 VALVE-BRNR
WP4456817 WP4456817 VALVE-BRNR
WP4456816 WP4456816 VALVE-BRNR
9756481BT 9756481BT VENT, BOTTOM UPPER (BISCUIT)
W10116899 W10116899 VENT, BOTTOM UPPER (BLACK)
WPW10160347 WPW10160347 VENT, BOTTOM UPPER (S. STEEL)
WPW10116897 WPW10116897 VENT, BOTTOM UPPER (WHITE)
9760225BT 9760225BT VENT, CENTER (BISCUIT)
9760225WH 9760225WH VENT, CENTER (WHITE)
WP9760225BL WP9760225BL VENT-OVEN
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242826 242826 WIRE (14 GA. 150 C WHITE)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE (14 GA. 200 C YELLOW)
WP9762904 WP9762904 WIRE HARNESS
W11209404 W11209404 WIRE HARNESS
WP9756824 WP9756824 WIRE HARNESS
