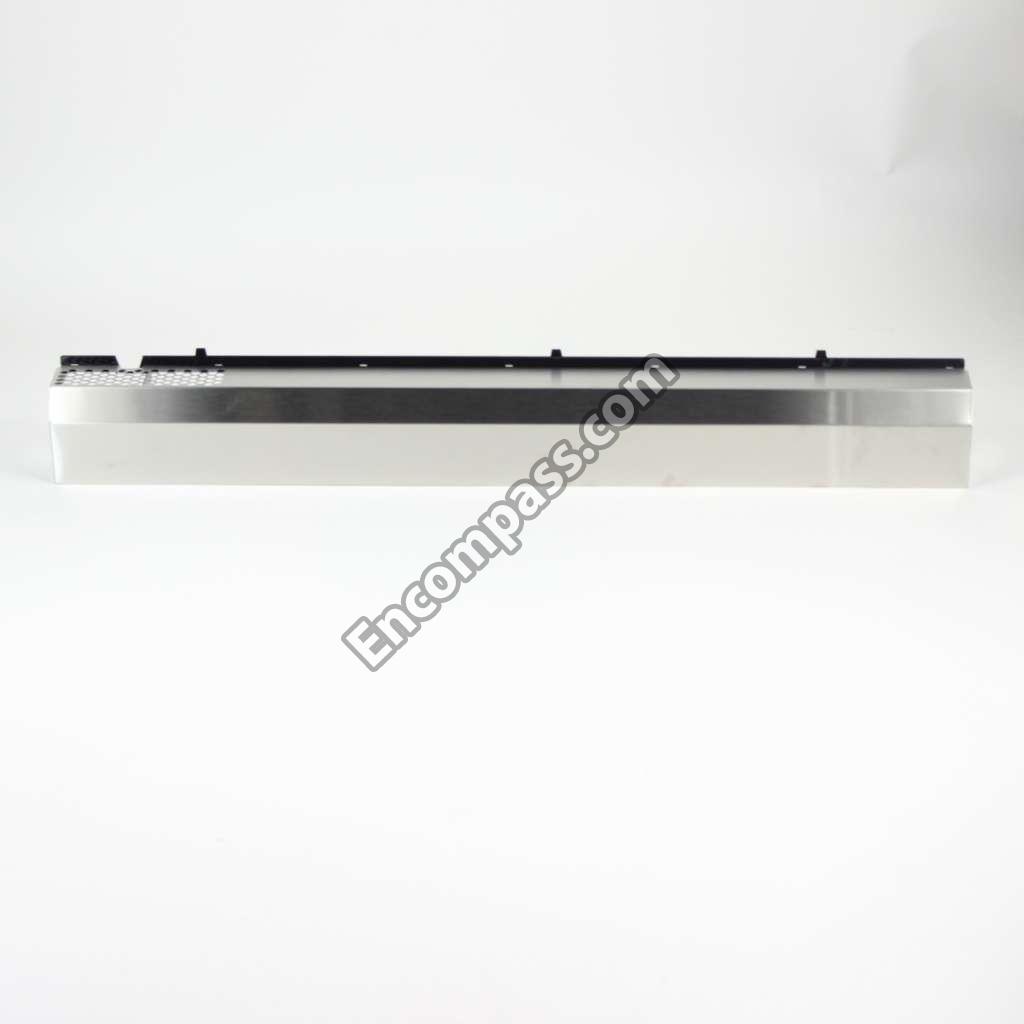

Model Image
Manufacturer

Whirlpool

Model Number

KHMS1850SBL1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8205367 8205367 AIR GUIDE (LEFT)
8205352 8205352 AIR GUIDE (RIGHT)
8205354 8205354 AIR GUIDE, BACK
8205351 8205351 BASE PLATE, AIR GUIDE
8184590 8184590 BLADE-STIR
W10117908 W10117908 BLOCK-FUSE
8206457 8206457 BRACKET, CAPACITOR
W10280384 W10280384 BRKTMOUNT
W10155345 W10155345 BRKTSUPPT
W10280383 W10280383 BRKTSUPPT
W10280388 W10280388 BRKTSUPPT
W11405832 W11405832 CAPACTR-DM
W10258597 W10258597 CAPACTRMG
W10117921 W10117921 COMPLETE DOOR (STAINLESS)
8206649 8206649 COOK GUIDE LABEL
W10708076 W10708076 CORD-POWER
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
W10253653 W10253653 COVR-TERML
W10117848 W10117848 COVRLIGHT
W10843943 W10843943 DAMPER
W11256462 W11256462 DIODE
W10117920 W10117920 DOOR/MW
W10117922 W10117922 DOOR/MW
8205368 8205368 DUCT, AIR
W10239608 W10239608 FAN, DC 12 VOLT
8206624 8206624 FILTER
8205146A 8205146A FILTER
W10113040A W10113040A FILTER
W11707984 W11707984 FUSE-THRML
8184141 8184141 GLASS, LAMP
W10250593 W10250593 GRILL-VENT
W10250596 W10250596 GRILL-VENT
W10246506 W10246506 GRILL-VENT
8206185 8206185 GROUND WIRE
W10280381 W10280381 GUIDEAIR
W10110238 W10110238 HARD-MOUNT
W10280844 W10280844 HARNS-WIRE
W10280392 W10280392 HARNS-WIRE
W10117933 W10117933 HARNS-WIRE
W10280845 W10280845 HARNS-WIRE
W10114254 W10114254 HINGE-DOOR
W10114255 W10114255 HINGE-DOOR
8184889 8184889 HOLDER, GLASS
WPW10210878 WPW10210878 HOUSNG-LMP
8206446 8206446 HUMIDITY, SENSOR
W10217689 W10217689 INST. INSTRUCTIONS
8205948 8205948 INSTALLATION, HARDWARE
W10709921 W10709921 LAMP, HALOGEN
8206232A 8206232A LIGHT BULB
W10222507 W10222507 MAGNETRON
WPW10216701 WPW10216701 MICROCOMPUTER
W10539840 W10539840 MISCELLANEOUS, HARNESS, PRINTED CIRCUIT BOARD ASSEMBLY GROUND WIRE
W10117942 W10117942 MOTOR-FAN
8184581 8184581 MOTOR-STIR
WPW10466420 WPW10466420 MOTOR-TURN
W10841143 W10841143 NAIL
W10280391 W10280391 PANEL ASY, CONTROL INCLUDES CAMERA LENS AND MEMBRANE SWITCH (STAINLESS)
W10246507 W10246507 PANL-CNTRL
W10155343 W10155343 PANLCNTRL
W10117912 W10117912 PISTON
8184922 8184922 PIVOT, DOOR
W10290785 W10290785 PLATE, CAM
8183824 8183824 PLATE, CAM
8206452 8206452 PLATE, DAMPER
8206455 8206455 PLATE, SIDE
WPW10269225 WPW10269225 PLATE-MTNG
W10276393 W10276393 PLATEGIDE
8205549 8205549 RACK
8184959 8184959 REFLECTOR, LAMP
8205152 8205152 RESISTOR
W11252182 W11252182 RING-TURN
4393836 4393836 SCREW
4393832 4393832 SCREW
4393838 4393838 SCREW
8169474 8169474 SCREW
8169479 8169479 SCREW
8184200 8184200 SCREW
W11380570 W11380570 SCREW
8184199 8184199 SCREW
W10280382 W10280382 SHIELD
W10117916 W10117916 SHIELD
8206460 8206460 SHIELD (LEFT)
W10117846 W10117846 SOCKET, MOTOR WIRE
8184109 8184109 SPACER, WATERPROOF
W10117911 W10117911 SPRING
8169438 8169438 SPRING, INTERLOCK
W10840795 W10840795 SUPPORT
W10840759 W10840759 SUPPORT
W10840794 W10840794 SUPPORT
W10155348 W10155348 SUPPORT
W10117909 W10117909 SUPPORT, INTERLOCK
W10211972 W10211972 SWITCH
W10269458 W10269458 SWITCH
W10211974 W10211974 SWITCH
8205578 8205578 TC0, BRKT. ASSEMBLY.
W10132021 W10132021 TECH SHEET
8205924 8205924 TEMPLATE, UPPER
8184951 8184951 THERMOSTAT
8184582 8184582 THERMOSTAT/BRACKET
W10155350 W10155350 THRMST-FIX
W10280846 W10280846 THRMST-FIX
WP8206456 WP8206456 TRANSFORMR
W10155349 W10155349 TUBE
4393799 4393799 TURNTABLE
W10223916 W10223916 U & C GUIDE
W10117934 W10117934 WIREGROND
W10136728 W10136728 WRAPER-CAB
W10136727 W10136727 WRAPERCAB
