Model Image
Manufacturer

Whirlpool

Model Number

KHVU781RSS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP4396915 WP4396915 10`` DUCT
8190545 8190545 BLOWER
8191040 8191040 BOX, CONTROL
8190398 8190398 BRACKET, MOUNTING
8189620 8189620 BUTTON, MTR SPEED
8189618 8189618 BUTTON, ON/OFF
4360028 4360028 CAMERA LENS, LIGHT
8190385 8190385 CAPACITOR
8190393 8190393 CONNECTOR
8191006 8191006 CONNECTOR, FEMALE
4360162 4360162 CONNECTOR, FEMALE
8190381 8190381 CONNECTOR, MALE
4360161 4360161 CONNECTOR, MALE
8190384 8190384 COVER, BOX
8189905 8189905 COVER, DIST BOX
8189624 8189624 COVER, SWITCH
8190383 8190383 COVER, WIRE
8190386 8190386 COVER, WIRE
8190392 8190392 COVER, WIRE
W10252123 W10252123 DAMPER, HOOD
8190405 8190405 EXTENSION, FLANGE
WPW10281491 WPW10281491 FILTER
100000 100000 HOODLINER (NOT SERVICED)
8190387 8190387 HOUSING, LOWER
WPW10242000 WPW10242000 HOUSING, UPPER
8191045 8191045 INSTRUCTIONS, INSTALLATION / USE & CARE GUIDE

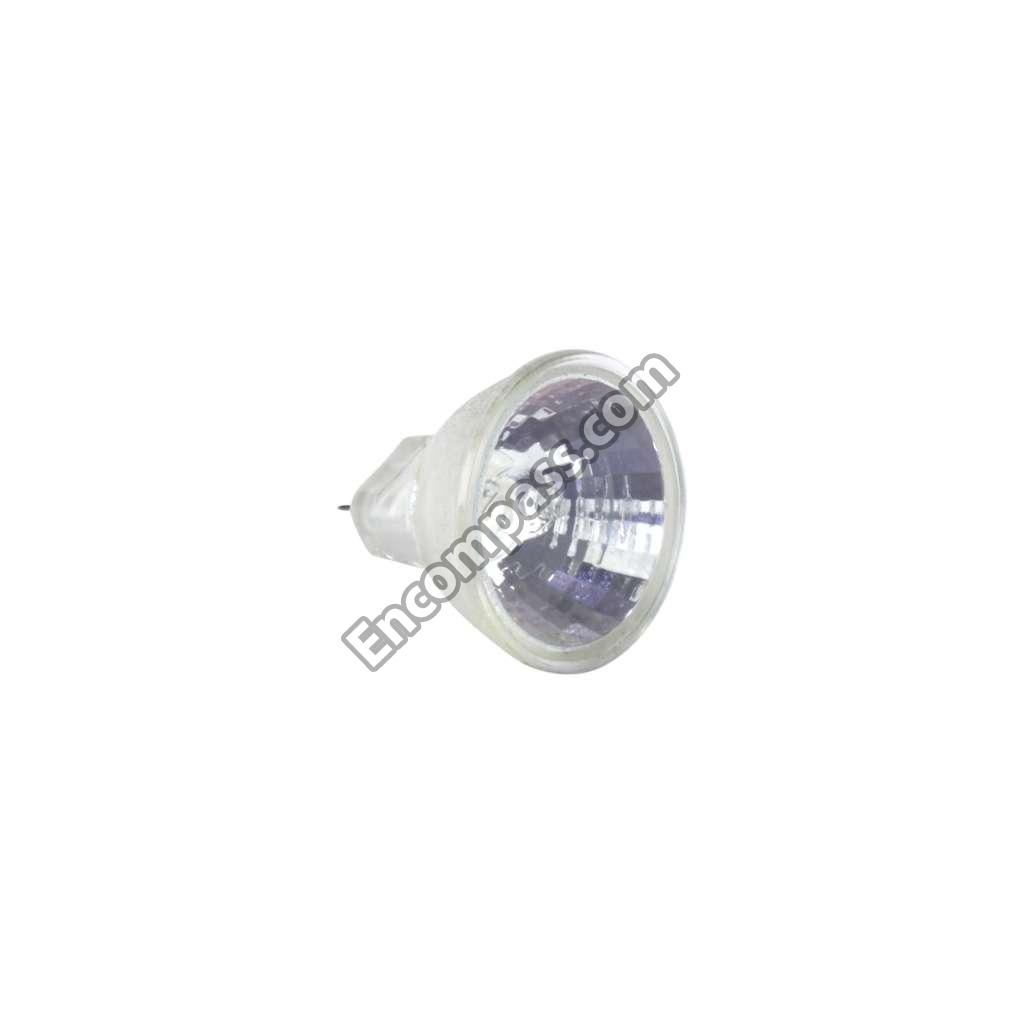

WPW10252088 WPW10252088 LIGHT BULB
8190414 8190414 NUT
8190411 8190411 NUT
4360048 4360048 PIN, HINGE (6)
8190403 8190403 SCREW
8190582 8190582 SCREW (2)
W10337300 W10337300 SOCKET
W10622742 W10622742 SUPPORT
8189598 8189598 SUPPORT, BULB (6)
8190543 8190543 SUPPORT, LIGHT
8190391 8190391 SUPPORT, MOTOR-DX
8190388 8190388 SUPPORT, MOTOR-SX
8190544 8190544 SUPPORT-LT
WPW10252122 WPW10252122 SWTCH-SLDE
W11731942 W11731942 SWTCH-SLDE
WPW10252117 WPW10252117 TRANSFORMER
8191044 8191044 WIRING DIAGRAM
