Model Image
Manufacturer

Whirlpool

Model Number

KMBS104EBL02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10696311 W10696311 "ASSEMBLY, SIDE STRIP (27"" BLACK)"
W10696310 W10696310 "ASSEMBLY, SIDE STRIP (30"" BLACK)"
WPW10128850 WPW10128850 ARM
W11214480 W11214480 ARM

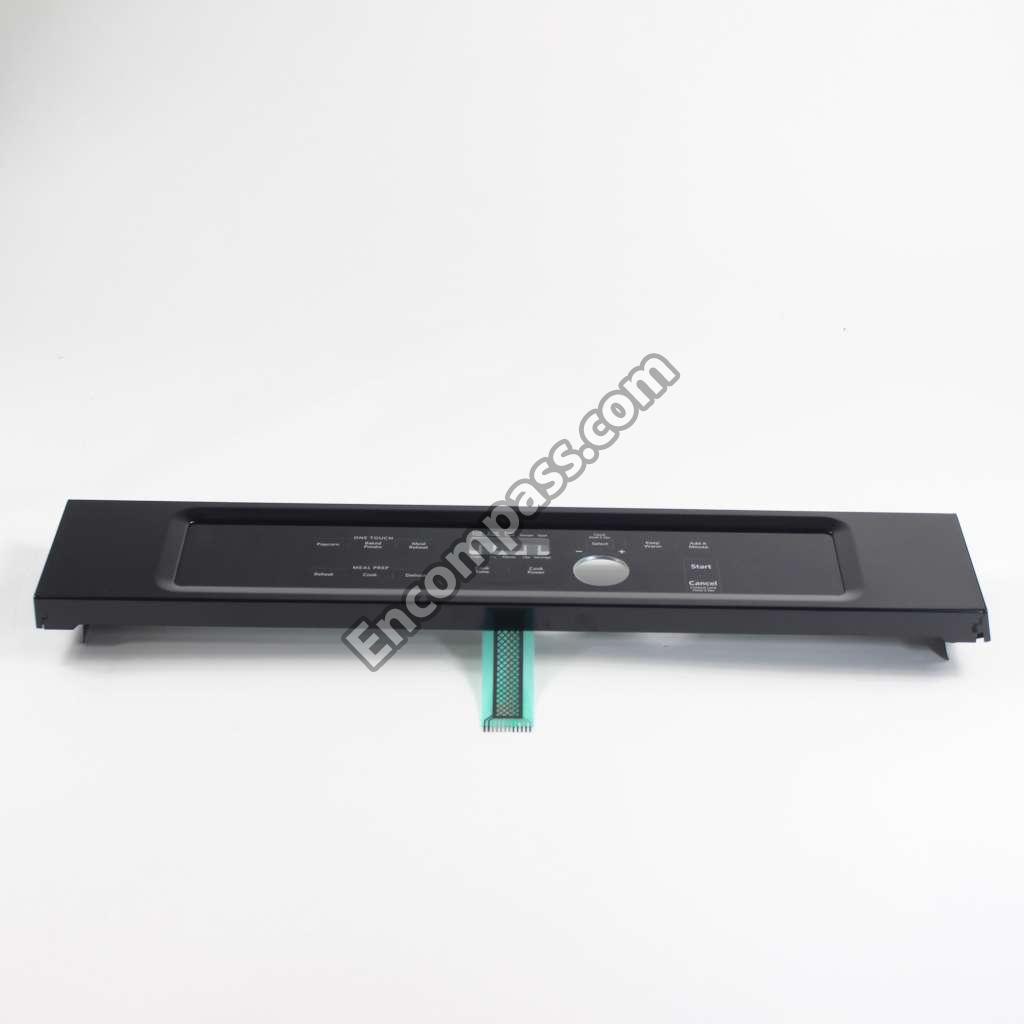

W10696354 W10696354 ASSEMBLY, CONTROL PANEL (BLACK)
W10696352 W10696352 ASSEMBLY, DOOR (BLACK)
W10737395 W10737395 ASSEMBLY, HANDLE (STAINLESS)
W10422379 W10422379 ASSEMBLY, TURNTABLE RING
8205708 8205708 BRACKET, BOTTOM
W10775910 W10775910 BRKT-MOUNT
W11193483 W11193483 CAMERA LENS-LAMP
W10850446 W10850446 CAPACTR-MG
8205674 8205674 CHASSIS, SIDE (LEFT)
8205680 8205680 CHASSIS, SIDE (RIGHT)
W10782523 W10782523 CHASSIS, TOP
W10120231 W10120231 CLIP, SPRING

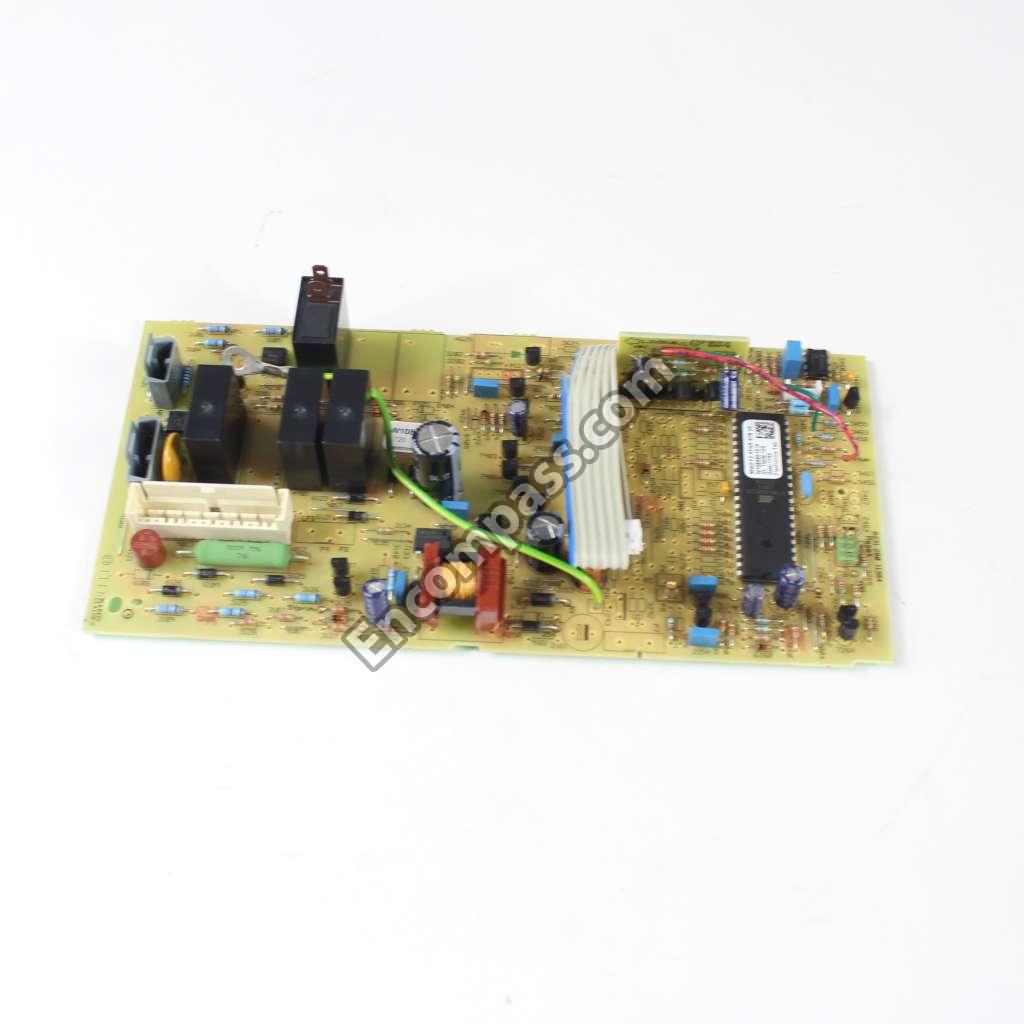

W10891908 W10891908 CONTROL BOARD

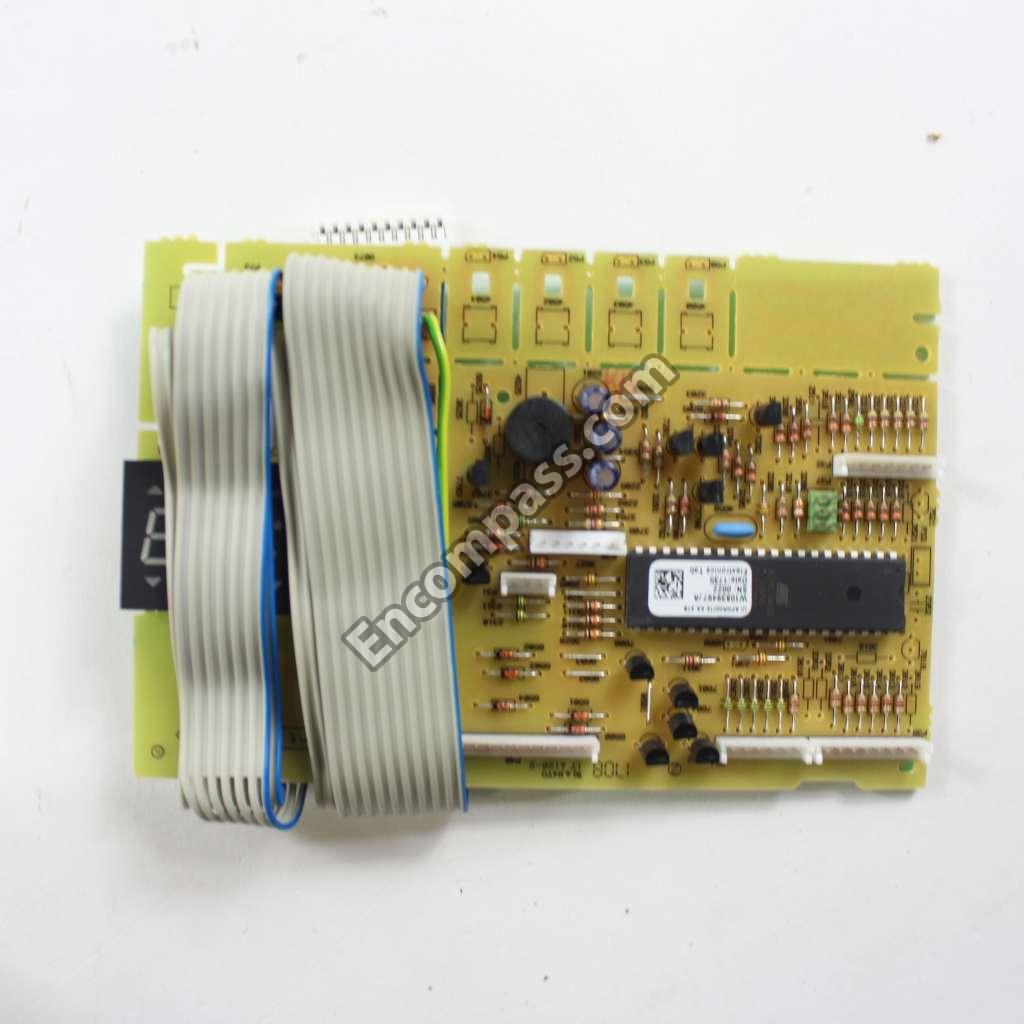

WPW10623991 WPW10623991 CONTROL BOARD
W10891907 W10891907 CONTROL BOARD
W11197501 W11197501 CONTROL PANEL
W10549524 W10549524 CORD, POWER
W10120234 W10120234 COVER, MOTOR
W11087199 W11087199 COVR-INLET
W11256462 W11256462 DIODE
W11700293 W11700293 DOOR HINGE
461964885341 461964885341 FILTER, NOISE
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11188752 W11188752 FUSE
W10721492 W10721492 GUIDE, QUICK REFERENCE
W10721491 W10721491 GUIDE, USE AND CARE
W11356982 W11356982 HARNESS, FAN & TURNTABLE MOTOR
W11356975 W11356975 HARNESS, LAMP
W11356983 W11356983 HARNESS, MAIN
W11356972 W11356972 HARNESS, NO LOAD SENSOR
461967009212 461967009212 HOLDER, CAPACITATOR
461967750153 461967750153 HOLDER, DISPLAY BOARD
W10245194 W10245194 HOLDER, FUSE
461967750752 461967750752 HOLDER, POWER CONTROL BOARD
461967008471 461967008471 HOLDER, TURNTABLE MOTOR
WPW10490593 WPW10490593 HOUSNG-LMP
W10772547 W10772547 INSTRUCTIONS, INSTALLATION
W11214928 W11214928 INTERLOCK
W10737666 W10737666 KIT, SCREW
W10448758 W10448758 KNOB
W10886919 W10886919 LMP-BASLES

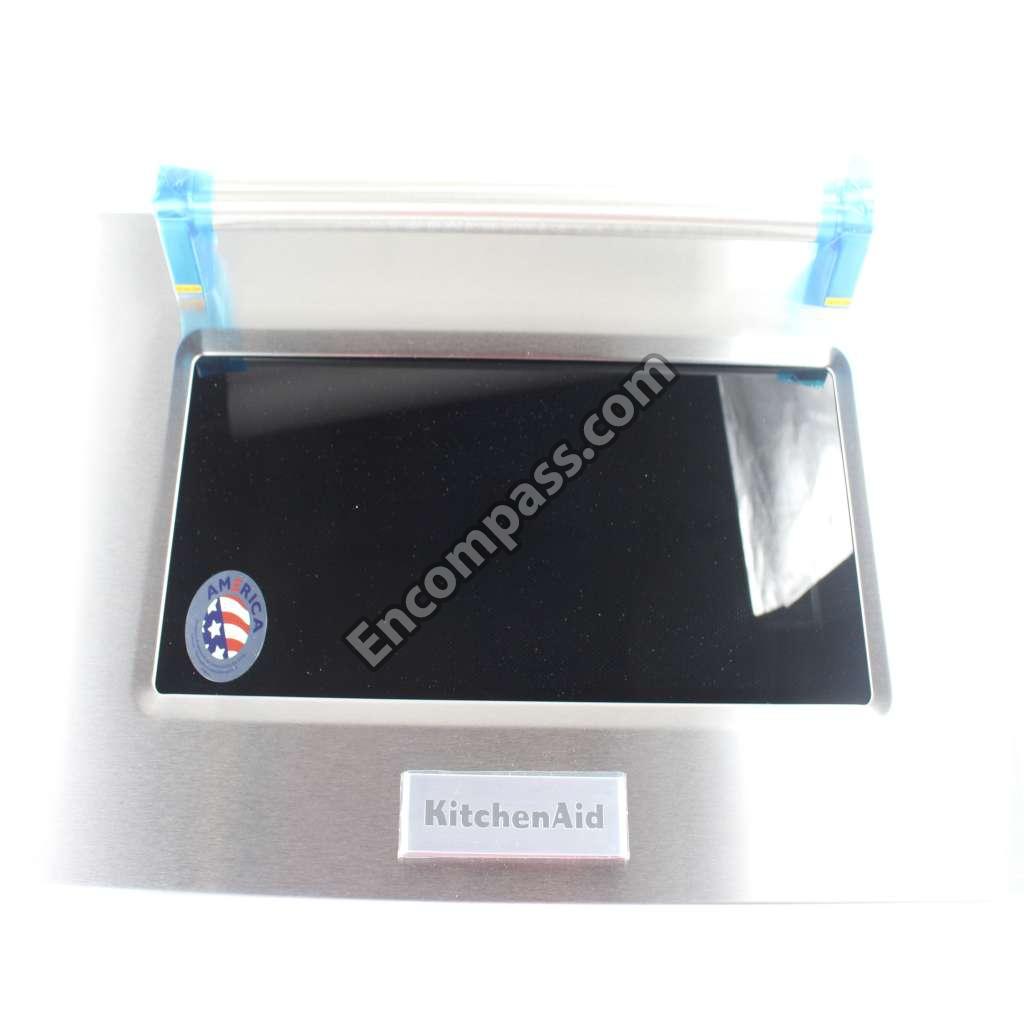

W11243152 W11243152 MICROWAVE DOOR
W11409822 W11409822 MICROWAVE MAGNETRON
461968973761 461968973761 MOTOR, FAN ASSEMBLY
W10911403 W10911403 MOTOR-TURN
W10839793 W10839793 NAMEPLATE
W10141634 W10141634 PLATE, COVER
461968968091 461968968091 PLATE, NOISE REDUCTION
W10693404 W10693404 PLATE, TOP
W11676348 W11676348 RANGE THERMOSTAT
WP4375079 WP4375079 RANGE THERMOSTAT
423107022541 423107022541 REFLECTOR
461960204731 461960204731 RING
W10769146 W10769146 RING, RUBBER
WPW10120235 WPW10120235 ROD-REL
461967825321 461967825321 SCREW
8205651 8205651 SCREW
W10769147 W10769147 SEALING, LAMP
W10871220 W10871220 SENSOR
W11126044 W11126044 SHAFT-TURN
W11223840 W11223840 SHAFT-TURN
W10782150 W10782150 SHEET, TECH
W11700292 W11700292 SPRING
W11715912 W11715912 SPRING
W10474015 W10474015 SPRING, LAMP HOLDER
W11684510 W11684510 SUPPORT
W11660273 W11660273 SUPPORT
W10884489 W10884489 SUPPORT
8205707 8205707 SUPPORT, BOTTOM
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
W10141630 W10141630 THERMOSTAT
W11238401 W11238401 TRANSFORMR
W11672685 W11672685 TRANSFORMR
W11373838 W11373838 TRAY-COOK
W11131371 W11131371 TRIM
W11205075 W11205075 TRIM
461967749811 461967749811 VENT, PANEL
