Model Image
Manufacturer

Whirlpool

Model Number

KODE500EWH05

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10904156 W10904156 "CHASSIS, COVER TOP BACK 30"""
W10318192 W10318192 "CHASSIS, COVER TOP FRONT 30"""
W10283040 W10283040 "VENT, CENTER 30"""
W10536161 W10536161 ACCESSORIES, KIT, BUILT-IN DOUBLE OVEN SIDE TRIM (BLACK)
W10846207 W10846207 ACCESSORIES, MEDALLION, HANDLE (RED)
W10355049 W10355049 ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN AND ROASTING
WP482338 WP482338 ADHESIVE
W10506344 W10506344 ASSEMBLY, BOTTOM VENT (WHITE)
W10904160 W10904160 BACK, CHASSIS
W11234763 W11234763 BAFFL-CONV
W11234761 W11234761 BAFFL-CONV
W11238787 W11238787 BASE, CHASSIS
W10616809 W10616809 BASE, VENT EXHAUST
W11245567 W11245567 BLOWER
W10655463 W10655463 BRACKET, BLOWER (LEFT)
W10655462 W10655462 BRACKET, BLOWER (RIGHT)
W10655464 W10655464 BRACKET, HARNESS
W10863234 W10863234 BRACKET, SIDE COVER (LEFT)
W10863233 W10863233 BRACKET, SIDE COVER (RIGHT)
W10588736 W10588736 BRACKET, U-SHAPE
W10853628 W10853628 BRKT-GLASS
W11025615 W11025615 BRKT-GLASS
W10812024 W10812024 BRKT-GLASS
WPW10351278 WPW10351278 BUMPER
W10351295 W10351295 BUMPER
W10655465 W10655465 CHASSIS, BACK DIVIDER
4448664 4448664 CLAMP, CONDUIT
16515 16515 CLIP, HARNESS
W11086141 W11086141 CONSOLE
W11087449 W11087449 CONSOLE
W10801665 W10801665 CONTROL BOARD
W11179310 W11179310 CONTROL BOARD

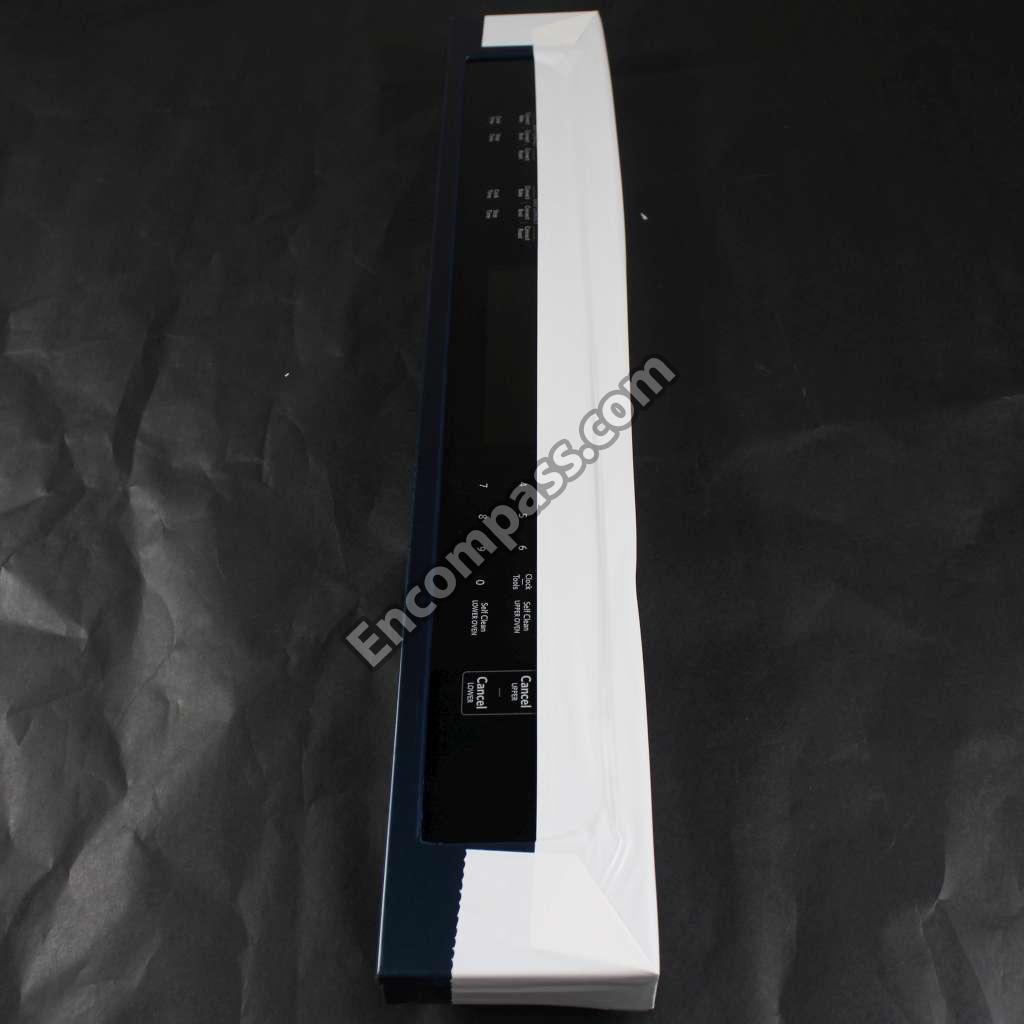

W11086152 W11086152 CONTROL PANEL
8285593 8285593 COVER, CONNECTOR
W10616810 W10616810 COVER, VENT EXHAUST
WPW10283008 WPW10283008 COVR-ACESS
W10282957 W10282957 CROSSBAR, HIDDEN BAKE TRAY
W10904163 W10904163 DEFLECTOR, BLOWER
W10883049 W10883049 DOOR DOOR LATCH
W11518518 W11518518 DOOR HANDLE
W11642291 W11642291 DOOR HINGE
W10318196 W10318196 DUCT, CHASSIS BACK
W10542857 W10542857 DUCT, CHASSIS BACK (LOWER)
W11678579 W11678579 ELEMENT
W11545804 W11545804 ELMNT-BAKE
W10804429 W10804429 ELMNT-BROL
W10687815 W10687815 EXTENSION, SIDE RAIL (LEFT)
W10687814 W10687814 EXTENSION, SIDE RAIL (RIGHT)
W10819914 W10819914 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10848812 W10848812 FOOT-LEVEL
W10821321 W10821321 FOOT-LEVEL
WPW10709147 WPW10709147 FRAME-GLAS
W11610133 W11610133 FUSE-THRML
W10728475 W10728475 GASKET, RUBBER
W11623080 W11623080 GASKET-OVN
W11455100 W11455100 GLASS DOOR
W11354880 W11354880 GLASS DOOR
W11354870 W11354870 GLASS DOOR
W11354849 W11354849 GLASS DOOR
W11354841 W11354841 GLASS DOOR
W11455086 W11455086 GLASS DOOR
W10643471 W10643471 GUIDE, USE & CARE
W10760039 W10760039 HARDWARE
W11132989 W11132989 HARNESS, DOOR DOOR LATCH
W11136133 W11136133 HARNESS, MAIN
W11157221 W11157221 HARNESS, SIGNAL
W11177679 W11177679 HARNESS, TOD JUMPER
W11613828 W11613828 HINGE-RECV
W10725670 W10725670 INSTRUCTIONS, INSTALLATION
W11688731 W11688731 INSULATION
W11292324 W11292324 INSULATION
W11220388 W11220388 JACK-PROBE
WPW10472384 WPW10472384 LIGHT BULB
WPW10519866 WPW10519866 LIGHT-OVEN
W11245268 W11245268 LIGHT-OVEN
W11231343 W11231343 LOCKNUT
W10916776 W10916776 MEMBRANE SWITCH
W10860984 W10860984 MOTOR-FAN
W10839793 W10839793 NAMEPLATE
W10794042 W10794042 NUT
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP9755542 WP9755542 PROBE-MEAT
W11718046 W11718046 RACK-OVEN
WPW10554526 WPW10554526 RACK-OVEN
W11355410 W11355410 RAIL, DOOR SIDE (LEFT)
W11355411 W11355411 RAIL, DOOR SIDE (RIGHT)
WP4449751 WP4449751 RANGE THERMOSTAT
W10850807 W10850807 SCREW
WP74003976 WP74003976 SCREW
W10828565 W10828565 SCREW
W10920281 W10920281 SCREW
W10831019 W10831019 SCREW
WP3196183 WP3196183 SCREW
WPW10254050 WPW10254050 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
WP3400832 WP3400832 SCREW
4450800 4450800 SCREW, GROUNDING
W10491987 W10491987 SEAL-FOAM
W11226314 W11226314 SEAL-FOAM
W10859573 W10859573 SENSOR
W11041061 W11041061 SHEET, TECH
W10588738 W10588738 SHIELD, BROIL FRONT
W10669415 W10669415 SHIELD, DOOR LINER
W11290999 W11290999 SHIELD-HT
W10318190 W10318190 SIDE, CHASSIS
W10776407 W10776407 SKIN, CONTROL PANEL (BLACK STAINLESS)
W10588744 W10588744 SKIN, CONTROL PANEL (BLACK)
W10588740 W10588740 SKIN, CONTROL PANEL (STAINLESS)
W10588746 W10588746 SKIN, CONTROL PANEL (WHITE)
W11240831 W11240831 SPACER
W10351308 W10351308 SPACER, CHASSIS BOTTOM DUCT
W10347649 W10347649 SPACERS, FRONT
W11132988 W11132988 STRAP, LEAD GROUND
W10213759 W10213759 SUPPORT, AIR CHANNEL
W10904158 W10904158 TOP, CHASSIS
72032 72032 TOUCH-UP PAINT (BLACK)
W10864102 W10864102 TRAY, ELECTRONIC
W10318198 W10318198 TRAY, HIDDEN BAKE
WPW10327377 WPW10327377 TRIM
WPW10504026 WPW10504026 TRIM
WPW10351236 WPW10351236 TRIM
WPW10283036 WPW10283036 TRIM-VENT
W11240525 W11240525 TUBE-VENT
W11189650 W11189650 VENT-OVEN
WPW10351279 WPW10351279 VENT-OVEN
WPW10327373 WPW10327373 VENT-OVEN
W11676355 W11676355 WASHER
W11699910 W11699910 WIRE HARNESS
