Model Image
Manufacturer

Whirlpool

Model Number

KRFC302EBL00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
W10184030 W10184030 ARM-DISPSR
W10318914 W10318914 ARM-EJECTR
W11559683 W11559683 ARM-SHUT
67006434 67006434 AXLE, ROLLER (2)
67003794 67003794 BAR, TEMP CONTROL
WPW10119854 WPW10119854 BASKET-FZR
W10120003 W10120003 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WPW10119846 WPW10119846 BIN CONTROL LEVER
WPW10119841 WPW10119841 BIN CONTROL LEVER
W10144706 W10144706 BIN-FREEZR
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
W11686793 W11686793 BLOCK
WPW10544404 WPW10544404 BRACKET
WPW10544403 WPW10544403 BRACKET
WPW10330995 WPW10330995 BRACKET
WPW10330994 WPW10330994 BRACKET
W10420084 W10420084 BRACKET
W10201550 W10201550 BRACKET
W10119848 W10119848 BRACKET
W10119849 W10119849 BRACKET
W10163087 W10163087 BRACKET
W10163084 W10163084 BRACKET
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10350564 WPW10350564 CAPACITOR
W11456069 W11456069 CLAMP
W10281329 W10281329 CLAMP
10526701 10526701 CLAMP, WIRE
W10528513 W10528513 CLAMP-TUBE
WP628379 WP628379 CLIP
W11673433 W11673433 CLIP
WPM0104106 WPM0104106 CLIP
W11092534 W11092534 CLIP
10623002 10623002 CLIP, EVAPORATOR
13058002 13058002 CLIP, EVAPORATOR MOTOR
WPM0114003 WPM0114003 CLIP- SPEE
WP12028505AP WP12028505AP CLOSER
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
W10233960 W10233960 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10594329 WPW10594329 CONTROL

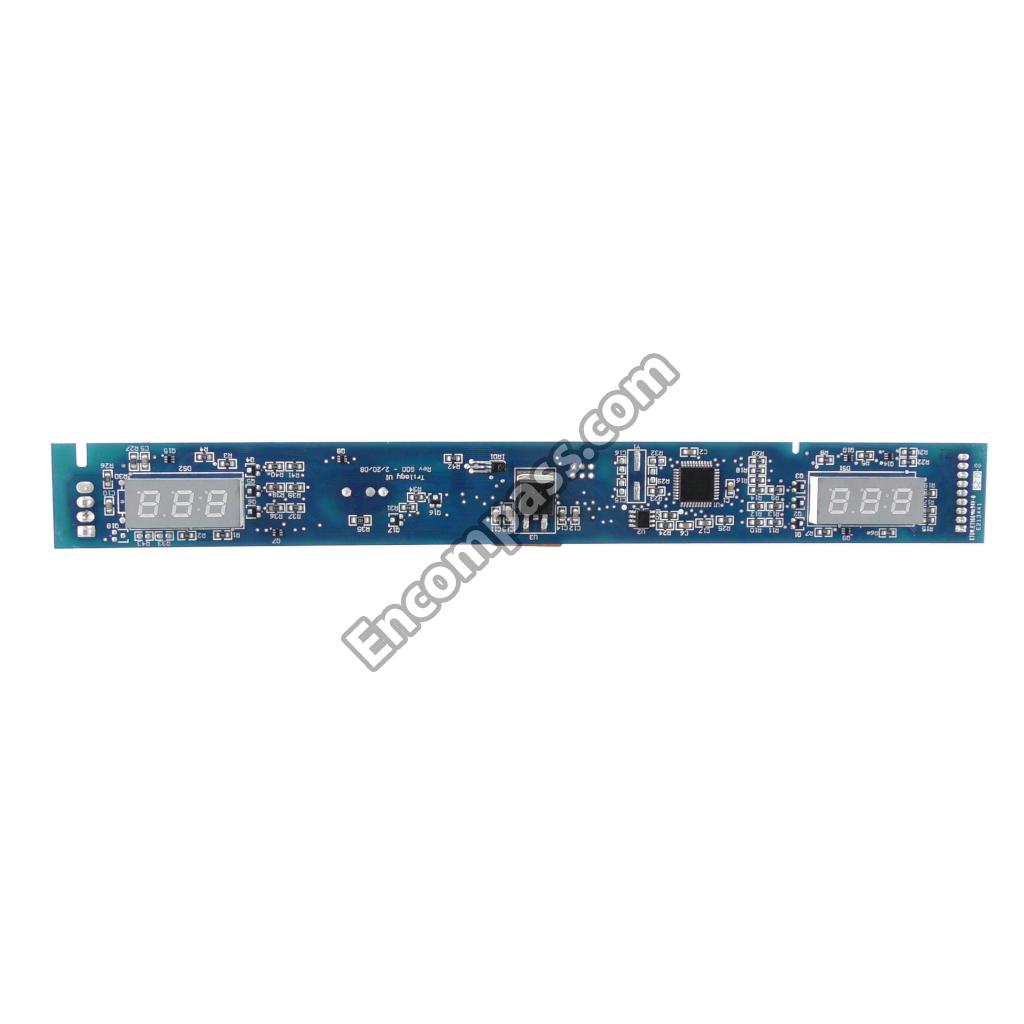

WPW10356039 WPW10356039 CONTROL BOARD
WPW10120827 WPW10120827 CONTROL BOARD
WPW10631452 WPW10631452 CONTROL BOARD
WP12656822 WP12656822 COVER
W11243624 W11243624 COVER
W11284721 W11284721 COVER
W11039391 W11039391 COVER
WPW10120103 WPW10120103 COVER
W10892762 W10892762 COVER
W10163247 W10163247 COVER
W10892761 W10892761 COVER
W10153131 W10153131 COVER
W10116529 W10116529 COVER
12961602 12961602 COVER, CONTROL BOX
67003485 67003485 COVER, CORNER (BLK)
12587703W 12587703W COVER, CORNER (WHITE)
12726003 12726003 COVER, WATER LINE
WP67003924 WP67003924 COVER- FZ
WPW10211855 WPW10211855 COVER-BACK
WP12806701 WP12806701 COVER-BOX
W10308420 W10308420 COVER-EVAP
WP67006331 WP67006331 COVER-FILT
W10377174 W10377174 COVER-FRNT
W10208593 W10208593 COVER-VALV
W10296541 W10296541 COVER-WIRE
W10410073 W10410073 CUP-FILL
12225602 12225602 DAM (LEFT HAND)
12225702 12225702 DAM (RIGHT HAND)
W10157765 W10157765 DEFLECTOR
W10821255 W10821255 DOOR ASSEMBLY BL
13094738BQ 13094738BQ DOOR ASSEMBLY BL
W10821256 W10821256 DOOR ASSEMBLY BS
W10821254 W10821254 DOOR ASSEMBLY BS
W10821253 W10821253 DOOR ASSEMBLY BS
W10821257 W10821257 DOOR ASSEMBLY SS
13094739SQ 13094739SQ DOOR ASSEMBLY SS
13094747SQ 13094747SQ DOOR ASSEMBLY SS
W10821258 W10821258 DOOR ASSEMBLY WH
13094738WQ 13094738WQ DOOR ASSEMBLY WH
13094744BQ 13094744BQ DOOR ASSEMBLY WH
13094744WQ 13094744WQ DOOR ASSEMBLY WH
W10861742 W10861742 DOOR HINGE
W11177238 W11177238 DRAWER SLIDE RAIL
W11177241 W11177241 DRAWER SLIDE RAIL
W11177230 W11177230 DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
WPW10121977 WPW10121977 ENDCAP
WPW10122078 WPW10122078 ENDCAP
W10739667 W10739667 ENERGY GUIDE
W11256565 W11256565 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
WP12587703AP WP12587703AP FILLER
WP2300868 WP2300868 FITTING
WPW10119215 WPW10119215 FRAME
WPW10174720 WPW10174720 FRONT-PAN
W10119220 W10119220 FRONT-PAN
W10815413 W10815413 FUNNEL
W11159728 W11159728 GASKET
W10856123 W10856123 GASKET
W11250029 W11250029 GASKET
67006429 67006429 GASKET, CONTROL BOX
W10443320 W10443320 GASKET, DOOR (GREY)
W10443319 W10443319 GASKET, DOOR (WHITE)
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
W10436252 W10436252 GASKET-FIP
W11403914 W11403914 GASKET-FIP
W10830046 W10830046 GASKET-FIP
W10830047 W10830047 GASKET-FIP
12002497 12002497 GEAR
W11032133 W11032133 GLASS SHELF
WP12204827 WP12204827 GLASS SHELF
WPW10739613 WPW10739613 GLASS SHELF
WP67002332 WP67002332 GLASS- PAN
WPW10170987 WPW10170987 GLIDE
WPW10170835 WPW10170835 GLIDE
WPW10170836 WPW10170836 GLIDE
WPW10132653 WPW10132653 GLIDE
WPW10132652 WPW10132652 GLIDE, DRAWER (RIGHT HAND)
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534155 WPW10534155 GRILLE
WPW10534153 WPW10534153 GRILLE-FRT
WPW10534154 WPW10534154 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10121318 W10121318 GROMMET
W11483532 W11483532 HANDLE
W11488944 W11488944 HANDLE
W11239562 W11239562 HARNS-WIRE
W11700330 W11700330 HARNS-WIRE
W11084235 W11084235 HARNS-WIRE
W10196195 W10196195 HARNS-WIRE
W11346623 W11346623 HEAD-FILTR
WP12729123 WP12729123 HEATER
W10210882 W10210882 HINGE-DOOR
W10210883 W10210883 HINGE-DOOR
W10892768 W10892768 HINGE-DOOR
W10210891 W10210891 HINGE-DOOR
W10135097 W10135097 HINGE-DOOR
W10162694 W10162694 HINGE-DOOR
W10162695 W10162695 HINGE-DOOR
W11702858 W11702858 HOUSING
W11416469 W11416469 HOUSING
W10464766 W10464766 HOUSING
W10443023 W10443023 HOUSING
W11712699 W11712699 HOUSING
W10121004 W10121004 HOUSING
12656202 12656202 HOUSING, CONTROL
W10886931 W10886931 ICEMAKER
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
WP13012402 WP13012402 INSULATION
W11706807 W11706807 INSULATION
12002023 12002023 KIT, WATER TANK
W11498983 W11498983 KNOB
W10119222 W10119222 KNOB-CNTRL
WPW10569182 WPW10569182 LADDER
W10273463 W10273463 LADDER
WPW10141622 WPW10141622 LEVELER
W11338583 W11338583 LIGHT BULB
W11175810 W11175810 MAGNET-DOR
W10121002 W10121002 MAGNET-DOR
WPW10451455 WPW10451455 MAT
W11510593 W11510593 MAT
W11510594 W11510594 MAT
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WPW10300025 WPW10300025 MOLD-ICE
W11613295 W11613295 MOTOR-COND
WPW10281342 WPW10281342 MOTOR-MODL
W10839793 W10839793 NAMEPLATE
2207415 2207415 NUT, HEX
W10742010 W10742010 OVERLAY
W10742059 W10742059 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10119219 W10119219 PAN-CRISPR
WPW10655368 WPW10655368 PAN-DRIP
WPW10120008 WPW10120008 PAN-ICE
W10120005 W10120005 PAN-ICE
WP12655703 WP12655703 PAN-UTILTY
W11727651 W11727651 PLATE
WPA3076901 WPA3076901 PLUG, BUTTON (BLACK)
W11214481 W11214481 RACK-WINE
W11214482 W11214482 ROLLER
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W10182881 W10182881 SCOOP, ICE PAN
WP489464 WP489464 SCREW
8533917 8533917 SCREW
W10709795 W10709795 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WPW10661886 WPW10661886 SCREW
WP489474 WP489474 SCREW
WP400021-1 WP400021-1 SCREW
W10854958 W10854958 SCREW
WP489349 WP489349 SCREW
W11573362 W11573362 SCREW
12992603 12992603 SCREW
WP98165 WP98165 SCREW
W10829281 W10829281 SCREW
W10001240 W10001240 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W11028221 W11028221 SHAFT
12999501 12999501 SHIM, HINGE (LEFT HAND)
12999502 12999502 SHIM, HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
W11658403 W11658403 SLIDE
W10119217 W10119217 SLIDE
2302952 2302952 SLIDE, CRISPER (LEFT HAND)
2302953 2302953 SLIDE, CRISPER (RIGHT HAND)
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
WP2320150 WP2320150 START-DEV
WPW10120097 WPW10120097 STOP-DOOR
W10153126 W10153126 STOP-DOOR
W10163249 W10163249 STOP-DOOR
W10236396 W10236396 STRAP
W10788834 W10788834 STRIPPER, ICE
WP12227305WD WP12227305WD SUPPORT
W10490807 W10490807 SUPPORT
W11396033 W11396033 SWITCH
WP12575502 WP12575502 SWITCH
W11291138 W11291138 SWITCH
W11238399 W11238399 TAPE
W10543539 W10543539 TECH SHEET
W10316760 W10316760 THERMISTOR
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11547653 W11547653 TRAY-DRIP
W11024160 W11024160 TRIM-BRKR
W11210956 W11210956 TRIM-SHELF
WPW10233569 WPW10233569 TUBE
W10619951 W10619951 TUBE-DRAIN
W10117324 W10117324 TUBE-WATER
WPW10420083 WPW10420083 VALVE
WP978025 WP978025 VALVE
978027 978027 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978030 978030 VALVE, ACCESS
876764 876764 VALVE, ACCESS
EDR4RXD1 EDR4RXD1 WATER FILTER
W11176463 W11176463 WATER TUBE
W11120581 W11120581 WATER TUBE
WPW10458985 WPW10458985 WIRE HARNESS
