Model Image
Manufacturer

Whirlpool

Model Number

KRFC804GBS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
876764 876764 "VALVE, ACCESS (3/16"")"
978030 978030 "VALVE, ACCESS (3/4"")"
978027 978027 "VALVE, ACCESS (3/8"")"
978026 978026 "VALVE, ACCESS (5/16"")"
978029 978029 "VALVE, ACCESS (5/8"")"
W10311524 W10311524 ANTIBACTERIAL FILTER
W10895522 W10895522 ASSEMBLY, AIR SHUTTER
W10795851 W10795851 ASSEMBLY, BOTTOM PAN
W10794550 W10794550 ASSEMBLY, CENTER SUPPORT
W11118122 W11118122 ASSEMBLY, DOOR LATCH
W10503218 W10503218 ASSEMBLY, DRAIN FUNNEL
W10890072 W10890072 ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTOR, WIRE ASSEMBLY AND THERMISTOR)
W10906506 W10906506 ASSEMBLY, EVAPORATOR FAN JUMPER WIRE
W10910826 W10910826 ASSEMBLY, EVAPORATOR HEATER WIRE (INCLUDES THERMISTOR)
W10866588 W10866588 ASSEMBLY, GASKET AIR
W10886209 W10886209 ASSEMBLY, HEAT SHIELD
W11090564 W11090564 ASSEMBLY, HEAT SHIELD
W10868954 W10868954 ASSEMBLY, HINGE PIN (INCLUDES SET SCREW)
W10835557 W10835557 ASSEMBLY, INNER AIR TUNNEL (INCLUDES GASKET) (BLACK)
W10838745 W10838745 ASSEMBLY, INNER AIR TUNNEL (INCLUDES GASKET) (GREY)
W10858498 W10858498 ASSEMBLY, JUMPER WIRE
W11042192 W11042192 ASSEMBLY, LIGHT STRIP
W11396537 W11396537 ASSEMBLY, MANIFOLD JUMPER WIRE
W10835554 W10835554 ASSEMBLY, OUTER AIR TUNNEL (INCLUDES GASKET) (BLACK)
W10838744 W10838744 ASSEMBLY, OUTER AIR TUNNEL (INCLUDES GASKET) (GREY)
W10895407 W10895407 ASSEMBLY, OUTER DOOR (BLACK STAINLESS)
W10895405 W10895405 ASSEMBLY, OUTER DOOR (STAINLESS)
W10889825 W10889825 ASSEMBLY, OUTER HINGE COVER (BLACK)
W10889824 W10889824 ASSEMBLY, OUTER HINGE COVER (GREY)
W10704135 W10704135 ASSEMBLY, PADDLE JUMPER WIRE
W10826105 W10826105 ASSEMBLY, PRODUCE PRESERVER
W11084045 W11084045 ASSEMBLY, ROLLER (LEFT HAND)
W11084046 W11084046 ASSEMBLY, ROLLER (RIGHT HAND)
W11102087 W11102087 ASSEMBLY, TOP PAN
W10871595 W10871595 ASSEMBLY, VALVE WIRE
W10839803 W10839803 AXLE, ROLLER
67006434 67006434 AXLE, ROLLER (2)
W10758900 W10758900 BAR, PANTRY SUPPORT
W10794250 W10794250 BAR, SUPPORT
W10697812 W10697812 BAR, SUPPORT
W10794563 W10794563 BASE, PANTRY
W10815960 W10815960 BASE, TOWER COVER
W10658357 W10658357 BASEPLATE
W10874461 W10874461 BEZEL, TRIGGER
W11132231 W11132231 BIN
W11133214 W11133214 BIN
W11133213 W11133213 BIN
W10887801 W10887801 BIN CONTROL LEVER
W10887800 W10887800 BIN CONTROL LEVER
W11115907 W11115907 BIN, ICE
W10887810 W10887810 BIN-FREEZR
W10840312 W10840312 BLOCK, PIVOT
W10697007 W10697007 BOLT
W11241268 W11241268 BRACKET
W11241580 W11241580 BRACKET
W11189600 W11189600 BRACKET
W10864838 W10864838 BRACKET, DOOR STOP
W10851259 W10851259 BRACKET, OUTER DOOR STOP
W10757499 W10757499 BRACKET, USER INTERFACE ADAPTER
W10391376 W10391376 BRACKET, VALVE
W10846099 W10846099 BRAKE, ROLLER
W10902311 W10902311 BUMPER, DOOR (BLACK)
W10407187 W10407187 BUMPER, DOOR (BLACK)
W10902310 W10902310 BUMPER, DOOR (GREY)
W10798308 W10798308 BUMPER, DOOR (GREY)
N_P N_P CABINET (NOT A SERVICABLE PART)
W10871587 W10871587 CAP, INNER DOOR BOTTOM (BLACK)
W10871588 W10871588 CAP, INNER DOOR BOTTOM (GREY)
W10870849 W10870849 CAP, INNER DOOR TOP (BLACK)
W10870592 W10870592 CAP, INNER DOOR TOP (GREY)
W11220375 W11220375 CAP-FILTER
W11456069 W11456069 CLAMP
549193 549193 CLAMP, POWER CORD
W10683507 W10683507 CLIP, DEFROST HEATER
10623002 10623002 CLIP, EVAPORATOR
W10909562 W10909562 CLIP, EVAPORATOR HEATER
W10903876 W10903876 CLIP, PULLOUT BIN SNAP
W10839046 W10839046 CLIP, TUBE
W11179355 W11179355 CLOSER
W10900407 W10900407 CLOSER, UPPER CAM DOOR (BLACK)
W10904285 W10904285 CLOSER, UPPER CAM DOOR (GREY)
WPW10277361 WPW10277361 COLLAR
W10819813 W10819813 COMPRESSOR
W11548259 W11548259 CONDENSER
W11209438 W11209438 CONNECTOR
W10882409 W10882409 CONTAINER

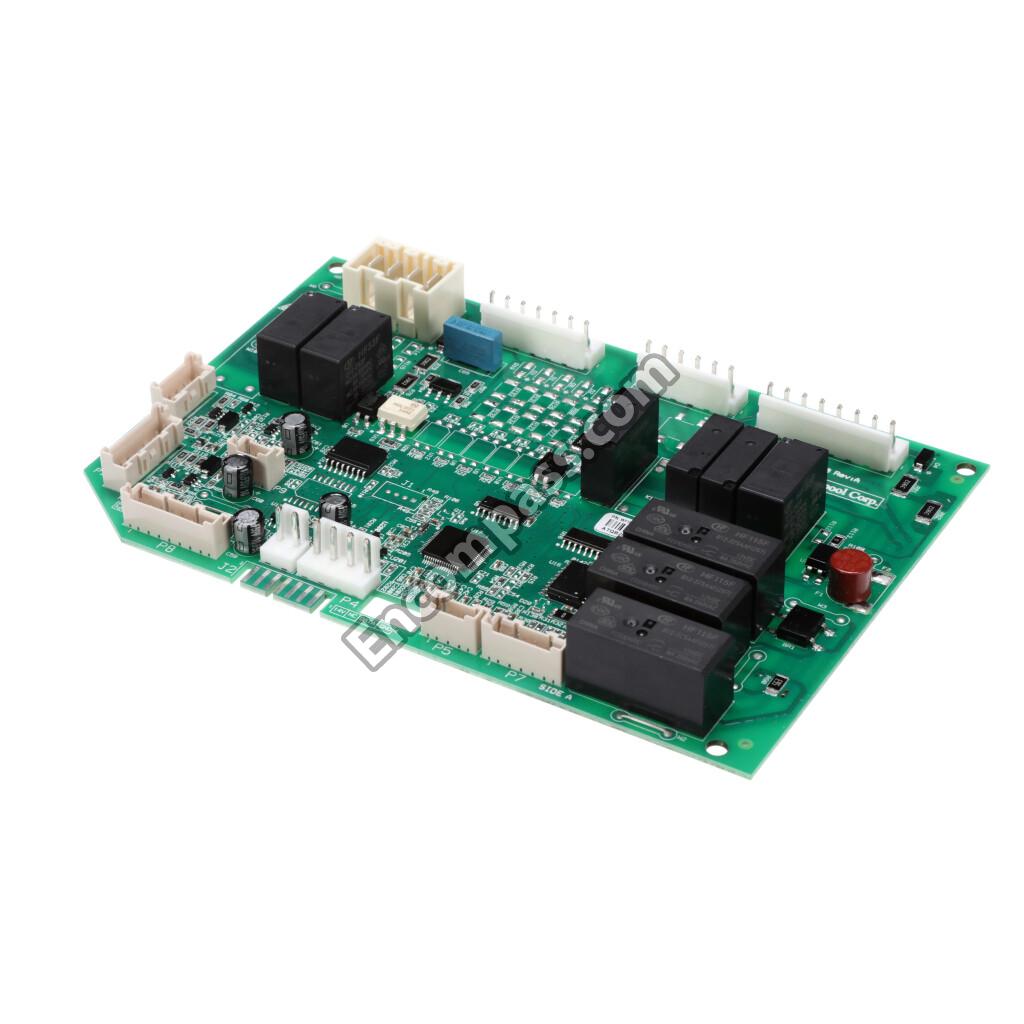

W11160708 W11160708 CONTROL BOARD
W10887778 W10887778 CONTROL BOARD
W11111702 W11111702 CONTROL BOARD
W11533213 W11533213 CONTROL, ELECTRONIC (INCLUDES DISPENSER USER INTERFACE)
W11084818 W11084818 COVER
W11252060 W11252060 COVER
W11371720 W11371720 COVER
W11225850 W11225850 COVER
W10754144 W10754144 COVER, CONTROL BOX
W10815965 W10815965 COVER, COOLING DUCT
67003485 67003485 COVER, CORNER (BLK)
W10868482 W10868482 COVER, CORNER (GREY)
W10887962 W10887962 COVER, FILL TUBE
W10767831 W10767831 COVER, HOUSING
W11084955 W11084955 COVER, OUTER DOOR LATCH HOUSING (BLACK)
W11082635 W11082635 COVER, OUTER DOOR LATCH HOUSING (GREY)
W10884683 W10884683 COVER, TOP HINGE RIGHT HAND (BLACK)
W10884682 W10884682 COVER, TOP HINGE RIGHT HAND (GREY)
W11259417 W11259417 COVER, TOWER
W10669259 W10669259 COVER, UNIT
W10208592 W10208592 COVER, VALVE
W10900011 W10900011 COVER, WATER VALVE
W10854845 W10854845 COVER, WIRING HARNESS
W10834719 W10834719 COVER, WIRING HARNESS
W11394920 W11394920 COVER-EVAP
W11592194 W11592194 COVER-TERM
W11115324 W11115324 CRISPER PAN
W10668201 W10668201 DAM, AIR (LEFT HAND)
W10668198 W10668198 DAM, AIR (RIGHT HAND)
W10878920 W10878920 DIVIDER, AIR (BOTTOM)
W10878918 W10878918 DIVIDER, AIR (REAR)
W10849520 W10849520 DOOR ASSEMBLY
W10849521 W10849521 DOOR ASSEMBLY
W11585972 W11585972 DOOR GASKET
WP2223877 WP2223877 DOOR LATCH
W10870602 W10870602 DOOR LATCH, DOOR CLOSER RIGHT HAND (BLACK)
W10905299 W10905299 DOOR LATCH, DOOR CLOSER RIGHT HAND (GREY)
W11044147 W11044147 DOOR, REFRIGERATOR (ALSO, ORDER ITEM # 18) LEFT HAND (BLACK STAINLESS)
W10895399 W10895399 DOOR, REFRIGERATOR (ALSO, ORDER ITEM # 18) LEFT HAND (STAINLESS)
W11044903 W11044903 DOOR, REFRIGERATOR RIGHT HAND (BLACK STAINLESS)
W11044901 W11044901 DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
W11189145 W11189145 DOOR-ICE
W11594927 W11594927 DOOR-ICE
W11649966 W11649966 DRAWER SLIDE RAIL
W11084811 W11084811 DRAWER SLIDE RAIL
W11109499 W11109499 DRIER-TUBE
W10799328 W10799328 DUCT, COOLING
W11099748 W11099748 EVAPORATOR
W11291123 W11291123 EVAPORATOR
W11745091 W11745091 EXTENSION
W11024494 W11024494 FAN
W11407678 W11407678 FAN
W11459724 W11459724 FIELD INSTALLABLE ICE MAKER, ICEMAKER ADD-ON KIT (INCLUDES VALVE & ICE BIN)
W10792503 W10792503 FILTER, EMI
W10840918 W10840918 FLANGE, SIDE SUPPORT
W11084821 W11084821 FRAME
W11563405 W11563405 FRAME
W10888235 W10888235 GASKET
W11227369 W11227369 GASKET
W11625086 W11625086 GASKET
W11159756 W11159756 GASKET
WPW10436253 WPW10436253 GASKET ASSEMBLY
W10683708 W10683708 GASKET, CONDENSER FAN
W10794242 W10794242 GASKET, CRISPER COVER (FRONT)
W10794336 W10794336 GASKET, CRISPER COVER (REAR)
W10917312 W10917312 GASKET, DOOR LEFT HAND (BLACK)
W10917313 W10917313 GASKET, DOOR LEFT HAND (GREY)
W11131483 W11131483 GASKET, DOOR RIGHT HAND (BLACK)
W11131484 W11131484 GASKET, DOOR RIGHT HAND (GREY)
W10683540 W10683540 GASKET, DRIP TRAY REAR
W10818463 W10818463 GASKET, EVAPORATOR AIR DAM
W10415341 W10415341 GASKET, HV BOX
W10898489 W10898489 GASKET, OUTER DOOR (BLACK)
W10871858 W10871858 GASKET, OUTER DOOR (GREY)
W10696713 W10696713 GASKET, USER INTERFACE ADAPTER
WPB8381501 WPB8381501 GASKET- DR
W10887839 W10887839 GLASS SHELF
W10887837 W10887837 GLASS SHELF
W11563404 W11563404 GLASS SHELF
W11284453 W11284453 GLASS SHELF
W10887818 W10887818 GLASS SHELF
W10866166 W10866166 GLIDE
W10866163 W10866163 GLIDE
W10843722 W10843722 GLIDE, PLATTER (LEFT HAND)
W10814862 W10814862 GLIDE, PLATTER (RIGHT HAND)
W10895977 W10895977 GLIDE, PULLOUT BIN (LEFT HAND)
W10895976 W10895976 GLIDE, PULLOUT BIN (RIGHT HAND)
WP542638 WP542638 GREASE
W10887787 W10887787 GRILLE-FRT
W10887785 W10887785 GRILLE-FRT
W10836504 W10836504 GROMMET, COMPRESSOR
W10884826 W10884826 GROMMET, CONDENSER
W10809296 W10809296 GUIDE, LIGHT
W10903881 W10903881 HANDLE
W11483535 W11483535 HANDLE
W11483532 W11483532 HANDLE
W10848895 W10848895 HARNESS, AIR TOWER JUMPER
W10858511 W10858511 HARNESS, UNIT (CONDENSER FAN)
W11700340 W11700340 HEATER
W11291124 W11291124 HEATER
W11099570 W11099570 HEATER
W10752689 W10752689 HEATER, DISPENSER
W11223833 W11223833 HING-BUSHG
W10868797 W10868797 HINGE, BOTTOM (BLACK)
W10897037 W10897037 HINGE, BOTTOM (GREY)
W10691674 W10691674 HINGE, CENTER LEFT HAND (BLACK)
W10816322 W10816322 HINGE, CENTER LEFT HAND (GREY)
W10868798 W10868798 HINGE, CENTER RIGHT HAND (BLACK)
W10874430 W10874430 HINGE, CENTER RIGHT HAND (GREY)
W10868981 W10868981 HINGE, TOP (BLACK)
W10896964 W10896964 HINGE, TOP (GREY)
W11032616 W11032616 HINGE, TOP (LEFT HAND)
W11047670 W11047670 HINGE, TOP (RIGHT HAND)
W11690901 W11690901 HOUSING
W11109049 W11109049 HOUSING, WATER FILTER
W10708473 W10708473 HOUSING, WATER TANK
W10910401 W10910401 ICE-CONTNR

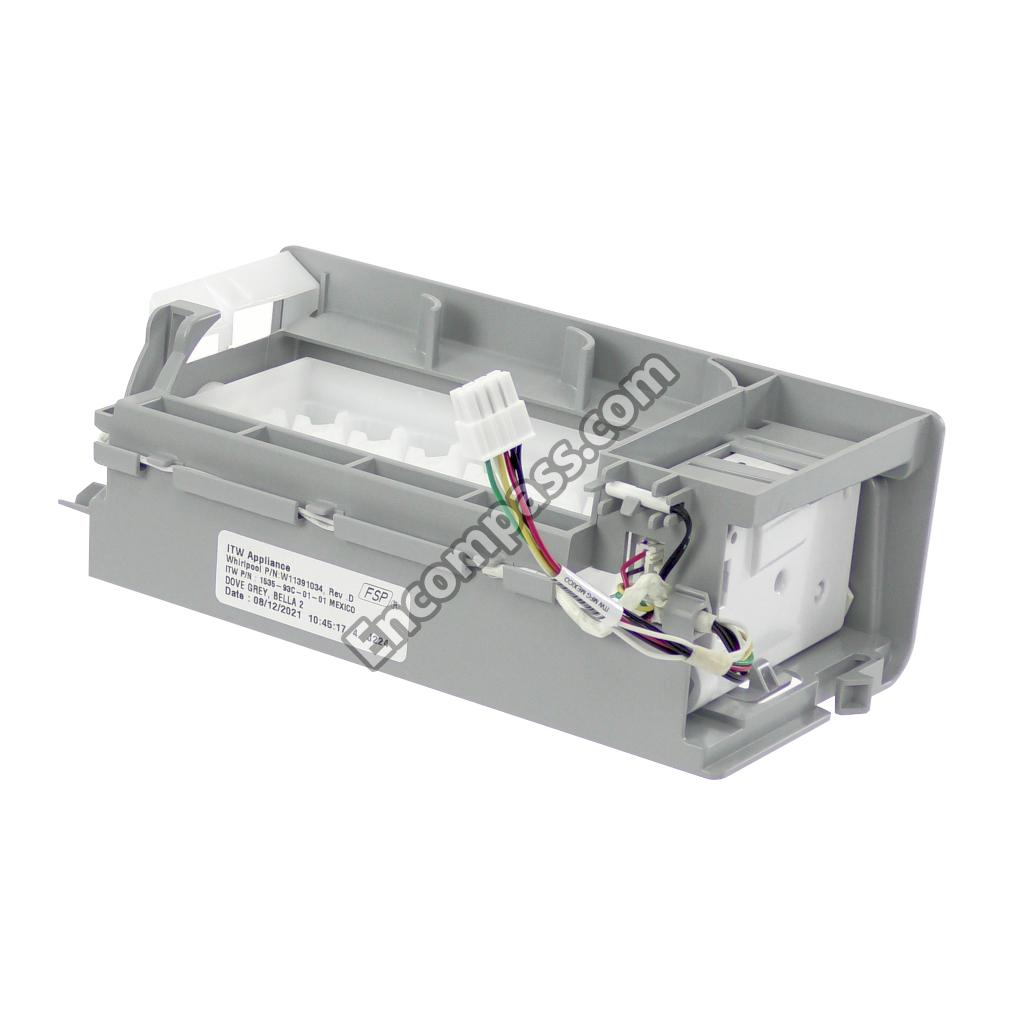

W11099790 W11099790 ICEMAKER
W11557001 W11557001 ICEMAKER
W10895965 W10895965 INLAY, BIN
W11084829 W11084829 INSULATION
W11553819 W11553819 INSULATION
W11688785 W11688785 INSULATION
W11099735 W11099735 INSULATION
W11688554 W11688554 INSULATION
W10673897 W10673897 INSULATOR, FOAM
W10835866 W10835866 JUMPER, CRISPER LED
W10840920 W10840920 KNOB, SIDE SUPPORT
W10768379 W10768379 LID, HV
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11401419 W11401419 MODULE
W11683243 W11683243 MODULE
W11115320 W11115320 MODULE
W10887788 W10887788 MODULE
W10822606 W10822606 MOTOR
W10839793 W10839793 NAMEPLATE
W11251709 W11251709 PAD
W10663699 W10663699 PAD, SOUND
W10815345 W10815345 PADDLE, ICE DISPENSER (BLACK)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
W10917540 W10917540 PAINT, TOUCH-UP (1/2OZ. MIDNIGHT GREY)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11115323 W11115323 PAN-UTILIT
W11592414 W11592414 PAN-UTILTY
W11330651 W11330651 PANEL-UI
W11450890 W11450890 PANEL-UI
W11448633 W11448633 PLATE
W10830659 W10830659 RAIL, GUARD
W11024082 W11024082 RESERVOIR, WATER
W10705239 W10705239 RETAINER, DOOR
W10834282 W10834282 RETAINER, DOOR DUCT
W10696184 W10696184 RING, HANDLE
W10774846 W10774846 ROLLER
W10837296 W10837296 ROLLER
W10874022 W10874022 ROLLER
W10182881 W10182881 SCOOP, ICE PAN
WP8281163 WP8281163 SCREW
WPW10272364 WPW10272364 SCREW
W10847999 W10847999 SCREW
W10903879 W10903879 SCREW
W10709798 W10709798 SCREW
W10820084 W10820084 SCREW
WPW10141625 WPW10141625 SCREW
WP489443 WP489443 SCREW
67006692 67006692 SCREW
W11084504 W11084504 SCREW
WP3400065 WP3400065 SCREW
WPW10661886 WPW10661886 SCREW
WPW10238319 WPW10238319 SCREW
WP489474 WP489474 SCREW
WP67006908 WP67006908 SCREW
W10119266 W10119266 SCREW
WP33001882 WP33001882 SCREW
WPW10141645 WPW10141645 SCREW
W11214483 W11214483 SCREW
W11686675 W11686675 SCREW
W11126052 W11126052 SCREW
W11573362 W11573362 SCREW
WP98165 WP98165 SCREW
W11311945 W11311945 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
W10834285 W10834285 SCREW (GREY)
WPW10291905 WPW10291905 SEAL
W10770923 W10770923 SEAL, CRISP FRONT
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W10890101 W10890101 SEPERATOR (BLACK)
W11228132 W11228132 SHAFT
W11173556 W11173556 SHAFT
W10910632 W10910632 SLEEVE
W10895964 W10895964 SLIDE, BIN TRIM
W11429989 W11429989 SOLENOID
W10663641 W10663641 SPACER, HANDLE
W11109505 W11109505 SPRING
W10672578 W10672578 SPRING, TORSION
W10795820 W10795820 STOP, PAN (LEFT HAND)
W10795822 W10795822 STOP, PAN (RIGHT HAND)
W11243377 W11243377 STOP-DOOR
W11666273 W11666273 STUD-SHELF
W11226828 W11226828 STUD-SHELF
W11677723 W11677723 SUPPORT
W10794565 W10794565 SUPPORT, PANTRY
W10794553 W10794553 SUPPORT, SIDE (LEFT HAND)
W10794555 W10794555 SUPPORT, SIDE (RIGHT HAND)
W11087492 W11087492 SWITCH
W11291144 W11291144 SWITCH
W11291142 W11291142 SWITCH
W10912979 W10912979 SWITCH, REED
W11238399 W11238399 TAPE
W11097245 W11097245 TECH SHEET (ENGLISH)
W11097246 W11097246 TECH SHEET (FRENCH)
W11112695 W11112695 TECH SHEET, ENERGY GUIDE
W10913495 W10913495 TECH SHEET, USE AND CARE GUIDE
W11724692 W11724692 THERMISTOR
W11158592 W11158592 TOOL
W11158591 W11158591 TOOL
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY

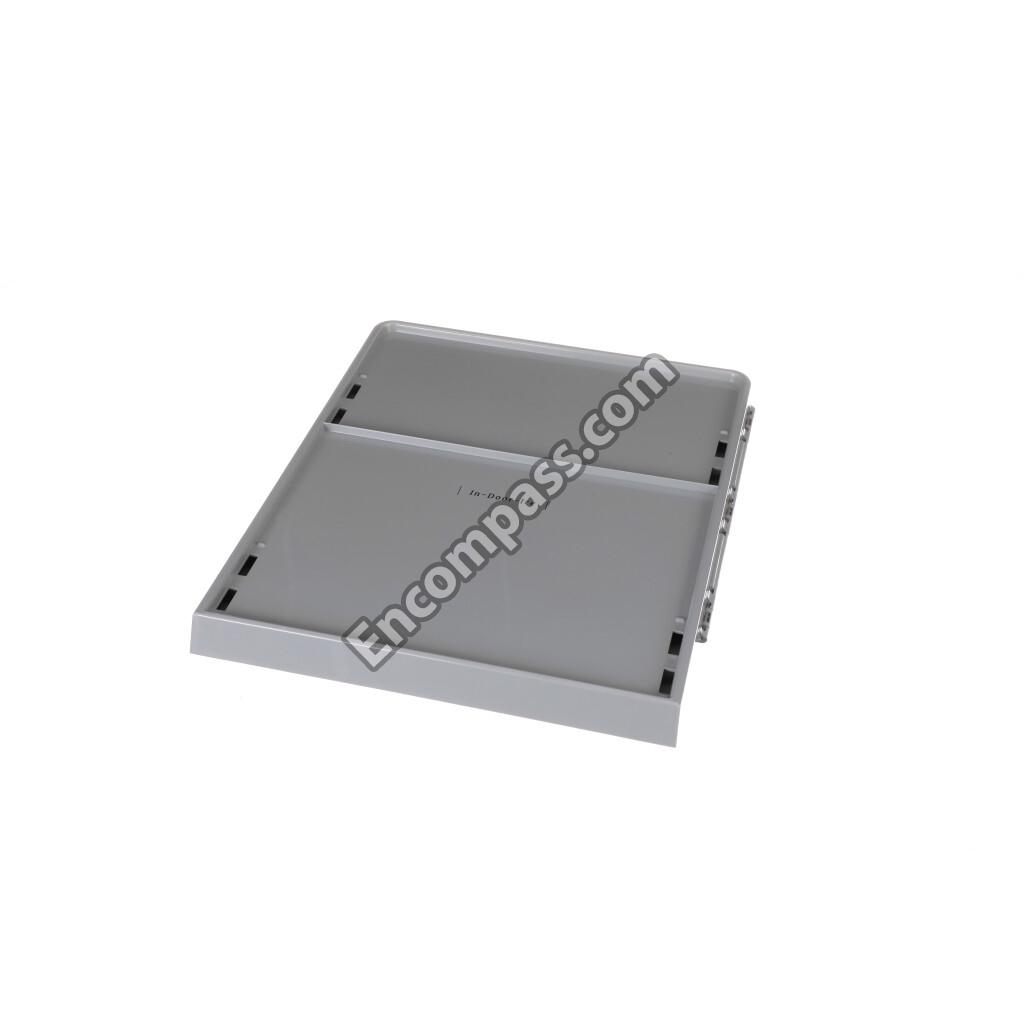

W11220377 W11220377 TRAY
W10877573 W10877573 TRAY, EVAPORATOR
W11252157 W11252157 TRAY-DRIP
W11104445 W11104445 TRIGGER (INCLUDES SET SCREW)
W11222983 W11222983 TRIM
W11733335 W11733335 TRIM
W10896038 W10896038 TRIM, ENDCAP (LEFT HAND)
W10896039 W10896039 TRIM, ENDCAP (RIGHT HAND)
W10887799 W10887799 TRIVET
W11099736 W11099736 TUBE
W10853599 W10853599 TUBE, DISPENSER WATER (INCLUDES SEAL)
W10687070 W10687070 TUBE, ICEMAKER FILL
W10853597 W10853597 TUBE, ICEMAKER WATER (INCLUDES SEAL)
W11323726 W11323726 TUBE, PROCESS
W10764297 W10764297 TUBE, VALVE INLET
W10883965 W10883965 TUBE, WATER
WP978025 WP978025 VALVE
W11575001 W11575001 VALVE
W10873093 W10873093 VALVE
W11535162 W11535162 VALVE
W11312191 W11312191 VALVE
W10868748 W10868748 WALL, DISPENSER FALSE (BLACK)
EDR2RXD1 EDR2RXD1 WATER FILTER
W11366500 W11366500 WATER TUBE
W11109050 W11109050 WATER TUBE

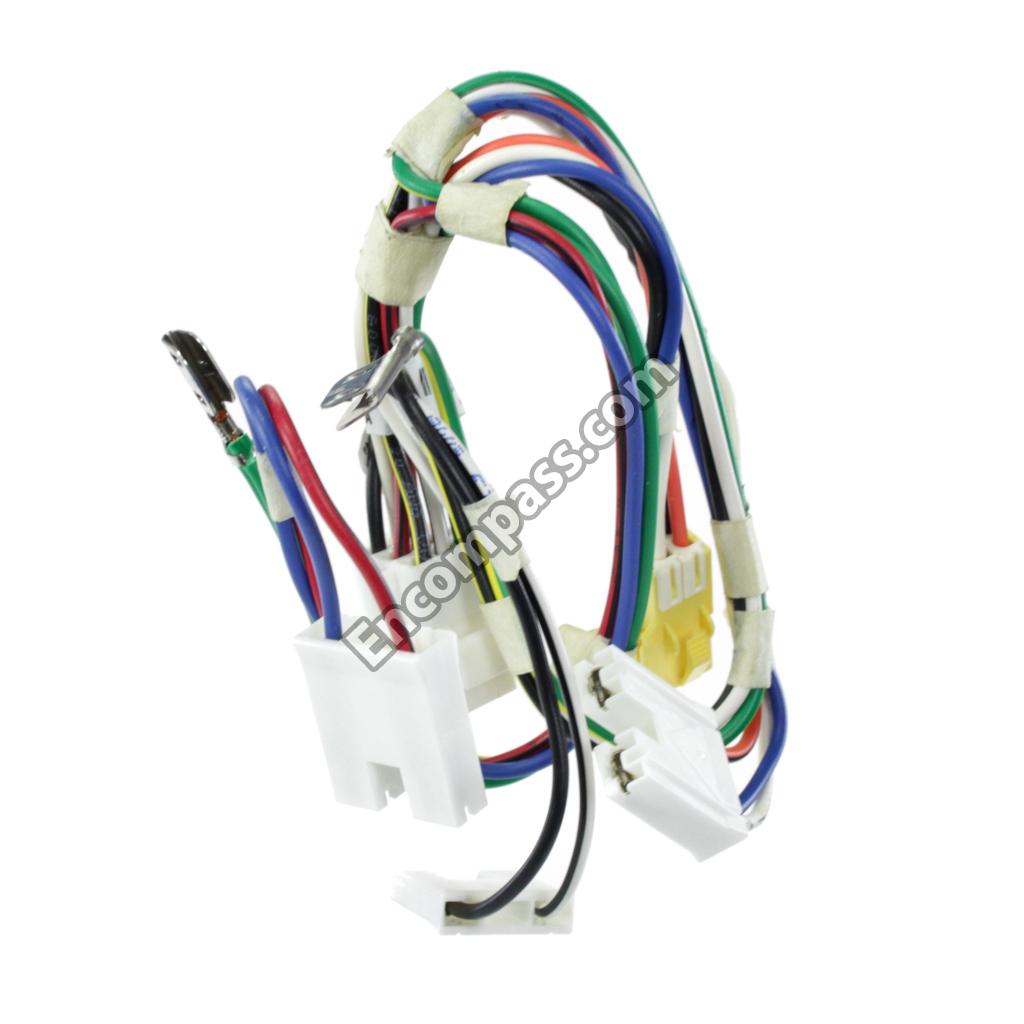

W11744510 W11744510 WIRE HARNESS
Main Menu x
