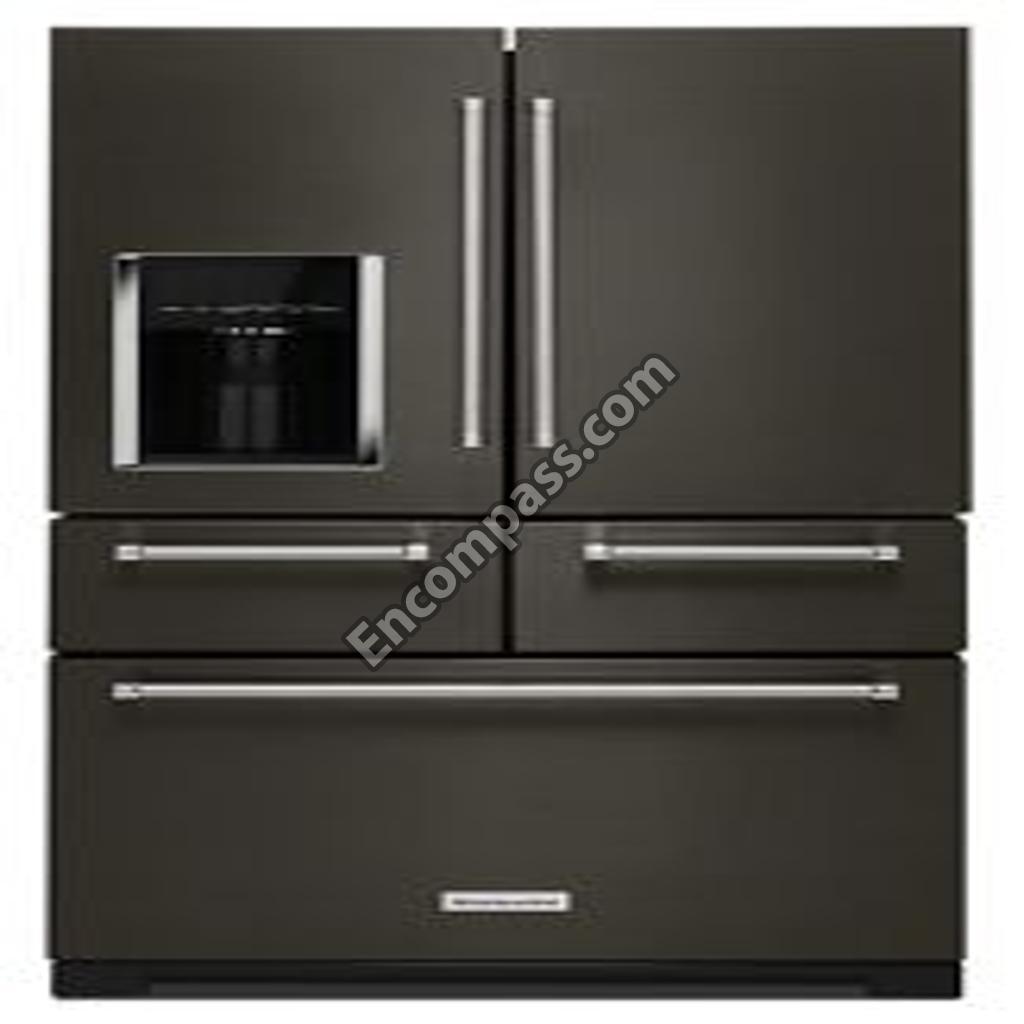

Model Image
Manufacturer

Whirlpool

Model Number

KRMF706EBS01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
876764 876764 "VALVE, ACCESS (3/16"")"
978030 978030 "VALVE, ACCESS (3/4"")"
978027 978027 "VALVE, ACCESS (3/8"")"
978026 978026 "VALVE, ACCESS (5/16"")"
978029 978029 "VALVE, ACCESS (5/8"")"
W11409809 W11409809 ADAPTER
W11397195 W11397195 ADAPTER
W11126056 W11126056 ADAPTER
W10860238 W10860238 AIR-TOWER
W10311524 W10311524 ANTIBACTERIAL FILTER
W10503218 W10503218 ASSEMBLY, DRAIN FUNNEL
W10821278 W10821278 ASSEMBLY, DUAL VALVE BOX WIRE
W11215631 W11215631 ASSEMBLY, FLOOR
W10634640 W10634640 ASSEMBLY, LOWER PAN (FREEZER)
W11294548 W11294548 ASSEMBLY, PANTRY CENTER ADAPTER
W10826105 W10826105 ASSEMBLY, PRODUCE PRESERVER
W11573594 W11573594 AXLE
67006434 67006434 AXLE, ROLLER (2)
W10570074 W10570074 BASEPLATE
W11175820 W11175820 BIN
W11026416 W11026416 BIN CONTROL LEVER
W11387048 W11387048 BIN-FREEZR
W11387053 W11387053 BIN-FREEZR
WP67006337 WP67006337 BLADE- FAN
WP2188935 WP2188935 BLADE-FAN
W10734555 W10734555 BLOCK, PIVOT

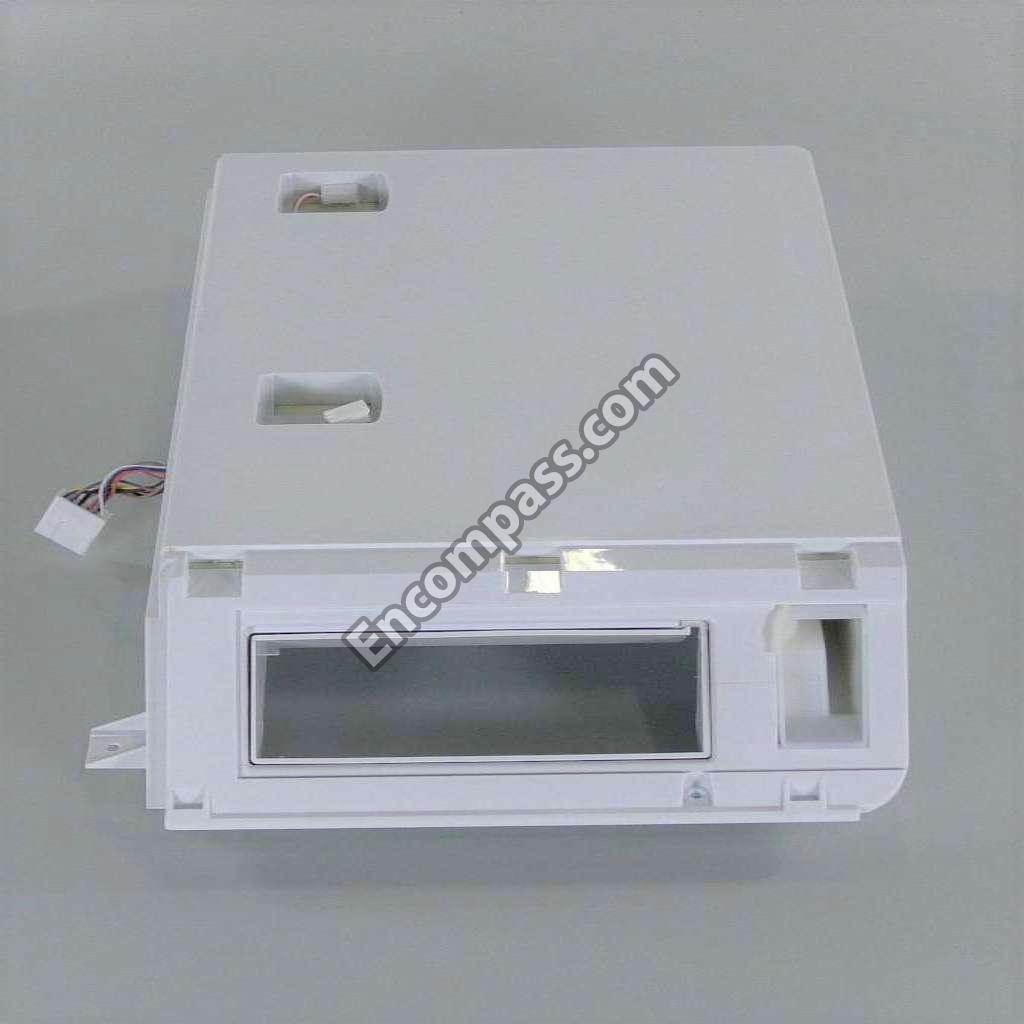

W10847563 W10847563 BOX-ICE
W11161915 W11161915 BRACKET
W11131390 W11131390 BRACKET
W11668672 W11668672 BRACKET
W10713934 W10713934 BRACKET, CONNECTOR
W10708583 W10708583 BRACKET, STOPPING (BLACK)
W10391376 W10391376 BRACKET, VALVE
W10407187 W10407187 BUMPER, DOOR (BLACK)
W11573367 W11573367 BUMPER-DOR
N_P N_P CABINET (NOT A SERVICABLE PART)
W11456069 W11456069 CLAMP
549193 549193 CLAMP, POWER CORD
W10847834 W10847834 CLIP
W11673433 W11673433 CLIP
W10683556 W10683556 CLIP
W10852685 W10852685 CLIP
W11712696 W11712696 CLIP
W10815861 W10815861 CLIP, BOTTOM COVER
W10704335 W10704335 CLIP, DRAWER BODY
W10732765 W10732765 CLIP, GLIDE DOOR
W11315303 W11315303 CLIP, TUBE
W11188796 W11188796 CLOSER
W11163783 W11163783 CLOSER
W10832994 W10832994 COMPRESSOR
W10758093 W10758093 CONDENSER
W11209438 W11209438 CONNECTOR
WPW10248595 WPW10248595 CONTROL
W11330971 W11330971 CONTROL BOARD
WPW10769076 WPW10769076 CONTROL BOARD
W10870822 W10870822 CONTROL BOARD
W10898445 W10898445 CONTROL BOARD
W10804160 W10804160 CONTROL BOARD
WPW10675033 WPW10675033 CONTROL BOARD
WPW10624574 WPW10624574 CONTROL BOARD
W10830861 W10830861 COVER
W10830855 W10830855 COVER
W11661208 W11661208 COVER
W11238397 W11238397 COVER
WPW10598013 WPW10598013 COVER
W10278140 W10278140 COVER, CONDENSER (BOTTOM)
W10711821 W10711821 COVER, CONNECTOR
67003485 67003485 COVER, CORNER (BLK)
W10563309 W10563309 COVER, EMITTER
W10754591 W10754591 COVER, HV CONTROL BOX
W10563326 W10563326 COVER, RECEIVER
W10336736 W10336736 COVER, ROLLER
W10731491 W10731491 COVER, SIDE ADAPTER
W10781438 W10781438 COVER, TOP HINGE LEFT HAND (BLACK)
W10781436 W10781436 COVER, TOP HINGE LEFT HAND (GREY)
W10709867 W10709867 COVER, TOP HINGE RIGHT HAND (BLACK)
W10709866 W10709866 COVER, TOP HINGE RIGHT HAND (GREY)
W10754145 W10754145 COVER, WATERBOX
W11482027 W11482027 COVER-BACK
W11690163 W11690163 COVER-EVAP
W11256332 W11256332 COVER-EVAP
W11028624 W11028624 CRISPER PAN
W11026309 W11026309 DIVIDER
W10562492 W10562492 DIVIDER, LOWER
W10815677 W10815677 DOOR ASSEMBLY BL

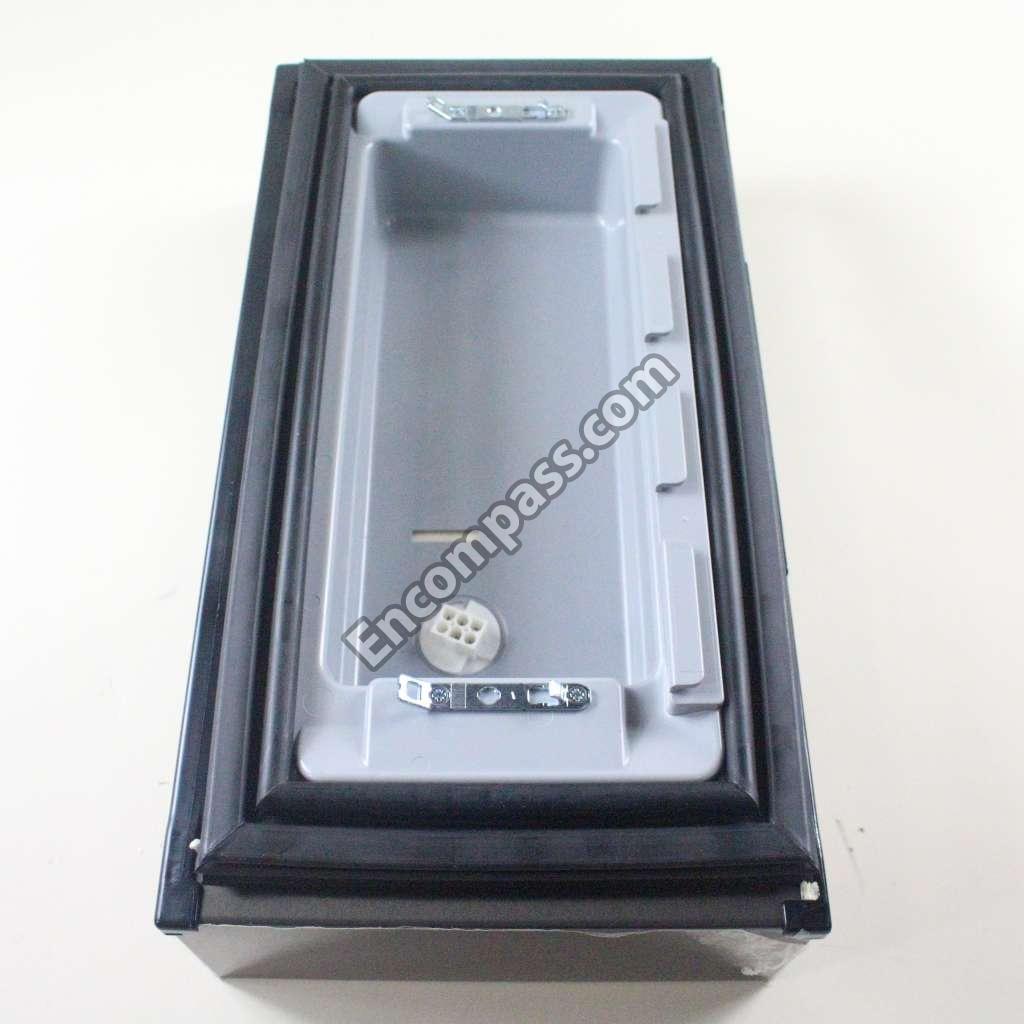

W10815668 W10815668 DOOR ASSEMBLY BL
W10815700 W10815700 DOOR ASSEMBLY BL

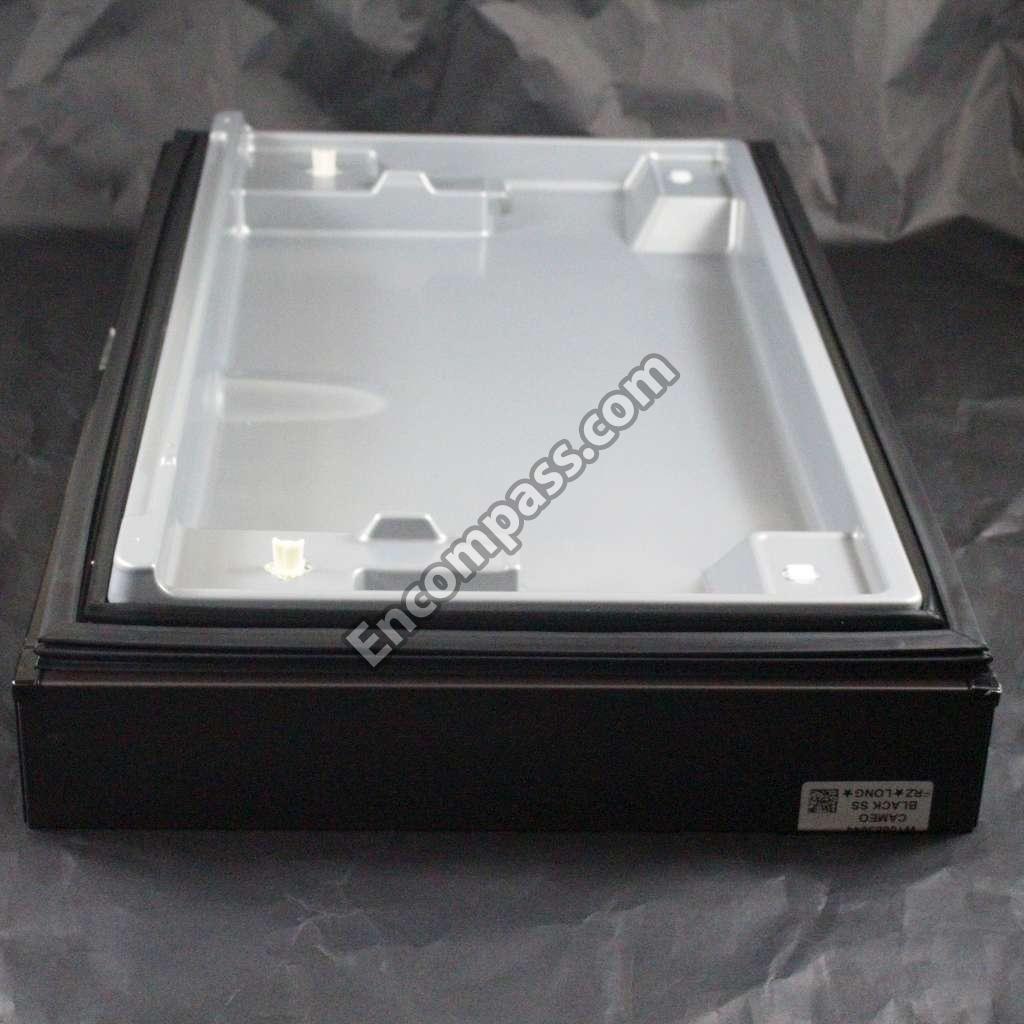

W10815686 W10815686 DOOR ASSEMBLY BL

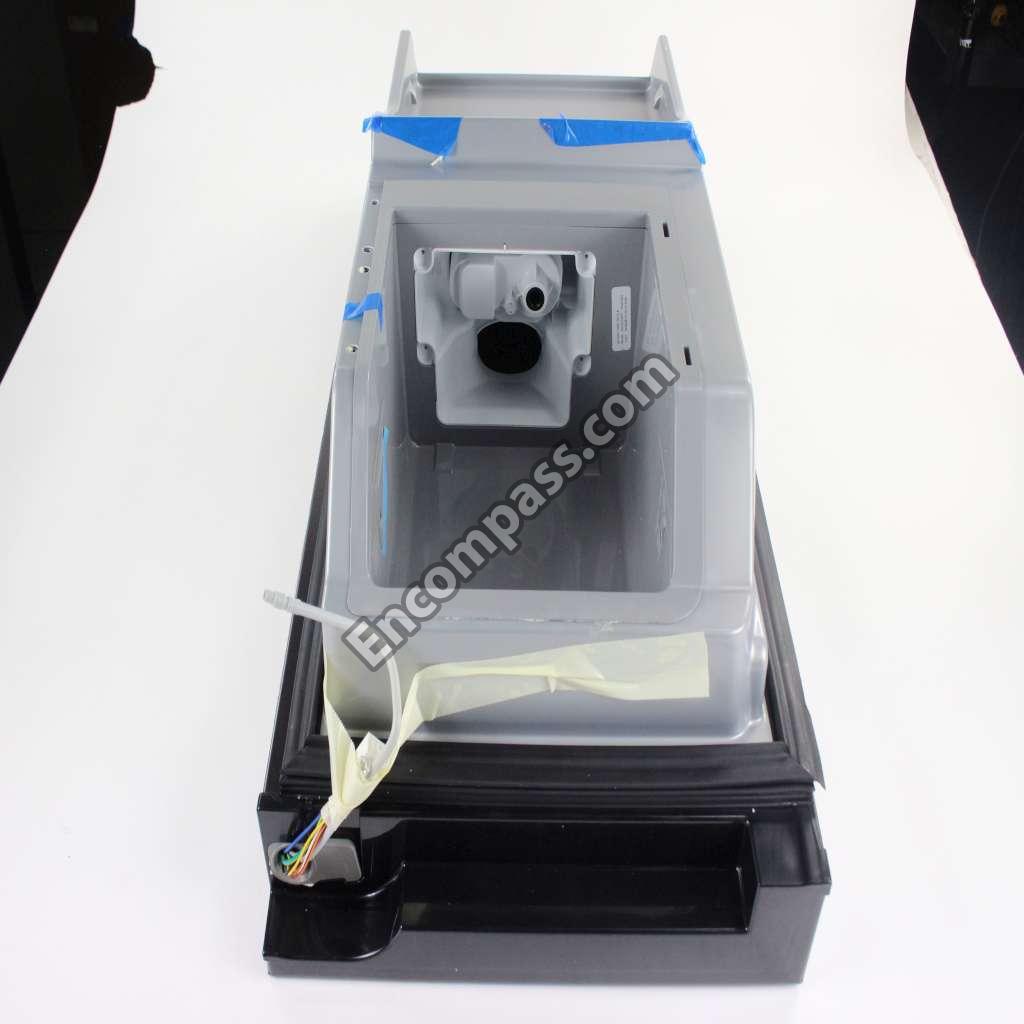

W10815694 W10815694 DOOR ASSEMBLY BL

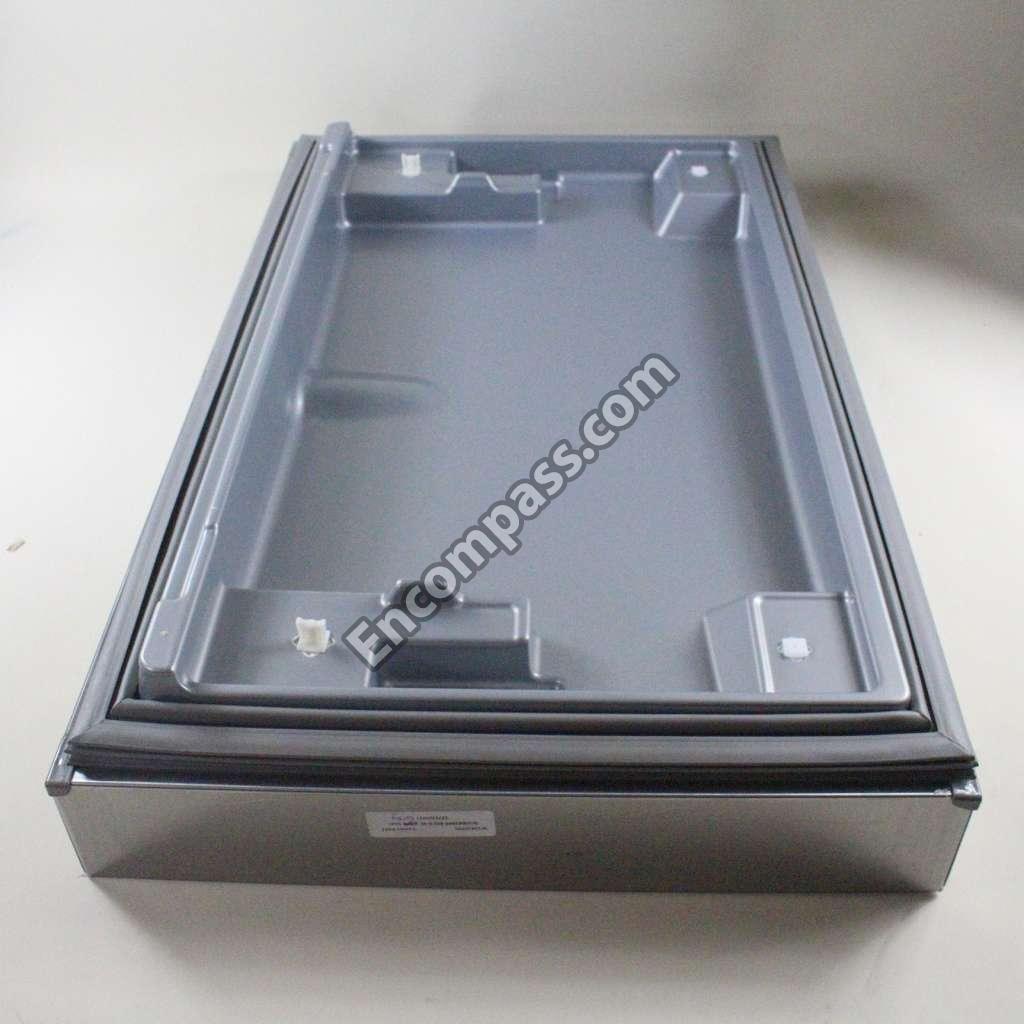

W10815678 W10815678 DOOR ASSEMBLY SS

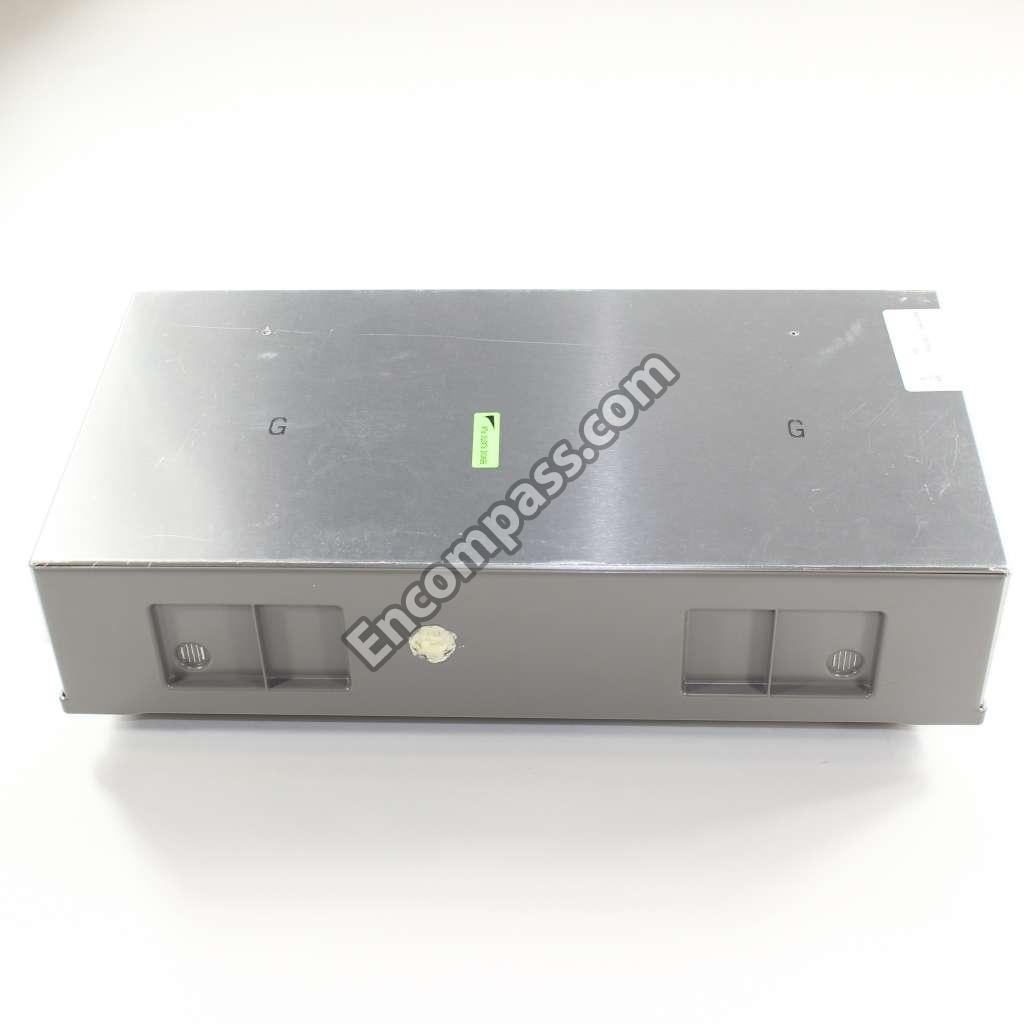

W10815669 W10815669 DOOR ASSEMBLY SS
W10815701 W10815701 DOOR ASSEMBLY SS

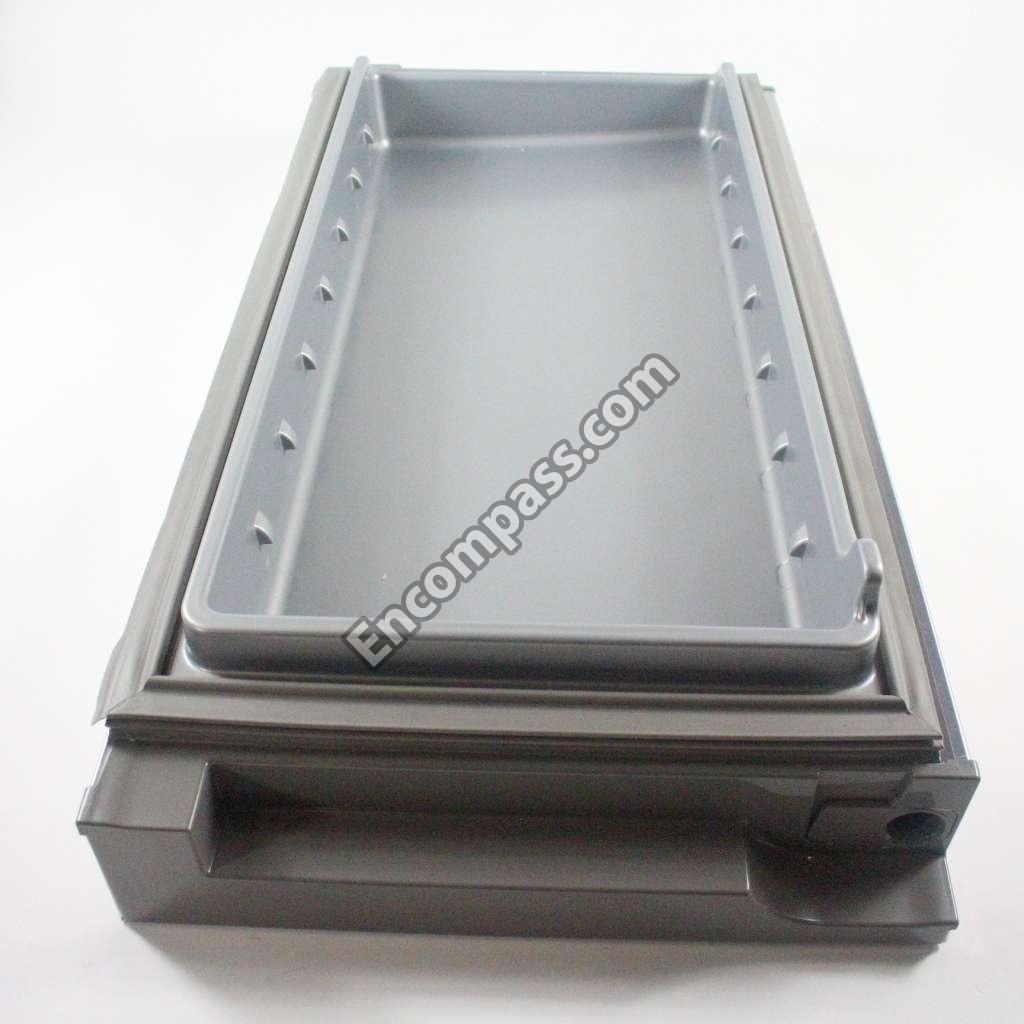

W10815687 W10815687 DOOR ASSEMBLY SS

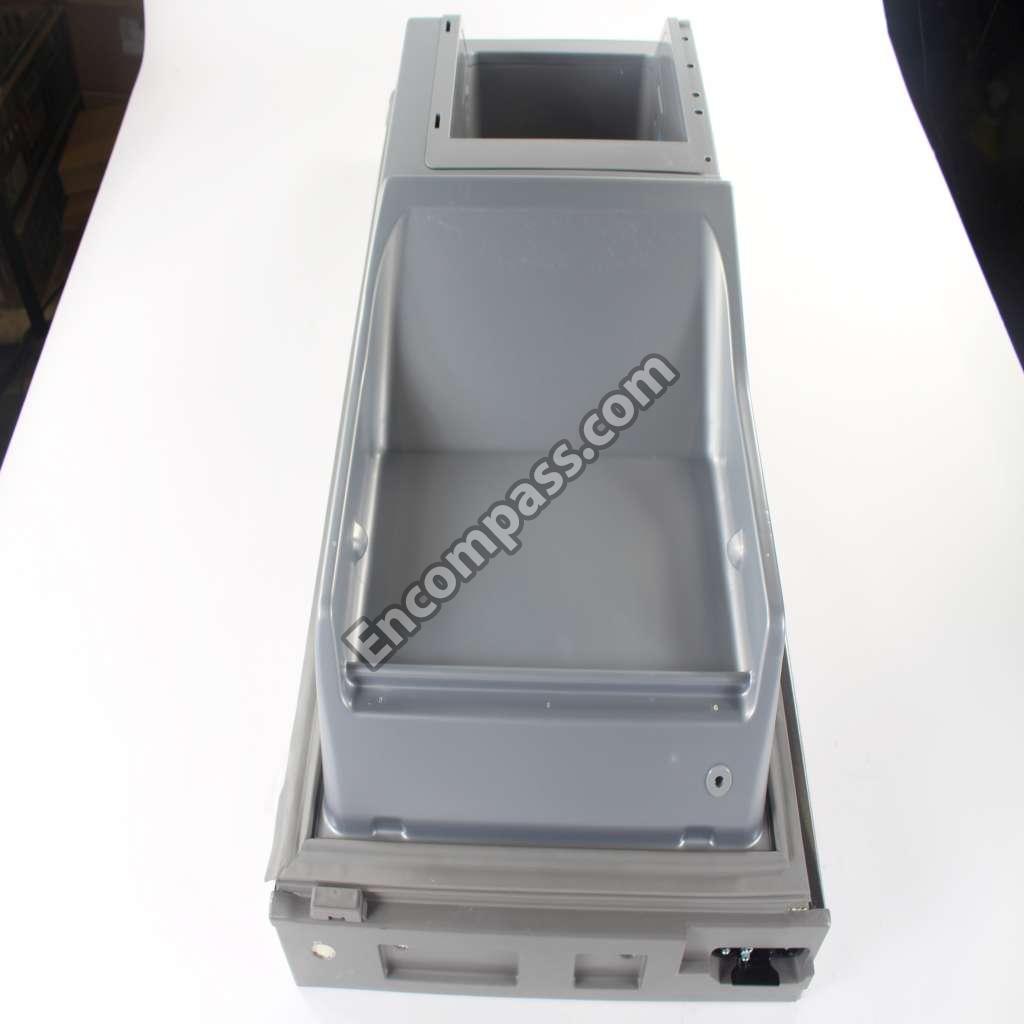

W10815695 W10815695 DOOR ASSEMBLY SS
W11167119 W11167119 DOOR HINGE
W11122872 W11122872 DOOR HINGE
W11736793 W11736793 DOOR HINGE
WP2223877 WP2223877 DOOR LATCH
W10563323 W10563323 DOOR, EMITTER
W10754143 W10754143 DOOR, FILTER ACCESS
W11399564 W11399564 DOOR-ICE
W11484637 W11484637 DRAWER SLIDE RAIL
W11029707 W11029707 DRAWER SLIDE RAIL

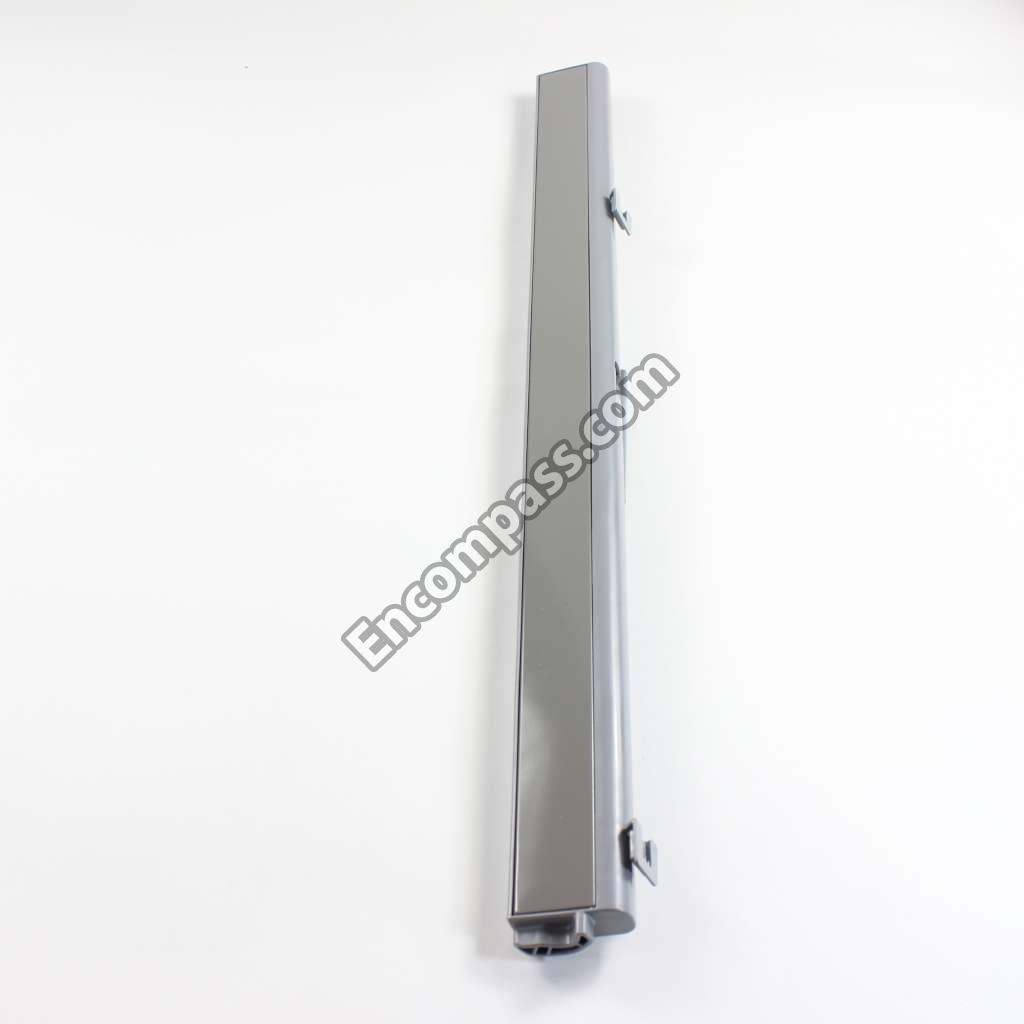

W11176246 W11176246 DRAWER SLIDE RAIL
W11256383 W11256383 DRAWER SLIDE RAIL
W10730610 W10730610 DRAWER, PANTRY
WPW10143759 WPW10143759 DRIER-UV
W10811115 W10811115 ENCLOSURE, WATER VALVE
W11112988 W11112988 ENERGY GUIDE
WPW10608485 WPW10608485 EVAPORATOR
W11492867 W11492867 EVAPORATOR

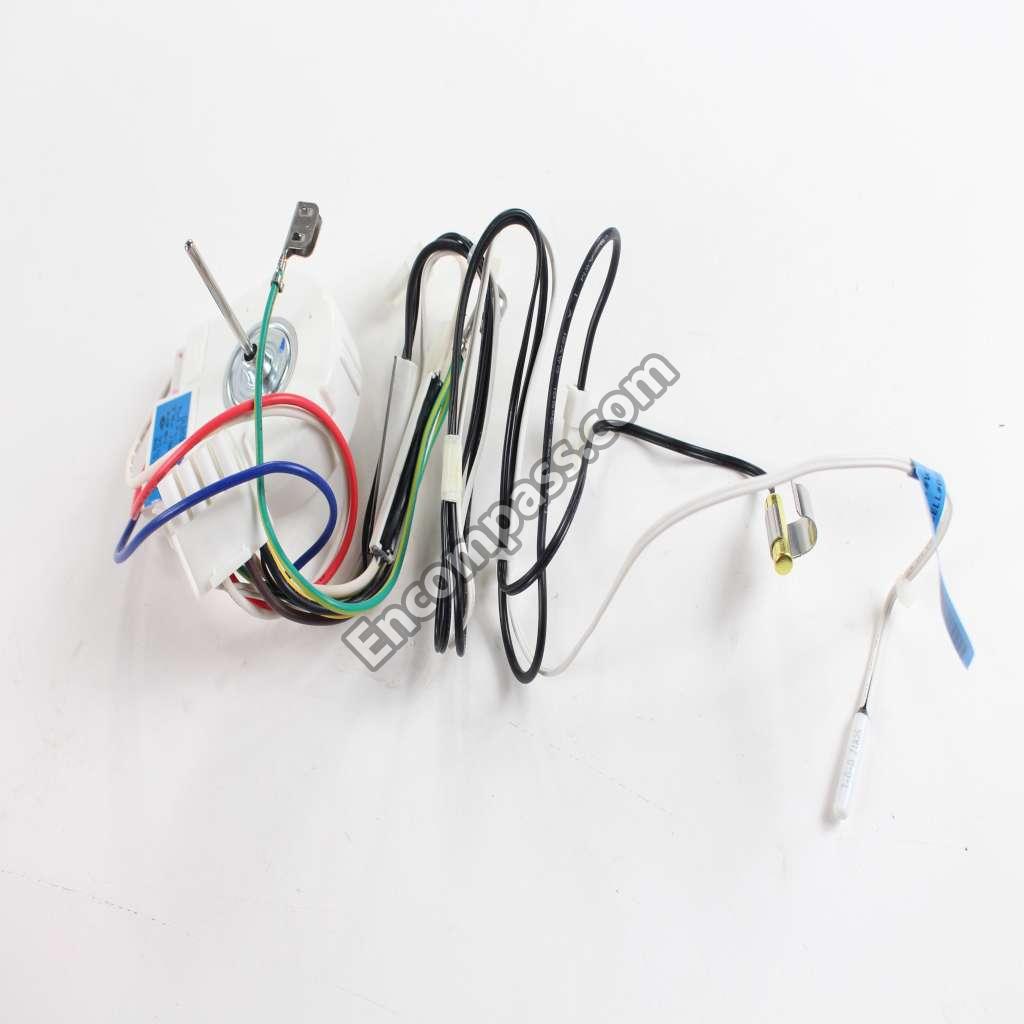

W11249952 W11249952 EVAPORATOR MOTOR
W11087438 W11087438 EVAPORATOR MOTOR
W11745092 W11745092 EXTENSION
W10846539 W10846539 FAN
WP12587703AP WP12587703AP FILLER
W11561069 W11561069 FRAME
W11098158 W11098158 FRAME-SHLF
W11336585 W11336585 FRONT-PAN
W11504378 W11504378 GASKET
W11625019 W11625019 GASKET
W10856123 W10856123 GASKET
WPW10392172 WPW10392172 GASKET
WPW10280988 WPW10280988 GASKET
WPW10320706 WPW10320706 GASKET
W11568592 W11568592 GASKET
W10505487 W10505487 GASKET
W10832386 W10832386 GASKET ASSEMBLY
W10832385 W10832385 GASKET ASSEMBLY
W10407216 W10407216 GASKET ASSEMBLY
W10407215 W10407215 GASKET ASSEMBLY
W10846057 W10846057 GASKET ASSEMBLY
W11544658 W11544658 GASKET ASSEMBLY
W10491355 W10491355 GASKET, AIRDAM
W10470981 W10470981 GASKET, DAMPER
W10668165 W10668165 GASKET, EVAPORATOR COVER
W10465948 W10465948 GASKET, EVAPORATOR ENCLOSURE
W10415341 W10415341 GASKET, HV BOX
WPB8381501 WPB8381501 GASKET- DR
W11038526 W11038526 GLASS SHELF
W10807832 W10807832 GLASS SHELF
W11245713 W11245713 GLASS SHELF
WPW10737428 WPW10737428 GLASS SHELF
W11242545 W11242545 GLIDE, COMPACT (ALSO ORDER ITEMS 27 AND 35) (LEFT HAND)
W11242573 W11242573 GLIDE, COMPACT (ALSO ORDER ITEMS 27 AND 35) (RIGHT HAND)
WP542638 WP542638 GREASE
W10871842 W10871842 GRILLE
W10911309 W10911309 GRILLE-FRT
W11129933 W11129933 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
W11249950 W11249950 GROMMET
W10638123 W10638123 GUIDE, CRISPER
WPW10435760 WPW10435760 GUIDE-ICE
W11488944 W11488944 HANDLE
W11497229 W11497229 HANDLE
W10859555 W10859555 HANDLE, DOOR (STAINLESS)
WP12729128 WP12729128 HEATER
W11645701 W11645701 HEATER
W11226501 W11226501 HEATER
W11223833 W11223833 HING-BUSHG
W10691674 W10691674 HINGE, CENTER LEFT HAND (BLACK)
W10691700 W10691700 HINGE, CENTER RIGHT HAND (BLACK)
W11027247 W11027247 HINGE, TOP (LEFT HAND)
W11435997 W11435997 HOUSING
W11194438 W11194438 HOUSING
W10842950 W10842950 HOUSING
W11129522 W11129522 ICE-CONTNR
W11658802 W11658802 ICEMAKER
W11553819 W11553819 INSULATION
WPW10280983 WPW10280983 INSULATION
W11087200 W11087200 INVRTR-BOX
W10673048 W10673048 JUMPER, FASCIA HEATER
W10467461 W10467461 LADDER, CENTER
W10719660 W10719660 LADDER, SIDE
WPW10141622 WPW10141622 LEVELER
W10277839 W10277839 LID, HV
W11290115 W11290115 LIGHT
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11683243 W11683243 MODULE
W11683244 W11683244 MODULE
W11683242 W11683242 MODULE
W10822606 W10822606 MOTOR
W11127829 W11127829 MOTOR-COND
W10839793 W10839793 NAMEPLATE
W10737730 W10737730 NUT, RIVET
W10730912 W10730912 OWNERS MANUAL
W11109510 W11109510 PAD
12702901 12702901 PAD, GLIDE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
W10134625 W10134625 PAINT, TOUCH-UP (1/2OZ. APOLLO GREY)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
W10917540 W10917540 PAINT, TOUCH-UP (1/2OZ. MIDNIGHT GREY)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11457241 W11457241 PAN-DRIP
W10331749 W10331749 PIN, DOOR
W11347435 W11347435 PLATE
WPA3076901 WPA3076901 PLUG, BUTTON
W11168758 W11168758 RESERVOIR
W11504381 W11504381 RETAINER
W11225849 W11225849 RETAINER
W10705239 W10705239 RETAINER, DOOR
W10788795 W10788795 ROLLER
WP67005149 WP67005149 ROLLER
W11578839 W11578839 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
WP8281163 WP8281163 SCREW
WPW10272364 WPW10272364 SCREW
W10737605 W10737605 SCREW
WPW10666373 WPW10666373 SCREW
67006692 67006692 SCREW
W10664603 W10664603 SCREW
WP98006631 WP98006631 SCREW
W11400994 W11400994 SCREW
W11544659 W11544659 SCREW
W10141518 W10141518 SCREW
W10142255 W10142255 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
WPW10141625 WPW10141625 SCREW
WP489443 WP489443 SCREW
WPW10238319 WPW10238319 SCREW
W11449276 W11449276 SCREW
W11311945 W11311945 SCREW
WP98165 WP98165 SCREW
WP67006908 WP67006908 SCREW
W10854958 W10854958 SCREW
WPW10141645 WPW10141645 SCREW
W11686675 W11686675 SCREW
W11214483 W11214483 SCREW
W11126052 W11126052 SCREW
W11573362 W11573362 SCREW
WP8281196 WP8281196 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
2006254 2006254 SCREW, 6-19 X .250
WPW10291905 WPW10291905 SEAL
WP2198628 WP2198628 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER

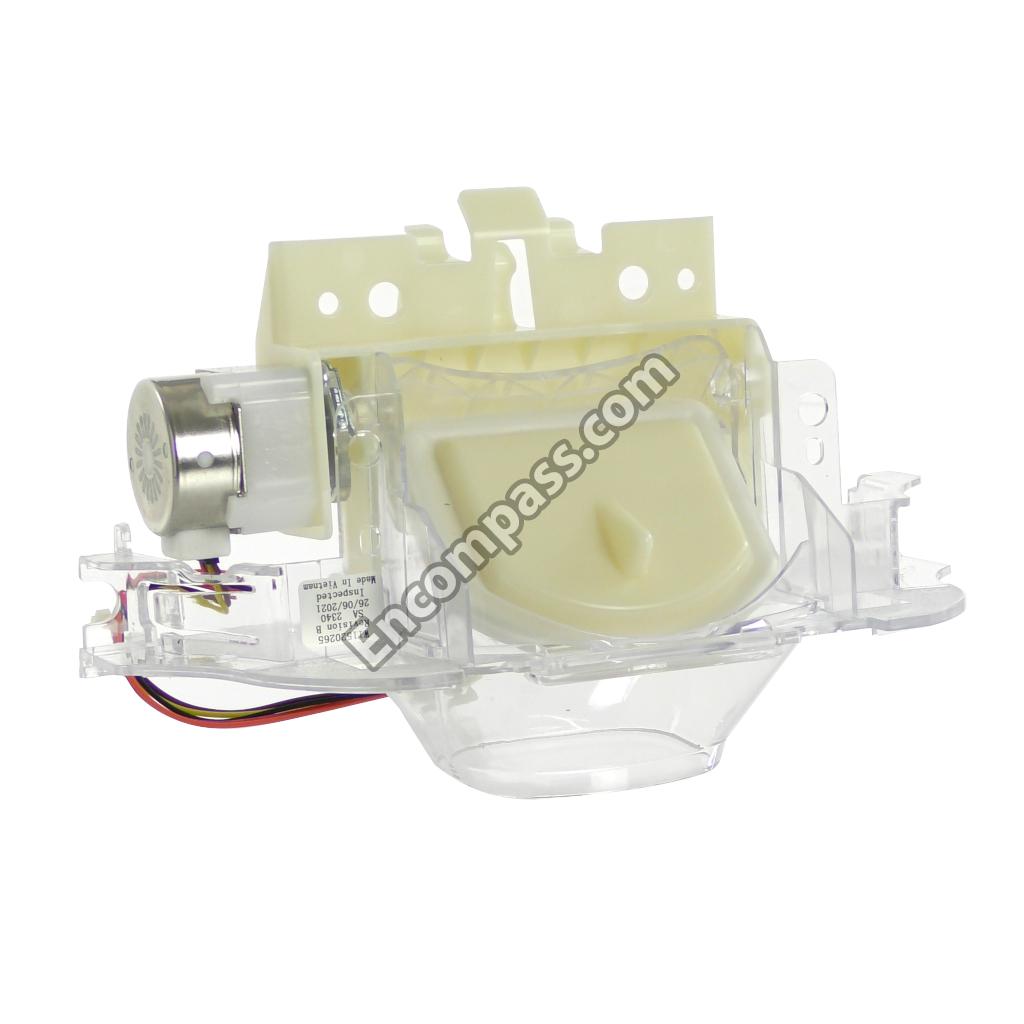

W11572058 W11572058 SEPARATOR
W11509548 W11509548 SHAFT
WPW10503522 WPW10503522 SHAFT
W11109614 W11109614 SHIELD
WPW10406719 WPW10406719 SHROUD
WPW10363507 WPW10363507 SHROUD
W11661094 W11661094 SLEEVE
W10563328 W10563328 SLIDE, ICEMAKER SHUT OFF
W11429989 W11429989 SOLENOID
W11109505 W11109505 SPRING
WP2198635 WP2198635 SPRING
W10585151 W10585151 STOP, PAN (LEFT HAND)
W10585150 W10585150 STOP, PAN (RIGHT HAND)
W10236396 W10236396 STRAP, COMPRESSOR
W11677723 W11677723 SUPPORT
W11230117 W11230117 SUPPORT
WPW10389152 WPW10389152 SUPPORT
W10493547 W10493547 SUPPORT, CRISPER REAR
W10847369 W10847369 SUPPORT, FRONT
W11087492 W11087492 SWITCH
W11291138 W11291138 SWITCH
W11291142 W11291142 SWITCH
W11384469 W11384469 SWITCH
W11289496 W11289496 SWITCH
W11238399 W11238399 TAPE
W10844356 W10844356 TECH SHEET (ENGLISH)
W10844357 W10844357 TECH SHEET (FRENCH)
W11168403 W11168403 THERMISTOR
W11724692 W11724692 THERMISTOR
W11158592 W11158592 TOOL
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11408656 W11408656 TRAY, DRIP

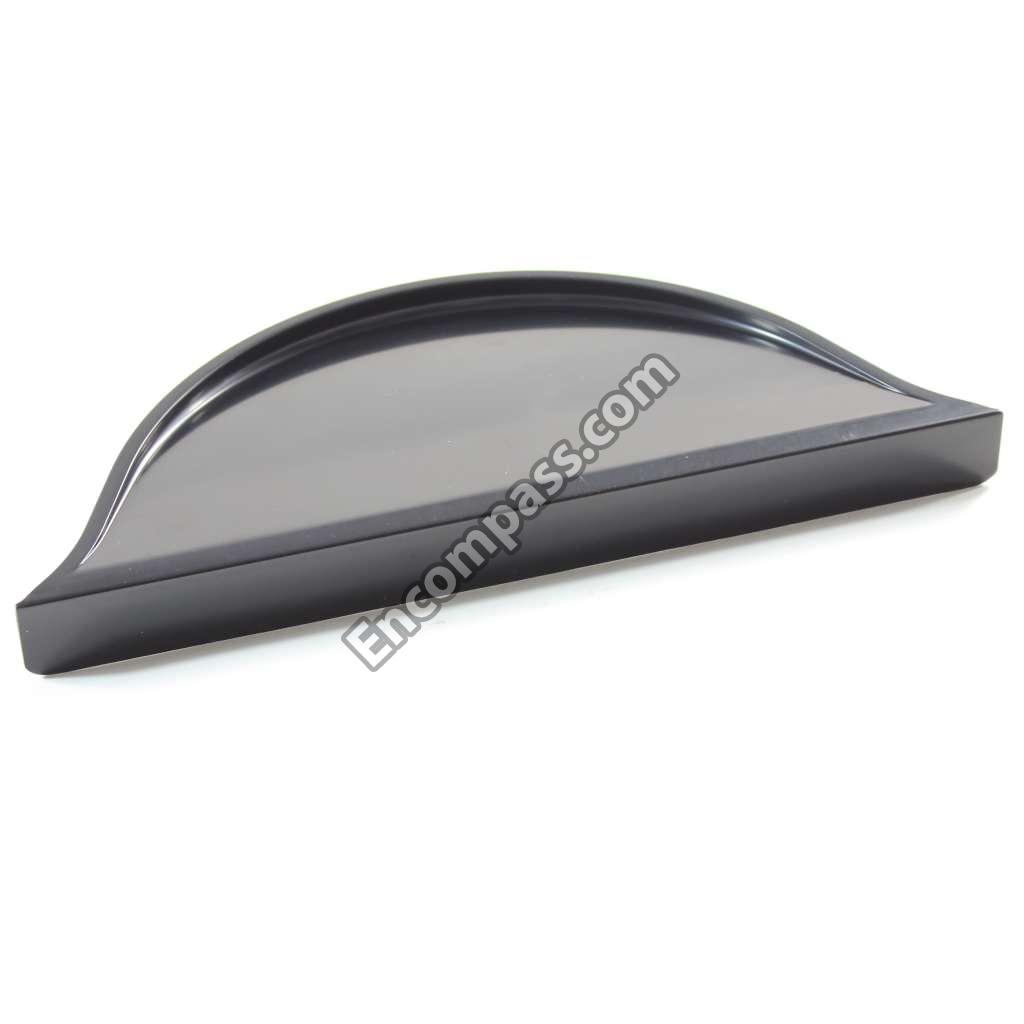

W10909034 W10909034 TRAY-DRIP
W11225840 W11225840 TRAY-EVAP
W11125932 W11125932 TRIM
W10785113 W10785113 TRIM, ICEBOX
W11026418 W11026418 TRIVET
WPW10626970 WPW10626970 TUBE
WP978025 WP978025 VALVE
W11575003 W11575003 VALVE
WPW10341329 WPW10341329 VALVE
W10865826 W10865826 VALVE
W11684620 W11684620 VENT
EDR2RXD1 EDR2RXD1 WATER FILTER
W11126260 W11126260 WATER TUBE
W11686800 W11686800 WATER TUBE
W11686799 W11686799 WATER TUBE
W11482381 W11482381 WATER TUBE
W10723352 W10723352 WATERLINE
W10710113 W10710113 WIRE ASSEMBLY, ICE BOX
W11238426 W11238426 WIRE HARNESS
W11170612 W11170612 WIRE HARNESS
W11190822 W11190822 WIRE HARNESS
