Model Image
Manufacturer

Whirlpool

Model Number

KSCS25INWH00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
WP2224076 WP2224076 AIR DIFFUSER ASSEMBLY
2223297 2223297 AIR DUCT FREEZER
2223303 2223303 AIR DUCT, UPPER
2223298 2223298 AIR SCOOP
WP72107 WP72107 ALMOND
350956 350956 ALMOND
W10852517 W10852517 AUGER
WP2198574 WP2198574 AUGER
WP2220377 WP2220377 BAFFLE, AIR ASSY.
2306932 2306932 BASEPLATE
2223691 2223691 BASKET, DEEP (2)
2223694 2223694 BASKET, LOWER
WPW10225581 WPW10225581 BIMETL-DEF
WP2224173 WP2224173 BIN-CNTLVR
72032 72032 BLACK
2257020 2257020 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY
W10278732 W10278732 BLADE, ROTARY
W10278733 W10278733 BLADE, ROTARY
W11458267 W11458267 BLADE-FAN
2198602 2198602 BLOCK, BLADE
WP2303583 WP2303583 BRACKET
WP2304673 WP2304673 BRACKET
WP2256154 WP2256154 BRACKET
WPW10184875 WPW10184875 BRACKET, CONTROL
2306940B 2306940B BRACKET, DOOR STOP (BLACK)
2306940 2306940 BRACKET, DOOR STOP (CHROME)
WP2212322 WP2212322 BRACKET, ICE MAKER MOUNTING
WP2198641 WP2198641 BRACKET, ICEMAKER COVER
8009 8009 BULB, LIGHT
WP2165792K WP2165792K BUTTER DISH
WP2260503B WP2260503B BUTTON
2301025 2301025 BUTTON, HUMIDITY
2260503W 2260503W BUTTON, WATER FILTER (WHITE)
WP2315403 WP2315403 BUTTON-BIN
100000 100000 CABINET, (NOT A SERVICEABLE PART)
WP2223752 WP2223752 CAM-DOOR
WP2182179 WP2182179 CAM-DOOR
WP2223506 WP2223506 CAMERA LENS-LIGHT
W11298978 W11298978 CAMERA LENS-LIGHT
2301017 2301017 CAP, SNACK PAN (LEFT SIDE)
2301016 2301016 CAP, SNACK PAN (RIGHT SIDE)
2260518T 2260518T CAP, WATER FILTER (BISCUIT)
WP2260518B WP2260518B CAP, WATER FILTER (BLACK)
WP2260518W WP2260518W CAP-FILTER
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1-1/4 OZ.) (ALUMINUM EPOXY)
WP488366 WP488366 CLAMP
W11456069 W11456069 CLAMP
549193 549193 CLAMP, SERVICE CORD
WP628379 WP628379 CLIP
W11623163 W11623163 CLIP
WP2161324 WP2161324 CLIP
WP1108439 WP1108439 CLIP
W11545866 W11545866 CLIP
WP2155013 WP2155013 CLIP, GRILLE RETAINER (2)
2155547 2155547 CLIP, HEAT SHIELD
2209204 2209204 CLIP, THERMISTOR
2215823 2215823 CLIP-AIR, DUCT
2198597 2198597 COMPLETE ICEMAKER ASSEMBLY
8201675 8201675 COMPRESSOR
W10193018 W10193018 CONDENSER ASSEMBLY
W11629974 W11629974 CONTROL BOARD
WPW10219463 WPW10219463 CONTROL BOARD
WP2307037 WP2307037 CONTROL BOARD ASM
WPW10175589 WPW10175589 CONTROL BOX (INCLUDES 6)
WP2220457 WP2220457 COUPLING
WP2220458 WP2220458 COUPLING
2222862 2222862 COVER
WP2301001 WP2301001 COVER
WPW10270150 WPW10270150 COVER
2259487 2259487 COVER
2223403 2223403 COVER, AIR BAFFLE
WP2301567 WP2301567 COVER, CRISPER (INCLUDES 2, 3, 4, 11, 12, 13, 14 & 19)
2255460 2255460 COVER, CRUSHER
2223413 2223413 COVER, EVAPORATOR (INCLUDES 9)
2255561 2255561 COVER, RECEIVER
2215676 2215676 COVER, TERMINAL
1116793 1116793 COVER, THERMISTOR

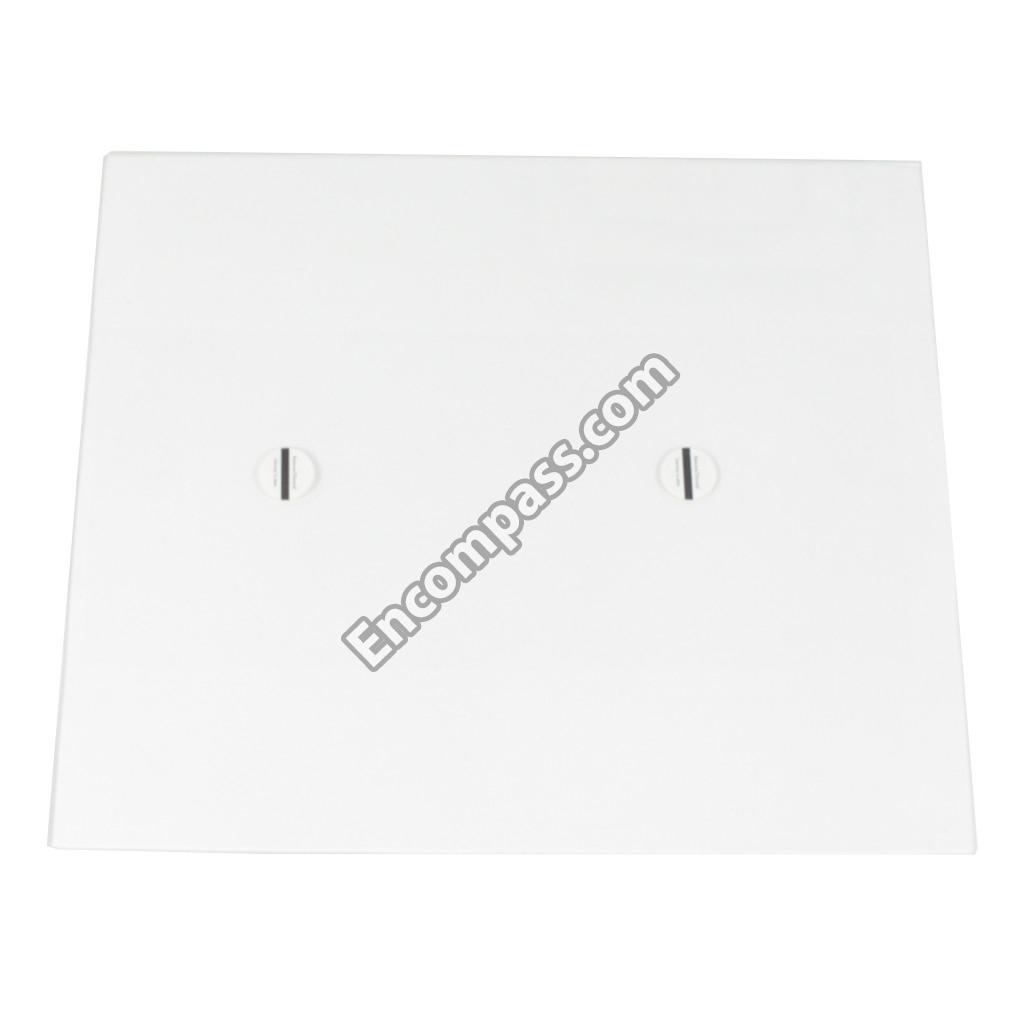

2223409 2223409 COVER, UNIT

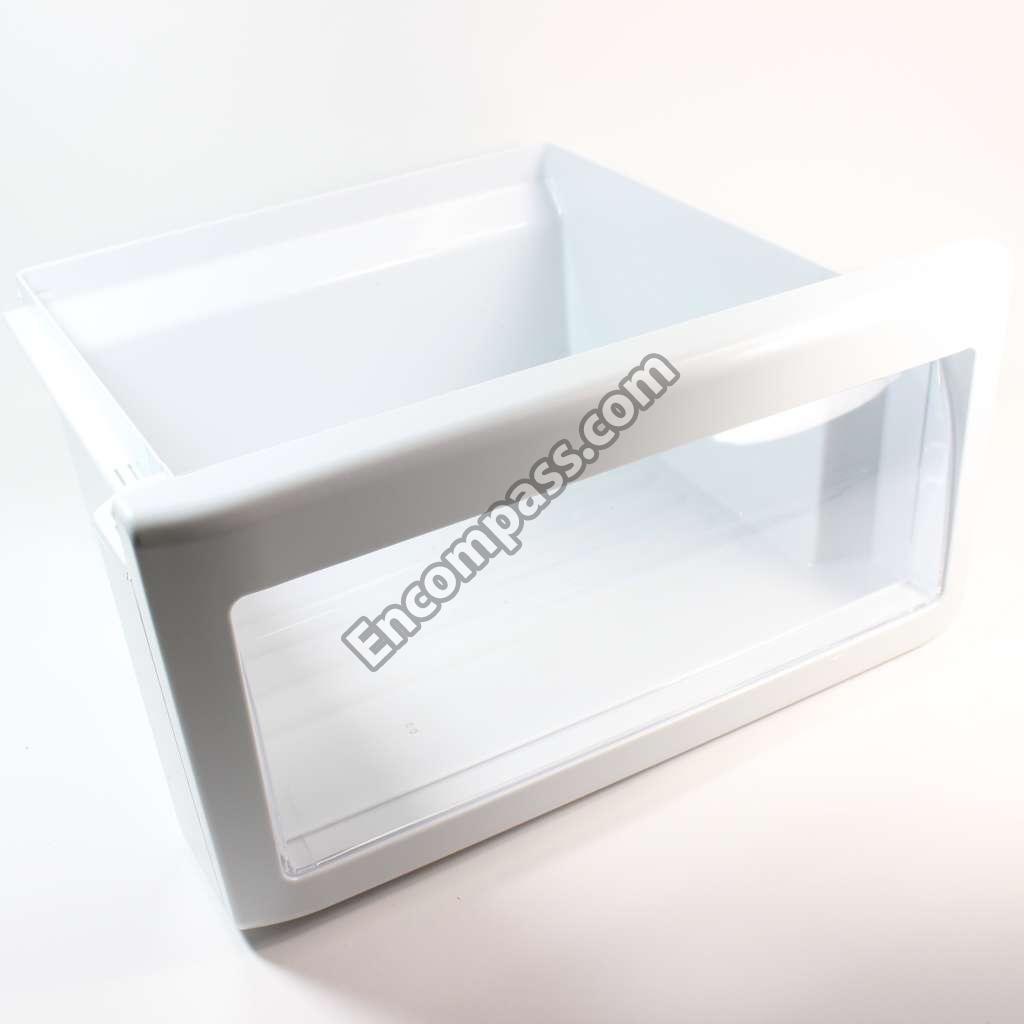

W10916292 W10916292 CRISPER PAN
WP2212367 WP2212367 CRUSHER BIN
WP628356 WP628356 CUP-WATER FILL
WP2255421 WP2255421 DAIRY DOOR
2223487 2223487 DEFLECTOR
L2223922B L2223922B DOOR ASSEMBLY BL
L2223917B L2223917B DOOR ASSEMBLY BL
L2223922T L2223922T DOOR ASSEMBLY BT
L2223917T L2223917T DOOR ASSEMBLY BT
L2223922SS L2223922SS DOOR ASSEMBLY SS
L2223917S L2223917S DOOR ASSEMBLY SS
L2223922W L2223922W DOOR ASSEMBLY WH
L2223917W L2223917W DOOR ASSEMBLY WH

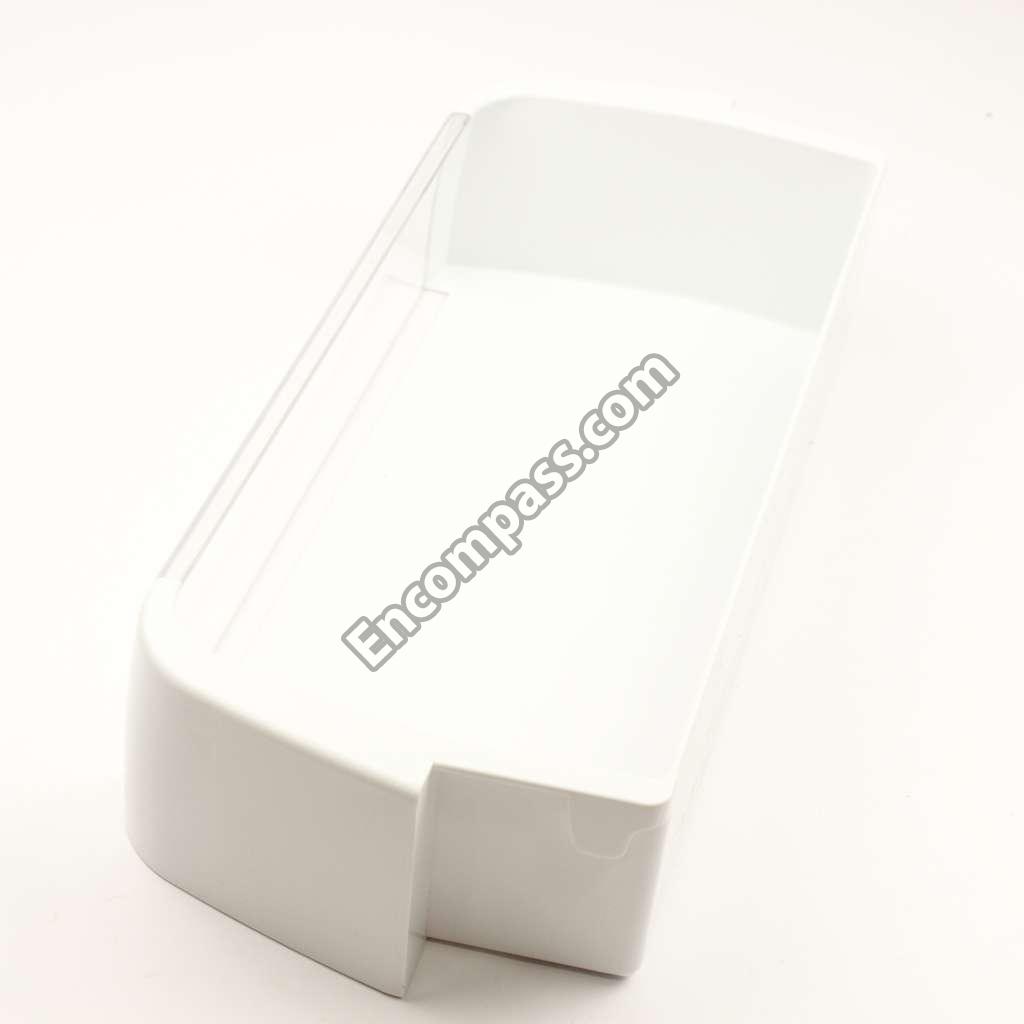

WP2223860 WP2223860 DOOR BIN (3)
2256015 2256015 DOOR LATCH, BIN
WP2223559 WP2223559 DOOR TRIM
WP2203087 WP2203087 DOOR TRIM
WP2223879 WP2223879 DOOR-COMP
WPW10185438 WPW10185438 DOOR-ICE
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE
W10136387A W10136387A EGG BIN
WP627843 WP627843 EJECTOR
WP2156006 WP2156006 ENDCAP-TRM
2318615 2318615 ENERGY GUIDE
2224121 2224121 ESCUTCHEON, MEAT PAN CONTROL
WP2188823 WP2188823 EVAPORATOR
W11671461 W11671461 EVAPORATOR MOTOR
2223394 2223394 EXTENSION, AIR BAFFLE
WP2174478 WP2174478 EYELET, ROLLER
WP2169142 WP2169142 FAN BLADE
2224024 2224024 FAN, MOTOR BRACKET
WP2182120 WP2182120 FAN-SCROLL
2223893T 2223893T FILLER, WRAPPER (BISCUIT)
2223893B 2223893B FILLER, WRAPPER (BLACK)
2223893W 2223893W FILLER, WRAPPER (WHITE)
WP4373559 WP4373559 FITTING
W11566763 W11566763 FITTING, DRAIN
WP2256096 WP2256096 FITTING, WATER TUBE
WP2198633 WP2198633 FLIPPER
WPW10289690 WPW10289690 FRONT COVER
2224064T 2224064T FRONT COVER ASSEMBLY (INCLUDES ITEMS 13, 19, 20 & 21) (BISCUIT)
WP2224064B WP2224064B FRONT COVER ASSEMBLY (INCLUDES ITEMS 13, 19, 20 & 21) (BLACK)
2224064W 2224064W FRONT COVER ASSEMBLY (INCLUDES ITEMS 13, 19, 20 & 21) (WHITE)
WPW10199223 WPW10199223 FRONT ROLLER ASM (RIGHT SIDE)
2224053 2224053 FRONT, BASKET
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
WP2304241 WP2304241 GASKET
2305571 2305571 GASKET
WP2174274 WP2174274 GASKET
WP1125528 WP1125528 GASKET
2306995 2306995 GASKET ASSEMBLY
2306991 2306991 GASKET ASSEMBLY
2306996 2306996 GASKET ASSEMBLY
2306992 2306992 GASKET ASSEMBLY
2304597 2304597 GASKET, AIR BAFFLE
2301117 2301117 GASKET, SIDE (2)
WP2301028 WP2301028 GLASS SHELF

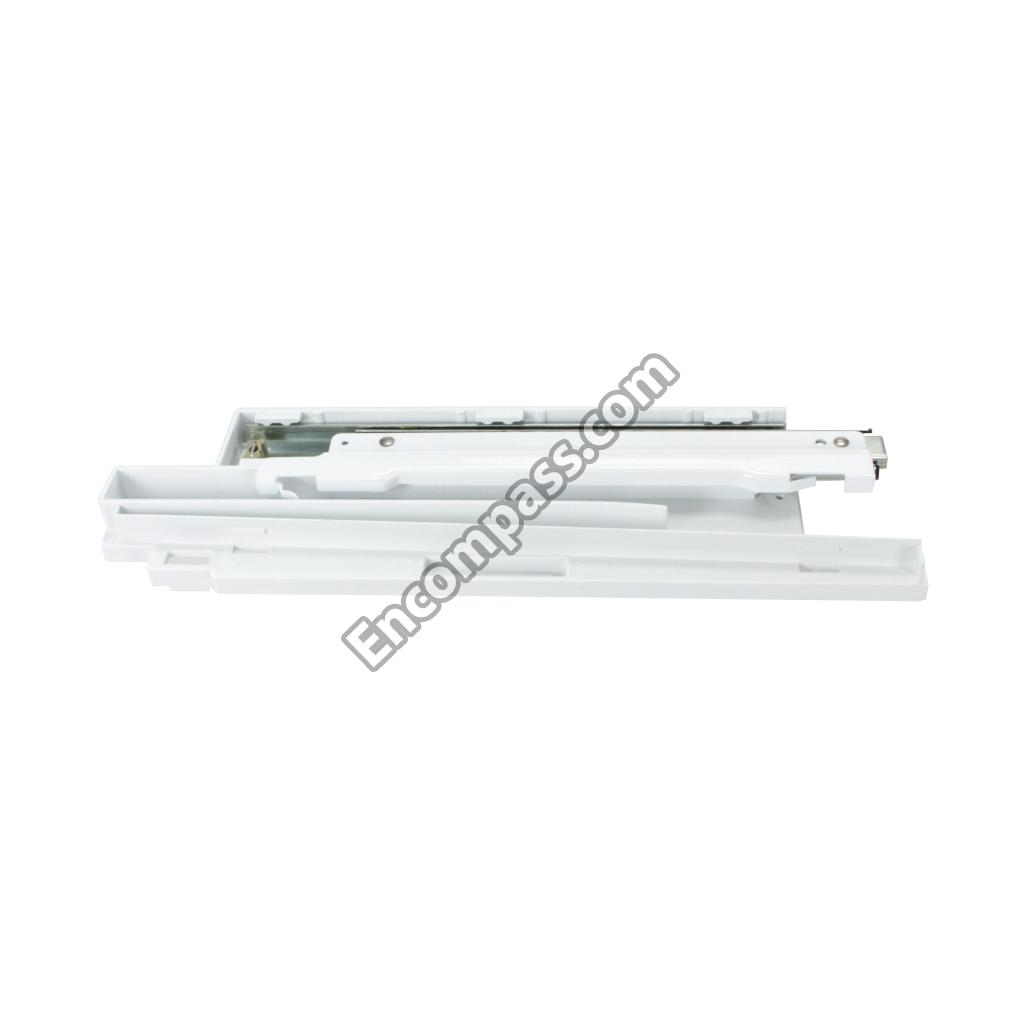

WP2301549 WP2301549 GLIDE ASSEMBLY (CRISPER PAN) (LEFT SIDE)
2301548 2301548 GLIDE ASSEMBLY (CRISPER PAN) (RIGHT SIDE)
2301551 2301551 GLIDE ASSEMBLY (LEFT SIDE)
2301550 2301550 GLIDE ASSEMBLY (RIGHT SIDE)
2301545 2301545 GLIDE ASSEMBLY, BASKET (2) (LEFT SIDE)
2301544 2301544 GLIDE ASSEMBLY, BASKET (2) (RIGHT SIDE)
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
W10194058 W10194058 GRILLE (BISCUIT)
W10194057 W10194057 GRILLE (BLACK)
2322206W 2322206W GRILLE (WHITE)
WP2206670B WP2206670B GRILLE, OVERFLOW
WP2206670T WP2206670T GRILLE, OVERFLOW (BISCUIT)
WP2206670W WP2206670W GRILLE, OVERFLOW (WHITE)
WP4387558 WP4387558 GROMMET
W11661108 W11661108 GROMMET
W11669856 W11669856 GROMMET
WP2180224 WP2180224 GUIDE, ICE
WP2304832S WP2304832S HANDLE
2203031 2203031 HANDLE
2255516B 2255516B HANDLE (BLACK)
2304832T 2304832T HANDLE (INCLUDES 9) (BISCUIT)
2304832B 2304832B HANDLE (INCLUDES 9) (BLACK)
2304832W 2304832W HANDLE (INCLUDES 9) (WHITE)
W10297478 W10297478 HARNESS, FAN EVAPORATOR (INCLUDES NO.6)
2187849 2187849 HARNESS, MAIN CONTROL
WP2187467 WP2187467 HARNESS, WIRING ICEMAKER
W10683539 W10683539 HARNS-DISP
2224022 2224022 HEAT SHIELD
WP2210737 WP2210737 HEATER
WP2307152 WP2307152 HINGE ASSEMBLY, BOTTOM-FC
WP2307179 WP2307179 HINGE ASSEMBLY, BOTTOM-RC
2307008AP 2307008AP HINGE TOP, RC (APOLLO GREY)
2307008T 2307008T HINGE TOP, RC (BISCUIT)
2307008B 2307008B HINGE TOP, RC (BLACK)
2307007AP 2307007AP HINGE, TOP FC (APOLLO GREY)
2307007T 2307007T HINGE, TOP FC (BISCUIT)
2307007B 2307007B HINGE, TOP FC (BLACK)
WP2212369 WP2212369 HOLDER
WP2223883 WP2223883 HOLDER-BEV
WPW10121140 WPW10121140 HOUSING
2223703 2223703 HOUSING, CONTROL BOARD
2301234 2301234 HOUSING, DOOR CONTROL
WP2195914 WP2195914 HOUSING-IM

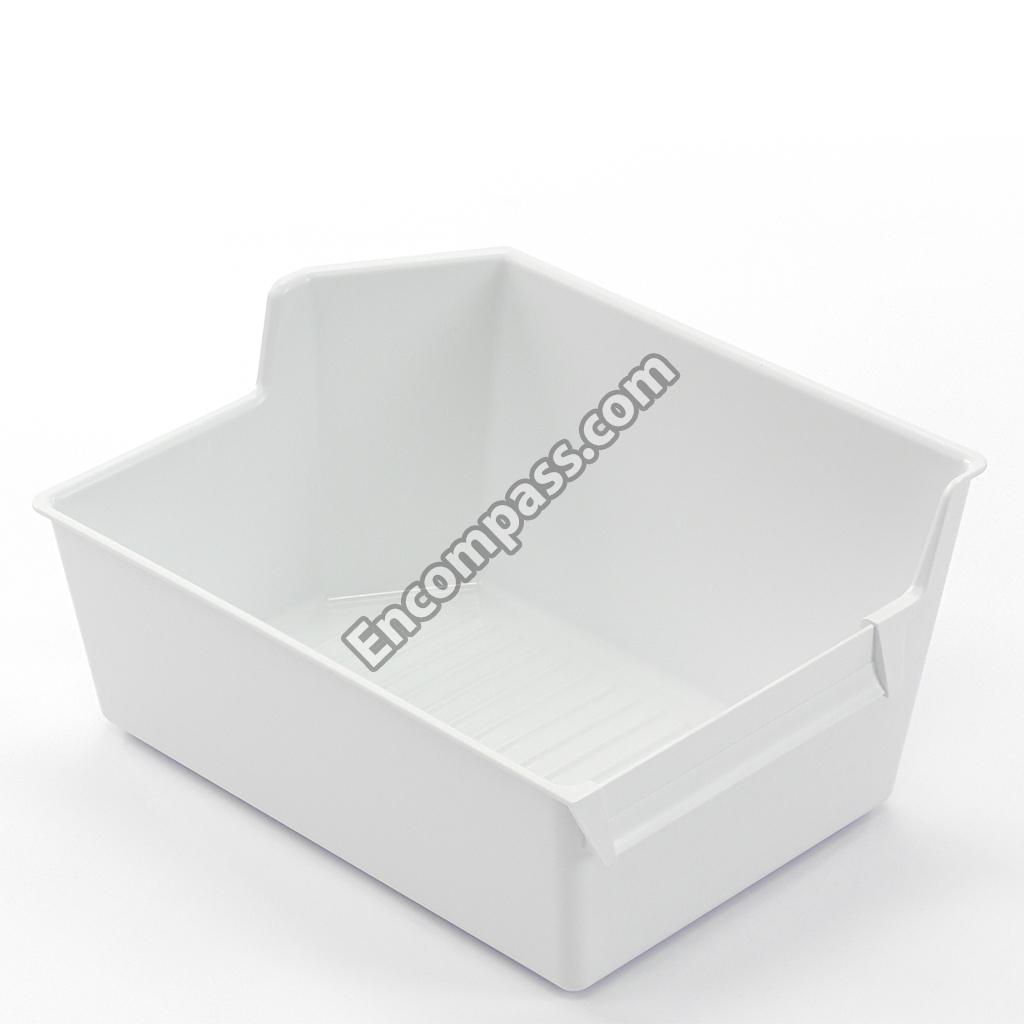

2223317 2223317 ICE BIN
WP2258250 WP2258250 ICE CONTAINER (COMPLETE)
WP2180353 WP2180353 ICE DOOR
W10823377 W10823377 ICE DOR KT
W10297244 W10297244 ICE STRIPPER
W10247725 W10247725 INLET VALVE
2223996 2223996 INSTALLATION INSTRUCTIONS
W10629033 W10629033 INVRTR-BOX
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
833938 833938 KIT, TERMINAL CONNECTOR
2223414 2223414 LADDER (LEFT SIDE)
2223415 2223415 LADDER (RIGHT SIDE)
2223456 2223456 LADDER, SHELF (2)
WP2198643 WP2198643 LENS
2259396T 2259396T LEVER, ICE DISPENSER (BISCUIT)
2259396SB 2259396SB LEVER, ICE DISPENSER (BLACK)
2259396W 2259396W LEVER, ICE DISPENSER (WHITE)
2259395T 2259395T LEVER, WATER DISPENSER (BISCUIT)
2259395SB 2259395SB LEVER, WATER DISPENSER (BLACK)
2259395W 2259395W LEVER, WATER DISPENSER (WHITE)
WPA3073101 WPA3073101 LIGHT BULB
W11679940 W11679940 LIGHT BULB
2223663 2223663 LIGHT CAMERA LENS
WP2302848 WP2302848 LIGHT SHIELD
2223790 2223790 MEAT PAN (INCLUDES 13, 14, 19 & 22)
2220407 2220407 MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD & HEATER ASSEMBLY (ALSO ORDER) 542638 SILICONE GREASE
WP2252130 WP2252130 MOTOR
W10124096 W10124096 MOTOR, FAN
W10190935 W10190935 MOTOR-MODL
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAPHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP2198634 WP2198634 PIN
WP2196195 WP2196195 PIN
2223387 2223387 PIN, ROLLER (4)
2301979 2301979 PLATE, MOUNTING
2171846 2171846 RELEASE VALVE
WPW10276792 WPW10276792 RESERVOIR
WP2315522 WP2315522 RETAINER THERMOSTAT
WP2194719 WP2194719 RETAINER, LEVERS
4318078 4318078 ROLLER
WPW10173132 WPW10173132 ROLLER-CAB
WPW10199222 WPW10199222 ROLLER-CAB
489229 489229 ROLLPIN
2305474 2305474 SAFETY BARRIER
489136 489136 SCREW
8533917 8533917 SCREW
W11661574 W11661574 SCREW
WPW10141625 WPW10141625 SCREW
WP8281196 WP8281196 SCREW
8281197 8281197 SCREW
WP488234 WP488234 SCREW
WP3400906 WP3400906 SCREW
WP3196557 WP3196557 SCREW
WP489483 WP489483 SCREW
WP488163 WP488163 SCREW
W11366418 W11366418 SCREW
WPW10170540 WPW10170540 SCREW
WP8281163 WP8281163 SCREW
2198671 2198671 SCREW
WPW10142283 WPW10142283 SCREW
W10154233 W10154233 SCREW
798639 798639 SCREW
W10853301 W10853301 SCREW
WPW10141645 WPW10141645 SCREW
3400108 3400108 SCREW
W10151272 W10151272 SCREW
WP489497 WP489497 SCREW
WP681249 WP681249 SCREW
WP8281164 WP8281164 SCREW
WP3400065 WP3400065 SCREW (2)
W11233072 W11233072 SCREW (5)
3400524 3400524 SCREW (6)
WP3400806 WP3400806 SCREW (IF APPLICABLE)
WP489261 WP489261 SCREW (REPAIR)
WP3-24004-109 WP3-24004-109 SCREW (USE ON CRISPER COVER, AS SHOWN, IF APPLICABLE)
W10142289 W10142289 SCREW 8-18 X 5/8
4389654 4389654 SCREW NO.8 X 3/8 HEX
WP3400012 WP3400012 SCREW PANEL (ALSO ORDER ITEM NO.15)
WP489464 WP489464 SCREW, 1/4-28 X 1
WPW10272364 WPW10272364 SCREW, 10-16 X 5/8
2006254 2006254 SCREW, 6-19 X .250
WP489478 WP489478 SCREW, 8-18 X .50
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP2198628 WP2198628 SEAL
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
2223419 2223419 SERVICE & WIRING SHEET
2223500 2223500 SHELF ASSEMBLY, CANTILEVER (2)
W10235943 W10235943 SHELF ASSEMBLY, CANTILEVER (2)
2223788 2223788 SHELF TRACK (LEFT SIDE)
2223787 2223787 SHELF TRACK (RIGHT SIDE)
WP2301566 WP2301566 SHELF, SNACK PAN
WP2223681 WP2223681 SHELF-WIRE
2223680 2223680 SHIELD, HEAT
2303378 2303378 SHIELD, WIRING
2223545 2223545 SHIM
W11661094 W11661094 SLEEVE
WP2212365 WP2212365 SLEEVE, COUPLING
2252127 2252127 SLEEVE, MECHANISM
2224123 2224123 SLIDE MEAT PAN CONTROL
2301235 2301235 SLIDE, DOOR CONTROL
2301026 2301026 SLIDE, HUMIDITY
2212321 2212321 SLIDE, ICE MAKER
2306900 2306900 SLIDE, ICE MAKER MOUNTING (LEFT SIDE)
2315398 2315398 SLIDE, ICE MAKER SHUT OFF
2301023 2301023 SNACK PAN (INCLUDES 30 & 31)
WPW10191429 WPW10191429 SOCKET
W11606038 W11606038 SOCKET
2223800 2223800 SPACER (5)
WP1119007 WP1119007 SPACER, FLAT (2)
2223777 2223777 SPACER, SLIDE (2)
WP1119005 WP1119005 SPACER, STEP
350930 350930 SPRAY (13 OZ.) (WHITE)
WPW10224328 WPW10224328 SPRING
WP2198635 WP2198635 SPRING
WP2188917 WP2188917 SPRING
W10852956 W10852956 SPRING
WP2198608 WP2198608 SPRING, LATCH
WP2195051 WP2195051 STRAIN RELIEF
W10199260 W10199260 STRAP, ROLLER
W11223328 W11223328 STUD, REAR
WP2196483 WP2196483 STUDY ASSEMBLY
WP2301569 WP2301569 SUPPORT
WP2301570 WP2301570 SUPPORT ASSEMBLY (LEFT SIDE)
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
2223395 2223395 SUPPORT, R.S
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
W11238399 W11238399 TAPE
WP2188820 WP2188820 THERMISTOR
WP627985 WP627985 THERMOSTAT
2301049 2301049 THIMBLE-TOP (FOR WHITE, BLACK, BISCUIT AND STAINLESS VCM MODELS)
WP2205813 WP2205813 TIE-WIRE
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
2223398 2223398 TRAY, EVAPORATOR
WPW10307490 WPW10307490 TRIM, DOOR SHELF
W10528579 W10528579 TUBE
2223353 2223353 TUBE, CONDENSER TO HEAT LOOP
2223352 2223352 TUBE, DISCHARGE
2199954 2199954 TUBE, EXTENSION
8201597 8201597 TUBE, FILTER INLET
2198665 2198665 TUBE, P.C. BOARD
2187737 2187737 UNIT HARNESS
2306982 2306982 USE & CARE GUIDE
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
W10856867 W10856867 WASHER
WP2212370 WP2212370 WASHER
WP489235 WP489235 WASHER RING
WP2198661 WP2198661 WASHER, COUPLING
EDR3RXD1 EDR3RXD1 WATER FILTER
2221562 2221562 WATER FITTING ASSEMBLY (INCLUDES WATER TUBE)
WPW10350006 WPW10350006 WATER TUBE

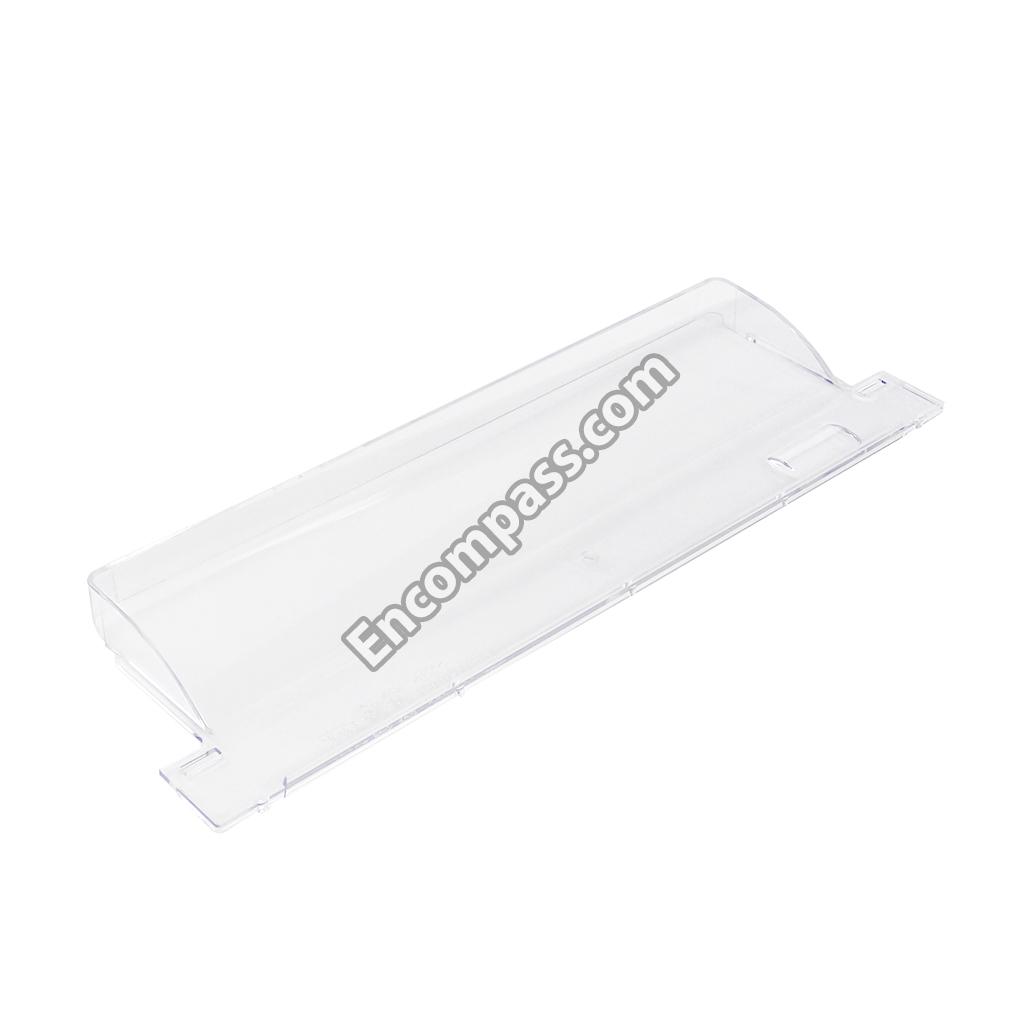

2301006 2301006 WINDOW, SNACK PAN
W10777924 W10777924 WINE/EGG RACK
Main Menu x
