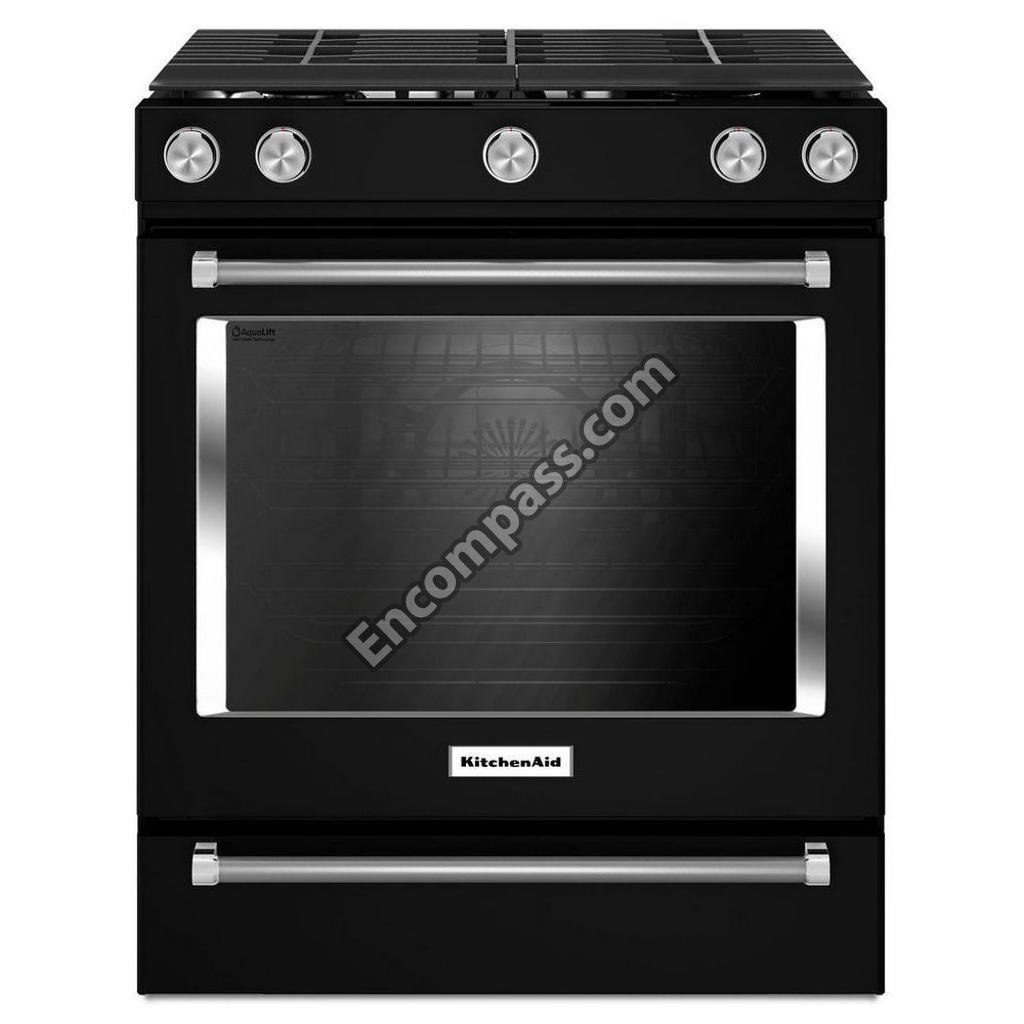

Model Image
Manufacturer

Whirlpool

Model Number

KSGG700EBL0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10731886 W10731886 "ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8"" BLACK)"
W10731887 W10731887 "ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8"" STAINLESS)"
W10731885 W10731885 "ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8"" WHITE)"

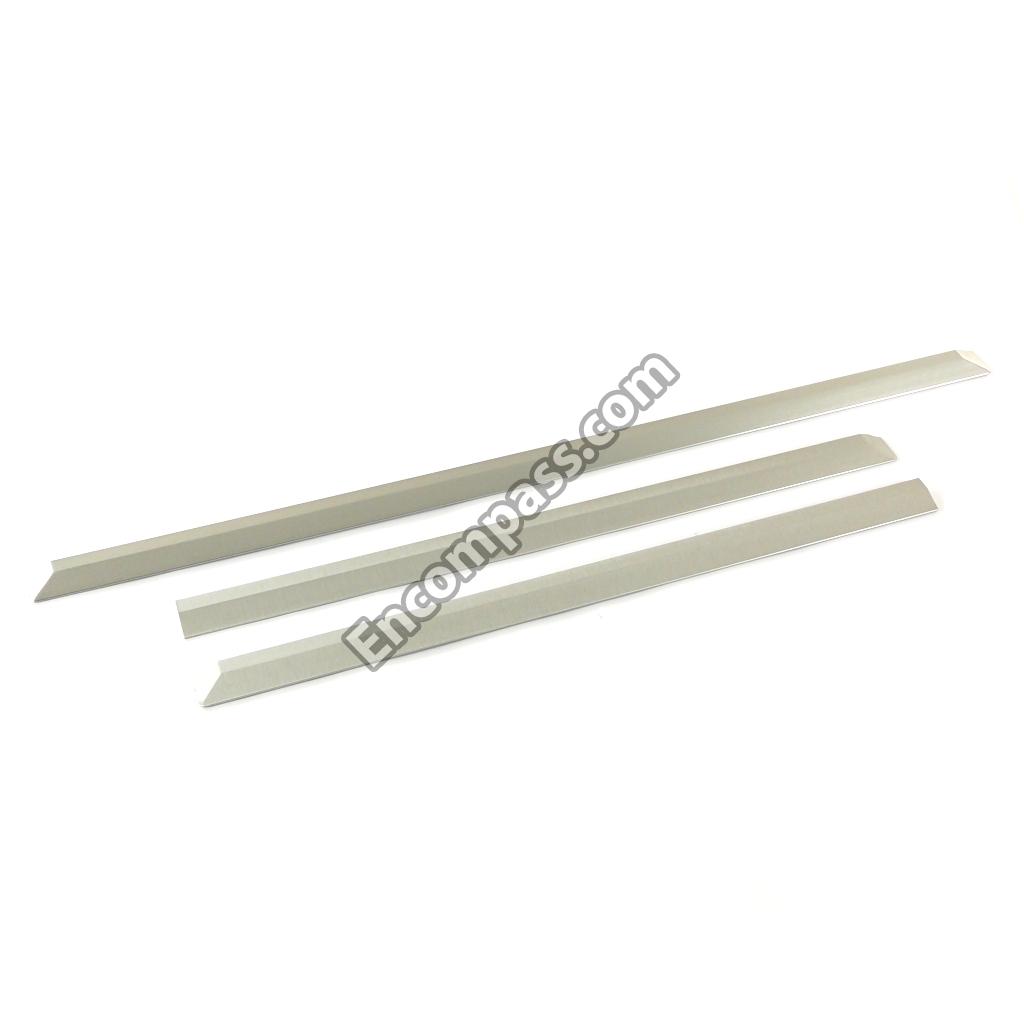

WPW10675028 WPW10675028 "ACCESSORY PARTS, ASSEMBLY, TRIM (5/8"" STAINLESS)"
W10750011 W10750011 ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
31617A 31617A ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN
4396923 4396923 ACCESSORY PARTS, GRID, BROILER PAN AND
242905 242905 ACCESSORY PARTS, KIT, CANNING UNIT
31463A 31463A ACCESSORY PARTS, PROTECTANT, COOKTOP
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W10355051 W10355051 AFFRESH COOKTOP CLEANER
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
W10355049 W10355049 AFFRESH STAINLESS STEEL CLEANE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11502257 W11502257 ANCHOR-TIP
W10655448 W10655448 BACKSPLASH
W10655449 W10655449 BACKSPLASH
W10655450 W10655450 BACKSPLASH

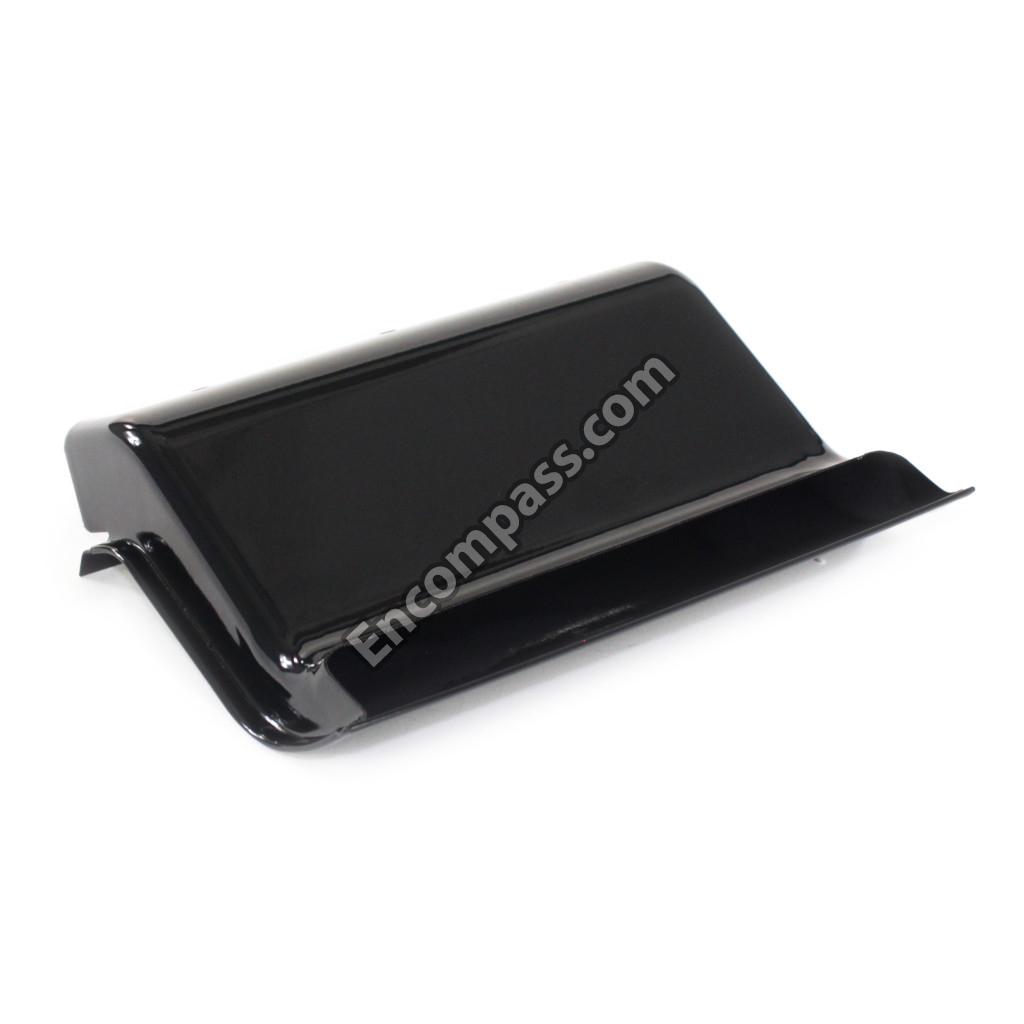

W10323077 W10323077 BAFFL-BRNR
W11676564 W11676564 BAFFL-CONV
3601P356-45 3601P356-45 BAFFLE, BAKE BURNER
3601P336-45 3601P336-45 BAFFLE, BROIL BURNER
W10814133 W10814133 BEZEL-KNOB
WPW10211368 WPW10211368 BOTTM-OVEN
W10289168 W10289168 BOX, BURNER SI
W10558276 W10558276 BOX-BURNER
W10949105 W10949105 BRACKET, SADDLE VALVE
W10541885 W10541885 BRKT-GLASS
WPW10318026 WPW10318026 BRKT-MNTG
W10224921 W10224921 BRKT-MNTG
W10162253 W10162253 BRKT-MNTG
W10162252 W10162252 BRKT-MNTG
W10555933 W10555933 BRKT-MNTG
W10555934 W10555934 BRKT-MNTG
W10555923 W10555923 BRKT-MNTG
W10555932 W10555932 BRKT-MNTG
W10558372 W10558372 BRKT-MNTG
W10541911 W10541911 BRKT-MNTG
W10273002 W10273002 BRKT-SUPRT
W10035900 W10035900 BRKT-SUPRT
W10289169 W10289169 BRKT-SUPRT
W10289170 W10289170 BRKT-SUPRT
W10598048 W10598048 BRKT-SUPRT
W10919249 W10919249 BUMPER
W11104127 W11104127 BUMPER
W11676566 W11676566 BURNR-BRLR

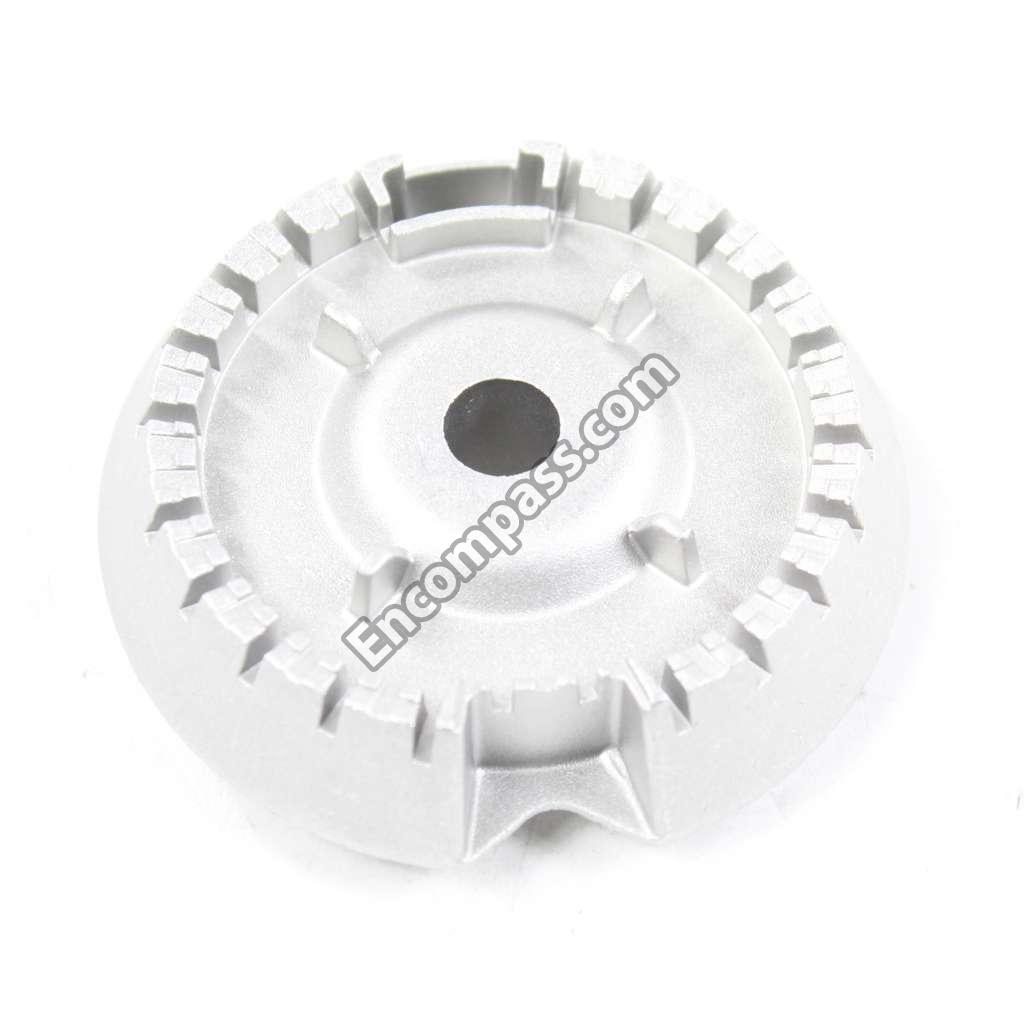

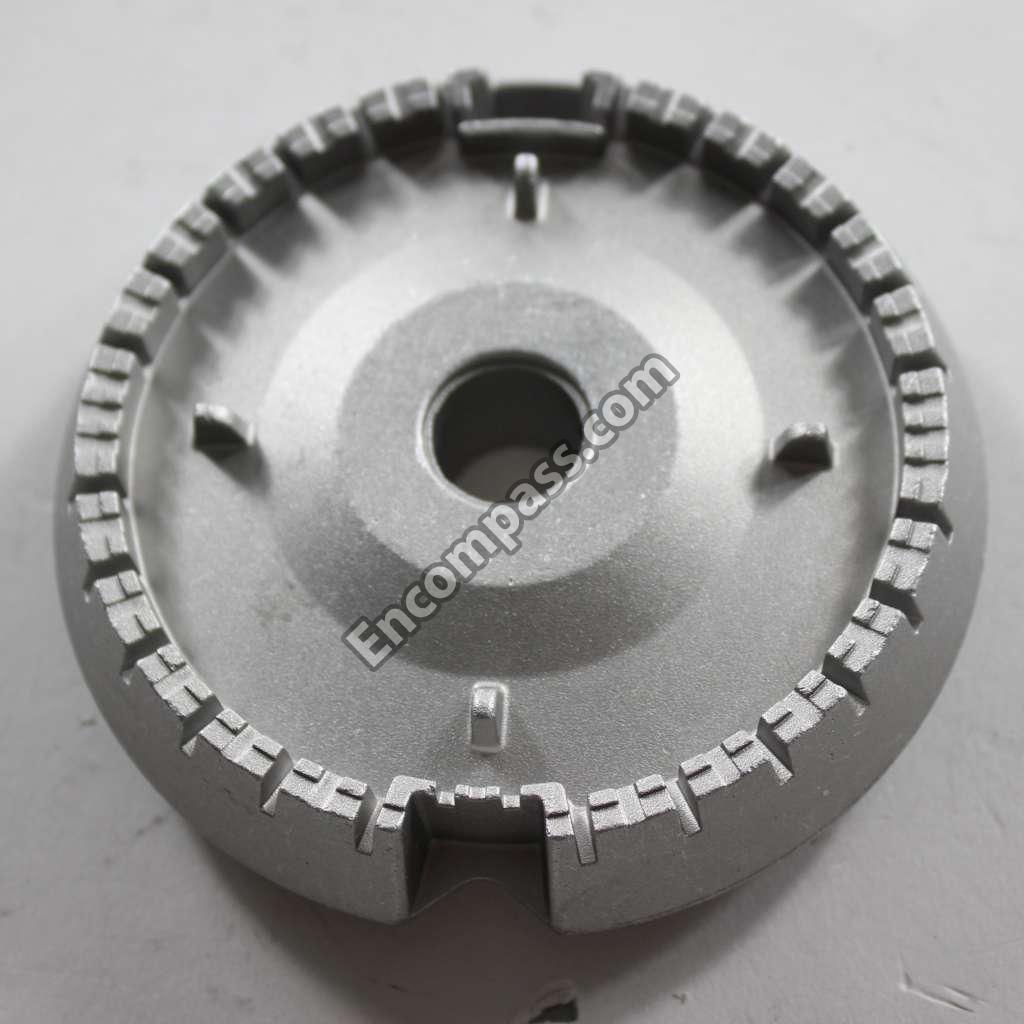

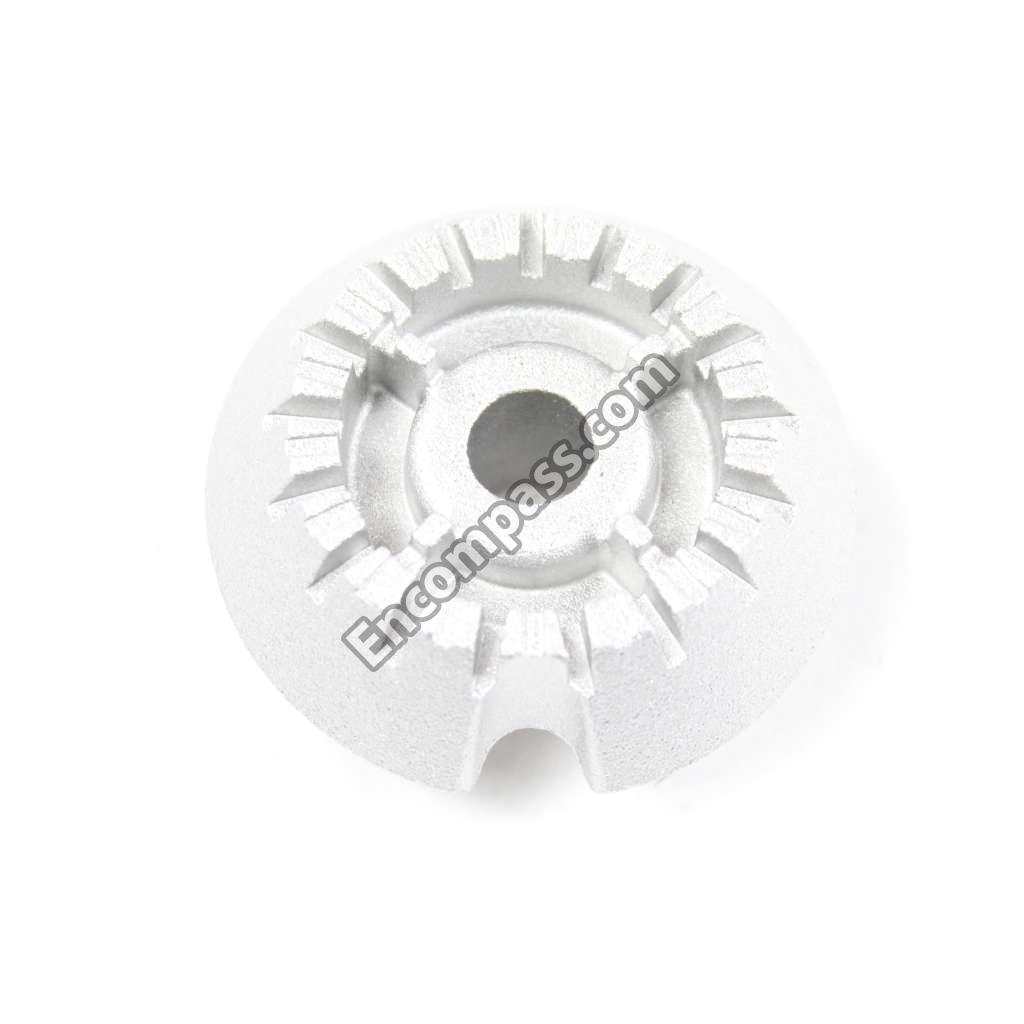

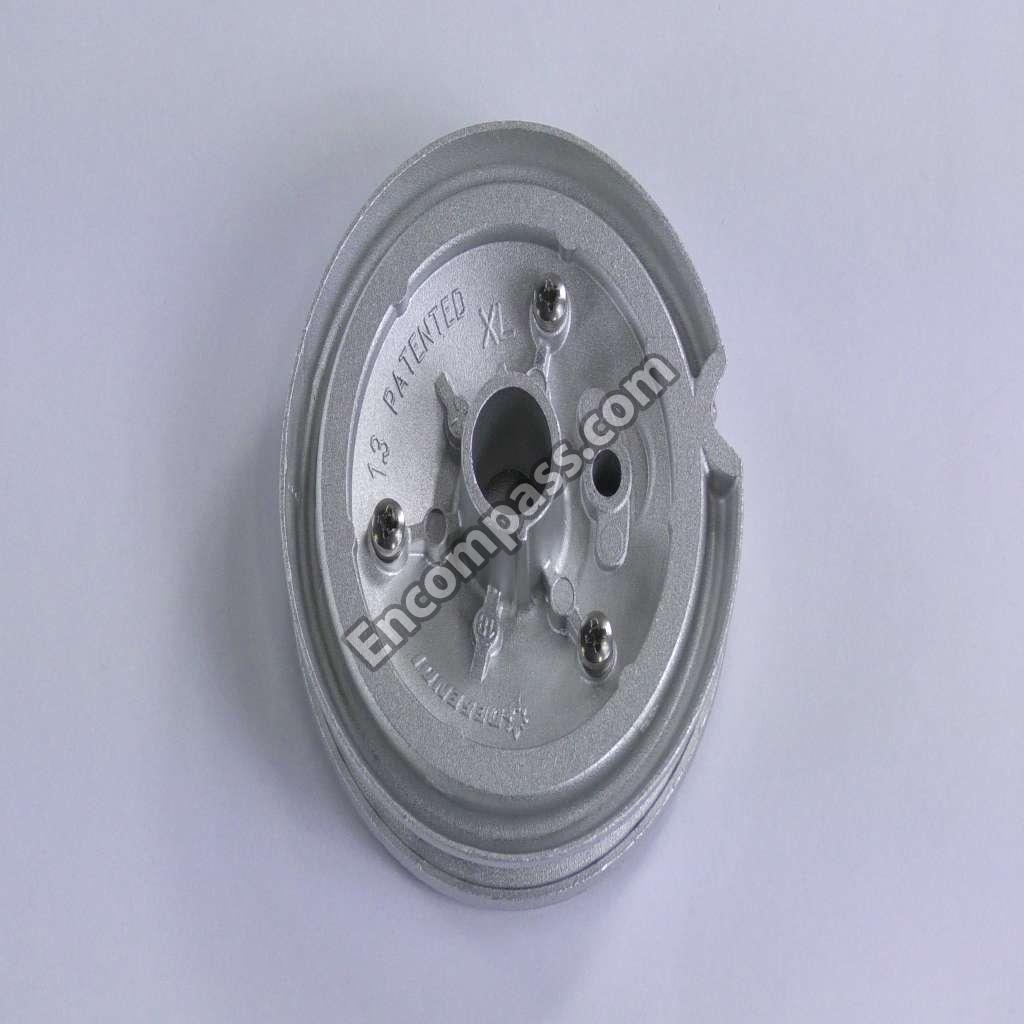

WPW10256025 WPW10256025 BURNR-HEAD
WPW10256028 WPW10256028 BURNR-HEAD
W10836467 W10836467 BURNR-HEAD
W11106799 W11106799 BURNR-HEAD
W10764654 W10764654 BURNR-OVEN
W10876582 W10876582 CAP-BURNER
W10162241 W10162241 CHANNEL
W10336909 W10336909 CLEANER
W10355010 W10355010 CLEANER
W10841090 W10841090 CLIP
W10137382 W10137382 CLIP
W11190173 W11190173 CLIP
16515 16515 CLIP, HARNESS
W10256046 W10256046 CLIP, SPRING (ELECTRODE) (LEFT FRONT ONLY)

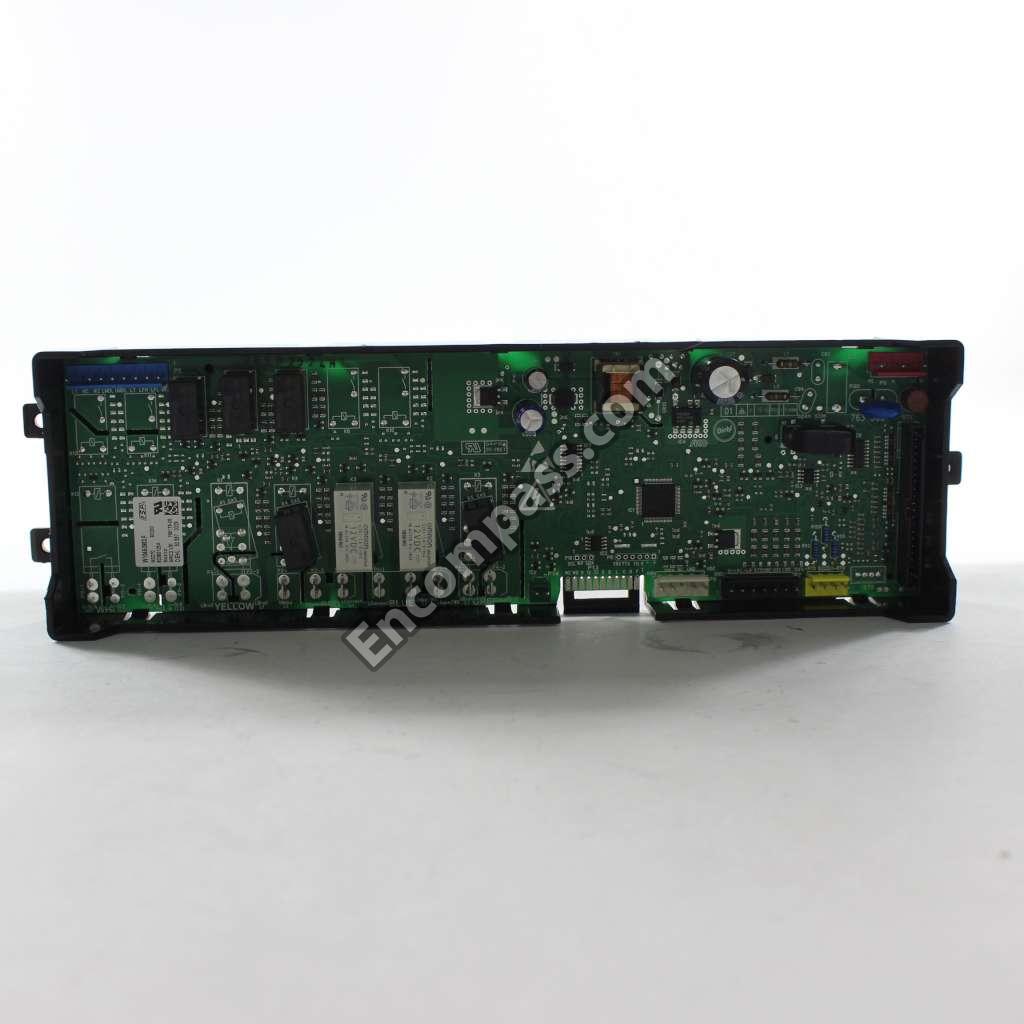

WPW10603096 WPW10603096 CONTROL BOARD
WPW10453983 WPW10453983 CONTROL BOARD
W10795406 W10795406 COOKTOP
W10795407 W10795407 COOKTOP
W10889764 W10889764 CORD, POWER
W11023766 W11023766 CORD-POWER
W10289166 W10289166 COVER-REAR
W11379354 W11379354 COVER-REAR
W10162255 W10162255 COVR-EXHST
W10162249 W10162249 COVR-WIRE
W10275756 W10275756 DEGREASER

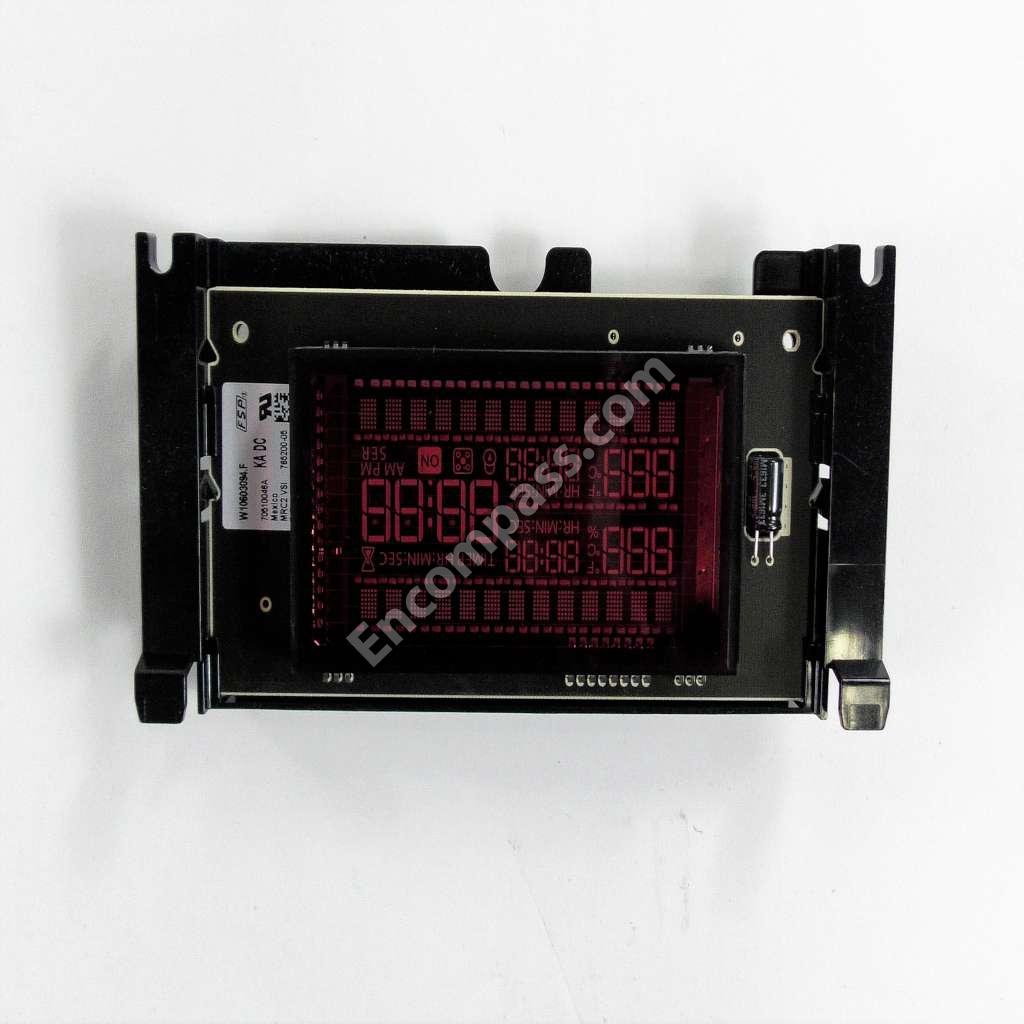

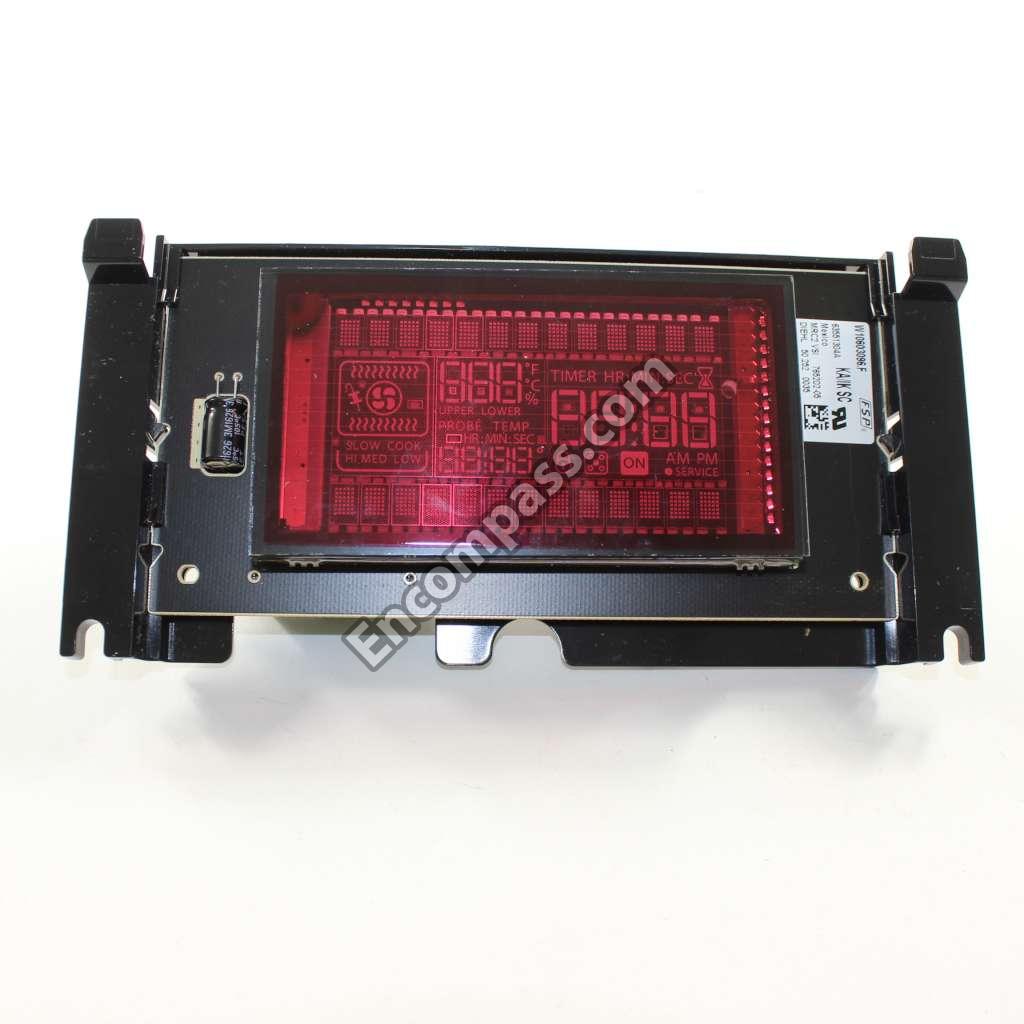

W10909684 W10909684 DISPLAY
WPW10388635 WPW10388635 DOOR HINGE
W10813962 W10813962 DRAWR-UTIL
W10162257 W10162257 DUCT-AIR
W10162254 W10162254 DUCT-AIR

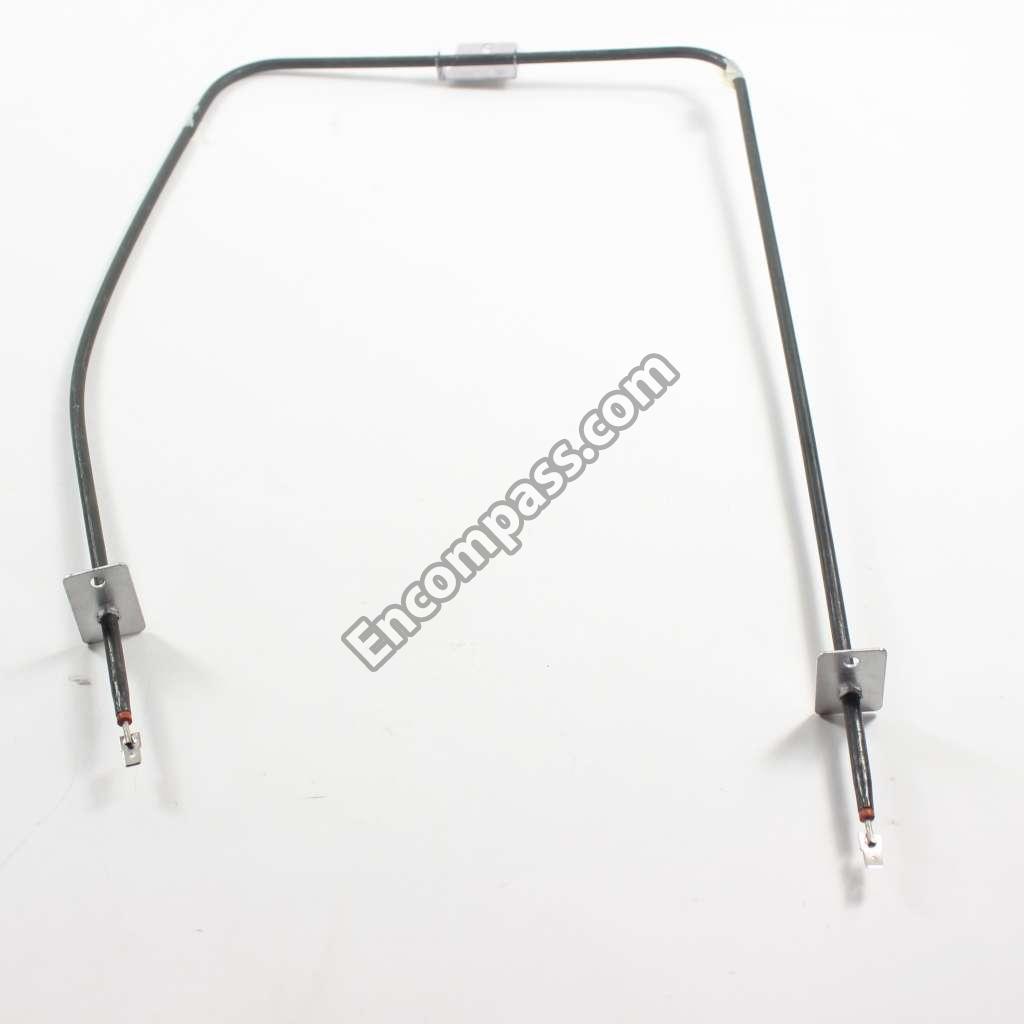

W10552502 W10552502 ELMNT-BROL
W10555936 W10555936 ENDCAP (BLACK (LEFT))
W10555939 W10555939 ENDCAP (BLACK (RIGHT))
W10555937 W10555937 ENDCAP-PNL
W10555940 W10555940 ENDCAP-PNL
W10555938 W10555938 ENDCAP-PNL
W10555935 W10555935 ENDCAP-PNL
W11107275 W11107275 FAN-BLWR
W11441001 W11441001 FAN-CONVCT
W10583216 W10583216 FITTING, BROIL BURNER
W11243157 W11243157 FLUE-OVEN
W10614920 W10614920 FLUE-OVEN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
W10802441 W10802441 GASKET
W11562931 W11562931 GASKT-DOOR
WPW10541888 WPW10541888 GLASS DOOR
WPW10634271 WPW10634271 GLASS DOOR
WPW10634273 WPW10634273 GLASS DOOR
WPW10634272 WPW10634272 GLASS DOOR
W11189172 W11189172 GLIDE-DRWR
W10432545 W10432545 GRATE-GRIL

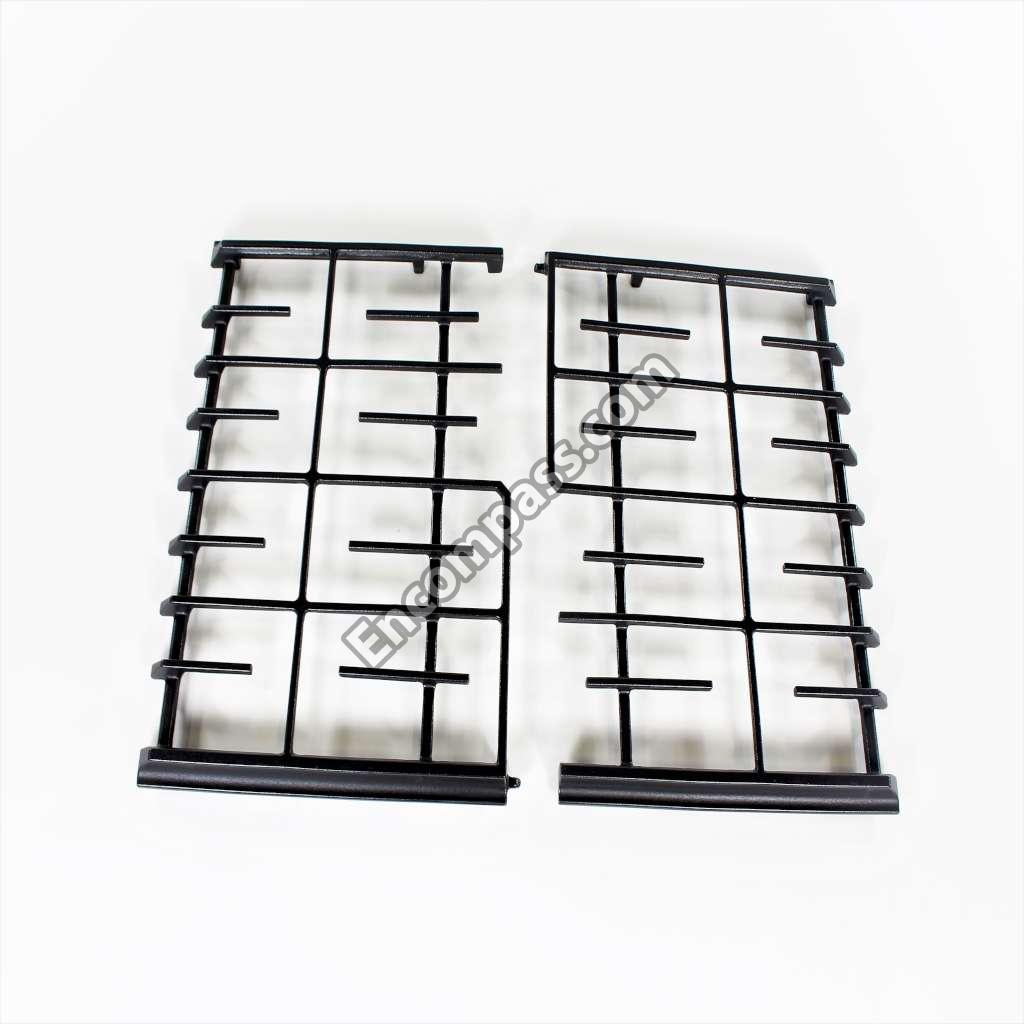

W11026378 W11026378 GRATE-KIT
W10432544 W10432544 GRIDDLE
W10655451 W10655451 GUARD-SPIL
W10400066 W10400066 GUIDE, QUICK START (ENGLISH)
W10400067 W10400067 GUIDE, QUICK START (FRENCH)
W10722060 W10722060 GUIDE, USE & CARE

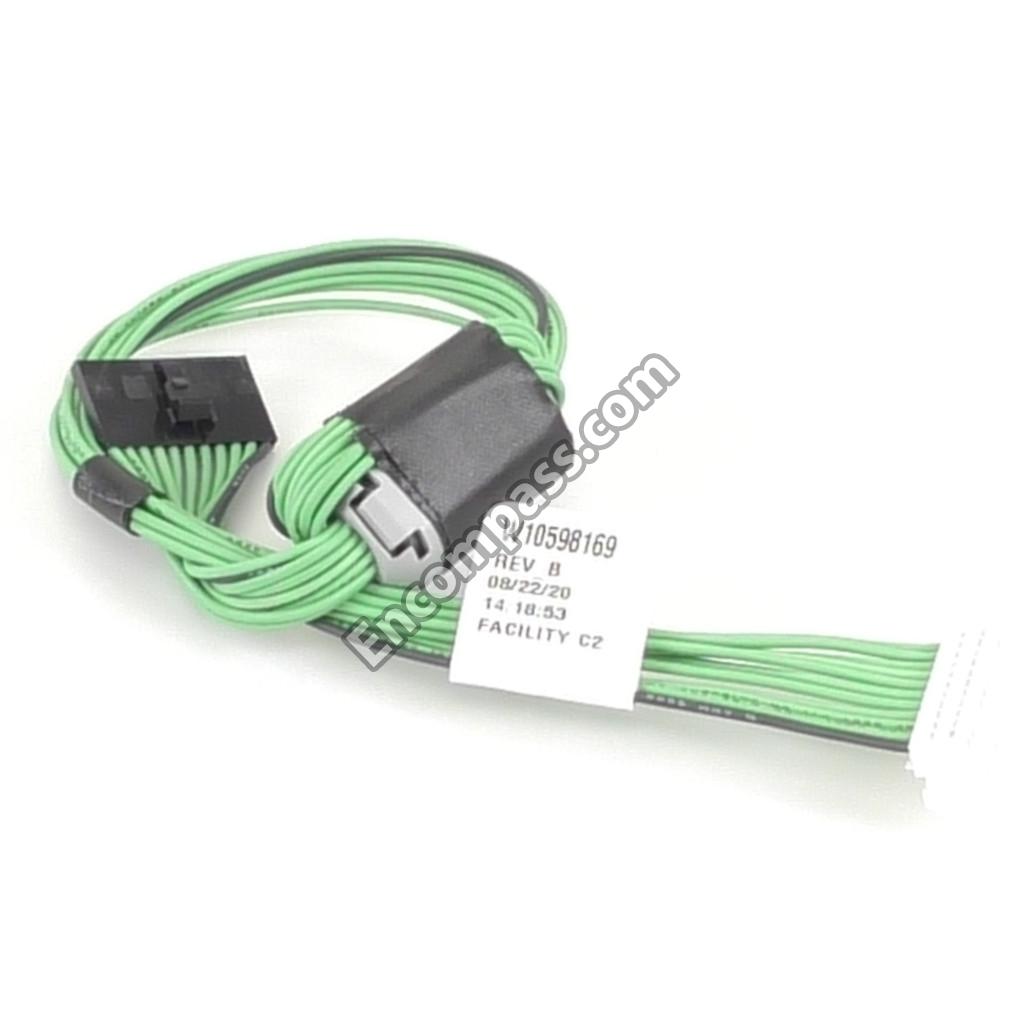

W10911846 W10911846 HARNS-WIRE
W10580228 W10580228 HARNS-WIRE
W11176109 W11176109 HARNS-WIRE
W11025616 W11025616 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
W11104399 W11104399 HNDLE-DOOR
W10552123 W10552123 HOLDER-ORF
W10552119 W10552119 HOLDER-ORF
W11628649 W11628649 HOLDER-ORF
W10552121 W10552121 HOLDER-ORF
W10552124 W10552124 HOLDER-ORF
WPW10333842 WPW10333842 IGNTR-OVEN
WPW10324262 WPW10324262 IGNTR-OVEN
W11050467 W11050467 IGNTR-SURF
W11447374 W11447374 IGNTR-SURF
W11220383 W11220383 IGNTR-SURF
W11611678 W11611678 IGNTR-SURF
W11025100 W11025100 INSERT
W10665256 W10665256 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
W11688363 W11688363 INSULATION
W11688566 W11688566 INSULATION
W11688782 W11688782 INSULATION
W11684889 W11684889 INSULATION
W11688567 W11688567 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W10757531 W10757531 KEYPAD, SHIELD

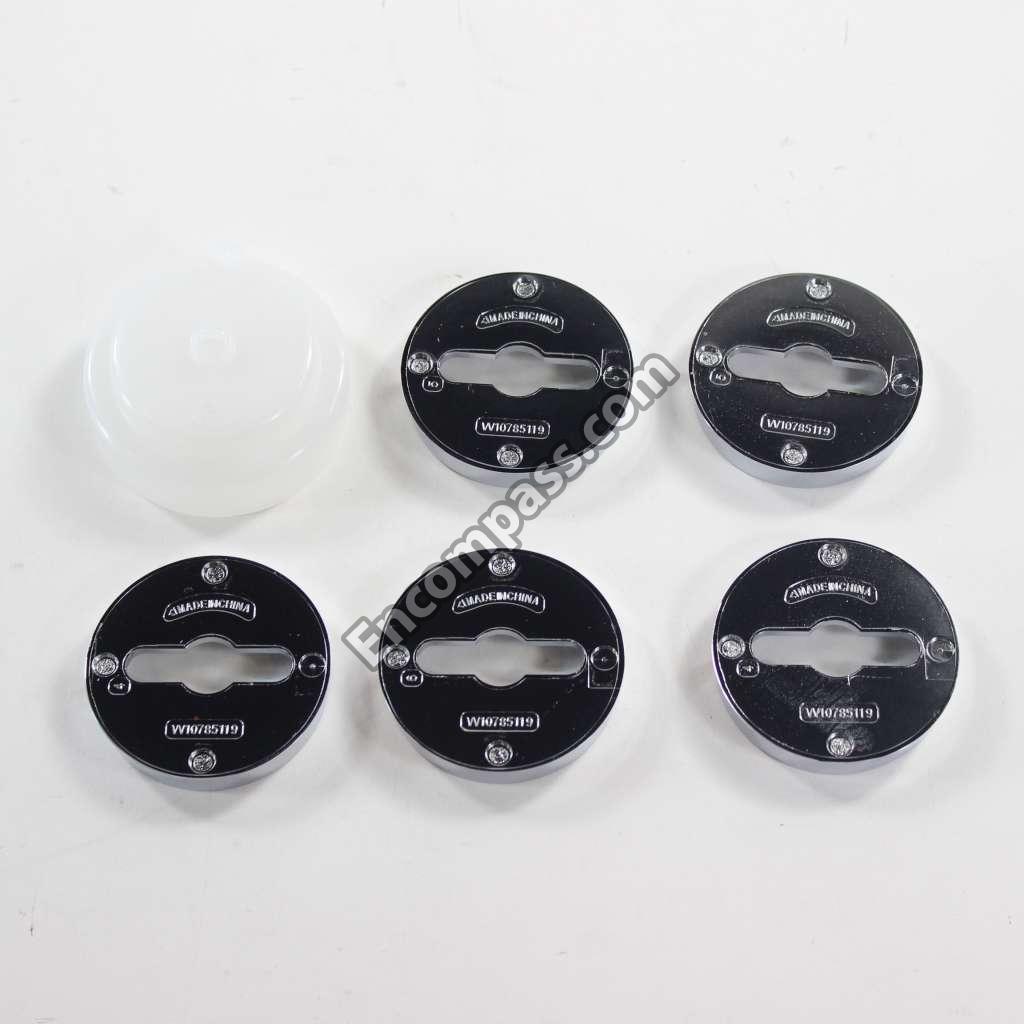

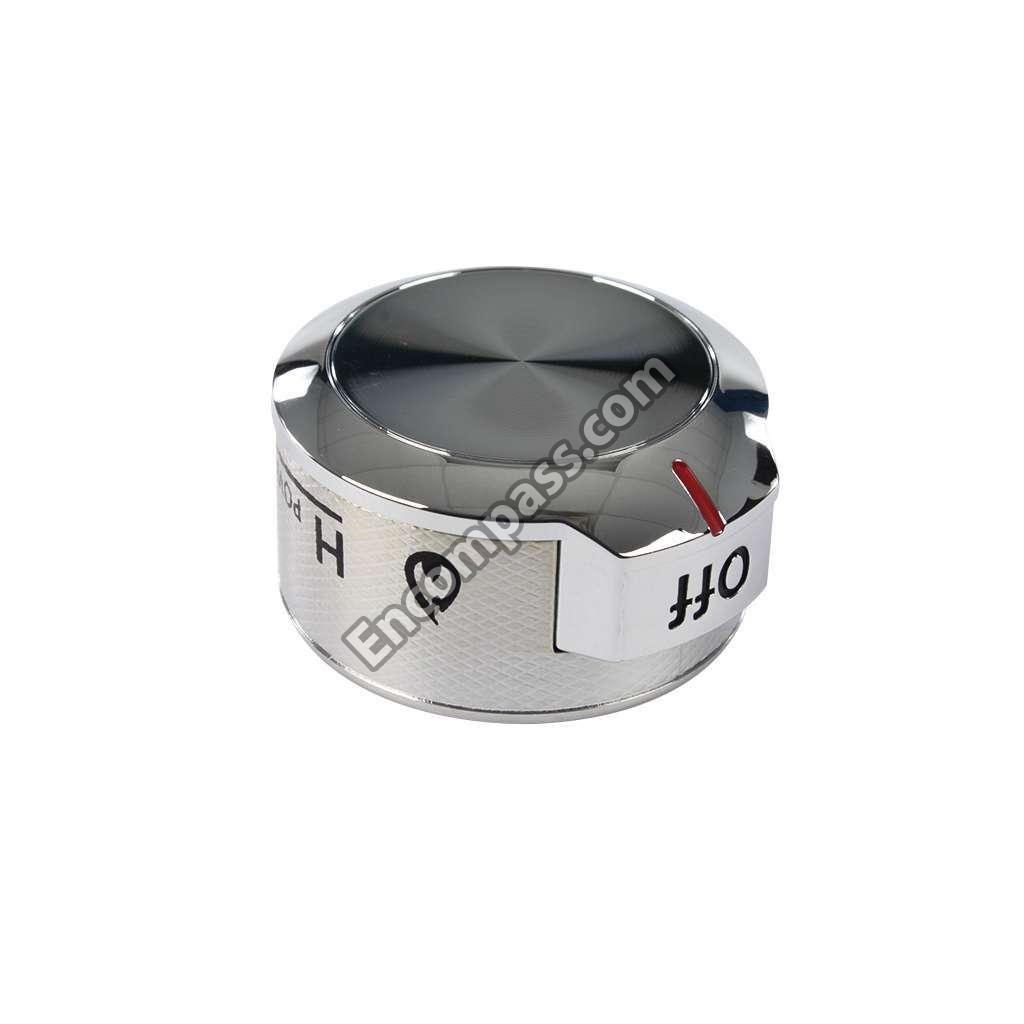

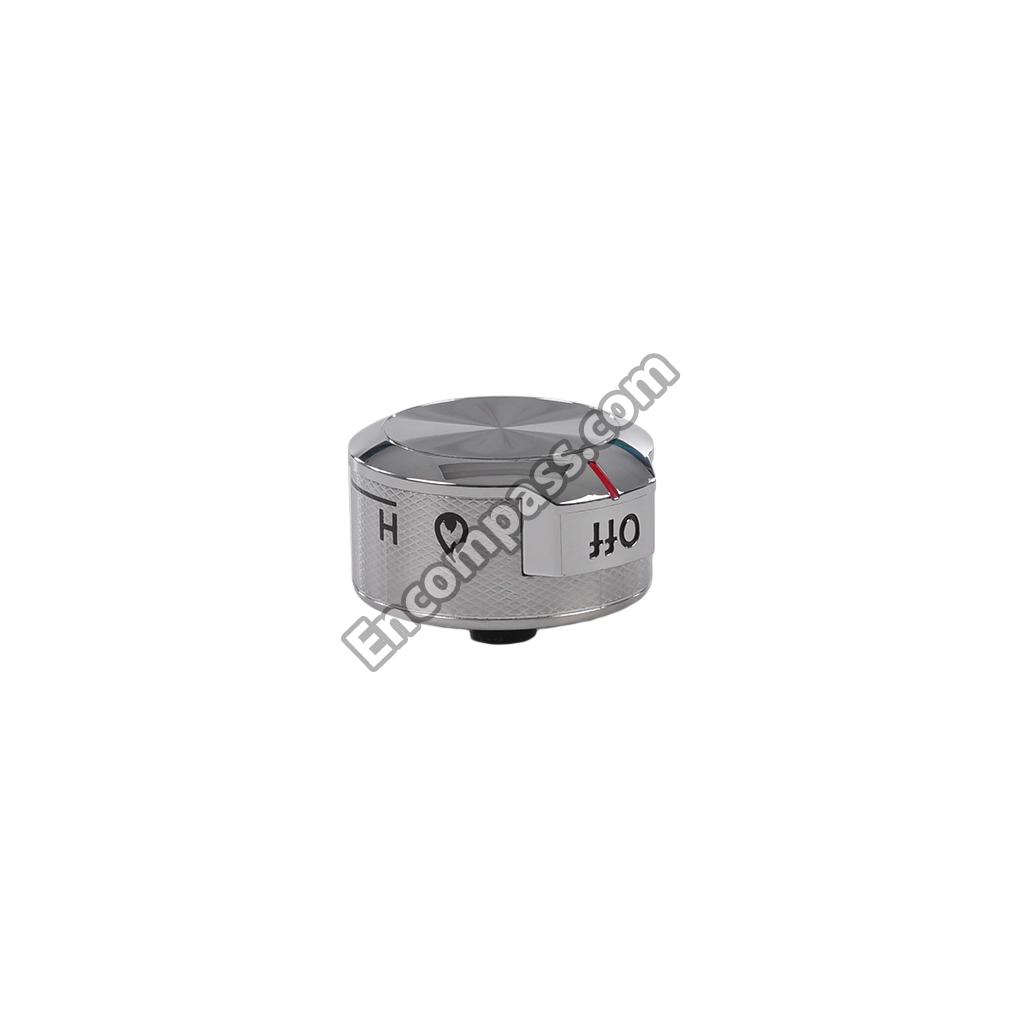

W10872668 W10872668 KNOB
W10872674 W10872674 KNOB
8009 8009 LIGHT BULB
W10541882 W10541882 LINER-DOOR
W10826727 W10826727 MANIFOLD
W10839793 W10839793 NAMEPLATE
W11676355 W11676355 NUT

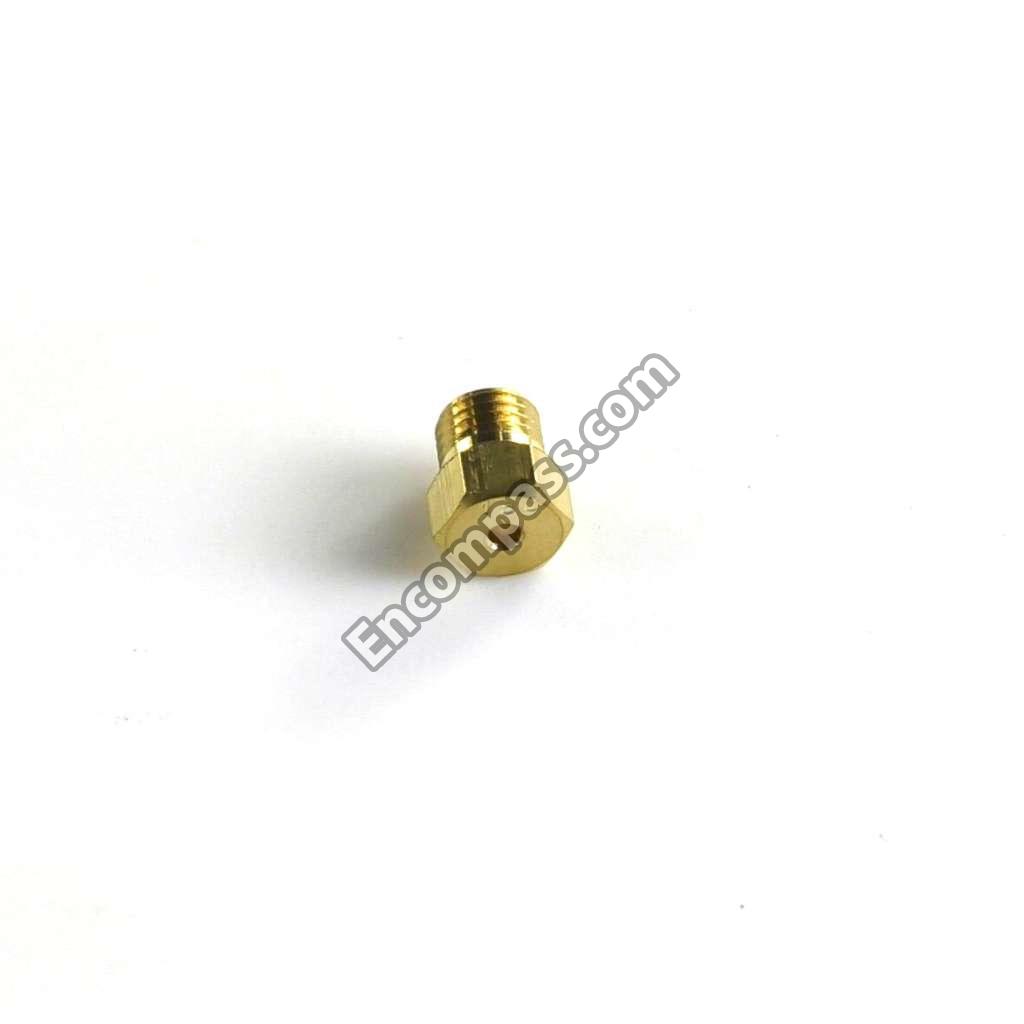

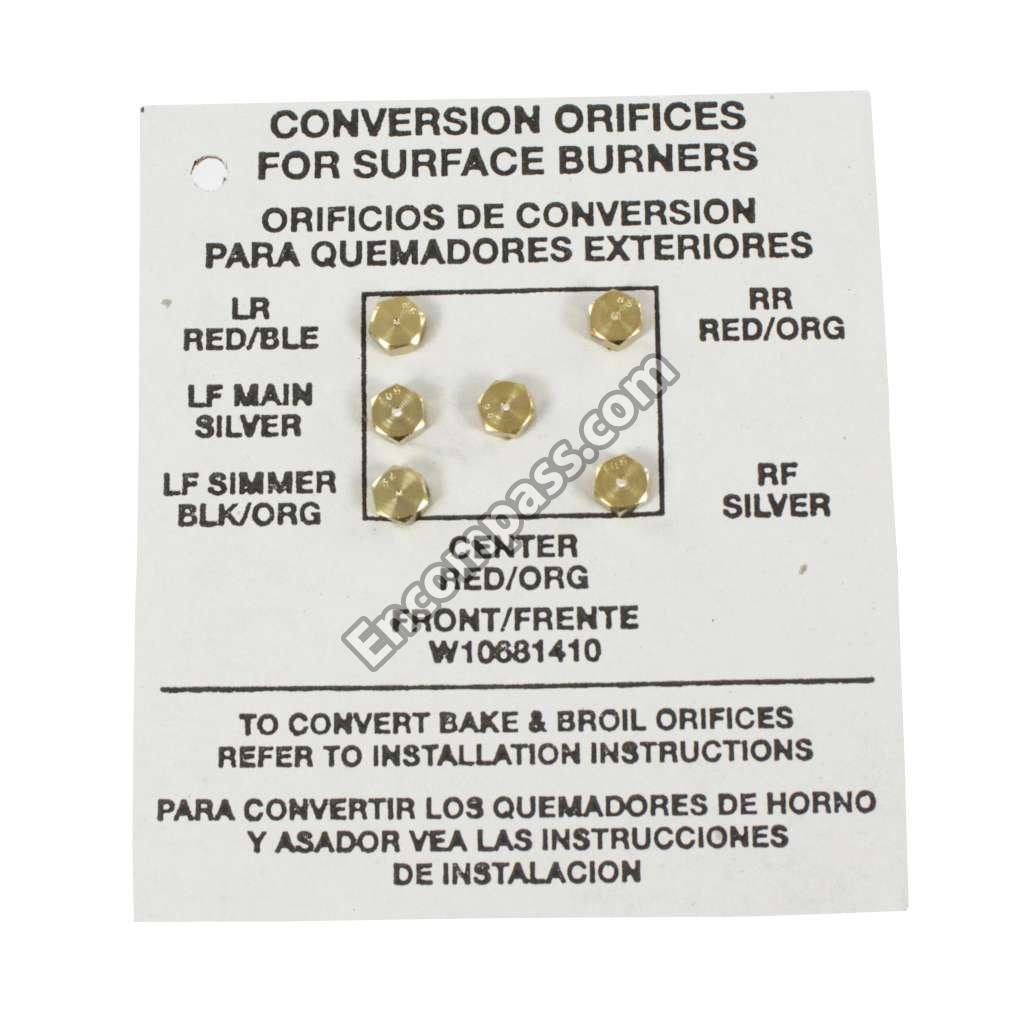

W10821182 W10821182 ORIFICE
W11051480 W11051480 ORIFICE
W10391473 W10391473 PAD-CLEANG
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11379356 W11379356 PAN, BAKE
W10123240 W10123240 PAN-BROILR
W10861216 W10861216 PANEL-DRWR
W10541953 W10541953 PANEL-DRWR
W10541952 W10541952 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
WPW10162245 WPW10162245 PANEL-SIDE

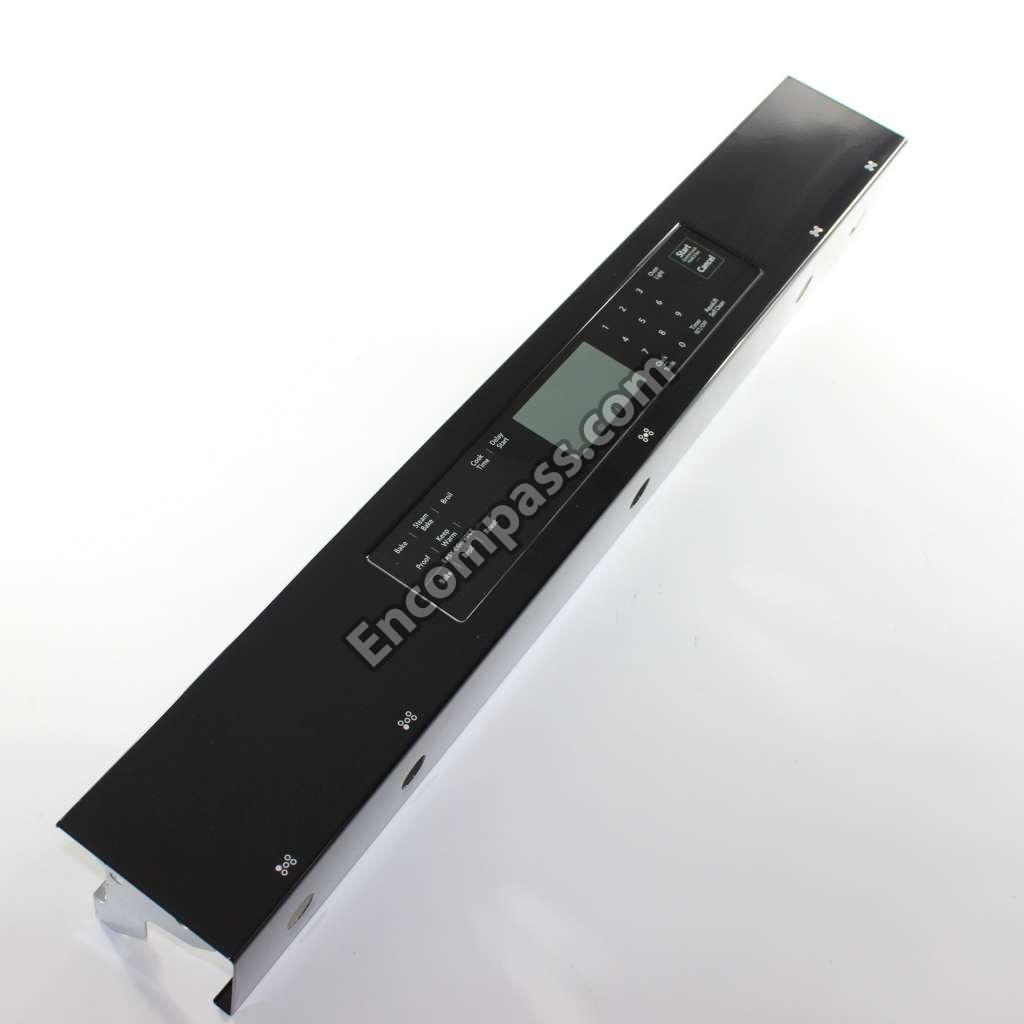

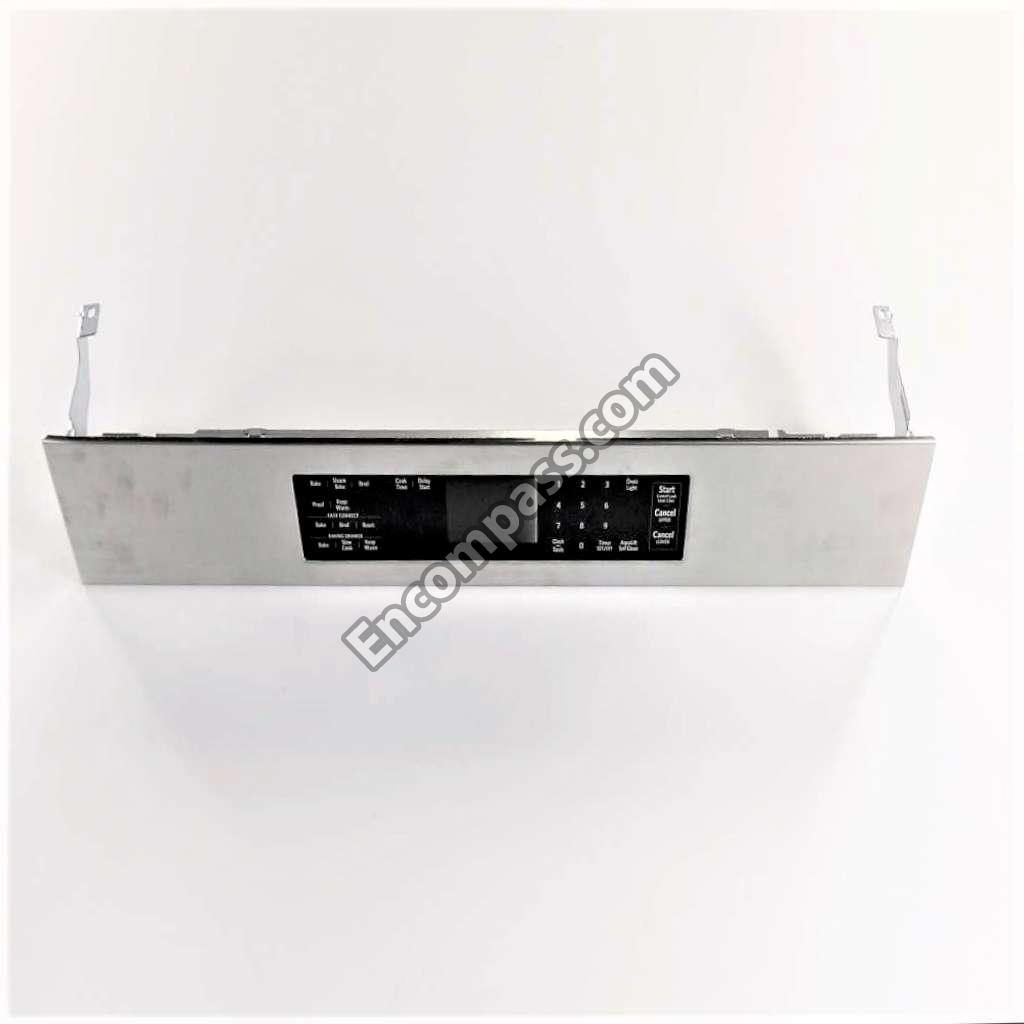

W11029431 W11029431 PANL-CNTRL
W10547094 W10547094 PANL-CNTRL
W10547095 W10547095 PANL-CNTRL
W11673270 W11673270 RACK-OVEN
W11699908 W11699908 RACK-OVEN
W11256463 W11256463 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
WPW10475149 WPW10475149 RANGE SPARK MODULE
W10860916 W10860916 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10861656 W10861656 REGULATOR
W11403917 W11403917 RESERVOIR
W10273192 W10273192 ROD-DOOR
WP355214 WP355214 SCREW
WPW10031790 WPW10031790 SCREW
W11245710 W11245710 SCREW
WP8533988 WP8533988 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
WPW10067840 WPW10067840 SCREW
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
WP3196557 WP3196557 SCREW
W11233072 W11233072 SCREW
W11241230 W11241230 SCREW
3400964 3400964 SCREW, GROUND
W10295997 W10295997 SCREW, VALVE
W10140571 W10140571 SEAL-SWTCH
W10833885 W10833885 SENSOR
W10665227 W10665227 SHEET, TECH
W10655485 W10655485 SHIELD
W11117035 W11117035 SHIELD, WIRE
W10541959 W10541959 SHIELD-HT
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
W11190816 W11190816 SPACER
W10877054 W10877054 SPACER

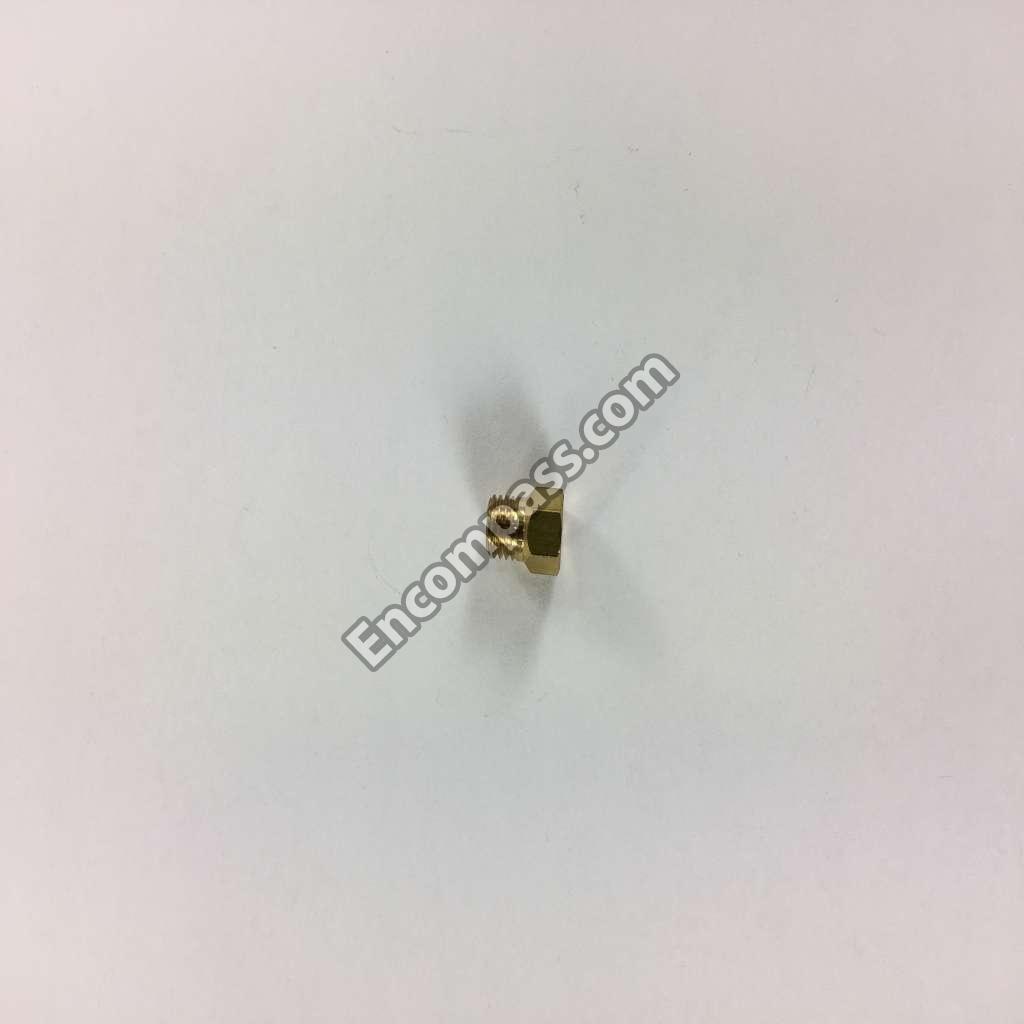

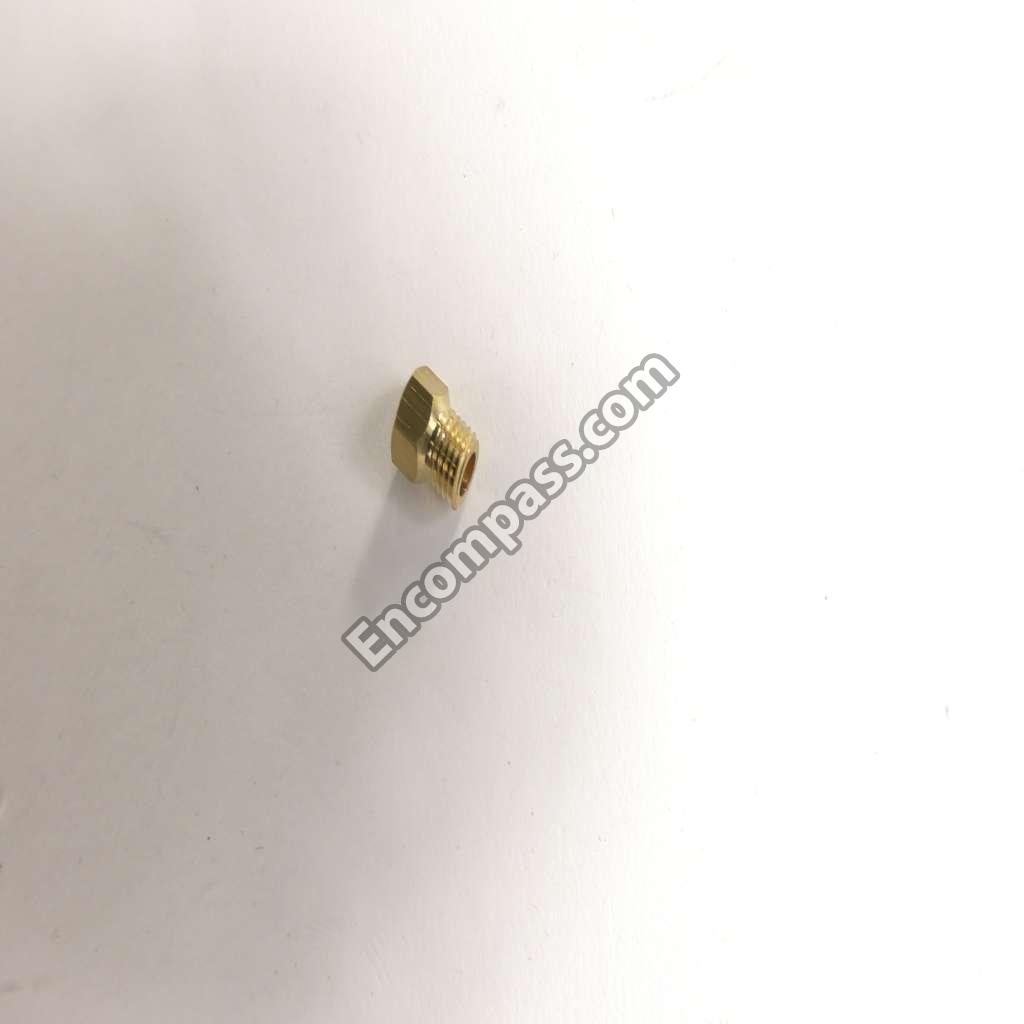

W11752198 W11752198 SPUD-ORFCE
W10756981 W10756981 SPUD-ORFCE
W10819958 W10819958 SPUD-ORFCE
W11087486 W11087486 SPUD-ORFCE
W10657947 W10657947 SPUD-ORFCE
W10657949 W10657949 SPUD-ORFCE
W10909678 W10909678 SPUD-ORFCE
W10541883 W10541883 SUPPORT
WP9757262 WP9757262 SWTCH-LITE
WPW10182767 WPW10182767 TIE-WIRE
W11430922 W11430922 TRIM-CKTOP
W10675026 W10675026 TRIM-CKTOP

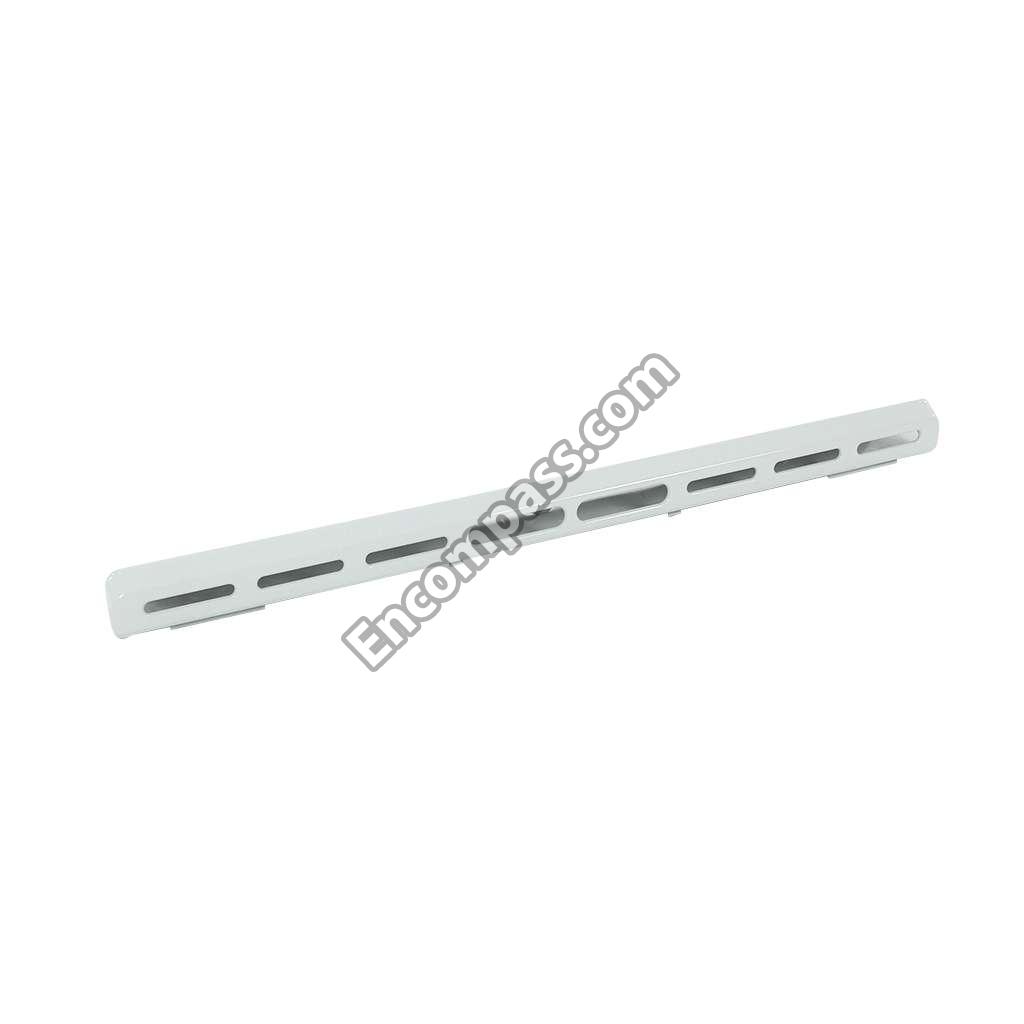

W10577780 W10577780 TRIM-VENT
W11256338 W11256338 TRIM-VENT
W11251351 W11251351 TRIM-VENT
W10613790 W10613790 TRIM-VENT
W10306050 W10306050 TUBING-GAS
W10432252 W10432252 TUBING-GAS

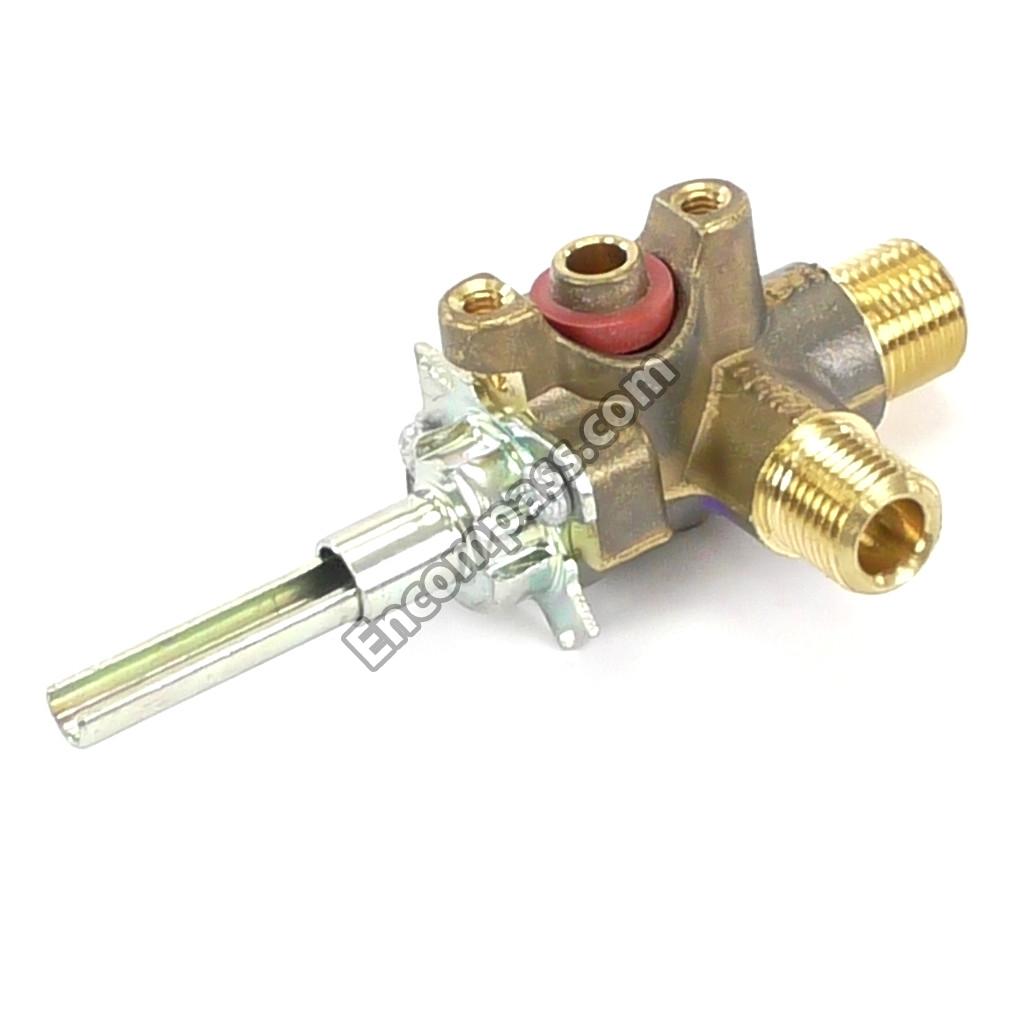

W10831591 W10831591 VALVE, GAS (LEFT REAR)

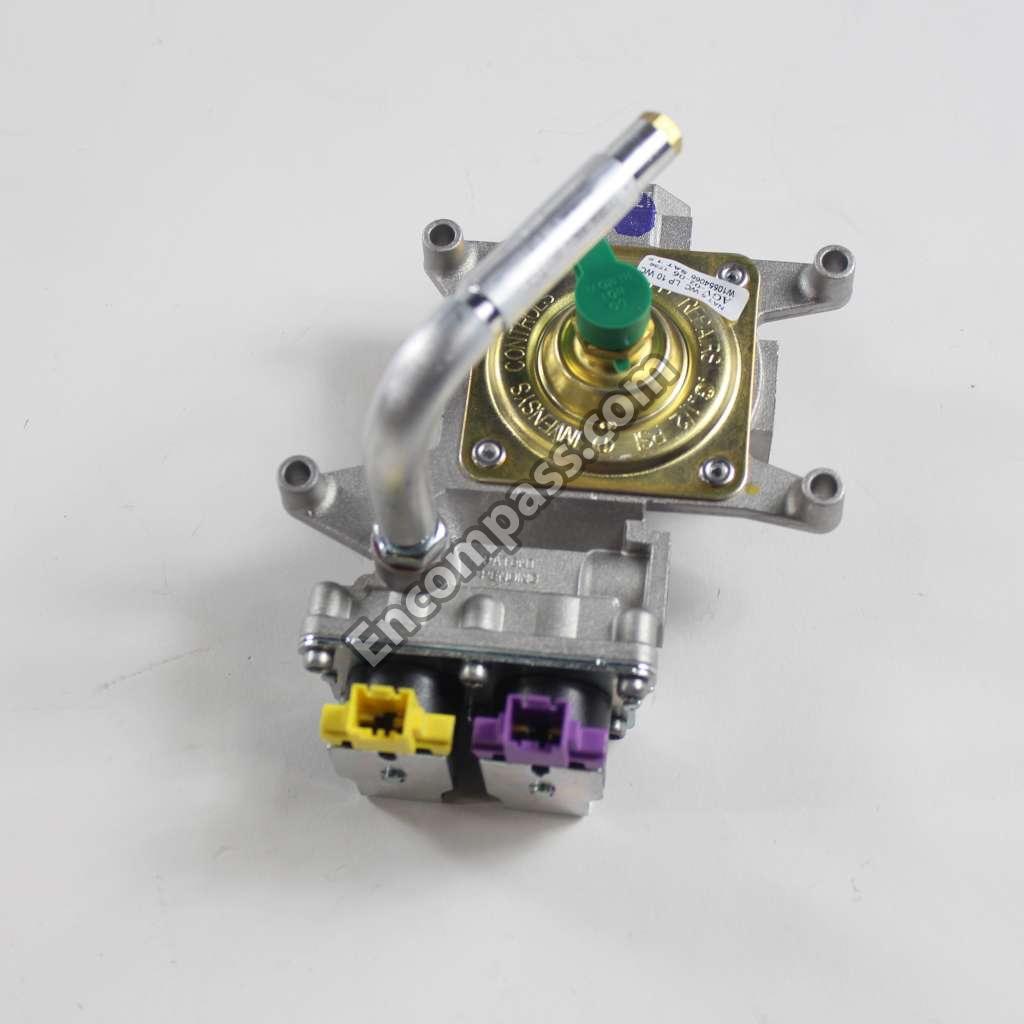

W11109973 W11109973 VALVE-BRNR
W10566055 W10566055 VALVE-BRNR
W11233561 W11233561 VALVE-BRNR
W11241561 W11241561 VALVE-BRNR
W10703182 W10703182 WIRE DIAGRAM
W11376663 W11376663 WIRE HARNESS
W11198972 W11198972 WIRE HARNESS
W10580229 W10580229 WIRE-GROND
