Model Image
Manufacturer

Whirlpool

Model Number

KSGG700EBS6

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10750011 W10750011 ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W10355051 W10355051 ACCESSORY PARTS, CLEANER, COOKTOP
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
W10432545 W10432545 ACCESSORY PARTS, KIT, GRILL
W10391473 W10391473 ACCESSORY PARTS, PAD, COOKTOP CLEANING
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN AND ROASTING
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W11502257 W11502257 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W10655449 W10655449 ASSEMBLY, BACKSPLASH (BLACK)
W10655450 W10655450 ASSEMBLY, BACKSPLASH (STAINLESS)
W10655448 W10655448 ASSEMBLY, BACKSPLASH (WHITE)
W10614920 W10614920 ASSEMBLY, FLUE
W10731886 W10731886 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (1 1/8 IN BLACK)
W10731887 W10731887 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (1 1/8 IN STAINLESS)
W10731885 W10731885 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (1 1/8 IN WHITE)
W10675026 W10675026 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (5/8 IN BLACK)
WPW10675028 WPW10675028 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (5/8 IN STAINLESS)
W11430922 W11430922 ASSEMBLY, TRIM (INCLUDES BLIND THREADED INSERT) (5/8 IN WHITE)
W11676564 W11676564 BAFFL-CONV
3601P356-45 3601P356-45 BAFFLE, BAKE BURNER
3601P336-45 3601P336-45 BAFFLE, BROIL BURNER
W10814133 W10814133 BEZEL-KNOB
WPW10211368 WPW10211368 BOTTM-OVEN
W10289168 W10289168 BOX, BURNER SI
W10162253 W10162253 BRACE, CORNER (LEFT)
W10162252 W10162252 BRACE, CORNER (RIGHT)
W10435470 W10435470 BRACE, MAIN BACK
W10224921 W10224921 BRACKET, AEGIS
W10598048 W10598048 BRACKET, CONSOLE (CENTER)
W10558372 W10558372 BRACKET, CONTROL
W10541911 W10541911 BRACKET, GLASS UPPER HANDLE
W10949105 W10949105 BRACKET, SADDLE VALVE
W11563527 W11563527 BRACKET, SUPPORT (RIGHT)
W10555923 W10555923 BRACKET, USER INTERFACE
W11563529 W11563529 BRACKET,SUPPORT (LEFT)
WPW10318026 WPW10318026 BRKT-MNTG
W11690600 W11690600 BUMPER
W10919249 W10919249 BUMPER
W11676566 W11676566 BURNR-BRLR
W11531097 W11531097 BURNR-HEAD
W11531096 W11531096 BURNR-HEAD
W11531098 W11531098 BURNR-HEAD
W11436986 W11436986 BURNR-HEAD
W10764654 W10764654 BURNR-OVEN
W11436988 W11436988 CAP-BURNER
W11576413 W11576413 CAP-BURNER
W10162241 W10162241 CHANNEL, REAR
W10336909 W10336909 CLEANER
W11684564 W11684564 CLIP
W10841090 W10841090 CLIP
16515 16515 CLIP, HARNESS
W10137382 W10137382 CLIP, PANEL
3196896 3196896 CLIP, WIRE
W10860957 W10860957 CONSOLE, LOWER PANEL (BLACK)
W11105615 W11105615 CONTROL BOARD
W11685628 W11685628 CONTROL BOARD

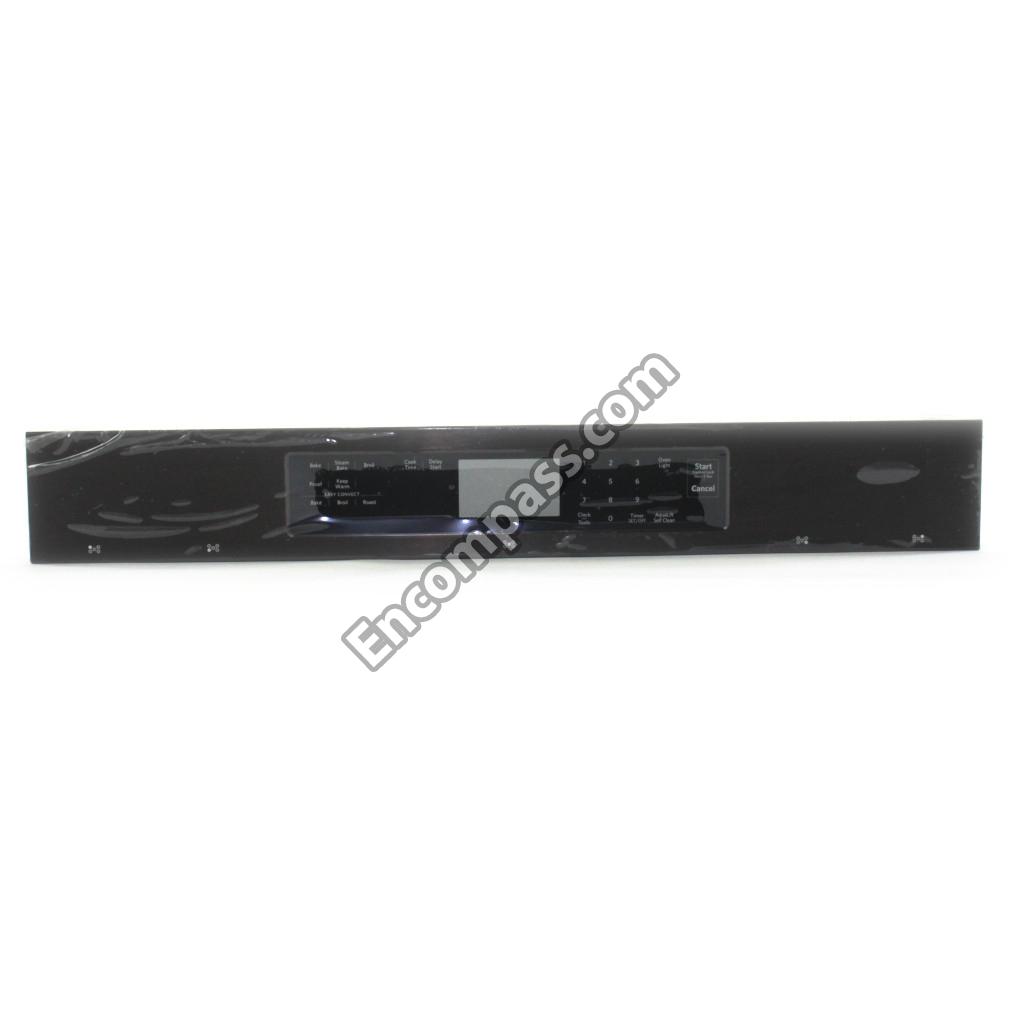

W11091882 W11091882 CONTROL PANEL
W11441000 W11441000 COOKTOP
W11379354 W11379354 COVER, BACK
W10162249 W10162249 COVER, WIRE
W10323077 W10323077 DIFFUSER, FLAME
W11104399 W11104399 DOOR HANDLE
W11162113 W11162113 DOOR HINGE
W10813962 W10813962 DRAWR-UTIL
W10162257 W10162257 DUCT, COOKTOP
W10162254 W10162254 DUCT, COOLING
W10162255 W10162255 DUCT, COVER
W10552502 W10552502 ELEMENT, BROIL ASSIST
W10913412 W10913412 ENDCAP (BLACK (LEFT))
W10913413 W10913413 ENDCAP (BLACK (RIGHT))
W11620737 W11620737 FAN-BLWR
W11441001 W11441001 FAN-CONVCT
W10583216 W10583216 FITTING, BROIL BURNER
W11243157 W11243157 FLUE-OVEN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
W11320442 W11320442 GAS BOX BURNER
W11620671 W11620671 GASKET
W11562931 W11562931 GASKT-DOOR
W11339500 W11339500 GLASS DOOR
W10915619 W10915619 GLASS DOOR
W11189172 W11189172 GLIDE-DRWR
W11026378 W11026378 GRATE-KIT
W10655451 W10655451 GUARD, SPLASH
W10647259 W10647259 HINGE-RECV
W11662212 W11662212 HOLDER-ORF
WPW10333842 WPW10333842 IGNTR-OVEN
WPW10324262 WPW10324262 IGNTR-OVEN
W11661897 W11661897 IGNTR-SURF
W11643126 W11643126 IGNTR-SURF
W11666003 W11666003 IGNTR-SURF
W11675301 W11675301 IGNTR-SURF
W11025100 W11025100 INSERT
WPW10208653 WPW10208653 INSULATION
W11688363 W11688363 INSULATION
W11688567 W11688567 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W11355689 W11355689 KEYPAD SHIELD
W10872674 W10872674 KNOB
W10872668 W10872668 KNOB
WPW10571723 WPW10571723 LIGHT BULB
W10902192 W10902192 LINER-DOOR
W11465340 W11465340 MAIN HARNESS
W11679667 W11679667 MANIFOLD
W10839793 W10839793 NAMEPLATE
W11186518 W11186518 ORIFICE ASSEMBLY (CENTER)
W11186509 W11186509 ORIFICE ASSEMBLY (LEFT REAR)
W11186526 W11186526 ORIFICE ASSEMBLY (RIGHT FRONT)
W11186522 W11186522 ORIFICE ASSEMBLY (RIGHT REAR)
W11426594 W11426594 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11379356 W11379356 PAN, BAKE
W10860958 W10860958 PANEL, DRAWER FRONT 9BLACK)
WPW10162245 WPW10162245 PANEL-SIDE
W11582239 W11582239 POWER CORD
W11427468 W11427468 QUICK START GUIDE
W11673270 W11673270 RACK-OVEN
W11699908 W11699908 RACK-OVEN
W11256463 W11256463 RACK-OVEN
W10813140 W10813140 RAIL, HORIZONTAL SUPPORT
WPW10306546 WPW10306546 RAIL-BASE
WPW10475149 WPW10475149 RANGE SPARK MODULE
W10860916 W10860916 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10861656 W10861656 REGULATOR
W11403917 W11403917 RESERVOIR
W10273192 W10273192 ROD, DOOR SWITCH
WP355214 WP355214 SCREW
WPW10031790 WPW10031790 SCREW
WP8533988 WP8533988 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
W11244557 W11244557 SCREW
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
W11233072 W11233072 SCREW
WP3196174 WP3196174 SCREW
WP3196557 WP3196557 SCREW
W11245710 W11245710 SCREW
W10516115 W10516115 SCREW
W11241230 W11241230 SCREW
WPW10067840 WPW10067840 SCREW
3400964 3400964 SCREW, GROUND
W10295997 W10295997 SCREW, VALVE
W10140571 W10140571 SEAL, SWITCH SHAFT
W10833885 W10833885 SENSOR
W10541959 W10541959 SHIELD, BAKE
W10818358 W10818358 SHIELD, WIRE
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594170 W11594170 SOCKT-LITE
W11190816 W11190816 SPACER
W10877054 W10877054 SPACER
W11673273 W11673273 SPACR-GLAS
W11087486 W11087486 SPUD-ORFCE
W11436985 W11436985 SPUD-ORFCE
W11744483 W11744483 SUPPORT
W10035900 W10035900 SUPPORT, OVEN BOTTOM
W11620712 W11620712 SWTCH-LITE
W11565456 W11565456 TECH SHEET
WPW10182767 WPW10182767 TIE-WIRE
72032 72032 TOUCH-UP PAINT (BLACK)
W11251351 W11251351 TRIM-VENT
W11256338 W11256338 TRIM-VENT
W10306050 W10306050 TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE)
W10432252 W10432252 TUBE, GAS SUPPLY
W11233561 W11233561 VALVE-BRNR
W11241561 W11241561 VALVE-BRNR
W10873134 W10873134 VALVE-BRNR
W11109973 W11109973 VALVE-BRNR
W11676355 W11676355 WASHER
511873 511873 WHITE PORCELAIN (2 OZ.)
W11376663 W11376663 WIRE HARNESS
W11025616 W11025616 WIRE HARNESS
W11176109 W11176109 WIRE HARNESS
W11198972 W11198972 WIRE HARNESS
W10580229 W10580229 WIRE, GROUND
