Model Image
Manufacturer

Whirlpool

Model Number

KSMC50S1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3177258 3177258 5 QT. BOWL, POLISHED STAINLESS STEEL
WP241764 WP241764 ARM-LIFT
W11133634 W11133634 ARMATURE
9708320 9708320 BALL BEARING
9705145 9705145 BASE & FOOT ASSEMBLY (WHITE)
100000 100000 BASE AND FOOT SUPPORTS
W11082541 W11082541 BEARING
W10807813 W10807813 BEATER-MXR
WPW10325124 WPW10325124 BOARD-PHAS
3179300 3179300 BOWL SUPP & PINS (WHITE)
240169 240169 BRACKET, BOWL LIFT
241287-1 241287-1 BREAKER, CIRCUIT
WP3180526 WP3180526 BRKT-BEARG
4162546 4162546 BRUSH HOLDER (INCLS. ILLUS. 28, 32, 33, 34, & 46)
WPW10380496 WPW10380496 BRUSH-MTR
WP3184212 WP3184212 CAP-BRUSH
W11048596 W11048596 CAP-HUB
WP116287 WP116287 CAP-SPRING
WP116286 WP116286 CAP-SPRING
4160474 4160474 CENTER SHAFT & ``O`` RING (INCLS. ILLUS. 19, 22, 25, 26, & 53)
240354-41 240354-41 COLUMN-WHITE
9701044 9701044 CORD AND PLUG
WP240253-1 WP240253-1 COVER
WP240285 WP240285 DRIP RING
W10870869 W10870869 FIELD-ASM
8211628 8211628 FOOT
WP4162324 WP4162324 GASKET
W11340106 W11340106 GEAR
W11192794 W11192794 GEAR-HUB
W11133645 W11133645 GEAR-PINON
WP240309-2 WP240309-2 GEAR-WORM
WP240210-2 WP240210-2 GEAR-WORM
WPW10112253 WPW10112253 GEAR-WORM
WPW10330804 WPW10330804 GOVERNOR
W11200218 W11200218 GREASE
W10598843 W10598843 HANDLE, BOWL LIFT
WP3179908 WP3179908 HOLDR-BRUS
W11356333 W11356333 HOOK-DOUGH
W11656718 W11656718 INSERT
LIT3177217 LIT3177217 INSTRUCTION MANUAL
9701105 9701105 JUMPER WIRE BREAKER TO BOARD (INTERNATIONAL)
4176247 4176247 LEAD, CIRCUIT BREAKER TO MOTOR
WP9709276 WP9709276 LEVER-SPD
W11557271 W11557271 LINK-SPEED
WP4159494 WP4159494 LOCKWASHER
240291-14 240291-14 MOTOR HOUSING (WHITE)
8533907 8533907 NUT
8533905 8533905 NUT, MACHINE HEX (10-24)
WP240185 WP240185 PANEL- OVE
WP9704608 WP9704608 PIN-COTTER
WP9707223 WP9707223 PIN-DOWEL
WP9705443 WP9705443 PIN-GROOVE
WP9705444 WP9705444 PIN-GROOVE
243342 243342 PIN-GUARD
WP9703442 WP9703442 PIN-ROLL
WP240286-1 WP240286-1 PLANETARY
WPW10119326 WPW10119326 PLATE-CTRL
4176184 4176184 PLUG BUTTON
LIT8204555 LIT8204555 REPAIR PARTS LIST
4159709 4159709 RING, ATTACHMENT
WP67500-55 WP67500-55 RING-O
W10598834 W10598834 ROD, BOWL LIFT
W11176201 W11176201 SCREW
W11084238 W11084238 SCREW
WP110679 WP110679 SCREW
WP241877 WP241877 SCREW
WP313808 WP313808 SCREW
WP9708653 WP9708653 SCREW
WP3400025 WP3400025 SCREW
W11097298 W11097298 SCREW
WP9709194 WP9709194 SCREW
WP4159193 WP4159193 SCREW
WP4162403 WP4162403 SCREW
W10861883 W10861883 SCREW
3184609 3184609 SCREW, SELF TAPPING (10-32 X 1/4``) PHIL. PAN HD. TYPE TT
103994 103994 SCREW, SPECIAL (5)
W10851015 W10851015 SCREW-STAT
WP240775-1 WP240775-1 SEAL
WP243368 WP243368 SHAFT-AGIT
WP240026 WP240026 SHAFT-CNTR
W11312468 W11312468 SHELD-POUR
W11210996 W11210996 SLEEVE
4164839 4164839 SPEED DISC (SERVICE TOOL)
WP240205 WP240205 SPRING
WP3183680 WP3183680 SPRING
4159622 4159622 SPRING
WP3182857 WP3182857 SPRING
WP16998 WP16998 STUD-DRIVE
9704880 9704880 TRIM BAND (SILVER AND BLACK)
W11170663 W11170663 WASHER
W11233557 W11233557 WASHER
WP9704324 WP9704324 WASHER
WP116241 WP116241 WASHER
WPW10323378 WPW10323378 WASHER
WPW10323373 WPW10323373 WASHER
W11708396 W11708396 WASHER
3180238 3180238 WASHER, FELT
4159614 4159614 WASHER, RETAINING
3180160 3180160 WASHER, SHIM (.015 & .031 THK)

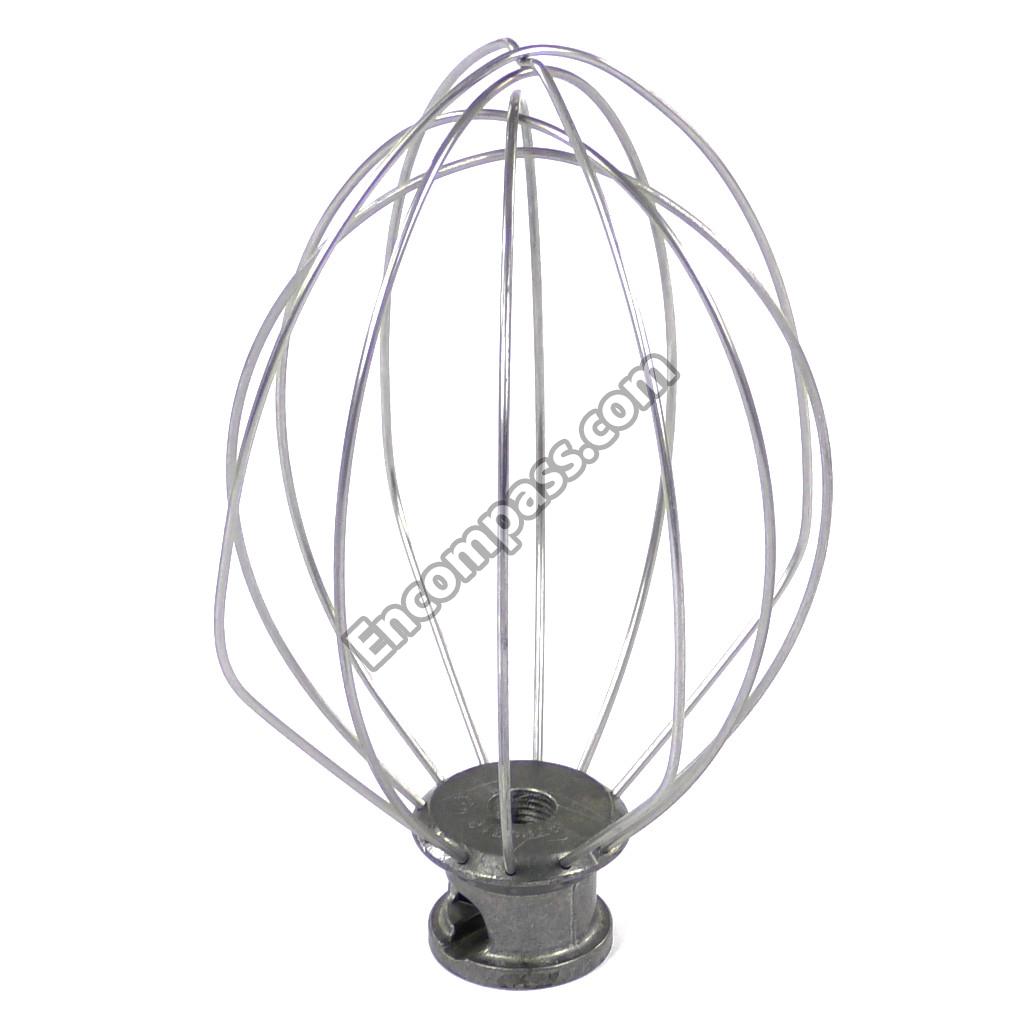

3177259 3177259 WHIP-WIRE
240148-14 240148-14 WHITE-BASE & FOOT
