Model Image
Manufacturer

Whirlpool

Model Number

KSO24C8EYW00

Description

Side-by-side Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10316746 W10316746 AIR-TOWER
W10311524 W10311524 ANTIBACTERIAL FILTER
W10318644 W10318644 ARM-EJECTR
W10688625 W10688625 ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-METAL DEFROST)
W10521477 W10521477 AUGER, CRUSHER
67006434 67006434 AXLE, ROLLER (2)
WPW10251467 WPW10251467 BAFFLE-AIR
WPW10225581 WPW10225581 BIMETL-DEF
WP2321258 WP2321258 BIMETL-DEF
WPW10316457 WPW10316457 BIN
WPW10316461 WPW10316461 BIN
WPW10434529 WPW10434529 BIN
WPW10324760 WPW10324760 BIN CONTROL LEVER
WPW10494336 WPW10494336 BIN-FRAME
WPW10494333 WPW10494333 BIN-FRAME
WPW10494334 WPW10494334 BIN-FRAME
W10315553 W10315553 BIN-FREEZR
W10315552 W10315552 BIN-FREEZR
W10859386 W10859386 BIN-ICE
W10278732 W10278732 BLADE
W10278733 W10278733 BLADE
W10278731 W10278731 BLADE
W10156818 W10156818 BLADE, FAN
2257020 2257020 BLADE, FIXED
WP2169142 WP2169142 BLADE-FAN
W10178238 W10178238 BLOCK-BLAD
W10316452 W10316452 BODY-CNTRL
W10847867 W10847867 BRACKET
W11293380 W11293380 BRACKET
W11037957 W11037957 BRACKET
W11266052 W11266052 BRACKET
W10251080 W10251080 BRACKET
N_P N_P CABINET (NOT A SERVICEABLE PART)
W11607100 W11607100 CAM-DOOR
WPW10248015 WPW10248015 CAM-DOOR
WPW10257201 WPW10257201 CAM-DOOR
WPW10248011 WPW10248011 CAM-DOOR
W10876198 W10876198 CAM-DOOR
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11573761 W11573761 CHUTE
W11232019 W11232019 CLIP
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
WP2161324 WP2161324 CLIP
W10683556 W10683556 CLIP
W10296661 W10296661 CLIP
2155547 2155547 CLIP, HEAT SHIELD
W10770895 W10770895 CLOSER, DOOR (FREEZER) (BLACK)
W10309988 W10309988 COMPRESSOR
W11708426 W11708426 CONDENSER

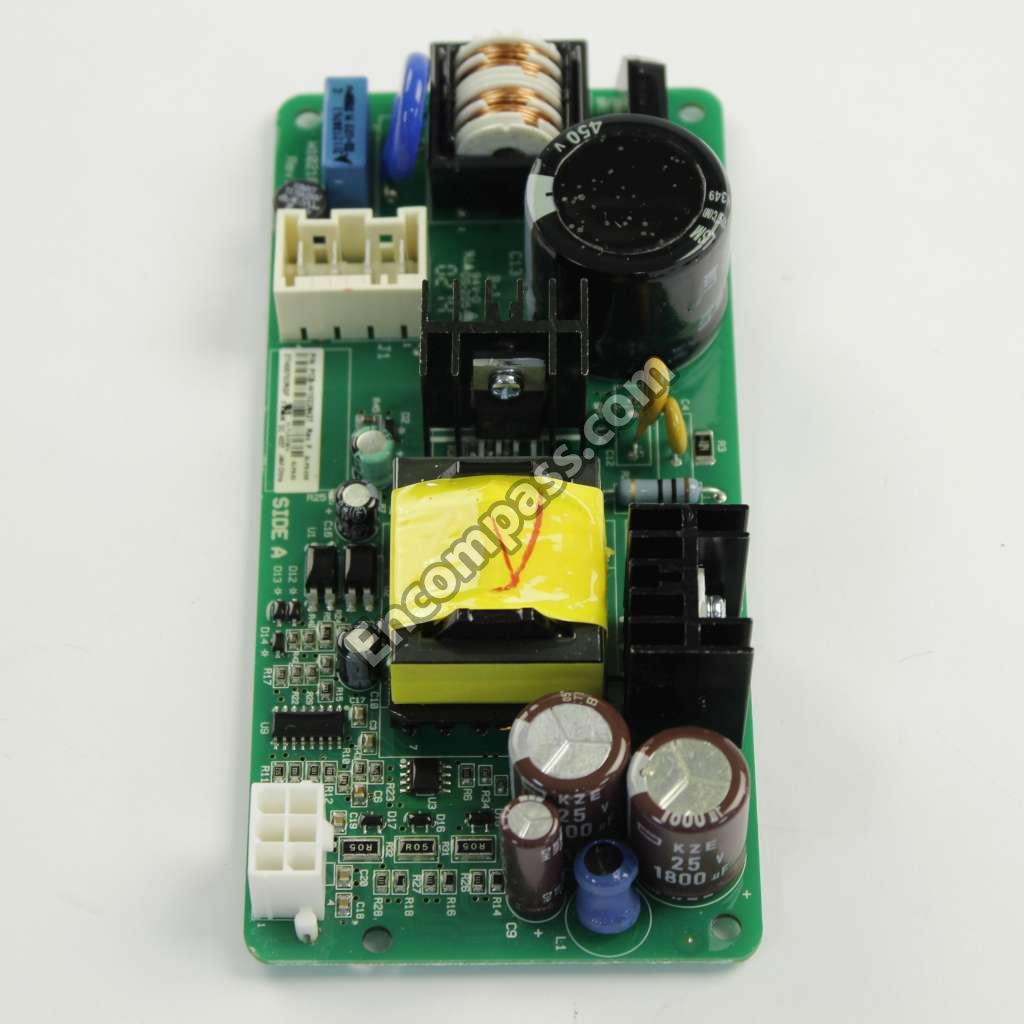

WPW10393881 WPW10393881 CONTROL BOARD
W10898445 W10898445 CONTROL BOARD
W10870822 W10870822 CONTROL BOARD
WPW10226427 WPW10226427 CONTROL BOARD
WPW10235411 WPW10235411 CONTROL BOARD
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
W11226688 W11226688 COVER
W10362178 W10362178 COVER
W10260382 W10260382 COVER
W10362177 W10362177 COVER
WPW10362169 WPW10362169 COVER
W10356635 W10356635 COVER
W10258510 W10258510 COVER
W10258502 W10258502 COVER
W10178232 W10178232 COVER
W10632060 W10632060 COVER, DOOR STOP (BLACK)
W10632059 W10632059 COVER, DOOR STOP (WHITE)
W10859809 W10859809 COVER-EVAP
W10297243 W10297243 COVER-EVAP
W10300484 W10300484 COVER-FILT
W10861728 W10861728 COVER-FRNT
WPW10333887 WPW10333887 COVER-UNIT
W10284726 W10284726 COVER-UNIT
W10257216 W10257216 COVER-WIRE
W10789144 W10789144 COVER-WIRE
LW10356605 LW10356605 DOOR ASSEMBLY BL
LW10356600 LW10356600 DOOR ASSEMBLY BL
LW10356604 LW10356604 DOOR ASSEMBLY WH
LW10356599 LW10356599 DOOR ASSEMBLY WH
W10500001 W10500001 DOOR HINGE
W10500000 W10500000 DOOR HINGE
W11293373 W11293373 DOOR HINGE
W11573587 W11573587 DOOR HINGE
W11652042 W11652042 DOOR LATCH-BIN
WPW10316885 WPW10316885 DOOR-COMP
WPW10316883 WPW10316883 DOOR-COMP

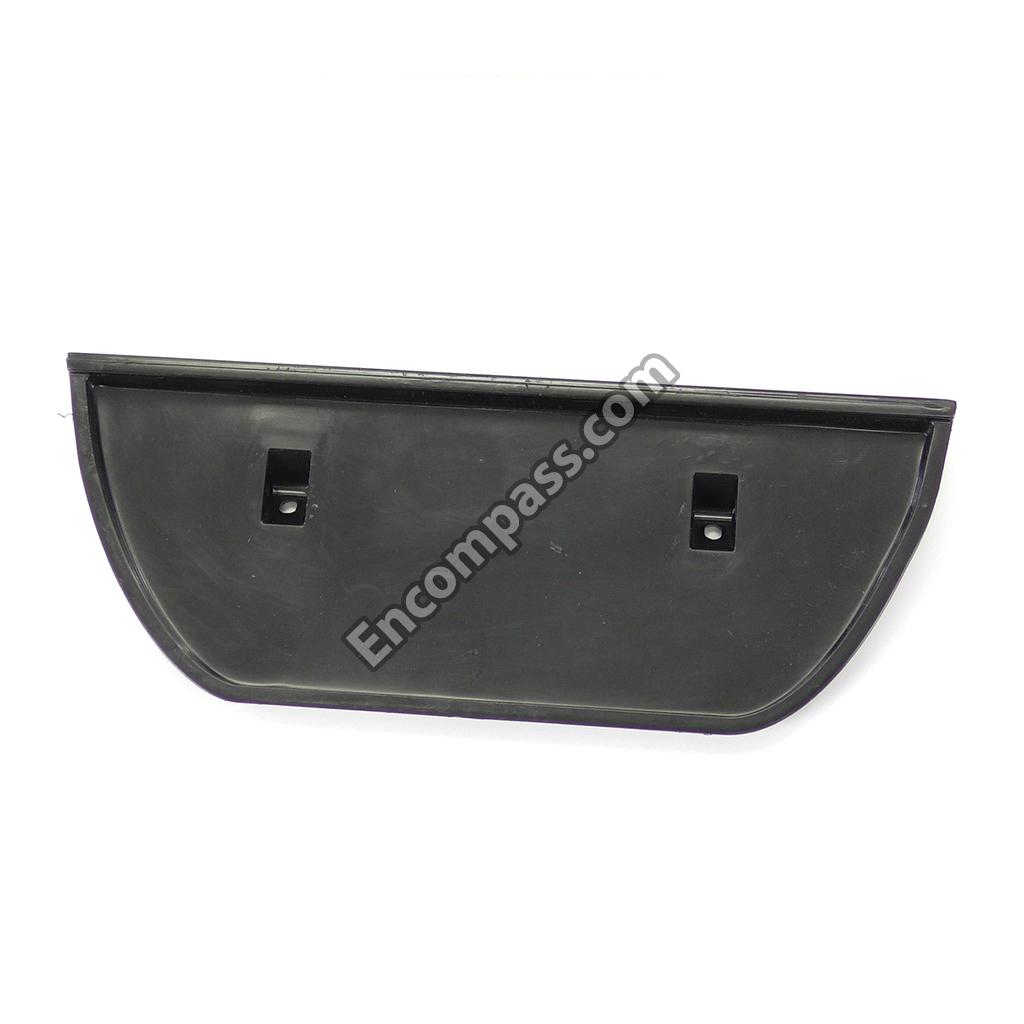

W11130210 W11130210 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
W10260388 W10260388 DUCT-AIR
W10251475 W10251475 DUCT-AIR

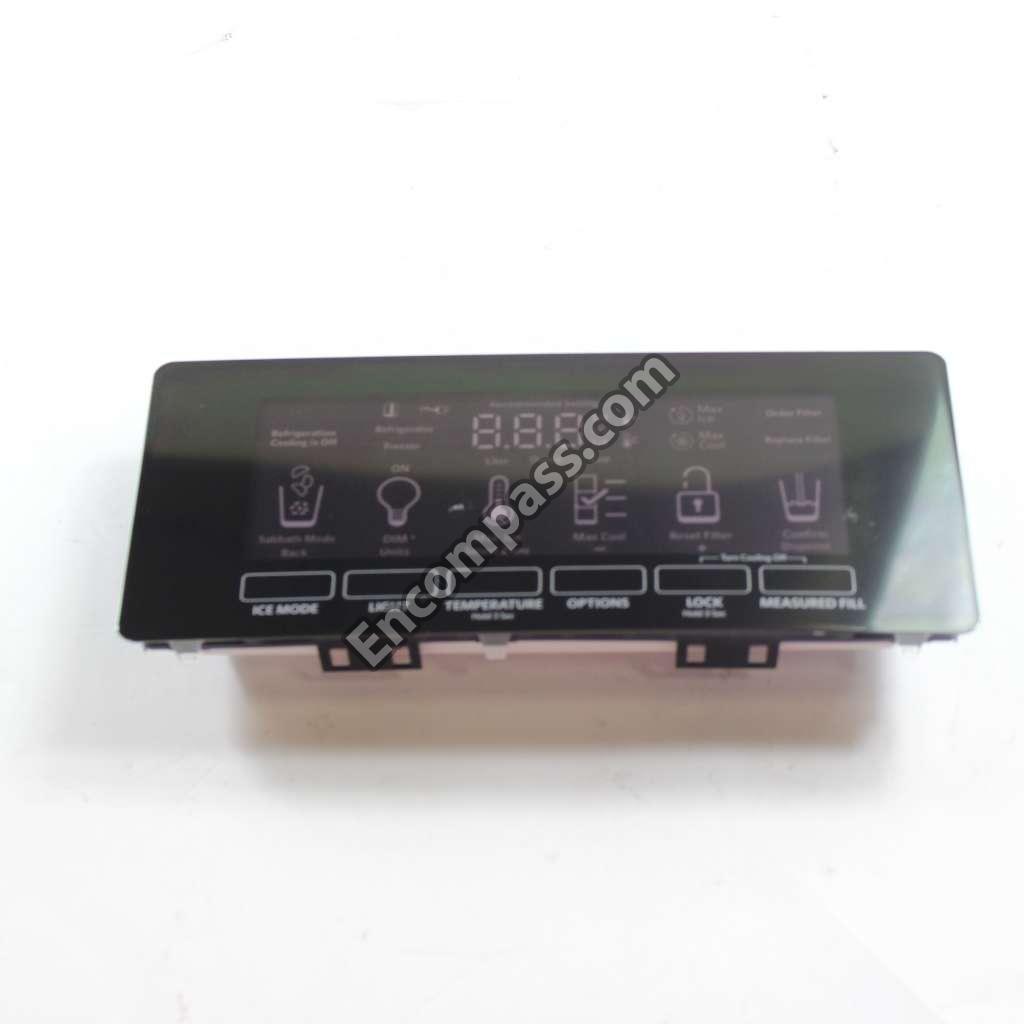

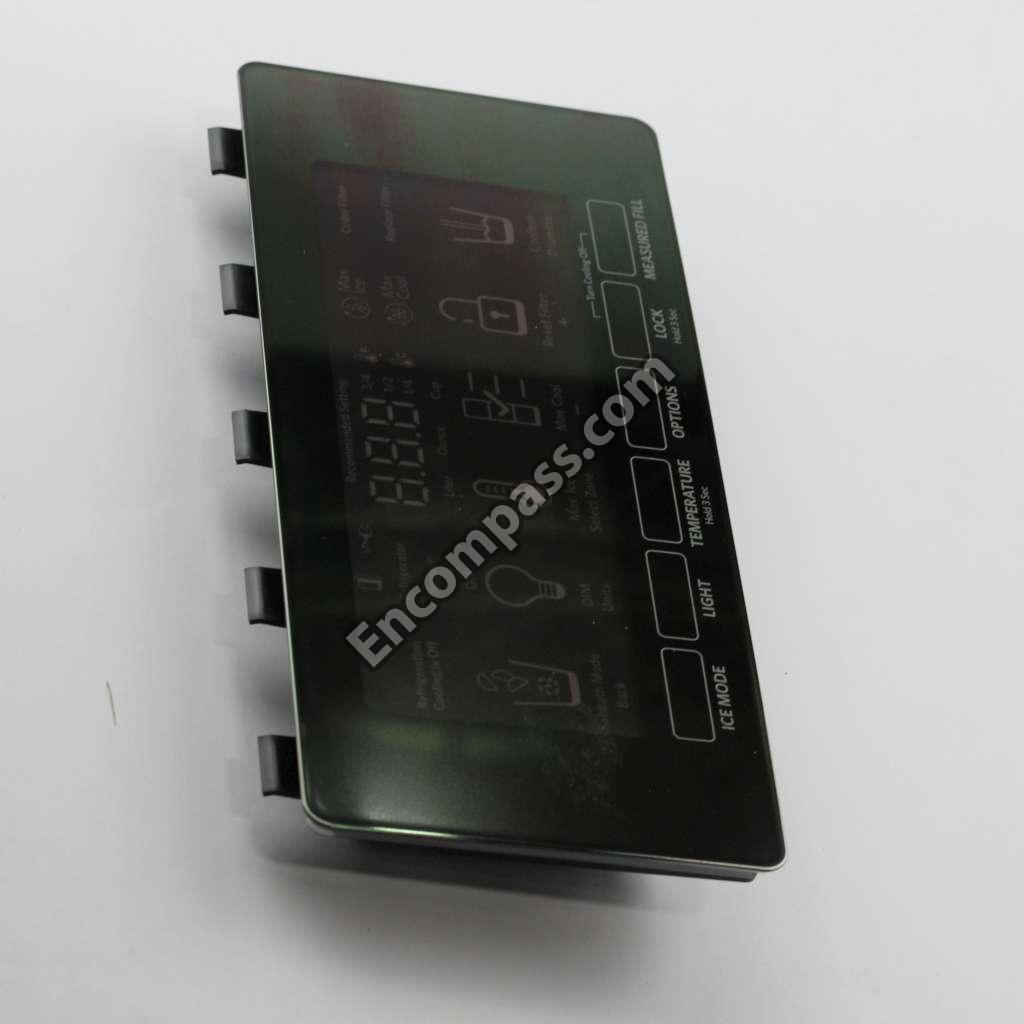

WPW10393882 WPW10393882 ELECTRONIC CONTROL ASSEMBLY (BLACK)
W10331222 W10331222 ENERGY GDE
WPW10643261 WPW10643261 EVAPORATOR
WPW10239732 WPW10239732 EVAPORATOR
WPW10439624 WPW10439624 EVAPORATOR MOTOR
W11519143 W11519143 EXTENSION
4389144 4389144 FAN MOTOR
WPW10453428 WPW10453428 FAN-SCROLL
W10251462 W10251462 FAN-SCROLL
12587703W 12587703W FILLER, WRAPPER (WHITE)
W10816479 W10816479 FITTING
WPW10277958 WPW10277958 FITTING
WP2300868 WP2300868 FITTING
W10247979 W10247979 FITTING
WPW10258520 WPW10258520 FLIPPER
WPW10287594 WPW10287594 FRONT COVER
W10240370 W10240370 GASKET
W11625001 W11625001 GASKET ASSEMBLY
WPW10249912 WPW10249912 GASKET ASSEMBLY
WPW10247884 WPW10247884 GASKET ASSEMBLY
W10249915 W10249915 GASKET-FIP
W11217336 W11217336 GLASS SHELF
W11217335 W11217335 GLASS SHELF
W11300659 W11300659 GLASS SHELF
WP542638 WP542638 GREASE
WPW10317270 WPW10317270 GRILLE
WPW10713158 WPW10713158 GRILLE
WPW10713160 WPW10713160 GRILLE
WP2176759 WP2176759 GROMMET
WPW10169124 WPW10169124 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
WPW10435760 WPW10435760 GUIDE-ICE
WPW10300794 WPW10300794 HARDWR PAK
W10242384 W10242384 HARNESS, WIRING
W10253282 W10253282 HARNS-WIRE
W10837692 W10837692 HEATER
W11568758 W11568758 HINGE-DOOR
W10901052 W10901052 HINGE-DOOR
W10249941 W10249941 HINGE-DOOR
W10901051 W10901051 HINGE-DOOR
WPW10341545 WPW10341545 HOUSING
WP2195914 WP2195914 HOUSING-IM
W10341477 W10341477 ICE-CONTNR
WPW10251076 WPW10251076 ICEMAKER
WPW10258562 WPW10258562 INLET VALVE
WPW10238100 WPW10238100 INLET VALVE
W11038857 W11038857 INVRTR-BOX
833938 833938 KIT, TERMINAL CONNECTOR
WPW10141622 WPW10141622 LEVELER
W10287673 W10287673 LITSERVIC
W11683241 W11683241 MODULE
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
W10251081 W10251081 MOLD-ICE
WPW10205978 WPW10205978 MOTOR
WP2323603 WP2323603 MOTOR
WP2188874 WP2188874 MOTOR-COND
W11561037 W11561037 PAD
W10317250 W10317250 PAD
799344 799344 PAINT, BULK (1 QT. WHITE)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT)
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAPHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
W10369484 W10369484 PAN-CRISPR
W10315546 W10315546 PAN-MEAT
W11175841 W11175841 PAN-SNACK
WP2198634 WP2198634 PIN-DOOR
W10166878 W10166878 PIN-ROLL
WPW10261232 WPW10261232 POWER CORD
W11204869 W11204869 RESERVOIR
W11671527 W11671527 RETAINER
W10204187 W10204187 RETAINER
WPW10285005 WPW10285005 RIVET
WP67005149 WP67005149 ROLLER
WPW10475495 WPW10475495 ROLLER-CAB
489136 489136 SCREW
WPW10141625 WPW10141625 SCREW
WP489478 WP489478 SCREW
W11544659 W11544659 SCREW
WPW10171469 WPW10171469 SCREW
WP489399 WP489399 SCREW
WP4449745 WP4449745 SCREW
WPW10296804 WPW10296804 SCREW
WPW10296816 WPW10296816 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
WP489464 WP489464 SCREW
WP489483 WP489483 SCREW
WPW10142283 WPW10142283 SCREW
WPW10308750 WPW10308750 SCREW
WPW10297485 WPW10297485 SCREW
WP693995 WP693995 SCREW
W10001240 W10001240 SCREW
WPW10291905 WPW10291905 SEAL
WP2198628 WP2198628 SEAL
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
WPW10258544 WPW10258544 SHAFT
W10376319 W10376319 SHIELD
W11661094 W11661094 SLEEVE
W10258540 W10258540 SLIDE
W10257334 W10257334 SLIDE
WPW10364560 WPW10364560 SOLENOID
W11032812 W11032812 SPACER
W11032808 W11032808 SPACER
WP2198635 WP2198635 SPRING
W10852956 W10852956 SPRING
WPW10197428 WPW10197428 START-DEV
WPW10197426 WPW10197426 START-DEV
W10747731 W10747731 STRIPPER, ICE
WPW10346124 WPW10346124 SUPPORT
W10837626 W10837626 SUPPORT
W11028224 W11028224 SUPPORT
W10341548 W10341548 SUPPORT
W10277704 W10277704 SUPPORT
W11457217 W11457217 SWITCH
W11123943 W11123943 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W11724692 W11724692 THERMISTOR
W10316760 W10316760 THERMISTOR
WP2182181 WP2182181 THIMBLE
WP2205813 WP2205813 TIE-WIRE
WP1117510 WP1117510 TORX KEY
W10317275 W10317275 TRAY-DRIP
W10317274 W10317274 TRAY-DRIP
W10317265 W10317265 TRAY-DRIP
W10317264 W10317264 TRAY-DRIP
WPW10251469 WPW10251469 TRAY-EVAP
W10332269 W10332269 TRIM-DOOR
W10332268 W10332268 TRIM-DOOR
W10332267 W10332267 TRIM-DOOR
W10332266 W10332266 TRIM-DOOR
W10332262 W10332262 TRIM-DOOR
W10332261 W10332261 TRIM-DOOR
WPW10531022 WPW10531022 TRIM-PAN
WPW10542020 WPW10542020 TRIM-PAN
W10542018 W10542018 TRIM-PAN
WPW10531023 WPW10531023 TRIM-PAN
W10858105 W10858105 TUBE
WPW10223328 WPW10223328 TUBE
W11409190 W11409190 TUBE-DRAIN
W10168321 W10168321 USE & CARE GUIDE
WP978025 WP978025 VALVE
W11590197 W11590197 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
WP2212370 WP2212370 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
EDR1RXD1 EDR1RXD1 WATER FILTER
WPW10238092 WPW10238092 WATER TUBE
WPW10279849 WPW10279849 WATER TUBE
WPW10279885 WPW10279885 WATER TUBE
WPW10279882 WPW10279882 WATER TUBE
W11676780 W11676780 WIRE HARNESS
