Model Image
Manufacturer

Whirlpool

Model Number

KSRS25RVMK05

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4210463RW 4210463RW ACCESSORY PARTS, MAINTENANCE BRUSH FOR DRYERS AND REFRIGERATORS
W10128726 W10128726 AIR DIFFUSER ASSEMBLY
2198580 2198580 AIR DUCT FREEZER
WP627843 WP627843 ARM-EJECTR
WPW10272161 WPW10272161 ARM-STRIPR
W10852517 W10852517 AUGER-ICE
W10896764 W10896764 BAFFLE, AIR
2301140 2301140 BASKET, SLOPED
2301139 2301139 BASKET, TALL
WP627985 WP627985 BIMETL-DEF
WPW10225581 WPW10225581 BIMETL-DEF
WP2223434K WP2223434K BIN CONTROL LEVER
W10188746 W10188746 BIN-CRUSH
W10140686 W10140686 BINCRUSH
W10278733 W10278733 BLADE
W10278732 W10278732 BLADE
W10278731 W10278731 BLADE
W10156818 W10156818 BLADE, FAN
2257020 2257020 BLADE, FIXED
WP2169142 WP2169142 BLADE-FAN
2317239 2317239 BLOCK, BLADE
2303141 2303141 BOTTOM HINGE (FC)
WPW10219817 WPW10219817 BOTTOM HINGE (RC)
WP2303583 WP2303583 BRACKET
WP2181929 WP2181929 BRACKET
WP2305202 WP2305202 BRACKET
WP2198641 WP2198641 BRACKET
W10219803 W10219803 BRACKET
2305208 2305208 BRACKET, MOTOR
2260503MG 2260503MG BUTTON, WATER FILTER (MIDNIGHT GRAY)
N_P N_P CABINET (NOT A SERVICEABLE PART)
WP2223752 WP2223752 CAM-DOOR
WP2182179 WP2182179 CAM-DOOR
WP2223751 WP2223751 CAM-DOOR
WP2198643 WP2198643 CAMERA LENS
2305287 2305287 CAMERA LENS, FRONT COVER
W11298978 W11298978 CAMERA LENS-LIGHT
W11239891 W11239891 CAMERA LENS-LIGHT
2301017 2301017 CAP, CORNER (LEFT SIDE)
2301016 2301016 CAP, CORNER (RIGHT SIDE)
WP2260518MG WP2260518MG CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
2185960 2185960 CLAMP, POWER CORD
549193 549193 CLAMP, SERVICE CORD
2217192 2217192 CLEANER, (STAINLESS STEEL)
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
WP2161324 WP2161324 CLIP
489396 489396 CLIP
W10683556 W10683556 CLIP
WP1115374 WP1115374 CLIP
WP2155013 WP2155013 CLIP
2208280 2208280 CLIP, WIRE & TUBE
2305447 2305447 CLIP, WIRING
2215823 2215823 CLIP-AIR, DUCT
W10139462 W10139462 COMPRESSOR (INCLUDES ITEMS 11, 12, 20, & 31)
2324712 2324712 CONDENSER ASSEMBLY
WPW10271543 WPW10271543 CONNECTOR
WP2305242 WP2305242 CONNECTOR
W10134300 W10134300 CONTRL-BOX
WP2321746 WP2321746 CONTROL BOARD
WP2303843 WP2303843 CONTROL BOARD
W11629974 W11629974 CONTROL BOARD
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
WP2198587 WP2198587 COVER
WP2301001 WP2301001 COVER
W10139321 W10139321 COVER
W10173569 W10173569 COVER
W10128736 W10128736 COVER
W10683555 W10683555 COVER, CONTROL BOX
WP2301567 WP2301567 COVER, CRISPER (INCLUDES 11, 12, 16, 17, 19 & 20)
2206314 2206314 COVER, EVAPORATOR
2301568 2301568 COVER, MEAT PAN (INCLUDES 16 & 18)
2305219 2305219 COVER, PC BOARD
WP2188755 WP2188755 COVER-UNIT
W10171321 W10171321 COVERWIRE
W10916292 W10916292 CRISPER PAN
WPW10272168 WPW10272168 CUP-FILL
2301126 2301126 DEFLECTOR
2313359 2313359 DIFFUSER, AIR DUCT
2317250 2317250 DIVIDER-CHAMBER
L2303139SAP L2303139SAP DOOR ASSEMBLY MS
LW10149880 LW10149880 DOOR ASSEMBLY SS
WP2223559 WP2223559 DOOR TRIM
WP2305258 WP2305258 DOOR-CHUTE
WP2218119K WP2218119K DOOR-COMP
WP2255720 WP2255720 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV

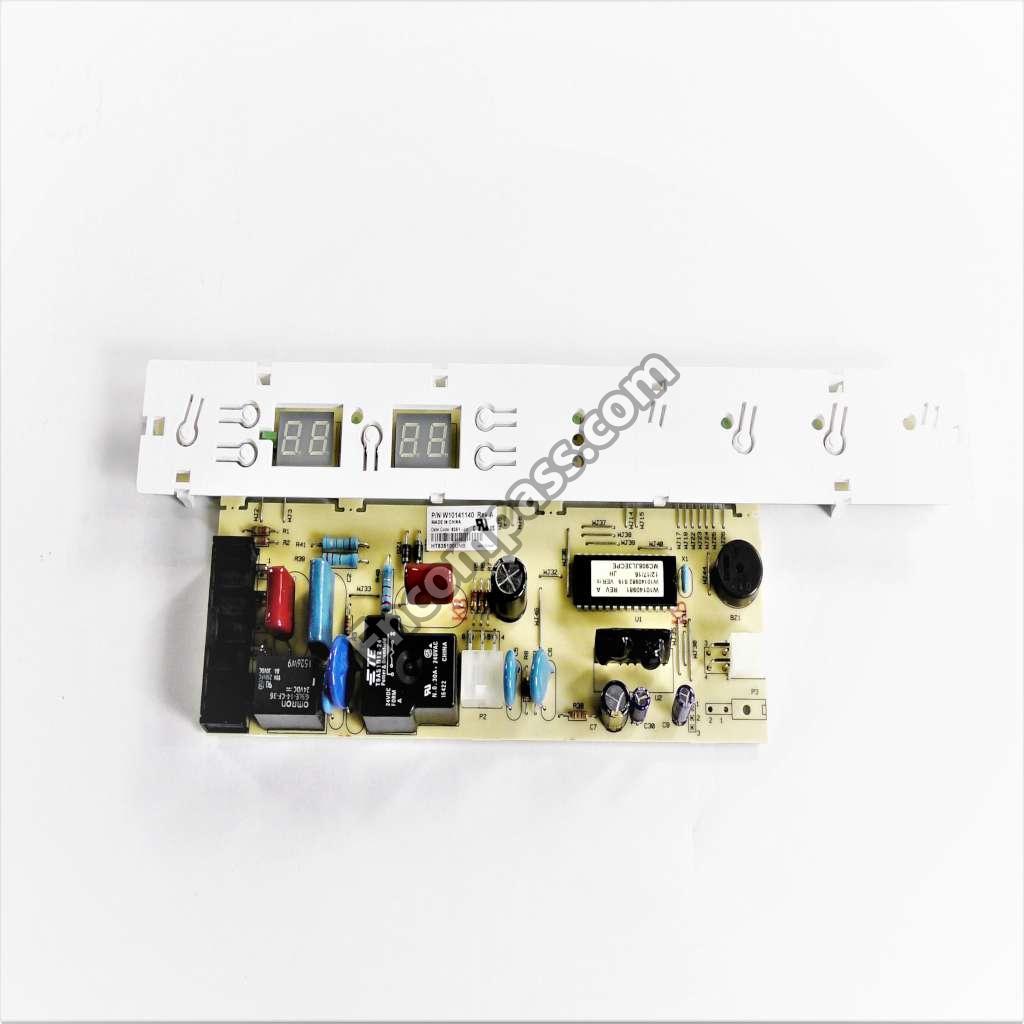

WPW10141140 WPW10141140 ELECTRONIC CONTROL
W10320899 W10320899 ENERGY GUIDE
W10175967 W10175967 ESCUTCHEON
WP2188823 WP2188823 EVAPORATOR
WP2315549 WP2315549 EVAPORATOR MOTOR
WP2182120 WP2182120 FAN-SCROLL
W10143043 W10143043 FILLER
WP2303216 WP2303216 FITTING
W11566763 W11566763 FITTING
WP2198633 WP2198633 FLIPPER
WP2195975 WP2195975 FRAME-SHLF
WPW10289690 WPW10289690 FRONT COVER
W10190186 W10190186 FRONT COVER ASSEMBLY (INCLUDES ITEMS 13, 14, 15, 16, 17, 18, 19) (STAINLESS)
4386774 4386774 FRONT ROLLER (2)
WP2301134 WP2301134 FRONT, BASKET
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
WP2304241 WP2304241 GASKET
WP2183037 WP2183037 GASKET
WP1125528 WP1125528 GASKET
WP2174274 WP2174274 GASKET
W10136735 W10136735 GASKET ASSEMBLY
WPW10136734 WPW10136734 GASKET ASSEMBLY
2198697 2198697 GASKET, LADDER
2301117 2301117 GASKET, SIDE (2)
WPW10141748 WPW10141748 GLASS SHELF
WP2301028 WP2301028 GLASS SHELF
WP2301549 WP2301549 GLIDE ASSEMBLY (CRISPER PAN) (LEFT SIDE)
2301548 2301548 GLIDE ASSEMBLY (CRISPER PAN) (RIGHT SIDE)
2301551 2301551 GLIDE ASSEMBLY (SNACK PAN) (LEFT SIDE)
2301550 2301550 GLIDE ASSEMBLY (SNACK PAN) (RIGHT SIDE)
2301294 2301294 GLIDE ASSEMBLY SQUARE/MIDDLE BASKET (LEFT SIDE)
2301293 2301293 GLIDE ASSEMBLY SQUARE/MIDDLE BASKET (RIGHT SIDE)
2301290 2301290 GLIDE ASSEMBLY, SLOPED/BOTTOM BASKET (LEFT SIDE)
2301289 2301289 GLIDE ASSEMBLY, SLOPED/BOTTOM BASKET (RIGHT SIDE)
WP542638 WP542638 GREASE
W10311035 W10311035 GRILLE
WP2176759 WP2176759 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2260517 2260517 GUARD, FAN
WP2319727S WP2319727S HANDLE (STAINLESS)
2310229 2310229 HARNESS, UNIT
W11643622 W11643622 HARNS-WIRE
W10298213 W10298213 HARNS-WIRE
W10167504 W10167504 HARNS-WIRE
2217194 2217194 HEAT SHIELD AND DRAIN PAN
WP2323198 WP2323198 HEATER
2203407AP 2203407AP HINGE COVER, FC (APOLLO GRAY)
2203408AP 2203408AP HINGE COVER, RC (APOLLO GREY)
W10287685 W10287685 HINGE TOP FC
W10242649 W10242649 HINGE-DOOR
WP2212369 WP2212369 HOLDER
2193409 2193409 HOLDER, BEVERAGE
940014 940014 HOLE PLUG
WPW10121138 WPW10121138 HOUSING
WP2195914 WP2195914 HOUSING-IM
W10140692 W10140692 ICECONTNR
W11512149 W11512149 ICEMAKER
WPW10159839 WPW10159839 INLET VALVE
W10305232 W10305232 INSTRUCTION SHEET, DOOR REMOVAL
W11553819 W11553819 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
833938 833938 KIT, TERMINAL CONNECTOR
2301025 2301025 KNOB, HUMIDITY CONTROL
WP2319866 WP2319866 LADDER
2198609 2198609 LADDER (LEFT SIDE)
2198610 2198610 LADDER (RIGHT SIDE)
W10140685 W10140685 LATCH-BIN
W11679940 W11679940 LIGHT BULB
WP2302848 WP2302848 LIGHT SHIELD
W10222215 W10222215 LIGHT-IND
8201651 8201651 LOUVER-CAB
W10165656 W10165656 MEAT PAN ASM (INCLUDES 24 & 27)
2220407 2220407 MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
WPW10184813 WPW10184813 MOTOR
WP2252130 WP2252130 MOTOR
WP2188874 WP2188874 MOTOR-COND
WPW10243391 WPW10243391 NAMEPLATE
2318773 2318773 OVERLAY, CONTROL BOX
W10346242 W10346242 OWNER S MANUAL
W10133606 W10133606 PAD
2217070 2217070 PAD, FOAM
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAPHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
WP2198634 WP2198634 PIN-DOOR
WPW10276792 WPW10276792 RESERVOIR
WP2155590 WP2155590 RETAINER
W10204187 W10204187 RETAINER
489229 489229 ROLL PIN
WPW10250570 WPW10250570 ROLLER-CAB
WPW10141625 WPW10141625 SCREW
W11544659 W11544659 SCREW
489340 489340 SCREW
WP8533993 WP8533993 SCREW
WP67006908 WP67006908 SCREW
WP4449745 WP4449745 SCREW
WPW10142233 WPW10142233 SCREW
WPW10170540 WPW10170540 SCREW
WP3400012 WP3400012 SCREW
WP8281163 WP8281163 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
WPW10142283 WPW10142283 SCREW
WPW10191952 WPW10191952 SCREW
WP3-24004-109 WP3-24004-109 SCREW
W10759522 W10759522 SCREW
WP489478 WP489478 SCREW
WP489500 WP489500 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WP489464 WP489464 SCREW
WP489497 WP489497 SCREW
WP8281227 WP8281227 SCREW
WPW10141604 WPW10141604 SCREW
WP489427 WP489427 SCREW
W10850698 W10850698 SCREW
W10001280 W10001280 SCREW
WP3196557 WP3196557 SCREW
WP693995 WP693995 SCREW
W10141518 W10141518 SCREW
WP681249 WP681249 SCREW
2006254 2006254 SCREW, 6-19 X .250
WP2198628 WP2198628 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
2305456 2305456 SEPARATOR ASSEMBLY
W10190568 W10190568 SERVICE & WIRING SHEET
WP2305243 WP2305243 SHAFT
WP2205837K WP2205837K SHELF (2)
2211746 2211746 SHELF, S/O UPPER
WP2301566 WP2301566 SHELF, SNACK PAN
2303234 2303234 SHIELD, WIRING
WP2181911 WP2181911 SHIM
W11661094 W11661094 SLEEVE
WP2212365 WP2212365 SLEEVE
2182757 2182757 SLIDE MEAT PAN CONTROL
2301026 2301026 SLIDE, HUMIDITY CONTROL
2212321 2212321 SLIDE, ICE MAKER MOUNTING
2315398 2315398 SLIDE, ICE MAKER SHUT OFF
2301023 2301023 SNACK BIN ASM (INCLUDES 24 & 25)
W11606038 W11606038 SOCKET
WP1119005 WP1119005 SPACER
WP1119007 WP1119007 SPACER
W10187441 W10187441 SPIGOT
W10852956 W10852956 SPRING
WP2198608 WP2198608 SPRING
WP2198635 WP2198635 SPRING
WPW10189190 WPW10189190 START-DEV
WP2196483 WP2196483 STUD-SHELF
W11223328 W11223328 STUD-SHELF
WP2305204 WP2305204 SUPPORT
WP2301569 WP2301569 SUPPORT
WP2301570 WP2301570 SUPPORT
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
WP2149705 WP2149705 SWITCH
W11457217 W11457217 SWITCH
W11238399 W11238399 TAPE
WP2188819 WP2188819 THERMISTOR
WP2182181 WP2182181 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX KEY
2323096NO 2323096NO TRAY, HOUSING (NICKEL ONE)
WPW10614158 WPW10614158 TRAY-EVAP
W11512417 W11512417 TRIVET
WP2205765 WP2205765 TUBE
W10858105 W10858105 TUBE
2305405 2305405 TUBE, WATER DISPENSER
W10466698 W10466698 UNIT COVER, BOTTOM
2304904 2304904 UNIT MOUNTING FRAME
2305374 2305374 UNIT MOUNTING RAIL
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
WP2305382 WP2305382 WASHER
WP2212370 WP2212370 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
EDR3RXD1 EDR3RXD1 WATER FILTER
WPW10281289 WPW10281289 WATER TUBE
WPW10350006 WPW10350006 WATER TUBE
2301006 2301006 WINDOW, SNACK PAN
2317243 2317243 WIPER
2310075 2310075 WIRE ASSEMBLY, DOOR HARNESS
2187813 2187813 WIRE ASSEMBLY., IDI
W10178851 W10178851 WIRE-JUMPR
