Model Image
Manufacturer

Whirlpool

Model Number

KSRV22FVMS01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10332806 W10332806 AIR BAFFLE
2152019 2152019 AIR DIFFUSER COVER
2312009 2312009 AIR DUCT FREEZER
WPW10152858 WPW10152858 ARM-DISPSR
WPW10152859 WPW10152859 ARM-DISPSR
WPW10152853 WPW10152853 ARM-DISPSR
WPW10152854 WPW10152854 ARM-DISPSR
W10155162 W10155162 ARM-DISPSR
W10155161 W10155161 ARM-DISPSR
W10152860 W10152860 ARM-DISPSR
W10152855 W10152855 ARM-DISPSR
W10297245 W10297245 ARM-STRIPR
2317247 2317247 AUGER
WP2196003 WP2196003 BARRIER
WP627985 WP627985 BIMETL-DEF
WPW10225581 WPW10225581 BIMETL-DEF
WPW10321304 WPW10321304 BIN CONTROL LEVER
WPW10176384 WPW10176384 BIN-CRUSH
WP2312034 WP2312034 BIN-FREEZR
WP2317246 WP2317246 BIN-ICE
W10156818 W10156818 BLADE, FAN
2257020 2257020 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
WP2169142 WP2169142 BLADE-FAN
2317239 2317239 BLOCK, BLADE
2260519 2260519 BLOCK, HOUSING SUPPORT
W10251418 W10251418 BOTTOM HINGE (FC)
WPW10131253 WPW10131253 BRACKET
WP2304673 WP2304673 BRACKET
WP2206629B WP2206629B BRACKET
WP2198641 WP2198641 BRACKET
W10677671 W10677671 BRACKET, CONTROL
2323534B 2323534B BRACKET, DOOR STOP (BLACK)
2323534 2323534 BRACKET, DOOR STOP (CHROME)
2256035 2256035 BRACKET, DUAL CRISPER LIGHT
WP2260503B WP2260503B BUTTON
2319720 2319720 BUTTON, HUMIDITY
2260503MG 2260503MG BUTTON, WATER FILTER (MIDNIGHT GREY)
2260503W 2260503W BUTTON, WATER FILTER (WHITE)
100000 100000 CABINET, (NOT A SERVICEABLE PART)
WP2182179 WP2182179 CAM-DOOR
WP2223751 WP2223751 CAM-DOOR
WPW10329686 WPW10329686 CAM-DOOR
WP2198643 WP2198643 CAMERA LENS
WP2317782 WP2317782 CAMERA LENS-LIGHT
2223285 2223285 CAP, CRISPER PAN (LEFT SIDE)
2223286 2223286 CAP, CRISPER PAN (RIGHT SIDE)
2260502T 2260502T CAP, WATER FILTER (BISCUIT)
WP2260518MG WP2260518MG CAP-FILTER
WP2260518W WP2260518W CAP-FILTER
WP2260518B WP2260518B CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP488366 WP488366 CLAMP
549193 549193 CLAMP, SERVICE CORD
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
WP1115374 WP1115374 CLIP
489396 489396 CLIP
WP2161324 WP2161324 CLIP
W10683556 W10683556 CLIP
WP2195051 WP2195051 CLIP
WP2194719 WP2194719 CLIP
WP2155013 WP2155013 CLIP
W11661170 W11661170 CLIP
2155547 2155547 CLIP, HEAT SHIELD
1115375 1115375 CLIP, WIRING
2215823 2215823 CLIP-AIR, DUCT
W10233961 W10233961 COMPRESSOR
W10211163 W10211163 CONDENSER
2161308 2161308 CONNECTING ROD
2161307 2161307 CONNECTING ROD (SHORT)
WPW10334458 WPW10334458 CONNECTOR
WPW10259855 WPW10259855 CONTROL BOARD
W11629974 W11629974 CONTROL BOARD
2181737 2181737 CONTROL BOX
2326982 2326982 CONTROL BOX
2310533 2310533 CONTROL BOX HARNESS
W11115203 W11115203 CONTROL PANEL
W10283958 W10283958 CORNER FILLER (BISCUIT/BISQUE)
W11629923 W11629923 COUPLING

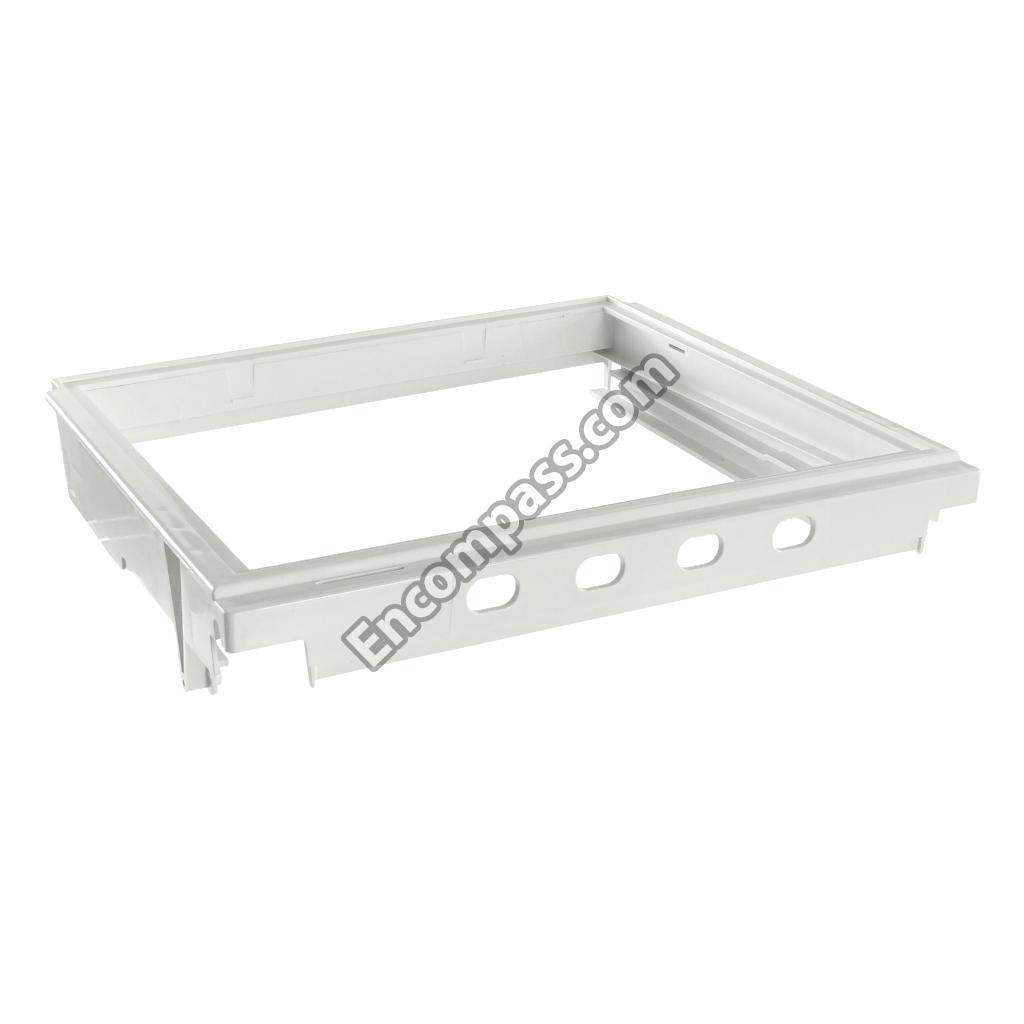

W10133000 W10133000 COVER
2222862 2222862 COVER
WP2198587 WP2198587 COVER
WP2174362 WP2174362 COVER
WP2174076 WP2174076 COVER
WPW10160317 WPW10160317 COVER
WP2223357 WP2223357 COVER
W10173569 W10173569 COVER
W10138583 W10138583 COVER
W10138578 W10138578 COVER
W10138584 W10138584 COVER
W10138582 W10138582 COVER
W10331627 W10331627 COVER
W10138579 W10138579 COVER
W10138577 W10138577 COVER
W10331623 W10331623 COVER
2150331 2150331 COVER, CONDUIT
2317248 2317248 COVER, CRUSHER
W10207507 W10207507 COVER-EVAP
W10176424 W10176424 COVER-FRNT
W10139724 W10139724 COVER-FRNT
WP2188756 WP2188756 COVER-UNIT
WPW10130299 WPW10130299 CUP
WPW10272168 WPW10272168 CUP-FILL
2176095 2176095 DEFLECTOR
WPW10151375 WPW10151375 DIFFUSER
2313359 2313359 DIFFUSER, AIR DUCT
2317250 2317250 DIVIDER-CHAMBER
LW10214814 LW10214814 DOOR ASSEMBLY BL
L2325248B L2325248B DOOR ASSEMBLY BL
LW10214815 LW10214815 DOOR ASSEMBLY BT
L2325248T L2325248T DOOR ASSEMBLY BT
LW10214816 LW10214816 DOOR ASSEMBLY MS
LW10191409 LW10191409 DOOR ASSEMBLY MS
LW10214817 LW10214817 DOOR ASSEMBLY SS
L2323861S L2323861S DOOR ASSEMBLY SS
LW10214818 LW10214818 DOOR ASSEMBLY WH
L2325248W L2325248W DOOR ASSEMBLY WH
2159081 2159081 DOOR GASKET, MAGNETIC
2159073 2159073 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
8201707 8201707 DOOR HINGE
WP2203771 WP2203771 DOOR HINGE
WP2203770 WP2203770 DOOR HINGE
2317274 2317274 DOOR LATCH, BIN
WPW10307490 WPW10307490 DOOR TRIM
WP2156021 WP2156021 DOOR TRIM
WP2309941 WP2309941 DOOR TRIM
2159072 2159072 DOOR, GASKET MAGNETIC
2159080 2159080 DOOR, GASKET MAGNETIC
WP2180353 WP2180353 DOOR-CHUTE
WP2256101 WP2256101 DOOR-COMP
W10180062 W10180062 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
626753 626753 EJECTOR
4388932 4388932 ELECTRONIC CONTROL
2322488 2322488 ENCLOSURE, MOTOR
W10139598 W10139598 ENERGY LABEL
W10175967 W10175967 ESCUTCHEON
WP2188822 WP2188822 EVAPORATOR
WP2315549 WP2315549 EVAPORATOR MOTOR
WP2174478 WP2174478 EYELET, ROLLER
W11254898 W11254898 FAN-SCROLL
489391 489391 FASTENER, PUSH-ON
WPW10283959 WPW10283959 FILLER
W11252732 W11252732 FILLER
W10851579 W10851579 FILLER
WPW10140630 WPW10140630 FITTING
8201537 8201537 FITTING
W11566763 W11566763 FITTING
WP2198633 WP2198633 FLIPPER
WPW10289690 WPW10289690 FRONT COVER

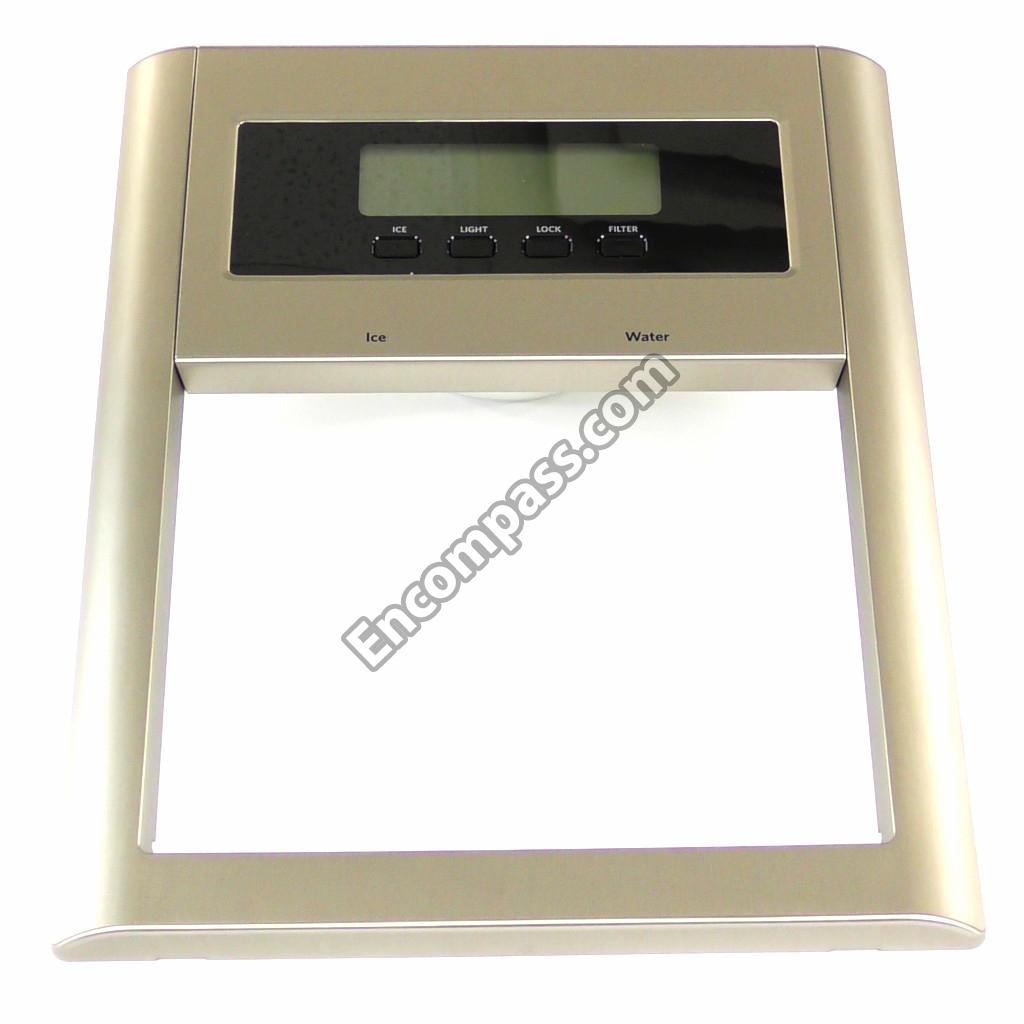

W10139723 W10139723 FRONT COVER ASSEMBLY (INCLUDES ITEMS 17, 18, 19, & 20) (NICKEL)
4386774 4386774 FRONT ROLLER (2)
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
WP2304241 WP2304241 GASKET
WP1125528 WP1125528 GASKET
WP2174274 WP2174274 GASKET (REAR)
W10136733 W10136733 GASKET ASSEMBLY
W10136732 W10136732 GASKET ASSEMBLY
WP2174273 WP2174273 GASKET, SLIDE (2)
WPW10160481 WPW10160481 GLASS SHELF
WPW10276341 WPW10276341 GLASS SHELF
WP542638 WP542638 GREASE
WP2206671B WP2206671B GRILLE
WP2206671W WP2206671W GRILLE
WP2206671T WP2206671T GRILLE
W10171992 W10171992 GRILLE
WPW10184880 WPW10184880 GRILLE
WP2176759 WP2176759 GROMMET
937252 937252 GROMMET (4)
876811 876811 GROMMET (4) ((PRODUCTION))
2172906 2172906 GROMMET, LIGHT BAR
WP2180224 WP2180224 GUIDE-ICE
WP2319727W WP2319727W HANDLE
WP2319727B WP2319727B HANDLE
2319727T 2319727T HANDLE (INCLUDES NO.3) (BISCUIT)
WP2319727S WP2319727S HANDLE (INCLUDES NO.3) (STAINLESS/SATINA)
2310237 2310237 HARNESS, FAN EVAPORATOR (INCLUDES NO.4)
WPW10193328 WPW10193328 HARNS-WIRE
2172931 2172931 HEAT SHIELD
WP2323197 WP2323197 HEATER
WP2188919 WP2188919 HOLDER
940014 940014 HOLE PLUG
WPW10121138 WPW10121138 HOUSING
WP2195914 WP2195914 HOUSING-IM
W10823377 W10823377 ICE DOR KT
WPW10204457 WPW10204457 ICE-CONTNR
WPW10190961 WPW10190961 ICEMAKER
W10822681 W10822681 INLET VALVE
W10180407 W10180407 INSTR SHEE
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
833938 833938 KIT, TERMINAL CONNECTOR
2179921 2179921 LIGHT BAR (FC)
2179920 2179920 LIGHT BAR (RC)
W11679940 W11679940 LIGHT BULB
2212376 2212376 LIGHT CAMERA LENS
8201651 8201651 LOUVER-CAB
WPW10149981 WPW10149981 MEAT PAN
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10122550 WPW10122550 MOLD-ICE
W10822606 W10822606 MOTOR
WP2188874 WP2188874 MOTOR-COND
WPW10046610 WPW10046610 NAMEPLATE
W10243394 W10243394 NAMEPLATE
WPW10243393 WPW10243393 NAMEPLATE
WPW10243392 WPW10243392 NAMEPLATE
799344 799344 PAINT, BULK (1 QT. WHITE)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT)
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAPHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
W10142714 W10142714 PAN-CRISPR
WP2309517 WP2309517 PAN-SNACK
WP2196195 WP2196195 PIN-DOOR
WP2198634 WP2198634 PIN-DOOR
2161306 2161306 PIVOT ARM
WP2304249 WP2304249 PLATE
WPW10196323 WPW10196323 RAIL-UNIT
WPW10276792 WPW10276792 RESERVOIR
WP2155590 WP2155590 RETAINER
WP2256085 WP2256085 RETAINER
489229 489229 ROLL PIN
4318078 4318078 ROLLER
WPW10250570 WPW10250570 ROLLER-CAB
489136 489136 SCREW
8533917 8533917 SCREW
WPW10141625 WPW10141625 SCREW
627068 627068 SCREW
489392 489392 SCREW
W11544659 W11544659 SCREW
W11693756 W11693756 SCREW
WP8533993 WP8533993 SCREW
WP3400906 WP3400906 SCREW
WP3196557 WP3196557 SCREW
WP3400012 WP3400012 SCREW
WPW10010150 WPW10010150 SCREW
W11366418 W11366418 SCREW
WPW10170540 WPW10170540 SCREW
WP488163 WP488163 SCREW
WP8281163 WP8281163 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
WP489478 WP489478 SCREW
WP3400806 WP3400806 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP489261 WP489261 SCREW
WPW10272364 WPW10272364 SCREW
798639 798639 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WP8281227 WP8281227 SCREW
WP489464 WP489464 SCREW
WP488488 WP488488 SCREW
W10856122 W10856122 SCREW
W10853301 W10853301 SCREW
WP489497 WP489497 SCREW
WP489128 WP489128 SCREW
WP489500 WP489500 SCREW
WP489427 WP489427 SCREW
W10850698 W10850698 SCREW
W10759522 W10759522 SCREW
WP681249 WP681249 SCREW
489340 489340 SCREW (5)
4389654 4389654 SCREW NO.8 X 3/8 HEX
2006254 2006254 SCREW, 6-19 X .250
WP2198628 WP2198628 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
W10205540 W10205540 SERVICE & WIRING SHEET
WP2188917 WP2188917 SHAFT
WPW10276359 WPW10276359 SHELF-CANT
WP2319721 WP2319721 SHELF-GLAS
WPW10318960 WPW10318960 SHELF-WIRE
WPW10318952 WPW10318952 SHELF-WIRE
WPW10318953 WPW10318953 SHELF-WIRE
WPW10194474 WPW10194474 SHIELD
WP2209697 WP2209697 SHIM
W11661094 W11661094 SLEEVE
WP2315559 WP2315559 SLEEVE
2182757 2182757 SLIDE MEAT PAN CONTROL
2181741 2181741 SLIDE, AIR CONTROL
2174252 2174252 SLIDE, HUMIDITY
2212321 2212321 SLIDE, ICE MAKER
2315398 2315398 SLIDE, ICE MAKER SHUT OFF
2161466 2161466 SLIDE, THERMOSTAT
WP625834 WP625834 SPACER
WP1119005 WP1119005 SPACER
WP1119007 WP1119007 SPACER
WPW10224328 WPW10224328 SPRING
WP2198608 WP2198608 SPRING
WP2198635 WP2198635 SPRING
489203 489203 SPRING, WASHER
WPW10189190 WPW10189190 START-DEV
WP2196483 WP2196483 STUD-SHELF
W11223328 W11223328 STUD-SHELF
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
WP2149705 WP2149705 SWITCH
W11457217 W11457217 SWITCH
WP2321704 WP2321704 SWITCH ASSEMBLY
WP2162361 WP2162361 SWTCH-MICR
W11238399 W11238399 TAPE
WP2315562 WP2315562 THERMOSTAT
WP2182181 WP2182181 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX KEY
WPW10614158 WPW10614158 TRAY-EVAP
2171768K 2171768K TRIM, BASKET
WP2179243 WP2179243 TRIM-PAN
W11512417 W11512417 TRIVET
W10210787 W10210787 TUBE
8201597 8201597 TUBE, FILTER INLET
W10274306 W10274306 TUBE, PROCESS
2304903 2304903 UNIT MOUNTING FRAME
2310425 2310425 UNIT, HARNESS (INCLUDES POWER CORD)
W10167098 W10167098 USE & CARE GUIDE
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
EDR3RXD1 EDR3RXD1 WATER FILTER
WPW10350006 WPW10350006 WATER TUBE
2175513 2175513 WINDOW
2317243 2317243 WIPER
WPW10309401 WPW10309401 WIRE HARNESS
2311637 2311637 WIRE HARNESS, CRISPER LIGHT
Main Menu x
