Model Image
Manufacturer

Whirlpool

Model Number

KSSO42FMX00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
WP2221296 WP2221296 AIR BAFFLE ASSEMBLY
2187619 2187619 AIR BAFFLE, JUMPER HARNESS
2259019 2259019 AIR DUCT
2208970 2208970 AIR DUCT
W11342242 W11342242 ARM-SHUT
2256466 2256466 BACK PANEL
8201745 8201745 BAFFLE-CTL
W11318848 W11318848 BASKET, FREEZER
WPW10225581 WPW10225581 BIMETL-DEF
W11448696 W11448696 BIN
W10323042 W10323042 BIN CONTROL LEVER
W10323602 W10323602 BIN, DOOR
W10323599 W10323599 BIN, DOOR-SHALLOW
2209066 2209066 BLOCK, FAN SCROLL (LEFT)
8201798 8201798 BLOCK-FAN
2215508 2215508 BRACKET
2221096 2221096 BRACKET, COVER (LEFT)
2221097 2221097 BRACKET, COVER (RIGHT)
1113206 1113206 BRACKET, DRAIN PAN (LEFT)
1113207 1113207 BRACKET, DRAIN PAN (RIGHT)
2215641 2215641 BRACKET, FAN MOTOR
2256328 2256328 BRACKET, INVERTER BOX
2257571 2257571 BRACKET, LIGHT
2006616 2006616 BRACKET, SUPPORT BASE (FRONT) (LEFT)
2006556 2006556 BRACKET, SUPPORT BASE (FRONT) (RIGHT)
2006617 2006617 BRACKET, SUPPORT BASE (REAR) (2)
2259096 2259096 BRACKET, SWITCH
8009 8009 BULB, LIGHT
WP2316859 WP2316859 BUSHING
2002903 2002903 BUSHING
WP2165792K WP2165792K BUTTERTRAY
100000 100000 CABINET (NOT A SERVICEABLE PART)
2257689X 2257689X CABINET TRIM, LEFT SIDE (ETCHED ALUMINUM)
2257688X 2257688X CABINET TRIM, RIGHT SIDE (ETCHED ALUMINUM)
2254725 2254725 CABINET, TRIM (BOTTOM)
2257367 2257367 CABINET, TRIM TOP
WP2005783 WP2005783 CAM-DOOR
WP2186494B WP2186494B CAP, WATER FILTER (BLACK)
4387478 4387478 CAPACITOR (SERVICE)
WP488366 WP488366 CLAMP
W10833902 W10833902 CLAMP
549193 549193 CLAMP, CORD
2209090 2209090 CLAMP, FILTER HOUSING
1113048 1113048 CLAMP, HEATER (2)
488937 488937 CLAMP, NYLON
489348 489348 CLAMP, TUBE
WP2004514 WP2004514 CLAMP-TUBE
WP628379 WP628379 CLIP
W10169509 W10169509 CLIP, HEAT EXCHANGER
2302712 2302712 CLIP, RETAINER
2257639 2257639 CLIP, THERMISTOR
2209204 2209204 CLIP, THERMISTOR
4317943 4317943 COMPLETE ICEMAKER ASSEMBLY
W10841139 W10841139 COMPRESSOR

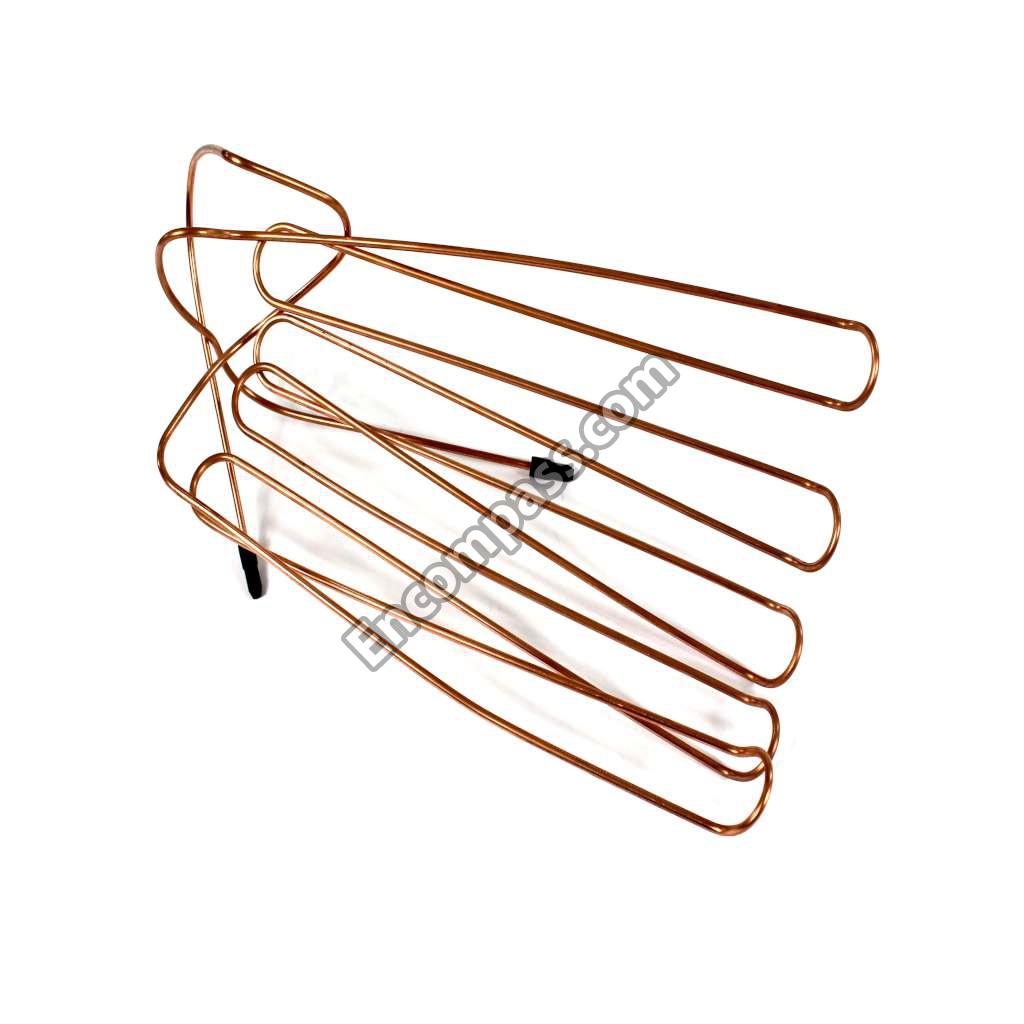

WP2259307 WP2259307 CONDENSER
W10823805 W10823805 CONTROL BOARD
WP2306086 WP2306086 CONTROL BOARD
W10839424 W10839424 CONTROL BOARD
2302772 2302772 CONTROL BOX
2187424 2187424 CONTROL BOX WIRE HARNESS
2257538 2257538 COVER
2169935 2169935 COVER
2259025 2259025 COVER, AIR OUTLET
2259066 2259066 COVER, AIR RETURN
2259092 2259092 COVER, CONDENSER
2309087 2309087 COVER, DIFFUSER
2259463 2259463 COVER, ELECTRICAL
2221105 2221105 COVER, EVAPORATOR
2209495 2209495 COVER, FAN
2259064 2259064 COVER, FILL TUBE
2215612 2215612 COVER, REAR
2266948 2266948 COVER, SHELF
2215938 2215938 COVER, SWITCH (2)
1116793 1116793 COVER, THERMISTOR
2259320 2259320 COVER, UNIT
2300104 2300104 COVER-BOTTOM, ELECTRICAL
2259095 2259095 COVER-UNIT, FRONT
W10407624 W10407624 CRISPER PAN ASSEMBLY
2256223 2256223 CRISPER SPACER, 2256222 RIGHT SIDE (2) (LEFT SIDE (2))
WP628356 WP628356 CUP-WATER FILL
WP2158826 WP2158826 DAMPENER
2215648 2215648 DAMPER, HEATER
2266801 2266801 DEFLECTOR, AIR
2259055 2259055 DEFLECTOR, AIR DUCT
2208997 2208997 DIFFUSER ASSEMBLY
LW10193486 LW10193486 DOOR ASSEMBLY SS
LW10193490 LW10193490 DOOR ASSEMBLY SS
W11752085 W11752085 DOOR HINGE
W11724512 W11724512 DOOR HINGE
2257637 2257637 DOOR SPACER, BOTTOM
WP2215985 WP2215985 DOOR TRIM
WP2259041X WP2259041X DOOR TRIM
WP2259040X WP2259040X DOOR TRIM
WPW10143759 WPW10143759 DRIER-UV
WP2221071A WP2221071A EGG-CONTNR
WP627843 WP627843 EJECTOR
WPW10323173 WPW10323173 ENDCAP-TRM
WPW10323172 WPW10323172 ENDCAP-TRM
WPW10121046 WPW10121046 ETENSION
WP2306093 WP2306093 EVAPORATOR
W11671461 W11671461 EVAPORATOR MOTOR
2221107 2221107 EVAPORATOR, COVER RAIL (LEFT SIDE)
2259355 2259355 EVAPORATOR, COVER RAIL (RIGHT SIDE)
WP2307857 WP2307857 EXTENSION
WP2169142 WP2169142 FAN BLADE
WP2190685 WP2190685 FAN, BLADE
WP2182120 WP2182120 FAN-SCROLL
1113227 1113227 FASTENER (3)
EDR5RXD1 EDR5RXD1 FILTER
2220856 2220856 FRONT PANEL KIT (BLACK)
2220853 2220853 FRONT PANEL KIT (WHITE)
2220862 2220862 FRONT PANEL KIT BLACK ACRYLIC STATIC CLEANER PART NO. 978849
W10839856 W10839856 FRONT-BSKT
WP2266934 WP2266934 FRONT-COMP
WP2256366 WP2256366 FRONT-PAN
WP2256248 WP2256248 FRONT-PAN
4388319 4388319 GAP-HINGE
2259059 2259059 GASKET
WP2155789 WP2155789 GASKET
2220904 2220904 GASKET (2) EVAPORATOR COVER
WP2266905 WP2266905 GASKET ASSEMBLY
WP2266902 WP2266902 GASKET ASSEMBLY
2220832 2220832 GASKET, EVAPORATOR
W10849998 W10849998 GLASS SHELF
WP2302842 WP2302842 GLASS SHELF
WP2209428B WP2209428B GRILLE, BOTTOM FRONT
2259435X 2259435X GRILLE-TRIM, BOTTOM
2259421X 2259421X GRILLE-TRIM, LEFT SIDE
2259420X 2259420X GRILLE-TRIM, RIGHT SIDE
2259441X 2259441X GRILLE-TRIM, TOP
548737 548737 GROMMET (4)
876811 876811 GROMMET (4) ((PRODUCTION))
2266857 2266857 GROMMET, FLEXIBLE
2005007 2005007 GROMMET, FLEXIBLE
2005006 2005006 GROMMET, WIRING
2209450 2209450 HANGER, HEATER
2187520 2187520 HARNESS, EVAP FAN
WP2221240 WP2221240 HEATER
WP2006750 WP2006750 HEATER
WP2316878 WP2316878 HEATER-PAN
WP2302876 WP2302876 HING-BUSHG
W10527053 W10527053 HINGE (BOTTOM) (FREEZER SIDE)
WP2006780 WP2006780 HINGE (BOTTOM) (REFRIGERATOR SIDE)
2302878 2302878 HINGE ASSEMBLY, BOTTOM
2257644 2257644 HINGE, TOP
WP2209022 WP2209022 HOUSING
2257354 2257354 HOUSING, CONTROL BOARD
2259349 2259349 HOUSING, POWER SUPPLY
2266931 2266931 ICE BUCKET
WP2182124 WP2182124 ICE STRIPER
WP2313917 WP2313917 INLET VALVE
WP2303938 WP2303938 INSERT, CONTROL BOX
W11553819 W11553819 INSULATION
W10629033 W10629033 INVRTR-BOX
WP2259032 WP2259032 LADDER
WP2259077 WP2259077 LADDER
2257528 2257528 LID-BAFFLE, MEAT PAN
W11679940 W11679940 LIGHT BULB
2259367 2259367 LIGHT SHIELD (2)
LIT2266817 LIT2266817 LITERATURE PARTS (ENERGY LABEL)
LIT2266811 LIT2266811 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT2300021 LIT2300021 LITERATURE PARTS (SERVICE & WIRING SHEET)
LIT2266808 LIT2266808 LITERATURE PARTS (USE & CARE GUIDE)
WP2004994 WP2004994 LOCK, ADJUSTABLE BUSHING
W10407627 W10407627 MEAT PAN ASSEMBLY
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD & HEATER ASSEMBLY (ALSO ORDER) 542638 SILICONE GREASE
W10181323 W10181323 MOTOR, FAN
W10190935 W10190935 MOTOR-MODL
2006442 2006442 MOUNTING STUD, GRILL
WP488130 WP488130 NUT
2003169 2003169 ORIFICE, FAN
2257519 2257519 OVERLAY
WP2259350 WP2259350 P.C. BOARD, POWER SUPPLY
2258914 2258914 PANEL CONTROL, MEAT PAN
W10777924 W10777924 RACK-WINE
2171846 2171846 RELEASE VALVE
WP2315522 WP2315522 RETAINER THERMOSTAT
WP2155590 WP2155590 RETAINER, FAN MOTOR
WP489236 WP489236 RETAINING RING, ADJUSTABLE BUSHING
WP489115 WP489115 RIVET
WPW10138054 WPW10138054 ROLLER, FRONT & REAR (4)
8533917 8533917 SCREW
8281160 8281160 SCREW
487522 487522 SCREW
2003347 2003347 SCREW
WPW10142283 WPW10142283 SCREW
WP488920 WP488920 SCREW
488357 488357 SCREW
WP488729 WP488729 SCREW
2006475 2006475 SCREW
WP8533928 WP8533928 SCREW
WP3400886 WP3400886 SCREW
WP8281250 WP8281250 SCREW
WP965173 WP965173 SCREW
WP1163283 WP1163283 SCREW
WP489069 WP489069 SCREW
W11189635 W11189635 SCREW
W11624204 W11624204 SCREW
3400525 3400525 SCREW
WP489128 WP489128 SCREW
WP2005921 WP2005921 SCREW
W11474472 W11474472 SCREW
WP681249 WP681249 SCREW
WP3400806 WP3400806 SCREW (IF APPLICABLE)
2259445 2259445 SCREW SUPPORT
520965 520965 SCREW SUPPORT, LADDER (8)
489136 489136 SCREW, (2)
WP489464 WP489464 SCREW, 1/4-28 X 1
WP489399 WP489399 SCREW, 8-32 X 5/16
3400230 3400230 SCREW, DOOR STOP
WP1106508 WP1106508 SEAL GASKET
2259412 2259412 SEAL, AIR DUCT (ROUND HOLE)
2259398 2259398 SEAL, AIR DUCT (SQUARE HOLE)
2005925 2005925 SEAL, SIDE TRIM
2302777 2302777 SEAL-LIGHT, SOCKET
2259197 2259197 SERVICE CORD
W10323747 W10323747 SHELF, DOOR (GALLON)
2302883 2302883 SHELF, FIXED (2)
WP2222592 WP2222592 SHELF-CANT
WP2221231 WP2221231 SHIELD
2005908 2005908 SHIELD, DRAIN PAN
2259369 2259369 SHROUD, CONDENSER (LEFT)
2266803 2266803 SHROUD, CONDENSER (RIGHT)
2259244 2259244 SIDE SUPPORT
WP2209025B WP2209025B SKIRT-GRILLE, BOTTOM (BLACK)
2000645 2000645 SLEEVE, CONDENSER
WP2259318 WP2259318 SLIDE
WP2259317 WP2259317 SLIDE, BASKET (RIGHT SIDE)
2302956 2302956 SLIDE, DELI PAN (LH)
2302957 2302957 SLIDE, DELI PAN (RH)
2302954 2302954 SLIDE, MEAT PAN (LEFT SIDE)
2302955 2302955 SLIDE, MEAT PAN (RIGHT SIDE)
2302868 2302868 SOLID SHELF
WP2203075 WP2203075 SPACER
2259372 2259372 SPACER, AIR BAFFLE
2266955 2266955 SPACER, ICE DOOR
2256243 2256243 SPACER, MEAT PAN (LEFT SIDE)
2256244 2256244 SPACER, MEAT PAN (RIGHT SIDE)
2256381 2256381 SPACER-DOOR, TOP
WP486692 WP486692 SPEED NUT (1/4-20)
WP2004517 WP2004517 SPRING
WP2196483 WP2196483 STUDY ASSEMBLY
WP2259303 WP2259303 SUCTION TUBE
W10860448 W10860448 SUPPORT
W10860229 W10860229 SUPPORT
WP2195914 WP2195914 SUPPORT
2221121 2221121 SUPPORT, CONTROL BOX
1112260 1112260 SUPPORT, EVAPORATOR (2)
WP2001264 WP2001264 SUPPORT, HEATER
W11457217 W11457217 SWITCH
WP2266802 WP2266802 SWITCH, POWER DISCONNECT
W11384469 W11384469 SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
LIT628370 LIT628370 TECH SHEET
2215676 2215676 TERMINAL COVER
WP2188819 WP2188819 THERMISTOR
2266949 2266949 THERMISTOR
WP2188820 WP2188820 THERMISTOR
WP627985 WP627985 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
2259423X 2259423X TOP GRILLE ASSEMBLY (ETCHED ALUMINUM)
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
2252067 2252067 TOUCH PAD, MEAT PAN
2215994 2215994 TRIM (BOTTOM) (ETCHED ALUMINUM)
2257687X 2257687X TRIM (HINGE SIDE) (ETCHED ALUMINUM)
2257686X 2257686X TRIM (HINGE SIDE) (ETCHED ALUMINUM)
2005020 2005020 TRIM (TOP) (ETCHED ALUMINUM)
2005011 2005011 TRIM (TOP) (ETCHED ALUMINUM)
2257611 2257611 TRIM, GLASS
2256228 2256228 TRIM, GLASS (FRONT)
2256254 2256254 TRIM, GLASS REAR
2257582 2257582 TRIM, GLASS REAR
2259448X 2259448X TRIM, SCREW COVER (HANDLE SIDE)
2252255 2252255 TRIM, SIDE GLASS CRISPER PAN
2256250 2256250 TRIM, SIDE GLASS MEAT PAN
WP2259365X WP2259365X TRIM-COVER
W10624429 W10624429 TUBE
W10624985 W10624985 TUBE
2259304 2259304 TUBE, CONNECT (DRIER/RESTRICTOR)
2209430 2209430 TUBE, FILTER OUTLET
W10528578 W10528578 TUBE, PROCESS
2259340 2259340 TUBE, TRANSITION (HEAT LOOP)
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
WP2006346 WP2006346 WASHER
WP2314048 WP2314048 WATER INLET TUBE ASSEMBLY
WP2320524 WP2320524 WATER TUBE
2004914 2004914 WATER VALVE MOUNTING BRACKET
2259465 2259465 WEDGE, AIR DUCT
2259464 2259464 WEDGE, AIR DUCT
2187429 2187429 WIRE ASSEMBLY RC/FC LIGHT SWITCH
WP2254792 WP2254792 WIRE HARNESS
2187679 2187679 WIRE, JUMPER
2187625 2187625 WIRING HARNESS, UNIT COMPARTMENT
