Model Image
Manufacturer

Whirlpool

Model Number

KSSP36QJS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
2004484 2004484 AIR BAFFLE ASSEMBLY
2182146 2182146 AIR DEFLECTOR, ICEMAKER
WPW10152859 WPW10152859 ARM-DISPSR
WP2180259 WP2180259 ARM-DISPSR
WP627843 WP627843 ARM-EJECTR
W11342242 W11342242 ARM-SHUT
2208900 2208900 ASSEMBLY, AIR DUCT (ALSO ORDER ITEMS 8 & 15)
2003398 2003398 ASSEMBLY, UNIT BASE
1112514 1112514 BACK UP PLATE (8)
1112840 1112840 BAFFLE, EVAPORATOR
2006440 2006440 BAFFLE-AIR, CONDENSER
2208192 2208192 BASKET
2006734 2006734 BIN CONTROL LEVER
1112720 1112720 BIN, UTILITY
1119009 1119009 BLADE, FIXED (2)
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
2157405 2157405 BLOCK BLADE
WP8204624 WP8204624 BOLT
WP2256087 WP2256087 BRACKET
WP2180226 WP2180226 BRACKET
548263 548263 BRACKET (DOUBLE)
938224 938224 BRACKET (SINGLE)
1113206 1113206 BRACKET, DRAIN PAN (LEFT)
1113207 1113207 BRACKET, DRAIN PAN (RIGHT)
2005567 2005567 BRACKET, LIGHT
2003939 2003939 BRACKET, MOTOR
2002903 2002903 BUSHING
2004565 2004565 BUSHING, DOOR CLOSURE
WP2165792K WP2165792K BUTTERTRAY
100000 100000 CABINET (NOT A SERVICEABLE PART)
2006791 2006791 CABINET, TRIM
2254724 2254724 CABINET, TRIM (BOTTOM)
2003645 2003645 CABINET, TRIM TOP
1113650 1113650 CAMERA LENS
2200096 2200096 CAMERA LENS, INDICATOR LIGHT
1112849 1112849 CAP, GROMMET
WP2186494B WP2186494B CAP, WATER FILTER (BLACK)
WP999509 WP999509 CAPACITOR
WP4317852 WP4317852 CEMENT ALUMILASTIC)
1112707 1112707 CHANNEL, WIRING
2001256 2001256 CHANNEL, WIRING
2001141 2001141 CHANNEL, WIRING
2208995 2208995 CIRCUIT BOARD
2203384 2203384 CIRCUIT BOARD, FILTER INDICATOR
1113019 1113019 CLAMP (4)
1113043 1113043 CLAMP, BI-METAL
1113162 1113162 CLAMP, CORD (2)
2209090 2209090 CLAMP, FILTER HOUSING
1108431 1108431 CLAMP, HEATER (2)
1113048 1113048 CLAMP, HEATER (2)
488937 488937 CLAMP, NYLON
978849 978849 CLEANER, (8 OZ.) BLACK GLASS
WP628379 WP628379 CLIP
2163787 2163787 CLIP, COMPRESSOR MOUNTING (4)
653035 653035 CLIP, CORD PLUG
2200079 2200079 CLIP, TUBE
2005237 2005237 CLIP, WIRE
1115375 1115375 CLIP, WIRING (2)
2215823 2215823 CLIP-AIR, DUCT
2006541 2006541 COMPLETE ICE CONTAINER ASSEMBLY
4317943 4317943 COMPLETE ICEMAKER ASSEMBLY
W10309990 W10309990 COMPRESSOR
2003392 2003392 CONDENSER
2002999 2002999 CONDENSER INLET TUBE
2154472 2154472 CONNECTOR
WP4318044 WP4318044 CONNECTOR AND WATER TUBE
227991 227991 CONNECTOR WIRE
2000797 2000797 CONNECTOR, MEAT PAN DUCT
2002728 2002728 CONTROL ARM
2197871 2197871 CONTROL KNOB
2003811 2003811 CONTROL KNOB, MEAT PAN
1112595 1112595 CONTROL PANEL
2209225 2209225 CONTROL PANEL
2160602 2160602 CONVEYOR
W10749708 W10749708 COUPLING, ICE CONVEYOR
WPW10169511 WPW10169511 COUPLING, MOTOR
2169935 2169935 COVER
WP2162358 WP2162358 COVER ((PRODUCTION ALTERNATE))
1113942 1113942 COVER, AIR OUTLET
2005535 2005535 COVER, CONDENSER
1113893 1113893 COVER, CRISPER
WP2208953 WP2208953 COVER, DIFFUSER
2005035 2005035 COVER, EVAPORATOR
2003174 2003174 COVER, FAN
1113128 1113128 COVER, MOTOR
2004512 2004512 COVER, REAR
1116793 1116793 COVER, THERMISTOR
2005549 2005549 COVER, UNIT
2220895 2220895 CRISPER PAN (2)
2002732 2002732 CUP, CLEARANCE
WP628356 WP628356 CUP-WATER FILL
WP2158826 WP2158826 DAMPENER
1112218 1112218 DAMPER CONTROL, MEAT PAN
2004958 2004958 DECORTIVE PANEL ASSEMBLY
2003927 2003927 DEFLECTOR, AIR DUCT
2003924 2003924 DEFLECTOR, AIR DUCT
WP1119017 WP1119017 DEFLECTOR, ICE
2006755 2006755 DEFROST BI-METAL
WP2208996 WP2208996 DIFFUSER ASSEMBLY
1112851 1112851 DIFFUSER, AIR DUCT
2188319A 2188319A DOOR GASKET
2188317A 2188317A DOOR GASKET, MAGNETIC
1112745 1112745 DOOR SHELF
2004549 2004549 DOOR, SPACER BOTTOM
2003463 2003463 DOOR, UTILITY BIN
WPW10143759 WPW10143759 DRIER
4388736 4388736 DRUM
WP2177817 WP2177817 EGG-CONTNR
W10136387A W10136387A EGG-CONTNR
LIT2209466 LIT2209466 ENERGY LABEL
WPW10122127 WPW10122127 EVAPORATOR
WP4389155 WP4389155 EVAPORATOR MOTOR
2000686 2000686 EVAPORATOR, COVER RAIL (LEFT SIDE)
2000685 2000685 EVAPORATOR, COVER RAIL (RIGHT SIDE)
WP2174478 WP2174478 EYELET, ROLLER
WP2169142 WP2169142 FAN BLADE
WP2190685 WP2190685 FAN, BLADE
1113227 1113227 FASTENER (3)
1112871 1112871 FASTNER

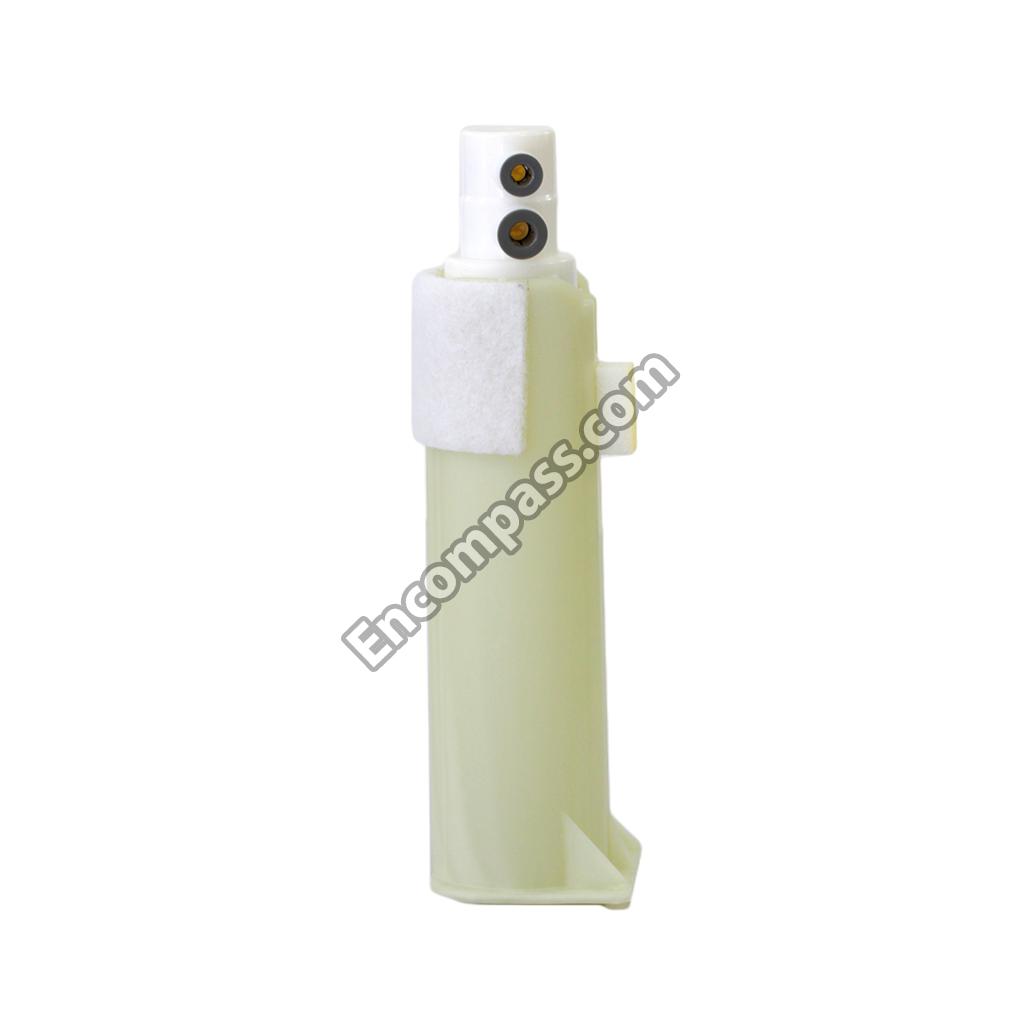

EDR5RXD1 EDR5RXD1 FILTER

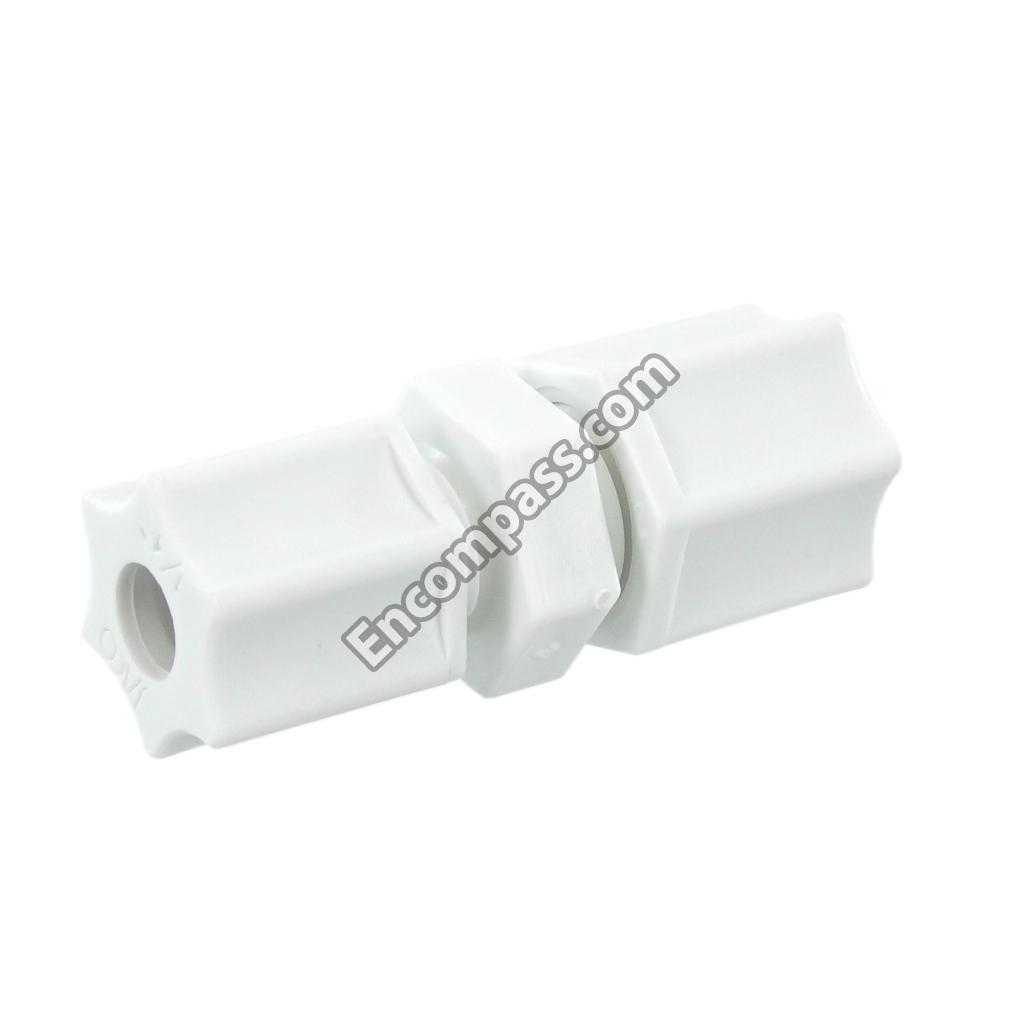

2185988 2185988 FITTING, WATER TUBE
W10852691 W10852691 FLOATING BAFFLE
2006523 2006523 FRAME, ASSEMBLY MEAT PAN
2174402 2174402 FRAME, SHELF
WPW10289690 WPW10289690 FRONT COVER
2202570B 2202570B FRONT COVER ASSEMBLY (INCLUDES ITEMS 18, 36, 42 & 49) (BLACK)
2002722 2002722 FRONT COVER, ICE CONTAINER
4392886 4392886 FRONT PANEL KIT (BISCUIT)
4378653 4378653 FRONT PANEL KIT (BLACK)
4378659 4378659 FRONT PANEL KIT (STAINLESS STEEL)
4378650 4378650 FRONT PANEL KIT (WHITE)
2188381 2188381 FRONT, ICE COMPARTMENT
4388319 4388319 GAP-HINGE
2001081 2001081 GASKET
2001337 2001337 GASKET (2) EVAPORATOR COVER
1112533 1112533 GASKET RETAINER, SIDE (2)
1112538 1112538 GASKET RETAINER, TOP & BOTTOM
1112539 1112539 GASKET RETAINER, TOP & BOTTOM
1112869 1112869 GASKET, AIR BAFFLE
1112844 1112844 GASKET, EVAPORATOR
1113790 1113790 GASKET, GLASS (2)
1113303 1113303 GASKET, ORIFICE
2003378 2003378 GLASS, CRISPER
2003375 2003375 GLASS, SHELF
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
2209425B 2209425B GRILLE BASE, FRONT (BLACK)
2002484 2002484 GRILLE, BRACKET
WP2180325 WP2180325 GRILLE, OVERFLOW (BLACK)
548268 548268 GROMMET
WP2163786 WP2163786 GROMMET
548737 548737 GROMMET (4)
2005007 2005007 GROMMET, FLEXIBLE
2000193 2000193 GROMMET, SCREW (2)
2005004 2005004 GROMMET, TUBE CROSSOVER
2209203 2209203 GROMMET, WIRING
1113122 1113122 GROMMET, WIRING
2005006 2005006 GROMMET, WIRING
2003577 2003577 GUARD, AIR RETURN
2005534 2005534 GUARD, COMPRESSOR WIRING
WP2180224 WP2180224 GUIDE, ICE
W10850503 W10850503 GUIDE, SOLENOID
2005944 2005944 HANDLE, DOOR
2005954 2005954 HANDLE, DOOR
1113062 1113062 HANGER, HEATER
WP2003001 WP2003001 HEAT EXCHANGER
2006749 2006749 HEATER, DEFROST
WP2004545 WP2004545 HEATER, DRAIN PAN
WP2302876 WP2302876 HING-BUSHG
W10527053 W10527053 HINGE (BOTTOM) (FREEZER SIDE)
WP2006780 WP2006780 HINGE (BOTTOM) (REFRIGERATOR SIDE)
WP2004523 WP2004523 HINGE ASSEMBLY, BOTTOM
2005329 2005329 HINGE ASSEMBLY, TOP
2004524 2004524 HINGE, BOTTOM
2257644 2257644 HINGE, DOOR REFRIGERATOR TOP
1112257 1112257 HOLE PLUG
2000153 2000153 HOLE PLUG (3)
WP2209022 WP2209022 HOUSING
WPW10185018 WPW10185018 HOUSING, CRUSHER
WP2195914 WP2195914 HOUSING-IM
2208909 2208909 ICE CHUTE
2208906 2208906 ICE CONTAINER
2199894 2199894 ICE CONTIANER ASSEMBLY
W10823377 W10823377 ICE DOR KT
WP2182124 WP2182124 ICE STRIPER
2003307 2003307 INLAY, CONTROL PANEL
2209001 2209001 INLAY, CONTROL PANEL
4387491 4387491 INSERT, TUBE
WP625834 WP625834 INSULATION, SWITCH
837444 837444 KNOB, RETAINER
2182112 2182112 KNOB, THERMOSTAT
1113951 1113951 LADDER, SHELF (2)
2001117 2001117 LADDER, SHELF (2)
2180200 2180200 LAMP HOLDER
W10190935 W10190935 LEVER, ICE DISPENSER (BLACK (STORM GREY PAD))
WPW10152858 WPW10152858 LEVER, WATER DISPENSER (BLACK (STORM GREY PAD))
WP22002263 WP22002263 LIGHT BULB
WP548049 WP548049 LIGHT BULB
LIT2209250 LIT2209250 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT2209309 LIT2209309 LITERATURE PARTS (SERVICE & WIRING SHEET)
LIT2209249 LIT2209249 LITERATURE PARTS (USE & CARE GUIDE)
WP2004994 WP2004994 LOCK, ADJUSTABLE BUSHING
2220901 2220901 MEAT PAN
WP2000337 WP2000337 MEAT PAN, AIR DUCT
2000740 2000740 MEAT PAN, AIR DUCT COVER (ALSO ORDER 12)
2000742 2000742 MEAT PAN, CONNECTOR
WPW10190929 WPW10190929 MOLD & HEATER ASSEMBLY (ALSO ORDER) 542638 SILICONE GREASE
WP2188242 WP2188242 MOTOR
WP2169135 WP2169135 MOTOR, FAN
2006442 2006442 MOUNTING STUD, GRILL
303776 303776 NO DESCRIPTION AVALIABLE
4318011 4318011 NUT
WP488130 WP488130 NUT
WP1119018 WP1119018 NUT, BEARING
WP627018 WP627018 NUT, COMPRESSION 1/4``
2003169 2003169 ORIFICE, FAN
2202576 2202576 OVERLAY, COVER (BLACK)
4387535 4387535 OVERLOAD
2209349 2209349 PANEL, DECORATIVE
2209363 2209363 PANEL, DECORATIVE
2209352 2209352 PANEL, DECORATIVE LOWER
2209355 2209355 PANEL, DECORATIVE UPPER
2209027 2209027 PANEL, INTERIOR DOOR
1113952 1113952 PANEL, INTERIOR DOOR
2221136B 2221136B PANEL-EXT
WP2196195 WP2196195 PIN
647512 647512 POWER CORD
2003011 2003011 PROCESS, TUBE
W10777924 W10777924 RACK-WINE
1113546 1113546 REFLECTOR, SHELF
8201580 8201580 REFRIGERATOR DOOR PANEL
WP2262181 WP2262181 RELAY-STRT
WP2256126 WP2256126 RESERVOIR
1119021 1119021 RETAINER CLIP, ROD
WP2315522 WP2315522 RETAINER THERMOSTAT
2200097 2200097 RETAINER, CAMERA LENS
2002181 2002181 RETAINER, GLASS
WP2194719 WP2194719 RETAINER, LEVERS
1112530 1112530 RETAINER, SHELF LADDER (2)
WP489236 WP489236 RETAINING RING, ADJUSTABLE BUSHING
2004881 2004881 RETAINING RING, DOOR-CLOSURE
4318078 4318078 ROLLER
WPW10138054 WPW10138054 ROLLER, FRONT & REAR (4)
489229 489229 ROLLPIN
798639 798639 SCREW
WP3388228 WP3388228 SCREW
487522 487522 SCREW
WP965173 WP965173 SCREW
W10759522 W10759522 SCREW
WP489128 WP489128 SCREW
WP3400906 WP3400906 SCREW
WP488729 WP488729 SCREW
WP488787 WP488787 SCREW
WPW10272364 WPW10272364 SCREW
488357 488357 SCREW
487559 487559 SCREW
WP681414 WP681414 SCREW
2003857 2003857 SCREW
WP1163283 WP1163283 SCREW
W11624204 W11624204 SCREW
WP3400912 WP3400912 SCREW
W11474472 W11474472 SCREW
WP681249 WP681249 SCREW
8533917 8533917 SCREW (2)
488974 488974 SCREW (2)
489260 489260 SCREW (3)
520965 520965 SCREW SUPPORT, LADDER (8)
489136 489136 SCREW, (2)
WP489464 WP489464 SCREW, 1/4-28 X 1
2006254 2006254 SCREW, 6-19 X .250
WP939101 WP939101 SCREW, 8 X 1/2
WP489478 WP489478 SCREW, 8-18 X .50
681390 681390 SCREW, 8-32 X 3/8
WP489399 WP489399 SCREW, 8-32 X 5/16
WP2005378 WP2005378 SCREW, DOOR STOP
487010 487010 SCREW, NO.6X18X1/4 (3)
2000783 2000783 SCROLL, FAN
WP1106508 WP1106508 SEAL GASKET
2001326 2001326 SEAL, AIR DUCT
1113132 1113132 SEAL, CONTROL PANEL
1113133 1113133 SEAL, CONTROL PANEL
2005925 2005925 SEAL, SIDE TRIM
2209163 2209163 SHELF BIN
1113636 1113636 SHELF, DEEP (2)
1113564 1113564 SHELF, FIXED (1)
2209252 2209252 SHIELD, CONTROL PANEL
2209172 2209172 SHIELD, CONTROL PANEL
2005908 2005908 SHIELD, DRAIN PAN
WP2209024B WP2209024B SKIRT, GRILLE- BOTTOM (BLACK)
2004516 2004516 SKIRT-GRILLE, BOTTOM (LINKAGE, DOOR CLOSURE)
2002448 2002448 SLEEVE
WP2002171 WP2002171 SLEEVE
2000645 2000645 SLEEVE, CONDENSER
2208197 2208197 SLIDE, BASKET (LEFT SIDE)
2208198 2208198 SLIDE, BASKET (RIGHT SIDE)
2006517 2006517 SLIDE, CONTAINER (RIGHT SIDE)
2005043 2005043 SOCKET, LIGHT
2005042 2005042 SOCKET, LIGHT
2003979 2003979 SOLENIOD ASSEMBLY
2220889 2220889 SOLID SHELF
1112591 1112591 SPACER, CONTROL PANEL (3)
WP1119007 WP1119007 SPACER, FLAT (2)
WP1119005 WP1119005 SPACER, STEP
2004520 2004520 SPACER-DOOR, TOP
WP486692 WP486692 SPEED NUT (1/4-20)
WPW10224328 WPW10224328 SPRING
2004567 2004567 SPRING, DOOR CLOSURE
1119020 1119020 SPRING, RETURN
1113169 1113169 STOP, ROLLER
WP2195051 WP2195051 STRAIN RELIEF
658944 658944 STUD, SHELF
W10860448 W10860448 SUPPORT
W10860229 W10860229 SUPPORT
WP538533 WP538533 SUPPORT CLIP, ICEMAKER (2)
1112260 1112260 SUPPORT, EVAPORATOR
WP2001264 WP2001264 SUPPORT, HEATER
WP2266802 WP2266802 SWITCH
W11457217 W11457217 SWITCH
WP2162361 WP2162361 SWITCH
2202551 2202551 SWITCH ASSEMBLY (ALSO ORDER ITEM NO.49)
W11384469 W11384469 SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
LIT628370 LIT628370 TECH SHEET
2003347 2003347 TEE BOLT
WP1116959 WP1116959 THERMISTOR
WP627985 WP627985 THERMOSTAT
WP1113466 WP1113466 THERMOSTAT & BARRIER ASSEMBLY
WPW10339879 WPW10339879 TIE-WIRE
WP2183400 WP2183400 TIMER-DEF
2004955 2004955 TOP GRILLE ASSEMBLY
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
2006518 2006518 TRACK
WP2006516 WP2006516 TRACK
WP2006515 WP2006515 TRACK
2004631 2004631 TRIM (BOTTOM)
2004628 2004628 TRIM (BOTTOM)
2005964 2005964 TRIM (SIDE)
WP2005969 WP2005969 TRIM (SIDE)
2005025 2005025 TRIM (TOP)
2005016 2005016 TRIM (TOP)
2003112 2003112 TRIM, BASKET
WP2208954 WP2208954 TRIM, END CAP (LEFT SIDE)
WP2209134 WP2209134 TRIM, END CAP (RIGHT SIDE)
2208926 2208926 TRIM, FRONT (2) (BLACK)
2004609 2004609 TRIM, GRILLE BOTTOM
2004606 2004606 TRIM, GRILLE LEFT SIDE
2004603 2004603 TRIM, GRILLE RIGHT SIDE
2004612 2004612 TRIM, GRILLE TOP
876765 876765 TUBE KIT
2003015 2003015 TUBE, CONNECT (DRIER)
2002995 2002995 TUBE, DISCHARGE
2209430 2209430 TUBE, FILTER OUTLET
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
2006766 2006766 VALVE, SOLENOID
876764 876764 VALVE,ACCESS (3/16)
488083 488083 WASHER
W10903204 W10903204 WASHER
2001230 2001230 WASHER
WP2006346 WP2006346 WASHER
WP489235 WP489235 WASHER RING
489234 489234 WASHER, PLAIN
W10823511 W10823511 WATER TUBE
WP2320524 WP2320524 WATER TUBE
2004914 2004914 WATER VALVE MOUNTING BRACKET
2209072 2209072 WATER VALVE, HARNESS
2311650 2311650 WIRE ASSEMBLY
851095 851095 WIRE TIE (2)
2006223 2006223 WIRE, LIGHT
WP2187420 WP2187420 WIRING ASSEMBLY, ICE DISPENSER
2209059 2209059 WIRING HARNESS, CABINET
2207479 2207479 WIRING HARNESS, UNIT COMPARTMENT
WP488366 WP488366 XTUBE CLAMP (2)
Main Menu x
