Model Image
Manufacturer

Whirlpool

Model Number

KTRC18KAAL11

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
2157253 2157253 AIR DIFFUSER ASSEMBLY
2169432 2169432 AIR, BAFFLE
350956 350956 ALMOND
WP72107 WP72107 ALMOND
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 BARRIER
WP4387503 WP4387503 BIMETL-DEF
72032 72032 BLACK
WP1100938 WP1100938 BLADE-FAN
2172814 2172814 BOTTOM, COMPARTMENT SEPARATOR
1126029 1126029 BOX, CONTROL
W11745278 W11745278 BRACKET
1105457 1105457 BRACKET, CONTROL KNOB
1105220 1105220 BRACKET, MOUNTING
WP2212648 WP2212648 BUTTON-PLG
100000 100000 CABINET (NOT A SERVICEABLE PART)
WP487996 WP487996 CAP-TUBE
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
1108065 1108065 CAPACITOR, START
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
2172701 2172701 CENTER RAIL
1108033 1108033 CLAMP
WP488366 WP488366 CLAMP
549193 549193 CLAMP, CORD
489396 489396 CLIP
WP2155013 WP2155013 CLIP, GRILLE RETAINER (2)
2149060 2149060 CLIP, MULLION (3)
2172812 2172812 CLIP, THERMOSTAT TUBE RETENTION
548745 548745 CLIP, WIRE
1118136 1118136 COMPARTMENT DOOR, UTILITY
1118129 1118129 COMPARTMENT, BUTTER DOOR
4387047 4387047 COMPRESSOR
1116624 1116624 CONDENSER ASSEMBLY
1116571 1116571 CONTROL, FRONT COVER
1113084 1113084 CORD, SERVICE
1118078 1118078 CORNER FILLER, GRILLE
WP2217784 WP2217784 COVER
WP2213360 WP2213360 COVER
1108176 1108176 COVER, AIR DIFFUSER
2153966 2153966 COVER, AIR DUCT
2172766 2172766 COVER, UNIT
2160517 2160517 COVER, UNIT BOTTOM
2157828 2157828 CRISPER COVER
937065 937065 CUP, DRAIN
WP2158826 WP2158826 DAMPENER
1125542 1125542 DIVIDER
2188447A 2188447A DOOR GASKET
2188461A 2188461A DOOR GASKET, MAGNETIC
WP2254473 WP2254473 DOOR HINGE
W10851192 W10851192 DOOR HINGE
WP2189412 WP2189412 DOOR HINGE
2172757 2172757 DOOR REVERSAL INSTRUCTIONS
2172811 2172811 DRAIN FITTING
2153973 2153973 DRAIN PAN & HEAT SHIELD
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE
978883 978883 ENAMEL, ALMOND (1 QT. UNCUT)
1125788 1125788 END CAP
4318297 4318297 ENDCAP-TRM
4386917 4386917 ENDCAP-TRM
LIT2168662 LIT2168662 ENERGY GUIDE
2174757 2174757 EVAPORATOR
2151668 2151668 EVAPORATOR COVER
482731 482731 EVAPORATOR MOTOR
2169191 2169191 FAN BLADE
2162060 2162060 FAN, MOUNTING BRACKET
1129316 1129316 FIELD INSTALLABLE ICE MAKER (ECKMF90)
2196095 2196095 FILLER, WRAPPER (ALMOND)
2196097 2196097 FILLER, WRAPPER (BLACK)
WP2196157 WP2196157 FITTING
1125852 1125852 FRONT, PAN
2157255 2157255 GASKET, AIR DIFFUSER
2159734 2159734 GASKET, BOTTOM SEPARATOR
1116713 1116713 GASKET, COVER (FRONT) (2)
1125706 1125706 GASKET, COVER (REAR)
1125783 1125783 GASKET, FRONT CANTILEVER
2164379 2164379 GLASS SHELF
1126193 1126193 GLASS, FULL SHELF
1126194 1126194 GLASS, SHELF
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
1125669 1125669 GRILLE (ALMOND)
1125664 1125664 GRILLE (WHITE)
983604 983604 GROMMET
WP531933 WP531933 GROMMET
937252 937252 GROMMET (4)
1110779 1110779 GROMMET (4)
1105200 1105200 GROMMET, COMPRESSOR
1105219 1105219 GROMMET, COMPRESSOR BRACKET
2161517 2161517 HANDLE ASSEMBLY
2161508 2161508 HANDLE ASSEMBLY
2162020 2162020 HEATER, DEFROST
2154064 2154064 HEATER, MULLION
2160404 2160404 HINGE COVER (ALMOND)
WP1118001 WP1118001 HINGE PIN, CENTER
WP941839 WP941839 HOLE COVER, EVAPORATOR
1103725 1103725 HOLE PLUG
WP2151652 WP2151652 HOLE PLUG (2) (WHITE)
842031 842031 HOLE PLUG (3) (WHITE)
2151653 2151653 HOLE PLUG (6) (ALMOND)
989196 989196 HOLE PLUG (ALMOND)
940014 940014 HOLE PLUG, CONTROL BOX
WP841180A WP841180A ICE TRAY (FOR PLATINUM MODEL ONLY)
2161541 2161541 INSERT, HANDLE (ALMOND)
2161512 2161512 INSERT, HANDLE (ALMOND)
2161540 2161540 INSERT, HANDLE (WHITE)
2161511 2161511 INSERT, HANDLE (WHITE)
1116569 1116569 INSULATION, COMPARTMENT SEPARATOR
1108196 1108196 INSULATION, FILLER
1116610 1116610 INTERIOR DOOR PANEL
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
876370 876370 KIT, INSULATION (2 PCS.) 3`` X 24 `` X 48``)
833938 833938 KIT, TERMINAL CONNECTOR
1115047 1115047 KNOB
1106931 1106931 KNOB, THERMOSTAT
350941 350941 LEVELER, ENAMEL (13 OZ. SPRAY CAN)
W11679940 W11679940 LIGHT BULB
1105476 1105476 LIGHT, BAR
1105475 1105475 LIGHT, BAR
833697 833697 MOTOR-COND
2159657 2159657 MUFFLER & TUBE ASSEMBLY
2212762 2212762 NAMEPLATE (BLACK)
819160 819160 OVERLOAD
2154945 2154945 OVERLOAD (SERVICE (INCLUDES RELAY))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
1126189 1126189 PAN SHELF, CANTILEVER
1125851 1125851 PAN, CRISPER
W11625904 W11625904 PAN-ICE
1115162 1115162 PAN-MEAT
2157711 2157711 PANEL, FREEZER DOOR (ALSO ORDER ITEM 21) (ALMOND)
2157708 2157708 PANEL, FREEZER DOOR (ALSO ORDER ITEM 21) (WHITE)
1116578 1116578 PANEL, REFRIGERATOR DOOR (ALSO ORDER ITEM 27) (ALMOND)
4389188 4389188 PANEL-EXT
4388057 4388057 PANEL-INT
WP939101 WP939101 PLATE
W10833053 W10833053 PLATE
534927 534927 PLUG, HOLE

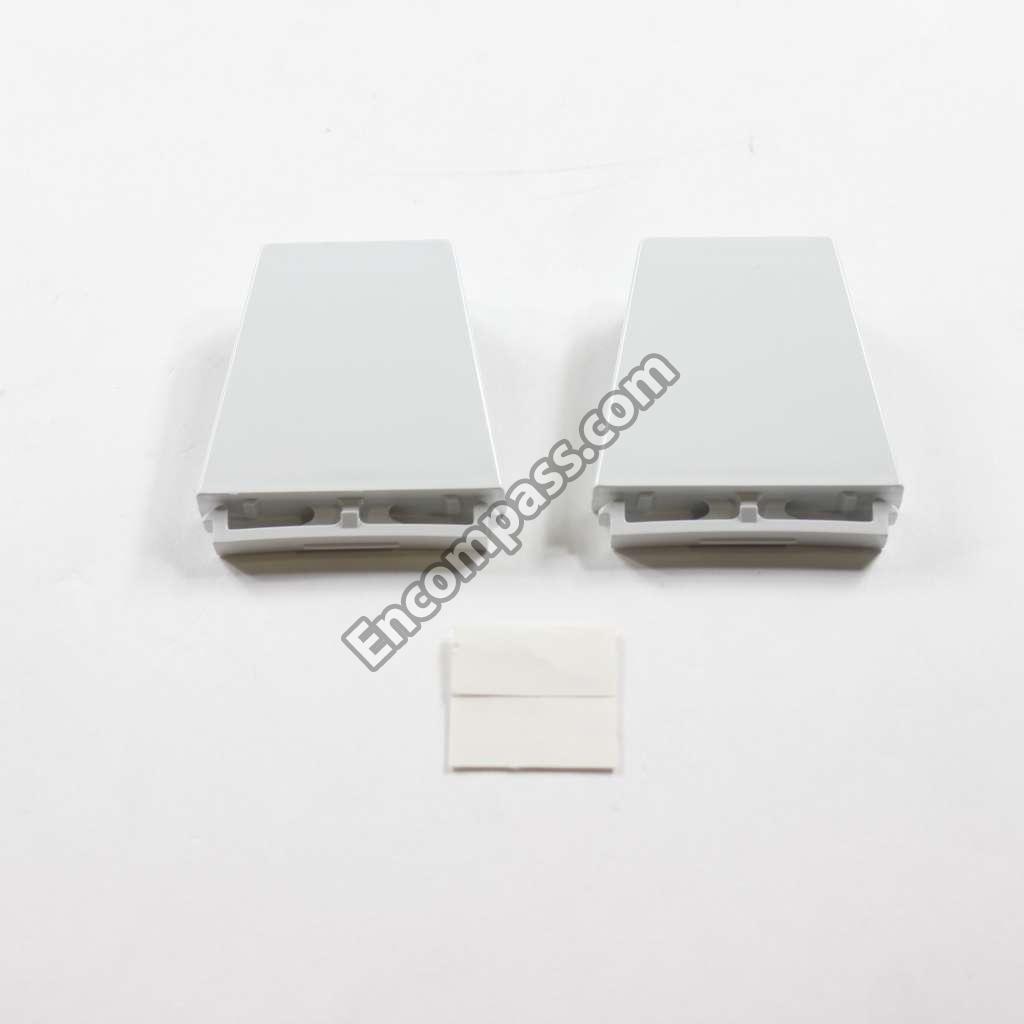

WP2189008 WP2189008 PLUG-HNDLE
WP2189000 WP2189000 PLUG-HNDLE
350942 350942 PRIMER WHITE (13 OZ. SPRAY CAN)
1126137 1126137 RACK, WINE & EGG
1115138 1115138 RETAINER, GASKET SIDE (2)
1115136 1115136 RETAINER, GASKET SIDE (2)
1115137 1115137 RETAINER, GASKET TOP & BOTTOM (2)
1125879 1125879 RETAINER, INSERT
1125525 1125525 RETAINER, SHELF
1116565 1116565 ROD, CONNECTING
4386774 4386774 ROLLER, FRONT
WPW10250570 WPW10250570 ROLLER-CAB
WP488920 WP488920 SCREW
WP489069 WP489069 SCREW
WP8281206 WP8281206 SCREW
WP489128 WP489128 SCREW
489340 489340 SCREW
WP489427 WP489427 SCREW
W11693756 W11693756 SCREW
WP489464 WP489464 SCREW
489334 489334 SCREW
489383 489383 SCREW
WP965173 WP965173 SCREW
WP487353 WP487353 SCREW
WP488729 WP488729 SCREW
489168 489168 SCREW
WP489174 WP489174 SCREW
WP489478 WP489478 SCREW
WPW10141645 WPW10141645 SCREW
WP250830 WP250830 SCREW
WP999367 WP999367 SCREW
WP488921 WP488921 SCREW
489162 489162 SCREW (3)
488454 488454 SCREW,
489393 489393 SCREW, 5/16-24 X 1-1/4
WP488163 WP488163 SCREW, 8-32 X 1-1/4 (3)
681390 681390 SCREW, 8-32 X 3/8
520965 520965 SCREW, SUPPORT (6)
1116598 1116598 SCROLL, FAN
WP1106508 WP1106508 SEAL GASKET
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
2157398 2157398 SEPARATOR, COMPARTMENT (TOP)
LIT2162463 LIT2162463 SERVICE & WIRING SHEET
W10854959 W10854959 SHELF STUD
1126187 1126187 SHELF, CANTILEVER
1125849 1125849 SHELF, FREEZER
1126186 1126186 SHELF, FULL CANTILEVER
1125543 1125543 SHELF, ICE TRAY
1114466 1114466 SHELF, LADDER (2)
1114465 1114465 SHELF, LADDER CENTER
2172743 2172743 SHIM, BOTTOM HINGE
2151813 2151813 SHIM, END CAP
1123515 1123515 SHIM, HINGE (2)
836155 836155 SHIM, HINGE CENTER
2159751 2159751 SLEEVE
WP2002171 WP2002171 SLEEVE
1125853 1125853 SLIDE, FRONT
2149077 2149077 SPACER (3)
1107628- 1107628- SPACER, HANDLE
1107651 1107651 SPACER, HANDLE
WP486692 WP486692 SPEED NUT (1/4-20)
350930 350930 SPRAY (13 OZ.) (WHITE)
1105222 1105222 STRAP, COVER
819091 819091 STUD-SHELF
W11581579 W11581579 STUD-SHELF
WP2172748 WP2172748 SUPPORT
851358 851358 SUPPORT, HEATER
WP2149705 WP2149705 SWITCH, LIGHT
2157315 2157315 TAP-PLATE, BOTTOM HINGE
W11238399 W11238399 TAPE
2154452 2154452 TERMINAL COVER
1123394 1123394 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
4388931 4388931 TIMER-DEF
WP938213 WP938213 TOGGLE, SWITCH
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
WP842041 WP842041 TRAY-EVAP
2148588 2148588 TRIM, COMPARTMENT
2172715 2172715 TRIM, COVER
1106959 1106959 TRIM, DOOR COMPARTMENT
2152877 2152877 TRIM, DOOR SHELF
1125866 1125866 TRIM, SHELF
2159689 2159689 TUBE ASSEMBLY, SUCTION LINE
510716 510716 TUBE CLAMP
2154028 2154028 TUBE, DISCHARGE
2183033 2183033 TUBE, DRAIN
2154090 2154090 TUBE, PROCESS
2154040 2154040 TUBE, PROCESS
2159636 2159636 TUBE, VALVE TO HEAT LOOP
2159635 2159635 TUBE-CONDENSER TO VALVE
2159747 2159747 UNIT, FRAME
1116622 1116622 UNIT, RAIL
LIT2161833 LIT2161833 USE & CARE GUIDE
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
2169345 2169345 VALVE, FLUID
876764 876764 VALVE,ACCESS (3/16)
WP487802 WP487802 WASHER (7/64 NYLON)
1118017 1118017 WEDGE, AIR BAFFLE
2160799 2160799 WIRE ASSEMBLY
2176859 2176859 WIRE ASSEMBLY
WP1127626 WP1127626 WIRE HARNESS
2159536 2159536 WIRING ASSEMBLY, CONTROL BOX
