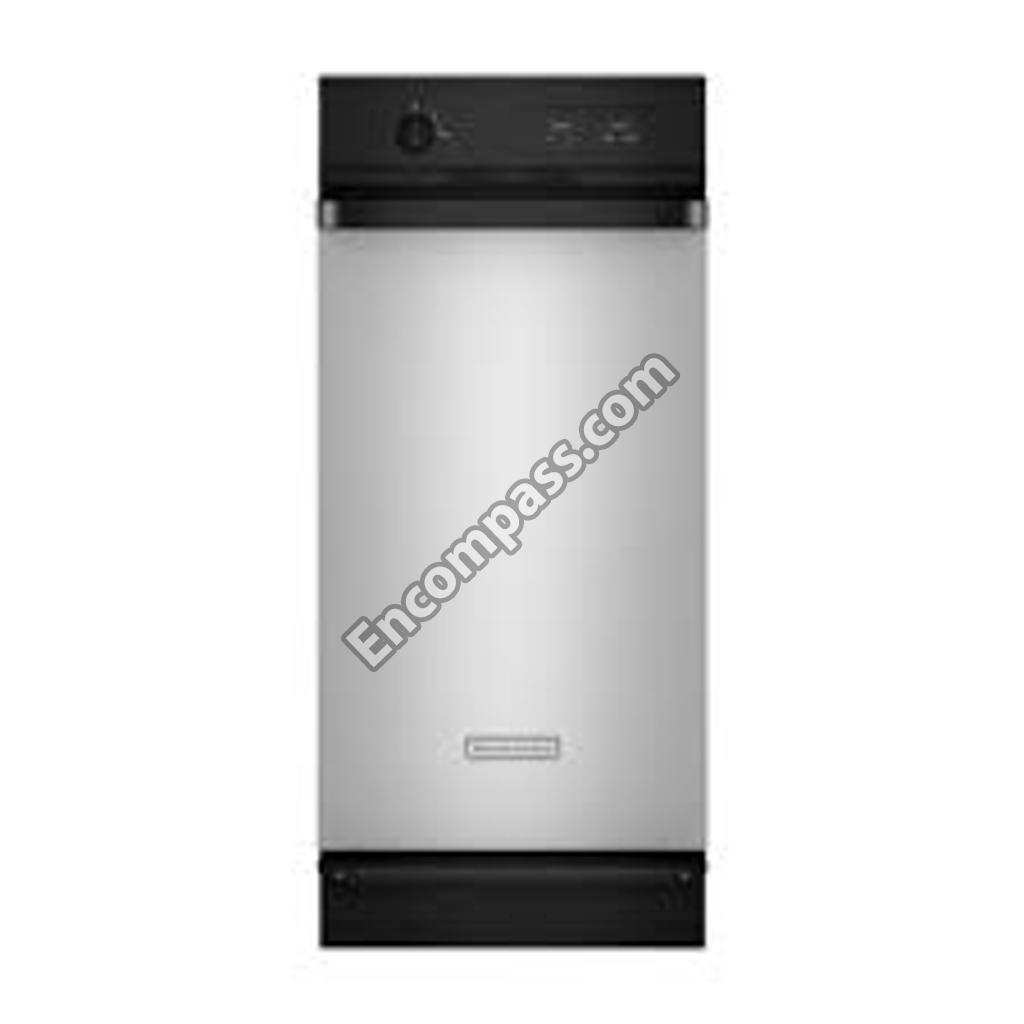

Model Image
Manufacturer

Whirlpool

Model Number

KUCK03ITBS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10165295BU W10165295BU "BAG, TRASH (15"" PLASTIC) (12 BOXES OF 15 PACK)"
WP279368 WP279368 ADHESIVE
775668 775668 ANGLE, TOP SUPPORT
W10165295RP W10165295RP BAG 15 PAK
W10165294RB W10165294RB BAG 60 PAK
675186 675186 BAG, TRASH (15`` PLASTIC) (12 PACK)
882652 882652 BAG, TRASH (15`` PLASTIC) (48 PACK)
WP9871602 WP9871602 BEARING
W10917043 W10917043 BEARING
882688 882688 BEARING
WP8204624 WP8204624 BOLT
W11684541 W11684541 BRACKET
9870118A 9870118A BRACKT-KIT
WP780239 WP780239 BRKT-RETNR
W11729437 W11729437 BRKT-RETNR
W11679167 W11679167 BUSHING
WP9870775 WP9870775 CAP-PWRSCR
13030RP 13030RP CARRIER, BAG
780477 780477 CHAIN, DRIVE
W11705832 W11705832 CLAMP
W11679168 W11679168 CLIP
WP776036 WP776036 CLIP
4151897 4151897 CLIP, WIRE
WPW10451276 WPW10451276 CONTAINER
780434 780434 COVER, MOTOR
9871825 9871825 COVER, TOP
WP9871099 WP9871099 COVER-FLTR
W10540355 W10540355 DEODORIZER BLOCK (GREEN APPLE)
9872166L 9872166L DEODORIZER BLOCK (LAVENDER)
9872166LG 9872166LG DEODORIZER BLOCK (LEMONGROVE)
W10540354 W10540354 DEODORIZER, SOLID STICK-UPS (2-PACK)
675379 675379 DOOR LATCH ASSEMBLY
9871747 9871747 ESCUTCHEON, CONTROL (BLACK)
9871893 9871893 FAN MOUNT ASSEMBLY
WPW10001130 WPW10001130 FEET-LVLNG
WP4151750 WP4151750 FILTER-AIR
9870976 9870976 FRAME, SLIDE (R.H.)
9871600 9871600 FRAMED TRIM KITS (BISCUIT)
9871383 9871383 FRAMED TRIM KITS (BLACK)
882699 882699 GEAR-DRIVE
675351 675351 GREASE 4 OZ. (USE ON POWER SCREW AND RAM PRESSURE PADS)
WP777328 WP777328 GUARD
9872216 9872216 GUIDE, USE & CARE
WP776395 WP776395 GUIDE-LTCH
W10083931A W10083931A HANDLE
WP9871267 WP9871267 HANDLE
WP777108 WP777108 HANDLE-BAG
776941 776941 HUB, POWER SCREW
9872198B 9872198B INSERT, ESCUTCHEON (BLACK)
WP9871800 WP9871800 KNOB-SWICH
W10439651 W10439651 MOTOR-DRIVE
W10021850 W10021850 NAMEPLATE
W10021870 W10021870 NAMEPLATE
WP777383 WP777383 NUT
3400938 3400938 NUT
WP776356 WP776356 NUT
WP776338 WP776338 NUT
4154842 4154842 NUT, POWER SCREW
WP9870163 WP9870163 NUT-POWER
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350956 350956 PAINT, SPRAY 13 OZ. (ALMOND)
285006 285006 PAINT, SPRAY 13 OZ. (BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4892899 4892899 PAINT, TOUCH-UP 1/2 OZ. (BISCUIT)
8171571 8171571 PAINT, TOUCH-UP 1/2 OZ. (COBALT BLUE)
8171652 8171652 PAINT, TOUCH-UP 1/2 OZ. (EMPIRE RED)
8171651 8171651 PAINT, TOUCH-UP 1/2 OZ. (HUNTER GREEN)
8171653 8171653 PAINT, TOUCH-UP 1/2 OZ. (MAJESTIC YELLOW)
WP780437 WP780437 PAN-BOTTOM
9872238B 9872238B PANEL, CONTAINER (BLACK)
9872238S 9872238S PANEL, CONTAINER (STAINLESS)
4396298 4396298 PANEL, CONTAINER FRONT/HANDLE (BISCUIT/BISCUIT)
4396296 4396296 PANEL, CONTAINER FRONT/HANDLE (BLACK/BLACK)
4396299 4396299 PANEL, CONTAINER FRONT/HANDLE (COBALT BLUE/SST.)
4396300 4396300 PANEL, CONTAINER FRONT/HANDLE (EMPIRE RED/SST.)
9871805 9871805 PANEL, CONTAINER FRONT/HANDLE (MAJESTIC YELLOW W/SST. HANDLE)
4396297 4396297 PANEL, CONTAINER FRONT/HANDLE (WHITE/WHITE)
9871072 9871072 PANEL, FRONT FRAME (BLACK)
WP9870444 WP9870444 PANEL-INER
100000 100000 PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED)
W11636605 W11636605 PEDAL-FOOT
W11705836 W11705836 PIN
WP454512 WP454512 PIN-SPRING
779121 779121 PLATE, BEARING
775665 775665 PLATE, DOOR LATCH
776327 776327 PLATE, DRIVE MOUNT
608009 608009 PLATE, MOTOR COVER
777850 777850 PLATE, NUT
775481 775481 RACE, THRUST
W11696573 W11696573 RAM
285777 285777 RELIEF-STR
W11705833 W11705833 RETAINER
WP59002061 WP59002061 SCREW
WP3196175 WP3196175 SCREW
WP780263 WP780263 SCREW
WP3400888 WP3400888 SCREW
WP489399 WP489399 SCREW
WP3351614 WP3351614 SCREW
777849 777849 SCREW
WP488234 WP488234 SCREW
WP489478 WP489478 SCREW
WP486754 WP486754 SCREW
WPW10451272 WPW10451272 SCREW-POWR
4149659 4149659 SHIELD, HARNESS
9870867 9870867 SHIELD, SLIDE TRACK
WP9870975 WP9870975 SLIDE
W10917246 W10917246 SLIDE-RAM
WP777180 WP777180 SPRING
775736 775736 SPRING, DOOR LATCH
9871125 9871125 SPRING, SAFETY SWITCH
W11679164 W11679164 SPROCKET
WP9870037 WP9870037 STOP-RAM
4152703 4152703 STRAP, FAN
882694 882694 STUD
9872326B 9872326B SWITCH ASSEMBLY (BLACK)
9871829 9871829 SWITCH, DRAWER
WP777811 WP777811 SWITCH-DIR
675382 675382 SWITCH-OFF
W11243179 W11243179 SWITCH-SAF
9871923 9871923 TECH SHEET
882763 882763 TRIM-FRONT
WP72107 WP72107 TUCHUP
WP777332 WP777332 WASHER
W11214485 W11214485 WASHER
776035 776035 WASHER, WAVE
W11023674 W11023674 WHEEL-LVLR
242820 242820 WIRE (14 GA. 150 C BLACK)
242825 242825 WIRE (14 GA. 150 C RED)
10875 10875 WIRE (16 GA. 80 C BLUE)
299885 299885 WIRE, 25` ROLL (RED 12 GA.)
47261 47261 WIRE, 25`` ROLL (BLACK 12 GA.)
47263 47263 WIRE, 25`` ROLL (WHITE 12 GA.)
242826 242826 WIRE, 25`` ROLL (WHITE 14 GA.)
9872117 9872117 WIRING HARNESS & POWER CORD
