Model Image
Manufacturer

Whirlpool

Model Number

KUDD01SSSS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8194077 WP8194077 ACTUATOR
8194132 8194132 BARRIER, MOISTURE UNDERCOUNTER
8546363 8546363 BASKET, SILVERWARE
WP8194064 WP8194064 BOARD, CIRCUIT
8194403 8194403 BRACKET
8194097 8194097 BRACKET, DIPENSER
8194431 8194431 BRACKET, LEFT
8194432 8194432 BRACKET, RIGHT
8194394 8194394 CABINET
8194095 8194095 CAP, RINSE AID
8194067 8194067 CLAMP
8194121 8194121 CLAMP, HOSE
8194087 8194087 CLAMP, HOSE
8194404 8194404 CLIP
8546414 8546414 CLIP, CUPSHELF
8194073 8194073 CLIP, DRAWER (LEFT HAND)
8194072 8194072 CLIP, DRAWER (RIGHT HAND)
8194415 8194415 CLIP, LINK
8194414 8194414 CLIP, NO-FLIP
8194408 8194408 CONNECTOR, DRAIN

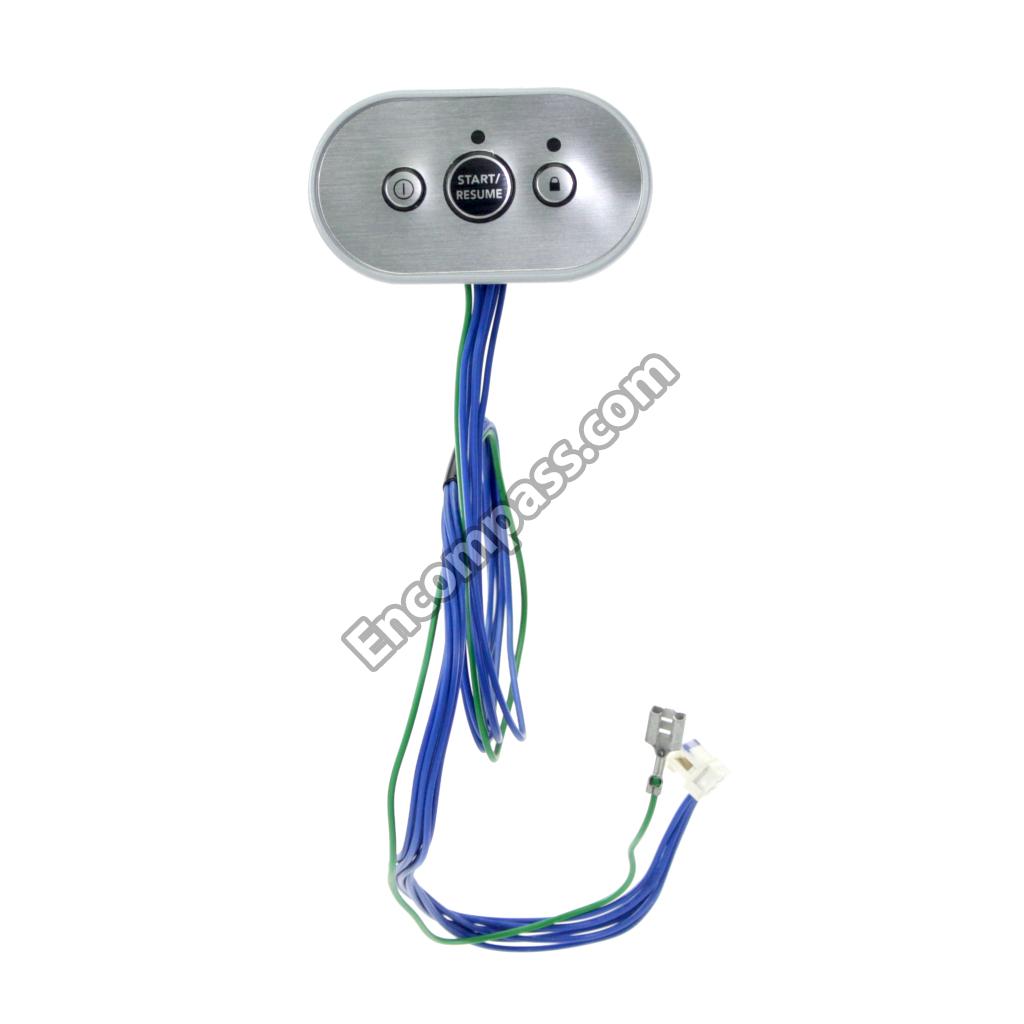

8194425 8194425 CONTROL
8194070 8194070 CORD, POWER
8194410 8194410 CUPSHELF
WPW10525218 WPW10525218 DISHRACK
WP8194096 WP8194096 DISPENSER, DETERGENT
8194053 8194053 DOOR LATCH, DRAWER (LEFT HAND)
WP8194052 WP8194052 DOOR LATCH, DRAWER (RIGHT HAND)
WP8194135 WP8194135 DOOR, ACCESS DRAIN FILTER
8194399 8194399 DRAWER
8194423 8194423 DRAWER PANELS COMPLETE
8194107 8194107 DUCT
8546426 8546426 DVD
8194421 8194421 ENERGY GUIDE
8194400 8194400 EXTENSION KIT, DRAIN HOSE
8194098 8194098 FAN ASSEMBLY
8194090 8194090 FILTER
WP8194091 WP8194091 FILTER-PLT
8573753 8573753 GUIDE, USE & CARE
WP8194102 WP8194102 HALL EFFECT
WP8557792 WP8557792 HANDLE
WP8194105 WP8194105 HEATER, PLATE (ALSO ORDER ITEMS 15 & 16)
WP8194081 WP8194081 HOSE, DRAIN
8194079 8194079 HOSE, FILL
WP8194071 WP8194071 HOSE-FILL
8533714 8533714 INSTRUCTIONS, INSTALLATION
8573714 8573714 INSTRUCTIONS, PANEL INSTALLATION
8194427 8194427 INSULATION
8194396 8194396 INSULATION, CABINET
8194416 8194416 INSULATION, CABINET
8194398 8194398 MODULE, CABINET
WP8194059 WP8194059 MODULE, LID CABINET
WP8194058 WP8194058 MOUNT, LINK TOP
W10368699 W10368699 NAMEPLATE
WP2004333 WP2004333 NUT
8194088 8194088 NUT, LOCK FILTER PLATE
8194106 8194106 NUT, LOCKING
WP8194082 WP8194082 O-RING
100000 100000 OPTIONAL PARTS NOT INCLUDED
8194424 8194424 PANEL, DRAWER
8194428 8194428 PANEL, SUPPORT
8194193 8194193 PIN, DRAWER
8194426 8194426 PLATE, BACKING
8194056 8194056 PRISIM
WP8194188 WP8194188 PROTECTOR
8194122 8194122 PROTECTOR, EDGE
8194109 8194109 PROTECTOR, WIRING
WP8194101 WP8194101 PUMP MOTOR
8194413 8194413 RACK, GLASSES
8194411 8194411 RACK, PLATE
8194062 8194062 RETAINER, LINK
8194402 8194402 ROD, LINK SUPPORT
WP8194092 WP8194092 ROTOR
8189881 8189881 SCREW
8194063 8194063 SCREW
8194134 8194134 SCREW
8194430 8194430 SCREW
8194429 8194429 SCREW
8194189 8194189 SEAL
8194407 8194407 SEAL, CABINET SIDE
8194126 8194126 SEAL, CABINET TOP
W10854526 W10854526 SEAL, HEATER PLATE/TUB
WP8194103 WP8194103 SEAL, MOTOR HOUSING
WP8194401 WP8194401 SHIELD
8194136 8194136 SHIELD
8194110 8194110 SPRAY-ARM
8194116 8194116 STRAIN RELIEF
8194123 8194123 SUPPORT, DRAIN HOSE
8546449 8546449 TECH SHEET
WP8194050 WP8194050 TRACK (LEFT HAND)
WP8194051 WP8194051 TRACK (RIGHT HAND)
8194089 8194089 TRIM, FILTER
8194395 8194395 TRIM, SEAL
8194094 8194094 TUBE
8194397 8194397 VALVE, INLET
WP8194083 WP8194083 VALVE-CHEK
8194120 8194120 WASHER
8194085 8194085 WIRING HARNESS
8194113 8194113 WIRING HARNESS DISPENSER
8194112 8194112 WIRING HARNESS MOTOR
8194195 8194195 WIRING HARNESS, CONTROL
8194194 8194194 WIRING HARNESS, PROTECTOR
WP8194084 WP8194084 YOKE, LID (RIGHT)
