Model Image
Manufacturer

Whirlpool

Model Number

KUDD23HY0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
4172040 4172040 ACTUATOR, INTERLOCK SWITCH
4171476 4171476 ADJUSTABLE KICKBOARD KIT
9740394 9740394 AIR GAP, FILL ASSEMBLY (INCLUDES ITEMS 1 & 2)
WP72107 WP72107 ALMOND
350956 350956 ALMOND
4171635 4171635 ALMOND (L.H.)
4171633 4171633 ALMOND (R.H.)
978883 978883 ALMOND (UNCUT)
4171534 4171534 ALMOND/BLACK
4171120 4171120 ANCHOR, CANCEL SPRING
WP4162321 WP4162321 AXLE, LOWER RACK
WP4161295 WP4161295 BAFFLE, LOWER
8193527 8193527 BASE-PUMP
WP8519598 WP8519598 BASKT-WARE
9741418 9741418 BEARING & SPACER, RACK ROLLER
WP4160355 WP4160355 BEARING, DOOR STOP INSERT (2)
WP9741678 WP9741678 BIMETAL ASSEMBLY
4162499 4162499 BLOWER WHEEL ASSEMBLY (INCLUDES ITEM 17)
9740676 9740676 BOX, SEPARATOR COLLECTOR (ALSO ORDER ITEM 30) SEE NOTE A.
4161592 4161592 BRACKET, L.H. DOOR STOP
4161589 4161589 BRACKET, L.H. HINGE
4163245 4163245 BRACKET, PANEL REINFORCEMENT
4163256 4163256 BRACKET, PROGRAM SWITCH
4161594 4161594 BRACKET, R.H. DOOR STOP
4161587 4161587 BRACKET, R.H. HINGE
4161957 4161957 BRACKET, SPRING MOUNTING (L.H.)
4161958 4161958 BRACKET, SPRING MOUNTING (R.H.)
9741192 9741192 BRACKET, THERMOSTAT
WP9741251 WP9741251 BRACKET, TOP PANEL ANCHOR
4161626 4161626 BUMPER, DOOR
4171555 4171555 BUMPER, LOWER RACK (2)
4171547 4171547 BUMPER, RACK TRACK
4162048 4162048 BUMPER, UPPER RACK
302707 302707 BUSHING, GRIND
4163240 4163240 BUTTON, PROGRAM SWITCH (3)
4162482 4162482 CAP, AIR INLET
P9740868 P9740868 CHANNEL, EVAPORATION
675806 675806 CHOP-IMPLR
WP285655 WP285655 CLAMP
4161505 4161505 CLAMP, HOSE
4162103 4162103 CLAMP, HOSE
4171127 4171127 CLIP, ENDCAP (2)
4162043 4162043 CLIP, GROUNDING (FRONT PANEL)
4163372 4163372 CLIP, HARNESS GUIDE
4161585 4161585 CLIP, HINGE PIN RETAINING
9740303 9740303 CLIP, RETAINER
4161608 4161608 CLIP, SEAL
4171551 4171551 CLIP, WASH ARM GUARD
4162655 4162655 CONDUIT, VERTICAL
4161605 4161605 CONNECTOR, OVERHEAD
9740763 9740763 CONNECTOR, VERTICAL CONDUIT
9741133 9741133 CONTROL PANEL
675749 675749 COVER
4161659 4161659 COVER, WIRING HARNESS
9742264 9742264 CROSS FRAME, FRONT
9741173 9741173 CROSS FRAME, REAR
4162485 4162485 DAMPER, AIR INLET
9740170 9740170 DETERGENT DISPENSER & GASKET ASSEMBLY (115 V., 60 HZ.) (INCLUDES ITEM 24)
9741983 9741983 DISHRACK
4171578 4171578 DOOR LATCH MECHANISM ASSEMBLY
WP4161631 WP4161631 DOOR SEAL ASSY. (INCLS. ITEM 4)
4163374 4163374 DOOR-INNER
9741358 9741358 DRAIN HOSE ASSEMBLY (INCLUDED WITH UNIT)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
285367 285367 ENAMAL, TOAST (1 QT. UNCUT)
4161369 4161369 ENCLOSURE, ELEC. SUPPLY
9740026 9740026 END CAP (L.H.)
9740025 9740025 END CAP (R.H.)
4171221 4171221 FILL HOLE PLUG ASSEMBLY (INCLUDES ITEM 35)
WP4171000 WP4171000 FILL VALVE ASSEMBLY
4162734 4162734 FILLER (LOWER PANEL)
4162733 4162733 FILLER (UPPER PANEL)
9743070 9743070 FLOAT & RETAINER ASSEMBLY
4162911 4162911 FOOT, LEVELING (4)
4171620 4171620 FRAME ASSEMBLY (L.H.)
4171619 4171619 FRAME ASSEMBLY (R.H.)
4162951 4162951 GASKET
WP8531743 WP8531743 GASKET
WP9740674 WP9740674 GASKET, DRAIN
717000 717000 GASKET, PUMP
4161545 4161545 GASKET, RUBBER
261890 261890 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)
4162521 4162521 GROMMET, HEATER ELEMENT
4162735 4162735 GROMMET, PANEL
LIT9741252 LIT9741252 GUIDE, USE & CARE
4163243 4163243 HANDLE, DOOR LATCH
4163587 4163587 HEATER
4163549 4163549 HOOK, HEATER ELEMENT

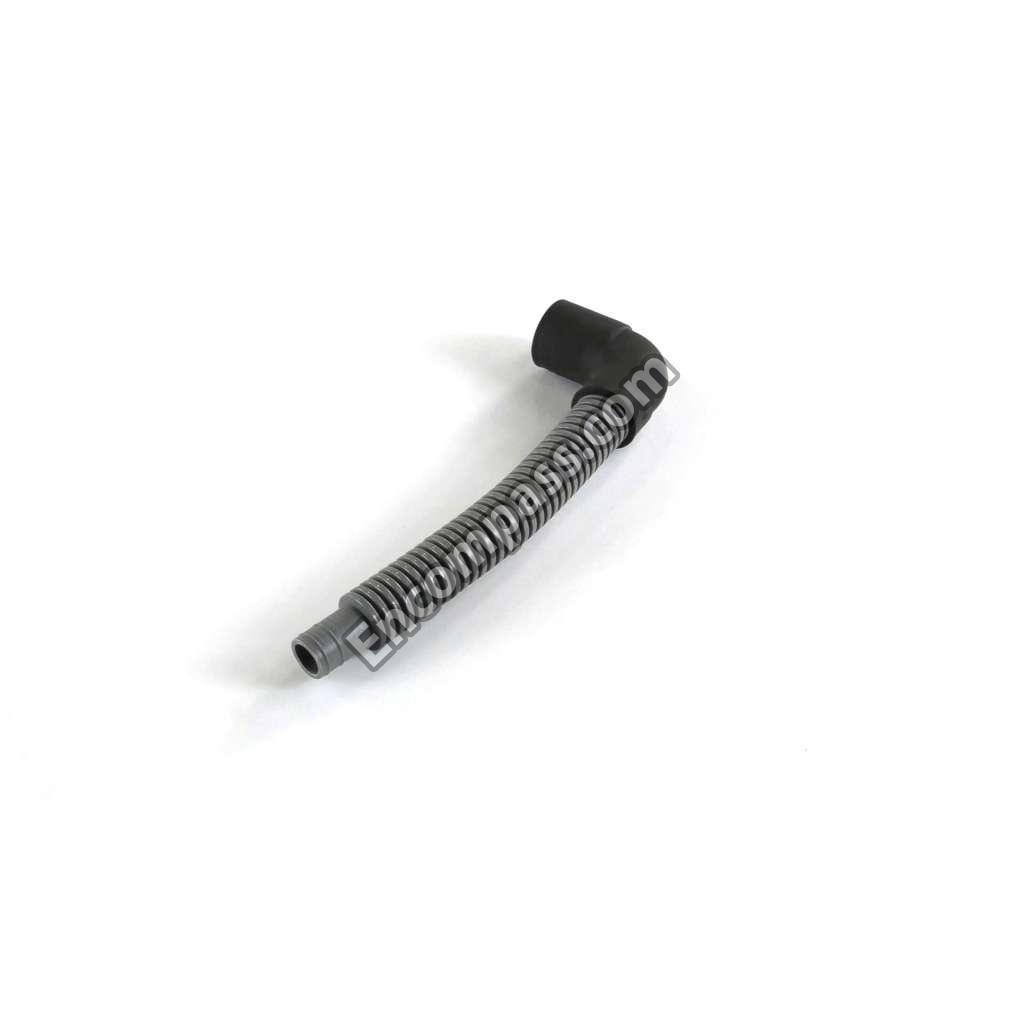

4162336 4162336 HOSE-FILL
4162487 4162487 HOUSING, BLOWER
675498 675498 INLET TV STAND ASSEMBLY. (ALSO ORDER ITEM 30) SEE NOTE A.
LIT9741183 LIT9741183 INSTRUCTIONS, INSTALLATION
4171179 4171179 INSULATION KIT (KIT INCLUDES TUB, KICKBOARD, AND LOWER PANEL INSULATION)
4162145 4162145 INSULATION, SWITCH
4171130 4171130 INSULATOR, DOOR LATCH
81218 81218 KEEPER - DOOR LATCH
4171618 4171618 KICK BOARD
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
4171119 4171119 KNOB, TIMER
350941 350941 LEVELER (THINNER)
4171116 4171116 LEVER, OVERFLOW SWITCH
4159115 4159115 LOCK NUT
718829 718829 LOCKNUT
4159491 4159491 LOCKWASHER
WP4159494 WP4159494 LOCKWASHER
4171623 4171623 LOWER MOUNTING PANEL ASSEMBLY (INCLUDES UPPER & LOWER TRIM)
WP4172117 WP4172117 LOWER RACK ASSEMBLY (INCLUDES ITEMS 2, 3 & 5)
4171541 4171541 MANIFOLD, UPPER ARM
4162564 4162564 MOTOR, BLOWER
9740265 9740265 NUT
WP4171300 WP4171300 NUT (FILL AIR GAP)
4159071 4159071 NUT, 6-32 HEX
718537 718537 NUT, HEATER ELEMENT
4161226 4161226 NUT, ROLLER
675805 675805 NUT, STANDPIPE
675710 675710 OUTLET
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
4172126 4172126 PANEL
4162836 4162836 PANEL INSERT KITS (ALMOND/WHITE)
4162835 4162835 PANEL INSERT KITS (FRESH AVOCADO/ COFFEE)
4162834 4162834 PANEL INSERT KITS (HARVEST GOLD/ALMOND)
4171096 4171096 PANEL INSERT KITS (HARVEST GOLD/ONYX BLACK)
4169400 4169400 PANEL INSERT KITS (OPTIONAL KITS) (STAINLESS STEAL)
4169402 4169402 PANEL INSERT KITS (PLATINUM/TOAST)
4169403 4169403 PANEL INSERT KITS (SAND/ONYX BLACK)
4169404 4169404 PANEL INSERT KITS (SILVER/ONYX BLACK)
4162833 4162833 PANEL INSERT KITS (WHITE/BLACK OPTIONAL KITS)
LIT4171712 LIT4171712 PARTS LIST
4161563 4161563 PIN, HINGE
9740961 9740961 PLATE, MOTOR MOUNTING
285368 285368 PLATINUM (UNCUT)
9740847 9740847 PLUG BUTTON
3367669 3367669 PROTECTOR, EDGE

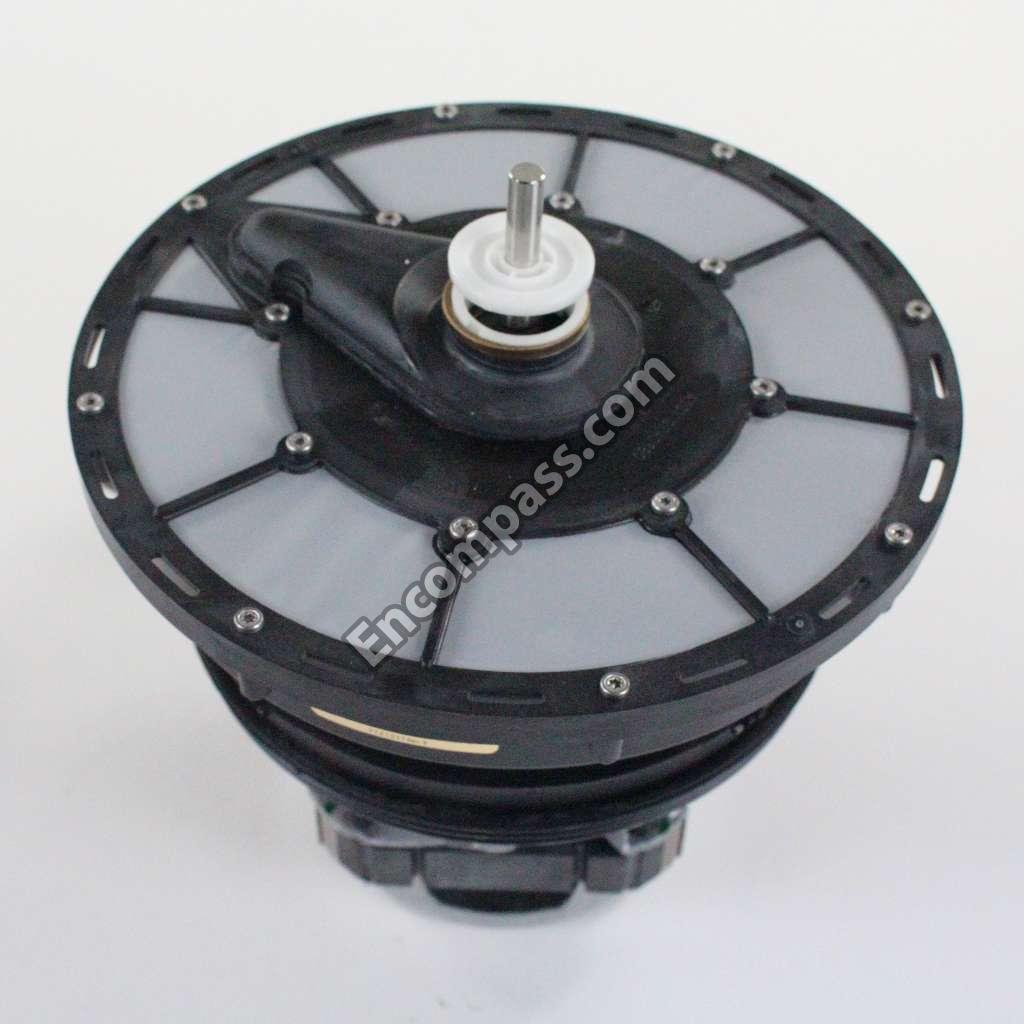

W10428778 W10428778 PUMP & MOTOR
8193523 8193523 PUMP MOTOR
675703 675703 PUMP SEAL KIT (INCLUDES ITEMS 12, 13, 22 & 36)
4171566 4171566 RECEIVER, MANIFOLD
304658 304658 RELAY, START
WP9741232 WP9741232 RETAINER
4162609 4162609 RETAINER, CONDUIT
4171540 4171540 RETAINER, MANIFOLD
4171641 4171641 RINSE DISPENSER
63554 63554 RIVET
WP4161607 WP4161607 ROLLER, UPPER TRACK
4171611 4171611 ROLLER-TNK
9740851 9740851 SCREW
WP3390631 WP3390631 SCREW
4172124 4172124 SCREW
W11233072 W11233072 SCREW
9741690 9741690 SCREW
P9741257 P9741257 SCREW
4161737 4161737 SCREW
W11693756 W11693756 SCREW
WP3371152 WP3371152 SCREW
487474 487474 SCREW
W10856125 W10856125 SCREW
WP912618 WP912618 SCREW
WP681249 WP681249 SCREW
W11596033 W11596033 SCREW
9740973 9740973 SCREW
WP693304 WP693304 SCREW
4162215 4162215 SCREW
4163263 4163263 SCREW & WASHER ASSEMBLY
3369331 3369331 SCREW (4)
4159426 4159426 SCREW, 10-16 X 1
4159389 4159389 SCREW, 10-16 X 1/2
3369139 3369139 SCREW, 10-16 X 3/8
4159421 4159421 SCREW, 10-16 X 3/8
4162151 4162151 SCREW, 10-32 X 1/2
595095 595095 SCREW, 10-32 X 3/8 (2)
9741328 9741328 SCREW, 10-32 X 5/8
488362 488362 SCREW, 4-40 X 3/4
4171131 4171131 SCREW, 6 X 1/2
4159439 4159439 SCREW, 6 X 1/4
4159446 4159446 SCREW, 6-20 X 3/8
4159428 4159428 SCREW, 6-32 X 3/8
4159436 4159436 SCREW, 6-32 X 7/8
4159403 4159403 SCREW, 8-18 X 1-1/4
302717 302717 SCREW, 8-18 X 1-5/8 ST. STL. (4)
9741365 9741365 SCREW, 8-18 X 1/2
WP4159373 WP4159373 SCREW, 8-18 X 1/2
WP4171447 WP4171447 SEAL
4162481 4162481 SEAL, AIR INLET
9740767 9740767 SEAL, MOISTURE
WP9740678 WP9740678 SEAL-RING
WP302704 WP302704 SEAL-RING
WP302711 WP302711 SEAL-RING
LIT9741036 LIT9741036 SHEET, TECH (SERVICE INFORMATION)
4171627 4171627 SHORT FRAME ASSEMBLY (INCLUDES ITEMS 2, 18, 19, 21 & 23)
WP4171624 WP4171624 SIDE TRIM (LOWER PANEL)
4162685 4162685 SIDE TRIM (UPPER PANEL)
WP9740120 WP9740120 SLEEVE, ACTUATOR SPACER
3378139 3378139 SLEEVE, DRAIN IMPELLER
W10909679 W10909679 SLINGER
4171125 4171125 SPACER, END CAP (L.H.)
4171124 4171124 SPACER, END CAP (R.H.)
4163187 4163187 SPACER, UPPER RACK
350930 350930 SPRAY (13 OZ.) (WHITE)
WP4163571 WP4163571 SPRING
WP4171237 WP4171237 SPRING, DOOR COUNTERBALANCE (2)
4163257 4163257 SPRING, SWITCH CANCEL
P9741049 P9741049 STRAINER (COARSE)
4160423 4160423 STUD, BUMPER RETAINING
WP3367197 WP3367197 SUPPORT
9740989 9740989 SUPPORT, BLOWER
P9741276 P9741276 SUPPORT, LOWER PANEL
4171565 4171565 SUPPORT, RECEIVER
W10207863 W10207863 SWITCH
WP9743413 WP9743413 SWITCH
4160658 4160658 SWITCH, INTERLOCK
9741144 9741144 SWITCH, PROGRAM
LIT9741381 LIT9741381 TAG, ENERGY FACT
9741372 9741372 TANK (SERVICED COMPLETE WITH FRAME)
WP661566 WP661566 THERMOSTAT
9741786 9741786 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
4171959 4171959 TIMER
12022 12022 TINE TIP REPAIR KIT (BLUE-ENOUGH FOR TWO COMPLETE DISHRACKS)
285365 285365 TOAST
WP303918 WP303918 TOOL, PUMP CENTERING (INCLUDED WITH ILLUS 24)
4162442 4162442 TRACK, RACK
9740148 9740148 TRIM, HANDLE
WP4171625 WP4171625 TRIM, PANEL (UPPER & LOWER)
9740307 9740307 TUBE & CONNECTOR ASSEMBLY
WP4171544 WP4171544 TUBE (MANIFOLD TO RECEIVER)
4162483 4162483 TUBE, AIR INLET
WP9741366 WP9741366 TUBE, DRAIN
675238 675238 VALVE, CHECK (INCLUDES ITEMS 21 & 23)
W10840471 W10840471 VINYL TOUCH-UP (BLUE)
9740733 9740733 WASH ARM ASSEMBLY
9741993 9741993 WASH/RINSE ARM ASSEMBLY
4159513 4159513 WASHER
4171240 4171240 WASHER
4159583 4159583 WASHER
487596 487596 WASHER
4159477 4159477 WASHER
4159594 4159594 WASHER (RUBBER)
718817 718817 WASHER, CUP
WP4162496 WP4162496 WASHER, FILL HOLE PLUG
4163554 4163554 WASHER, HEATER ELEMENT
4160051 4160051 WASHER, SEALING
WP4162322 WP4162322 WHEEL, LOWER RACK (8)
4171634 4171634 WHITE (L.H.)
4171632 4171632 WHITE (R.H.)
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
9741041 9741041 WIRING HARNESS (MAIN)
4162841 4162841 WOOD TOP KIT
WP357574 WP357574 ``O`` RING
