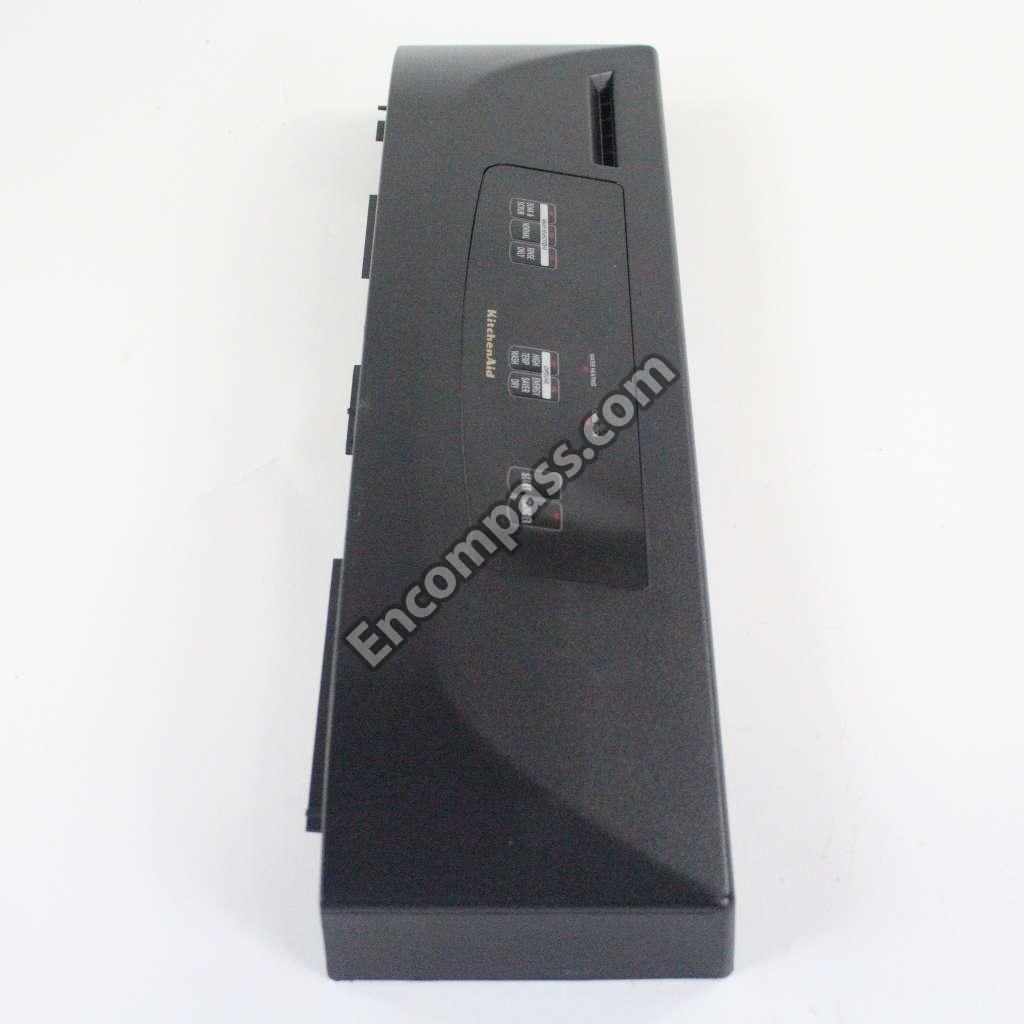

Model Image
Manufacturer

Whirlpool

Model Number

KUDG25SHBL1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3379919 3379919 Whirlpool ACCESS PANEL & CLIP ASSEMBLY (ALMOND MDL.)
WP9744142 WP9744142 Whirlpool ACCESS PANEL & CLIP ASSEMBLY (BLACK MDL.)
9743896 9743896 Whirlpool ACCESS PANEL & CLIP ASSEMBLY (INCLUDES ITEMS 11 & 12) (BISCUIT)
WP9744143 WP9744143 Whirlpool ACCESS PANEL & CLIP ASSEMBLY (WHITE MDL.)
285006 285006 Whirlpool ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
WP72107 WP72107 Whirlpool ALMOND
350956 350956 Whirlpool ALMOND
978883 978883 Whirlpool ALMOND (UNCUT)
WP302709 WP302709 Whirlpool BALL, CHECK
WP719929 WP719929 Whirlpool BALL-CHECK
WP8283179 WP8283179 Whirlpool BARRIER, LOWER VENT
675498 675498 Whirlpool BASE-INLET
8193525 8193525 Whirlpool BASE-PUMP
8051119 8051119 Whirlpool BASKET, SILVERWARE
WP9742946 WP9742946 Whirlpool BEARING, RADIAL
WP3373234 WP3373234 Whirlpool BEARING, SPRING (2)
9742786 9742786 Whirlpool BEZEL, INLET
72032 72032 Whirlpool BLACK
9742623 9742623 Whirlpool BRACKET, CONTROLS
9743486 9743486 Whirlpool BRACKET, DISPENSER (2)
9742648 9742648 Whirlpool BRACKET, THERMOSTAT
WP9743399 WP9743399 Whirlpool CAP, DISPENSER
3371748 3371748 Whirlpool CAP, DRAIN
675806 675806 Whirlpool CHOP-IMPLR
WP596669 WP596669 Whirlpool CLAMP
WP356138 WP356138 Whirlpool CLAMP, HOSE (2) (SUDS)
W10282479 W10282479 Whirlpool CLEANER
WP3378123 WP3378123 Whirlpool CLIP, GROUNDING
9742610 9742610 Whirlpool CONNECTOR TUB TO BRACE
WP9744101 WP9744101 Whirlpool CONSOLE, COMPLETE (BLACK MDL.)
WP8530929 WP8530929 Whirlpool CONTROL, ELECTRONIC
W10207863 W10207863 Whirlpool CONTROL, OVERFILL ASSEMBLY (ALSO ORDER ITEM 14)
9742789 9742789 Whirlpool CORNER TRIM, TUB
3376845 3376845 Whirlpool COVER, DRAIN (ALSO ORDER ITEM 30) SEE NOTE A.
300068 300068 Whirlpool COVER, TERMINAL BOX
675775 675775 Whirlpool CUSTOM TRIM & PANEL KITS (BLACK)
9742780 9742780 Whirlpool DEFLECTOR, VENT (ALSO ORDER ITEM 9)
W10134647 W10134647 Whirlpool DISHRACK
WPW10253040 WPW10253040 Whirlpool DISHRACK
WPW10616003 WPW10616003 Whirlpool DISPENSER
W10505634 W10505634 Whirlpool DOOR FRAMED KITS (BLACK)
W10505636 W10505636 Whirlpool DOOR FRAMED KITS (WHITE)
4378862 4378862 Whirlpool DOOR FRAMELESS KITS (BLACK)
W11196317 W11196317 Whirlpool DOOR SEAL
72017 72017 Whirlpool DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3376405 3376405 Whirlpool ELBOW, HARNESS
LIT9744391 LIT9744391 Whirlpool ENERGY GUIDE
9744136 9744136 Whirlpool FEED TUBE ASSEMBLY
WP9742968 WP9742968 Whirlpool FILTER ASSEMBLY
9744360 9744360 Whirlpool FLAPPER, INLET
9743070 9743070 Whirlpool FLOAT & RETAINER ASSEMBLY
4378968 4378968 Whirlpool FLOOR MOUNT KIT
WP9743028 WP9743028 Whirlpool FRAME
4378863 4378863 Whirlpool FRAMELESS (ALMOND)
4378861 4378861 Whirlpool FRAMELESS (WHITE)
WP3379376 WP3379376 Whirlpool FRONT PANEL (WHITE)
WP9743590 WP9743590 Whirlpool GASKET
WP8531743 WP8531743 Whirlpool GASKET
WP9742787 WP9742787 Whirlpool GASKET
WP9743002 WP9743002 Whirlpool GASKET, BRACKET MOUNTING
9743474 9743474 Whirlpool GASKET, CONNECTOR
WP9740674 WP9740674 Whirlpool GASKET, DRAIN
717000 717000 Whirlpool GASKET, PUMP
9742782 9742782 Whirlpool GASKET, VENT
9743487 9743487 Whirlpool GUIDE, DOOR
LIT9744036 LIT9744036 Whirlpool GUIDE, USE & CARE
WP9743903 WP9743903 Whirlpool HANDLE, LATCH (ALMOND MODEL)
4317824 4317824 Whirlpool HARD START KIT (INCLUDES POWER CORD & MISC. HARDWARE)
9743495 9743495 Whirlpool HEATER ELEMENT ASSEMBLY (ALSO INCLUDES ITEM 2)
WP3378186 WP3378186 Whirlpool HOLDER
WP3374077 WP3374077 Whirlpool HOSE, DRAIN
WP9742727 WP9742727 Whirlpool HOSE, INLET
W10844024 W10844024 Whirlpool INLET VALVE
675828 675828 Whirlpool INLET-AIR
9742353 9742353 Whirlpool INNER DOOR MASTIC ASSEMBLY (ALSO INCLUDES ITEMS 7, 9 & 10)
LIT9743822 LIT9743822 Whirlpool INSTRUCTIONS, INSTALLATION
WP3380654 WP3380654 Whirlpool LATCH ASSEMBLY (INCLUDES ITEM 2)
WP3380655 WP3380655 Whirlpool LATCH LEVER ASM.
4171116 4171116 Whirlpool LEVER, OVERFLOW SWITCH
8193716 8193716 Whirlpool LEVLER-LEG
9743572 9743572 Whirlpool LINK, HANDLE
675808 675808 Whirlpool MANIFOLD
WP3369816 WP3369816 Whirlpool MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS) REFER TO DISHWASHER REPLACEMENT PANEL PARTS LIST NO. 678345
WP8534971 WP8534971 Whirlpool MOTOR & FAN (ASSEMBLY) (INCLUDES ITEM 27) (ALSO ORDER ITEM 30) SEE NOTE A.
WP8539324 WP8539324 Whirlpool MOUNT, TIERED
WP8268812 WP8268812 Whirlpool MOUNT, TOP UPPER SPRAYARM
WP9741998 WP9741998 Whirlpool NUT
9743039 9743039 Whirlpool NUT, HEATER ELEMENT
WP9742945 WP9742945 Whirlpool NUT, WASHARM
8194582 8194582 Whirlpool OUTLET
3379938 3379938 Whirlpool PAD, FRICTION
799344 799344 Whirlpool PAINT, BULK (1 QT.) (WHITE (UNCUT))
WP8054178 WP8054178 Whirlpool PANEL FRONT (BISCUIT)
WP3379375 WP3379375 Whirlpool PANEL, FRONT (BLACK MDL.)
WP3379921 WP3379921 Whirlpool PANEL-TOE
WP3379920 WP3379920 Whirlpool PANEL-TOE
WP3384157 WP3384157 Whirlpool PANEL-TOE
675497 675497 Whirlpool PLATE-PERF
9742788 9742788 Whirlpool PLUG TUB (2)
9743166 9743166 Whirlpool POD, TERMINAL HEATER
9742999 9742999 Whirlpool PROTECTOR, SPRAYARM GUARD
W10428773 W10428773 Whirlpool PUMP & MOTOR
675703 675703 Whirlpool PUMP SEAL KIT (INCLUDES ITEMS 12, 13, 22 & 36)
9743149 9743149 Whirlpool REAR SUPPORT ASSEMBLY
3370307 3370307 Whirlpool RELIEF, STRAIN
WP3376358 WP3376358 Whirlpool RETAINER
WP304666 WP304666 Whirlpool RETAINER
67574-2 67574-2 Whirlpool RETAINER
WP9741232 WP9741232 Whirlpool RETAINER
WP3371152 WP3371152 Whirlpool SCREW
3400001 3400001 Whirlpool SCREW
WP489128 WP489128 Whirlpool SCREW
WP3400014 WP3400014 Whirlpool SCREW
3369138 3369138 Whirlpool SCREW
WP681414 WP681414 Whirlpool SCREW
WP9740848 WP9740848 Whirlpool SCREW
WPW10349488 WPW10349488 Whirlpool SCREW
WP489069 WP489069 Whirlpool SCREW
WP3177991 WP3177991 Whirlpool SCREW
3400404 3400404 Whirlpool SCREW
WP488234 WP488234 Whirlpool SCREW
WP308685 WP308685 Whirlpool SCREW
WPW10348409 WPW10348409 Whirlpool SCREW
WP3370389 WP3370389 Whirlpool SCREW (2)
3369331 3369331 Whirlpool SCREW (4)
3400700 3400700 Whirlpool SCREW (6)
WP90767 WP90767 Whirlpool SCREW, 8 A X 3/8
WP302868 WP302868 Whirlpool SCREW, 8-18 X 1/2 (2)
4172127 4172127 Whirlpool SEAL
9743806 9743806 Whirlpool SEAL, CONSOLE/DOOR
WP302710 WP302710 Whirlpool SEAL, INLET BASE
WP3376723 WP3376723 Whirlpool SEAL, O-RING
WP302711 WP302711 Whirlpool SEAL, PUMP OUTLET
WP3376846 WP3376846 Whirlpool SEAL, SPRAYARM
9742953 9742953 Whirlpool SEAL, TUBE
WP302704 WP302704 Whirlpool SEAL-RING
3374757 3374757 Whirlpool SHAFT, ABSORBER
W11086533 W11086533 Whirlpool SHIELD
9743450 9743450 Whirlpool SHIELD, DISPENSER
4378869 4378869 Whirlpool SIDE PANEL KITS (ALMOND)
4378868 4378868 Whirlpool SIDE PANEL KITS (BLACK)
4378867 4378867 Whirlpool SIDE PANEL KITS (WHITE)
W10909679 W10909679 Whirlpool SLINGER
9743412 9743412 Whirlpool SPONGE, VENT
350930 350930 Whirlpool SPRAY (13 OZ.) (WHITE)
WP9743986 WP9743986 Whirlpool SPRING, DOOR (2)
WP9743573 WP9743573 Whirlpool SPRING, HANDLE
WP9741997 WP9741997 Whirlpool STANDPIPE
9742964 9742964 Whirlpool STIFFENER, DOOR
WP3379941 WP3379941 Whirlpool STOP, TRACK (4)
9742646 9742646 Whirlpool STRAINER (COARSE)
9742722 9742722 Whirlpool STRIKE, LATCH
WP3367197 WP3367197 Whirlpool SUPPORT
WP9743413 WP9743413 Whirlpool SWITCH, OVERFILL CONTROL
4318273 4318273 Whirlpool SWITCH-KIT
LIT9744033 LIT9744033 Whirlpool TECH SHEET (ENGLISH)
LIT9744034 LIT9744034 Whirlpool TECH SHEET (FRENCH)
3378131 3378131 Whirlpool TERMINAL BOX
675740 675740 Whirlpool THERMOSTAT
WP661566 WP661566 Whirlpool THERMOSTAT
WP303918 WP303918 Whirlpool TOOL, PUMP CENTERING (INCLUDED WITH ILLUS 24)
WP3385089 WP3385089 Whirlpool TRACK
9743460 9743460 Whirlpool TRIM STRIP, TUB
3378056 3378056 Whirlpool TUB STIFFENER
9744455 9744455 Whirlpool TUB-DISHWR
WPB5705307 WPB5705307 Whirlpool TUBE
WP3378144 WP3378144 Whirlpool TUBE, FEED
675238 675238 Whirlpool VALVE, CHECK (INCLUDES ITEMS 21 & 23)
9742770 9742770 Whirlpool VENT ASSEMBLY (ALSO ORDER ITEM 9)
9742947 9742947 Whirlpool WASH ARM ASSEMBLY
WP3378128 WP3378128 Whirlpool WASHER
9743475 9743475 Whirlpool WASHER
WP717273 WP717273 Whirlpool WASHER, RUBBER
3378202 3378202 Whirlpool WEIGHT, ABSORBER
WP9742983 WP9742983 Whirlpool WHEEL & BEARING ASSEMBLY (4)
W11164091 W11164091 Whirlpool WHEEL & TRANSPORT ASSEMBLY
WP302819 WP302819 Whirlpool WHEEL LEG (2)
W11131693 W11131693 Whirlpool WHEEL-TUB
9744027 9744027 Whirlpool WIRING HARNESS, MAIN
WP357574 WP357574 Whirlpool ``O`` RING
