Model Image
Manufacturer

Whirlpool

Model Number

KUDH03DTBL2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP99003781 WP99003781 AIR INLET
W10118042 W10118042 ARM-SPRAY
99003772 99003772 ARMATURE, FINE DRAIN
99003758 99003758 BARRIER, MCM
W10258866 W10258866 BASE, UTILITY BOX
8519716 8519716 BASKET, SMALL ITEMS
W10118031 W10118031 BASKT-WARE
W10258863 W10258863 BRACE
WPY6920305 WPY6920305 BRACKET
WPW10258873 WPW10258873 BRACKET
Y6920354 Y6920354 BRACKET U
99003722 99003722 BRACKET, LID ASSEMBLY (SIDE)
99003696 99003696 BRACKET, PRESSURE SWITCH
99003701 99003701 BRACKET, THERMOSTAT
W10258875 W10258875 BRCKT-DISP
WPW10258881 WPW10258881 BRCKT-MTG
Y6920171 Y6920171 CAP MANIF
W10252869 W10252869 CATCH
WP596669 WP596669 CLAMP
WP616099 WP616099 CLAMP
WP99003778 WP99003778 COARSE CUP
99003776 99003776 COARSE CUP, UPPER
99003720 99003720 COMPRESSION RING, FINE DRAIN
WPW10252595 WPW10252595 CONTROL BOARD

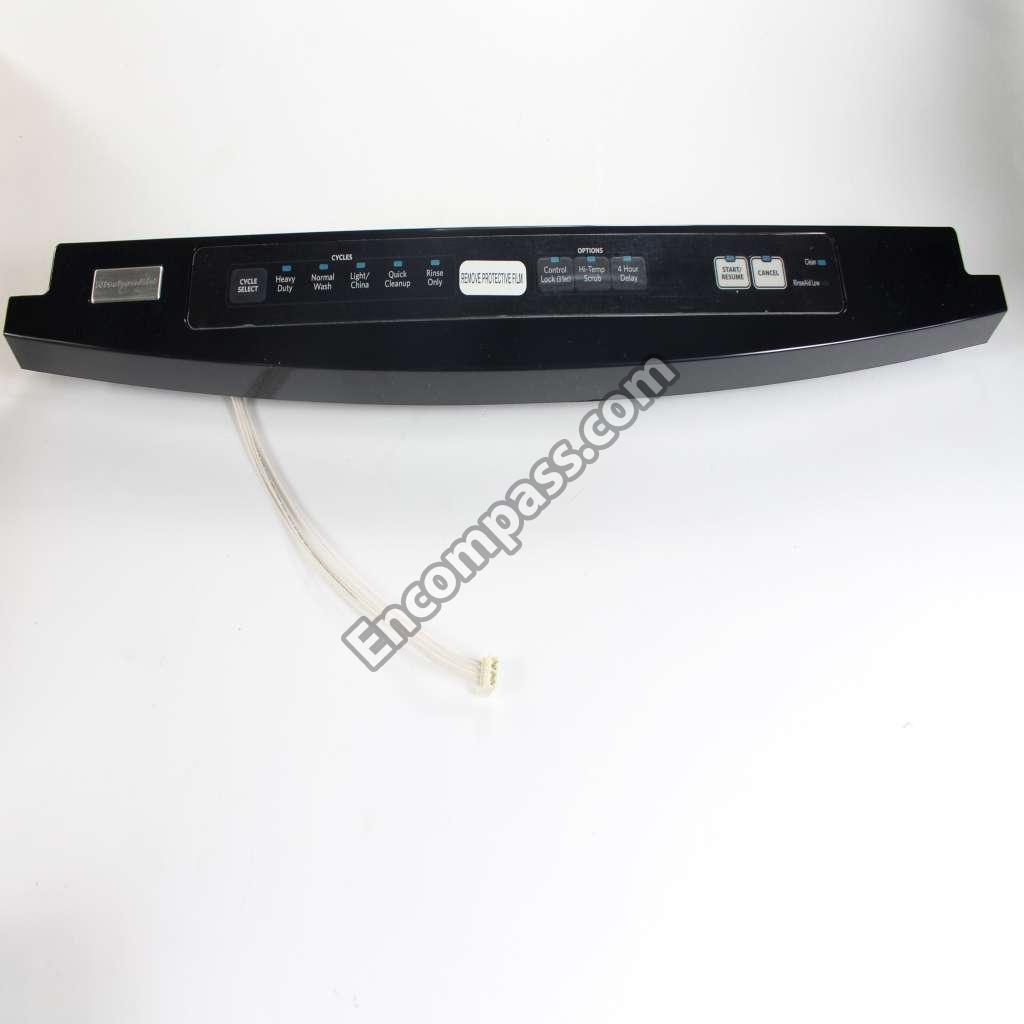

WPW10258843 WPW10258843 CONTROL PANEL
99003714 99003714 COVER, BOTTOM
W10258867 W10258867 COVR-BOX
WPW10118010 WPW10118010 DISHRACK
WPW10118023 WPW10118023 DISHRACK
WPW10250853 WPW10250853 DISPENSER
WPW10162499 WPW10162499 DOOR LATCH KIT
WP6-920639 WP6-920639 DRAIN PUMP
WPW10258895 WPW10258895 DRAWER
W10275772 W10275772 ENERGY GUIDE
WPW10155595 WPW10155595 FAN-MOTOR
WP99003765 WP99003765 FILL HOSE
6-920340 6-920340 FILTER
WP99003715 WP99003715 FILTER- IN
WPW10239616 WPW10239616 FILTER-PLT
99003624 99003624 FUSE, THERMAL
99003727 99003727 H BRACKET
W10185044 W10185044 HANDLE
W10185045 W10185045 HANDLE
99003706 99003706 HARNESS, DRAWER
99003709 99003709 HARNESS, LOWER
99003710 99003710 HARNESS, UPPER
W10117969 W10117969 HARNS-WIRE
WP99003625 WP99003625 HEATER
WP99003597 WP99003597 HOSE, DRAIN
99003766 99003766 HOSE, FILL (LOWER)
99003694 99003694 HOSE, PRESSURE SWITCH

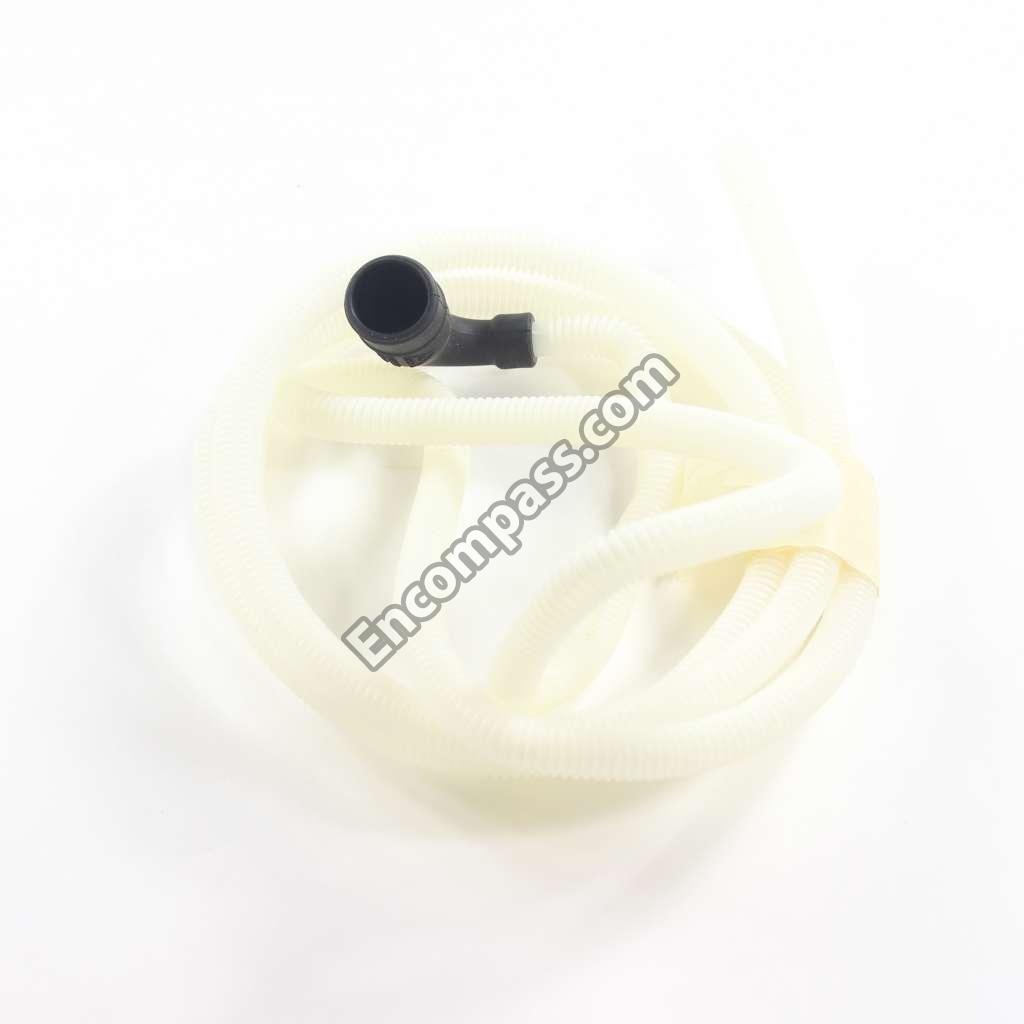

WPY6919906 WPY6919906 HOSE-DRAIN
WPW10186746 WPW10186746 INLET VALVE
Y6920170 Y6920170 INLET-WATR
W10118020 W10118020 INSERT-RCK
W10216167 W10216167 INSTRUCTIONS, INSTALLATION
99003750 99003750 INTERMEDIATE PANEL
WPW10143258 WPW10143258 LEVLER-LEG
WP99003677 WP99003677 LID
W10118032 W10118032 LID
99003726 99003726 LID SLIDER ASSEMBLY. (LEFT HAND)
99003725 99003725 LID SLIDER ASSEMBLY. (RIGHT HAND)
W10162673 W10162673 MANIFOLD, UPPER ASSEMBLY
W10185037 W10185037 NAMEPLATE
W10185030 W10185030 NAMEPLATE
WP99003605 WP99003605 NUT
WP6-920168 WP6-920168 NUT-HEATER
Y6920320 Y6920320 O-RING (EPDM)
99001979 99001979 O-RING, PUMP THERMOSTAT
99002651 99002651 O-RING, TURBIDITY SENSOR
WP99002857 WP99002857 O-RING- DR
W10185059 W10185059 PANEL
W10185027 W10185027 PANEL
W10185034 W10185034 PANEL
W10185061 W10185061 PANEL
W10128553 W10128553 PANEL-CNTL
Y6920293 Y6920293 PANEL-TOE
Y6920294 Y6920294 PANEL-TOE
Y6920295 Y6920295 PANEL-TOE
Y6920296 Y6920296 PANEL-TOE
Y6920297 Y6920297 PANEL-TOE
Y6920298 Y6920298 PANEL-TOE
Y6920299 Y6920299 PANEL-TOE
Y6920300 Y6920300 PANEL-TOE
6-916824 6-916824 PIVOT, WASH ARM
W10258874 W10258874 PLATE
WPW10166505 WPW10166505 RETAINER
W10189242 W10189242 RETAINER
99003724 99003724 ROLLER, LID PIN

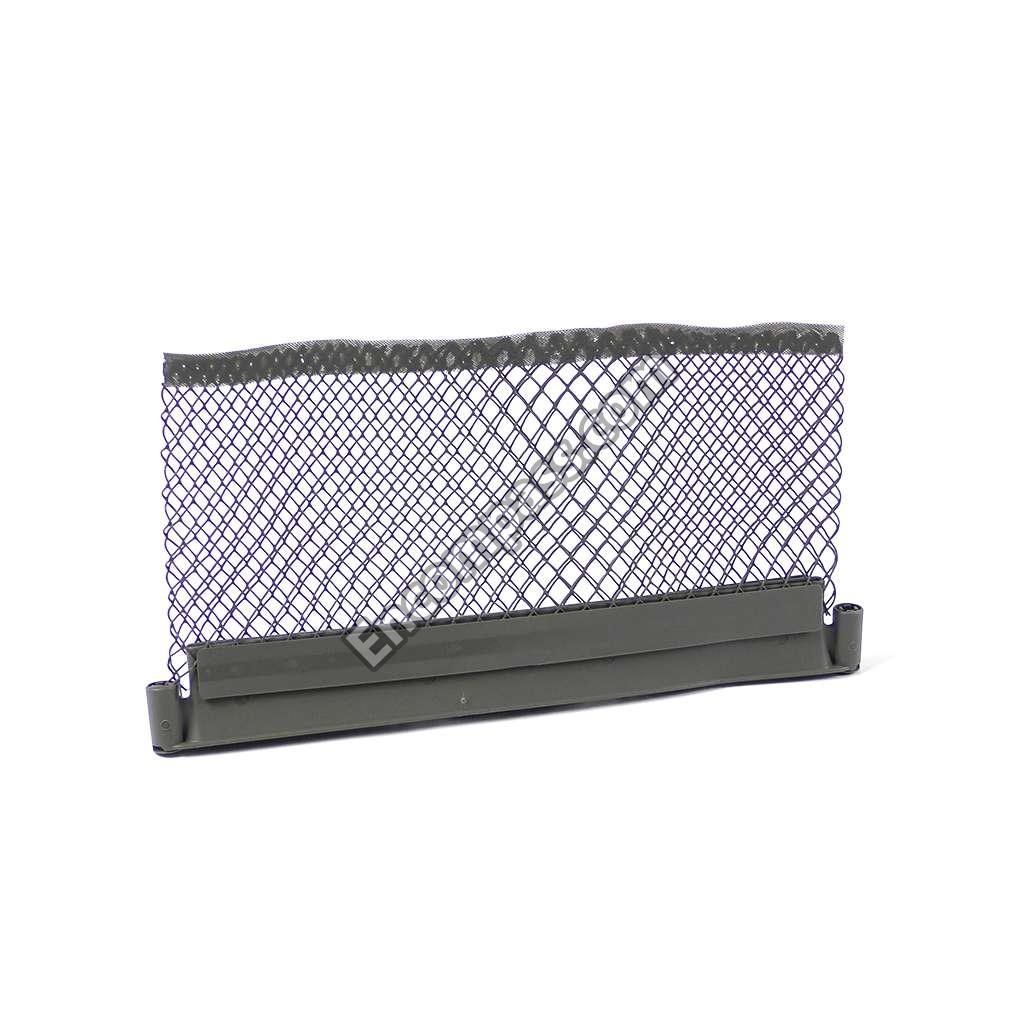

W10321575 W10321575 SCREEN
99003740 99003740 SCREW
WPW10001180 WPW10001180 SCREW
WPY912620 WPY912620 SCREW
6-918536 6-918536 SCREW
WPW10286124 WPW10286124 SEAL
99003692 99003692 SEAL, FINE DRAIN
WPW10120019 WPW10120019 SENSOR
W10118001 W10118001 SHELF
W10258872 W10258872 SHIELD
Y6919650 Y6919650 SHIELD
99003704 99003704 SHIELD, FINE FILTER
WP99003759 WP99003759 SLIDE- LH
WP99003760 WP99003760 SLIDE- RH
W10118019 W10118019 SMALL TINES
6-920336 6-920336 SOLENOID, FINE DRAIN
99003774 99003774 SPRING, FINE DRAIN
W10138778 W10138778 SUPPORT
99003626 99003626 SWITCH, PRESSURE
99003623 99003623 THERMOSTAT, HIGH LIMIT
WPW10133725 WPW10133725 TRIM
WPW10298948 WPW10298948 TRIM, TOE KICK (BLACK)
W10185043 W10185043 USE & CARE GUIDE
WP99003730 WP99003730 WASH PUMP
910069 910069 WASHER
99003708 99003708 WIRE JUMPER, HEATER
99003705 99003705 WIRE JUMPER, THERMOSTAT
