Manufacturer

Whirlpool

Model Number

KUDI24SEAL5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

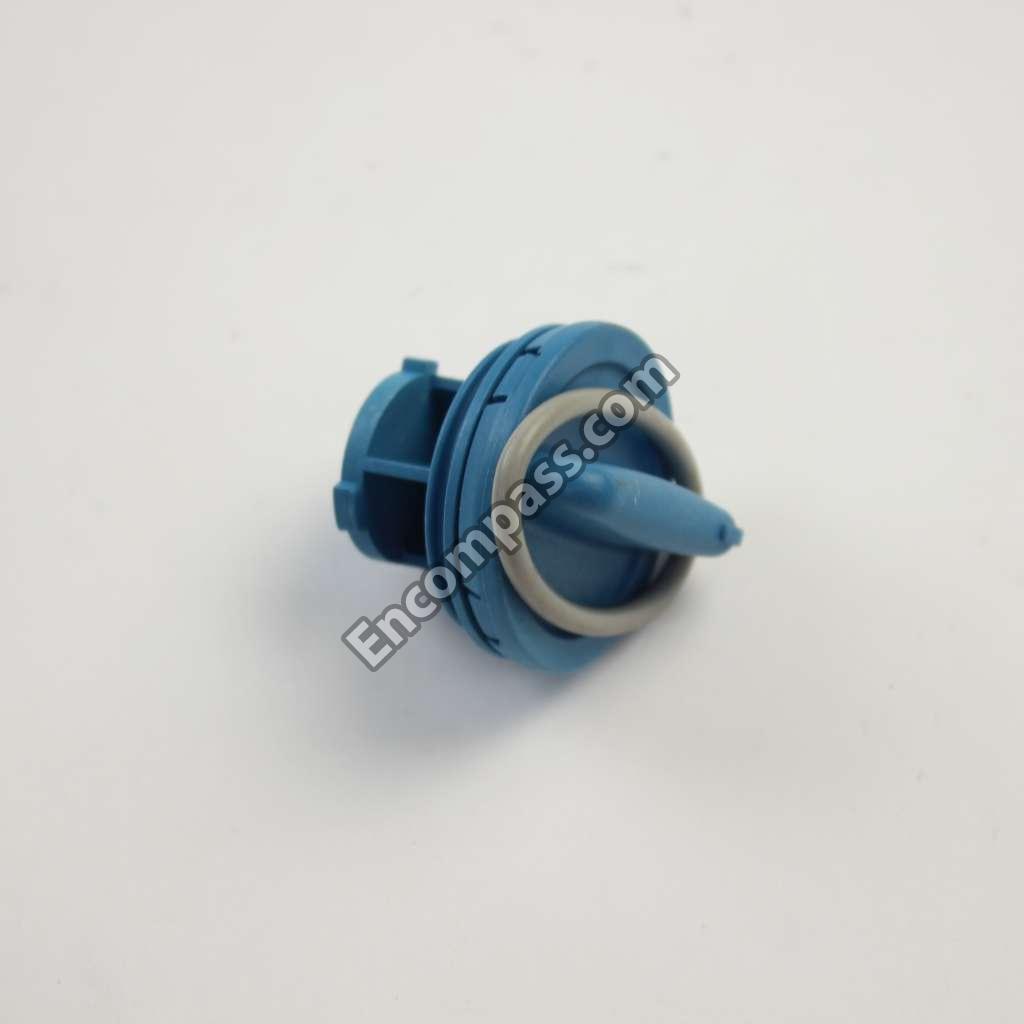

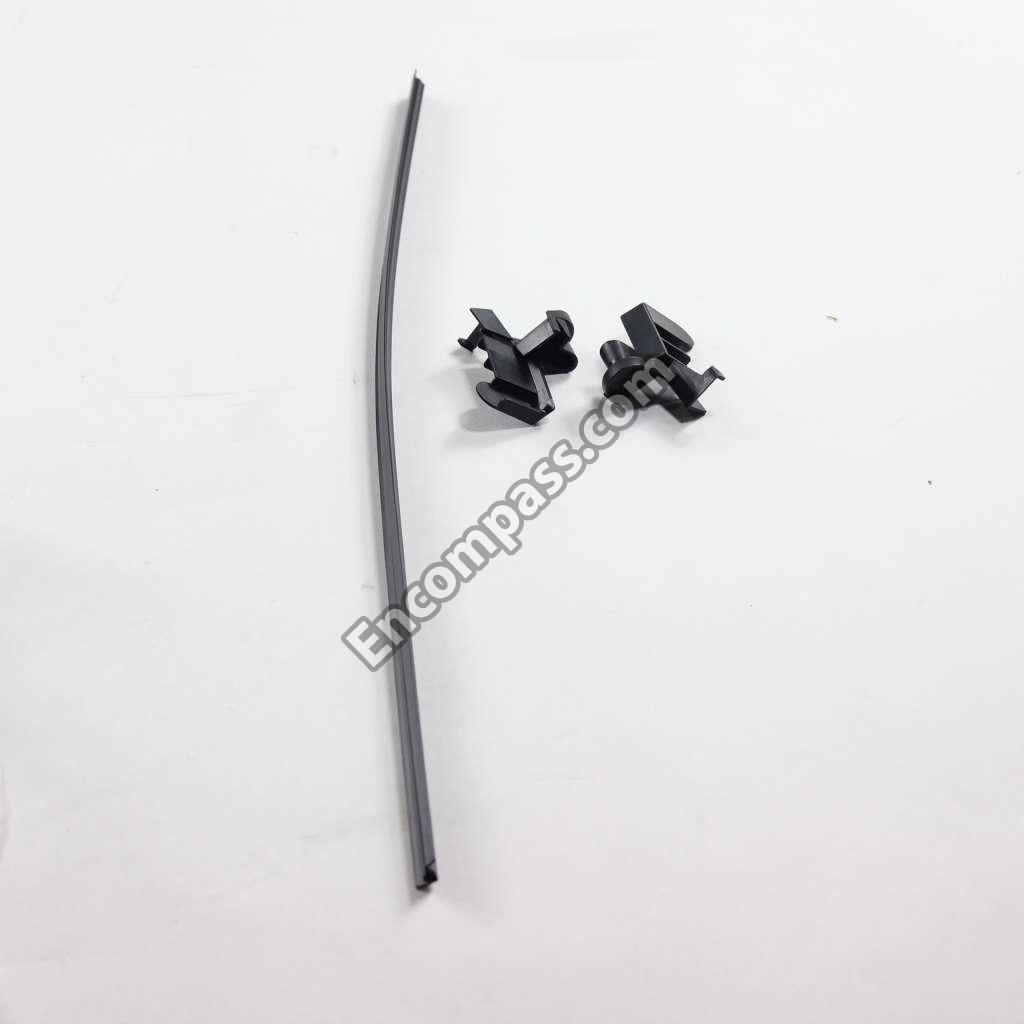

3379919 3379919 ACCESS PANEL & CLIP ASSEMBLY (ALMOND MODEL)
WP9744142 WP9744142 ACCESS PANEL & CLIP ASSEMBLY (BLACK MODEL)
WP9744143 WP9744143 ACCESS PANEL & CLIP ASSEMBLY (WHITE MODEL)
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
350956 350956 ALMOND
WP72107 WP72107 ALMOND
978883 978883 ALMOND (UNCUT)
WP302709 WP302709 BALL, CHECK
WP719929 WP719929 BALL-CHECK
675498 675498 BASE-INLET
8193525 8193525 BASE-PUMP
9742853 9742853 BASKET, SILVERWARE
WP9742946 WP9742946 BEARING, RADIAL
WP3373234 WP3373234 BEARING, SPRING (2)
9742786 9742786 BEZEL, INLET
72032 72032 BLACK
9742623 9742623 BRACKET, CONTROLS

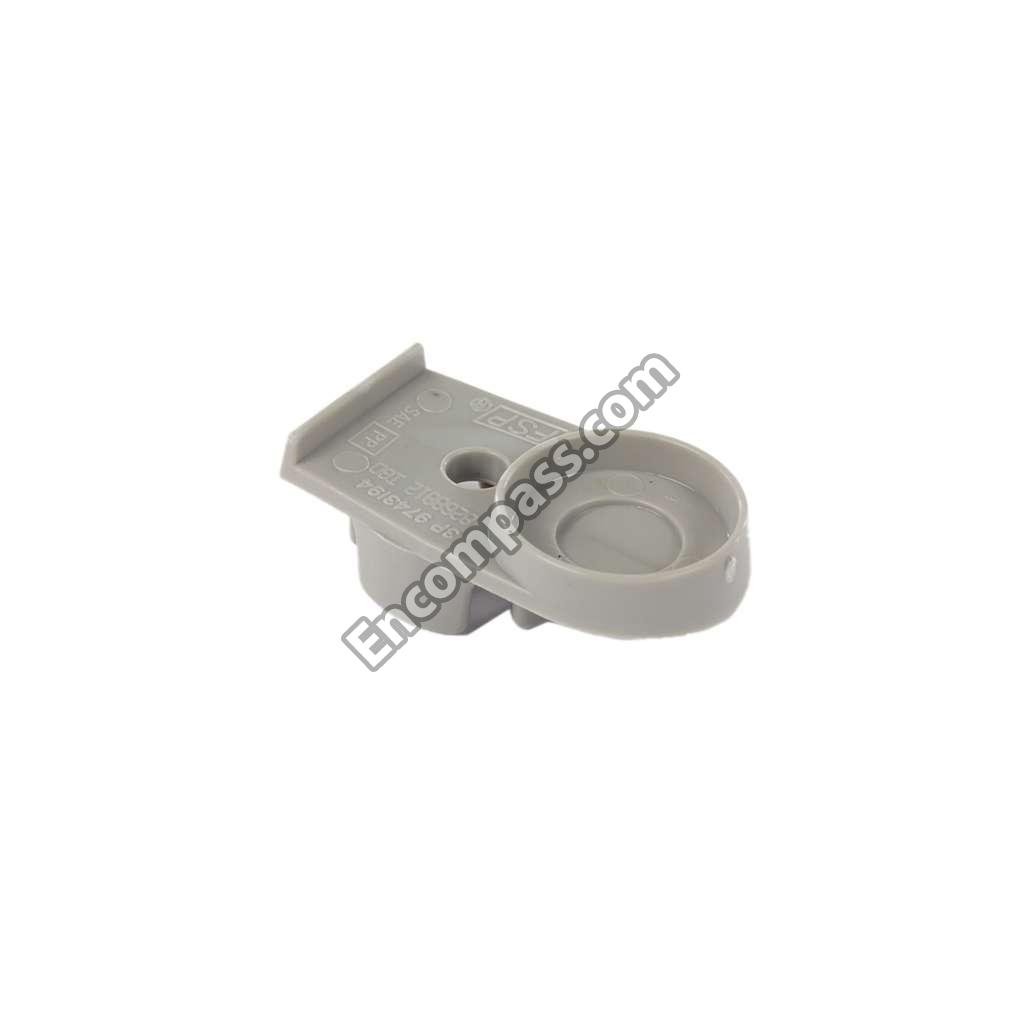

9743486 9743486 BRACKET, DISPENSER (2)
9742648 9742648 BRACKET, THERMOSTAT
302707 302707 BUSHING, GRIND
WP9743399 WP9743399 CAP, DISPENSER
3371748 3371748 CAP, DRAIN
675806 675806 CHOP-IMPLR
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
W10282479 W10282479 CLEANER
WP3378123 WP3378123 CLIP, GROUNDING
9742610 9742610 CONNECTOR TUB TO BRACE

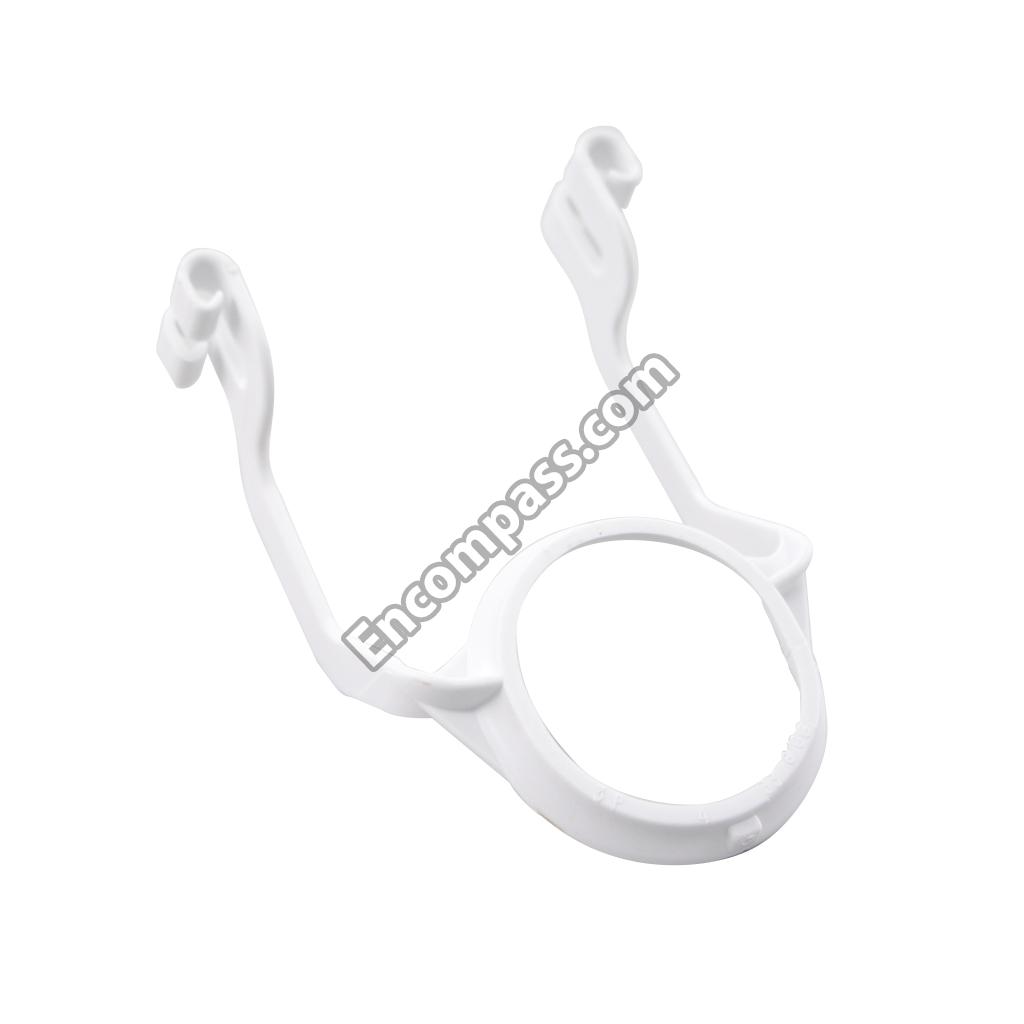

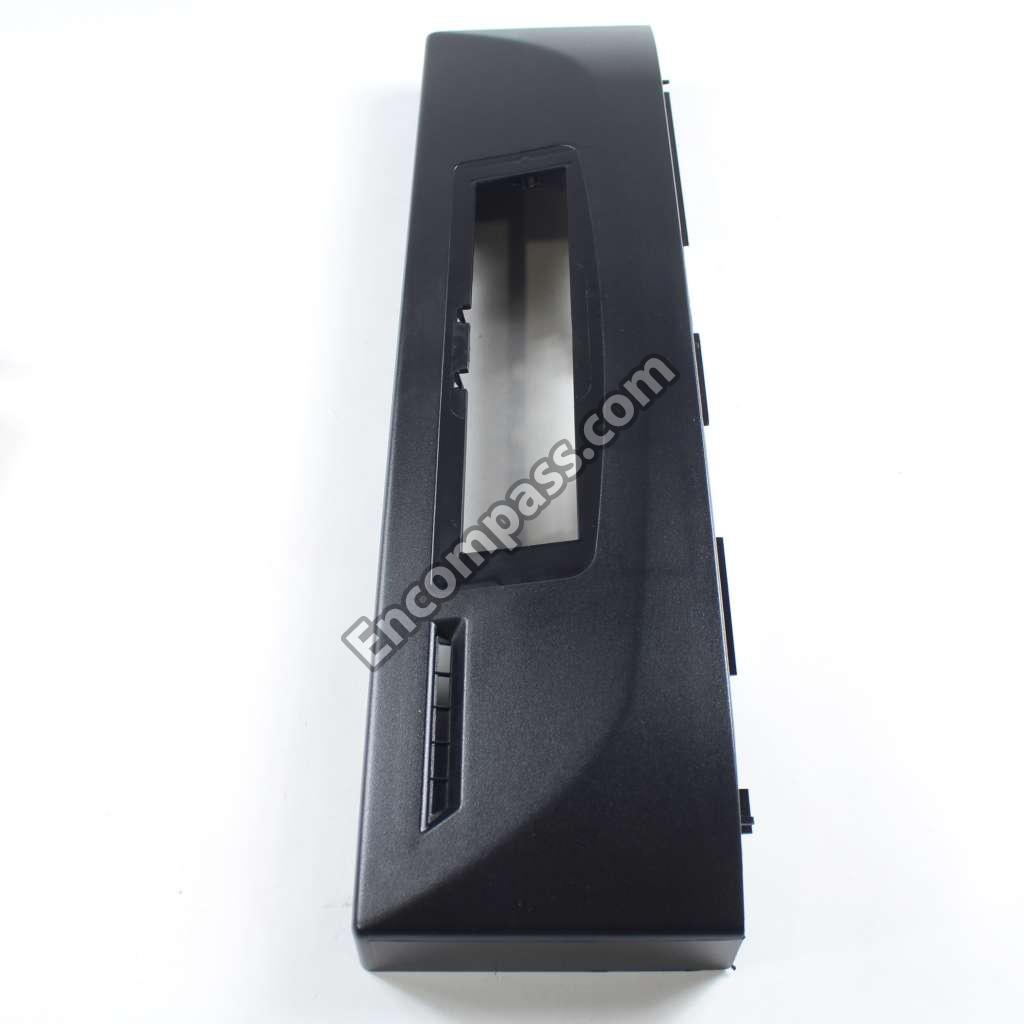

WP9743593 WP9743593 CONTROL PANEL
WP9743591 WP9743591 CONTROL PANEL
WP8051136 WP8051136 CONTROL, ELECTRONIC
W10207863 W10207863 CONTROL, OVERFILL ASSEMBLY (ALSO ORDER ITEM 14)
9742789 9742789 CORNER TRIM, TUB
675749 675749 COVER
300068 300068 COVER, TERMINAL BOX
675775 675775 CUSTOM TRIM & PANEL KITS (BLACK)
9742780 9742780 DEFLECTOR, VENT (ALSO ORDER ITEM 9)

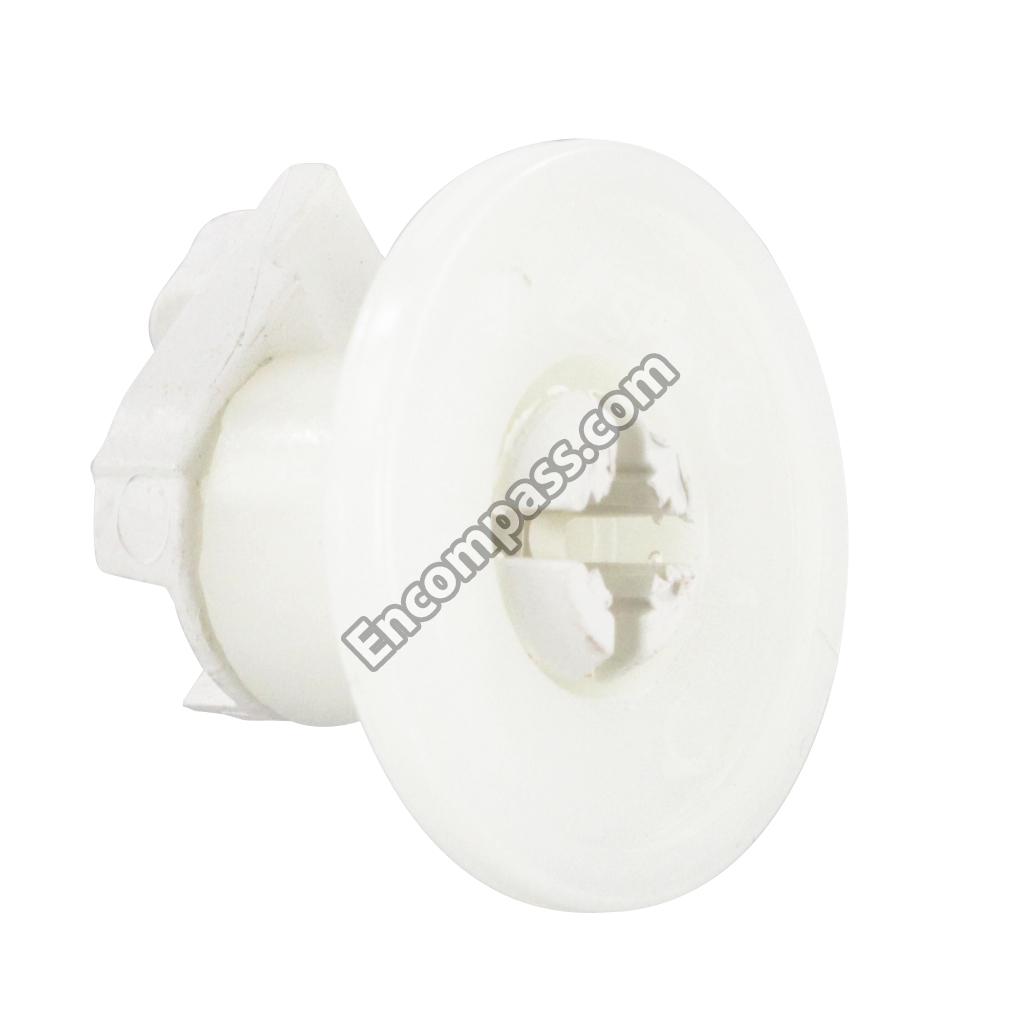

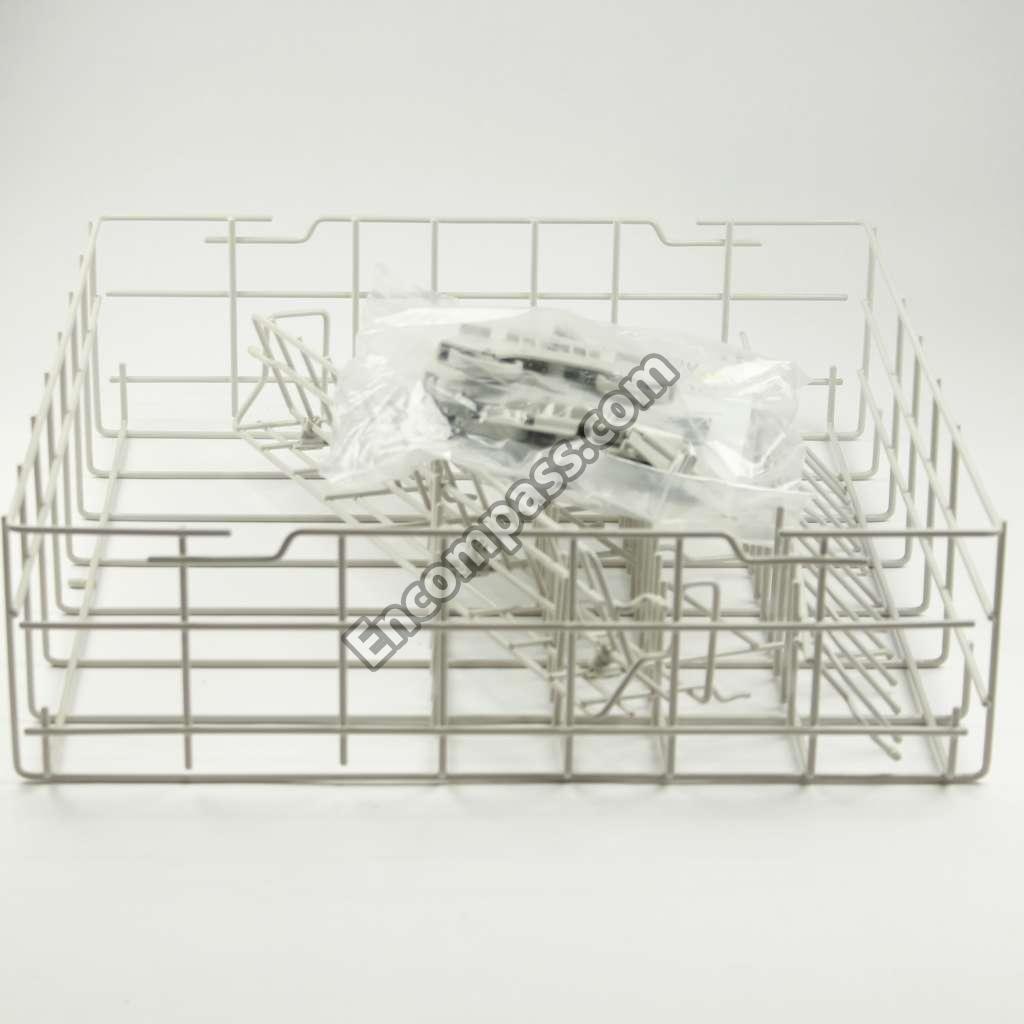

W10134647 W10134647 DISHRACK

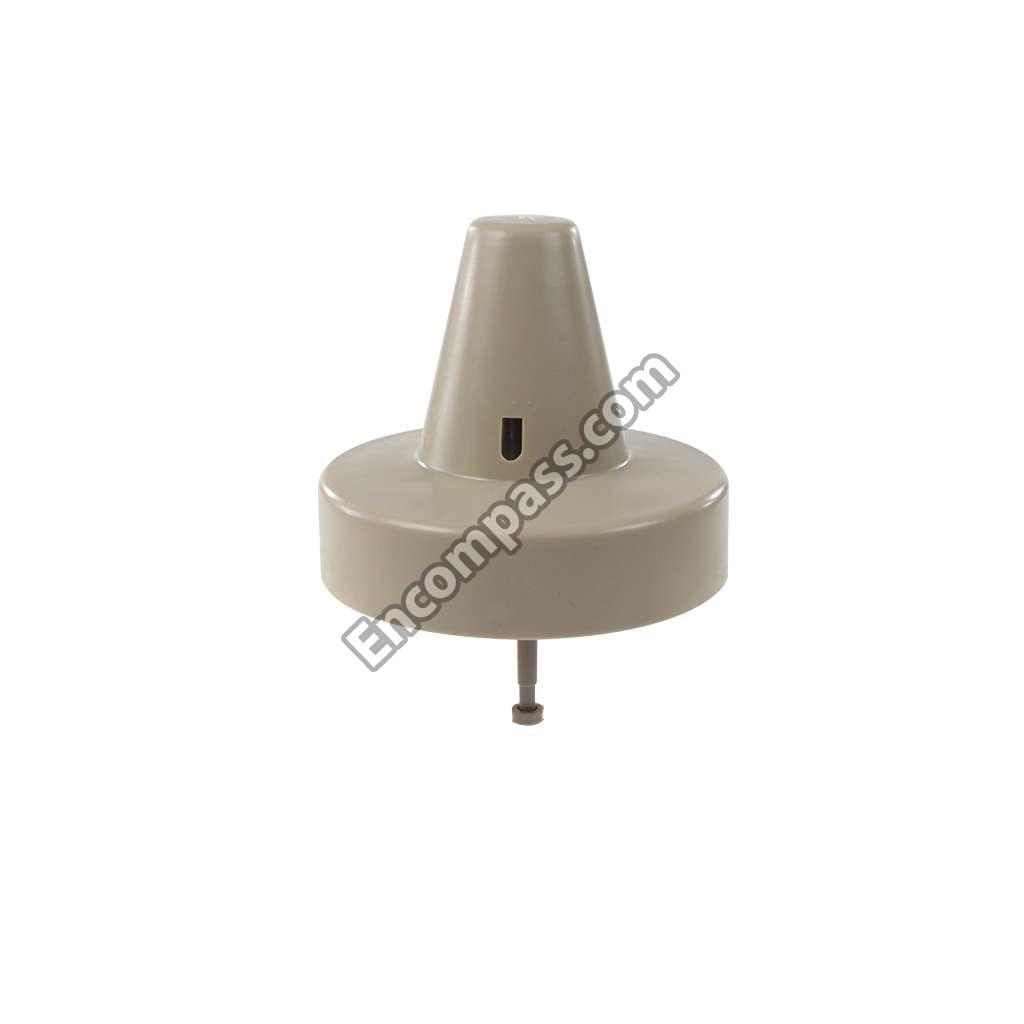

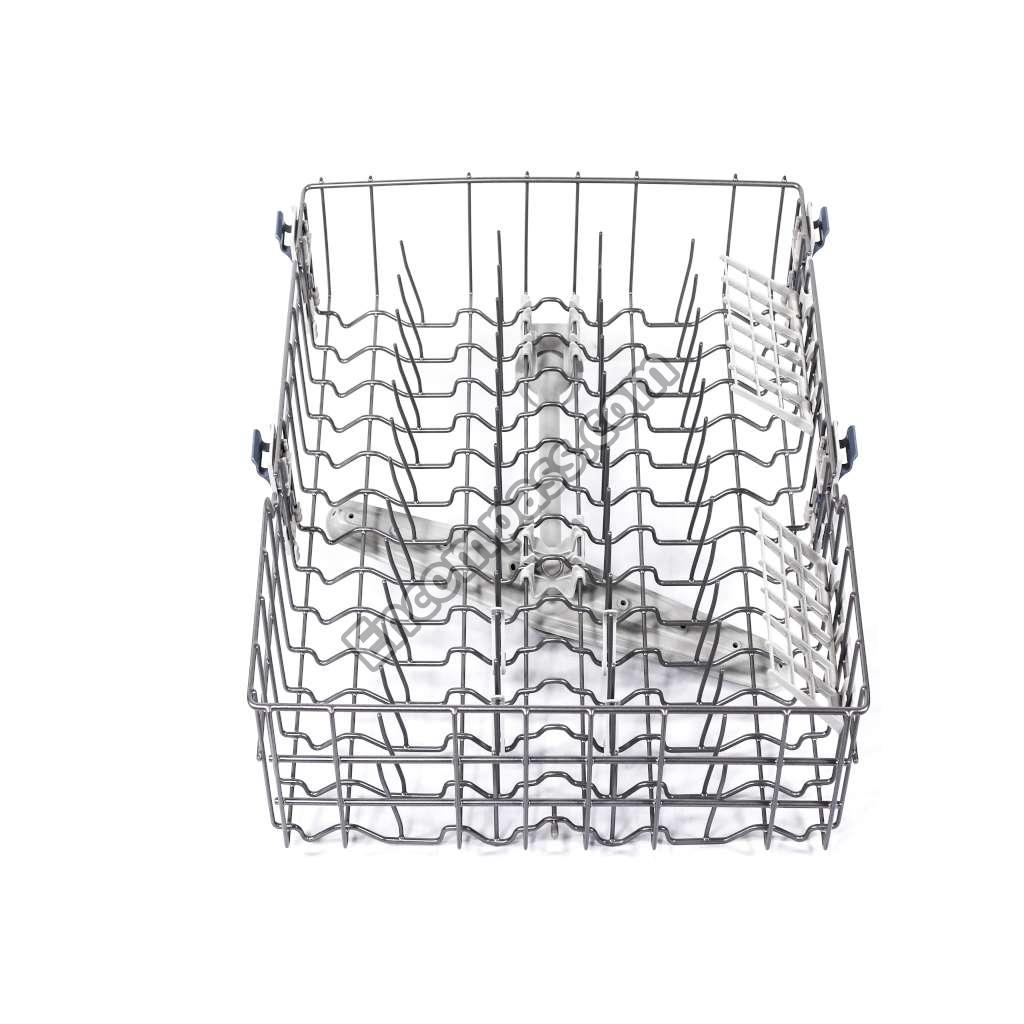

WPW10253040 WPW10253040 DISHRACK

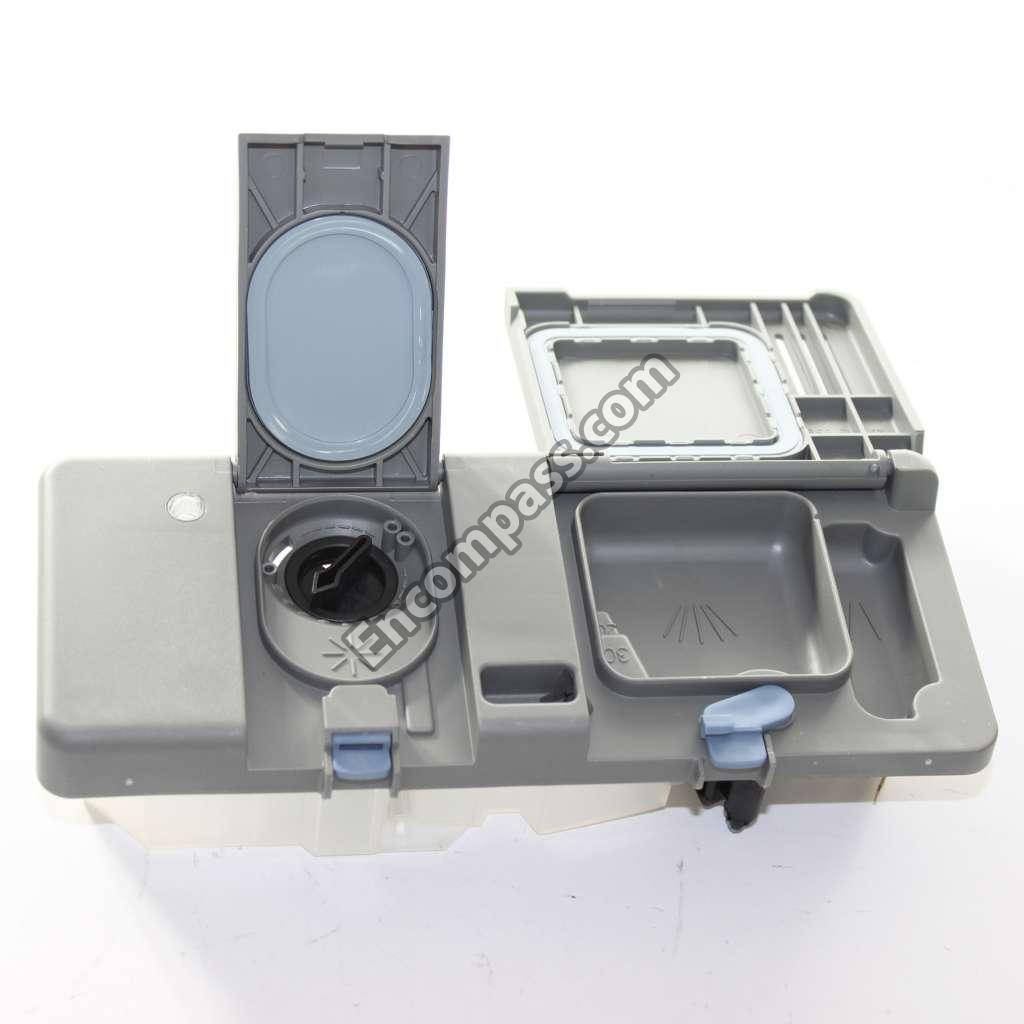

WPW10616003 WPW10616003 DISPENSER
WP9743028 WP9743028 DOOR FRAME (ALSO ORDER ITEM 22) (WHITE)
W10505634 W10505634 DOOR FRAMED KITS (BLACK)
W10505636 W10505636 DOOR FRAMED KITS (WHITE)
4378862 4378862 DOOR FRAMELESS KITS (BLACK)

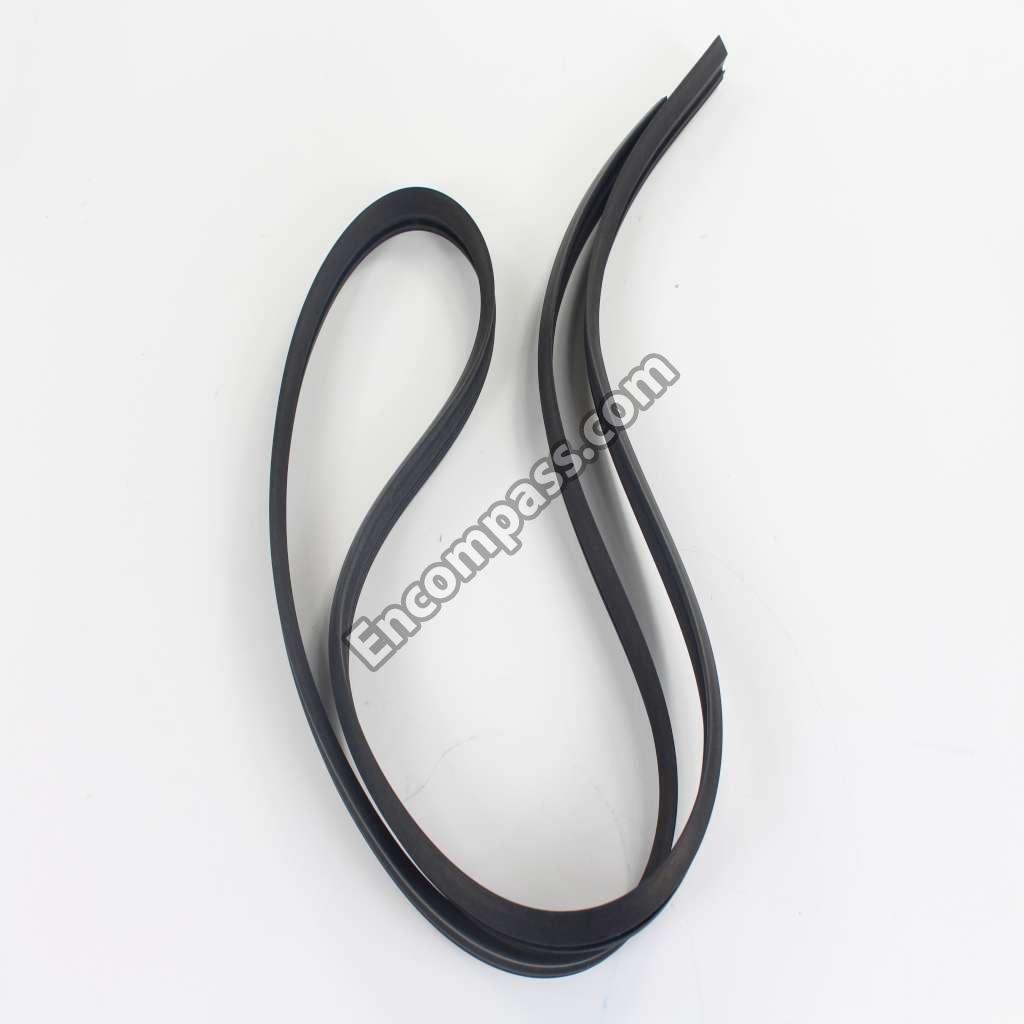

W11196317 W11196317 DOOR SEAL
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3376405 3376405 ELBOW, HARNESS
9742950 9742950 FEED TUBE ASSEMBLY
W10844024 W10844024 FILL VALVE ASSEMBLY
WP9742968 WP9742968 FILTER ASSEMBLY
9743070 9743070 FLOAT & RETAINER ASSEMBLY
4378968 4378968 FLOOR MOUNT KIT
4378863 4378863 FRAMELESS (ALMOND)
4378861 4378861 FRAMELESS (WHITE)
WP3379376 WP3379376 FRONT PANEL (WHITE)
WP9743590 WP9743590 GASKET
WP8531743 WP8531743 GASKET
WP9742787 WP9742787 GASKET
WP9743002 WP9743002 GASKET, BRACKET MOUNTING
9743474 9743474 GASKET, CONNECTOR
WP9740674 WP9740674 GASKET, DRAIN
717000 717000 GASKET, PUMP
9742782 9742782 GASKET, VENT
9743487 9743487 GUIDE, DOOR
LIT8054170 LIT8054170 GUIDE, ENERGY
LIT9743107 LIT9743107 GUIDE, USE & CARE
WP9743903 WP9743903 HANDLE, LATCH (ALMOND MODEL)
4317824 4317824 HARD START KIT (INCLUDES POWER CORD & MISC. HARDWARE)
9743495 9743495 HEATER ELEMENT ASSEMBLY (ALSO INCLUDES ITEM 2)
WP3378186 WP3378186 HOLDER
WP3374077 WP3374077 HOSE, DRAIN
WP9742727 WP9742727 HOSE, INLET
675828 675828 INLET-AIR
9742353 9742353 INNER DOOR MASTIC ASSEMBLY (ALSO INCLUDES ITEMS 7, 9 & 10)
9743368 9743368 INSERT (ALMOND MODEL)
WP9743366 WP9743366 INSERT (BLACK MODEL)
WP9743367 WP9743367 INSERT (WHITE MODEL)
LIT9743822 LIT9743822 INSTRUCTIONS, INSTALLATION

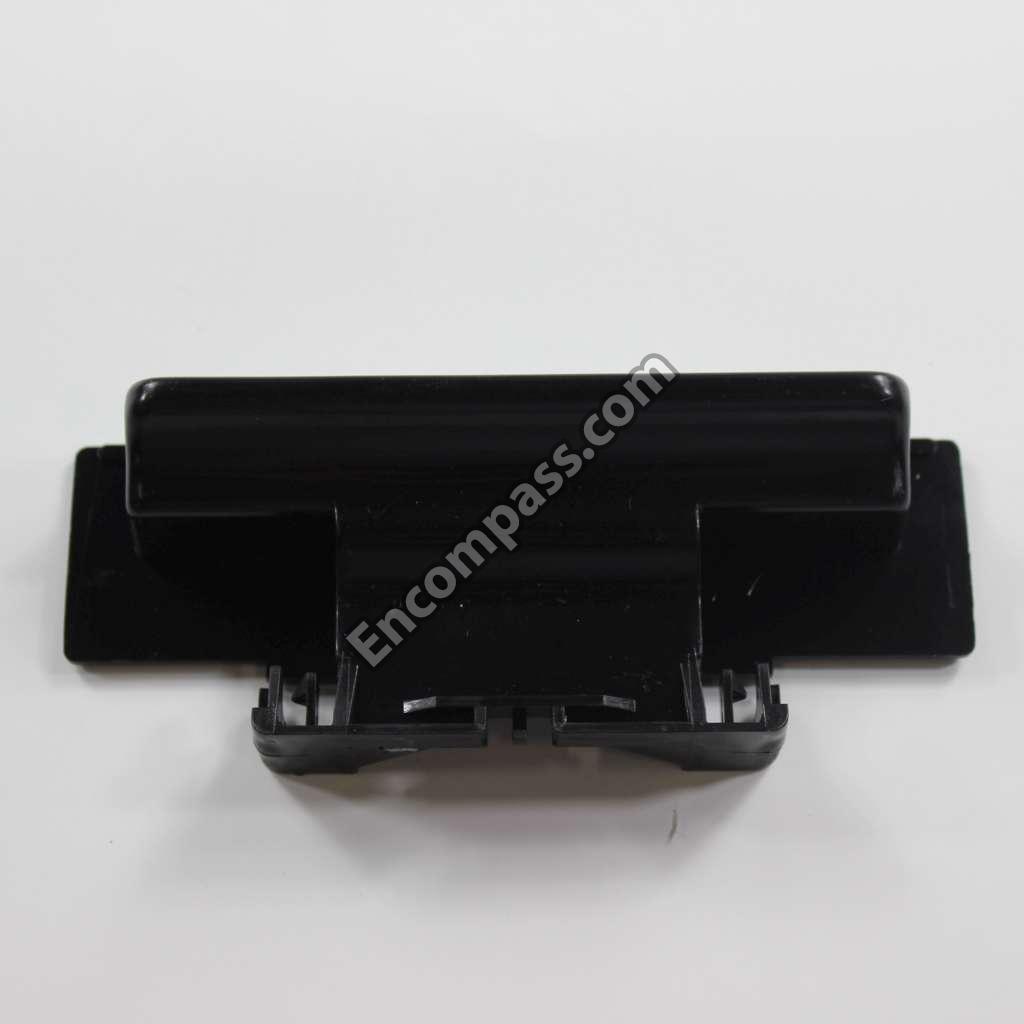

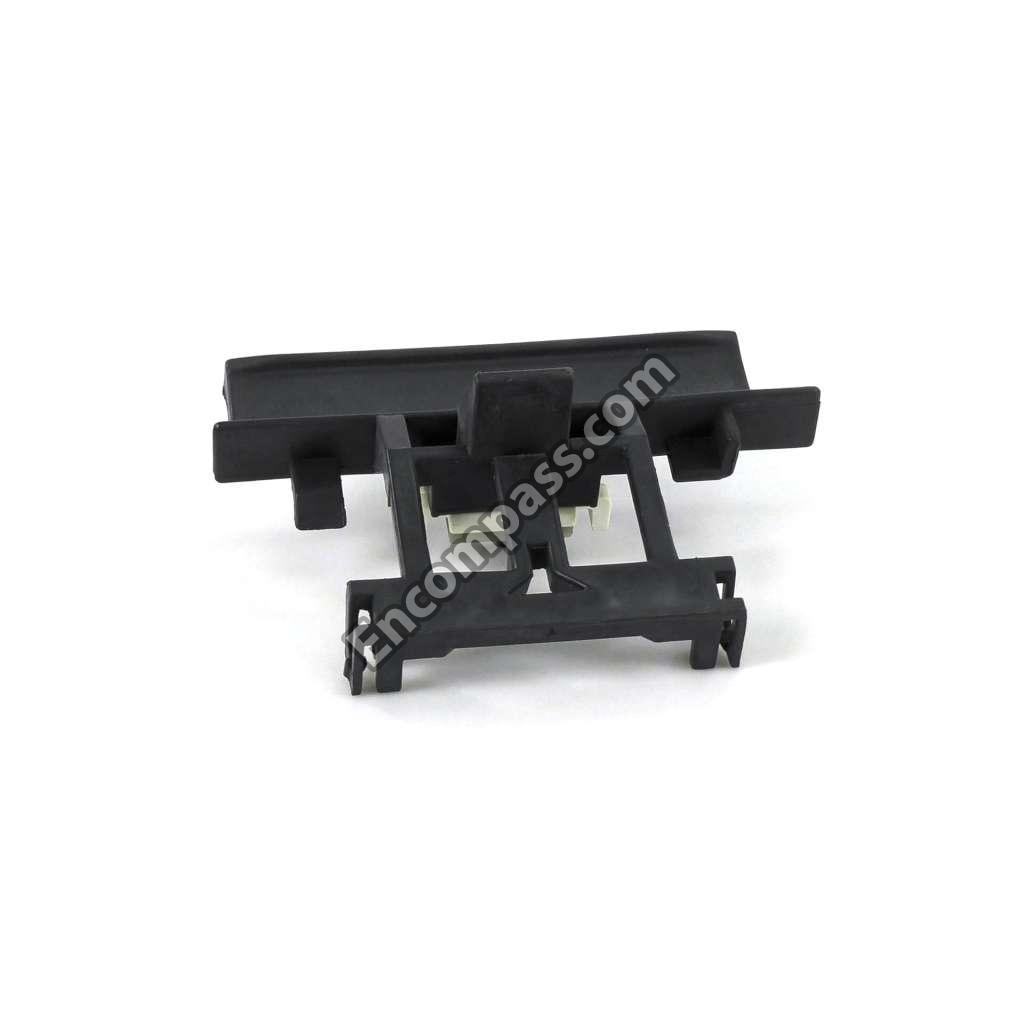

WP3380654 WP3380654 LATCH ASSEMBLY (INCLUDES ITEM 2)
WP3380655 WP3380655 LATCH LEVER ASM.
4171116 4171116 LEVER, OVERFLOW SWITCH
8193716 8193716 LEVLER-LEG
9743572 9743572 LINK, HANDLE
675808 675808 MANIFOLD
WP3369816 WP3369816 MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS) REFER TO DISHWASHER REPLACEMENT PANEL PARTS LIST NO. 678345
WP8534971 WP8534971 MOTOR & FAN (ASSEMBLY) (INCLUDES ITEM 27) (ALSO ORDER ITEM 30) SEE NOTE A.
WP8539324 WP8539324 MOUNT, TIERED
WP8268812 WP8268812 MOUNT, TOP UPPER SPRAYARM
WP9741998 WP9741998 NUT
9743039 9743039 NUT, HEATER ELEMENT

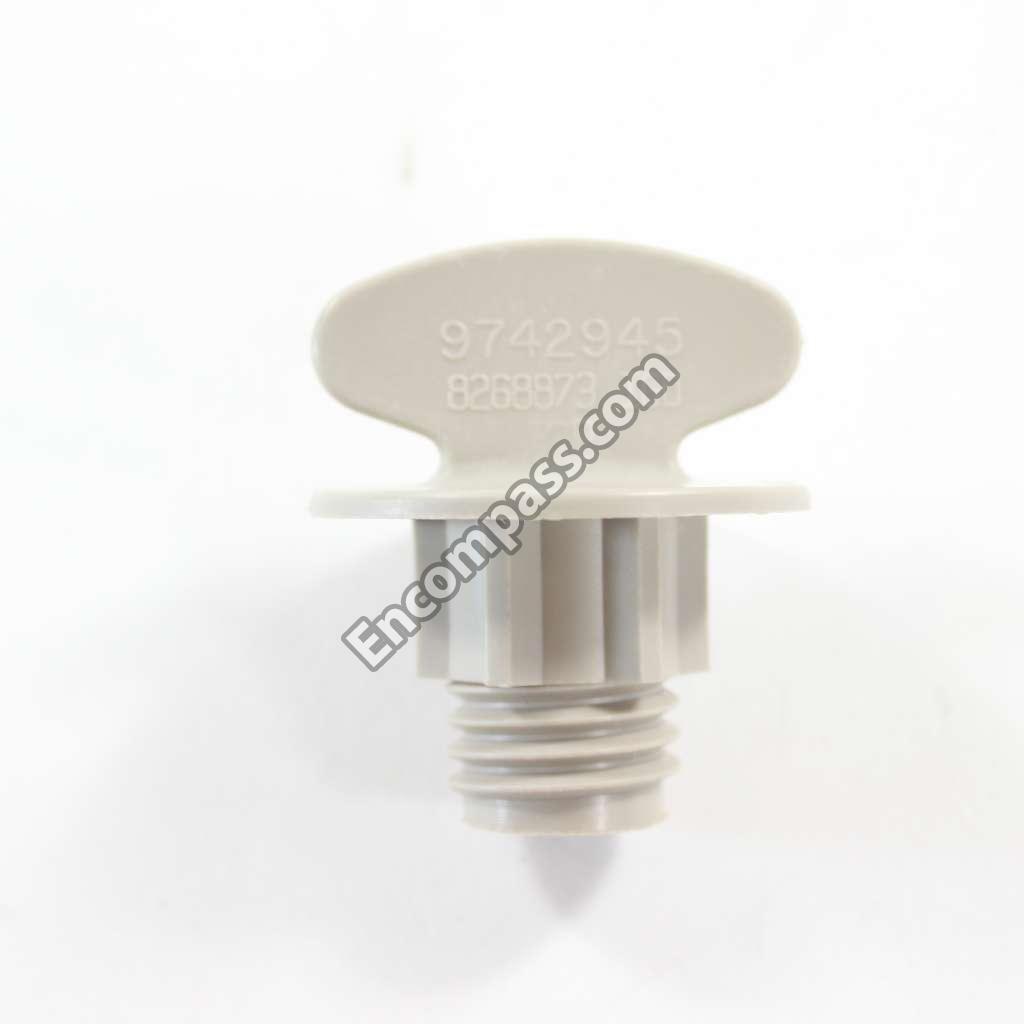

WP9742945 WP9742945 NUT, WASHARM
8194582 8194582 OUTLET
9743406 9743406 PAD, FRICTION
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
WP8054178 WP8054178 PANEL FRONT (ALMOND MODEL)
WP3379375 WP3379375 PANEL, FRONT (BLACK MDL.)
WP3379920 WP3379920 PANEL-TOE
WP3384157 WP3384157 PANEL-TOE
WP3379921 WP3379921 PANEL-TOE
675497 675497 PLATE-PERF
9742788 9742788 PLUG TUB (2)
9743166 9743166 POD, TERMINAL HEATER
9742999 9742999 PROTECTOR, SPRAYARM GUARD
W10428773 W10428773 PUMP & MOTOR
675703 675703 PUMP SEAL KIT (INCLUDES ITEMS 12, 13, 22 & 36)
9743149 9743149 REAR SUPPORT ASSEMBLY
3370307 3370307 RELIEF, STRAIN
WP3376358 WP3376358 RETAINER
WP304666 WP304666 RETAINER
67574-2 67574-2 RETAINER
WP9741232 WP9741232 RETAINER
WP3371152 WP3371152 SCREW
3400001 3400001 SCREW
WP489128 WP489128 SCREW
WP3400014 WP3400014 SCREW
3369138 3369138 SCREW
WP681414 WP681414 SCREW
WP9740848 WP9740848 SCREW
WPW10349488 WPW10349488 SCREW
WP489069 WP489069 SCREW
WP3177991 WP3177991 SCREW
3400404 3400404 SCREW
WP304231 WP304231 SCREW
WP308685 WP308685 SCREW
WPW10348409 WPW10348409 SCREW
WP3370389 WP3370389 SCREW (2)
3369331 3369331 SCREW (4)
3400700 3400700 SCREW (6)
488362 488362 SCREW, 4-40 X 3/4
WP90767 WP90767 SCREW, 8 A X 3/8
WP302868 WP302868 SCREW, 8-18 X 1/2 (2)
4172127 4172127 SEAL
9743806 9743806 SEAL, CONSOLE/DOOR
WP302710 WP302710 SEAL, INLET BASE
WP3376723 WP3376723 SEAL, O-RING
WP302711 WP302711 SEAL, PUMP OUTLET
WP3376846 WP3376846 SEAL, SPRAYARM
9742953 9742953 SEAL, TUBE
WP302704 WP302704 SEAL-RING
3374757 3374757 SHAFT, ABSORBER
W11086533 W11086533 SHIELD
9743450 9743450 SHIELD, DISPENSER
4378869 4378869 SIDE PANEL KITS (ALMOND)
4378868 4378868 SIDE PANEL KITS (BLACK)
4378867 4378867 SIDE PANEL KITS (WHITE)
3378139 3378139 SLEEVE, DRAIN IMPELLER
W10909679 W10909679 SLINGER
9742397 9742397 SOUND ABSORBER
9743412 9743412 SPONGE, VENT
350930 350930 SPRAY (13 OZ.) (WHITE)

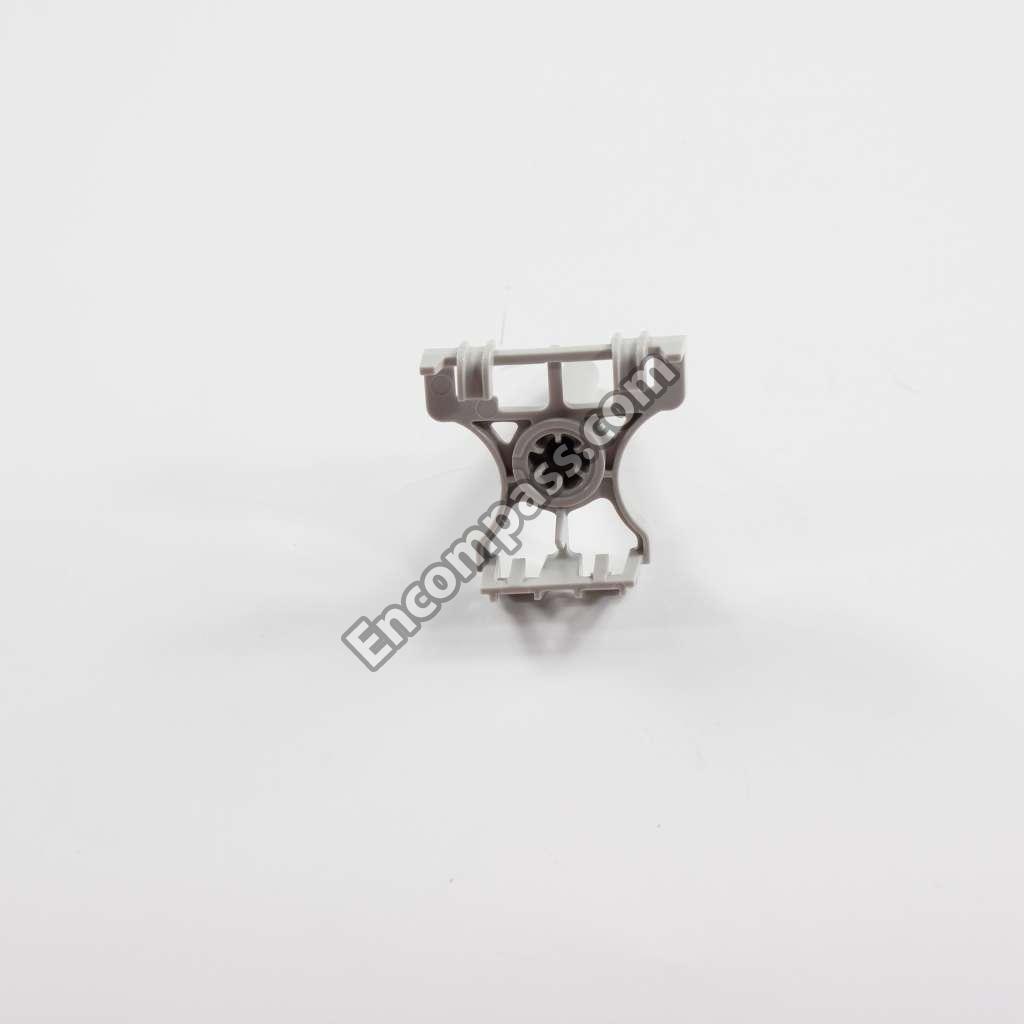

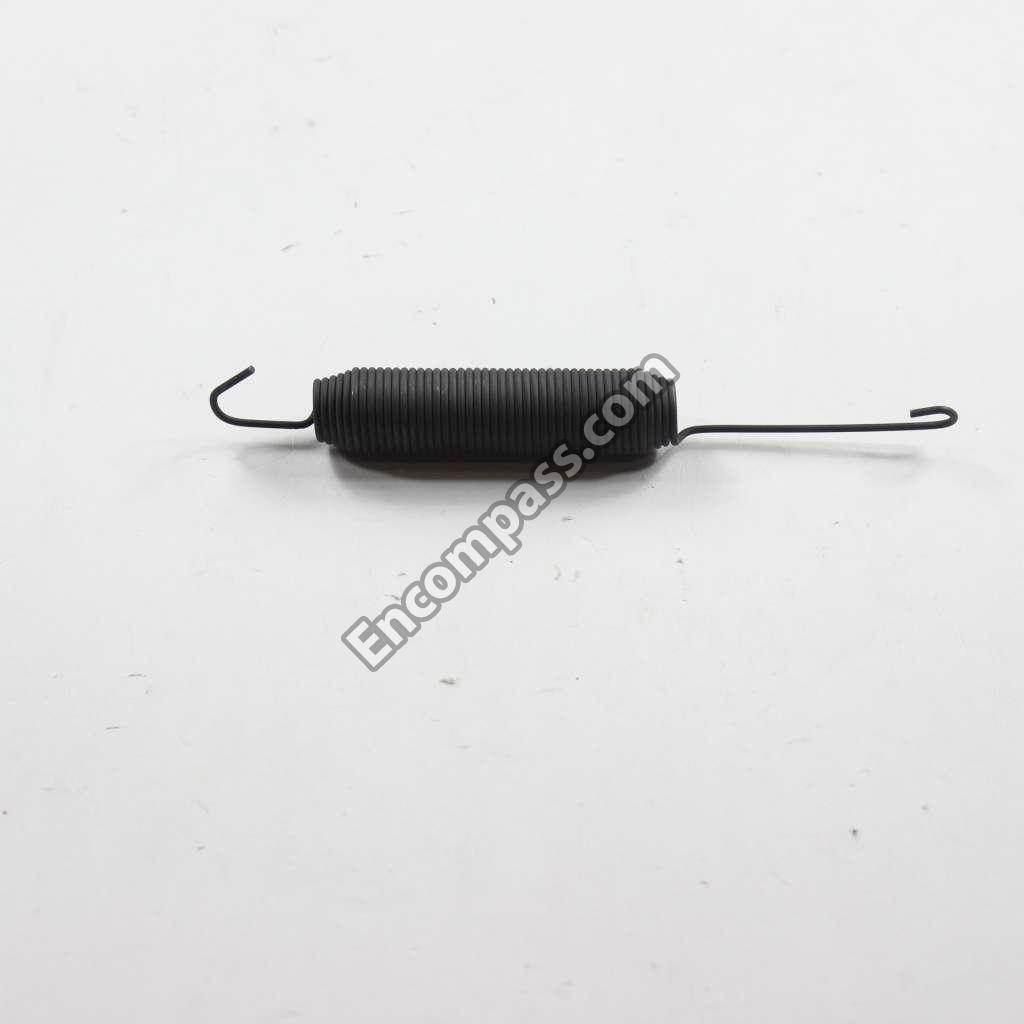

WP9743986 WP9743986 SPRING
WP9743573 WP9743573 SPRING, HANDLE
WP9741997 WP9741997 STANDPIPE
9742964 9742964 STIFFENER, DOOR
WP3379941 WP3379941 STOP, TRACK (4)
9742646 9742646 STRAINER (COARSE)
9742722 9742722 STRIKE, LATCH
WP3367197 WP3367197 SUPPORT

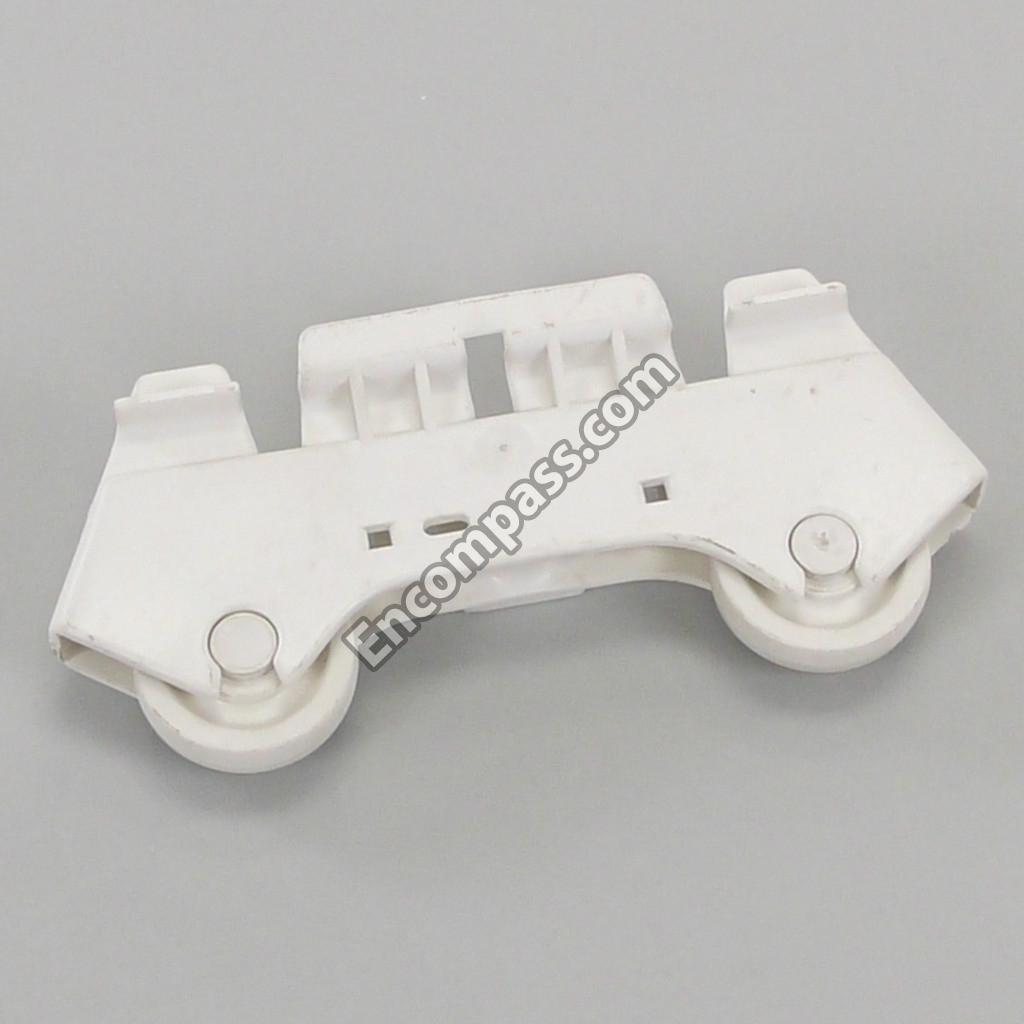

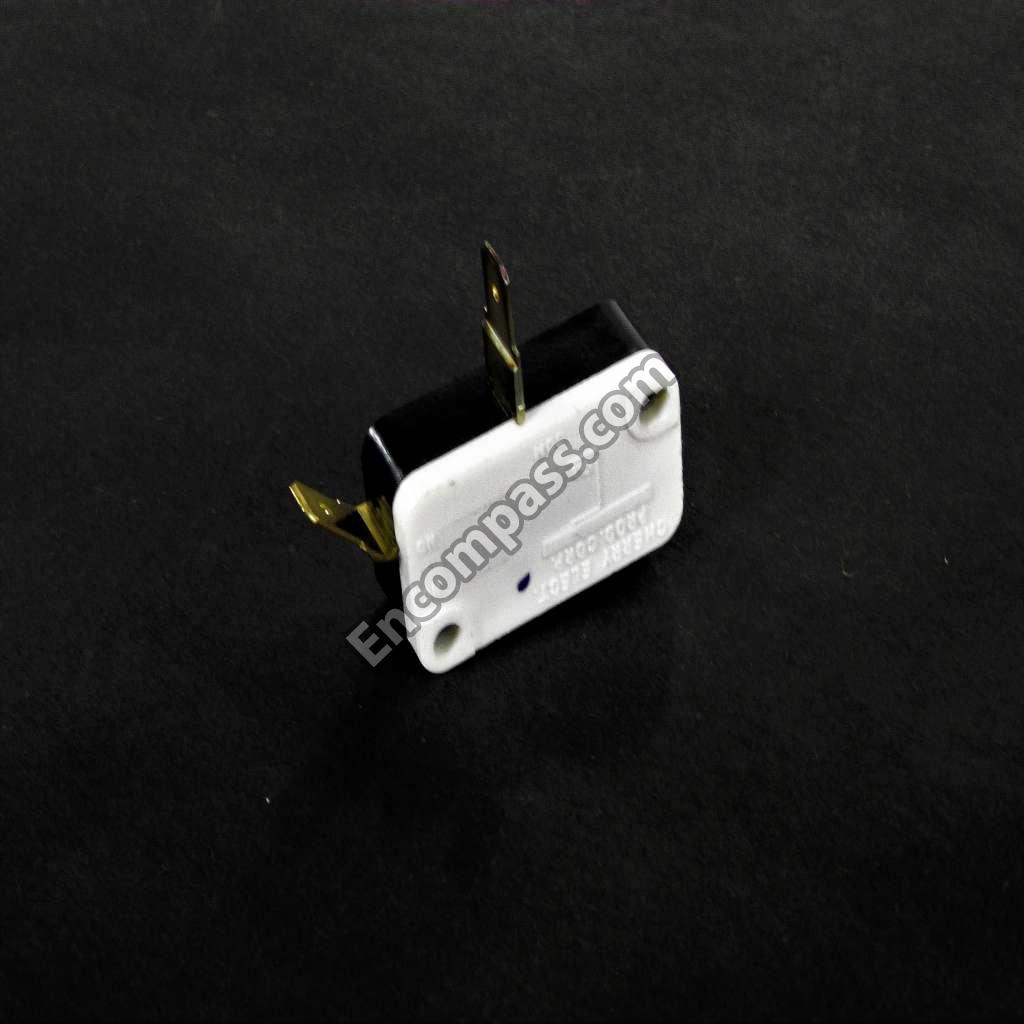

WP9743413 WP9743413 SWITCH, OVERFILL CONTROL

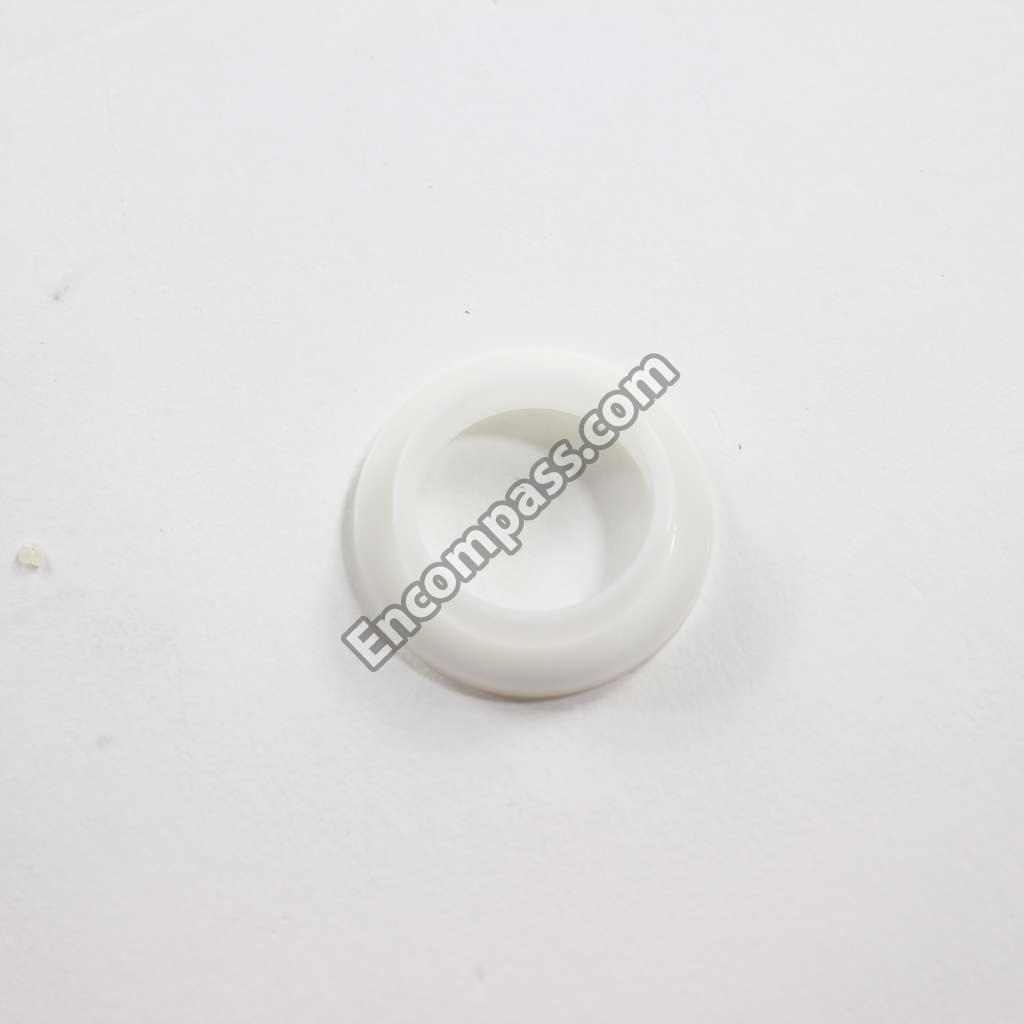

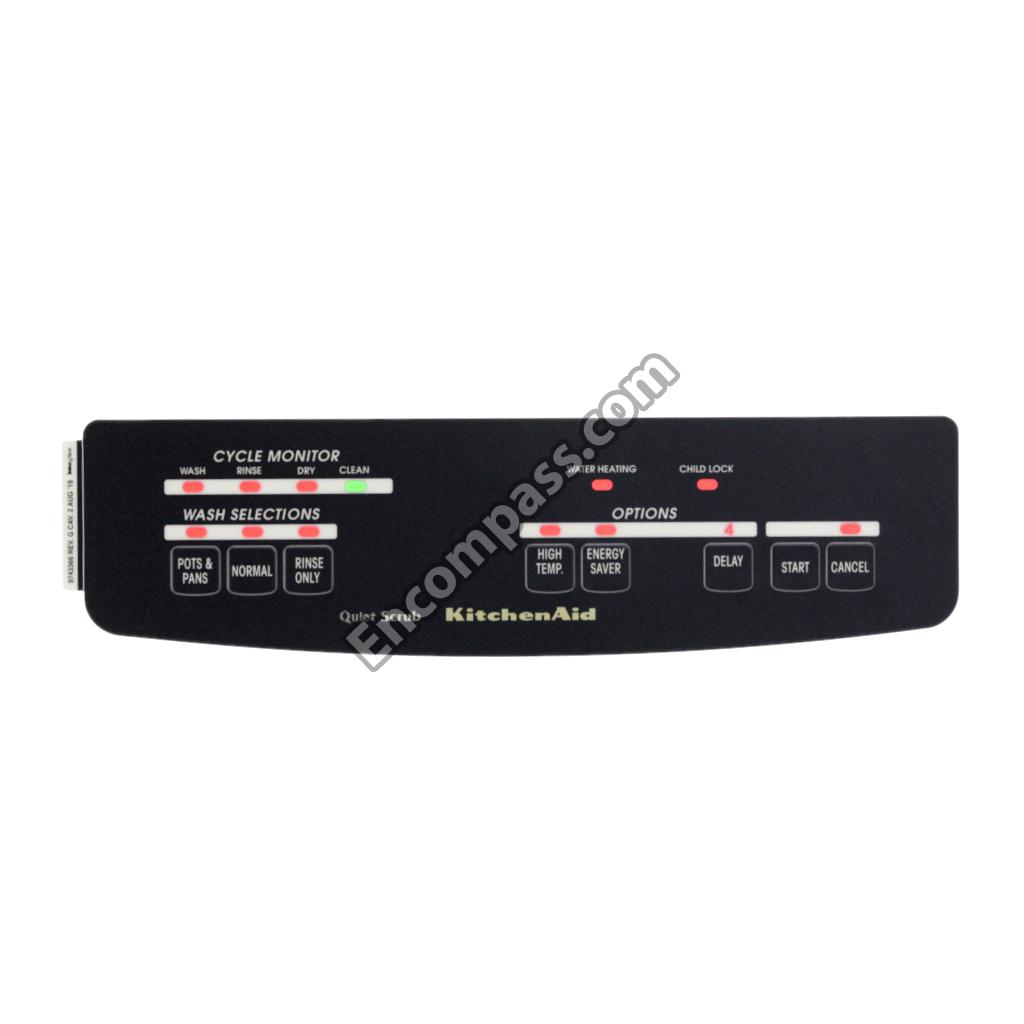

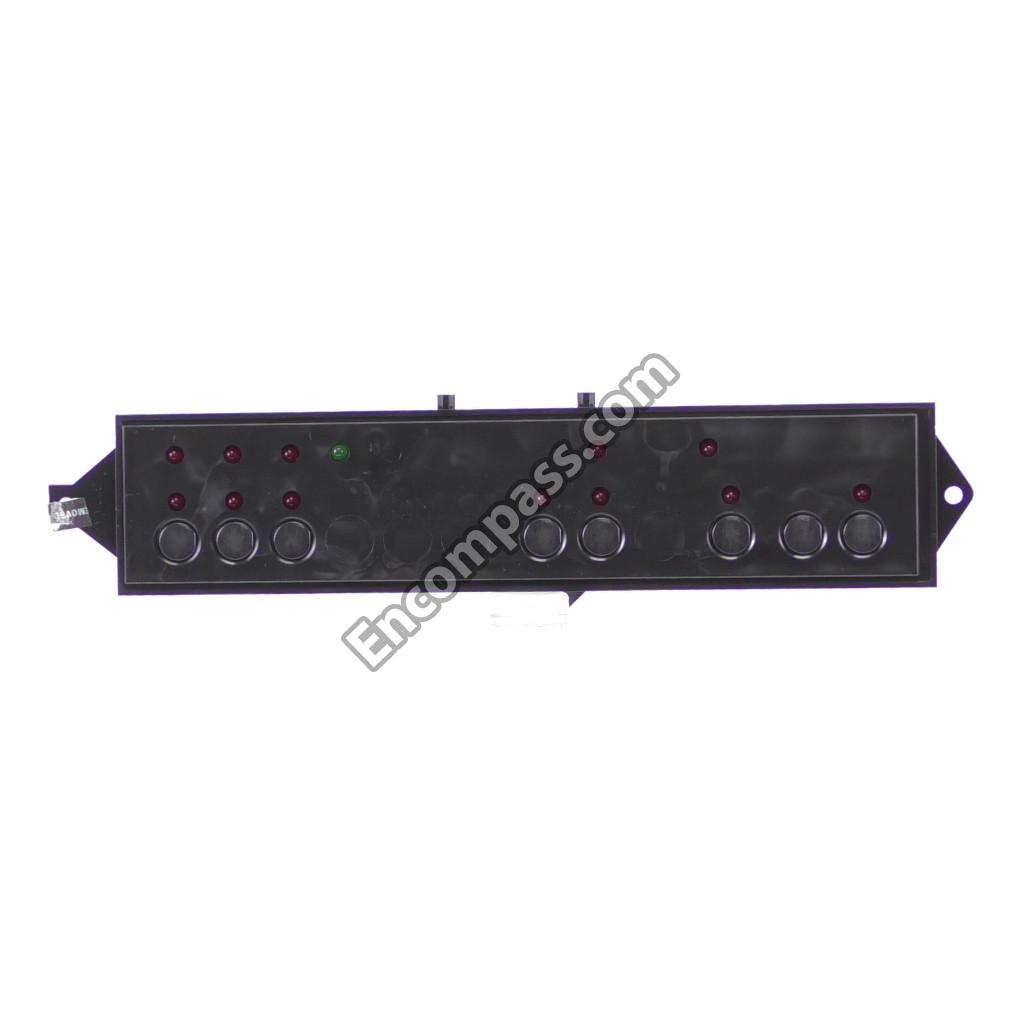

9743244 9743244 SWITCH, PANEL (USER INTERFACE)
4318273 4318273 SWITCH-KIT
LIT9743814 LIT9743814 TECH SHEET (ENGLISH)
LIT9743815 LIT9743815 TECH SHEET (FRENCH)
3378131 3378131 TERMINAL BOX
675740 675740 THERMOSTAT
WP661566 WP661566 THERMOSTAT
WP303918 WP303918 TOOL, PUMP CENTERING (INCLUDED WITH ILLUS 24)
WP3385089 WP3385089 TRACK
9743460 9743460 TRIM STRIP, TUB
3378056 3378056 TUB STIFFENER
9744455 9744455 TUB-DISHWR
WPB5705307 WPB5705307 TUBE
675238 675238 VALVE, CHECK (INCLUDES ITEMS 21 & 23)
9742770 9742770 VENT ASSEMBLY (ALSO ORDER ITEM 9)
9742947 9742947 WASH ARM ASSEMBLY
WP3378128 WP3378128 WASHER
9743475 9743475 WASHER
WP717273 WP717273 WASHER, RUBBER
3378202 3378202 WEIGHT, ABSORBER
WP9742983 WP9742983 WHEEL & BEARING ASSEMBLY (4)
W11164091 W11164091 WHEEL & TRANSPORT ASSEMBLY
WP302819 WP302819 WHEEL LEG (2)
W11131693 W11131693 WHEEL-TUB
9744027 9744027 WIRING HARNESS, MAIN
WP357574 WP357574 ``O`` RING
