Model Image
Manufacturer

Whirlpool

Model Number

KUDS01DJBT0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
8193918 8193918 ACCUMULATR
WP8268701 WP8268701 ACTUATOR, ADJUSTER (ALSO ORDER ITEM 15) (LEFT HAND)
WP8268649 WP8268649 ACTUATOR, ADJUSTER (ALSO ORDER ITEM 15) (RIGHT HAND)
WP8524471 WP8524471 ACTUATOR, LATCH
8193741 8193741 ADJUSTER
W10728567 W10728567 ADJUSTER ASSEMBLY
350956 350956 ALMOND
WP72107 WP72107 ALMOND

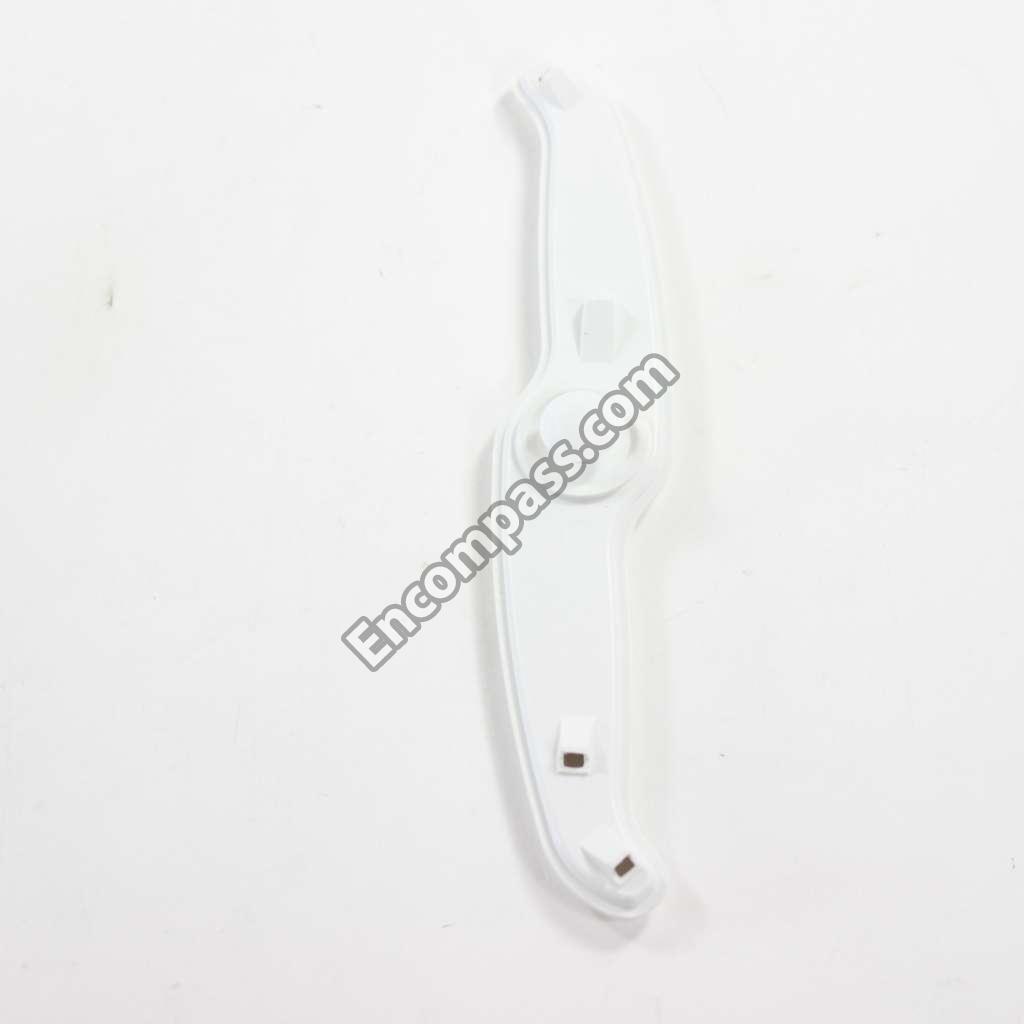

WP8535086 WP8535086 ARM-SPRAY
8193504 8193504 ARM-SPRAY
WP8268703 WP8268703 AXEL, ADJUSTER

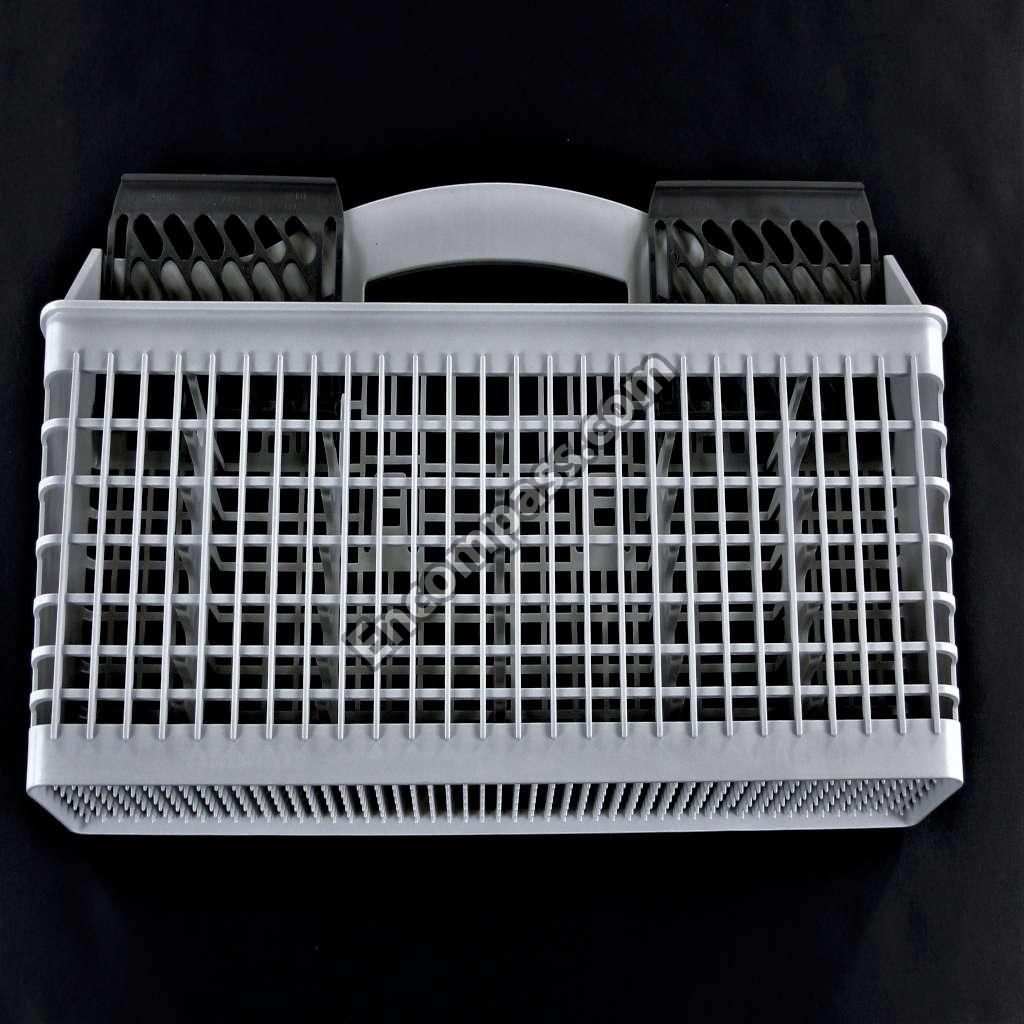

W10840140 W10840140 BASKET, SILVERWARE
8519716 8519716 BASKET, SMALL ITEMS
WP8269243 WP8269243 BEZEL-INLT
72032 72032 BLACK
8269207 8269207 BOARD, INTERCONNECT
8193882 8193882 BOLT-DOOR LATCH
9742648 9742648 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
WPW10462232 WPW10462232 BRCKT-DISP
W10864081 W10864081 CABINET SEAL KIT (SEAL, KI)
8268693 8268693 CADDIE-UTENSIL
WP8268343 WP8268343 CAP, INTERNAL REAR FEED (ALSO ORDER ITEM 3)
WPW10334457 WPW10334457 CAPACITOR
W10083957 W10083957 CHOPPER
W10083957V W10083957V CHOPPER ASSEMBLY
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
8270025 8270025 CLIP, CUPSHELF
WP8269016 WP8269016 CLIP, GROUND
8268742 8268742 CLIP, NO-FLIP
8268739 8268739 CLIP, PIVOT
8268493 8268493 CLIP-BASE, PLATE HOLDER
8531010 8531010 CONTROL PANEL
WP8564543 WP8564543 CONTROL, ELECTRONIC
8268749 8268749 COVER BASKET SILVERWARE
WP3400920 WP3400920 COVER, SCREW
WP8268991 WP8268991 COVER, TERMINAL BOX
W11125975 W11125975 CUPSHELF
8171557 8171557 CUSTOM PANEL KITS (BISCUIT)
8171555 8171555 CUSTOM PANEL KITS (BLACK)
8171558 8171558 CUSTOM PANEL KITS (GRAPHITE)
8171556 8171556 CUSTOM PANEL KITS (WHITE)
4396397 4396397 CUSTOM PANEL KITS COLOR PANEL KITS (COBALT BLUE)
4396399 4396399 CUSTOM PANEL KITS COLOR PANEL KITS (EMPIRE RED)
8171575 8171575 CUSTOM PANEL KITS COLOR PANEL KITS (HUNTER GREEN)
8171577 8171577 CUSTOM PANEL KITS COLOR PANEL KITS (MAJESTIC YELLOW)
WP8545536 WP8545536 DEFLECTOR
W10728159 W10728159 DISHRACK
8193944 8193944 DISHRACK
WP8558129 WP8558129 DISPENSER, ASSEMBLY
8269190 8269190 DISPENSER, WIRING HARNESS
WP8269206 WP8269206 DISPLAY, DUAL DIGIT
WP8534853 WP8534853 DOOR HINGE
W11612302 W11612302 DOOR HINGE
W10542314 W10542314 DOOR SEAL
WP661658 WP661658 DRAIN PUMP
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WPW10077863 WPW10077863 FEED TUBE ASSEMBLY (ALSO INCLUDES ITEM 3)
WP8268895 WP8268895 FLOAT & RETAINER ASSEMBLY
8171477 8171477 FLOOR MOUNT KIT
8193762 8193762 FUSE
WP8531743 WP8531743 GASKET
WP8269241 WP8269241 GASKET
WP9743002 WP9743002 GASKET, BRACKET MOUNTING
WP8269259 WP8269259 GASKET, VENT
8193507 8193507 HANDLE
WP8269117 WP8269117 HANDLE, LATCH
WP8268349 WP8268349 HANGER
4317824 4317824 HARD START KIT (INCLUDES POWER CORD & MISC. HARDWARE)
8194200 8194200 HEATER ELEMENT ASSEMBLY (ALSO INCLUDES ITEM 2 AND ELECTRONIC CONTROL)
661641 661641 HOLDER, PLATE
8269144A 8269144A HOSE, DRAIN
WP8269242 WP8269242 HOSE, INLET
WPW10358302 WPW10358302 HOSE-DRAIN
WP8268342 WP8268342 HUB, LOWER SPRAYARM
8193951A 8193951A IMPELLER
WP8531669 WP8531669 INLET VALVE
WP8268937 WP8268937 INLET-AIR
8193508 8193508 INLET-WATR
WPW10643220 WPW10643220 INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)
WPW10073520 WPW10073520 INSULATION, DOOR (FOR MODEL KUDS01DJSS1)
WP8268892 WP8268892 LEVER, OVERFLOW SWITCH
8193716 8193716 LEVLER-LEG
8194001 8194001 LINK
LIT8269911 LIT8269911 LITERATURE PARTS (ENERGY GUIDE)
LIT8269519 LIT8269519 LITERATURE PARTS (ENGLISH)
LIT8269520 LIT8269520 LITERATURE PARTS (FRENCH)
LIT8269908 LIT8269908 LITERATURE PARTS (GUIDE, USE & CARE TECH SHEET)
LIT8524479 LIT8524479 LITERATURE PARTS (INSTRUCTIONS, INSTALLATION)
WPW10323423 WPW10323423 MANIFOLD
WPW10292170 WPW10292170 MISCELLANOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS)
WP8268321 WP8268321 MOUNT
WP8270021 WP8270021 MOUNT, DOOR BALANCE

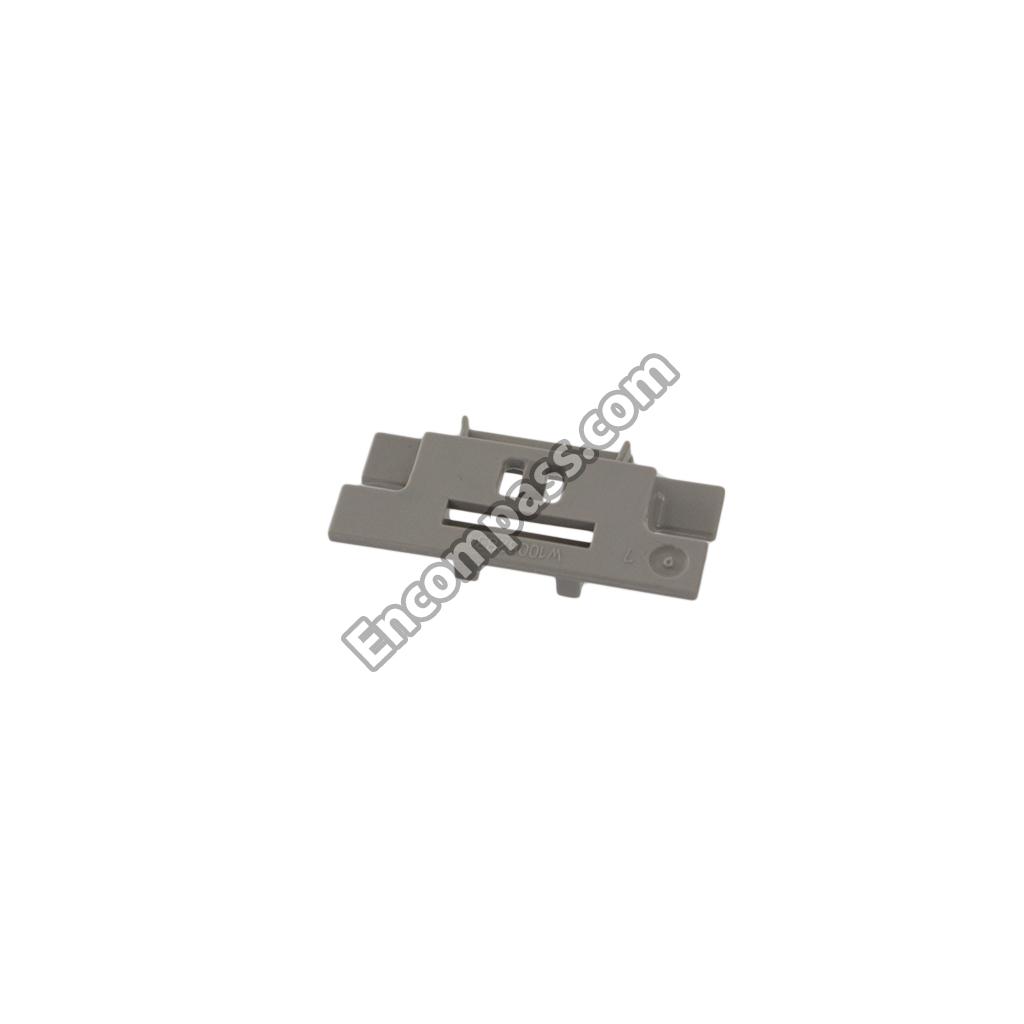

8270137 8270137 MOUNT, TRACK (ALSO ORDER ITEM 21)
100000 100000 NOTE: IF HEATER ELEMENT IS REMOVED, IT MUST BE REPLACED.
3400921 3400921 NUT
WP9741998 WP9741998 NUT
WPW10477552 WPW10477552 NUT (2) (HEATER TERMINAL)
WPW10746770 WPW10746770 PAD-INS
978883 978883 PAINT, BULK (1 QT.) (ALMOND (UNCUT))
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
8171571 8171571 PAINT, TOUCH-UP 1/2 OZ. (COBALT BLUE)
8171652 8171652 PAINT, TOUCH-UP 1/2 OZ. (EMPIRE RED)
8171651 8171651 PAINT, TOUCH-UP 1/2 OZ. (HUNTER GREEN)
8171653 8171653 PAINT, TOUCH-UP 1/2 OZ. (MAJESTIC YELLOW)
W10871196 W10871196 PANEL
W10871198 W10871198 PANEL
W10909064 W10909064 PANEL
W10909066 W10909066 PANEL
W10301571 W10301571 PANEL
W10384707 W10384707 PANEL FRONT (BISCUIT)
WPW10274970 WPW10274970 PANEL FRONT (WHITE)
WPW10586591 WPW10586591 PANEL-TOE
W10795980 W10795980 PLUG TUB
WP8268738 WP8268738 POSITIONER
WP8268667 WP8268667 POSITIONER
8268741 8268741 POSITIONER, MULTI
WPW10082831 WPW10082831 PROBE, MANIFOLD
WP8531857 WP8531857 PROTECTOR, INLET
W10782773 W10782773 PUMP & MOTOR
WPW10757217 WPW10757217 PUMP MOTOR
WP8268522 WP8268522 RETAINER
WP304666 WP304666 RETAINER
WP3400924 WP3400924 RETAINER
WP9741232 WP9741232 RETAINER
WP3400918 WP3400918 RETAINER
WP3400931 WP3400931 RETAINER, SPRING GRIP
8268391 8268391 SCREEN, SEPARATION
WPW10349488 WPW10349488 SCREW
WPW10348407 WPW10348407 SCREW
WP8281156 WP8281156 SCREW
3400217 3400217 SCREW
WP3400892 WP3400892 SCREW
WP308685 WP308685 SCREW
WP3400014 WP3400014 SCREW
3400409 3400409 SCREW
WP3400071 WP3400071 SCREW
WP489069 WP489069 SCREW
WP3400074 WP3400074 SCREW
3400069 3400069 SCREW
WPW10177098 WPW10177098 SCREW
WPW10348409 WPW10348409 SCREW
W11631670 W11631670 SCREW
WP3370389 WP3370389 SCREW (2)
WP302868 WP302868 SCREW, 8-18 X 1/2 (2)
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP8535660 WP8535660 SEAL
WP8269258 WP8269258 SEAL, FRONT
WP8268933 WP8268933 SEAL, SPLASH GUARD
WP8268433 WP8268433 SEAL, SPRAYARM
WP8268340 WP8268340 SEAL, SPRAYARM
WP8268395 WP8268395 SEAL, SUMP
W11622922 W11622922 SEAL, VOLUTE
WP8533381 WP8533381 SENSOR
W10877094 W10877094 SHIELD
8268547 8268547 SHIELD
W10831329 W10831329 SHIELD
8269512 8269512 SHIELD, CAPACITOR
8268541 8268541 SHIELD, DISPENSER
8269449 8269449 SHIELD, DRAIN PUMP
8269501 8269501 SHIELD, PRESSURE SWITCH
8171658 8171658 SIDE PANEL KITS (BISCUIT)
8171657 8171657 SIDE PANEL KITS (BLACK)
8171659 8171659 SIDE PANEL KITS (STAINLESS STEEL)
8171656 8171656 SIDE PANEL KITS (WHITE)
350930 350930 SPRAY (13 OZ.) (WHITE)
WP8270020 WP8270020 SPRING, DOOR BALANCE
WP8268540 WP8268540 SPRING, HANDLE
WP8268983 WP8268983 STIFFENER, DOOR

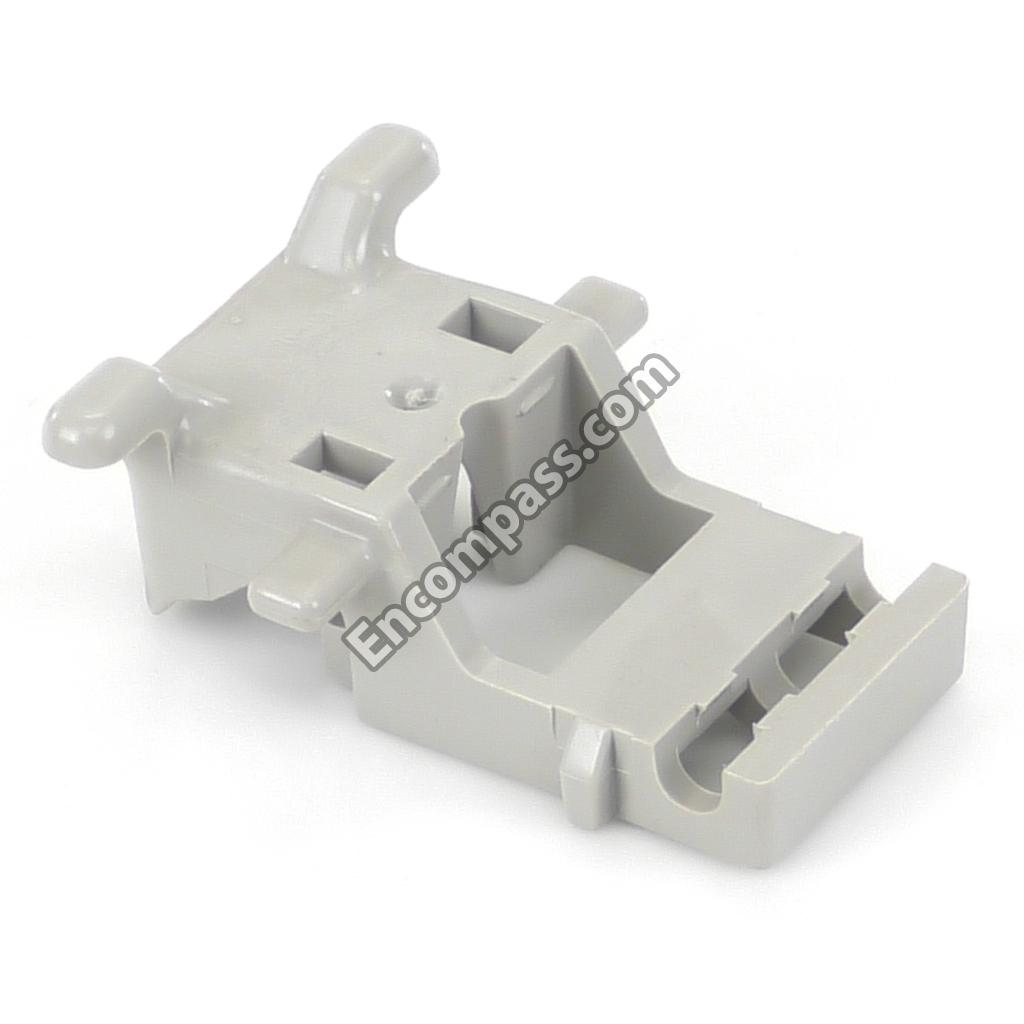

WP8270136 WP8270136 STOP, TRACK
WP8580309 WP8580309 STRIKE
WP8534882 WP8534882 SUMP
8193506 8193506 SWITCH
WP8269209 WP8269209 SWITCH, DOOR
WP8268909 WP8268909 SWITCH, OVERFILL CONTROL
8268477 8268477 SWITCH, PRESSURE
WPW10300599 WPW10300599 TAB-SUMP
WP8269202 WP8269202 TAIL, ACTIVE OVERLAY
WP8269208 WP8269208 THERMISTER
WP661566 WP661566 THERMOSTAT
8519685 8519685 TINE ROW, FRONT
9744549 9744549 TINE-ROW
W10727426 W10727426 TINE-ROW
W10586592 W10586592 TOE PANEL (INCLUDES ITEM 11) (BISCUIT)

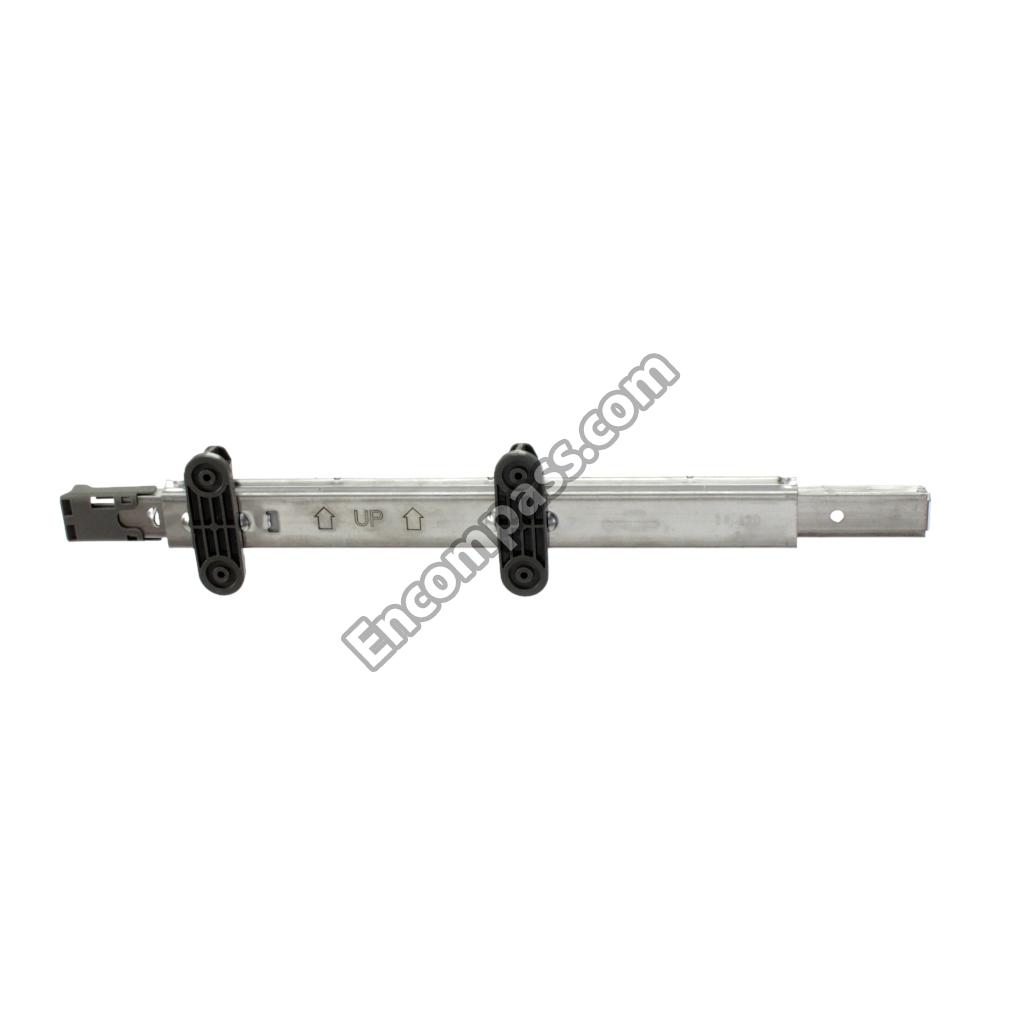

W10404344 W10404344 TRACK
W10412852 W10412852 TUB-DISHWR
WP8268375 WP8268375 VALVE-CHEK
WP8545533 WP8545533 VENT
WPW10320510 WPW10320510 WASH ARM ASSEMBLY
WP3378128 WP3378128 WASHER
WP717273 WP717273 WASHER, RUBBER
WP8268977 WP8268977 WHEEL
WP8524474 WP8524474 WHEEL
WP8268713 WP8268713 WHEEL & TRANSPORT ASSEMBLY
WP8270138 WP8270138 WHEEL-UPER
8269191 8269191 WIRING HARNESS & PROTECTOR
