Model Image
Manufacturer

Whirlpool

Model Number

KUIS18PNZW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2217446 2217446 BASE, UNIT
2208354 2208354 BIN, DOOR
WP2188935 WP2188935 BLADE-FAN
W10477560 W10477560 BOX-CNTRL
WP2185532 WP2185532 BRACKET
W11679650 W11679650 BRACKET
2217466 2217466 BRACKET, DOOR (LEFT HAND)
2217465 2217465 BRACKET, DOOR (RIGHT HAND)
2208487 2208487 BRACKET, SPRING
N_P N_P CABINET & LINER (NOT SERVICED)
W11023835 W11023835 CAP-DRAIN
W10861184 W10861184 CLAMP
WP489503 WP489503 CLAMP
W10526623 W10526623 CLAMP
2185960 2185960 CLAMP, POWER CORD
W11545866 W11545866 CLIP
A201435 A201435 CLIP, COMPRESSOR MOUNTING
1115375 1115375 CLIP, WIRING
WPW10206473 WPW10206473 COIL-SOLND
W11735041 W11735041 COMPRESSOR
WP2313624 WP2313624 CONDENSER
W10893341 W10893341 CONTROL BOARD
W11034363 W11034363 CONTROL BOARD
W10512292 W10512292 COVER
W10475416 W10475416 COVER
2217394 2217394 COVER, WIRING
WP2162358 WP2162358 COVER-TERM
WPW10136200 WPW10136200 COVER-UNIT
2208529 2208529 DAMPENER, SPRING
W11624959 W11624959 DOOR GASKET
W10843121 W10843121 DRIER-TUBE
W10218024 W10218024 ENCLOSURE

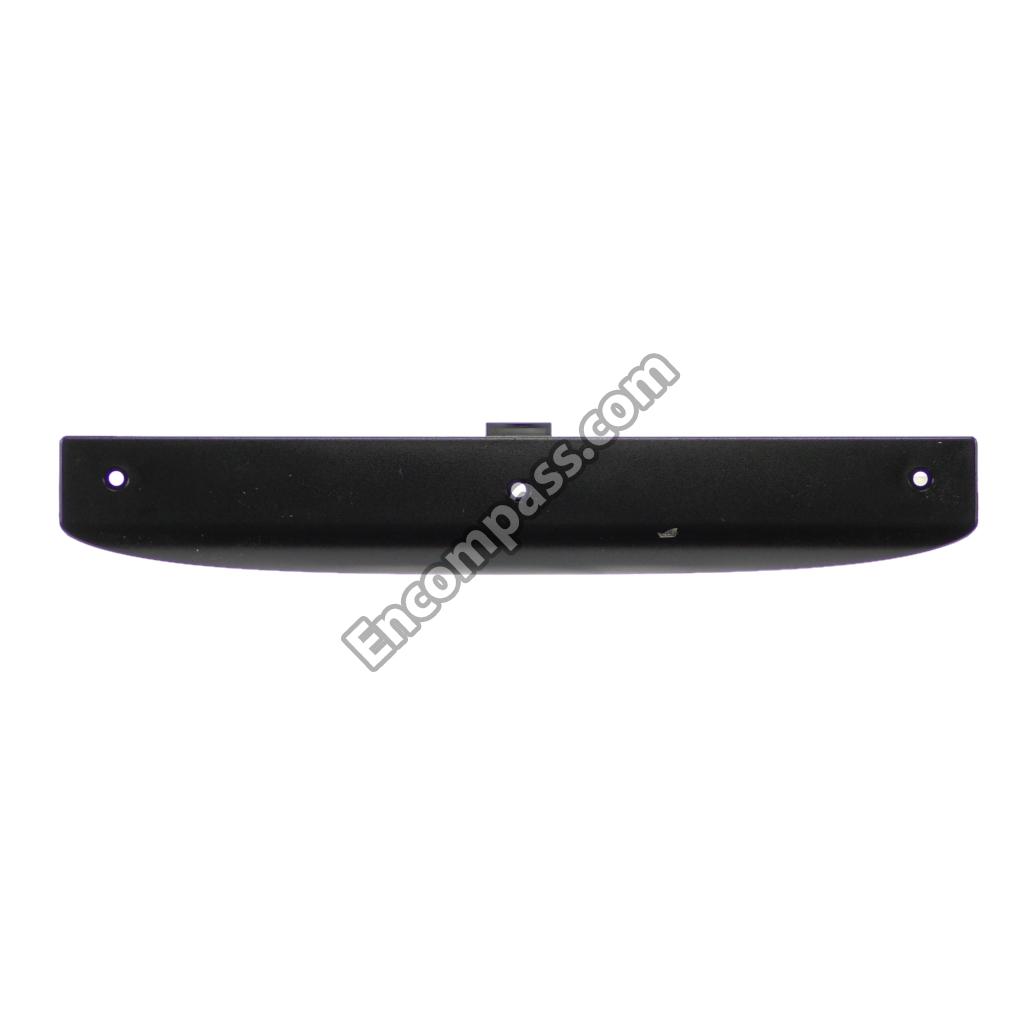

W11413461 W11413461 ENDCAP, DOOR (BLACK)
2208350W 2208350W ENDCAP, DOOR (WHITE)
2208383B 2208383B ENDCAP, PANEL (BLACK)
2208383W 2208383W ENDCAP, PANEL (WHITE)
WPW10218037 WPW10218037 EVAPORATOR
WPW10534030 WPW10534030 GAS VALVE
WP759113 WP759113 GAS VALVE
2217296 2217296 GASKET, TOP PANEL
WP542638 WP542638 GREASE
W10919199 W10919199 GRID-CUTTR
2217206W 2217206W GRILL, FRONT (WHITE)
WP2217206B WP2217206B GRILLE
W10852725 W10852725 GROMMET
2185965 2185965 GROMMET (4)
2208596B 2208596B GROMMET, EDGE GUARD
WP2208440W WP2208440W HANDLE
2208440B 2208440B HANDLE, DOOR (BLACK)
W11123917 W11123917 HARNESS
WPW10485955 WPW10485955 HARNS-PUMP
2208425 2208425 HINGE (LEFT HAND)
2208426 2208426 HINGE (RIGHT HAND)
W10557773 W10557773 HOLDER
W11572053 W11572053 HOSE
W11126063 W11126063 HOSE
W11033204 W11033204 HOSE
W11266112 W11266112 HOUSING
W10541636 W10541636 INSTRUCTIONS, INSTALLATION
2208377 2208377 INSULATION
2208384 2208384 INSULATION, LOWER PANEL
8193716 8193716 LEVLER-LEG
W10492487 W10492487 LIGHT
833938 833938 MISCELLANEOUS (KIT, TERMINAL CONNECTOR)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3``X 24`` X 48``)
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`` X 1 ``)
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
F2WC9I1 F2WC9I1 MISCELLANEOUS, WATER FILTER
W10124096 W10124096 MOTOR, FAN
2301979 2301979 MOUNTING PLATE, CONDENSER FAN MOTOR
WPW10243393 WPW10243393 NAMEPLATE
WPW10243392 WPW10243392 NAMEPLATE
WP3400909 WP3400909 NUT
WP692400 WP692400 NUT
3400240 3400240 NUT
W11106270 W11106270 OVERLOAD
2217397 2217397 PAD, FOAM
2217225 2217225 PAD, FOAM
2185675 2185675 PAD-FOAM
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP2185625 WP2185625 PAN-WATER
W11614101 W11614101 PAN-WATER
W10563026 W10563026 PANEL
W10493888 W10493888 PANEL
2208352B 2208352B PANEL, EXTERIOR (BLACK)
2208352W 2208352W PANEL, EXTERIOR (WHITE)
2208382B 2208382B PANEL, LOWER (BLACK)
2208382W 2208382W PANEL, LOWER (WHITE)
2208417 2208417 PIN, HINGE
W11539855 W11539855 PUMP
W11741505 W11741505 PUMP
W11566406 W11566406 PUMP
W11542868 W11542868 PUMP
W11098401 W11098401 RELAY-STRT
W10508276A W10508276A SCOOP
WP8281196 WP8281196 SCREW
8281197 8281197 SCREW
WP489128 WP489128 SCREW
489472 489472 SCREW
WP489069 WP489069 SCREW
WP3400884 WP3400884 SCREW
WP489474 WP489474 SCREW
8281191 8281191 SCREW
WP250830 WP250830 SCREW
WP488163 WP488163 SCREW
WP489442 WP489442 SCREW
WP3400886 WP3400886 SCREW
8534075 8534075 SCREW (BLACK)
8534077 8534077 SCREW (WHITE)
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
A201441 A201441 SHIM
2208401 2208401 SHIM, HINGE
836667 836667 SPACER
2185678 2185678 SPACER
W11095554 W11095554 SPRING
2208434 2208434 STRIKE, MAGNET
2208427 2208427 SUPPORT, BRACKETEVAPORATOR GRID
W11291138 W11291138 SWITCH
W11171663 W11171663 SWITCH
W11238399 W11238399 TAPE
W10282061 W10282061 TAPE
W10492485 W10492485 TECH SHEET
WPW10511923 WPW10511923 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
W10861644 W10861644 TOOL
W10320118 W10320118 TOP-CABNET
W10516503 W10516503 TOP-CABNET
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
WPW10485951 WPW10485951 TRANSFORMR
WPW10678300 WPW10678300 TUBE
WPW10217922 WPW10217922 TUBE
WPW10678299 WPW10678299 TUBE
W10863947 W10863947 TUBE
WPW10217906 WPW10217906 TUBE
W11097809 W11097809 TUBE
W10528572 W10528572 TUBE
W10825876 W10825876 TUBE-DRAIN
W10552173 W10552173 USE & CARE GUIDE
W10881366 W10881366 VALVE
