Model Image
Manufacturer

Whirlpool

Model Number

LA6058XTM0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285666 285666 ACCESSORY PARTS, 8' DRAIN HOSE W/CLAMP
WP359807 WP359807 ACTUATOR
WP3347288 WP3347288 AGITATOR
350956 350956 ALMOND
WP72107 WP72107 ALMOND
978883 978883 ALMOND (UNCUT)
285771 285771 BASE
W10389328 W10389328 BASKET
W10820043 W10820043 BASKTDRIVE
285205 285205 BEARING
WP8546462 WP8546462 BEARING
WP8546455 WP8546455 BEARING
WP3362952 WP3362952 BEZEL
WP62505 WP62505 BLOCK, DISCONNECT (MOTOR 2 SPEED) (USE TERM. 352088)
WP389140 WP389140 BLOCK, DRIVE
3349983 3349983 BRACKET, CONTROL
WP64067 WP64067 BRACKET, SPRING DISPENSER OUTER (2)
WP64065 WP64065 BRACKET, SPRING OUTER (L.F.)
WP3360977 WP3360977 BREAK-VAC
WP9724509 WP9724509 BUMPER
WP19119 WP19119 BUMPER (2)
63428 63428 CABINET
63425 63425 CABINET (ALMOND)
63424 63424 CABINET (FOR DESINGER WHITE MODEL)
63427 63427 CABINET (PLATINUM)
63426 63426 CABINET (TOAST)
285811 285811 CAM-AGIT
WP8546461 WP8546461 CAM-BRAKE
WP62646 WP62646 CAP
WPW10074580 WPW10074580 CAP
WP3355758 WP3355758 CAP
63789 63789 CAP, END (L.H.)
63795 63795 CAP, END. (R.H.)
WP8572717 WP8572717 CAPACITOR
285203 285203 CENTERPOST BEARING KIT (INCLUDES ITEMS 13, 14 & 23)
WP616099 WP616099 CLAMP
WP285655 WP285655 CLAMP
WP371502 WP371502 CLAMP
WP596669 WP596669 CLAMP
357030 357030 CLAMP, CAPACITOR
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
3348535 3348535 CLIP
WP98997 WP98997 CLIP
WP3355454 WP3355454 CLIP
WP90016 WP90016 CLIP
62732 62732 CLIP
388498 388498 CLIP, HARNESS
WP62780 WP62780 CLIP, TOP & CABINET & REAR PANEL (2)
388494 388494 CLIP, ``U``
WP3348752 WP3348752 CLOTHS MOVER
285785 285785 CLUTCH
3347243 3347243 CONNECTOR
W10876590 W10876590 CONNECTOR
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
W10820044 W10820044 CORD-POWER
285753A 285753A COUPLING
WP384496 WP384496 COUPLING, HOSE 10-16 X 1/2 (2)
WP16272 WP16272 COUPLR-HSE
285202 285202 COVER, GEARCASE
WP64138 WP64138 DIAL, TIMER
80040 80040 DOG-AGIT
367031 367031 DRAIN PROTECTOR (NOT INCLUDED)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WP661600 WP661600 DRIVE MOTOR
285367 285367 ENAMAL, TOAST (1 QT. UNCUT)
LIT3351429 LIT3351429 ENERGY GUIDE
285244 285244 FEET-LVLNG
WPW10001130 WPW10001130 FOOT
W10814296 W10814296 GASKET, CENTER POST
285515 285515 GEARCASE
3360629 3360629 GEARCASE
261890 261890 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)
WP62691 WP62691 GROMMET, MOTOR (4)
LIT3351410 LIT3351410 GUIDE, LAUNDRY
LIT3351542 LIT3351542 GUIDE, USE AND CARE
63833 63833 HARNESS, LID SWITCH
3358696 3358696 HARNESS, WIRING (FOR DETAIL SEE PAGE 9)
WP21258 WP21258 HINGE, BEARING (2)
WP387402 WP387402 HINGE, CONSOLE (2)
WP54584 WP54584 HINGE, LID (L.H.)
WP54583 WP54583 HINGE, R.H.
WP353244 WP353244 HOSE
WPW10358149 WPW10358149 HOSE
WP3357328 WP3357328 HOSE
285664 285664 HOSE
285871 285871 HOSE
63323 63323 HOSE, BLEACH
WP3348552 WP3348552 HOSE, PUMP TO DRAIN CONNECTOR
WP89503 WP89503 HOSE-FILL
285320 285320 IPHON BREAK KIT
W10801656 W10801656 KNOB
386636 386636 KNOB, WATER LEVEL
350941 350941 LEVELER (THINNER)
WPW10193874 WPW10193874 LID
388451 388451 LID (ALMOND)
388454 388454 LID (GOLDEN HARVEST)
3354573 3354573 LID (PLATINUM)
3354572 3354572 LID (TOAST)
285790 285790 LINING
WP63466 WP63466 LINK, LEVELING MECHANISM (2)
LIT3351473 LIT3351473 LIST, REPAIR PARTS
62942 62942 LOCK, FILTER
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
285609 285609 MISCELLANEOUS PARTS BAG
388253A 388253A NEUTRAL ASSEMBLY
WP62739 WP62739 NUT
WP689559 WP689559 NUT
WP358473 WP358473 NUT
WP21366 WP21366 NUT, LOCK
350572 350572 OIL, GEARCASE (16 OZ.)
285219 285219 PAD
285744 285744 PAD
WP21097 WP21097 PAD, HINGE (2)
WP62747 WP62747 PAD, REAR PANEL
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
3348561 3348561 PANEL, CONSOLE
285931 285931 PANEL, REAR
63162 63162 PIN, CABINET GUIDE (2)
WP62837 WP62837 PIN, KNURLED
WP62611 WP62611 PLATE, MOTOR MOUNT TO GEARCASE
285368 285368 PLATINUM (UNCUT)
285868 285868 PLUG
54690 54690 PLUG, BUTTON
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
62888 62888 PLUG, TERMINAL (3-WAY)
350938 350938 PRIMER, GRAY
63523 63523 PROTECTOR, HARNESS
WP62889 WP62889 RECEPTACLE, TERMINAL (3-WAY) (CONNECTS WITH HARNESS)
W11733005 W11733005 RELIEF-STR
WP8546127 WP8546127 RETAINER
WP3350222 WP3350222 RETAINER
WPW10086010 WPW10086010 RETAINER, MOTOR (2)
62677 62677 RETAINER, SPRING
WPW10145155 WPW10145155 RETAINER, SUSPENSION SPRING (ALMOND)
WP62658 WP62658 RING
285353 285353 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP63134 WP63134 RING, SOUND DEADENING
WPW10080230 WPW10080230 RING, SPIN TUBE SUPPORT
WPW10072840 WPW10072840 RING-O
285765 285765 RING-RETNR
W10880720 W10880720 RING-TUB
W11033823 W11033823 RING-WIRE
354239 354239 RIVET, SERIAL NAMEPLATE
WP96160 WP96160 SCREEN, FILTER
WP273556 WP273556 SCREW
WP3400516 WP3400516 SCREW
W11573574 W11573574 SCREW
WP308685 WP308685 SCREW
WP3390631 WP3390631 SCREW
WP388326 WP388326 SCREW
304795 304795 SCREW
WP356418 WP356418 SCREW
WP3351614 WP3351614 SCREW
WPW10119828 WPW10119828 SCREW
WP681414 WP681414 SCREW
WP358237 WP358237 SCREW & WASHER (5/16 - 24 X 1)
354764 354764 SCREW & WASHER, LID SWITCH (2)
WP90767 WP90767 SCREW, 8 A X 3/8
62735 62735 SCREW, GEARCASE TO BASE (3) (5/16-24 X 3/4)
WP3400036 WP3400036 SCREW, GROUND (10-24 X 1)
W11095997 W11095997 SEAL
WP357574 WP357574 SEAL, AGITATOR
WP8577376 WP8577376 SEAL, CENTERPOST
WP356427 WP356427 SEAL, DRIVE TUBE
WP91939 WP91939 SEAL, OIL
285352 285352 SEAL, THRUST PLUG
WP3349985 WP3349985 SEAL-COVER
WP3976308 WP3976308 SEAL-TUB
WP285195 WP285195 SEALER, GASKET (.20 FL. OZ.) (6 ML)
WP389387 WP389387 SHAFT, AGITATOR (COMPLETE)
WP389231 WP389231 SHAFT-AGIT
LIT3347019 LIT3347019 SHEET, INSTALLATION INSTRUCTIONS
WP3946532 WP3946532 SHIELD
WP359231 WP359231 SHIELD, LID SWITCH
8539874 8539874 SHIELD, SUDS
W10838408 W10838408 SHIELD-MTR
3348675 3348675 SHIPPING KIT
285438 285438 SHOE-BRAKE
WP3946509 WP3946509 SKATE PLT
WP63022 WP63022 SLEEVE
285658 285658 SLEEVE
285321 285321 SLEEVE KIT, (CONTAINS 2 SLEEVES)
WP62750 WP62750 SPACER, CABINET TO TOP (4)
356937 356937 SPACER, DRIVE TUBE
350930 350930 SPRAY (13 OZ.) (WHITE)
8316845 8316845 SPRING
3349948 3349948 SPRING & BUTTON, LID (2)
387806 387806 SPRING, BRAKE
WP63907 WP63907 SPRING, SUSPENSION (3)
62676 62676 SPRING, WASHER AGITATOR
WPW10250667 WPW10250667 SPRING,COUNTERWEIGHT
358472 358472 STOP, PUSH-IN TOP
22965 22965 STRAP, GROUND
WP358684 WP358684 STRIKE, LID
280184 280184 SUPPORT
WP8519200 WP8519200 SUPPORT
63834 63834 SWITCH, WATER LEVEL
W10820036 W10820036 SWITCH-LID
WP8529896 WP8529896 SWITCH-MTR
WP3405157 WP3405157 SWTCH-TEMP
WP596797 WP596797 TERMINAL
WP94614 WP94614 TERMINAL, FEMALE
WP352088 WP352088 TERMINAL, FEMALE (DISCONNECT BLACK)
WPW10339879 WPW10339879 TIE-WIRE

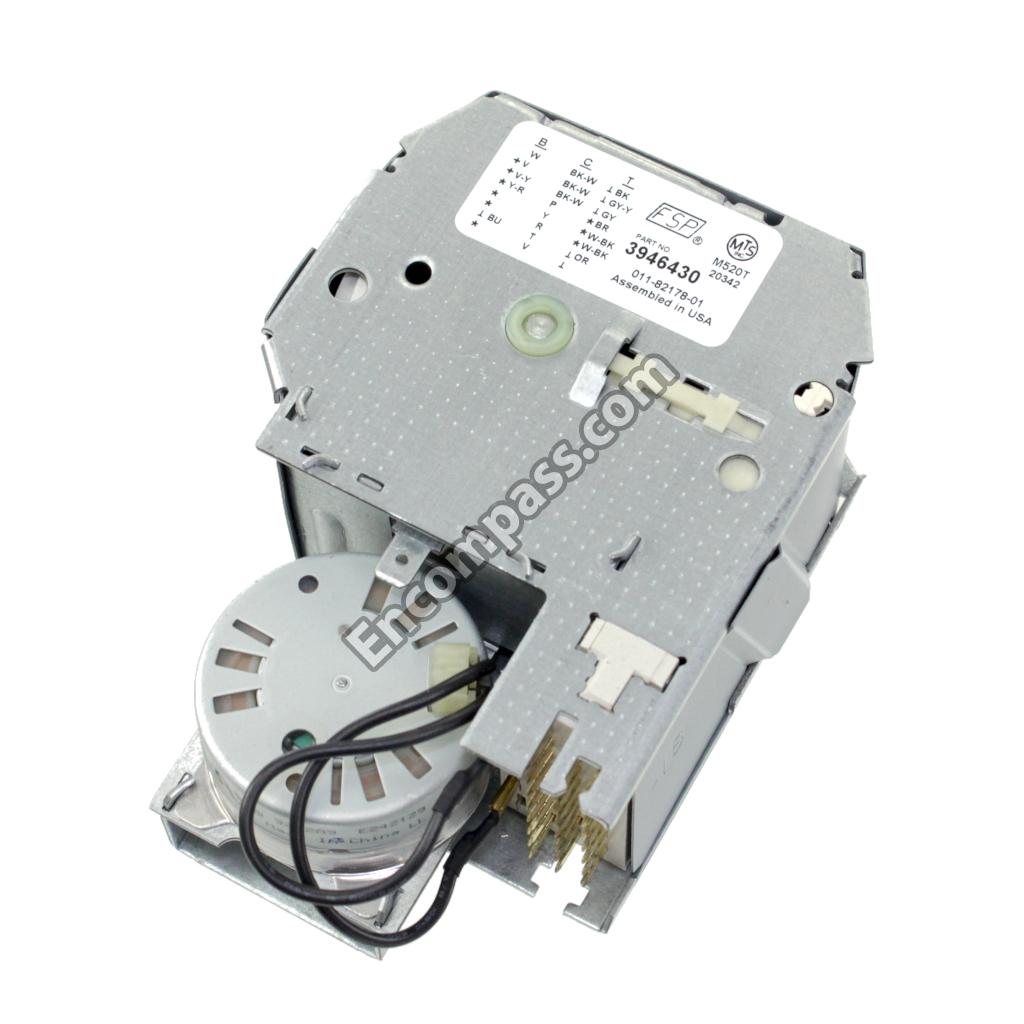

WP3946430 WP3946430 TIMER
285365 285365 TOAST
3359084 3359084 TOP (ALMOND)
388355 388355 TOP (GOLDEN HARVEST)
388354 388354 TOP (PLATINUM)
388353 388353 TOP (TOAST)
WP8524697 WP8524697 TOP (WHITE)
3361596 3361596 TUB-OUTER
WP64208 WP64208 TUBE-SPIN
285805 285805 VALVE
WP388815 WP388815 WASHER
285587 285587 WASHER
285766 285766 WASHER KIT, THRUST
62618 62618 WASHER, CAM THRUST
WP16123 WP16123 WASHER, INLET HOSE (1-1/16 X 5/8)(4)
WP63292 WP63292 WASHER, SPIN TUBE THRUST
62619 62619 WASHER, WASHER AGITATOR GEAR
WP3363394 WP3363394 WATER PUMP
303485 303485 WIRE, GROUND
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
LIT3351813 LIT3351813 WIRING DIAGRAM
