Model Image
Manufacturer

Whirlpool

Model Number

LAT7793AAW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
208195 208195 *NLA*F*HARNESS, WIRE
216120 216120 *NLA*M*OWNERS M
216119 216119 *NLA*MANUAL, USE & CARE
207363 207363 3 LEVEL PRESSURE SWITCH
W10841140 W10841140 ADHESIVE
214818 214818 BACK UP PL
WP211726 WP211726 BALL
203274 203274 BASE
WP200835 WP200835 BEARING- B
WP22003441 WP22003441 BEARING- R
12112425 12112425 BELT
207167 207167 BLOCK, FUSE
W11129403 W11129403 BOLT
W10175938 W10175938 BOLT
W10175939 W10175939 BOLT
213100 213100 BRACE, TUB
205908 205908 BRACKET
204968 204968 BRACKET F/LID SWITCH PLUNGE
22001678 22001678 BRACKET, SWITCH & FUSE
214812 214812 BRACKET,WATER VALVE
WP6-2011900 WP6-2011900 BRAKE-BD
206638 206638 BREAK-SPHN
WP212716 WP212716 BUMPER- LI
203319 203319 CABINET-WHITE
WP214725 WP214725 CAP
215821 215821 CAP, KNOB
211038 211038 CAP, OIL RETAINER
WPY200832 WPY200832 CAPACITOR
206103 206103 CAPACITOR
213054 213054 CENTERING SPRING - 3 USED
WPW10548433 WPW10548433 CLAMP
WP596669 WP596669 CLAMP
WP3367052 WP3367052 CLAMP
WP285655 WP285655 CLAMP
200846 200846 CLAMP
301548 301548 CLAMP, GROUND (W/SCREW)
211149 211149 CLIP
WP213325 WP213325 CLIP- RETA
215415 215415 COLLAR, LOWER
205635 205635 CONSOLE (WHT)
WP22003062 WP22003062 CORD- POWE
206628 206628 COVER TRA
211028 211028 DEFLECTOR,WATER (DRIVE TUBE)
215733 215733 DISPENSING
215721 215721 DISPENSING
12002353 12002353 DRIVE MOTOR
WPW10116738 WPW10116738 ELBOW
207215 207215 END CAP LH
207216 207216 END CAP RH
208198 208198 FACIA CONTROL
214894 214894 FASTENER, END CAP
WP22001650 WP22001650 FASTENER-
215075 215075 FASTENERC
207219 207219 FILTER- SE
WP214765 WP214765 GASKET
WPY013783 WPY013783 GASKET- IN
WP6-2067130 WP6-2067130 GEAR, BEVEL
204807 204807 GRNDWIRE
211881 211881 GROMMET C
213846 213846 GUARD BEL
16000327 16000327 GUIDE, QUICK REF. - MAYTAG
208293 208293 HARNESS, WIRE
WPY215234 WPY215234 HOSE
216017 216017 HOSE DRAI
WP213013 WP213013 HOSE- INJE
WPY212989 WPY212989 HOSE- OUTE
WP22001448 WP22001448 HOSE- PUMP
202860 202860 INLET HOSE
WP216201 WP216201 INLET VALVE
207830 207830 INNER TUB W/PLUG
203725 203725 ISOLATOR
311246 311246 KEPS NUT-MOTOR BASE
6-2097820 6-2097820 KIT- SHAFT
203956 203956 KIT-DAMPER
205000 205000 KIT-GLIDE
215828 215828 KNOB- TIME
22003428 22003428 LEG, ADJUSTABLE (W/NUT)
216073 216073 LID (WHITE)
215700 215700 LID SWITCH PLUNGER
211130 211130 LINER- TUB
207843 207843 LIP SEAL REPAIR KIT
WP211089 WP211089 LUG- STOP
206504 206504 MOTOR EXTE
205133 205133 MOTOR EXTERNAL START SWITCH
205134 205134 MOTOR EXTERNAL START SWITCH
WP205999 WP205999 MOTOR MOUNT ASSM COMPLETE
22001515 22001515 MOTOR, TIMER
214956 214956 MOUNT, MOTOR/UPPER
6-2095720 6-2095720 MOUNTING S
203237 203237 NO.17 WIRE WITH TERMINAL
WP213015 WP213015 NOZZLE
Y052734 Y052734 NUT
205529 205529 NUT & BOLT KIT FOR TUB CLAM
WP6-2110472 WP6-2110472 NUT- CLAMP
WP211949 WP211949 NUT- EYEBO
WP210385 WP210385 NUT- LOCK
Y052785 Y052785 NUTBRACE
WP210684 WP210684 PAD
215058 215058 PAD CABIN
214897 214897 PAD CONTR
214872 214872 PALNUT, END CAP
216078 216078 PANEL, FRONT (WHT)
WPY206629 WPY206629 PIN- COLLA
WPW10221114 WPW10221114 PINION
211878 211878 PLATE, ACCESS
WP215395 WP215395 PLATE- CLU
WP6-2301530 WP6-2301530 PULLEY
WP6-2008160 WP6-2008160 PULLEY- MO
WP6-2022030 WP6-2022030 PUMP AS PA
WPW10137328 WPW10137328 RETAINER, TIMER KNOB
WPY015667 WPY015667 RETAINING
WP96160 WP96160 SCREEN
W10756178 W10756178 SCREW
3400409 3400409 SCREW
W11233072 W11233072 SCREW
22001627 22001627 SCREW
WP67006908 WP67006908 SCREW
WPW10139210 WPW10139210 SCREW
WP3934714 WP3934714 SCREW
WP912618 WP912618 SCREW
WP8281227 WP8281227 SCREW
WP27001200 WP27001200 SCREW
WPY313561 WPY313561 SCREW
WPW10346892 WPW10346892 SCREW
WPY014874 WPY014874 SCREW
216042 216042 SCREW
204439 204439 SCREW
WP489128 WP489128 SCREW
Y015627 Y015627 SCREW
Y311711 Y311711 SCREW
WP90767 WP90767 SCREW
206478 206478 SCREW & WASHER FOR WASHER AGITATOR
204445 204445 SCREW FA
22003235 22003235 SCREW, BEARING INSERT (HEX)
213007 213007 SCREW, CABINET
213501 213501 SCREW, NO.6-20 X 1-1/8 INCH
210932 210932 SCREW, NO.8 X 9/16 CTSK
22001423 22001423 SCREW, SET (TORX)
215417 215417 SCREW, TRANSMISSION COVER
WP215233 WP215233 SEAL
WP6-0A57420 WP6-0A57420 SEAL
WP211232 WP211232 SEAL
WP210690 WP210690 SEAL- RUBB
312620 312620 SEMS SCREW
Y053241 Y053241 SET SCREW
215411 215411 SHAFT, CENTER
215098 215098 SHIELD, MOTOR
WP215447 WP215447 SLEEVE FOR
22002331 22002331 SPACER
WP213720 WP213720 SPRING
WP215581 WP215581 SPRING- AG
WP211065 WP211065 SPRING- TI
12001413 12001413 STRAINER & WASHER KIT
205132 205132 SWITCH, MOTOR START
206505 206505 SWITCH, MOTOR START
205131 205131 SWITCH, MOTOR START
WP207166 WP207166 SWITCH- CH
W10820036 W10820036 SWITCH-LID
WP22001682 WP22001682 SWITCH-LID
207367 207367 TEMP CONTROL SWITCH - 4 BUTTON
202718 202718 TENSION SPRINGS

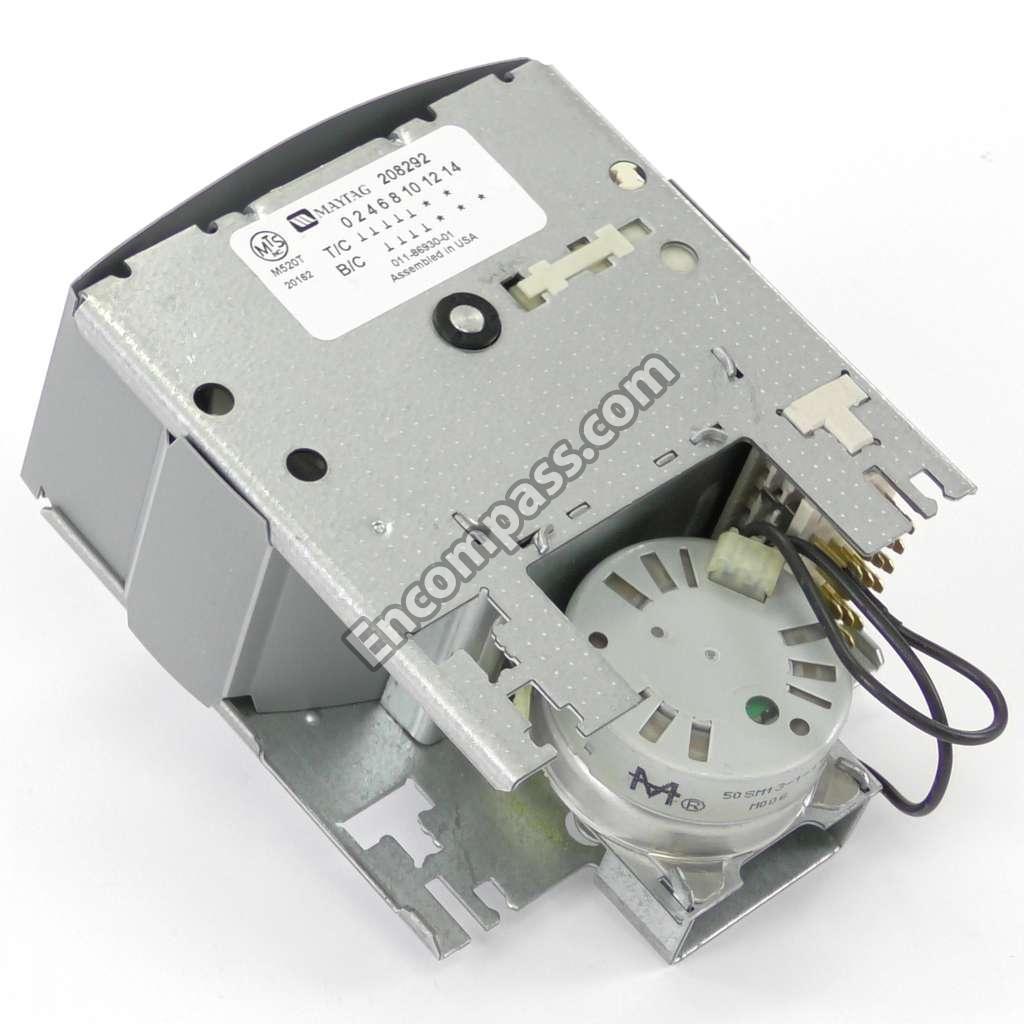

WP208292 WP208292 TIMER
208196 208196 TIMER
215827 215827 TIMER DIAL SKIRT
Y038315 Y038315 TOOL, BRAKE PKG ASSEMBLY
207172 207172 TOP COVER
W10841093 W10841093 TRANSMISON
6-2040130 6-2040130 TUB BEARIN
206380 206380 TUB COVER
205486 205486 TUB, OUTER
WP215235 WP215235 TUBE
WP22001619 WP22001619 TUBE- AIR
215232 215232 UNBALANCE BUMPER
215704 215704 UNBALANCE LEVER
205613 205613 VALVE-INLT
WP207538 WP207538 WASHER AGITATOR W
215394 215394 WASHER BE
213073 213073 WASHER DO
Y054867 Y054867 WASHER LO
211100 211100 WASHER, CUSHION
911852 911852 WASHER, LOCK (BRACE)
212979 212979 WASHER, TUB BRACE
WP211210 WP211210 WASHER,CLAMPING NUT(STAINLESS)
WP6-2114830 WP6-2114830 WASHER- SP
WP22003555 WP22003555 WASHER- ST
WPY015666 WPY015666 WASHER-RET
211500 211500 WASHERBRA
WP311155 WP311155 WIRE
WP6-2066850 WP6-2066850 YOKE
