Model Image
Manufacturer

Whirlpool

Model Number

LCR5244AN1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10254672 WPW10254672 ADAPTER
49978 49978 ALMOND
350956 350956 ALMOND
WP72107 WP72107 ALMOND
978883 978883 ALMOND (UNCUT)
3968380 3968380 BALL, UPPER SUSPENSION ROD KIT (4)
326050300 326050300 BASKET
3429939 3429939 BLADE, FAN
3388185 3388185 BLADE, TIMER KNOB
WP8182303 WP8182303 BLOCK
311150 311150 BLOCK, DISCONNECT (MOTOR) (USES TERMINAL NO.310222)
3369366 3369366 BLOCK, TIMER DISCONNECT (WHITE)
3429904 3429904 BOARD, CONTROL
3429371 3429371 BOLT, MOTOR MOUNTING (2)
3429405 3429405 BOLT, MOTOR PLATE (4)
WP356499 WP356499 BRACKET
3428343 3428343 BRACKET, CAPACITOR
3428848 3428848 BRACKET, CONTROL
3428323 3428323 BRAKE BAND ASSY.
3428720 3428720 BUMPER, LID (WHITE)
3429970 3429970 CABINET (ALMOND)
3429969 3429969 CABINET (WHITE)
WP3428379 WP3428379 CAM RING, SPLUTCH
WP3428378 WP3428378 CAM, SPLUTCH
WP356054 WP356054 CAP, MIXING VALVE PORT
3429938 3429938 CAPACITOR
3429406 3429406 CASTER (4)
WP285655 WP285655 CLAMP
WP616099 WP616099 CLAMP
WP596669 WP596669 CLAMP
3428395 3428395 CLAMP, RING
3429534 3429534 CLIP, COIL (2)
3428879 3428879 CLIP, HARNESS
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
3347243 3347243 CONNECTOR, TEMP. SWITCH
285677 285677 CONV-KIT
3429399 3429399 CORD, POWER
WP384496 WP384496 COUPLING, HOSE 10-16 X 1/2 (2)
WP16272 WP16272 COUPLR-HSE
3428365 3428365 COVER, CONSOLE REAR
3428525 3428525 COVER, PUMP
WP326018423 WP326018423 DISPENSER
367031 367031 DRAIN PROTECTOR (NOT INCLUDED)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3934700 3934700 DRIVE BELT
LIT3429493 LIT3429493 ENERGY GUIDE
8182228 8182228 FILTER
3393271 3393271 FOR MODEL TEDS680BQ1
WP3428179 WP3428179 GASKET
3428526 3428526 GROMMET, PUMP (3)
LIT3429026 LIT3429026 GUIDE, USE AND CARE
3429819 3429819 HARNESS, WIRING (LOWER)
3934170 3934170 HARNESS, WIRING (UPPER)
3934182 3934182 HEX NUT
3428543 3428543 HINGE, LID (2)
WP353244 WP353244 HOSE
W10849778 W10849778 HOSE COUPLER ASSEMBLY (INCLUDES ITEM NO.1)
3430339 3430339 HOSE, BLEACH
WP3429900 WP3429900 HOSE, PUMP TO TUB
3966238 3966238 HOSE, TUB OVERFLOW
3430030 3430030 HOSE, VALVE TO WATER INLET
285709 285709 HUB
285320 285320 IPHON BREAK KIT
W10801656 W10801656 KNOB
LIT3934180 LIT3934180 LABEL, WIRING DIAGRAM
350941 350941 LEVELER (THINNER)
3430199 3430199 LID (ALMOND)
3430198 3430198 LID (WHITE)
LIT3429061 LIT3429061 LIST, REPAIR PARTS
3429416 3429416 LOCK, SOLENOID
3969965 3969965 MOTOR PLATE & BEARING ASM
3934034 3934034 MOTOR, MAIN DRIVE (INCLUDES ITEMS 33, 17, & 6)
3406534 3406534 MOUNT-WALL
WP689559 WP689559 NUT
3428083 3428083 NUT, WASHER LOCKING
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
3428370 3428370 PAN, CONSOLE
3430211 3430211 PANEL, CONSOLE (INCLUDES INLAY) (ALMOND)
3430210 3430210 PANEL, CONSOLE (INCLUDES INLAY) (WHITE)
3934183 3934183 PIN, BRAKE BAND
350938 350938 PRIMER, GRAY
3367669 3367669 PROTECTOR, EDGE
3967487 3967487 PULLEY
WP3428359 WP3428359 PULLEY, SPLUTCH
W11733005 W11733005 RELIEF-STR
3428876 3428876 RETAINER, TUB SPRING (4)
WP8280537 WP8280537 RIVET
WP96160 WP96160 SCREEN, FILTER
WP3428430 WP3428430 SCREW
3429942 3429942 SCREW
3400907 3400907 SCREW
WP3351614 WP3351614 SCREW
WP3400872 WP3400872 SCREW
WP3934148 WP3934148 SCREW
W11700520 W11700520 SCREW
WP3428970 WP3428970 SCREW
3428033 3428033 SCREW (4)
3429189 3429189 SCREW (4)
3430073 3430073 SCREW, LID HINGE MOUNTING (2)
3934040 3934040 SCREW, WATER INLET MTG. (2)
711696 711696 SEAL
WP3968381 WP3968381 SEAL-TUB
LIT3429274 LIT3429274 SHEET, INSTALLATION INSTRUCTIONS
3429706 3429706 SHIELD, LID SWITCH
3430197 3430197 SHIELD, MOTOR CONNECTOR
3429190 3429190 SHIELD, PULLEY
3428814 3428814 SHIELD, TUB/MOTOR
3430303 3430303 SHIELD, TUB/SOLENOID
285321 285321 SLEEVE KIT, (CONTAINS 2 SLEEVES)
WP8182263 WP8182263 SLIDER, SPLUTCH
285723 285723 SOLENOID
3428933 3428933 SPACER, PUMP (3)
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3970556 WP3970556 SPRING
3429000 3429000 SPRING (4)
3428342 3428342 SPRING, BRAKE
3430082 3430082 STAND OFF, LARGE (2)
3428718 3428718 STAND OFF, SMALL (2)

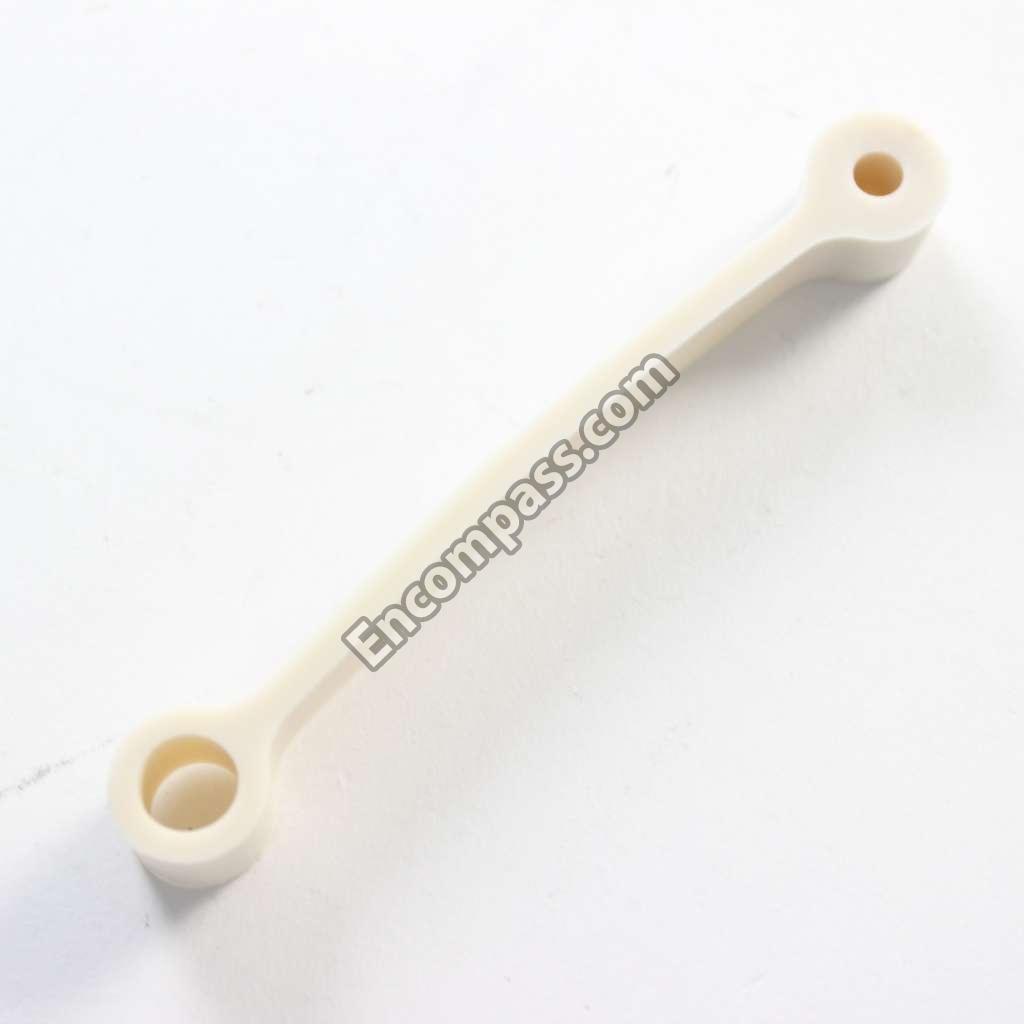

WP3967051 WP3967051 STRAP
3430076 3430076 SUSPENSION ROD KIT ROD, FRONT (2)
3430077 3430077 SUSPENSION ROD KIT ROD, REAR (2)
3934247 3934247 SWITCH, LID
3429541 3429541 SWITCH, WATER TEMPERATURE
3369365 3369365 TERMINAL, FEMALE
WP2205813 WP2205813 TIE-WIRE
3430177 3430177 TIMER, CONTROL (60 HZ.)
3428551 3428551 TOP (ALMOND)
3428550 3428550 TOP (WHITE)
3966743 3966743 TRANSMISSION KIT
3429902 3429902 TUB RING
285668 285668 TUB-OUTER
3934904 3934904 VALVE, WATER MIXING
3429750 3429750 WASHER
3429923 3429923 WASHER
285999 285999 WASHER AGITATOR
3428377 3428377 WASHER, PULLEY
3429918 3429918 WATER INLET (LOWER)
3429917 3429917 WATER INLET (UPPER)
WP3966789 WP3966789 WATER LEVEL SWITCH

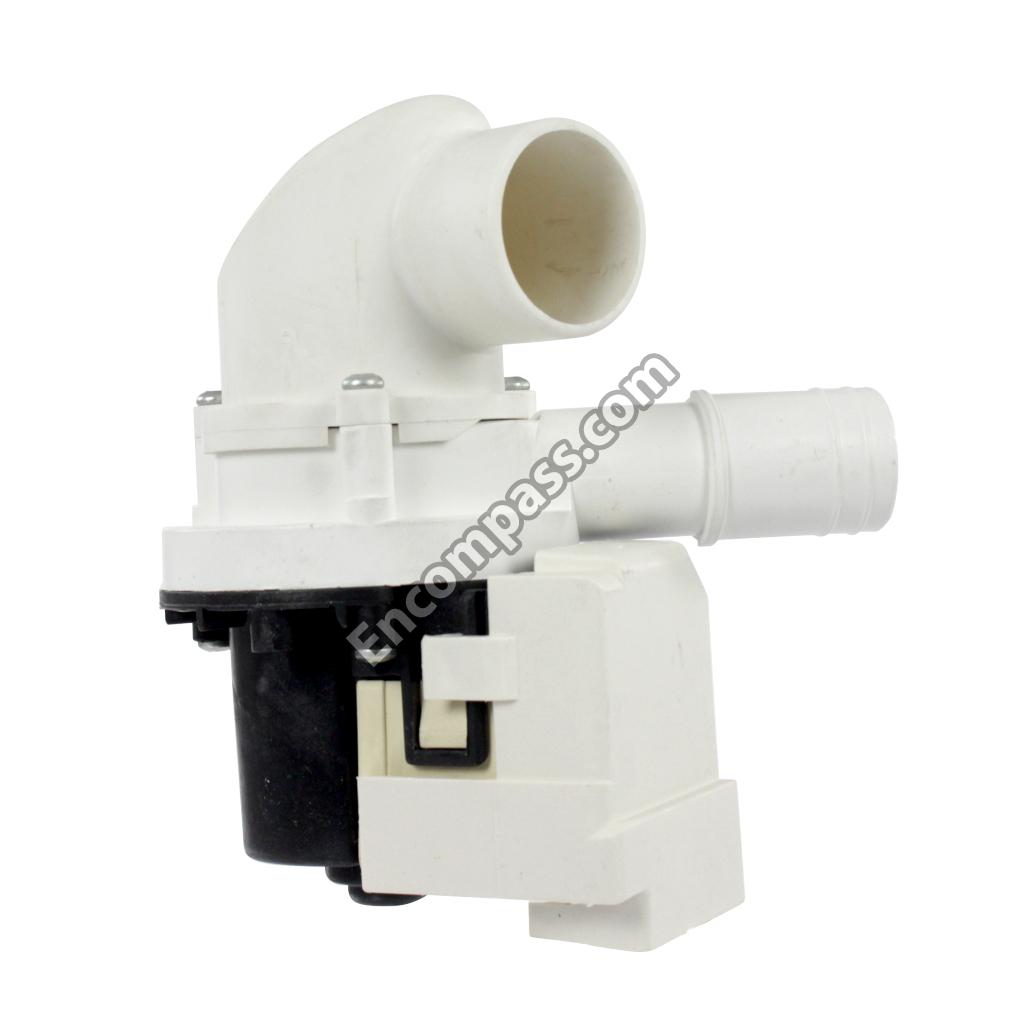

285948 285948 WATER PUMP
