Model Image
Manufacturer

Whirlpool

Model Number

LDG24CA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
307105 307105 (WHT)
306663 306663 *NLA*MANUAL, USE & CARE
NLA NLA ACCESS DOOR (WHITE)
33001106 33001106 BACK, TUMBLER (W/SEAL)
33001012 33001012 BAFFLE (SHORT)
33001004 33001004 BAFFLE, TALL
WPY312959 WPY312959 BELT
Y303836 Y303836 BLOWER WHE
Y304697 Y304697 BURNER ASSEMBLY
WP33002793 WP33002793 BURNER ASY
WP215564 WP215564 CAMERA LENS- INDI
WPW10133501 WPW10133501 CAP
WP312967 WP312967 CLAMP
301548 301548 CLAMP, GROUND (W/SCREW)
Y313910 Y313910 CLIP DOOR
Y310376 Y310376 CLIP WIRE
WPY015825 WPY015825 CLIP- MOTO
311546 311546 CLOSED CONNECTOR
WP305605 WP305605 COIL
WP305604 WP305604 COIL
12001348 12001348 COIL
310692 310692 COMPRESSION NUT
Y310693 Y310693 COMPRESSION SLEEVE
Y303368 Y303368 CONE COMB
Y303841 Y303841 CONE, EXTENSION (COMBUSTION)
Y303779 Y303779 CONV KIT NAT TO LPG
301539 301539 CONVERSION KITLPG TO NAT
Y201808 Y201808 CONVERTER
Y312951 Y312951 COVER, ACCESS
314847 314847 COVER, BLOWER HOUSING
Y312905 Y312905 COVER, TERMINAL
WP306604 WP306604 CUT-OFF- T
Y306668 Y306668 DOOR
33001230 33001230 DOOR HINGE ----S
Y313908 Y313908 DOOR PANEL-WHITE
314077 314077 DOOR SEAL
Y313911 Y313911 DOOR STRIK
W10410999 W10410999 DRIVE MOTOR
12001541 12001541 DRUM ROLLER/WASHER ASSEMBLY.
33001108 33001108 DRYER TUMBLER, W/O BAFFLES
Y303442 Y303442 EXHAUST DUCT ASSEMBLY.
215003 215003 FASTENER
WP22001650 WP22001650 FASTENER-
W10176519 W10176519 FEET-LVLNG
WPY314137 WPY314137 FOOT- RUBB
Y304698 Y304698 GAS VALVE (240-50)
W10116794 W10116794 GAS VALVE ASSEMBLY
312929 312929 GAS VALVE BRACKET
211881 211881 GROMMET C
Y313795 Y313795 GUIDE FOR
Y313950 Y313950 HEATER ELE
9831122 9831122 HEX NUT ON SWITCH
WPY312893 WPY312893 HOUSING, BLOWER
WP6-3033630 WP6-3033630 IDLER ARM
Y303945 Y303945 IDLER SPRING ASSEMBLY
4391996 4391996 IGNITOR
Y303369 Y303369 INLET DUCT
Y313927 Y313927 INSTRUCTION LABEL
306508 306508 KIT-BEARNG
W11232017 W11232017 KNOB
306938 306938 KNOB SELE
WPY312702 WPY312702 KNURLED NU
214519 214519 LABEL, ELECTRICAL INSTRUCTION
Y313340 Y313340 LABEL, LINT SCREEN INSTRUCTION
306436 306436 LATCH-DOOR
204075 204075 LIGHT, INDICATOR
Y313796 Y313796 LINT SEAL
Y302813 Y302813 MAIN BURN. SOLENOID 230-50
Y302812 Y302812 MAIN BURNE
Y304656 Y304656 MOTOR 240-50
305186 305186 MOTOR PULL
WP62739 WP62739 NUT
W10155650 W10155650 NUT, 1/4-28 X
WP33001443 WP33001443 NUT- HEX
WP63-3570 WP63-3570 ORIFICE FOR MAIN BURNER
306657 306657 OUTLET DUCT & GRID
Y312964 Y312964 OUTLET DUCT - OUTER HALF
33001021 33001021 PANEL, CONTROL
Y311418 Y311418 PILOT ORIF
Y311480 Y311480 PILOT ORIF
Y311482 Y311482 PILOT ORIFICE-LPG
Y312483 Y312483 PILOT TUBE
Y303383 Y303383 PIPE & BRACKET ASSEMBLY.
302521 302521 POWER CORD
WP6-3037050 WP6-3037050 PULLEY
WP6-3051850 WP6-3051850 PULLEY, MOTOR (W/SET SCREW)
WP694674 WP694674 RANGE THERMOSTAT
Y312890 Y312890 RETAINER
WPW10137328 WPW10137328 RETAINER, TIMER KNOB
W10116752 W10116752 RETAINER-
WP354987 WP354987 RING-E
WP9703438 WP9703438 RING-RETNR
WP210720 WP210720 RIVET
WP33001003 WP33001003 SCREEN
WPY014874 WPY014874 SCREW
WP33002917 WP33002917 SCREW
WPY313561 WPY313561 SCREW
WPW10116751 WPW10116751 SCREW
WPY310759 WPY310759 SCREW
W10142650 W10142650 SCREW
WP1163283 WP1163283 SCREW
WP489399 WP489399 SCREW
WP1163839 WP1163839 SCREW
304971 304971 SCREW
204439 204439 SCREW
WP488234 WP488234 SCREW
WP90767 WP90767 SCREW
Y314062 Y314062 SCREW
Y311711 Y311711 SCREW
Y014872 Y014872 SCREW #10
WP313122 WP313122 SCREW - BAFFLE TO TUMBLER
204445 204445 SCREW FA
213007 213007 SCREW, CABINET
Y314322 Y314322 SCREW, NO.8-32 X 3/8 INCH
314286 314286 SEAL FOR F
WPY312901 WPY312901 SEAL- BLOW
WP314820 WP314820 SEAL- TUMB
WP338906 WP338906 SENSOR
Y053241 Y053241 SET SCREW
WP6-3129480 WP6-3129480 SHAFT
Y303349 Y303349 SHUT-OFF, GAS VALVE
Y304626 Y304626 SIDE COIL
WP315772 WP315772 SLEEVE
312369 312369 SLEEVEACC
WPW10116756 WPW10116756 SPACER
Y303879 Y303879 SWITCH MO
Y303877 Y303877 SWITCH, MOTOR
WPW10327105 WPW10327105 SWITCH-CYC

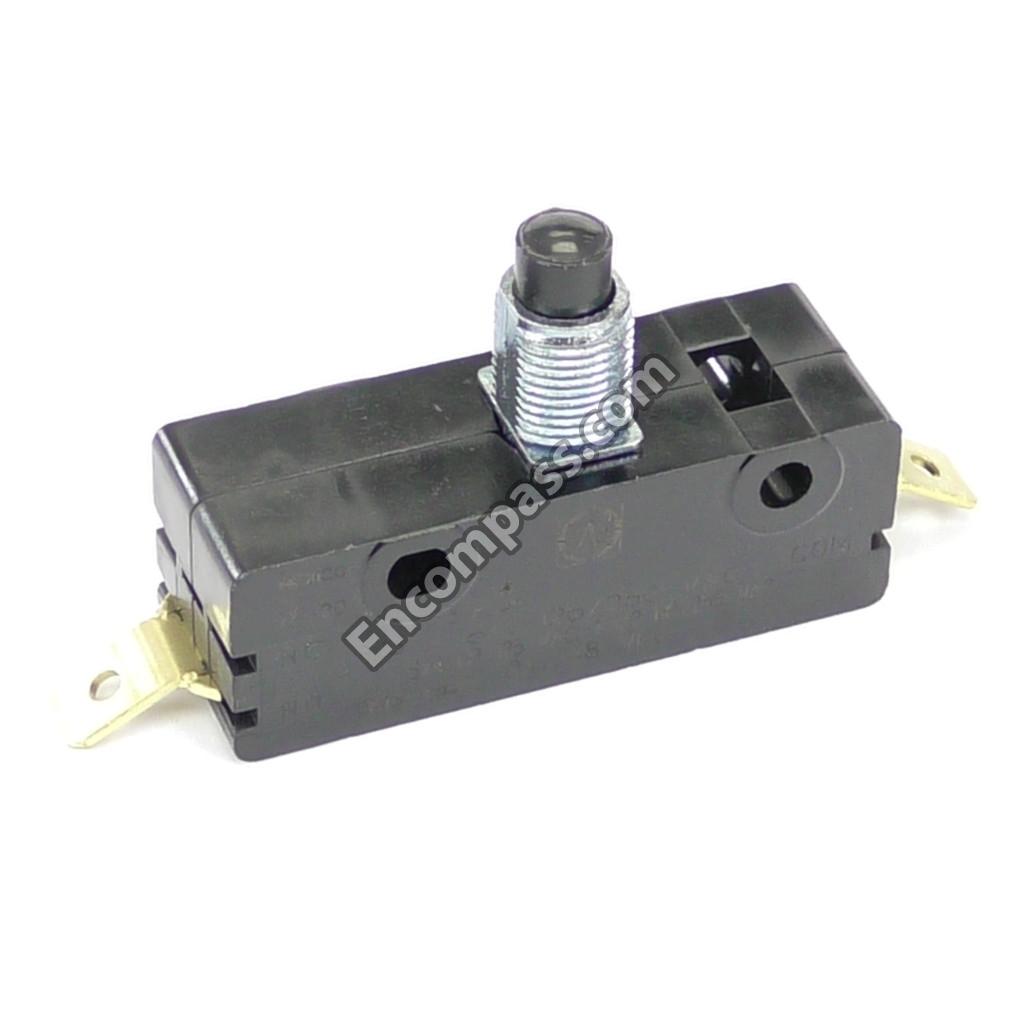

W10169313 W10169313 SWITCH-DOR
WPW10149462 WPW10149462 SWITCH-PTS
WP305169 WP305169 THERMOSTAT
WPY303225 WPY303225 THERMOSTAT, PERMANENT PRESS
WP305214 WP305214 TIMER
305812 305812 TIMER 240
Y305758 Y305758 TIMER 240
314725 314725 TIMER DIAL INDICATOR
307104 307104 TOP COVER ASSEMBLY
305187 305187 TUMBLER
Y303361 Y303361 TV STAND ASSEMBLY.
Y313907 Y313907 TWIN FASTE
WPY312527 WPY312527 WASHER
WP314158 WP314158 WASHER
WP312535 WP312535 WASHER
WPW10139799 WPW10139799 WASHER
310557 310557 WASHER
WP311155 WP311155 WIRE
901220 901220 WIRE GROU
205810 205810 WIRE GROU
