Model Image
Manufacturer

Whirlpool

Model Number

LDG8000AAL

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
314966L 314966L *NLA*DOOR PANEL ALMOND
308264 308264 *NLA*FACIA
315441 315441 *NLA*LABEL, INSTRUCTION CANADA
306663 306663 *NLA*MANUAL, USE & CARE
315282 315282 *NLA*N*MANUAL, USE & CARE
315280 315280 *NLA*N*MANUAL, USE & CARE
308334 308334 *NLA*WIRE HARNESS
WFR315020 WFR315020 2PC 320/33
302542L 302542L ACCESS DOOR-ALMOND
314184 314184 BACK UP PLATE
33001178 33001178 BACK, TUMBLER (W/SEAL)
33001012 33001012 BAFFLE (SHORT)
33001004 33001004 BAFFLE, TALL
WPY312959 WPY312959 BELT
400008 400008 BLOCK, TERMINAL
Y303836 Y303836 BLOWER WHE
WP314566 WP314566 BRACKET
Y312904 Y312904 BRACKET T
WP33002793 WP33002793 BURNER ASY
WP694419 WP694419 BUZZER-ADJ
307124L 307124L CABINET ASSEMBLY ALMOND
WPW10133501 WPW10133501 CAP
213077 213077 CAP FOR TIMER KNOB
WP312967 WP312967 CLAMP
301548 301548 CLAMP, GROUND (W/SCREW)
Y313910 Y313910 CLIP DOOR
Y310376 Y310376 CLIP WIRE
WPY015825 WPY015825 CLIP- MOTO
279834 279834 COIL-VALVE
Y303368 Y303368 CONE COMB
Y308548 Y308548 CONE COMB
Y303841 Y303841 CONE, EXTENSION (COMBUSTION)
305193L 305193L CONSOLE (ALM)
314778 314778 COVER FOR BLOWER
Y312951 Y312951 COVER, ACCESS
314846 314846 COVER, BLOWER HOUSING
Y312905 Y312905 COVER, TERMINAL
315122 315122 COVER, THERMOSTAT
313915 313915 COVER, THREAD
WP306604 WP306604 CUT-OFF- T
WPY304475 WPY304475 CYCLING TH
308061L 308061L DOOR ASSEMBLY----NA
314935 314935 DOOR SEAL
W10410999 W10410999 DRIVE MOTOR
12001541 12001541 DRUM ROLLER/WASHER ASSEMBLY.
33001108 33001108 DRYER TUMBLER, W/O BAFFLES
33001016 33001016 DUCT, OUTLET ASSEMBLY.
207928 207928 END CAP, CTRL. PNL. (LT-BLK)
207927 207927 END CAP, CTRL. PNL. (RT-BLK)
Y303442 Y303442 EXHAUST DUCT ASSEMBLY.
214894 214894 FASTENER, END CAP
WP22001650 WP22001650 FASTENER-
215075 215075 FASTENERC
W10176519 W10176519 FEET-LVLNG
WPY314137 WPY314137 FOOT- RUBB
307998L 307998L FRONT PANEL
308000L 308000L FRONT PANEL ASSEMBLY
33001179 33001179 FRONT- TUM
204807 204807 GRNDWIRE
211881 211881 GROMMET C
16000327 16000327 GUIDE, QUICK REF. - MAYTAG
314972 314972 HANDLE DOO
Y308498 Y308498 HARNESS W
313113 313113 HIGH VOLTAGE LEAD, GRAY 6-3/4`` (2)
33001230 33001230 HINGE
WPY312893 WPY312893 HOUSING, BLOWER
WP6-3033630 WP6-3033630 IDLER ARM
Y303945 Y303945 IDLER SPRING ASSEMBLY
4391996 4391996 IGNITOR
307119 307119 INLET DUCT ASSEMBLY.
Y308504 Y308504 INLET DUCT ASSEMBLY.
Y308070 Y308070 INNER DOOR
306508 306508 KIT-BEARNG
W11232017 W11232017 KNOB
214519 214519 LABEL, ELECTRICAL INSTRUCTION
314941 314941 LABEL, INSTRUCTION
33001496 33001496 LAMP- HOLD
306436 306436 LATCH-DOOR
W10857122 W10857122 LIGHT BULB
WP694424 WP694424 LIMITER

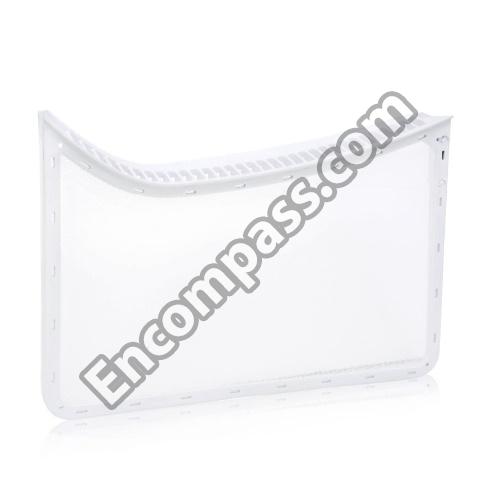

33001167 33001167 LINT SCREEN
WP33002924 WP33002924 LP GAS CON
MAL9000AXX MAL9000AXX LP GAS CON
305861 305861 MAIN BURNER ORIFICE KIT-LPG
WP112432 WP112432 NUT
WP62739 WP62739 NUT
W10155650 W10155650 NUT, 1/4-28 X
WP33001443 WP33001443 NUT- HEX
214897 214897 PAD CONTR
214872 214872 PALNUT, END CAP
Y303383 Y303383 PIPE & BRACKET ASSEMBLY.
306184 306184 PLUG, BLOCKING (LPG REGULATOR)
302521 302521 POWER CORD
WP6-3037050 WP6-3037050 PULLEY
WP6-3051850 WP6-3051850 PULLEY, MOTOR (W/SET SCREW)
WP3387137 WP3387137 RANGE THERMOSTAT
WP3387134 WP3387134 RANGE THERMOSTAT
Y312658 Y312658 RECEPTACLE, SENSOR GROUND WIRE
307207 307207 REED SWITC
Y312890 Y312890 RETAINER
W10116752 W10116752 RETAINER-
WP354987 WP354987 RING-E
WP9703438 WP9703438 RING-RETNR
WP210720 WP210720 RIVET
WP33002970 WP33002970 SCREEN
WP3177991 WP3177991 SCREW
WP33002917 WP33002917 SCREW
WPY310759 WPY310759 SCREW
313764 313764 SCREW
WPY014874 WPY014874 SCREW
WPW10116751 WPW10116751 SCREW
W10142650 W10142650 SCREW
W11233072 W11233072 SCREW
WPW10139210 WPW10139210 SCREW
WP488234 WP488234 SCREW
W10850756 W10850756 SCREW
WP489483 WP489483 SCREW
W11164114 W11164114 SCREW
WPY313561 WPY313561 SCREW
WP1163839 WP1163839 SCREW
204439 204439 SCREW
304971 304971 SCREW
WP90767 WP90767 SCREW
Y314062 Y314062 SCREW
302810 302810 SCREW ASSM - BLUE BLOCK OPE
204445 204445 SCREW FA
213007 213007 SCREW, CABINET
210932 210932 SCREW, NO.8 X 9/16 CTSK
WPY312901 WPY312901 SEAL- BLOW
314937 314937 SEAL- FRON
WP314820 WP314820 SEAL- TUMB
WP338906 WP338906 SENSOR
304997 304997 SENSOR
Y303711 Y303711 SENSOR GRO
Y053241 Y053241 SET SCREW
WP6-3129480 WP6-3129480 SHAFT
Y303349 Y303349 SHUT-OFF, GAS VALVE
WP315772 WP315772 SLEEVE
312369 312369 SLEEVEACC
WPW10116756 WPW10116756 SPACER
410490 410490 SPRING WI
Y312184 Y312184 STRAP, GROUND
WP33001305 WP33001305 STRIKE- DO
312897 312897 SUPPORT, MOTOR
315020 315020 SWITCH HOU
Y303879 Y303879 SWITCH MO
307305 307305 SWITCH PUS
Y303877 Y303877 SWITCH, MOTOR
306207 306207 SWITCH, MOTOR START-PROD.
W10169313 W10169313 SWITCH-DOR
307208 307208 THERMISTOR
WP307250 WP307250 THERMOSTAT
WP307249 WP307249 THERMOSTAT
WP303395 WP303395 THERMOSTAT
307200 307200 THERMOSTAT
Y308221 Y308221 TIMER
314725 314725 TIMER DIAL INDICATOR
307104L 307104L TOP COVER ASSEMBLY
305187 305187 TUMBLER
307117 307117 TUMBLER FR
Y303361 Y303361 TV STAND ASSEMBLY.
Y313907 Y313907 TWIN FASTE
WP306176 WP306176 VALVE- GAS
WP312535 WP312535 WASHER
WP314158 WP314158 WASHER
WPY312527 WPY312527 WASHER
WPY311270 WPY311270 WASHER- TE
WP311155 WP311155 WIRE
901220 901220 WIRE GROU
