Model Image
Manufacturer

Whirlpool

Model Number

LER3622HQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
100000 100000 (TIMER MOTOR NOT SERVICEABLE)
279264 279264 AIR CHANNEL BOX
696545 696545 AIR DUCT ASSEMBLY
685207 685207 BAFFLE-DRM
696541 696541 BASE
WP348726 WP348726 BASE ASSEMBLY
WP3394508 WP3394508 BEARING, RING
3394652 3394652 BELT, DRIVE
WP3397659 WP3397659 BLOCK-TERM
WP3401380 WP3401380 BOX
3406860 3406860 BRACKET, FRONT PANEL
348171 348171 BRACKET, TIMER
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
279848 279848 BULKHEAD
8066084 8066084 BUSHING, SNAP
WP694419 WP694419 BUZZER
WP3389441 WP3389441 CATCH, DOOR
WP660658 WP660658 CLAMP
279220 279220 CLIP
345396 345396 CLIP
279771 279771 CLIP
WP98234 WP98234 CLIP (2)
W10854425 W10854425 CLIP, TOE PANEL
3936144 3936144 CONNECTOR (3-CIRCUIT)
3395683 3395683 CONNECTOR, (MOTOR)
3397269 3397269 CONNECTOR, TIMER
W10828351 W10828351 COVER
W11736322 W11736322 COVER, TERMINAL BLOCK
280077 280077 DOOR
279570 279570 DOOR LATCH
WP348205 WP348205 DOOR, FRONT
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WPW10448901 WPW10448901 DRIVE MOTOR
3391834 3391834 DRUM
8066086 8066086 DRUM HOLE PLUG
WP279843 WP279843 ELEMENT
WP233550 WP233550 FEET-LVLNG
WP3399849 WP3399849 FUSE, THERMAL
345325 345325 GUSSET (2)
WP686711 WP686711 HANDLE, DOOR (WHITE)
8299821 8299821 HARNESS, WIRING
WP348023 WP348023 HINGE AND PIN ASSEMBLY (2)
WP3957800 WP3957800 KNOB
LIT9830513 LIT9830513 LITERATURE PARTS (LABEL, OPERATING INSTRUCTIONS)
LIT9831749 LIT9831749 LITERATURE PARTS (LABEL, WIRING DIAGRAM)
LIT3977625 LIT3977625 LITERATURE PARTS (USE & CARE GUIDE)
WP345670 WP345670 LOCK, TOP
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
280044 280044 PANEL
WP348705 WP348705 PANEL
3978888 3978888 PANEL, CONTROL
350938 350938 PRIMER, GRAY
8066051 8066051 PULLEY, MOTOR (60 HZ.)
WP691366 WP691366 PULLEY-IDR
280050 280050 RELIEF-STRAIN
279872 279872 RESISTOR
311928 311928 RIVET, POP
WP486579 WP486579 SCREW
WP694091 WP694091 SCREW
WP3395530 WP3395530 SCREW
WP308685 WP308685 SCREW
W10850756 W10850756 SCREW
WP3390631 WP3390631 SCREW
WPW10109200 WPW10109200 SCREW
WP681414 WP681414 SCREW
WP489463 WP489463 SCREW
WPW10139210 WPW10139210 SCREW
WP90767 WP90767 SCREW, 8 A X 3/8
696419 696419 SCROLL, FAN
8066094 8066094 SEAL
279735 279735 SEAL
WP339956 WP339956 SEAL FOAM
W11613302 W11613302 SEAL, DOOR
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
W11233063 W11233063 SHIELD
350930 350930 SPRAY (13 OZ.) (WHITE)
349241T 349241T SUPPORT
WP3977456 WP3977456 SWITCH, PUSH-TO-START
WP3406105 WP3406105 SWITCH-DOR
WP94614 WP94614 TERMINAL, FEMALE
WP3404154 WP3404154 THERMOSTAT, 200 F (93.3 )
WP3398128 WP3398128 THERMOSTAT, INTERNAL BIAS

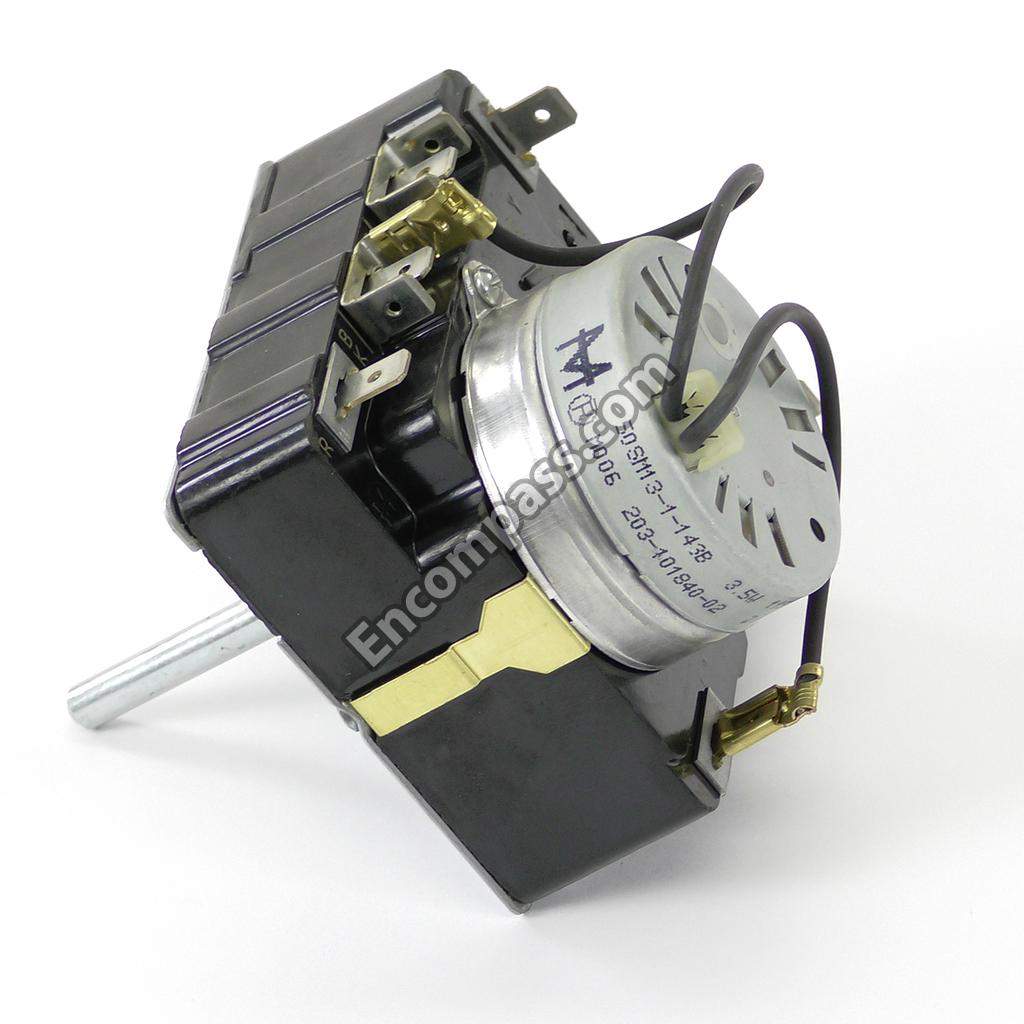

WP8563882 WP8563882 TIMER
9831681 9831681 TIMER KNOB & DIAL
W10491983 W10491983 TIP-TINES
345703 345703 TOP
WPW10512946 WPW10512946 TRI-RING (4)
WP3388703 WP3388703 WASHER
WP348197 WP348197 WASHER
WP696426 WP696426 WHEEL, BLOWER
