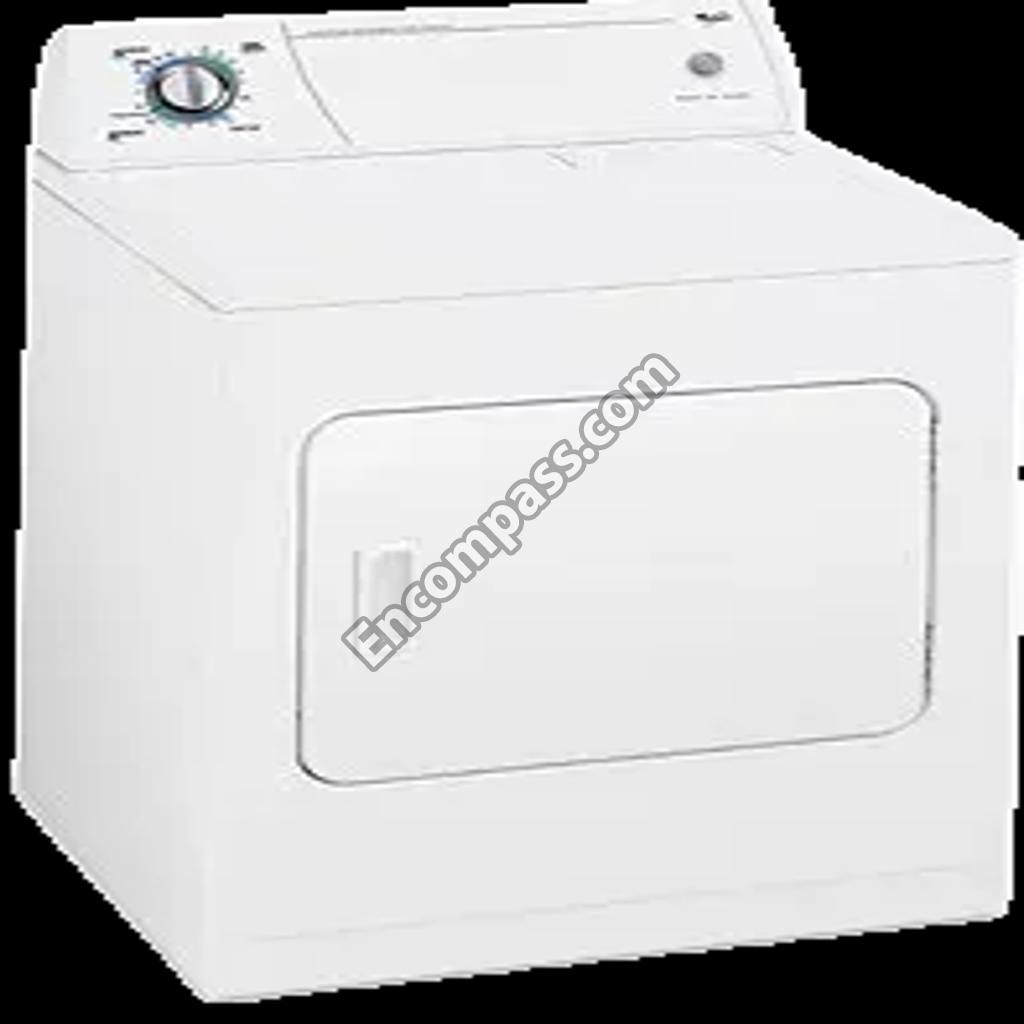

Model Image
Manufacturer

Whirlpool

Model Number

LER4634PT0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
279264 279264 AIR CHANNEL BOX
WP342847 WP342847 BAFFLE, DRUM
WP348780 WP348780 BASE, MOTOR
341241 341241 BELT, DRIVE
WP3397659 WP3397659 BLOCK-TERM
3400500 3400500 BOLT, 5/16-18 X 3/4
WP8541818 WP8541818 BOX, HEATER
8541400 8541400 BRACKET, CABINET
3976435 3976435 BRACKET, SUPPORT
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
279793 279793 BULKHEAD
8533643 8533643 CABINET
3977306 3977306 CABINET (INCLUDES ILLUS. 1) (BISCUIT)
279505 279505 CHUTE
WP3404162 WP3404162 CLAMP
WP660658 WP660658 CLAMP
279771 279771 CLIP
279220 279220 CLIP
WP3394427 WP3394427 CLIP
WP98234 WP98234 CLIP (2)
WP8536939 WP8536939 CLIP, KNOB (EXCEPT LSQ9010LQ2)
W10854425 W10854425 CLIP, TOE PANEL
3936144 3936144 CONNECTOR
3395683 3395683 CONNECTOR, (MOTOR)
W11736322 W11736322 COVER, TERMINAL BLOCK
677818L 677818L DIY
100000 100000 DO-IT-YOURSELF REPAIR MANUALS
WP3403363 WP3403363 DOOR
WP3403371 WP3403371 DOOR
WP3403361 WP3403361 DOOR FRONT (WHITE)
279570 279570 DOOR LATCH
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279827 279827 DRIVE MOTOR
697760 697760 DRUM
8066086 8066086 DRUM HOLE PLUG
279838 279838 ELEMENT
279965 279965 ENDCAP
W10820038 W10820038 ENDCAP
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
WP3405189 WP3405189 HANDLE
WP3405184 WP3405184 HANDLE, DOOR (WHITE)
WPW10450292 WPW10450292 HARNESS, WIRING
WPW10362431 WPW10362431 HINGE AND PIN ASSEMBLY (2)
WP8066217 WP8066217 HINGE, TOP (2))
WP8577230 WP8577230 HOUSING
WP691366 WP691366 IDLER PULLEY ASSEMBLY
4392065 4392065 KIT, DRYER REPAIR
279816 279816 KIT, THERMAL CUT OFF (INCLUDES THERMOSTAT)
WP8544941 WP8544941 KNOB
W10756270 W10756270 KNOB
8271418 8271418 KNOB, PUSH TO START (BISCUIT)
WP8544939 WP8544939 KNOB, PUSH-TO-START (WHITE)
LIT8535829 LIT8535829 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT8533770 LIT8533770 LITERATURE PARTS (SHEET, CYCLE FEATURE)
LIT8522243 LIT8522243 LITERATURE PARTS (USE & CARE GUIDE)
LIT8528187 LIT8528187 LITERATURE PARTS (WIRING DIAGRAM)
WP18776 WP18776 LOCK
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP357213 WP357213 NUT, PUSH-IN (4)
686889 686889 PAD, CABINET
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
279931 279931 PANEL
279844 279844 PANEL
WP8545960 WP8545960 PANEL, CONTROL
8545970 8545970 PANEL, CONTROL (BISCUIT)
W10103406 W10103406 PANEL, REAR CONSOLE
280040 280040 PANEL-REAR
WP3404413 WP3404413 PLUG
WP3404415 WP3404415 PLUG, HINGE HOLE (4) (BISCUIT)
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY, MOTOR
WP689790 WP689790 RACK, DRY
WP3394509 WP3394509 RING, BEARING
WP8557862 WP8557862 SCREEN
W10874409 W10874409 SCREEN, LINT
WP489463 WP489463 SCREW
WPW10109200 WPW10109200 SCREW
WP488729 WP488729 SCREW
W10850756 W10850756 SCREW
WP681414 WP681414 SCREW
WP3395530 WP3395530 SCREW
WP488627 WP488627 SCREW
WP308685 WP308685 SCREW
WP693995 WP693995 SCREW
W11693756 W11693756 SCREW
WPW10139210 WPW10139210 SCREW
WP388326 WP388326 SCREW (PANEL TO TOP)
WP90767 WP90767 SCREW, 8 A X 3/8
3400859 3400859 SCREW, GROUNDING
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
239087 239087 SEAL
WP339956 WP339956 SEAL FOAM
WP3394196 WP3394196 SEAL, BLOWER
W10861521 W10861521 SEAL, DOOR
W11415783 W11415783 SEAL, LINT CHUTE
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
W11233063 W11233063 SHIELD
350930 350930 SPRAY (13 OZ.) (WHITE)
349241T 349241T SUPPORT
WP3977456 WP3977456 SWITCH, PUSH-TO-START
WP3406105 WP3406105 SWITCH-DOR
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
WP94614 WP94614 TERMINAL, FEMALE
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
W11224254 W11224254 TEST KIT
WP3392519 WP3392519 THERMAL FUSE
WP3977767 WP3977767 THERMOSTAT, HIGH LIMIT 221~F (105~C)
WP3387134 WP3387134 THERMOSTAT, INTERNAL BIAS
3391249 3391249 TIE, CABLE
8544956 8544956 TIMER KNOB ASSEMBLY (BISCUIT)
WP8544955 WP8544955 TIMER KNOB ASSEMBLY (WHITE)
WP8299778 WP8299778 TIMER, 60 HZ.
8563986 8563986 TOP
WP8563985 WP8563985 TOP
WPW10512946 WPW10512946 TRI-RING (4)
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL, BLOWER (INCLUDES ILLUS. NO. 19)
