Model Image
Manufacturer

Whirlpool

Model Number

LTE5243DQ8

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285666 285666 ACCESSORY PARTS, 8' DRAIN HOSE W/CLAMP
279264 279264 AIR CHANNEL BOX
WP8566186 WP8566186 AIR DUCT & BRACKET
685207 685207 BAFFLE-DRM
WP8577373 WP8577373 BASE
696541 696541 BASE
3399632 3399632 BASE, DRYER
3351985 3351985 BASKET
W10820043 W10820043 BASKTDRIVE
WP8546462 WP8546462 BEARING
285205 285205 BEARING
WP8546455 WP8546455 BEARING
WP21258 WP21258 BEARING
WP3394508 WP3394508 BEARNG-RNG
3394652 3394652 BELT, DRIVE
WP389140 WP389140 BLOCK
696044 696044 BLOCK, RESTRAINT
WP3397659 WP3397659 BLOCK-TERM
WP3401380 WP3401380 BOX
8528153 8528153 BRACKET
63636 63636 BRACKET, COUNTERWEIGHT SPRING
279848 279848 BULKHEAD
WP9724509 WP9724509 BUMPER
693152 693152 BUMPER, CONSOLE (5)
WP660975 WP660975 BUTTON-PLG
WP694419 WP694419 BUZZER-ADJ
696013 696013 CABINET
WP8546461 WP8546461 CAM-BRAKE
WP3355758 WP3355758 CAP
WP62646 WP62646 CAP
WP356471 WP356471 CAP
8272717 8272717 CAPACITOR, MOTOR START (AUTOMATIC WASHER)
WP3389441 WP3389441 CATCH
285203 285203 CENTERPOST BEARING KIT (INCLS. ILLUS. 10, 11, & 12)
WP3357331 WP3357331 CLAMP
WP285655 WP285655 CLAMP
WP616099 WP616099 CLAMP
WP596669 WP596669 CLAMP
WPW10121316 WPW10121316 CLAMP
357030 357030 CLAMP, CAPACITOR
488946 488946 CLAMP, TUBING
WP3395536 WP3395536 CLIP
WP3355454 WP3355454 CLIP
WP359364 WP359364 CLIP
WP692985 WP692985 CLIP
WP90016 WP90016 CLIP
8528351 8528351 CLIP
693141 693141 CLIP
279771 279771 CLIP
345396 345396 CLIP
W10854425 W10854425 CLIP
WP90296 WP90296 CLIP
279220 279220 CLIP
WP688805 WP688805 CLIP
356746 356746 CLIP, CONDENSER
694037 694037 CLIP, CONSOLE
WP692781 WP692781 CLOSURE
285785 285785 CLUTCH
W11213338 W11213338 CONNECTOR
WP62505 WP62505 CONNECTOR
WP62889 WP62889 CONNECTOR
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
285753A 285753A COUPLING
WP16272 WP16272 COUPLR-HSE
WP692926 WP692926 COVE
W10828351 W10828351 COVER
WP3394228 WP3394228 COVER
694304 694304 COVER, CHANNEL
285202 285202 COVER, GEARCASE
WP8572767 WP8572767 CUTOFF-TML
WP3957841 WP3957841 DIAL
3948614 3948614 DISCONNECT BLOCK (CONNECTS WITH AUTOMATIC TIMER)
WP348205 WP348205 DOOR
280077 280077 DOOR
279570 279570 DOOR LATCH
WP693145 WP693145 DOOR LATCH-LID
WP661600 WP661600 DRIVE MOTOR
WPW10448901 WPW10448901 DRIVE MOTOR
3391834 3391834 DRUM
8066086 8066086 DRUM HOLE PLUG
WP3399602 WP3399602 ELBOW
3399603 3399603 ELBOW, LOWER
WP279843 WP279843 ELEMENT
692993 692993 END CAP, CONSOLE (L.H. & R.H.)
W10194037 W10194037 ENERGY GUIDE
WP358594 WP358594 FEET-LVLNG
WP367594 WP367594 FEET-LVLNG
WP63840 WP63840 FILTER
3350013 3350013 FOAM
8577411 8577411 FOAM STRIP
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
W10814296 W10814296 GASKET
285515 285515 GEARCASE
3360629 3360629 GEARCASE
WP62691 WP62691 GROMMET
WP686711 WP686711 HANDLE
3957867 3957867 HARNESS, LOWER (AUTOMATIC) (INCLUDES ILLUS. 6A, 6B & 6C)
8576537 8576537 HARNESS, MAIN DRYER WIRING (INCLUDES NOS.36A, 36B)
WP91770 WP91770 HINGE
WP348023 WP348023 HINGE
WPW10108350 WPW10108350 HOSE
285664 285664 HOSE
280120 280120 HOSE
WP696394 WP696394 HOSE
WP696710 WP696710 HOSE
WP692699 WP692699 HOSE
WP353244 WP353244 HOSE
WP89503 WP89503 HOSE-FILL
W10222387 W10222387 INSTALLATION INSTRUCTIONS
685463 685463 KIT, GROUNDING PLUG, DRYER SIDE PANEL
W10807860 W10807860 KNOB
WP3957796 WP3957796 KNOB
WP3957800 WP3957800 KNOB
WP3957752 WP3957752 KNOB
WP3398848 WP3398848 LID
285790 285790 LINING
WP358652 WP358652 LINK
WP345670 WP345670 LOCK
WP692983 WP692983 LOCK-CNSLE
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
388253A 388253A NEUTRL-PAK
279710 279710 NUT
W10080180 W10080180 NUT
WP3359452 WP3359452 NUT
WP692400 WP692400 NUT
WP692771 WP692771 NUT
WP98234 WP98234 NUT
WP21366 WP21366 NUT-SPANER
350572 350572 OIL
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP692628 WP692628 PANEL
WP3402287 WP3402287 PANEL
WP3402293 WP3402293 PANEL
280069 280069 PANEL
285314 285314 PANEL
3977194 3977194 PANEL, CONTROL
692933 692933 PANEL, TRANSITION
WPW10112403 WPW10112403 PARTS-MISC
WP62611 WP62611 PLATE
696074 696074 PLUG, TERMINAL (12-WAY) (CONNECTS WITH AUTOMATIC CONSOLE HARNESS)
3350130 3350130 PLUG, TERMINAL (2-WAY) (CONNECTS WITH MAIN DRYER HARNESS)
3390046 3390046 PROTECTOR, EDGE
8066051 8066051 PULLEY, MOTOR (60 HZ.)
WP691366 WP691366 PULLEY-IDR

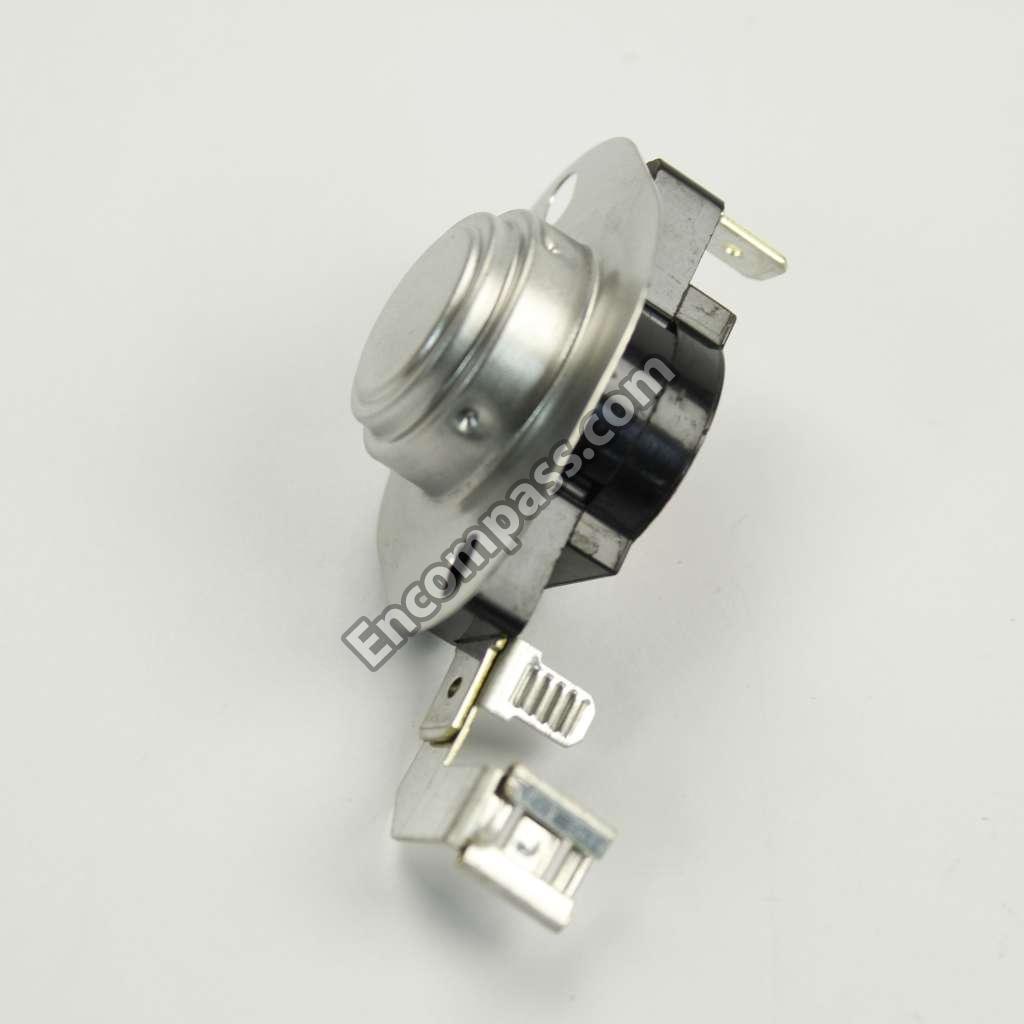

WP3404154 WP3404154 RANGE THERMOSTAT
WP3398128 WP3398128 RANGE THERMOSTAT
696073 696073 RECEPTACLE, CONNECTOR (CONNECTS WITH LOWER AUTOMATIC HARNESS)
3395683 3395683 RECEPTACLE, MULTI-TERMINAL (CONNECTS WITH MOTOR) (DRYER)
717252 717252 RECEPTACLE, TERMINAL (2-WAY) (CONNECTS WITH DOOR SWITCH HARNESS)
8559320 8559320 RESTRAINT, HOSE
WP8577378 WP8577378 RETAINER
WPW10086010 WPW10086010 RETAINER
WP8546127 WP8546127 RETAINER
62677 62677 RETAINER, SPRING
WP62658 WP62658 RING
WP63134 WP63134 RING
285353 285353 RING
WPW10080230 WPW10080230 RING
WPW10512946 WPW10512946 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
285765 285765 RING-RETNR
W10831641 W10831641 RING-TUB
W11033823 W11033823 RING-WIRE
348378 348378 SCREEN, BACK-UP
W11573574 W11573574 SCREW
WP358237 WP358237 SCREW
WP273556 WP273556 SCREW
WP3400516 WP3400516 SCREW
WP9740848 WP9740848 SCREW
WP308544 WP308544 SCREW
WP3356311 WP3356311 SCREW
WPW10119828 WPW10119828 SCREW
WP3351614 WP3351614 SCREW
W11676450 W11676450 SCREW
W10853898 W10853898 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP308685 WP308685 SCREW
WP693304 WP693304 SCREW
WP3390631 WP3390631 SCREW
W10850756 W10850756 SCREW
WP681414 WP681414 SCREW
WP3395530 WP3395530 SCREW
WP90767 WP90767 SCREW
WP3400860 WP3400860 SCREW
WP694091 WP694091 SCREW
354975 354975 SCREW & WASHER (3) (LID DOOR LATCH MOUNTING)
386011 386011 SCREW & WASHER (BASE TO CABINET)
279393 279393 SCREW KIT (FOR TERMINAL BLOCK)
348689 348689 SCREW, END CAP MOUNTING (4)
WP696418 WP696418 SCROLL-FAN
W11095997 W11095997 SEAL
WP8577376 WP8577376 SEAL
279735 279735 SEAL
WP339956 WP339956 SEAL
8066094 8066094 SEAL, FAN SCROLL
285352 285352 SEAL, THRUST PLUG
WP3349985 WP3349985 SEAL-COVER
W11613302 W11613302 SEAL-DOOR
WP356427 WP356427 SEAL-SHAFT
WP3359587 WP3359587 SEAL-TUB
WP285195 WP285195 SEALER
WPW10359270 WPW10359270 SHAFT
WPW10359269 WPW10359269 SHAFT
WP389387 WP389387 SHAFT-AGIT
8542754 8542754 SHEET, CYCLE FEATURE
WP64137 WP64137 SHIELD
WP3946532 WP3946532 SHIELD
63637 63637 SHIELD, TUB
285438 285438 SHOE-BRAKE
279823 279823 SIDE EXHAUST EXTENSION KIT (COMPLETE)
WP356363 WP356363 SIPHON
285320 285320 SIPHON BREAK KIT (NOT INCLUDED)
WP63022 WP63022 SLEEVE
285658 285658 SLEEVE
285321 285321 SLEEVE KIT, PLASTIC DRAIN HOSE (CONTAINS 2 SLEEVES)
WP63748 WP63748 SPRING
W10207783 W10207783 SPRING
WPW10250667 WPW10250667 SPRING
WP8559387 WP8559387 SPRING
62676 62676 SPRING, AGITATE
WP693151 WP693151 SPRNG-LOCK
WP358684 WP358684 STRIKE
W10863713 W10863713 SUPPORT
W11174024 W11174024 SUPPORT
W11174025 W11174025 SUPPORT
349241T 349241T SUPPORT
686770 686770 SUPPORT PROTECTOR
WP3406108 WP3406108 SWITCH-DOR
WP3355806 WP3355806 SWITCH-LID
WP8529896 WP8529896 SWITCH-MTR
WP3977456 WP3977456 SWITCH-PTS
WP8054142 WP8054142 SWTCH-TEMP
WP94614 WP94614 TERMINAL
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 41)
WPW10339879 WPW10339879 TIE-WIRE
WP3406720 WP3406720 TIMER
WP3952499 WP3952499 TIMER
W10491983 W10491983 TIP-TINES
WP384693 WP384693 TOP
WP692641 WP692641 TOP-DRYER
W10811358 W10811358 TUB
356398 356398 TUBE, DRAIN OFF
WP64208 WP64208 TUBE-SPIN
W10196553 W10196553 USE & CARE GUIDE
285805 285805 VALVE
WP16123 WP16123 WASHER
WP388815 WP388815 WASHER
WP3949550 WP3949550 WASHER
WP63292 WP63292 WASHER
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP3349098 WP3349098 WASHER AGITATOR
285766 285766 WASHER KIT, THRUST
62619 62619 WASHER, AGITATE GEAR
62618 62618 WASHER, CAM THRUST
WP3362987 WP3362987 WATER LEVEL SWITCH
WP3363394 WP3363394 WATER PUMP
WP696426 WP696426 WHEEL
692790 692790 WHITE
WP8577368 WP8577368 WIRE HARNESS
279457 279457 WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
8576808 8576808 WIRING DIAGRAM
