Model Image
Manufacturer

Whirlpool

Model Number

LTG6234DZ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3389257 3389257 (PANEL, SIDE (R.H.)) (ALMOND)
3389256 3389256 (PANEL, SIDE (R.H.)) (WHITE)
285666 285666 ACCESSORY PARTS, 8' DRAIN HOSE W/CLAMP
WP3349578 WP3349578 AGITATOR
WP3355758 WP3355758 AGITATOR CAP
350956 350956 ALMOND
WP72107 WP72107 ALMOND
978883 978883 ALMOND (UNCUT)
W10518375 W10518375 ASSEMBLY, DRUM
279982 279982 BAFFLE-DRM
3391699 3391699 BASE, BURNER
3391668 3391668 BASE, DRYER
WP3402724 WP3402724 BASE-WASHR
3352234 3352234 BASKET & BALANCE RING ASSEMBLY
W10820043 W10820043 BASKTDRIVE
WP8546462 WP8546462 BEARING
285205 285205 BEARING
WP8546455 WP8546455 BEARING
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT, DRIVE
WP62505 WP62505 BLOCK, DISCONNECT (MOTOR 2 SPEED) (USE TERM. 352088)
WP389140 WP389140 BLOCK, DRIVE
374230 374230 BLOCK, TERMINAL
3350744 3350744 BRACE
3349767 3349767 BRACKET
WPW10547294 WPW10547294 BRACKET
3388857 3388857 BRACKET, BASE
3391639 3391639 BRACKET, BULKHEAD
3390689 3390689 BRACKET, CONTROL (INCLUDES ILLUS. 2)
3389453 3389453 BRACKET, HINGE (2)
3350144 3350144 BRACKET, LID SWITCH
W11107903 W11107903 BRACKET, MOTOR
3354020 3354020 BRACKET, MOUNTING
697409 697409 BRACKET, SENSOR
694538 694538 BRACKET, SHUNT
WP64067 WP64067 BRACKET, SPRING DISPENSER OUTER (2)
WP64065 WP64065 BRACKET, SPRING OUTER (L.F.)
3349673 3349673 BRACKET, VALVE
WP3360977 WP3360977 BREAK-VAC
WP697557 WP697557 BULKHEAD
W11299300 W11299300 BULKHEAD
WP9724509 WP9724509 BUMPER
WP3389431 WP3389431 BUMPER
8578392 8578392 BURNER
279726 279726 BURNER-GAS
WP694419 WP694419 BUZZER
3388580 3388580 CABLE
WP8546461 WP8546461 CAM-BRAKE
285550 285550 CAP
WP62646 WP62646 CAP
WP8572717 WP8572717 CAPACITOR
279570 279570 CATCH, DOOR
285203 285203 CENTERPOST BEARING KIT (INCLUDES ITEMS 13, 14 & 23)
3388851 3388851 CHANNEL ASSEMBLY (LEFT HAND SIDE)
3388850 3388850 CHANNEL ASSEMBLY (RIGHT HAND SIDE)
WP285655 WP285655 CLAMP
WP371502 WP371502 CLAMP
WP596669 WP596669 CLAMP
WP3357331 WP3357331 CLAMP UP DRAIN HOSE
357030 357030 CLAMP, CAPACITOR
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
WP660658 WP660658 CLAMP, MOTOR
7111P002-60 7111P002-60 CLAMP, WIRE 3/4
WP3355454 WP3355454 CLIP
WP90016 WP90016 CLIP
W11712577 W11712577 CLIP
697438 697438 CLIP
WP3390902 WP3390902 CLIP
WP98234 WP98234 CLIP (2)
3390935 3390935 CLIP, DUCT LOCATOR
3389231 3389231 CLIP, FRONT PANEL (2)
W10113937 W10113937 CLIP, GROUNDING
8281256 8281256 CLIP, HARNESS
W10134186 W10134186 CLIP, HARNESS
3391249 3391249 CLIP, HARNESS (2)
W10134185 W10134185 CLIP, HARNESS (2)
WP359364 WP359364 CLIP, LEVELING MECHANISM (2)
3350828 3350828 CLIP, RETAINER
3349770 3349770 CLIP, SPRING TOP (2)
3392226 3392226 CLIP, THERMOSTAT
W10854425 W10854425 CLIP, TOE PANEL
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
285785 285785 CLUTCH
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
W11213338 W11213338 CONNECTOR
W10876590 W10876590 CONNECTOR
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
3395683 3395683 CONNECTOR, (MOTOR)
3399964 3399964 CONNECTOR, 2-POSITION (GAS VALVE)
3399963 3399963 CONNECTOR, 3-POSITION (GAS VALVE)
3347243 3347243 CONNECTOR, 5 WAY (USES TERMINAL 352088)
3392235A 3392235A CONVERSION KIT (TYPE 1, 2 & 3) TO TYPE (4) L.P.G.
WPW10239314 WPW10239314 CORD, POWER
285753A 285753A COUPLING
WP16272 WP16272 COUPLR-HSE
3389683 3389683 COVE, TRANSITION PANEL (BLACK)
279780 279780 COVER
279814 279814 COVER
285202 285202 COVER, GEARCASE
WP3403607 WP3403607 CUTOFF-TML
3957846 3957846 DIAL, (WASHER) (BISCUIT)
W10864899 W10864899 DISPENSER, (ACCESSORY ONLY, NOT INCLUDED IN MODEL)
80040 80040 DOG-AGIT
285751 285751 DOG-AGIT
W11663440 W11663440 DOOR
3387873 3387873 DOOR, FRONT (ALMOND)
W11222846 W11222846 DOOR, LINT SCREEN
280083 280083 DOOR-REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WP661600 WP661600 DRIVE MOTOR
279811 279811 DRIVE MOTOR
W11727962 W11727962 DUCT-AIR
279700 279700 DUCT-LINT
279704 279704 DUCT-TRANS
W10891649 W10891649 END CAP (LEFT) (WHITE)
3389465 3389465 END CAP (LH) (ALMOND)
W10891648 W10891648 END CAP (RIGHT) (WHITE)
3389457 3389457 END CAP-RIGHT HAND (ALMOND)
3350013 3350013 FOAM
WPW10001130 WPW10001130 FOOT
WP358594 WP358594 FOOT, REAR (2)
W10814296 W10814296 GASKET, CENTER POST
285515 285515 GEARCASE
3360629 3360629 GEARCASE
3391931 3391931 GRILLE, OUTLET
WP62691 WP62691 GROMMET, MOTOR (4)
LIT3401097 LIT3401097 GUIDE, USE AND CARE
3389523 3389523 HANDLE, DOOR (ALMOND)
3389522 3389522 HANDLE, DOOR (WHITE)
3398983 3398983 HARNESS - DRYER
3396692 3396692 HARNESS - WASHER
W11175815 W11175815 HINGE & PIN ASSEMBLY (2)
3350102 3350102 HINGE, (LH)
3350101 3350101 HINGE, (RH)
WP21258 WP21258 HINGE, BEARING (2)
285664 285664 HOSE
285871 285871 HOSE
WP3353841 WP3353841 HOSE, DRAIN
W10834213 W10834213 HOSE, PRESSURE SWITCH
3352236 3352236 HOSE, WATER INLET (VACUUM BREAK TO MIXING VALVE)
WP89503 WP89503 HOSE-FILL
WP8544363 WP8544363 HOUSING
W11129408 W11129408 HOUSNG-OUT
279311 279311 IGNITOR
LIT3395326 LIT3395326 INSTRUCTIONS, INSTALLATION
358736 358736 INSULATOR
285320 285320 IPHON BREAK KIT
3393810 3393810 JUMPER WIRE
3401684 3401684 JUMPER, BUZZER
3401674 3401674 JUMPER, TIMER BUZZER
694609 694609 KIT, EXHAUST DEFLECTOR
WP3957750 WP3957750 KNOB
WP3957796 WP3957796 KNOB
3950760 3950760 KNOB, CONTROL (ALMOND)
WP3364293 WP3364293 KNOB, TIMER (WASHER)
LIT3394996 LIT3394996 LABEL, OPERATING INSTRUCTION
LIT3404410 LIT3404410 LABEL, WIRING DIAGRAM
WP8066120 WP8066120 LEVER
WPW10193874 WPW10193874 LID
WP3350152 WP3350152 LID, RETAINER
3351653 3351653 LID, TOP (ALMOND)
285790 285790 LINING
WP3349311 WP3349311 LINK
W11116924 W11116924 LOCATOR
WP345670 WP345670 LOCK, TOP
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
285609 285609 MISCELLANEOUS PARTS BAG
W11676449 W11676449 MOVER-AGIT
388253A 388253A NEUTRAL ASSEMBLY
WP3357027 WP3357027 NOZZLE, DRAIN HOSE
WP3389249 WP3389249 NUT
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
233076 233076 NUT, COMPRESSION
WP3387709 WP3387709 NUT, HEX (2)
124829 124829 NUT, JAM (2)
WP21366 WP21366 NUT, LOCK
4342911 4342911 NUT, LOCK (4)
WP692400 WP692400 NUT, PUSH-IN
352292 352292 NUT, PUSH-IN (2)
350572 350572 OIL, GEARCASE (16 OZ.)
15422 15422 ORIFICE (L.P. GAS)
3394360 3394360 ORIFICE, NATURAL GAS
285744 285744 PAD
285219 285219 PAD
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
WP3349499 WP3349499 PANEL
WP3349455 WP3349455 PANEL
280039 280039 PANEL
279718 279718 PANEL
279719 279719 PANEL
3396690 3396690 PANEL, CONTROL (ALMOND)
3396689 3396689 PANEL, CONTROL (WHITE)
3349500 3349500 PANEL, FRONT (ALMOND)
8564987 8564987 PANEL, REAR (WASHER)
3349456 3349456 PANEL, SIDE (2) (SAME PANEL USED ON LEFT AND RIGHT SIDE) (ALMOND)
3389265 3389265 PANEL, SIDE (L.H.) (ALMOND)
3389264 3389264 PANEL, SIDE (L.H.) (WHITE)
3388959 3388959 PANEL, TOE (ALMOND)
3388958 3388958 PANEL, TOE (WHITE)
3389273 3389273 PANEL, TRANSITION (ALMOND)
3389272 3389272 PANEL, TRANSITION (WHITE)
3393767 3393767 PIPE
W10295523 W10295523 PIPE PLUG
W10110398 W10110398 PIPE, SUPPLY
WP62611 WP62611 PLATE, MOTOR MOUNT TO GEARCASE
WP3946509 WP3946509 PLATE, SUSPENSION
285868 285868 PLUG
3350130 3350130 PLUG, 3 WAY (USES TERMINAL 94614)
WP660975 WP660975 PLUG, TOP TO CABINET 689587 (ALT.) 694010 (ALT.)
350938 350938 PRIMER, GRAY
63523 63523 PROTECTOR, HARNESS
279640 279640 PULLEY-IDR
WP3363892 WP3363892 PUMP (COMPLETE)
WP338906 WP338906 RADIANT, SENSOR
3349697 3349697 RAIL, BACK TOP
W11568973 W11568973 RANGE THERMOSTAT
717252 717252 RECEPTACLE, 2 WAY
3350211 3350211 RECEPTACLE, 3 WAY (USES TERMINAL 94614)
WP62889 WP62889 RECEPTACLE, TERMINAL (3-WAY) (CONNECTS WITH HARNESS)
3349749 3349749 RESTRAINER, BASE
WP8546127 WP8546127 RETAINER
3350506 3350506 RETAINER, HOSE
WPW10086010 WPW10086010 RETAINER, MOTOR (2)
62677 62677 RETAINER, SPRING
WPW10145155 WPW10145155 RETAINER, SUSPENSION SPRING (ALMOND)
WP62658 WP62658 RING
285353 285353 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP63134 WP63134 RING, SOUND DEADENING
WPW10080230 WPW10080230 RING, SPIN TUBE SUPPORT
WPW10072840 WPW10072840 RING-O
285765 285765 RING-RETNR
W10880720 W10880720 RING-TUB
W11033823 W11033823 RING-WIRE
WP3389644 WP3389644 SCREEN, LINT
WPW10366705 WPW10366705 SCREW
WP693995 WP693995 SCREW
WP273556 WP273556 SCREW
WP3400516 WP3400516 SCREW
WPW10119828 WPW10119828 SCREW
WP488729 WP488729 SCREW
WPW10139210 WPW10139210 SCREW
718091 718091 SCREW
WP3389420 WP3389420 SCREW
WP98129 WP98129 SCREW
W10850756 W10850756 SCREW
WP681414 WP681414 SCREW
WP694091 WP694091 SCREW
WP488627 WP488627 SCREW
WP308685 WP308685 SCREW
WP3395530 WP3395530 SCREW
WP3390631 WP3390631 SCREW
WP356418 WP356418 SCREW
WP3387230 WP3387230 SCREW
WP358237 WP358237 SCREW & WASHER (5/16 - 24 X 1)
WP3356311 WP3356311 SCREW & WASHER, LID SWITCH (2)
WP693304 WP693304 SCREW AND WASHER
690372 690372 SCREW, 11-16 X 7/8
694421 694421 SCREW, 8-32
WP3351614 WP3351614 SCREW, GEARCASE COVER MOUNTING (8) (10-24 X 3/8)
Y015627 Y015627 SCREW, HEX HD CAP 5/16 X 5/8
3349332 3349332 SCREW, SHOULDER (2)
W11095997 W11095997 SEAL
WP8566209 WP8566209 SEAL
280114 280114 SEAL
WP697770 WP697770 SEAL
WP3391906 WP3391906 SEAL
WP64002 WP64002 SEAL, AGITATOR
WP8577376 WP8577376 SEAL, CENTERPOST
WP3390735 WP3390735 SEAL, DOOR
WP356427 WP356427 SEAL, DRIVE TUBE
WP3349985 WP3349985 SEAL, GEARCASE COVER
WP91939 WP91939 SEAL, OIL
WP697813 WP697813 SEAL, OUTLET HOUSING
285352 285352 SEAL, THRUST PLUG
WP3976308 WP3976308 SEAL-TUB
WP285195 WP285195 SEALER, GASKET (.20 FL. OZ.) (6 ML)
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
WP389387 WP389387 SHAFT, AGITATOR (COMPLETE)
WP3946532 WP3946532 SHIELD
3390722 3390722 SHIELD, CONSOLE TO DRUM
3390608 3390608 SHIELD, CORNER RIGHT REAR
3392232 3392232 SHIELD, FRONT
3390609 3390609 SHIELD, HARNESS
3350145 3350145 SHIELD, LID SWITCH
3390336 3390336 SHIELD, THERMOSTAT
W10838408 W10838408 SHIELD-MTR
285438 285438 SHOE-BRAKE
279823 279823 SIDE EXHAUST KIT
3957845 3957845 SKIRT, TIMER KNOB (WASHER) (WHITE)
WP63022 WP63022 SLEEVE
285658 285658 SLEEVE
285321 285321 SLEEVE KIT, PLASTIC DRAIN HOSE (CONTAINS 2 SLEEVES)
3389682 3389682 SPACER (2)
356937 356937 SPACER, DRIVE TUBE
3390688 3390688 SPACER- FOAM PAD (2)
350930 350930 SPRAY (13 OZ.) (WHITE)
WP62647 WP62647 SPRING
WP3946792 WP3946792 SPRING
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING, IDLER
3350135 3350135 SPRING, LEVER BRACKET
WP63907 WP63907 SPRING, SUSPENSION (3)
62676 62676 SPRING, WASHER AGITATOR
WPW10250667 WPW10250667 SPRING,COUNTERWEIGHT
WP358684 WP358684 STRIKE, LID
3391118 3391118 SUPPLY LINE (GAS)
280184 280184 SUPPORT
WPW10314173 WPW10314173 SUPPORT
WP3355458 WP3355458 SWITCH, LID
3360910 3360910 SWITCH, PRESSURE
WP3404233 WP3404233 SWITCH, PUSH-TO-START
WP3391902 WP3391902 SWITCH-LID
WP8529896 WP8529896 SWITCH-MTR
279782 279782 SWITCH-PLG
WP3405157 WP3405157 SWTCH-TEMP
LIT3397738 LIT3397738 TAG, ENERGY GUIDE
WP596797 WP596797 TERMINAL
WP285432 WP285432 TERMINAL
WP94614 WP94614 TERMINAL, FEMALE
WP352088 WP352088 TERMINAL, FEMALE (DISCONNECT BLACK)
WP3387134 WP3387134 THERMOSTAT, INTERNAL BIAS
WP3391018 WP3391018 TIE-WIRE

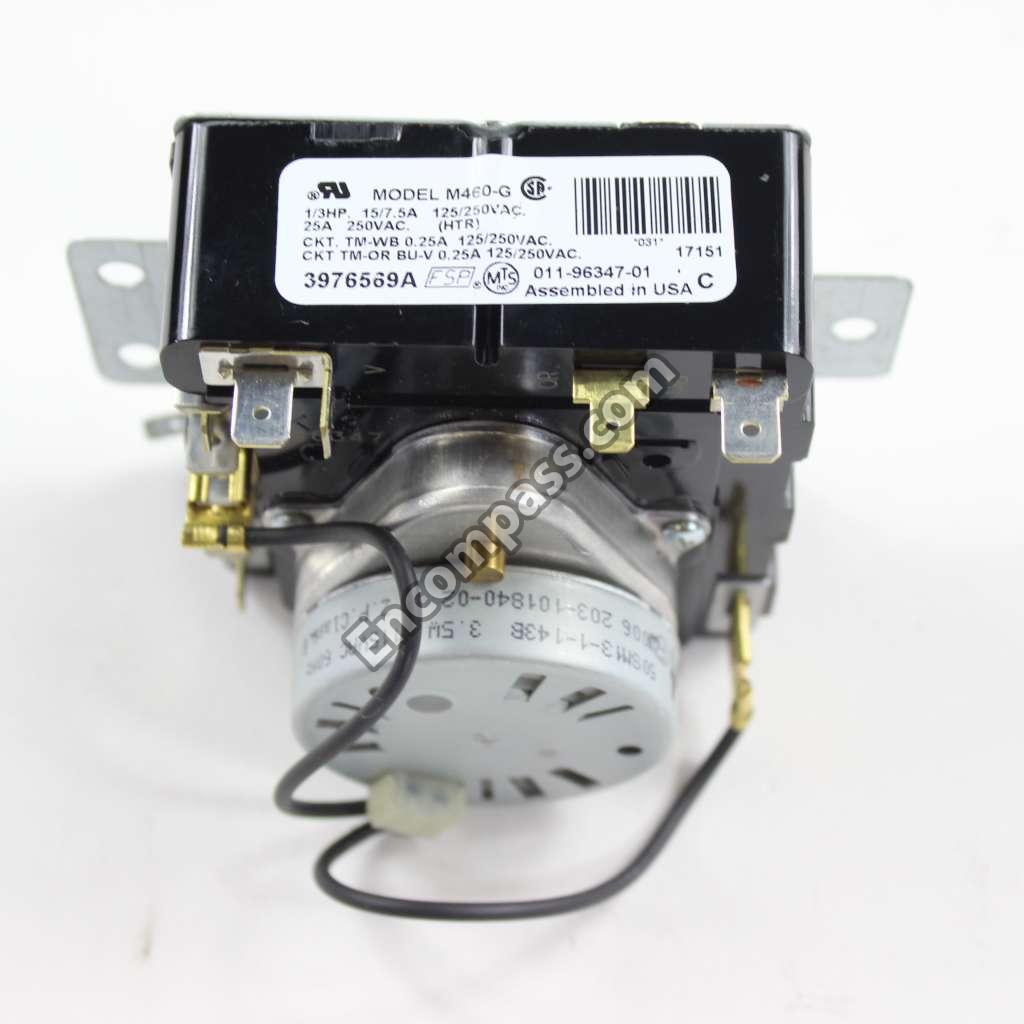

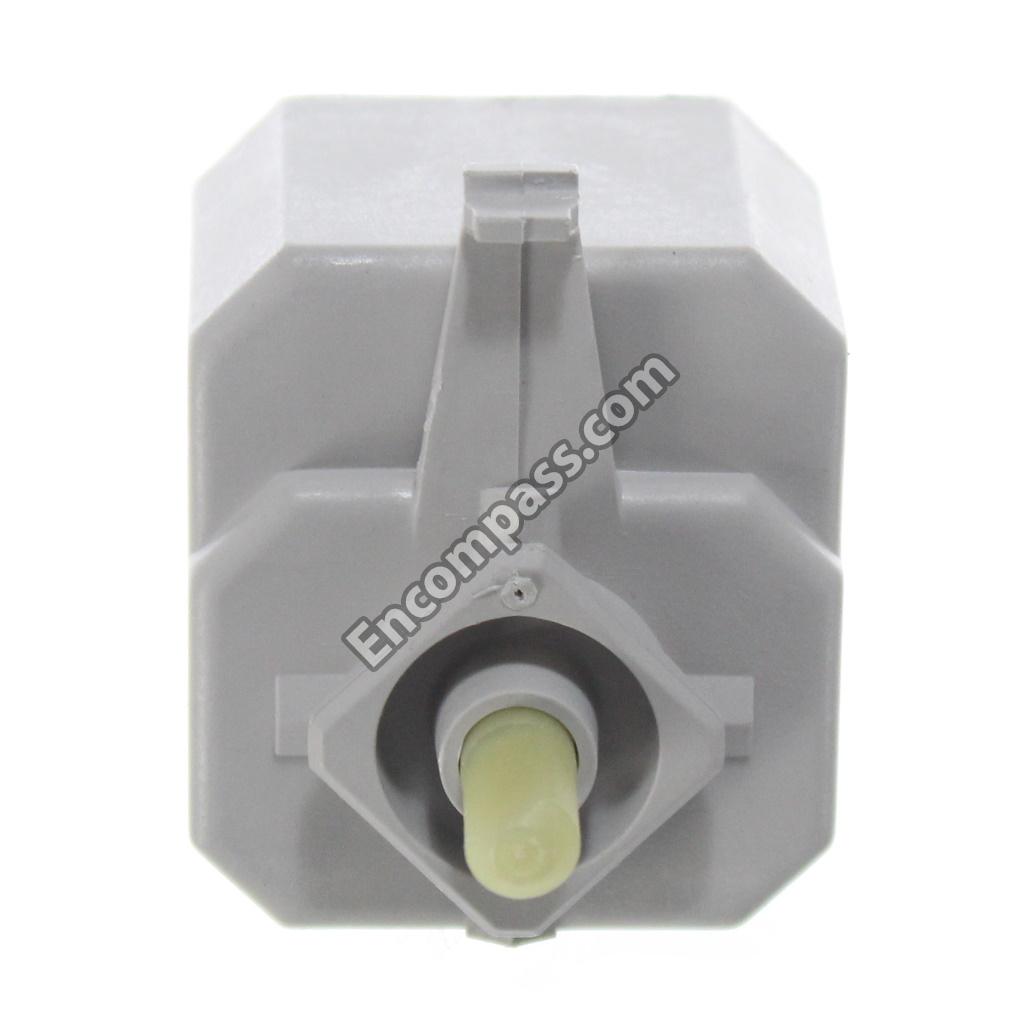

WP3976569 WP3976569 TIMER

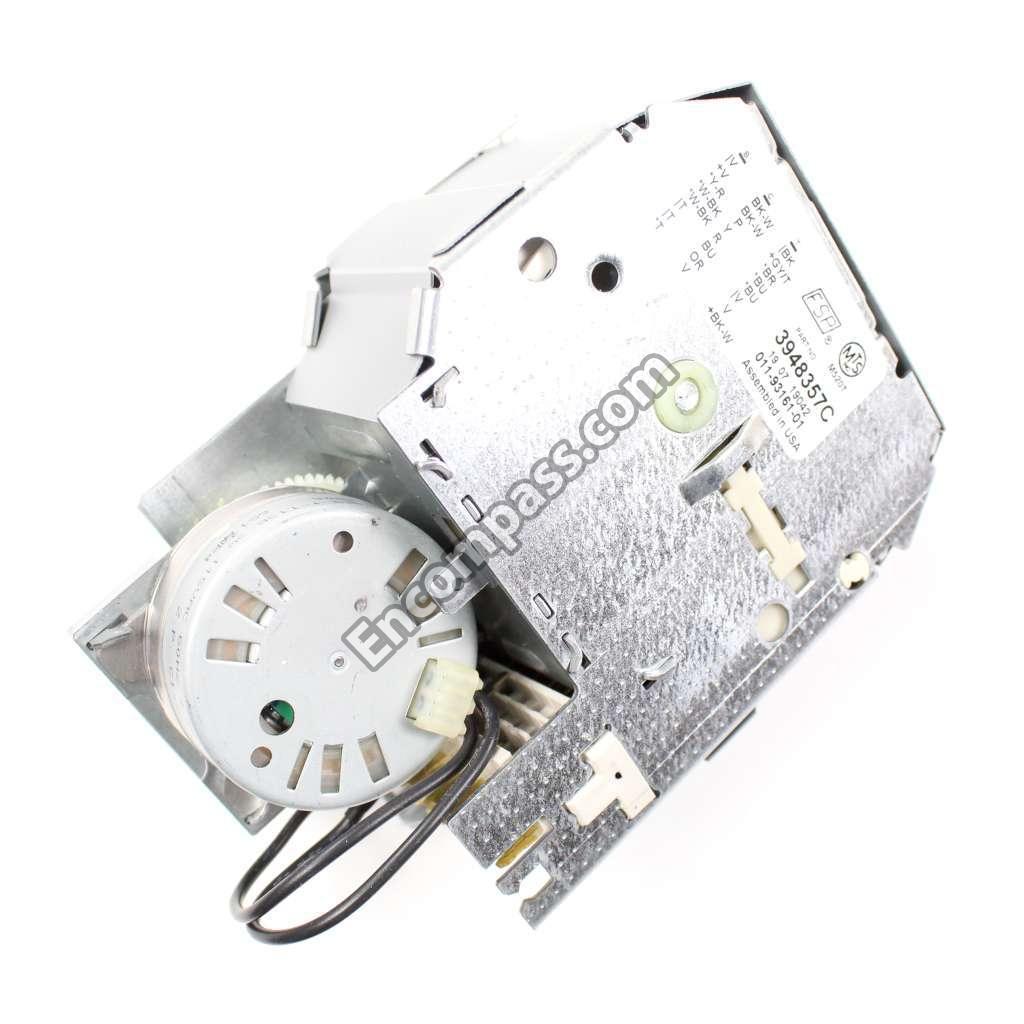

WP3948357 WP3948357 TIMER, WASHER
3349799 3349799 TOP, CONSOLE (ALMOND)
3349798 3349798 TOP, CONSOLE (WHITE)
3389537 3389537 TOP, DRYER
WPW10512946 WPW10512946 TRI-RING (4)
WP3349292 WP3349292 TUB
WP64208 WP64208 TUBE-SPIN
3349343 3349343 TV STAND ASSEMBLY (INCLUDES ILLUS. 6, 7, 18 & 26)
279889 279889 VALVE
285805 285805 VALVE
697441 697441 VALVE, SHUTOFF
WP388815 WP388815 WASHER
285620 285620 WASHER
WPW10121334 WPW10121334 WASHER
3349340 3349340 WASHER (2)
285766 285766 WASHER KIT, THRUST
62618 62618 WASHER, CAM THRUST
WP16123 WP16123 WASHER, INLET HOSE (1-1/16 X 5/8)(4)
WP63292 WP63292 WASHER, SPIN TUBE THRUST
W11236646 W11236646 WASHER, SUPPORT
62619 62619 WASHER, WASHER AGITATOR GEAR
WP697772 WP697772 WHEEL, BLOWER
3394081 3394081 WIRE, BROKEN BELT SWITCH
3398948 3398948 WIRE, JUMPER
Main Menu x
