Model Image
Manufacturer

Whirlpool

Model Number

MAH4000BWW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
22002086 22002086 ADJUSTER, BELT TENSION
22004264 22004264 ASSY., TUB COVER & SEAL
WP22003718 WP22003718 AXLE- LATC
22001985 22001985 BAFFLE- DR
22001986 22001986 BAFFLE- DR
22003265 22003265 BAG, PLASTIC W/DRAWSTRING
22003605 22003605 BASE WELD ASSEMBLY
22002282 22002282 BEZEL TIM
WP22002290 WP22002290 BEZEL, DISPENSER (WHT)
22003615 22003615 BOLT
22003616 22003616 BOLT, DOUBLE SEMS 3-3\8
22003686 22003686 BOLT, MOTOR
22003320 22003320 BOTTOM DI
22003637 22003637 BRACE ASSEMBLY, TOP CROSS
22002767 22002767 BRACE, CROSS
WP22003067 WP22003067 BRACKET
33002212 33002212 BRACKET W
22003548 22003548 BRACKET, MTG. (SR MOTOR CTL)
22004472 22004472 BRACKET- L
22002433 22002433 BULB HOLDER ASSEMBLY
22001788 22001788 BUTTON SW
22003012 22003012 BUTTON, PUSH TO START (WHT)
22001789 22001789 BUTTON, SWITCH (WHT-MDL)
22003639 22003639 CABINET ASSEMBLY. (WHT AS PK)
22002164 22002164 CABLE DOO
WP22001948 WP22001948 CAMERA LENS- INDI
22002796 22002796 CAP
WP22002266 WP22002266 CAP, SIPHON
WP489503 WP489503 CLAMP
WP22002327 WP22002327 CLAMP
WP696392 WP696392 CLAMP
WP616099 WP616099 CLAMP
WP285655 WP285655 CLAMP
WP596669 WP596669 CLAMP
WP308605 WP308605 CLAMP
WP22002049 WP22002049 CLIP
22002006 22002006 CLIP
22002038 22002038 CLIP DOOR
22002932 22002932 CLIP DRAI
22002244 22002244 CLIP GROU
22002797 22002797 CLIP HOSE
22002103 22002103 CLIP U
WP22002039 WP22002039 CLIP, DOOR (SINGLE)
WP22002239 WP22002239 CLIP- LOWE
WP22002050 WP22002050 CLIP- TUB
27001110 27001110 CONSOLE (WHT)
22002529 22002529 CONSOLE BACK PANEL
WP22004046 WP22004046 CONTROL BOARD
WP22002989 WP22002989 CONTROL BOARD
WP22003062 WP22003062 CORD- POWE
12001994 12001994 COVER
22002434 22002434 COVER, BULB
22002704 22002704 COVER, DRAIN HOSE
WP22003212 WP22003212 COVER, TUB (W/SEAL) (ASP)
22002116 22002116 COVER- TOP
WP22002265 WP22002265 CUP- SIPHO
22003225 22003225 CUSHION
12002533 12002533 DOOR BOOT W/DRAIN (GRAY)
22003083 22003083 DOOR-INNER
WP22004477 WP22004477 DRAIN HOSE
WP8563585 WP8563585 FOOT
22002579 22002579 FRONT WEIGHT BRACKET
WPY013783 WPY013783 GASKET- IN
WP22002123 WP22002123 GREASE
22003321 22003321 GRID, DISPENSER
WP22003075 WP22003075 GROMMET
211881 211881 GROMMET C
22001999 22001999 GROMMET, BAFFLE (FRT)
22002009 22002009 GROMMET, BAFFLE (REAR)
22003343 22003343 GUIDE, ENERGY
22003726 22003726 HARNESS M
WP22002798 WP22002798 HINGE- DOO
WP22004095 WP22004095 HINGE- PLA
33002597 33002597 HOOK, SECURITY
22003222 22003222 HOOP-LOCK
22003457 22003457 HOSE ,DETERGENT
22002551 22002551 HOSE BLEA
22003259 22003259 HOSE SHOW
22002552 22002552 HOSE, FABRIC SOFTENER----NA
22002296 22002296 HOSE, INJECTOR
WP22002010 WP22002010 HOSE- AIR
WP22002083 WP22002083 HOSE- INJE
WP22003262 WP22003262 HOSE- TUB
202860 202860 INLET HOSE
22003800 22003800 INNER DOOR
22002293 22002293 INSULATION, CABINET
22002305 22002305 INSULATION, FRONT PANEL
WP22003329 WP22003329 ISOLATOR
12001807 12001807 KIT NC, DRAIN HOSE REPLACEMENT
12001788 12001788 KIT, BELT & ISOLATOR--W
12002022 12002022 KIT-SEAL
22002444 22002444 LABEL, ENERGY
22002445 22002445 LABEL, SAFETY
25001192 25001192 LAUNDERING TIPS (TRILINGUAL)
WP22004481 WP22004481 LID
WP22002263 WP22002263 LIGHT BULB
WP903115 WP903115 LIGHT-IND
WP22002281 WP22002281 LIGHT-IND
WP74007164 WP74007164 LOCK- PURS
22004212 22004212 MOTOR HARNESS
WP22003856 WP22003856 MOTOR, VARIABLE SPEED
12002039 12002039 MOTOR-DRIVEE
WP22002119 WP22002119 MOTOR-WAX
WP2207454 WP2207454 NUT
WP62739 WP62739 NUT
22002065 22002065 NUT COUNT
22003720 22003720 NUT, DOOR LATCH
22004465 22004465 OUTER TUB
WP210684 WP210684 PAD
22002260 22002260 PANEL DOO
22002092 22002092 PANEL, ACCESS
22002785 22002785 PANEL, CONTROL
22002836 22002836 PANEL, FRONT (WHT)
WPY912679 WPY912679 PIN- HINGE
WP6-912678 WP6-912678 PIN- HINGE
22002094 22002094 PLATE
WP22003261 WP22003261 PLUG- OUTE
22003727 22003727 PRESSURE S
22002315 22002315 PULLEY, SPINNER
25001012 25001012 PUMP ISOLATOR BRACKET
WP25001052 WP25001052 PUMP-ASM
22004355 22004355 REAR ACCESS PANEL
WP22002892 WP22002892 RETAINER
WP22003298 WP22003298 RETAINER
22001981 22001981 RING, RETAINING
WP22004108 WP22004108 RING-O
WP22003716 WP22003716 ROTATING GEAR, DOOR LATCH
WP22002059 WP22002059 SCREW
WP22003556 WP22003556 SCREW
WP22003937 WP22003937 SCREW
910187 910187 SCREW
WP9740848 WP9740848 SCREW
WP1163839 WP1163839 SCREW
WP33001787 WP33001787 SCREW
WP241877 WP241877 SCREW
WP22002012 WP22002012 SCREW
WP22002063 WP22002063 SCREW
WP98006631 WP98006631 SCREW
8534058 8534058 SCREW
WP67006908 WP67006908 SCREW
WP489128 WP489128 SCREW
W11573574 W11573574 SCREW
WP90767 WP90767 SCREW
22002436 22002436 SCREW
W10850756 W10850756 SCREW
22002007 22002007 SCREW
WP400021-1 WP400021-1 SCREW
22001352 22001352 SCREW CHE
22003719 22003719 SCREW LAT
213007 213007 SCREW, CABINET
22003484 22003484 SCRIPT, U & C VIDEO (SPN)
22004082 22004082 SEAL INSERTION TOOL
22004428 22004428 SEAL- EXPO
WP22002077 WP22002077 SEAL-TUB
WP22001817 WP22001817 SHEET- SOU
WP22003074 WP22003074 SHIELD
22004256 22004256 SHIELD
22002234 22002234 SHROUD PL
WP22003715 WP22003715 SLIDING GE
22002022 22002022 SPACER AC
22001997 22001997 SPACER TO
22002100 22002100 SPRING
22002158 22002158 SPRING GE
22002356 22002356 SPRING PL
22003721 22003721 SPRING, AXLE / DOOR LATCH
22002003 22002003 SPRING, DOOR LATCH
22003717 22003717 SPRING- LA
WP22002099 WP22002099 SPRING- TU
22002013 22002013 STOP, SHIPPING
WP22002960 WP22002960 STRAINER-
22002008 22002008 STRAP
33001836 33001836 STRAP TOP
22002076 22002076 STRAP, DRAIN HOSE
W10859556 W10859556 STRIKE
WP22001988 WP22001988 STRUT ASSEMBLY-REAR
WP22003710 WP22003710 SUMP CAP W/ LABYRINTH FEATURE
W10181639 W10181639 SUPPORT
22003652 22003652 SUPPORT
22002015 22002015 SUPPORT, DOOR LOCK
22002168 22002168 SUPPORT- L
WP22002297 WP22002297 SUPPORT- S
WP22002044 WP22002044 SWITCH
22002268 22002268 SWITCH 4
WP22003302 WP22003302 SWITCH, INERTIAL - UNBALANCE

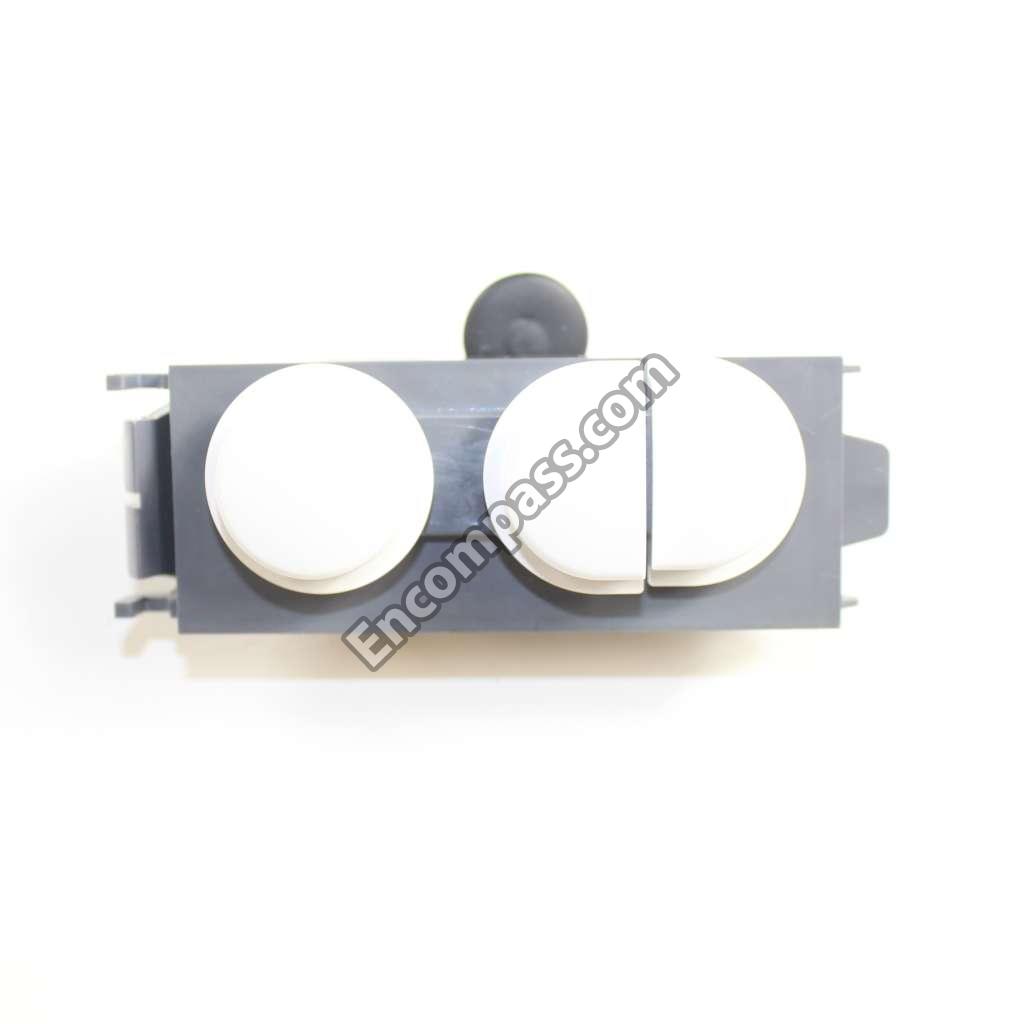

22002278 22002278 SWITCH, OPTIONS (WHT)
WP22002162 WP22002162 SWITCH-DOR
WP22002787 WP22002787 SWITCH-PB
8539404 8539404 TIE, CABLE
WP22002867 WP22002867 TIMER
WP22001659 WP22001659 TIMER KNOB
WP22001664 WP22001664 TIMER KNOB
22003322 22003322 TOP DISPENSER
WP22003850 WP22003850 TUBE-VENT
WP22002795 WP22002795 VALVE- WAT
WP22003908 WP22003908 VAPOR BARRIER
22002899 22002899 VIDEO
WP22003936 WP22003936 WASHER
22002165 22002165 WASHER DO
22002067 22002067 WASHER, COUNTER BALANCE
22002482 22002482 WASHER, PROFILE
22002020 22002020 WASHER, SPINNER SUPPORT
WP22002023 WP22002023 WASHER- PL
22004310 22004310 WATER DEFLECTOR
22002102 22002102 WEIGHT CO
22002471 22002471 WIRE HARNE
12001798 12001798 WIRE HARNESS, UNBALANCE /COMM
22002583 22002583 WIRE WRAP
22002104 22002104 WIREFRAME
