Manufacturer

Whirlpool

Model Number

MCE8000AZW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
31001623 31001623 AIR DUCT, RETURN
53-1249 53-1249 BAFFLE, WHITE
31001594 31001594 BAND BELL
31001586 31001586 BASE ASSEM
31001657 31001657 BAYONET R
341241 341241 BELT, DRIVE
WP53-1518 WP53-1518 BLOCK, TERMINAL
31001627 31001627 BLOWER ASSEMBLY
31001622 31001622 BOOT SHAK
31001684 31001684 BOTTLE, RESERVOIR WATER
31001576 31001576 BRACE COR
WP53-1625 WP53-1625 BRACE, TUMBLER SUPPORT
31001607 31001607 BRACKET S
31001570 31001570 BRACKET- M
WP31001575 WP31001575 BULB, CYLINDER LIGHT
31001581 31001581 BULKHEAD WITH SEAL
33-2653 33-2653 BUMPER, CABINET
31001573 31001573 CABINET L
31001614 31001614 CABINET U
31001585 31001585 CAMERA LENS, CYLINDER LIGHT
31001759 31001759 CAP- SHELF
WP660658 WP660658 CLAMP
WP312967 WP312967 CLAMP
WP25-7854 WP25-7854 CLIP
25-7430 25-7430 CLIP
16515 16515 CLIP
22002038 22002038 CLIP DOOR
31001659 31001659 CLIP RETA
31001643 31001643 CLIP TRIM
31001572 31001572 CLIP VENT
WP22002039 WP22002039 CLIP, DOOR (SINGLE)
WP53-0120 WP53-0120 CLIP- FRON
31001733 31001733 CLIP- SWIT
31001658 31001658 CONSOLE W/MEMBRANE PAD (WHT)
WP53-4643 WP53-4643 CONTROL BOARD
31001641 31001641 COVER HIN
31001760 31001760 COVER RET
31001619 31001619 COVER TOP
53-1934 53-1934 COVER, BLOWER HOUSING
31001671 31001671 COVER, HINGE RETAINER (WHT)
53-0284 53-0284 COVER, TERMINAL
31001788 31001788 CUP-RETURN DUCT
53-1250 53-1250 CYLINDER
31001565 31001565 DOOR DOOR LATCH ASSEMBLY (UPPER)
LA-1003 LA-1003 DOOR LATCH
31001656 31001656 DOOR OUTE
31001654 31001654 DOOR, INNER RESERVOIR
31001635 31001635 DUCT COLL
53-0134 53-0134 DUCT EXHA
31001787 31001787 DUCT-AIR RETURN
31001681 31001681 FILTER FRAME ASSEMBLY
WP31001640 WP31001640 FILTER- LI
WP25001119 WP25001119 FOOT PAD
31001608 31001608 FRONT BEL
31001706 31001706 FRONT PANE
WP31001690 WP31001690 FUSE, THERMAL (1 SHOT)
WP31001469 WP31001469 GLIDE
WP31001470 WP31001470 GLIDE
31001511 31001511 GUIDE ENE
53-4537 53-4537 GUIDE, TROUBLE SHOOTING
53-4603 53-4603 GUIDE, TROUBLE SHOOTING
53-4240 53-4240 GUIDE, USER DVD
53-1026 53-1026 GUIDE, VANE INLET
31001727 31001727 HANGER PACKAGE (2/SM, 1/LG)
31001680 31001680 HANGER, EXTERNAL RACK
31001761 31001761 HARNESS U
31001664 31001664 HARNESS U
31001662 31001662 HARNESS U
31001692 31001692 HARNESS, MAIN POWER
31001638 31001638 HARNESS, SENSOR BAR
31001746 31001746 HEATER ELEMENT & BRACKET
31001587 31001587 HEATER HOUSING ASSEMBLY
31001666 31001666 HEATER/STEAMER
63-5712 63-5712 HINGE CAB
31001616 31001616 HINGE CABI
31001617 31001617 HINGE CABI
31001653 31001653 HINGE DOO
31001670 31001670 HOOK DOOR
31001717 31001717 HOSE 12
31001719 31001719 HOSE 15
31001718 31001718 HOSE 85
31001631 31001631 HOSE RESE
31001632 31001632 HOSE VALV
31001604 31001604 HOT AIR DUCT ASSEMBLY
53-1801 53-1801 HOUSING, BLOWER
WP31001710 WP31001710 IDLER ARM
31001645 31001645 INNER DOOR, LOWER
WP22002263 WP22002263 LIGHT BULB
31001595 31001595 LINER
31001767 31001767 LINER- FRO
33001425 33001425 LOCKNUT, EARED FOR CANADIAN

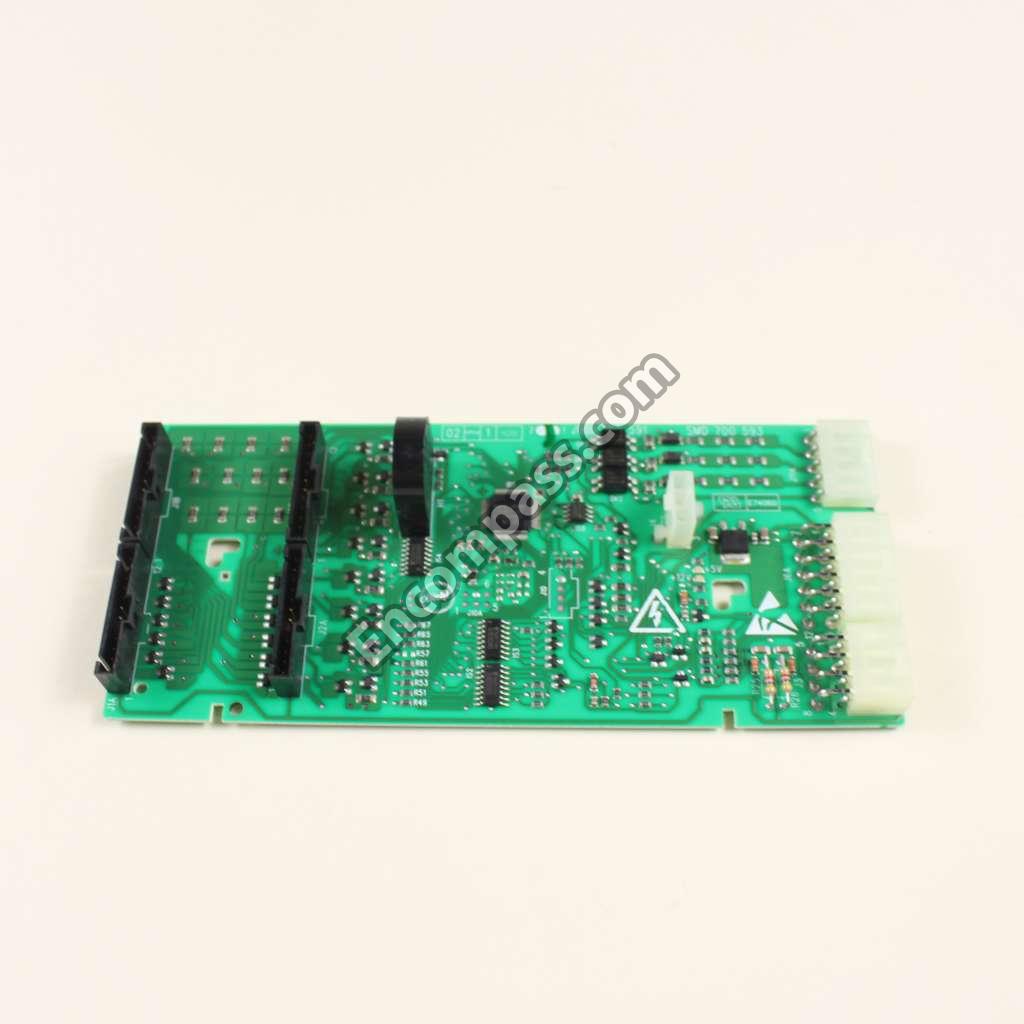

WP31001562 WP31001562 LOGIC BOARD (CONTROL)
W10410996 W10410996 MOTOR-DRIV
WPW10131078 WPW10131078 NUT
2206670 2206670 OWNERS MAN
53-4241 53-4241 OWNERS MAN
35-4128 35-4128 PAD HINGE
WP31001356 WP31001356 PAD-GLIDE
31001650 31001650 PANEL, OUTER DOOR (WHT)
31001789 31001789 PLATE-RETURN DUCT COVER
31001606 31001606 PLENUM
31001648 31001648 PLUG
21001829 21001829 POST LOCA
33002916 33002916 POWER CORD
WP31001535 WP31001535 PULLEY- MO
31001579 31001579 RECEPTACLE ASM, CLYINDER LIGHT
12002336 12002336 RETURN DUC
12002648 12002648 RETURN DUC
WP25-7855 WP25-7855 RING, RETAINING
31001602 31001602 ROD SHELF
WP31001096 WP31001096 ROLLER
WP22002063 WP22002063 SCREW
415013-35 415013-35 SCREW
WP3196164 WP3196164 SCREW
WP3351614 WP3351614 SCREW
WP3400074 WP3400074 SCREW
WP681414 WP681414 SCREW
WP489478 WP489478 SCREW
WP90767 WP90767 SCREW
3400826 3400826 SCREW
31001705 31001705 SCREW
WP98006631 WP98006631 SCREW
WP12990527 WP12990527 SCREW
313806 313806 SCREW
WP3400806 WP3400806 SCREW
WP3196557 WP3196557 SCREW
31001600 31001600 SCREW #6
31001571 31001571 SCREW 10
25-7819 25-7819 SCREW NO.8-18X1/2 PAN HD
W10080400 W10080400 SCREW, 8-18 X 1/2
31001541 31001541 SEAL
53-0204 53-0204 SEAL
WP31001637 WP31001637 SEAL ASM
WP31001747 WP31001747 SEAL ASM
31001765 31001765 SEAL DOOR
31001677 31001677 SEAL DOOR
31001764 31001764 SEAL, DOOR (RT)
31001618 31001618 SEAL, DOOR PERIMETER
31001652 31001652 SEAL- DOOR
33001809 33001809 SENSOR BAR ASSEMBLY.
31001702 31001702 SHAKER ASSEMBLY
31001679 31001679 SHELF ASSEMBLY
WP31001583 WP31001583 SPACER
31001644 31001644 SPACER DO
31001611 31001611 SPACER FR
31001465 31001465 SPRING, ID
31001621 31001621 STRAP SHA
53-0965 53-0965 STRAP, GROUND
31001646 31001646 STRIKE BRA
31001673 31001673 STRIKER- L
WP53-0197 WP53-0197 SUPPORT
LA-1006 LA-1006 SUPPORT
31001613 31001613 SUPPORT C
31001612 31001612 SUPPORT, CABINET (LT)
16022785 16022785 SVC MAN, DOM DRYING CENTR G/E
WP53-0148 WP53-0148 SWITCH, DOOR
31001720 31001720 TCONNECTO
WP31001590 WP31001590 THERMISTOR
31001716 31001716 THERMISTOR
WP31001689 WP31001689 THERMOSTAT
31001630 31001630 THERMOSTAT
31001609 31001609 TIE BAR S
31001596 31001596 TOP FRONT
31001642 31001642 TRIM RESE
31001667 31001667 UPPER DOOR
31001674 31001674 UPPER DOOR ASM (RT-WHT)
31001563 31001563 VALVE
31001687 31001687 VENT RESE
WP25-7814 WP25-7814 WASHER
31001569 31001569 WASHER 1
W11497304 W11497304 WHEEL- BLO
31001628 31001628 WIRE, HEATER JUMPER
31001691 31001691 WIRE, HEATER JUMPER
15003314 15003314 WIRING INFORMATION (ELEC)
